VIISAN P2U User manual
Model No. P2U
2-in-1 Document Camera & Webcam
Quick Start Guide
Get 24/7 Assistance
Use a camera or QR scanner to scan
Or Visit at https://viisan.afterservice.vip
Before Use
Thank you for purchasing the VIISAN product. The P2U is a 2-in-1
Document Camera & Webcam designed for remote learning and live
demonstration. This quick start guide briefly describes how to use this
product. If you have any technical or service questions about the product,
will provide you with service and support.

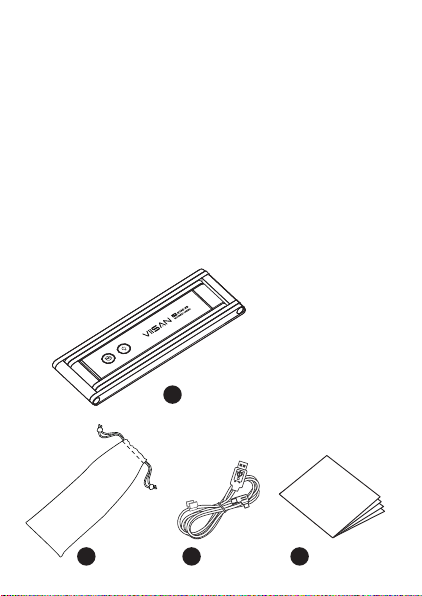

What’s In The Box?
NOTE: When unpacking the product, please check if the product and
accessories are intact carefully. If there is anything missing or damaged,
1
42 3
P2U Document Camera & WebCam
Carry Bag USB Cable Quick Start Guide
1

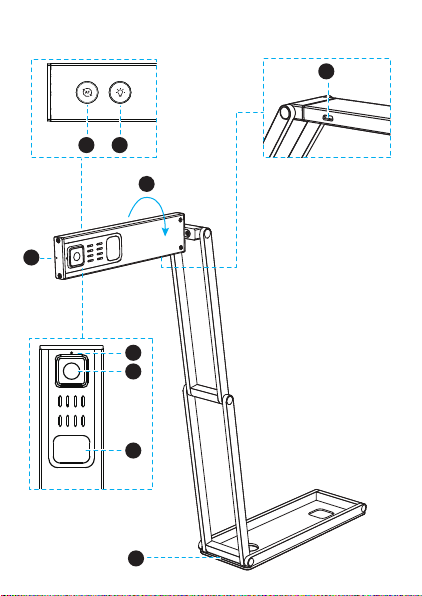

Parts Descriptions
1 2
3
4
5
6
7
8
1. Autofocus / Flip Button
Press once: Autofocus
Press and hold: Flip Image 0/180°
2. LED Light Button
Press to turn on the LED light
(3-level brightness control)
3. Micro USB Port
4. Power LED Indicator
5. Flip Camera Head 0 / 180°
6. Microphone
7. AF Lens
8. LED Light
9. Base Plate
9
2
Getting Started
1. Push a finger through an opening at the base of the device to lifting the
camera arm.
2. Press against the base plate of camera and pull it up then flip the camera head.
3. Adjust the arm to change the height and position for capturing your materials.
Fully extend the camera arm to capture the maximum shooting area of A3.
Minimum shooting distance 10cm
A3
Area 10cm
3
Connection Settings
VIISAN VisualCam
https://www.viisan.com/en/download/type4.html
The P2U is a standard UVC camera, you can use it with a variety of software
as long as they recognize the video source coming from a UVC camera. For
example, you can use it with third-party video conferencing software like
Zoom, Microsoft Teams, or Google Meet. However, to get the full functional-
ity of this Document Camera, we’d recommend using it with VIISAN
VisualCam software and you can download this free software from VIISAN’s
support center at the below link.

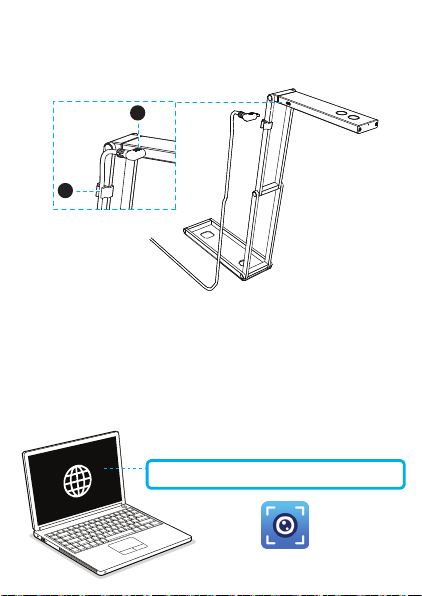

Using the compatible software
1. Plug the supplied USB cable to the camera and connect another end into
the comptuer’s USB port (PC, Mac or Chromebook).
2. Attach the cable organizer to the camera arm.
1
2
Download the compatible software & user manual at
4
Specifications
Image Sensor 5.0-Megapixel 1/4" CMOS
F/NO (Infinite) 2.0
Max. Shooting Area 410 x 308mm
Max. Output Resolution 5.0MP (2592 x 1944)
Output Resolution / FPS MJPEG:
2592x1944@30fps, 2560x1440@30fps
1600x1200@30fps, 1920x1080@30fps
1280x720@30fps, 1024x768@30fps
960x540@30fps, 640x480@30fps
640x360@30fps
YUY2:
1280x720@10fps, 1024x768@15fps
960x540@15fps , 640x480@30fps
640x360@30fps
Video Format MJPG / YUY2
Focus Auto / Manual
Lamp LED
Image Rotation 0° / 180°
Power Frequency 50 / 60 Hz
Connectivity USB 2.0
Microphone Built-in Omnidirectional Microphone
Powered By USB (5V/500mA)
Protocol UVC / UAC Compliant
Support OS (UVC) Windows, macOS, Chrome OS
Dimensions (L x W x H) Extended: 393x66x346mm / 15×2.5×7.6 inch
Closed: 195x66x13mm / 7.6×2.5×0.5 inch
Net Weight 430g / 1.05lbs
NOTE: Specifications are subject to change without notice
5
Federal Communications Commission
Statement (Class B)
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. This equipment
has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
・ Reorient or relocate the receiving antenna.
・ Increase the separation between the equipment and receiver.
・ Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
・ Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party
responsible for compliance could void the authority to operate the
equipment.
Authentication
6
CE Class B (EMC)
This product is herewith confirmed to comply with the requirements set out
in the Council Directives on the Approximation of the laws of the Member
States relating to Electromagnetic Compatibility Directive 2014/30/EU.
Product Disposal
This symbol on a product or on its packaging indicates that the product
must not be disposed of with other household waste. Instead, it is your
responsibility to ensure disposal of waste equipment by handing it over to a
designated collection point for the recycling of waste electrical and
electronic equipment usually at a Local Amenity Site. The proper recycling
of your waste equipment at the time of disposal will help to conserve natural
resources and ensure that it is recycled in a manner that protects human
health and the environment.
7
Warranty Information
1. Warranty Period.
This product is warranted to be free from defects in materials and workman-
ship for a period of (1) ONE YEAR from the date of original purchase.
2. The following circumstances SHALL NOT be covered by
the Warranty.
・Product damage caused by catastrophes, thunder stroke, faulty electric
power, and environmental factors.
・Defacing of product labeling (label alterations and falsifying, serial
number missing, serial number no longer discernible, serial number
invalid). Please note that all serial numbers are recorded and tracked for
warranty purposes.
・Unauthorized changes of non-parts, modifications or alterations, parts
removal in or to the products.
・Damage caused by operator error or operator fails to comply with the
instructions described in the user manual , including but not limited to
improper storage resulting in the product getting wet, corrosion, being
squeezed or exposed to inadequate temperature or humid environment.
・Accessories or packing materials such as boxes, user manual, etc.
8
Contact Us
If you encounter any problems when using the product, please feel free to
contact us through the following methods or scan the QR code to get a quick
response and a satisfactory solution.
Amazon Platform: “Contact Seller”
Official Website: www.viisan.com/en
9
Name:
Address:
Date of purchase:
Email:
This product provides limited warranty continues for one (1) year from the
date of purchase.
WARRANTY CARD
Model No.: P2U
Product S/N:
Reseller Info.:
10
EN V1.2
