Viking Range 3 Series User manual

Installation
GUIDE
5 SERIES
VDWU524SS
VDWU524WSSS
FDWU524WS
FDWU524
3 SERIES
VDWU324SS
FDWU324
7 SERIES
VDWU724SS
FDWU724

INTRODUCTION ___________________________________________________________ 3
1. IMPORTANT SAFETY INSTRUCTIONS ______________________________________ 3
1.1 INSPECT THE DISHWASHER _____________________________________________ 4
2. TOOLS WHICH MAY BE NEEDED __________________________________________ 5
3. MATERIALS WHICH MAY BE NEEDED ______________________________________ 6
4. MATERIALS SUPPLIED___________________________________________________ 6
4.1 PARTS SUPPLIED ______________________________________________________ 6
4.2 MANUAL BAG __________________________________________________________ 6
4.3 DISHWASHER PARTS BAG 1 _____________________________________________ 6
4.4 DISHWASHER PARTS BAG 2 _____________________________________________ 6
4.5 PARTS ATTACHED TO THE REAR OF THE DISHWASHER______________________ 6
5. DISHWASHER SPECIFICATIONS ___________________________________________ 7
5.1 TECHNICAL FEATURES _________________________________________________ 7
6. ENCLOSURE PREPARATION ______________________________________________ 8
6.1 FOAM RUBBER INSTALLATION ___________________________________________ 8
6.2 ELECTRICAL PREPARATION _____________________________________________ 8

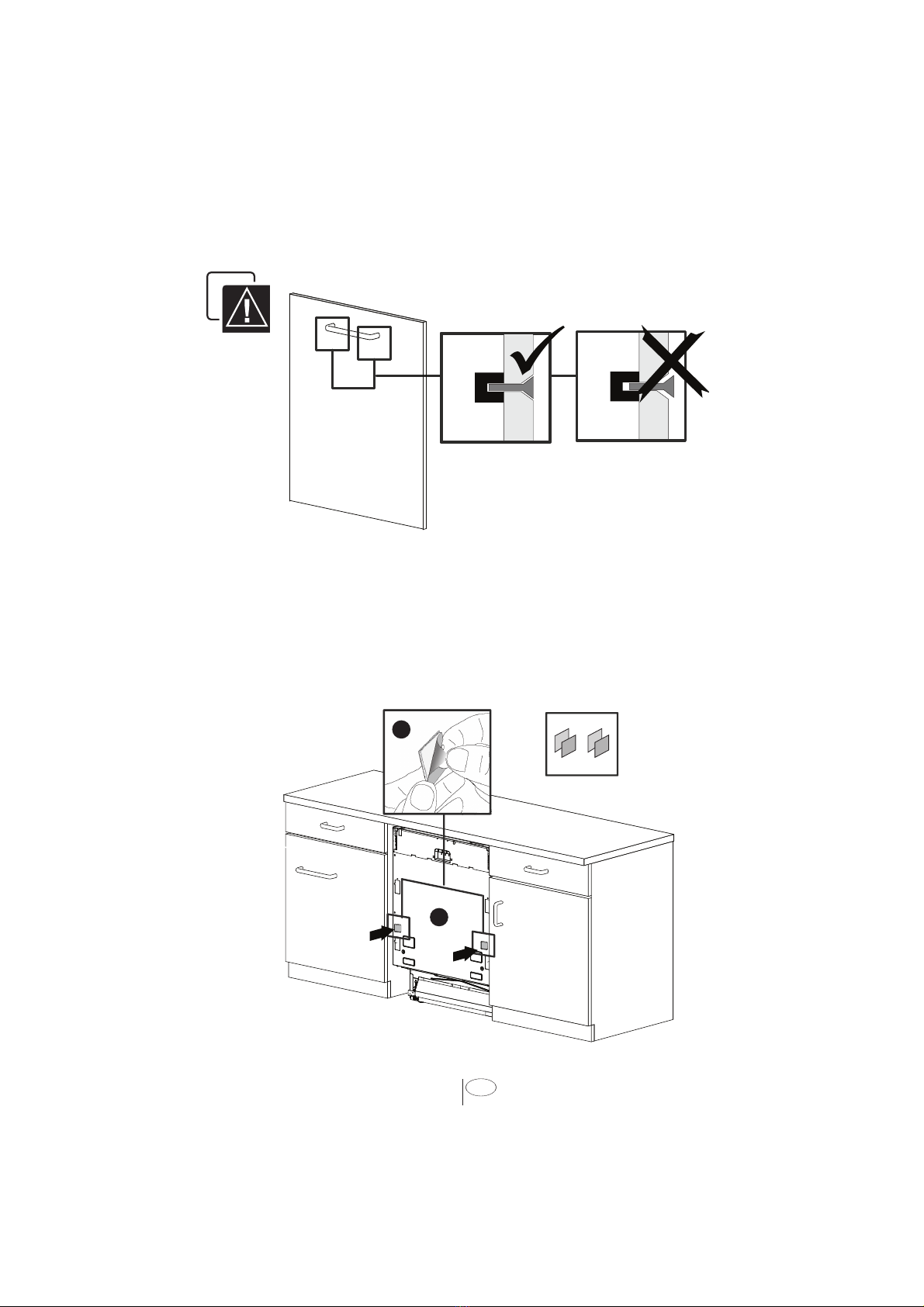

6.3 STEAM PROTECTIVE FOIL _______________________________________________ 9
6.4 INSTALLING THE SIDE PLUGS ____________________________________________ 10
6.5 INSTALLING THE SIDE TRIM______________________________________________ 10
7. CONNECTING THE WATER LINES__________________________________________ 11
7.1 PREPARING THE WATER CONNECTION____________________________________ 11
7.2 WATER CONNECTION___________________________________________________ 11
7.3 ADJUSTING THE HEIGHT ________________________________________________ 12
7.4 PLACEMENT OF DISHWASHER INTO OPENING _____________________________ 12
8. PREPARING THE CUSTOM DOOR__________________________________________ 13
8.1 INSTALLING THE CUSTOM DOOR _________________________________________ 15
9. SECURING TO THE CABINETRY ___________________________________________ 16
9.1 RE-ADJUSTING THE KICKPLATE __________________________________________ 16
9.2 SECURING WITH MOUNTING BRACKETS __________________________________ 16

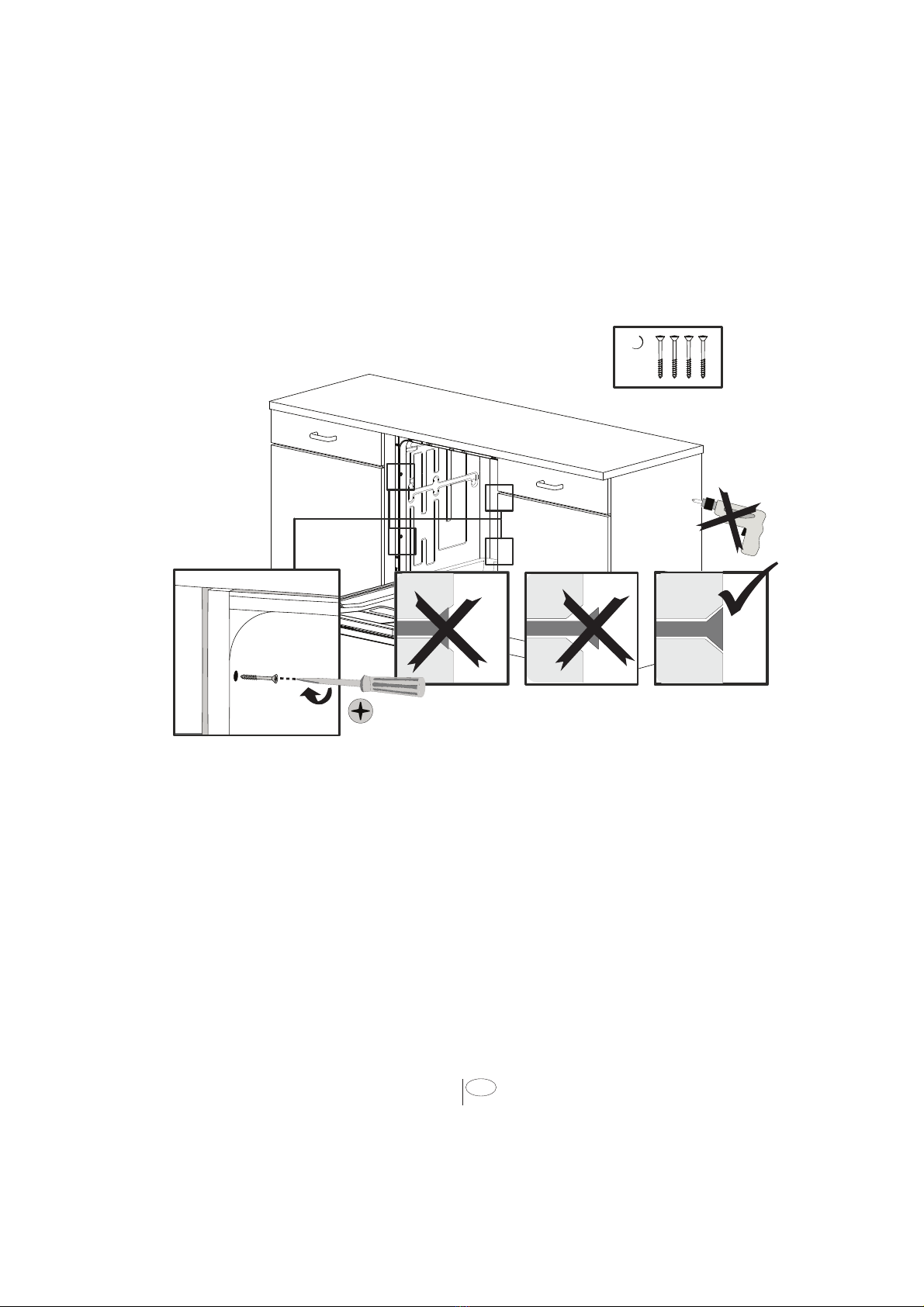

9.3 SECURING TO THE CABINET_____________________________________________ 17
10. DRAIN HOSE CONNECTION, WATER SUPPLY & ELECTRICAL _________________ 18

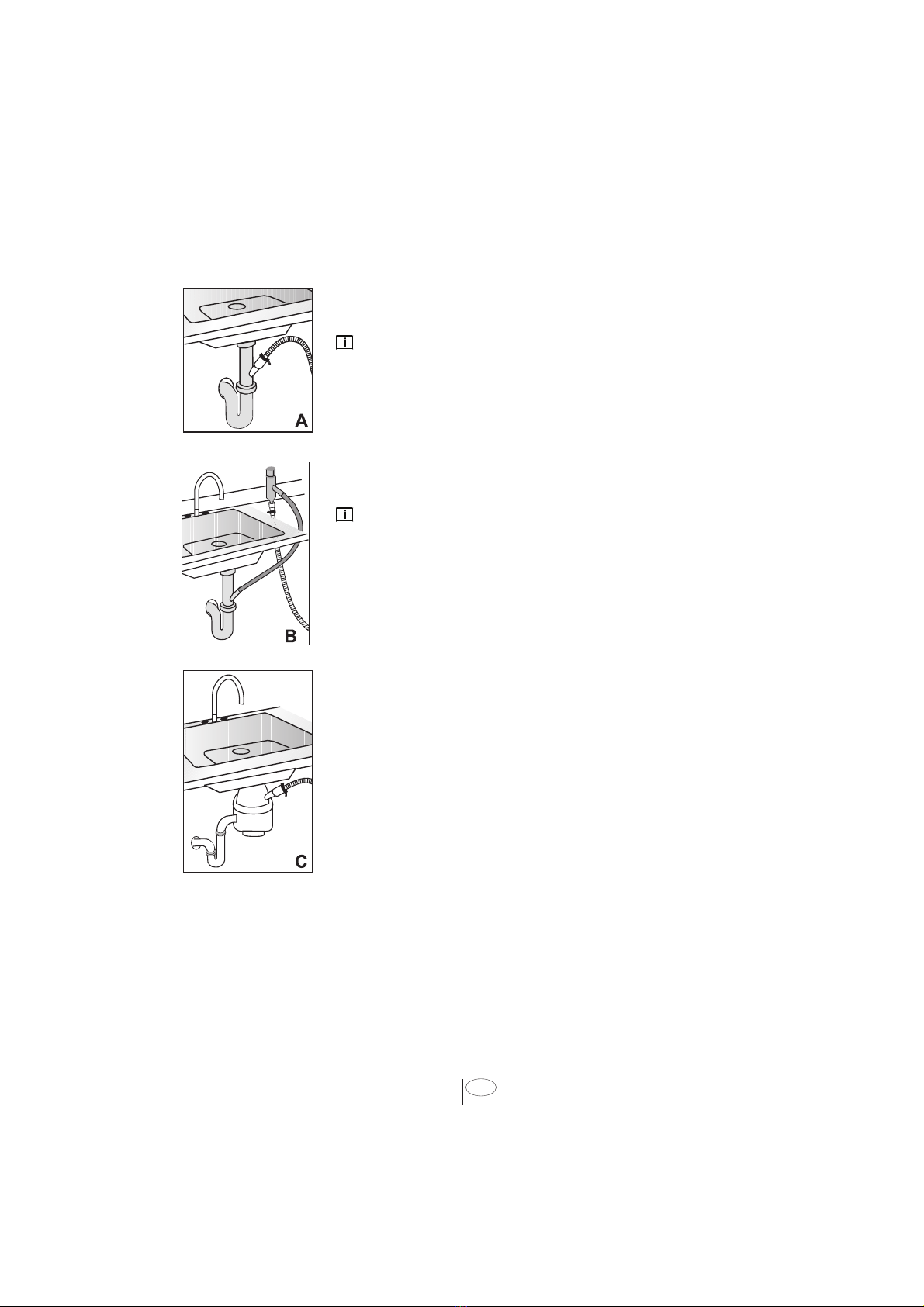

10.1 DRAIN HOSE CONNECTION _____________________________________________ 18
10.2 DRAIN PREPARATION __________________________________________________ 18
10.3 DRAIN INSTALLATION __________________________________________________ 19
10.4 WATER LINE CONNECTION _____________________________________________ 20
10.5 ELECTRICAL CONNECTION _____________________________________________ 20
11. FINAL INSTALLATION __________________________________________________ 22
11.1 INSTALLING THE TOE KICK INSULATION AND TOE KICK _____________________ 22
12. INSTALLER CHECKLIST ________________________________________________ 24
13. TROUBLESHOOTING ___________________________________________________ 25
14. SERVICE INFORMATION ________________________________________________ 26
2USA

3USA
To prevent accidents, which could
cause serious injury or death, as
well as machine damage read these
instructions before installation and / or
use.
INTRODUCTION
Please read this installation manual
and particularly the safety instructions
completely and carefully. They will save you
time and effort and help to ensure optimum
dishwasher performance.
Be sure to observe all listed warnings and
cautions. Look particularly for the icons with
exclamation marks inside. The information
icon also will provide important references.
WARNING:
Indicates a potentially hazardous situation
which, if not avoided, could result in death
or serious injury.
CAUTION:
Indicates a potentially hazardous situation
which, if not avoided, may result in injury.
It may also be used to alert against unsafe
practices.
NOTICE:
Indicates a potentially hazardous situation
which, if not avoided, may result in damage
to the dishwasher, the table-ware, the
equipment or the environment.
1. IMPORTANT SAFETY
INSTRUCTIONS
In addition to these instructions, the
dishwasher shall be installed:
• In accordance with all local codes or, in
absence of a local code,
• In the United States, with the National
Electric Code,
• In Canada, with the Canadian Electric
Code C22.1-latestedition/Provincial and
Municipal codes and/or local codes.
NOTICE :
Read these installation instructions
completely before installing and follow
them carefully. Save these installation
instructions and pass them on to any future
user.
WARNING
When installing the dishwasher, follow
basic precautions, including the
following:
• The dishwasher could only be converted
from cord-connected to permanently
connected by an authorized service
representative. (If needed contact your
dealer to schedule an authorized service
agent for conversion with an appropriate
conversion kit)
• Installation and repair should be
performed by a qualified installer.
Work by unqualified persons could be
dangerous and may void the warranty.
NOTICE :
The dishwasher should be installed by
an insured licensed plumber, contractor
or trained installer. Installation performed
by persons other than this could result in
improper installation and property damage.
• Do not operate the appliance if damaged,
malfunctioning, partially disassembled or
if it has missing or broken parts.
• Also follow the safety instructions of the
user manual.
• To reduce the risk of electric shock, fire,
or injury to persons, the installer must
ensure that the dishwasher is completely
enclosed at the time of installation.
• Only connect the dishwasher to the
power supply when all installation and
plumbing work is complete.
• If the dishwasher is installed in a location
that experiences freezing temperatures
(e.g. in a vacation home, cabin, etc.),
you mustdrain all the water from the
dishwasher’s interior. Water system
ruptures that occur as a result of freezing
are not covered by warranty.

4USA
• Dishwasher mustbe secured to adjacent
cabinetry using the brackets provided.
Failure to do this may cause damage to
property or bodily injury.
• Connect to a properly rated, protected
and sized power supply circuit to avoid
electrical overload. The dishwasher is
designed for an electrical supply of 120 V
(volts), 60 Hz (hertz), AC, connected to a
dishwasher-dedicated, properly grounded
electrical circuit with a fuse or breakers
rated for 15 amperes. Electrical supply
conductors shall be a minimum of # 16
AWG copper wire rated at 75 °C (167
°F) or higher. These requirements must
be met to prevent injury and machine
damage. Consult a qualified electrician if
in doubt.
• Do not use any extension cord or
portable outlet device to connect the
dishwasher to a power supply.
• Ensure that any plastic wrappings, bags,
small pieces etc. are disposed of safely
and kept out of the reach of children.
Danger of suffocation!
• Remove the door to the washing
compartment when removing an old
dishwasher from service or discarding it.
Ensure that the appliance presents no
danger to children while being stored for
disposal.
• Old appliances may contain materials
that can be recycled. Please contact
your local recycling authority about the
possibility of recycling these materials.
NOTICE :
• The dishwasher drain hose mustbe
installed with a drain loop at least28”
(710mm) offthe cabinet floor; otherwise
the dishwasher may not drain properly.
• This dishwasher is intended for
residential use only, and should not be
used in commercial establishments.
• New installation - If the dishwasher is a
new installation, mostof the work must
be done before the dishwasher is moved
into place.
• Replacement - If the dishwasher is
replacing another dishwasher, check
the existing dishwasher connections for
compatibility with the new dishwasher,
and replace parts as necessary.
1.1 INSPECT THE DISHWASHER
After unpacking the dishwasher and prior
to installation, thoroughly inspect the
dishwasher for possible freight or cosmetic
damage. Report any damage immediately.
NOTICE :
• Cosmetic defects mustbe reported within
10 days of installation.
• Do not discard any bags or items that
come with the original package until
after the entire installation has been
completed.

5USA
2. TOOLS WHICH MAY BE NEEDED
Flat head Screwdriver
3. MATERIALS WHICH MAY BE NEEDED
(Additional materials may be required to comply with local codes)
Hot Water Supply Line - Minimum 3/8” O.D. copper tubing or metal braided
dishwasher supply line.
Elbow with 3/4” FHT(female threaded) for dishwasher side, and sized to fit
your water supply line (copper tubing/compression fitting, or braided hose)
on the other side. Dishwasher connection is 3/4" male.
UL listed conduit connector or strain relief.
Teflon tape or other pipe thread compound to seal plumbing connections.
Shut-off valve and fittings appropriate for hot water supply line (copper
tubing/compression fitting, or braided hose).
Silicone
Glue
Dishwasher Discharge Hose Adaptor

6USA
4. MATERIALS SUPPLIED
4.1 PARTS SUPPLIED
Parts for your dishwasher will
come in several plastic bags.
Check your parts bags shown
to make sure you have all the
parts as listed to the left.
4.2 MANUAL BAG
The dishwasher comes with a
manual bag containing:
• User manual,
• Installation manual
4.3 DISHWASHER
PARTS BAG 1
This dishwasher bag comes
with the following parts:
a. Side Trim Strips (Left)
b. Side Trim Strips (Right)
d. Screws Ø 1/8” x 5/8” (Ø
3.5 mm x 14 mm)
e. Mounting Bracket Left
f. Mounting Bracket Right
h. Screw Clamp
k. Toe Kick Bracket - Left
l. Toe Kick Bracket – Right
n. Custom Door Plug
o. Custom Door Screw
p. Toe Kick
s. Template
t. Hook and loop fastener
v. Side spacer
z. Steam Protection Foil
4.4 DISHWASHER
PARTS BAG 2
(SELECT MODELS)
In addition to the manual bag
and the dishwasher parts bag
(dishwasher models which
can accept a wooden kitchen
door) also come with a door
panel installation kit which
contains:
y. Screws 4mm x 36 mm =
3/16th x 1-7/16th
4.5 PARTS ATTACHED
TO THE REAR OF THE
DISHWASHER
a. Side Trim Strips (Left)
b. Side Trim Strips (Right)
x6

7USA
5. DISHWASHER SPECIFICATIONS
22-/”
(570 mm)
5.1 TECHNICAL FEATURES
Permissible water pressure 4.35 - 145 psi (0.3 - 10 bars)
Electrical connection 120 V (volts), 12 A (amps), 60Hz (hertz)
Total power 1400 W (watts)
Heater power 1100 W (watts)
NOTICE :
Because we continually strive to improve our products, we may change our specifications
and design without prior notice.
This device corresponds to the following directives:
UL 749 Household Dishwasher directive.

8USA
6.2 ELECTRICAL PREPARATION
WARNING
The dishwasher is designed for an electrical supply of 120 V, 60 Hz, AC, connected
to a dishwasher-dedicated, properly grounded electrical circuit with a fuse or
breaker rated for 15 amperes.
6. ENCLOSURE PREPARATION
6.1 FOAM RUBBER INSTALLATION
Open the foam insulation tape and follow the instructions in it.
This step is not imperative, but it will help you improve your soundproofing

9USA
6.3 STEAM PROTECTION FOIL
Steam will form inside the dishwasher during operation. At the end of the cycle, when the
dishwasher door is opened, it is required to use a steam protection foil to prevent any
steam from collecting on the underside of the counter top.
FITTING THE PROTECTION FOIL
Before applying the steam protection foil to the
underside of the countertop, clean the area with
a damp cloth (as shown in Figure A). Once the
area dries, apply the steam protection foil.
CAUTION
Steam protection foil mustbe applied
where the steam escapes when door is
firstopened. Failure to install the steam
protection foil during installation can lead to
damage to the cabinets and countertop.
The steam protection
foil will be applied at the
location where the hot
steam escapes when you
firstopen the door (as
shown in Figure B).

6.5 INSTALLING THE SIDE TRIM
Make sure you are using the correct side of the trim. The flexible material should be facing
forward (Figure A)
Remove the adhesive tape (Figure B)
Place the trim strips on the front edge of the side walls so that the notches align with the
side plugs (Figure C).
A
C
B
x1 x1
Install the 4 spacers (v) into the
openings on each side of the
dishwasher as shown.
6.4 INSTALLING THE SIDE PLUGS
10 FR
NOTE: Side trim may or may not have notches already cut. If there are no notches, you
will need to measure and cut notches as shown in diagram below to match side plug
locations before installing.

11 USA
7 CONNECTING THE WATER LINE
7.1 PREPARING THE WATER CONNECTION (A)
Install an easily accessible shut-off valve (not supplied) in the water supply line. All solder
connections must be made before the water line is connected to the dishwasher’s water
inlet valve. Water can also be supplied to the dishwasher by using a flexible braided hose
line.
Check with your plumbing supply sources for the proper hose and elbow and necessary
fittings for the water supply line. This material is not supplied, and must be purchased
separately.
Elbow with 3/4” FHT(female threaded) X 3/8: MHT
WARNING
Installation should be performed by a qualified installer. Work by unqualified
persons could be dangerous and may void the warranty.
If the dishwasher is installed in a location that experiences freezing temperatures
(e.g. in a vacation home, cabin etc.), you must drain all the water from the
dishwasher’s interior. Water system ruptures that occur as a result of freezing are
not covered by warranty.
Water
Connection
7.2 WATER CONNECTION
Water supply may be connected to the dishwasher in one of two ways:
• With metal braided hose.
• With copper tubing
• Hot water supply line: Use minimum 3/8” O.D. copper tubing or metal braided dishwasher
supply line.
• Temperatures required for soldering and sweating will damage the dishwasher’s water
inlet valve so if any such operation is needed, keep the heat source min. 77/8” (200mm)
away from the dishwasher’s water inlet valve.
• There should not be any sharp bends in the water line that may restrict the water flow.
• Teflon tape or pipe tread compound must be used for sealing the connection. Before
connecting the copper water supply line to the dishwasher, flush it with hot water to clear
any foreign material.
CAUTION
NOTICE
After connections are made turn on the water supply to check for leaks.

12 USA
7.4 PLACEMENT OF DISHWASHER INTO THE OPENING
Now place the dishwasher into the opening and get ready to connect all hoses and
electrical connections.
CAUTION
Make sure all hoses
are pulled through the
side opening of the
cabinet, no hoses are
kinked and all slack is
taken out as shown in
the figure.
7.3 ADJUSTING HEIGHT
If the height of the enclosure is 33 7/8” to 35 7/8” (861 mm - 911mm) adjust feet as
shown.
Adjust the front foot level by hand to
balance and raise the dishwasher to the
enclosure height.
Adjust the rear foot level with a screwdriver
to balance and raise the dishwasher to the
enclosure height.
NOTICE :
• Make sure the dishwasher is plumb and
that the dishwasher can be placed under
the counter with approximately 3/32” (2
mm) of clearance.
• Turning the screwdrive in the direction
of the black arrows (as shown in the
illustration right) will raise the rear feet,
causing the dishwasher to go down in the
back.
• Turning the screwdriver in the direction
of the white arrows (as shown in the
illustration right) will lower the rear feet,
causing the diswasher to go up in the
back.

13 USA
8 PREPARING THE CUSTOM DOOR
Height (wooden door: (h): 30” (760mm)
Width (w): 23 ¼” to 23 ½” (592mm - 595mm)
Thickness (t): ¾ “ (19mm)
Weight (max): 19 lbs / 9 kg
X
16
=
=
Mid. Point
Ø2 X 14 mm
Ø2 X 14 mm
X =
?
AB
(h)
(w)
(t)

14 USA
1
2
(t)
Open the tape as shown and stick it on the door
If there is a handle, attach as shown.

8.2 SECURING THE CUSTOM DOOR
12345
12345
Ø 4 x 36mm
(y)
15 USA
12345
12345
Remove the fifth plug from
the top.
Secure the custom panel to the product through hole 5 with the supplied screws.
8.1 INSTALLING THE CUSTOM DOOR
1
2
3
4
Open the remaining
adhesive on the top
surface of the tape as
shown. (Step 1)
Place the wheels you
attached to the custom
panel in the previous step
on the product door as
shown (Step 2).
Position the custom panel
by sliding the wheels down
(Step 3). Press with your
hand at the points shown
and let the adhesive strips
stick (Step 4).

16 USA
?
If your counter is wooden fix the mounting brackets (A) under the counter with the screws
supplied. Bend sides of mounting brackets (B) in order to fix from sides (if necessary).
9 SECURING TO THE CABINETRY
9.2 SECURING WITH MOUNTING BRACKETS
A
B
9.1 READJUSTING FOOT LEVELS
Now that the dishwasher is in the cabinet
you must readjust the feet to bring the
dishwasher up to the required height and
attach it underneath the countertop.
1. Readjust the front foot levels with
adjusting wrench to balance the
dishwasher and raise it up under the
countertop, make sure the unit is level.
2. Readjust the rear foot levels with a
screwdriver to balance the dishwasher
and raise it to the required height using
the brackets supplied.
3. Attach the dishwasher underneath the
countertop with the four screws supplied
(Ø 1/8” x 1/8” - Ø 3.5mm x 14mm). Make
sure you do not go through the top of the
countertop or damage granite.

17 USA
9.3 SECURING THE DISHWASHER TO THE COUNTER
y
If unable to secure dishwasher using the mounting brackets as shown due to cabinet or
countertop design, an alternative method is to secure the dishwasher using 4 screws thru
the side into the cabinet.

18 USA
10 DRAIN HOSE CONNECTION, WATER SUPPLY & ELECTRICAL
CONNECTIONS
10.1 DRAIN HOSE CONNECTION
Connect the drain hose to the drain plumbing.
1. Use the supplied rubber connection hose and drain hose clamps to connect the
dishwasher drain hose to the plumbing drain connection.
2. Use the spring clamp to secure the rubber connection hose to the dishwasher drain
hose. Use the screw clamp to secure the rubber connection hose to the plumbing drain
connection.
10.2 DRAIN PREPARATION
The dishwasher drain hose may be connected to the drain plumbing in one of three ways
(Figure A, B, C).
NOTICE :
• Either one of the methods below mustbe used or the dishwasher will not operate
properly.
• A hose that attaches to a sink spray can burstif it is installed on the same water line as
the dishwasher. If your sink has one, it is recommended that the hose be disconnected
and the hole plugged.
• The total length of the drain hose is 7' (1950mm). If a hose extension is required, a
drainage hose of equal quality mustbe used.
• The maximum length mustnot exceed 157 ½” (4000mm). Otherwise, the cleaning
process is negatively influenced.

19 USA
10.3 DRAIN INSTALLATIONS
UNDER THE SINK DRAIN
Install a Y-branch tail pipe. (Figure A)
NOTICE :
You must add a loop at least 28” (710mm) above the floor of
the cabinet and above the drain connection in the drain hose
to prevent waste water from not draining properly, and causing
either poor washing results or a bad odor.
INSTALLING AN AIR GAP
If the local ordinance requires an air gap (Figure B).
NOTICE :
Check with local ordinance for type of air gap required.
INSTALLING WITH A DISPOSAL
Remove the drain connection plug before attaching the drain hose
from the dishwasher.
Every disposal has a hook up for a dishwasher; consult your
disposer manual for correct connection. (Figure C)

20 USA
PLQǩ´FP
aǬ´FP
aǩ´FP
aǬ´FP
PLQ´FP
PD[´FP
1
2
3
4
c
1
2
1
2
1
2
4
3
PLQò´ FP
PD[´FP
PLQ´
FP
PLQǩ´ FP
PD[´FP
(1.9 cm)
(1.9 cm)
(1.9 cm)
(1.2 cm)
10.4 WATER LINE CONNECTION
