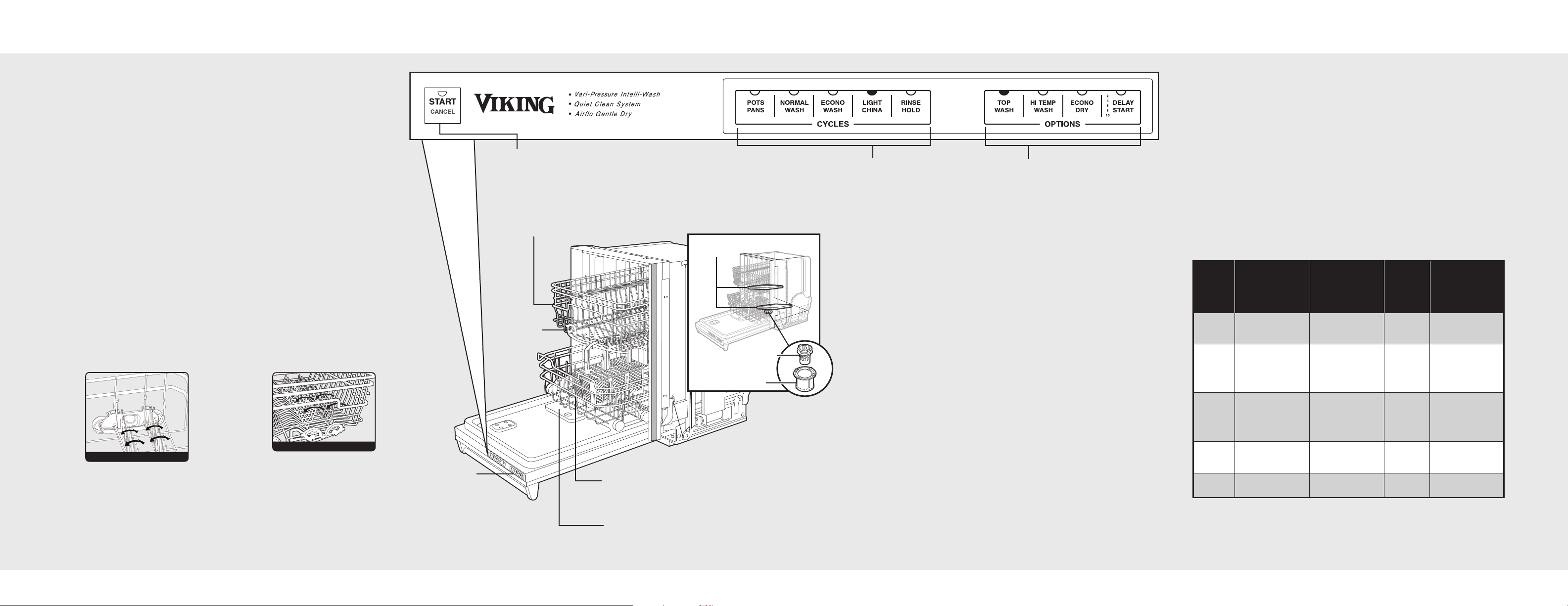

Viking Range Professional & Designer 325E Series User manual

Start/Cancel
Switch
Automatic detergent
dispenser/Automatic
rinse agent dispenser
Automatic detergent
dispenser/Automatic
rinse agent dispenser
Top of door
hidden control
panel
Top of door
hidden control
panel
Roller Bearing™ upper rack
•Hold-Tight™ dividers (3)
•One-piece stemware Cradle/cup shelf (1 row) (450E model)
•One-piece cup shelf (1 row)
Roller Bearing™ upper rack
•Hold-Tight™ dividers (3)
•One-piece stemware Cradle/cup shelf (1 row) (450E model)
•One-piece cup shelf (1 row)
DishGuard™
protector
DishGuard™
protector
Stainless steel
wash arms
Stainless steel
wash arms
Fine filterFine filter
Removable
coarse
strainer
Removable
coarse
strainer
Lower rack
•One-piece fold down tines (4 rows)
•Two-piece silverware basket (450E model)
•Single-piece silverware basket (325E model)
Lower rack
•One-piece fold down tines (4 rows)
•Two-piece silverware basket (450E model)
•Single-piece silverware basket (325E model)
450E Model Shown
Wash Cycl s
POTS/PANS
Heavily soiled pots, pans and casserole dishes.
Intense pressure, added wash time and high
temperatures.
NORMAL WASH
Normally soiled plates, glasses, bowls, and
lightly soiled pots and pans. Varying pressure
levels.
ECONO WASH
Normally soiled plates, glasses, bowls, and
lightly soiled pots and pans. Lower
temperature main wash and rinse, using less
energy.
LIGHT/CHINA
Lightly soiled dishes or fine china and crystal.
Low temperature, shorter wash and rinse.
Varying pressure levels to ensure wash
performance and protect delicate dishes.
RINSE/HOLD
All dishware. Short, non-heated rinse with high
pressure.
Wash Options
TOP WASH (450E mod l)
Washes dishes on top rack only. Available on
Normal Cycle.
HI TEMP WASH
Increases time, temperatures and may add
extra water to improve cleaning performance.
Available with Pots/Pans and Normal cycles.
NOTE: When used with Pots/Pans cyc e,
periods of soaking wi occur to aid in the
remova of baked on soi s.
ECONO DRY (450E mod l)
Selects a “no heat” dry. Available on Normal,
Econo Wash, and Light China Cycles.
DELAY START
Lets you delay running the dishwasher. To set
“Delay Start”, select the desired wash cycle and
option(s). Press the “Delay Start” key once and
the number “2” will light, indicating a two hour
delay. If you desire a longer delay, continue
pressing the “Delay Start” key to the desired
delay time. The corresponding number on the
key will light. Once you have set the desired
delay time, press the “START” button and close
the door. “Delay Start” is not available with the
Rinse/Hold cycle. Available delay times vary by
models.
Audibl Sound Signal
A single beep will occur when you select
cycles, options and press the “START” key. The
end-of-cycle signal consists of 2 long beeps. If
the “START” button is not pressed or if the
door is not closed within 4 seconds of pressing
the “START” button, 3 short beeps will occur.
For all other error messages and to deselect
the audible sound signal, see the
Troubleshooting/Fault Codes section.
NOTE: Option, Cyc e and Start keys wi on y
i uminate after they are se ected.
Cycl
nam
R comm nd d
dish typ s/
soil l v l
Wash
t mp ratur
Total
wat r
gal. (L)
Total wash tim
(minut s)
120˚ F
(49˚ C)
Pots/
Pans
Heavily soiled pots,
pans and casserole
dishes
Main- 145 F (63 C)
Rinse- 150 F (66 C)
8.4 126
(min.)
Normal
Wash
Normally soiled
plates, glasses,
bowls, and lightly
soiled pots and
pans
Main- 120 F (49 C)
Rinse- 140 F (60 C)
4.7 88
(min.)
Econo
Wash
Normally soiled
plates, glasses,
bowls, and lightly
soiled pots and
pans
Main- 125 F (51.7 C)
Rinse- 130 F (54 C)
5.4 101
(min.)
Light/
China
Lightly soiled dishes
or fine china and
crystal
Main- 130 F (54 C)
Rinse- 135 F (57 C)
5.8 81
(min.)
Rinse/
Hold
All dishware Rinse 1.4 10
(min.)
Cycle Data
Changing a program aft r th unit
has start d
The dishwasher is programmed to stop operating if
the door is opened during a cycle. To change a
program or option after starting the machine, open
the door slightly to let the spray arms stop rotating
and avoid getting sprayed with water. Press and hold
“START” for four seconds to cancel the current
selection. Then press the touchpad(s) for your
desired selection.
Press “START” again and close the door. The drain
pump will run to remove any dirty water from the
dishwasher before starting the newly selected cycle.
Check to make sure there is still detergent in the
detergent dispenser.
Op ning th door aft r Cycl
has start d
If the door is opened for longer than five seconds,
after the cycle has started, the ”START” button will
flash to indicate that the dishwasher is in Standby
Mode. Press the “START” button before closing the
door and the cycle will resume.
Pow r On Light
Ablue light will illuminate from the bottom right
corner of the dishwasher kickplate when a cycle is
running.
•Load all items so that the force of the water and
the detergent reach soiled surfaces.
•DO NOT let china, crystal, and other delicate items
touch each other during dishwasher operation.
• DO NOT use door to push racks in.
• DO NOT put stainless steel of different qualities
close to each other. Contact can damage metals.
•Rinse stainless steel items if they will not be
washed immediately. Prolonged contact with salty
or acidic foods will cause stains.
Note: DO NOT oad dishes in a manner that wou d
b ock the detergent dispenser id from comp ete y
opening. The detergent dispenser cou d be
damaged.
Note: DO NOT put ster ing si ver or si ver-p ated
f atware in the same compartment with stain ess stee .
Contact between the meta s can damage si ver.
Extra Qui t Op ration Hints
Your dishwasher has been designed and engineered
to give superior cleaning results and to operate very
quietly. To avoid any extra clattering or thumping
noises during operation:
•Keep sink drain plugs inserted during dishwasher
operation to prevent noise transfer through drains.
• Load dishes so they do not touch each other.
• Make sure lightweight items are secured in
the rack.
•Make sure pot lids and handles, pizza pans, cookie
sheets, etc., DO NOT touch interior walls.
Th Silv rwar /Cutl ry Bask t
Tips for Best Cleaning Results:
• Distribute items evenly and mix knives, forks, and
spoons so that items will avoid nesting.
•ALWAYS place forks and spoons with eating
portions up and handles down.
• Each compartment has a lid which will separate the
silverware for the best cleaning and drying results.
The lids also hold small, lightweight items in place.
•IMPORTANT: Sharp or pointed items, such as
knives, should always be put in with the point
down to protect your hands.
• Basket can be moved to upper rack or lower rack.
Adjusting Racks
Th Low r Rack
The lower rack is best for dinner plates, smaller plates,
serving plates, larger bowls, pots, and pans.
• Securely place heavily soiled cookware face down in
the rack.
• Use the fold-down tines to provide space for large
items such as
pots and pans.
• Make sure pot
handles and
other items
DO NOT stop
rotation of lower
wash arm by
hanging below
the rack.
Th Upp r Rack
The upper rack is best for glasses, cups, bowls, small
plates, and saucers and can accommodate full-sized
plates up to 10-1/4”.
• Make sure small plastic items are held firmly in
place with Hold Tight™ dividers.
• Arrange
stemware
between prongs
of stemware
cradle so that
the stemware
cannot move
easily.
• Make sure items
hanging below
the rack DO NOT block the rotation of
the wash arm.
Changing a Program
General Loading Guidelines Dishwasher Controls/Wash Cycles/Wash Options
fold-down tines
fold-down tines
Note: Wi perform proper y if connected to “co d” water - 50˚F (10˚C). Cyc e times wi be extended.
Note: A cyc e times, temperatures and fi s are approximate and are dependent on insta ation and
environmenta conditions.
Note: Heating de ays to meet set temperatures may extend cyc e times.
Note: AirF o™Gent e Drying wi add approximate y one hour to the tota cyc e time. (450E mode )

F20762 EN (091510)
®
VIKING RANGE CORPORATION
111 Front Street • Greenwood, Mississippi
38930 USA • [phone]
Warning and Important Saf ty Instructions app aring
in this guid ar not m ant to cov r all possibl
conditions and situations that may occur. Common
s ns , caution, and car must b x rcis d wh n
installing, maintaining, or op rating th applianc .
ALWAYS contact the manufacturer about problems or
conditions you do not understand.
R cogniz Saf ty Symbols, Words, Lab ls
R ad all instructions b for using th
dishwash r.
• This dishwasher must be properly connected to an
appropriate electrical supply, water supply, and
drain.
• The dishwasher must be securely mounted to the
cabinet.
• Use the dishwasher only for its intended function.
• Use only detergents and rinse agents
recommended for use in household dishwashers,
and store them in a safe and dry environment away
from the access of children.
• When loading items to be washed, place sharp
items so that they are not likely to damage the
door seal and load sharp knives with the handles
up to avoid the risk of personal injury.
•DO NOT wash plastic items unless marked
“dishwasher safe” or the equivalent.
•DO NOT operate your dishwasher unless all
enclosure panels are properly in place.
•DO NOT abuse, sit on or stand on the door or dish
rack of the dishwasher.
•DO NOT tamper with controls.
• To reduce the risk of injury, DO NOT allow children
to play in or on a dishwasher.
•If hot water has not been used recently (usually two
weeks or longer), hydrogen gases may buildup in
the water heater and the hot water pipes.
HYDROGEN GAS IS EXPLOSIVE. To prevent
injury or damage, before using your dishwasher,
turn on all hot water faucets and allow water to run
for several minutes before using your dishwasher.
This will allow gases to escape. DO NOT smoke or
use any open flames near the faucet while it is
open.
• When discarding an old dishwasher, ALWAYS
remove the door to prevent accidental entrapment.
• To prevent electrical shock, disconnect
electrical power supply to dishwasher before
attempting to service.
• For Grounding Instructions, please refer to
Installation Instructions or Installation Summary.
•DO NOT use door to push racks in.
It is your responsibility to be sure your dishwasher
• has been installed by a qualified installer
• has been properly grounded
• has been properly connected to electricity, water
and drain lines
• is properly maintained
• has had all shipping materials, packaging and
temporary labels removed.
Viking Quick Reference Guide
Professional & Designer 325E & 450E Series
Built-In Dishwashers
D A N G E R
Hazards or unsaf practic s which WILL r sult in
s v r p rsonal injury or d ath
W A R N I N G
Hazards or unsaf practic s which COULD r sult
in d ath s v r p rsonal injury or d ath
CAUTION
Hazards or unsafe practices hich COULD
result in minor personal injury.
All safety messages will identify the hazard, tell you
how to reduce the chance of injury, and tell you what
can ha en if the instructions are not followed.
WARNING
To avoid the risk of fire, electrical shock, or injury
when using your dishwasher, follow basic recautions
including the following.
WARNING
De ending on cycles/o tions selected, the dishwasher
o erates at very high water tem eratures 155°F
(68°C). Use extreme caution when o ening unit or
handling dishes.
WARNING
DO NOT re air or re lace any art of the a liance
unless s ecifically recommended in the manual. All
other servicing should be referred to a qualified
authorized technician.
WARNING
NEVER o erate the dishwasher without the filters
in lace.
WARNING
To avoid the risk of ersonal injury due to steam
burns, o en door slowly to allow steam to esca e
before o ening com letely
Washing Recommendations
Mat rials Dishwash r saf ? Comm nts
Aluminum Yes
Exceptions: anodized and
disposable aluminum
Anodized aluminum may fade or darken. Disposable
aluminum may contact other dishes and cause dark spots.
Cast iron Not recommended Seasoning will be removed and the cast iron will rust.
China/stoneware Yes
Exceptions: antique,
hand-painted, or gold leaf
China without decoration or with glaze covered patterns is
usually dishwasher safe. Antique, hand-painted and gold-leaf
china may discolor or fade.
Crystal Yes
Exceptions: antique, some
lead crystal
Position crystal so that it will not fall over or knock against
other dishes. Some types of lead crystal may etch
in dishwasher.
Flatware with
glued handles
Not recommended Certain adhesives may loosen and cause the handles to
come off.
Glass Yes
Exceptions: milk glass
(not recommended)
Milk glass may discolor with repeated washing.
Gold-plated
flatware
Not recommended Gold-plated flatware may discolor.
Knives Yes Position knives in large items tray so that blades are not
touching. Knives may become dull if the blades contact
other items.
Non-stick
coatings
Not recommended Coating may wear off with repeated washing.
Pewter/brass/
bronze
Not recommended Pewter, brass, and bronze may tarnish or pit.
Plastic Yes Disposable plastic cannot withstand high water temperature
or dishwasher detergent.
Stainless steel Yes Rinse stainless steel items if they will not be washed
immediately. Prolonged contact with salty or acidic foods
will stain. Position stainless steel pieces so they do not
contact dissimilar metals.
Silver/
silverplate
Yes Rinse silver/silverplate items if they will not be washed
immediately. Prolonged contact with salty or acidic foods
and foods containing sulfur will stain. Position stainless steel
pieces so they do not contact dissimilar metals.
Tin Not recommended Tin may rust.
Wood Not recommended Wash wood items by hand. Wood may warp, crack, or lose
its shape or finish in the dishwasher.
Most household plates, saucepans, and flatware are dishwasher safe. If you are unsure, check the manufacturer’s
recommendations before washing. You are responsible for what is washed in the dishwasher.
Important Safety Instructions
(Please Read and Save these Instructions)
Note: In the event e ectronic capabi ities or internet access is not avai ab e, p ease HALT the insta ation
process unti printed documents are avai ab e. You wi receive, free of charge, a comp ete set of printed
documents by contacting Viking Customer Service at 1-888-Viking1 (845-4641).
A GFI shall be used if required by NFPA- 0 (National
Electric Code), federal/state/local laws, or local
ordinances.
• The required use of a GFI is normally related to the
location of a receptacle with respect to any
significant sources of water or moisture.
• Viking Range Corporation will NOT warranty any
problems resulting from GFI outlets which are not
installed properly or do not meet the requirements
below.
If the use of a GFI is required, it should be:
• Of the receptacle type (breaker type or portable
type NOT recommended)
• Used with permanent wiring only (temporary or
portable wiring NOT recommended)
• On a dedicated circuit (no other receptacles,
switches or loads in the circuit)
• Connected to a standard breaker of appropriate size
(GFI breaker of the same size NOT recommended)
• Rated for Class A (5 mA +/- 1 mA trip current) as per
UL 943 standard)
• In good condition and free from any loose-fitting
gaskets (if applicable in outdoor situations)
• Protected from moisture (water, steam, high
humidity) as much as reasonably possible
