Viking Range TurboChef 7 Series User manual

Installation
Guide
7 SERIES
Professional TurboChef Speedcook Ovens
VSOT730
VDOT730

2
Table of Contents
Warnings and Important Information _________________________________ 3
Dimensions _____________________________________________________ 6
Specications ____________________________________________________ 8
Cutout Dimensions________________________________________________ 9
General Information______________________________________________ 11
Installation _____________________________________________________ 12
Performance Checklist ____________________________________________ 16
Control Panel ___________________________________________________ 16
Service & Registration ____________________________________________ 17

33
IMPORTANT – Please Read and Follow!
• Before beginning, please read these
instructions completely and carefully.
• DO NOT remove permanently axed labels,
warnings, or plates from product. This may void
the warranty.
• All local and national codes and ordinances
must be observed. Installation must conform
with local codes. Verify your appliance has
been properly connected and grounded in
accordance with local codes or in absence of
codes, with the National Electrical Code (NEC).
ANSI/NFPA 70-latest edition.
• The installer must leave these instructions
with the consumer who should retain for local
inspector’s use and for future reference.
In Massachusetts: This appliance must be
installed by a Massachusetts licensed plumber
or electrician.
In Canada: Installation must be in accordance
with the current CSA C22.1 Canadian Electrical
Codes Part 1 and/or local codes.
DANGER
WARNING
You will be killed or seriously injured if
you don't follow instructions.
You can be killed or seriously injured if
you don't follow instructions.
Hazards or unsafe practices which
COULD result in minor personal injury
or property damage.
All safety messages will identify the
hazard, tell you how to reduce the chance
of injury, and tell you what can happen if
the instructions are not followed.
Your safety and the safety of others is
very important.
We have provided many important safety
messages in this manual and on your
appliance. ALWAYS read and obey all
safety messages.
This is the safety alert symbol. This
symbol alerts you to hazards that
can kill or hurt you and others.
All safety messages will be preceded
by the safety alert symbol and the word
“DANGER” or “WARNING” or “CAUTION.”
These words mean:
CAUTION

4
IMPORTANT – Please Read and Follow!
A GFI shall be used if required by NFPA-70 (National Electric Code), federal/state/local laws, or local
ordinances.
• The required use of a GFI is normally related to the location of a receptacle with respect to
any signicant sources of water or moisture.
• Viking Range, LLC will NOT warranty any problems resulting from GFI outlets which are not
installed properly or do not meet the requirements below.
If the use of a GFI is required, it should be:
• Of the receptacle type (breaker type or portable type NOT recommended)
• Used with permanent wiring only (temporary or portable wiring NOT recommended)
• On a dedicated circuit (no other receptacles, switches or loads in the circuit)
• Connected to a standard breaker of appropriate size (GFI breaker of the same size NOT
recommended)
• Rated for Class A (5 mA +/- 1 mA trip current) as per UL 943 standard
• In good condition and free from any loose-tting gaskets (if applicable in outdoor situations)
• Protected from moisture (water, steam, high humidity) as much as reasonably possible

5
WARNING
To prevent possible damage to cabinets
and cabinet finishes, use only materials and
finishes that will not discolor or delaminate
and will withstand temperatures up to
194°F (90°C). Heat resistant adhesive must
be used if the product is to be installed
in laminated cabinetry. Check with your
builder or cabinet supplier to make sure that
the materials meet these requirements.
IMPORTANT – Please Read and Follow!
DANGER
ELECTRICAL SHOCK
HAZARD
To avoid risk of electrical shock,
personal injury or death; verify
your appliance has been properly
connected and grounded in accordance
with local codes or in absence of codes,
with the National Electrical Code (NEC).
ANSI/NFPA 70-latest edition.
WARNING
Wall ovens can not be installed side-
by-side. Single wall ovens can not be
installed undercounter
WARNING
The misuse of the oven door(s) (e.g.
stepping, sitting, or leaning on them) can
result in hazards or injuries and damage
to the product.
WARNING
This appliance should not be used for
space heating. This information is based
on safety considerations.
WARNING
MOVING HAZARD
To avoid risk of severe
personal injury; this appliance
requires two or more personnel
while handling and moving. Possible
use of appliance moving devices is
recommended.
WARNING
DO NOT use the handle or oven door to
lift the oven. Remove lower door before
installation to ensure that it is not used to
lift the unit. Make sure latches are
properly locked in place before removing
door to prevent injury to hands and/or
fingers.
CAUTION
During installation DO NOT remove the
top double wall oven door or the single
wall oven door. DO NOT push on the
outer trim. Doing so could cause the
doors to misalign, requiring repair and/or
replacement.
ELECTRICAL FIRE HAZARD
Improper connection of aluminum house
wiring to copper leads can result in
an electrical hazard or fire. Use only
connectors designed for joining copper to
aluminum and follow the manufacturer's
recommended procedure closely.
WARNING
WARNING
The use of cabinets for storage above the
oven may result in potential fire or burn
hazard

UPPER
UPPER
OFF
OFF
LOWER
LOWER
OFF
OFF
20-1/2”
(52.1 cm)
30-1/16”
(76.5 cm)
3-1/8”
(7.9 cm)
24”*
(61.0 cm)
28-1/8”
(71.4 cm)
4”
(10.2 cm)
3-7/8”
(9.8 cm)
4”
(10.2 cm)
50–3/8”
(128.0 cm)
50–7/8”
(129.2 cm)
6

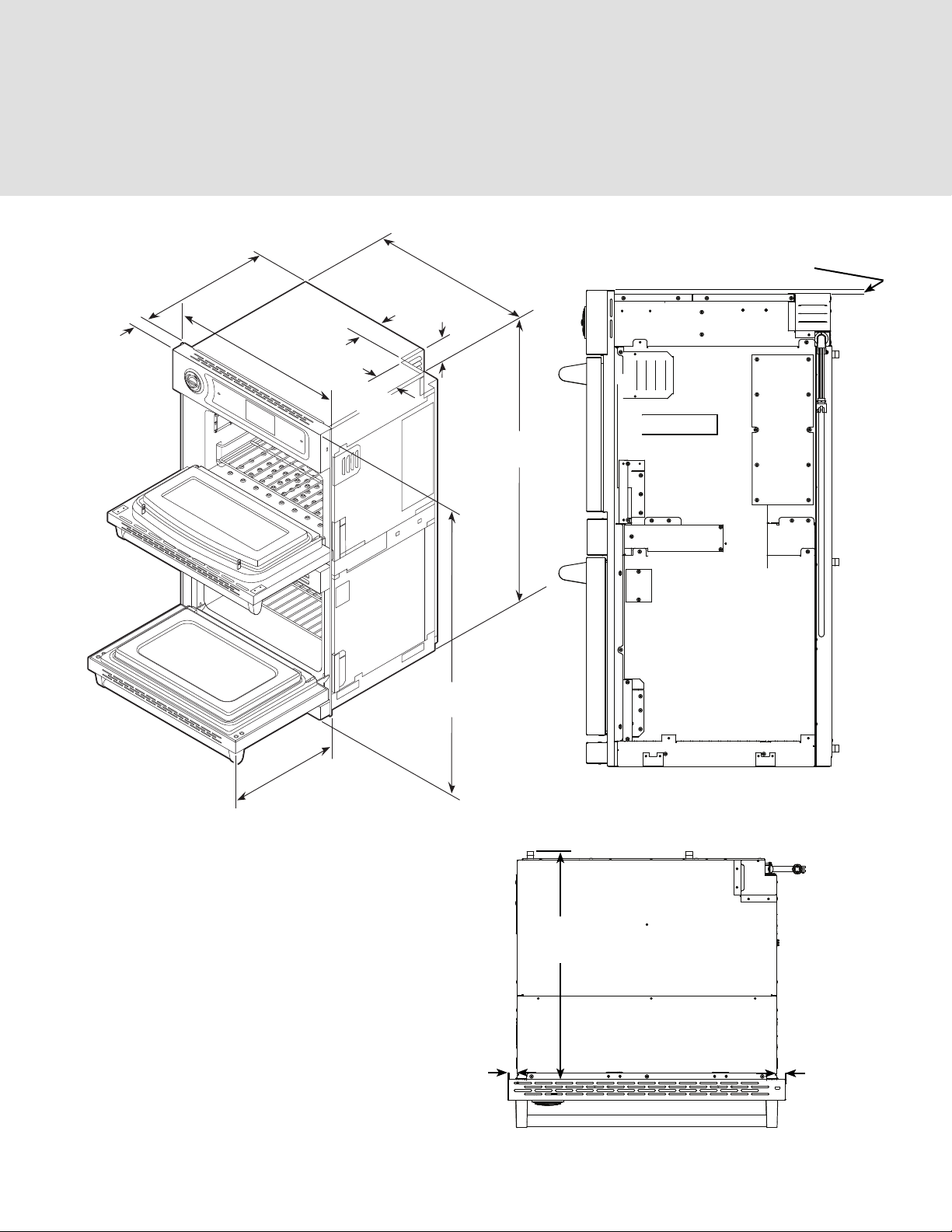

Dimensions - VDOT
TOP VIEW
SIDE VIEW
*Includes standos -
DO NOT REMOVE the standos
7/16"
(0.44 cm)
1"
(2.5 cm)
1"
(2.5 cm)
24"*
(61.0 cm)

7
Dimensions - VSOT
24”
(61.0 cm)
20-1/2”
(52.1 cm)
28-7/8”
(73.3 cm)
30-1/16”
(76.5 cm)
3-1/8”
(7.9 cm)
28-3/8”
(72.1 cm)
28-1/5”
(77.4 cm)
4”
(10.2 cm)
3-7/8”
(9.8 cm)
4”
(10.2 cm)
TOP VIEW
SIDE VIEW
*Includes standos -
DO NOT REMOVE the standos
1"
(2.5 cm)
1"
(2.5 cm)
24"*
(61.0 cm)
7/16" (0.44 cm)

8
Headline
8
Specications
TurboChef Oven
Description VDOT730 VSOT730
Product width outside cabinet 30-1/16" (76.5 cm)
Product height outside cabinet 50-7/8" (129.2 cm) 28-7/8" (73.3 cm)
Product depth outside cabinet cabinet to front of display/doors — 3-1/8" (7.9 cm)
with bottom door open — 20-1/2" (52.1 cm)
Cutout height 50-5/8" (128.6 cm) 28-5/8" (72.7 cm)
Cutout depth 24" (61.0 cm)
Cutout width 28-1/2" (72.4 cm)
Electrical requirements 4-wire ground, 240-208VAC,
50 amp electrical connection
4-wire ground, 240-208VAC,
40 amp electrical connection
Unit equipped with No.10 ground wire in conduit.
Should be fused separately.
Maximum amp usage 45.0 amps-240 VAC
45.0 amps-208 VAC*
30.0 amps-240 VAC
30.0 amps-208 VAC*
Oven Interior Width upper oven 24" (61.0 cm)
lower oven 24" (61.0 cm)
24" (61.0 cm)
Oven Interior Height upper oven 12" (30.5 cm)
lower oven 15-1/2" (39.4 cm)
12" (30.5 cm)
Oven Interior Depth upper oven 16" (40.6 cm)
lower oven 17-1/2" (44.5 cm)
16" (40.6 cm)
Oven Volume
(total oven cavity)
upper oven 2.7 cu. ft.
lower oven 3.8 cu. ft.
2.7 cu. ft.
Approximate shipping weight 490 lbs. (223 kg.) 340 lbs. (155 kg.)
*LVDOT/LVSOT730 models

9
Headline
9
Cutout Dimensions - VDOT
24”
(61.0 cm)
Make sure walls
are perpendicular
28-1/2”
(72.6 cm)
50-5/8”
(128.6 cm)
11” Min.
(28.2 cm)
5” Min.
(12.7 cm)
4”
(10.2 cm)
Junction
Box
Location
1” Min.
(2.5 cm)
4”
(10.2 cm)
Junction
Box
Location
5” Min.
(12.7 cm)
To obtain proper t of the
oven into the cabinets, the
junction box must be located
either above or below the
oven opening.
WARNING
Wall ovens can not be installed side-by-side.

10
Cutout Dimensions - VSOT
Make sure walls
are perpendicular
4”
(10.2 cm)
Junction
Box
Location
5” Min.
(12.7 cm)
4”
(10.2 cm)
5” Min.
(12.7 cm)
28-1/2”
(72.6 cm)
24”
(61.0 cm)
1” Min.
(2.5 cm)
11” Min.
(28.2 cm)
28-5/8” Min.
(72.7 cm)
Junction
Box
Location
To obtain proper t of the
oven into the cabinets,
the junction box must be
located either above or
below the oven opening.
WARNING
Wall ovens can not be installed side-by-side.
Single wall ovens can not be installed undercounter

11
General Information
• All openings in the wall behind the appliance or in
the oor under the appliance should be sealed.
• Keep appliance area clear and free from
combustible materials, gasoline and other
ammable vapors.
• Disconnect the electrical supply prior to servicing.
• When removing the appliance for service,
disconnect AC power supply and carefully remove
the appliance by pulling forward.
• CAUTION: The oven is heavy – use care when
handling!
• Electrical requirements are listed in the product
specications under the electrical requirements
section.
Recommendations for Unpacking
• Products are shipped on pallets with foam footings
and corrugated inner-packing
• Products are anchored to the pallet using metal
straps that are screwed to the bottom of the
product and the pallet.
• DO NOT remove protective packaging until you are
ready to perform the installation.
• Remove the corrugated cover by lifting it o the
product and remove the innerpacking.
• Detach the product from the metal anchor strip by
removing the attachment screw.
• DO NOT remove the protective wrapping from the
product control panel until the product is installed.
CAUTION
Avoid any damage to oven vents. The vents
need to be unobstructed and open to provide
proper airflow for optimal oven performance.
Recommendations for
Moving
• The appliance is heavy – use extreme care
when handling!
• WARNING: DO NOT use the handle or oven
door to lift the oven. Remove lower door before
installation to ensure that it is not used to lift
the unit. DO NOT remove the upper door.
Make sure latches are properly locked before
removing door to prevent personal injury to
hands and/or ngers. DO NOT lift or carry the
door by the handle.
• Only proper equipment should be used to
move products.
• ALWAYS take steps to protect ooring at the
installation location when moving products.
Exposed oor surfaces should be protected by
applying laminate or plywood sheets. Failure
to do so may result in scarring and damaging
the homeowner's oor
Site Preparation
Note: It is recommended that a thorough
site inspection be conducted PRIOR to
unpacking and moving this appliance.
• Conrm available access to adequate power –
see electrical requirements.
–Double oven units require a 50 amp circuit.
• It is recommended that 3/4” or larger material
be utilized to create a support platform for this
appliance.
•A minimum of 2" (5.1 cm) spacing above and
below the oven trim and 2" (5.1 cm) spacing
from side trims to any adjacent items or walls is
required for ventilation purposes.

12
Installation
• BE SURE that support for this appliance is
perpendicular to the front facing of the wall or
cabinet before you perform the installation.
• It is recommended to use standard 2 x 4 support
posts with a minimum of 3/4" (1.9 cm) solid base
to support the oven. Support posts should be
level with the oor line and well-secured to the
base of the cabinet. Base cabinet support must
be able to support the oven's weight - 410 lbs.
(186 kg).
• Use of a hydraulic lift is recommended for the
installation of double oven units.
• All openings in the wall behind the appliance
or in the oor under the appliance should be
sealed.
• Keep appliance area clear and free from
combustible materials, gasoline and other
ammable vapors.
• WARNING: DO NOT USE AN EXTENSION CORD
WITH THIS APPLIANCE. SUCH USE MAY RESULT IN
FIRE, ELECTRICAL SHOCK OR OTHER PERSONAL
INJURY.
Remove wooden brace on front of pallet.
Remove the outer
corrugated cover and all
inner packing.
1
Cabinet Skid Plate and Side Rails
Attach the skid plate before installing the two
slide rails. If possible, the rails should be placed
on top of any studs that might be located under
the cabinet interior oor.
1. Remove adhesive backing from skid plate.
Center across the inside front of the cabinet
opening with ange and screw locations
on front outer edge. Screw into place with
enclosed screws.
2. Remove adhesive backing from one of the
slide rails.
3. Place the slide rail left of the center line on the
cabinet oor (adhesive side down) ush with
the outer edges of the skid plate. Press the
slide rail down rmly against the cabinet oor.
4. Repeat step 3 for the second slide rail.
Two 21" (53.3 cm) slide rails and one 28" (71.1
cm) skid plate have been included to help
install the oven into your cabinet more easily by
providing a at smooth surface on which to slide
the oven into place. The skid plate and slide rails
are at metal strips with adhesive tape strips on
one side.
adhesive
strips
Cabinet Floor Center Line
Skid plate

13
Headline
13
Open lower oven door completely.
2
Fold latches backward until locked in place
3
Slowly close until latches stop door.
4
Lift door up and out.
LOWER
OFF
LOWER
OFF
LOWER
OFF
LOWER
OFF
5
Remove racks.
6
Installation (cont.)
Unscrew pallet screws from side of oven.
7

14
Headline
14
Wiring option 1
(connect the white and green to the incoming neutral)
Neutral Green
White
Black
Red
8a
Wiring option 2
(connect the white to the incoming neutral,
attach green to grounded junction box)
8b
Neutral
Green
White
Black
Red
Wiring option 3
(connect the white to the incoming neutral,
attach green to suitable ground)
8c
Neutral Green
White
Black
Red
Lift oven into position.
UPPER
OFF
LOWER
OFF
UPPER
OFF
LOWER
OFF
UPPER
OFF
LOWER
OFF
UPPER
OFF
LOWER
OFF
9
Push oven straight in.
UPPER
OFF
LOWER
OFF
UPPER
OFF
LOWER
OFF
UPPER
OFF
LOWER
OFF
UPPER
OFF
LOWER
OFF
10
Installation (cont.)
ELECTRICAL FIRE HAZARD
Improper connection of aluminum house
wiring to copper leads can result in
an electrical hazard or fire. Use only
connectors designed for joining copper to
aluminum and follow the manufacturer's
recommended procedure closely.
WARNING

15
Headline
Attach screws thru the framing from front of unit on both
sides in the center and bottom. There are no mounting
holes at the top
UPPER
OFF
LOWER
OFF
UPPER
OFF
LOWER
OFF
UPPER
OFF
LOWER
OFF
UPPER
OFF
LOWER
OFF
12
Replace center grille by pushing in and down. Replace
screws underneath grille.
Replace racks.
13
Reattach door to oven.
LOWER
OFF
LOWER
OFF
LOWER
OFF
LOWER
OFF
14
Installation (cont.)
Open door completely. Fold latches forward until locked in
place.
15
Close door.
LOWER
OFF
LOWER
OFF
16
11
Remove center grille by removing screws underneath grille.
Push grille up and pull out.

16
Headline
Performance Checklist – Lower Oven
A qualied installer should carry out the
following checks:
1. Check oven bake function–bake element on
full power, center and outside broil elements
at partial power. Convection bake function–
bake and broil elements the same with the
convection fan on.
2. Check high broil function–both broil elements
at full power. Convection broil function is the
same with convection fan on.
3. Check low broil function–inner broil element
only.
4. Check self-clean function–Door will lock in
approximately 30 seconds, the center and
outside broil elements will turn on and the
bake element will turn on at partial power.
Check broil elements through window
to make sure they are on, then abort
self-clean cycle to unlock door.
CAUTION: Do not run self-clean cycle check
for more than 10 minutes with the oven racks
and rack supports inside oven to avoid
discoloration due to the high temperature.
Any adjustments necessary that are a result of
the installer not following instructions will be
the responsibility of the installer, dealer or the
end user of the product.
Control Panel
Speedcook Oven Lower Oven
Favorites
Food item
Cook mode
Cookbooks
Search
®
02:55
Speedcook
Oven Light Clock
Digital
Display
LED Light
Ring
USB Port
(Top of Control Panel)
Power Off
Lower Oven
Speedcook
Oven Lock
Control
Panel
Lower
Oven Light
Lower
Oven Lock
Power Off
Speedcook Oven
Loading the Software
This rst time you turn on the oven after installation, the oven will load the software. This process should
take no longer than 10 minutes. DO NOT attempt to operate the oven while the software is loading.
Note: If necessary to relaunch thesoftware, hold down theleft(upper) power o button for 5 seconds.
Note: To fully relaunch softwareand thememory and program code(the"rmware"), theoven mustbe
powered o atthecircuit breaker.

17
Headline
Service & Registration
If service is required, call your authorized service agency.
Have the following information readily available.
• Model number
• Serial number
• Date purchased
• Name of dealer from whom purchased
Clearly describe the problem that you are having. If you are unable to obtain the name of an authorized
service agency, or if you continue to have service problems, contact Viking Range, LLC at 1-888-(845-
4641), or write to:
VIKING RANGE, LLC
PREFERRED SERVICE
111 Front Street
Greenwood, Mississippi 38930 USA
Record the following information indicated below. You will need it if service is ever required.
The serial number and model number for your appliance are located on the identication plate
mounted under the bottom right side of the control panel.
Record the information indicated below. You will need it if service is ever required.
Model number ________________________________________________________________________
Serial number _________________________________________________________________________
Date of purchase ______________________________________________________________________
Date installed _________________________________________________________________________
Dealer’s name ________________________________________________________________________
Address ______________________________________________________________________________
If service requires installation of parts, use only authorized parts to insure protection under the
warranty.
KEEP THIS MANUAL FOR FUTURE REFERENCE.

18

19

F21300C EN
Viking Range, LLC
111 Front Street
Greenwood, Mississippi 38930 USA
[phone]
For product information,
call 1-888-(845-4641)
or visit our web site at vikingrange.com
(111518)
