Professional Performance for the Home™
®

No matter what the photo spreads in gourmet magazines
would like you to believe, the delight of cooking always begets the chore of cleaning up.
Even the most spectacular meal leaves a stack of dirty dishes in its wake. But Viking
kitchen cleanup products tackle these mundane tasks with style and ease.
The waste disposer devours any unsightly scraps and the trash compactor makes
quick work of kitchen litter – all while the heavy-duty washer silently scours. And now
the cleanup products are available in both the bold, commercial look of the Professional
Series and the striking curves of the Designer Series. It may be
a dirty job. But it doesn’t have to look that way. ®
2

3

Vari-Pressure Intelli-Wash System*
A commercial-grade motor, electronic controller, and two
stainless steel wash arms work together to customize both
water pressure and delivery for each cycle and option.
Instead of simply adjusting wash time, the wash method is
altered. Delicate items receive a gentle mist, while heavy-
duty loads get a thorough scouring.
n Variable speed 1/2 horsepower commercial-type motor*
n Selective water delivery
n Selective pressure delivery
n More power with less energy consumption – the Scrubbing
Power leader in dishwashers
n Largest and most powerful wash arms in industry
n True multi-level washing with two high-quality stainless
steel wash arms
n Flexible-Fluid™ coupling provides a block-proof direct
water feed*
n DishGuard™ protector prevents blockage from lower rack
load and protects dishes*
n Automatic detergent dispenser fill indicator and adjustable
dosage control
n Automatic rinse agent dispenser
Central Intelligence System*
The computerized command center monitors performance
levels throughout the entire wash cycle, constantly optimizing
water pressure and temperature. So each and every load –
from pots and pans to teacups – turns out brilliantly.
Intelli-WashTM Dishwashers
*Viking Exclusive Feature
Multi-Stage Filtration and
Waste Removal System*
A meticulous filtering and disposer system prevents
redeposition of food particles to deliver spot-free dishes.
It even keeps itself clean.
n Removable coarse strainer
n Triple-Clean™ filtration*
• Horizontal stainless steel fine mesh filter with 18 self-
cleaning jets
• Vertical stainless steel ultra-fine mesh filter
• Sump filter assures 100% clean water to wash arms
n Ultra-hard food waste disposer/motor/pump
(450 model only)*
• Large stainless steel blade operates only when draining
to minimize redeposition
• Quieter and more efficient
Sure-Temp™ Water Heating*
One of the most powerful water heaters in the industry –
deliv ers precisely heated water every time.
n Automatically heats water to appropriate/selected
temperature
n 1,400-watt HydroFlo™ Water Heater is one of the most
powerful in the industry
n Operable with cold ground water (50 degrees F, 10 degrees C)
From lasagna encrusted casserole dishes to delicate bone china, Intelli-Wash™ dishwashers know when to take it easy with a gentle
mist and when to scour with all their considerable might. Unlike normal dishwashers, which simply adjust the duration of wash
time for different cycles, Viking dishwashers actually alter water pressure, temperature, and speed.
Intelli-Wash and Central Intelligence systems sense
and scour even the most pesky stains.
4

VDB450 – Professional model
DFB450 Custom Panel
model with PDDPL24
Professional door panel
VDB325 Professional
model
VDB450 Professional
model
DFB450 model with
Custom panel
5

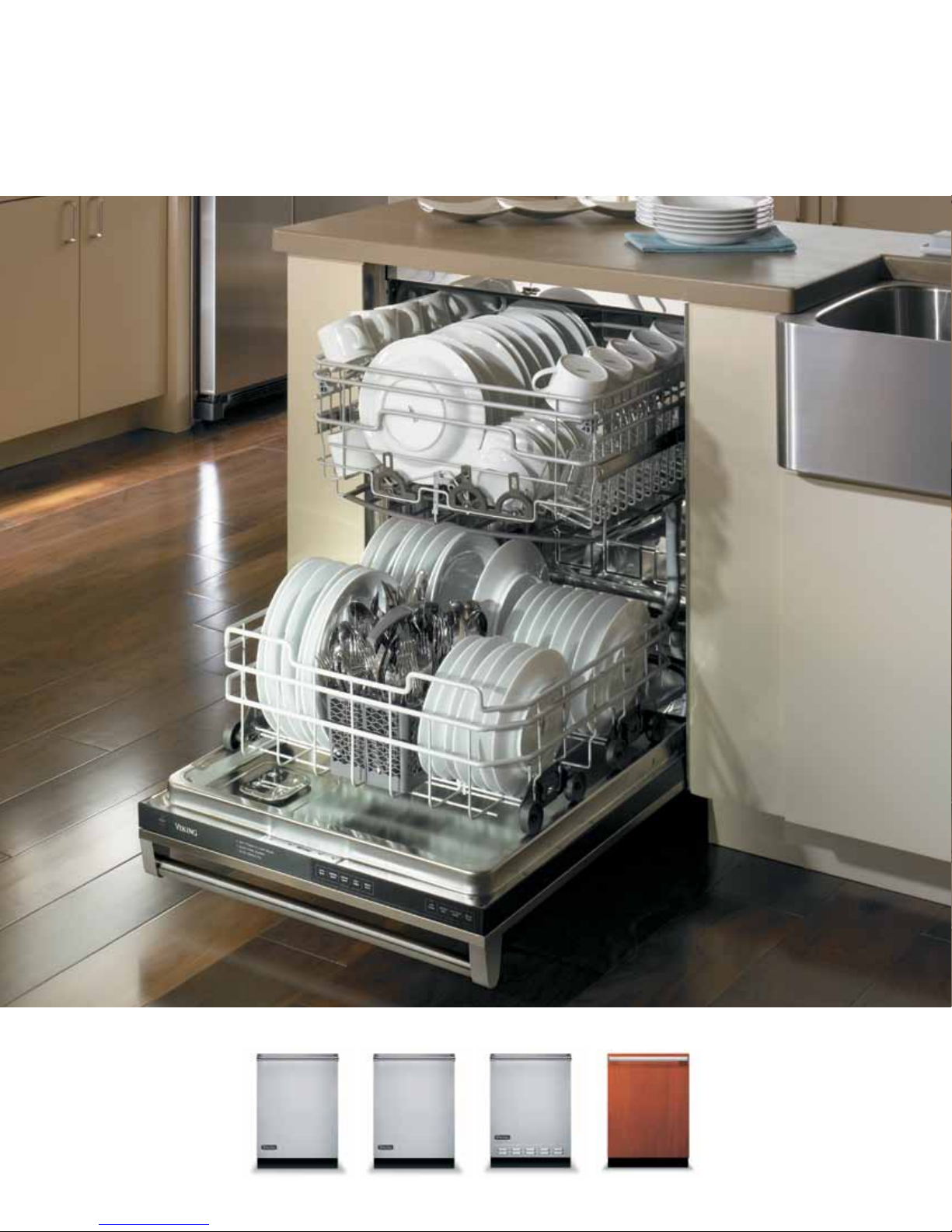

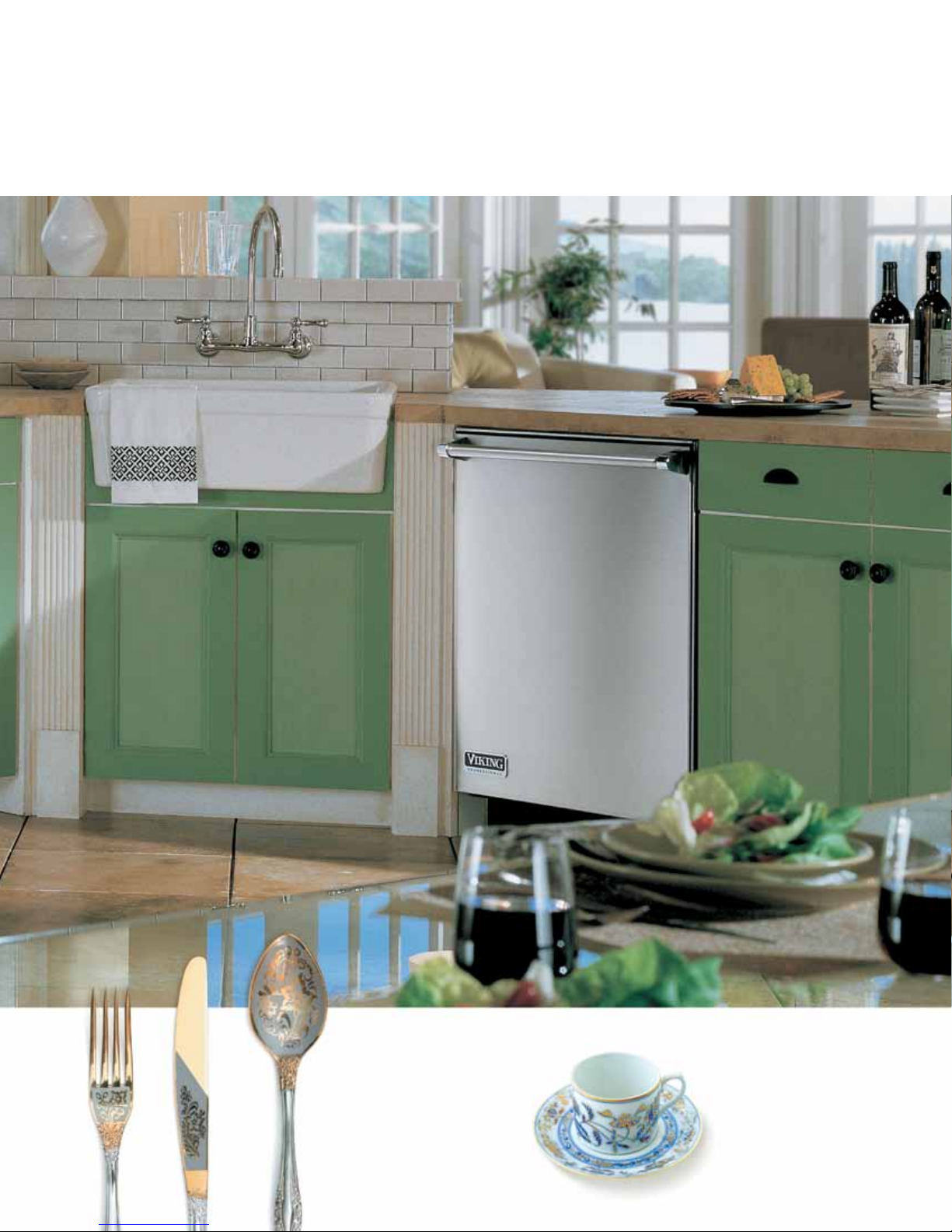

VDB450 – Professional model
6
The versatile capacity cradles
up to 15 place settings of china.

AirFlo™ Gentle Drying (450 model)*
The heated fan-driven drying system gently circulates 30 CFM of
warm air over, under, and around every dish in the racks.
n Fan, motor, low-wattage heater, and housing are located
outside tank
n Thermally-protected motor and heater
n Dual ducting in door safety vents at bottom of door
n Econo Dry option
Condensate Quick Dry (325 model)
n Moisture condenses on the cooler stainless steel tank and door
and drains to sump area
n Quick and efficient drying
Quiet Clean™ Performance
Viking Intelli-Wash dishwashers were painstakingly engineered
top to bottom for the quietest operation possible. With multi-
stage insulation, cushion-mounted components, and specialized
motor/pump assemblies, you’ll never know it’s even running.
n Ultra-quiet three-phase motor
n Separate motor/pump assemblies for washing and drainage
n Multi-stage sound absorbing/heat retaining insulation
n Switch-activated vent door opens only during drying for
quieter operation
n All key operating components cushion-mounted for quiet operation
n Blue LED power on light in kickplate indicates cycle is operating
“Load-As-You-Like” Sturdi-Bilt™ Racks
Extendable nylon racks serve as customizable cradles for your
dishes and glassware. Numerous upper tine rack positions easily
accommodate everything from tall wine glasses to casserole
pans, and the large capacity can handle up to 15 international
place settings of china in a single load.
n Two-piece silverware/cutlery basket allows separate place-
ment in various lower or upper rack locations (450 model only)
n Lower rack
• Four rows of one-piece, three-position fold-down tines
n Roller Bearing™ upper rack
• Three rows of multi-position Hold-Tight™ dividers*
• One-piece stemware cradle/cup shelf (450 model only)
• One-piece cup shelf
Additional Construction and Safety Features
All Viking Intelli-Wash dishwashers are built to last with heavy-
duty construction and a host of high-performance features.
n Diamond-Brite™ stainless steel tank and inner door*
• Brightly polished to protect long-term appearance
n Largest dishwasher tank/door
n Rigid steel braces*
n Completely enclosed rustproof steel base/pan with
removable front
n Fill and drain system*
• Central Intelligence™ overfill sensor
• Backflow prevention valve
• Overflow protector in base pan
n Triple door safety system
• Mechanical latch, electrical safety switch, and start button
*Viking Exclusive Feature
Cycles
• Pots/Pans
• Normal Wash
• Econo Wash
• Light/China
• Rinse/Hold
Options
• Econo Dry (450 model only)
• 155 degrees F (68.3 degrees C)
Final Rinse
• Top Wash Only (450 model only)
• Delay Start (up to 10 hours – 450
model; up to 6 hours – 325 model)
7
One of the most powerful water
heaters available ensures thorough
and sanitary cleaning.

Convenient operation
n Built-in small litter area (VUC181 only)
• Allows loading of small items without opening large
trash drawer
• May be opened while compactor is operating
n Large 1.7-cubic-foot trash drawer
• Largest capacity of any residential compactor
• Allows random loading of bulky items
• Easily holds the weekly trash of a family of four
n Breakaway trash basket
• Easy to empty and clean
• May be used with or without bags
• Basket release handle/plate for easy removal
n Activated charcoal filter and fan with control panel switch
• Remove odors and eliminate the need for perfumed
deodorizers
• Control panel light indicates fan is operating
n Built-in storage compartment
• Convenient storage of compactor bags or other
cleanup items
• Largest capacity available
Maximum compacting power
n 1/2 horsepower, high-torque motor
• Most powerful motor in a residential compactor
n Three-Point Drive System avoids jamming which can result
from uneven loading
Trash compactors
VUC181
Professional model
The conveniently sized, easy-
to-handle breakaway basket
allows easy removal and
transport of compacted trash.
DFC180
Custom Panel model
with Designer Handle
It’s easy to lose yourself in the kitchen. Unfortunately, it’s a little tougher to lose the inevitable mess. But Viking trash compactors make
quick work of whatever you leave in your culinary wake. The largest capacity of any residential compactor handles even the bulkiest
items without cramming or jamming. And the most powerful motor on the market crushes it all with 3,000 pulverizing pounds of
force. An activated charcoal filter and fan keep odors at bay. And the breakaway trash basket makes Viking compactors a snap to empty.
n Reduces trash to approximately one-fourth its original
size in 35 seconds or less
n Delivers 3,000 pounds of crushing force at every position
and at every point on the ram head
n Three-Piece Ram encloses motor and drive system for
quiet operation
Sturdy construction and safety features
n Durable, heavy-gauge steel frame
n Double reinforced base withstands heavy loads
n Key-start operation with safety lock
n Positive drawer closing ensures compactor will not
operate while drawer is open
Standard accessories
n Five grip/slip plastic bags with ties
• Outside grips to hold bag in place; inside slips for
easy compacting
• Specifically designed to fit 18" wide compactor
• 3.5 millimeters thick
• Pre-punched holes match bag retainer buttons
n One activated charcoal air filter
n One breakaway trash basket
Optional accessories
n Case of replacement plastic bags and ties (TCBC)
n Activated charcoal air filter (ACF-VUC) for replacement
every six to nine months
8

With the most powerful motor
available in a residential model, the
trash compactor reduces trash to
approximately one-fourth its original
size in less than 35 seconds.
VUC181 – Professional
model in Biscuit finish
9

Continuous feed operation
n Convenient wall switch start
n Operates with or without cover for easy loading of
food waste
Powerful grind system
n Solid cast grind wheel
• Two fixed stainless steel impellers
• Continuous cutting from 18 uppercutters
and 16 undercutters
• Precision-balanced for smooth, vibration-free
performance
n Solid cast shredder ring has 45 double-edged cutters
n 1,417,500 uppercuttings and 1,260,000 undercuttings
per minute – approximately 15 times that of the nearest
high-end competitor
n Highly effective for use with septic tanks
Anti-jamming system
n Capacitor start motor is one of the most powerful available
in a residential model
n Automatic reversing
• Grind wheel moves in opposite direction with each
start, breaking jams that stop ordinary disposers
n Power Plus Jam-inator® button (VCFW1000 only)
• Solid-state device causes grind wheel to oscillate
approximately 7,000 times per minute, pulverizing
even the toughest jams
Quiet operation
n Sound absorbing insulation in grind area
n Six isolating gaskets in key operating areas absorb sound
n Quiet and efficient fixed impellers eliminate noise
generated by ordinary swivel blades and will not swing
away from waste
Optional accessories
n Batch feed accessory kit (BFAK) converts continuous feed
disposer into magnetically activated batch feed unit
n Counter/sink switch kit (STSK)
• Air activated switch easily mounts to sink or
countertop and is perfect for island installations
• Kit includes chrome and white buttons
n Sink flanges (SFLG) in brass, white, and biscuit
n Sink stoppers (SSTP) in brass, white, and biscuit
n Deep sink flange (SFLGD) in stainless steel
• Accommodates up to 1.75" thick sink

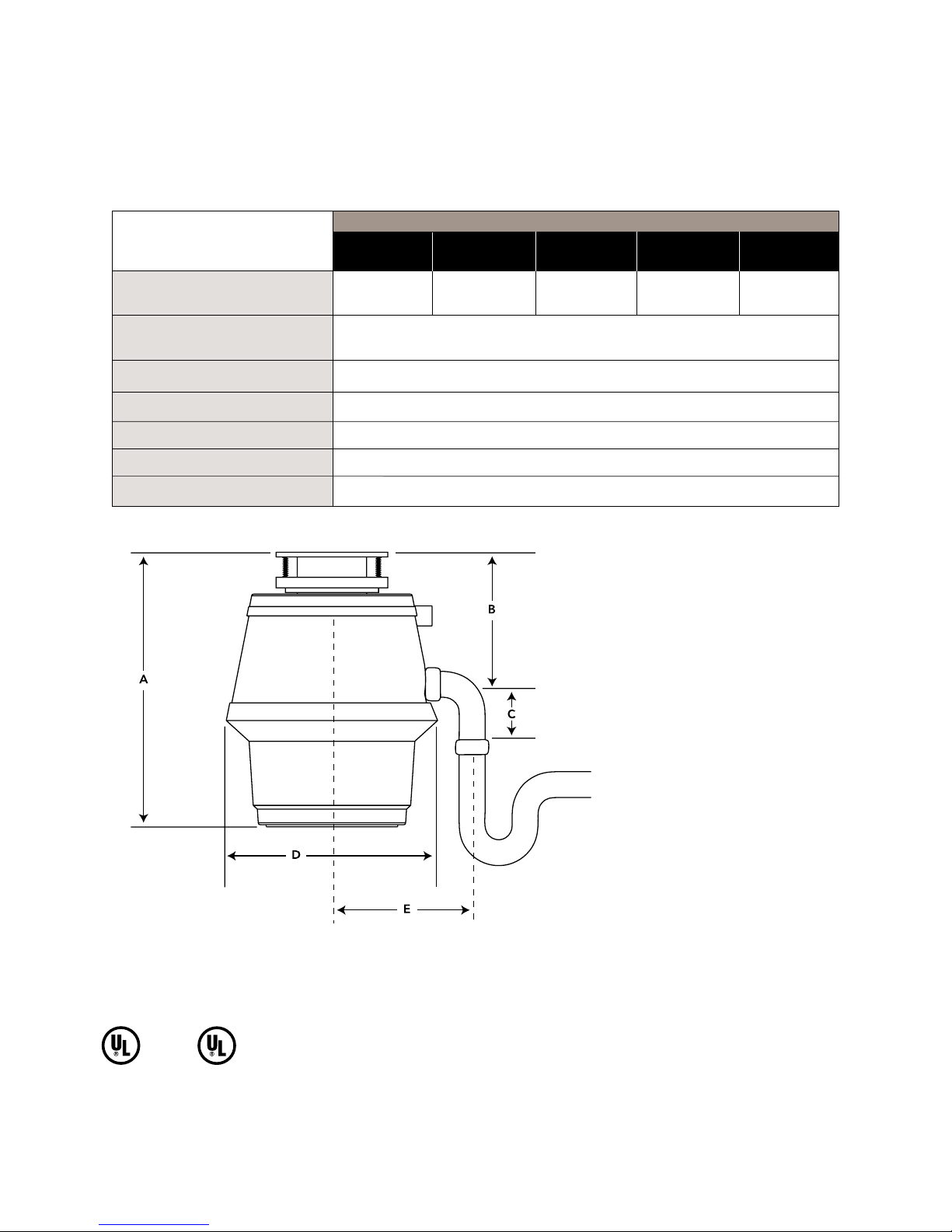

Food waste disposers
VCFW1000VCFW750
The optional counter/sink switch kit
offers an air-activated button control
perfect for island installations.
No matter how much your guests enjoy the speckled trout, a few bites will surely be left. And speckled trout certainly does not age well.
Luckily, Viking waste disposers are always ready to finish off any and all scraps. The powerful motor devours everything from shrimp
peels to turkey bones. The exclusive anti-jamming system prevents jams in even the heaviest loads – while the precision-balanced grind
system quietly shreds everything into oblivion. It’s almost more fun than cooking.
10

Flanges available in
brass, white, and
biscuit. Deep sink
flange available
in stainless steel.
11

Dishwashers (450 models)
n VDB450 shipped with Stainless Steel (SS) Professional door
panel without louvers
n DFB450 accepts Professional door panels or custom panel
• Professional door panels without louvers (PDDP24)
available in Stainless Steel (ST), Black (BK), White (WH),
Metallic Silver (MS), Graphite Gray (GG), Stone Gray (SG),
Taupe (TP), Biscuit (BT), Cotton White (CW), Oyster Gray (OG),
Golden Mist (GM), Lemonade (LE), Sage (SA), Mint
Julep (MJ), Sea Glass (SE), Iridescent Blue (IB), Viking Blue
(VB), Pumpkin (PM), Racing Red (RR), Apple Red (AR),
Burgundy (BU), Plum (PL), Chocolate (CH), and Cobalt
Blue (CB)
• May be ordered with Brass Accent Option (BR) for
nameplate and handle endcaps
• Professional door panels with louvers (PDDPL24)
available in Stainless Steel (ST) only
• May be ordered with Brass Accent Option (BR) for
nameplate and handle endcaps
• Custom panel model accepts 3/4" thick door panel
Design integrity
12
Consistency in both performance and design should be a major consideration when building or remodeling a home. With the complete Viking indoor or
outdoor kitchen, every single product works together in form and function with the same level of excellence. It’s something Viking calls Design Integrity™.
Viking is the only company that offers complete ultra-premium kitchens – so Viking is also the only company that can offer truly consistent design, while
delivering the quality and performance that makes Viking the true market leader. Across all product categories, the knobs, handles, bezels, curves, angles,
and lines all follow the same design cues – even the grain of stainless is the same from product to product. This enables the designer to create a perfectly
harmonious kitchen in one of three Viking product offerings – Professional Indoor, Designer Indoor, or Professional Outdoor.
You wouldn’t install mismatched cabinets and drawers or countertops. Yet design differences are even more dramatic between multiple
appliance manufacturers. Traditional or contemporary. Stainless steel or color finishes. No matter the look you’re going for, no one can match
the Viking kitchen and Viking Design Integrity.
Exclusive finishes
stainless steel metallic silver graphite gray stone gray taupe biscuit cotton white white oyster gray golden mist lemonade sage

Warranty highlights
Dishwashers
n One-year full covers complete dishwasher
n Lifetime limited – Stainless Steel exterior
n Five-year limited – upper and lower graphite nylon racks,
motor/pump assemblies (2) and water distribution system
n Twenty-five-year limited – Stainless Steel tank and
inner door
n Ninety-day limited – cosmetic parts such as glass,
painted items, and decorative items
Trash Compactors
n One-year full covers complete compactor
n Lifetime limited – Stainless Steel exterior
n Five-year limited – 1/2 horsepower drive system motor
n Ninety-day limited – cosmetic parts such as painted
items and decorative items
Disposers
n VCFW750
• Seven-year full covers complete disposer
• Ninety-day limited – cosmetic parts such as
painted items and decorative items
n VCFW1000
• Ten-year full covers complete disposer
• Ninety-day limited – cosmetic parts such as
painted items and decorative items
13
mint julep sea glass iridescent blue viking blue pumpkin racing red apple red burgundy plum black chocolate cobalt blue
Dishwashers (325 models)
n Professional door panels without louvers available in
Stainless Steel (SS), Black (BK), and White (WH)
Trash Compactors
n Available in Stainless Steel (SS), Black (BK), White (WH),
Metallic Silver (MS), Graphite Gray (GG), Stone Gray (SG),
Taupe (TP), Biscuit (BT), Cotton White (CW), Oyster Gray
(OG), Golden Mist (GM), Lemonade (LE), Sage (SA), Mint
Julep (MJ), Sea Glass (SE), Iridescent Blue (IB), Viking Blue
(VB), Pumpkin (PM), Racing Red (RR), Apple Red (AR),
Burgundy (BU), Plum (PL), Chocolate (CH), and Cobalt
Blue (CB)
• May be ordered with Brass Accent Option (BR) for
nameplate and handle endcaps
n Custom panel model accepts 3/4" thick door panel
n All brass components have a durable, protective
coating for maintenance-free normal use

14
Basic specifications – Intelli-Wash Dishwashers
VDB325/VDB450/DFB450
Description 24" WIDE INTELLI-WASH DISHWASHERS
Electrical Requirements
Inlet Water Temperature
Overall Width 23 7/8" (60.6 cm)
Overall Height from Floor 33 7/8" (86.0 cm) minimum to 35" (89.0 cm) maximum
Overall Depth
(includes door panel)
24" (61.0 cm)
With door open – 49" (124.5 cm)
Cutout Width 24" (61.0 cm)
Cutout Height 34" (86.4 cm) minimum to 35" (89.0 cm) maximum
Cutout Depth 24" (61.0 cm)
15.0 amps, 120V/60Hz; 5' (1.5m) electrical cord with 90 degree 3-prong plug
supplied with unit.
120˚ F (49˚C) recommended; Dishwasher will perform properly with cold water.
Note: cycle times will be extended. 5' (15m) braided stainless steel hose with
3/8" OD compression fitting supplied with unit.
Drain Hose 7' (2.1m) 1/2" (1.3 cm) ID “crimp-proof” flexible drain hose with clamp
attached to dishwasher; connections provided for 5/8" (1.6 cm), 3/4" (1.9 cm)
or 1" (2.5 cm), cut as required.
Drain Hose
High Loop Required
Height from floor – 20" (51.0 cm)
Approximate Shipping Weight 450 models: 157 lb. (70.7 kg)
325 models: 152 lb. (71.2 kg)
Water-Heating Element Rating 1400 watts
™

24" WIDE INTELLI-WASH DISHWASHER
24" WIDE INTELLI-WASH DISHWASHER
Cycle data – 450 models
Cycle data – 325 model
Recommended
dish types/
soil level
Recommended
dish types/
soil level
Cycle name
Cycle name
Pots/Pans
Pots/Pans
Intense
Intense
Heavily soiled pots, pans
and casserole dishes
Heavily soiled pots, pans
and casserole dishes
Prewash – 130˚ F (54.4˚ C)
Main – 150˚ F (66˚C)
Rinse – 150˚ F (66˚C)
Prewash – 130˚ F (54.4˚ C)
Main – 150˚ F (66˚C)
Rinse – 150˚ F (66˚C)
195 min
140 min
Pressure
Pressure
Wash
temperature
Wash
temperature
Total wash time
(minutes)
120°F (49°C)
Total wash time
(minutes)
120°F (49°C)
8.2
8.2
Total
water
gal. (L)
Total
water
gal. (L)
Normal Wash Medium
Normally soiled plates,
glasses, bowls, and lightly
soiled pots and pans
Prewash – N/A
Main – 130˚ F (54.4˚C)
Rinse – 145˚ F (63˚C)
125 min4.7
Normal Wash Medium
Normally soiled plates,
glasses, bowls, and lightly
soiled pots and pans
Prewash – N/A
Main – 130˚ F (54.4˚C)
Rinse – 145˚ F (63˚C)
70 min4.7
Econo Wash
Light/Medium Normally soiled plates,
glasses, bowls, and lightly
soiled pots and pans
Prewash – N/A
Main – 125˚ F (51.7˚C)
Rinse – 130˚ F (54˚C)
125 min3.5
Econo Wash
Light/Medium Normally soiled plates,
glasses, bowls, and lightly
soiled pots and pans
Prewash – N/A
Main – 125˚ F (51.7˚C)
Rinse – 130˚ F (54˚C)
70 min3.5
Light/China Light
Lightly soiled dishes
or fine china and crystal
Prewash – 130˚ F (54.4˚ C)
Main – 125˚ F (51.7˚C)
Rinse – 120˚ F (48.9˚C)
155 min5.9
Light/China Light
Lightly soiled dishes
or fine china and crystal
Prewash – 115˚ F (46.1˚ C)
Main – 125˚ F (51.7˚C)
Rinse – 120˚ F (48.9˚C)
100 min5.85
Rinse/Hold Medium
All dishware Rinse 12 min1.2
Rinse/Hold Medium
All dishware Rinse 12 min1.17
15
Note: Will perform properly if connected to “cold” water – 50 ˚ F (10˚ C). Cycle times will be extended.
Note: Will perform properly if connected to “cold” water – 50 ˚ F (10˚ C). Cycle times will be extended.

Basic specifications – Trash compactors
VUC181
Description 18" WIDE TRASH COMPACTORS
Overall Width
Overall Height from Bottom
17 13/16" (45.2 cm)
34 3/16" (86.8 cm) minimum
35 11/16" (90.6 cm) maximum
Cutout Width 18" (45.7 cm) minimum
Cutout Depth 24" (61.0 cm) minimum
Electrical Requirements 115VAC/60Hz; 72" (128.9 cm)
2-wire cord with grounded 3-prong plug attached to product
Maximum Amp Usage 9.0 amps
All electrical and plumbing connections must conform to local codes.
16
Approximate Shipping Weight 210 lb. (94.5 kg) 217 lb. (97.7 kg)
Cutout Height 34 1/4" (87.0 cm) minimum
35 3/4" (90.8 cm) maximum
34 1/4" (87.0 cm) minimum
35 5/8" (90.5 cm) maximum
34 1/8" (86.7 cm) minimum
35 1/2" (90.2 cm) maximum
DFC180
Overall Depth from Rear To edge of side – 23 5/8" (60.0 cm)
To end of handle bracket – 26 1/16" (66.2 cm)
With door open – 48 1/8" (122.2 cm)
To edge of side – 23 7/8" (60.6 cm)
With door open – 47" (119.42 cm)

Disposers
A
Description DISPOSERS
VCFW750/1000
BD E
13 11/16"
(34.8 cm)
C
6 13/16"
(17.3 cm) 4" (10.2 cm) 10 1/16" (25.6 cm) 5 3/4" (14.6 cm)
Sink Flange Fits all types of sinks with standard 3 1/2" (8.9 cm) to 4" (10.2 cm) openings;
flange comes with two rubber sealing gaskets.
Drain 1 1/2" (3.8 cm) OD waste line spout with rubber sealing gasket packed with disposer
Dishwasher Connection 7/8" (2.2 cm) OD tube
120V/60Hz; hard wire direct with 2-wire ground
Electrical Requirements
1 HP-10.0 amps, 3/4 HP - 8.0 amps
Maximum Amp Usage
23 lb. (10.4 kg)
Approximate Shipping Weight
17
To receive the most current specification sheets, call Dimension Express from your fax
machine at [phone], or visit their Web site at www.dexpress.com. Enter the
code #8051 for Viking products. This will send you information on how to use the system
and the corresponding model code numbers. Dimension Express customer service
number is [phone].
All models with standard equipment are design-certified for residential installation.
© 2009, Viking Range Corporation
Specifications subject to change without notice.
All kitchen
cleanup products
All kitchen
cleanup products
C

Notes
18

Notes
19

GL1109F60068H
Viking Range Corporation
111 Front Street
Greenwood, Mississippi 38930 USA
[phone]
For product information,
call 1-888-VIKING1 (845-4641),
or visit the Viking Web site at
vikingrange.com
®
Follow us on
