Viking RG-204 User manual

PRODUCT MANUAL
Designed, Manufactured and Supported in the USA
COMMUNICATION & SECURITY SOLUTIONS
Features
RG-204
4 Line Ring
Shaper / Booster
July 7, 2016
Applications
Specifications
www.vikingelectronics.com
Information: [phone]
VIKING
• True Sine wave ring signal output
• Boosts ring to 4 REN
• Caller ID compatible
• Easy installation
• Compatible with distinctive ringing
services
• Will not affect normal line operation
• Reshapes troublesome square wave
ringing
• Fax and modem compatible
• Not compatible with pulse dialing
Power: 120V AC / 15V AC 202A UL listed adapter
provided
Dimensions: 210mm x 159mm x 45mm (8.75” x
6.25” x 1.75”)
Shipping Weight: 1.5kg (3.2lbs)
Environmental: 0°C to 32°C (32°F to 90°F) with
5% to 95% non-condensing humidity
Incoming Ring Detection: 20-150 VAC
Ring Generator: 90 VAC nominal, 55 VAC @ 4
REN load
Ringwave Shape: Sine wave
Connections: (8) RJ-14Jacks (16) screw
terminals
Boost the Ringing Power of 4 Analog PABX Stations,
FXS Ports, or IP Phone System Anolg Ports
• Boosts ringing power of FXS port or IP phone
system analog ports that are weak or fail
• Boost ring power on analog PABX/KSU
stations that are weak or fail
• Reshapes troublesome distorted ringing
signals
The RG-204 ring generator is designed to
reshape and increase the ringing power of
up to 4 analog PABX extensions, FXS ports,
IP phone system analog ports, or any other
telecom devices which provides ringing.
The RG-204 duplicates the incoming ring
cadence allowing it to be compatible with
custom ringing features.
Each line is capable of ringing four 1 REN or
eight 0.5 REN telephones and does not
affect normal operation of the telephone line
or features, such as caller ID,
call waiting,
hookswitch flash features, CPC signaling, etc.
For larger multi-line applications, use Viking
models RG-212 (12 line) or RG-224 (24
line). For single line applications, use the
Viking model RG-4. The Viking model
RG-10A may be used for single line higher
drive output applications up to 12 REN.

2
IMPORTANT: Electronic devices are susceptible to lightning and power station electrical
surges from both the AC outlet and the telephone line. It is recommended that a surge
protector be installed to protect against such surges.
VIKING
©MODEL RG-204
VIKING
ELECTRONICS
HUDSON, WI 54016
FOUR CHANNEL RING BOOSTER
PWR
15 VAC
1 2 3 4 11
12
13 14 15
PWR
LINE IN
TIP
RING
PHONES
16
9 10
( ) ( )
TIP
RING ( )
( )
5 6 7 8
LINE IN
TIP
RING
PHONES
( ) ( )
TIP
RING ( )
( )
LINE IN
TIP
RING
PHONES
( ) ( )
TIP
RING ( )
( )
LINE IN
TIP
RING
PHONES
( ) ( )
TIP
RING ( )
( )
15V AC
Adapter
(included)
1: Line In*
Tip (+)
2: Line In*
Ring (-)
3: Line Out
4: Line Out
To Analog Phone, Analog
PABX/KSU Trunk Input, etc.
Analog PABX/KSU
Station, FXS Port,
VoIP Analog Port,
or any other ring
generating device
Installation Using
Wire Terminals:
To Analog Phone, Analog
PABX/KSU Trunk Input, etc.
Analog PABX/KSU
Station, FXS Port, VoIP
Analog Port, or any other
ring generating device
Optional Modular
Jack Installation:
The RG-204 has 4 analog line circuits that pass through the unit. When any line is idle, the RG-204
provides a “copper-thru” path from input to output. Whenever the RG-204 detects a ringing signal on
any incoming line, that output is switched to its dedicated internal sine wave ring generator to ring the
phones. In between rings the RG-204 switches that line back to “copper-thru” so caller-ID may pass
through. When the line is answered and in use, the RG-204 again provides a “copper-thru” path from
input to output. There are 4 front panel Channel LEDs showing the status of each of the 4 line circuits.
Each LED lights dim showing the line is not ringing and in the “copper-thru” state. The LED will light
bright when ringing is being generating. If a ring generator’s fault protection circuit engages, that
Channel LED will go out. A fault may possibly be reset by momentarily unplugging power to the RG-
204 for a few minutes. Unplugging power to the RG-204 will not drop any calls, nor disable the ability
to make inbound or outbound calls, although inbound ringing will not be boosted.
Installation and Wiring
Operation
* IMPORTANT: “LINE IN” is polarity sensitive. If wired in reverse polarity, the RG-204 may trip ringing
after the first ring.

3

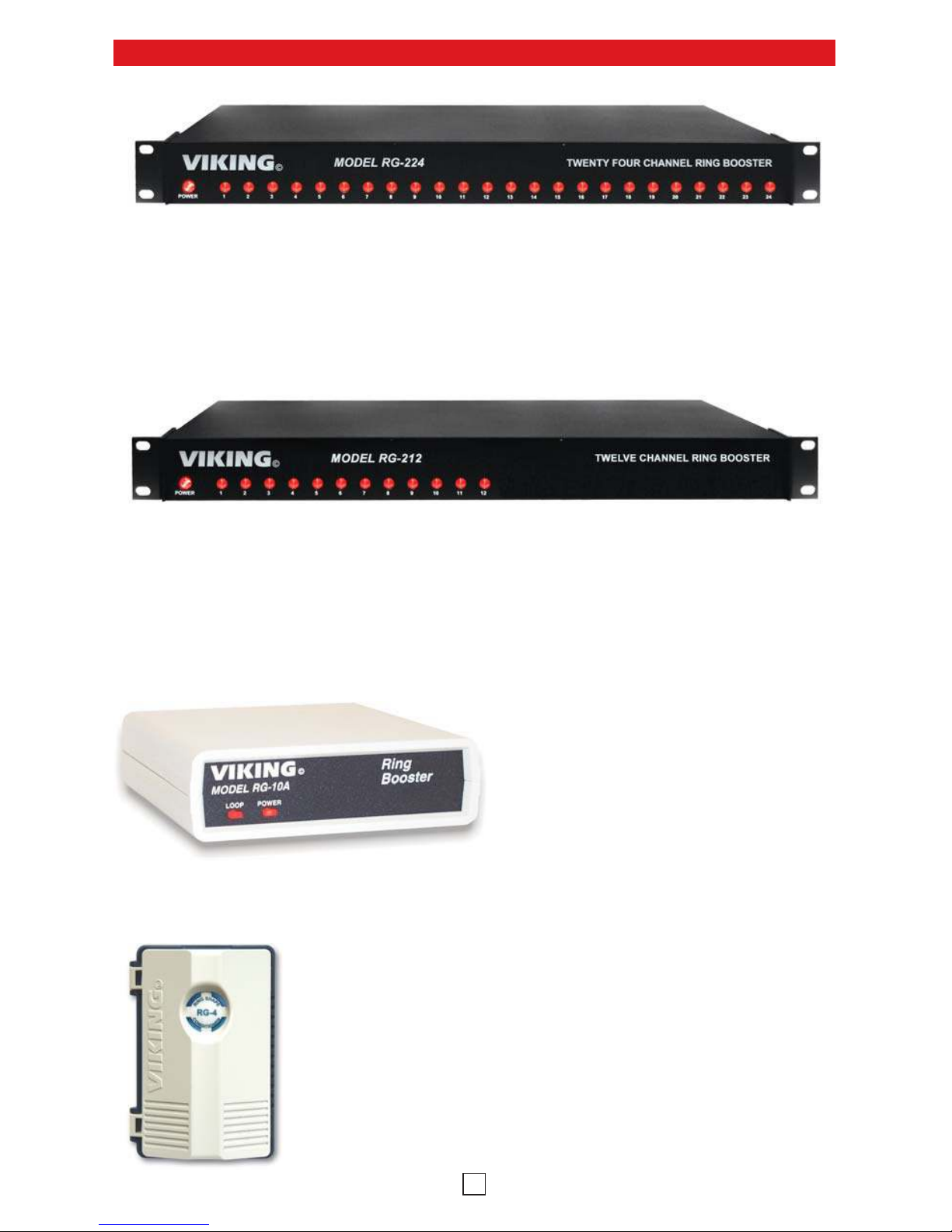

The RG-224 ring generator is designed to reshape and increase the ringing power of up to
24 analog PABX extensions, FXS ports, IP phone system analog ports, or any other telecom
devices which provides ringing. The RG-224 duplicates the incoming ring cadence allowing
it to be compatible with custom ringing features.
For more information on the RG-224, see DOD# 418.
The RG-212 ring generator is designed to reshape and increase the ringing power of up to
12 analog PABX extensions, FXS ports, IP phone system analog ports, or any other telecom
devices which provides ringing. The RG-212 duplicates the incoming ring cadence allowing
it to be compatible with custom ringing features.
For more information on the RG-212, see DOD# 419.
The RG-10A high power ring generator is
designed to increase the ringing power of
a single existing telephone line, PABX
extension, or any other telecom device
which provides ringing up to 12 REN. The
RG-10A duplicates the incoming ring
frequency and cadence allowing it to be
compatible with custom ringing features.
The RG-4 ring generator is designed to reshape and increase the
ringing power of a single existing analog line, PABX extension,
FXS port, IP phone system analog port or any other telecom
device which provides ringing.The RG-4 duplicates the incoming
ring cadence allowing it to be compatible with custom ringing
features.
For more information on the RG-4, see DOD# 416.
Related Products
For more information on the
RG-10A, see DOD# 420.

4
Printed in the U.S.A.
DOD# 417
ZF302970 Rev A
Warranty
Due to the dynamic nature of the product design, the information contained in this document is subject to change without notice. Viking Electronics, and its affiliates
and/or subsidiaries assume no responsibility for errors and omissions contained in this information. Revisions of this document or new editions of it may be issued
to incorporate such changes.
IF YOU HAVE A PROBLEM WITH A VIKING PRODUCT, CONTACT: VIKING TECHNICAL SUPPORT AT [phone]
Our Technical Support Department is available for assistance Monday through Friday 8:00am - 5:00pm central time. So that we can give you
better service, before you call please:
1. Know the model number, the serial number and what software version you have (see serial label).
2. Have your Product Manual in front of you.
3. It is best if you are on site.
RETURNING PRODUCT FOR REPAIR
The following procedure is for equipment that needs repair:
1. Customer must contact Viking's Technical Support Department at 715-386-8666 to obtain a Return Authorization (RA) number. The
customer MUST have a complete description of the problem, with all pertinent information regarding the defect, such as options set,
conditions, symptoms, methods to duplicate problem, frequency of failure, etc.
2. Packing: Return equipment in original box or in proper packing so that damage will not occur while in transit. Static sensitive equipment
such as a circuit board should be in an anti-static bag, sandwiched between foam and individually boxed. All equipment should be wrapped
to avoid packing material lodging in or sticking to the equipment. Include ALL parts of the equipment. C.O.D. or freight collect shipments
cannot be accepted. Ship cartons prepaid to: Viking Electronics, 1531 Industrial Street, Hudson, WI 54016
3. Return shipping address: Be sure to include your return shipping address inside the box. We cannot ship to a PO Box.
4. RA number on carton: In large printing, write the R.A. number on the outside of each carton being returned.
RETURNING PRODUCT FOR EXCHANGE
The following procedure is for equipment that has failed out-of-box (within 10 days of purchase):
1. Customer must contact Viking’s Technical Support at 715-386-8666 to determine possible causes for the problem. The customer MUST
be able to step through recommended tests for diagnosis.
2. If the Technical Support Product Specialist determines that the equipment is defective based on the customer's input and troubleshooting,
a Return Authorization (R.A.) number will be issued. This number is valid for fourteen (14) calendar days from the date of issue.
3. After obtaining the R.A. number, return the approved equipment to your distributor, referencing the R.A. number. Your distributor will then
replace the Viking product using the same R.A. number.
4. The distributor will NOT exchange this product without first obtaining the R.A. number from you. If you haven't followed the
steps listed in 1, 2 and 3, be aware that you will have to pay a restocking charge.
TWO YEAR LIMITED WARRANTY
Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of two
years from the date of purchase from any authorized Viking distributor. If at any time during the warranty period, the product is deemed
defective or malfunctions, return the product to Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI., 54016. Customer must contact
Viking's Technical Support Department at 715-386-8666 to obtain a Return Authorization (R.A.) number.
This warranty does not cover any damage to the product due to lightning, over voltage, under voltage, accident, misuse, abuse, negligence
or any damage caused by use of the product by the purchaser or others. This warranty does not cover non-EWP products that have been
exposed to wet or corrosive environments. This warranty does not cover stainless steel surfaces that have not been properly maintained.
NO OTHER WARRANTIES. VIKING MAKES NO WARRANTIES RELATING TO ITS PRODUCTS OTHER THAN AS DESCRIBED ABOVE
AND DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTIES OR MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.
EXCLUSION OF CONSEQUENTIAL DAMAGES. VIKING SHALL NOT, UNDER ANY CIRCUMSTANCES, BE LIABLE TO PURCHASER,
OR ANY OTHER PARTY, FOR CONSEQUENTIAL, INCIDENTAL, SPECIAL OR EXEMPLARY DAMAGES ARISING OUT OF OR RELATED
TO THE SALE OR USE OF THE PRODUCT SOLD HEREUNDER.
EXCLUSIVE REMEDY AND LIMITATION OF LIABILITY. WHETHER IN AN ACTION BASED ON CONTRACT, TORT (INCLUDING
NEGLIGENCE OR STRICT LIABILITY) OR ANY OTHER LEGAL THEORY, ANY LIABILITY OF VIKING SHALL BE LIMITED TO REPAIR
OR REPLACEMENT OF THE PRODUCT, OR AT VIKING'S OPTION, REFUND OF THE PURCHASE PRICE AS THE EXCLUSIVE REMEDY
AND ANY LIABILITY OF VIKING SHALL BE SO LIMITED.
IT IS EXPRESSLY UNDERSTOOD AND AGREED THAT EACH AND EVERY PROVISION OF THIS AGREEMENT WHICH PROVIDES
FOR DISCLAIMER OF WARRANTIES, EXCLUSION OF CONSEQUENTIAL DAMAGES, AND EXCLUSIVE REMEDY AND LIMITATION OF
LIABILITY, ARE SEVERABLE FROM ANY OTHER PROVISION AND EACH PROVISION IS A SEPARABLE AND INDEPENDENT ELEMENT
OF RISK ALLOCATION AND IS INTENDED TO BE ENFORCED AS SUCH.
Product Support: [phone]
