TECHNICAL
TECHNICAL
RG-10A
RG-10A
Ring Booster
December 21, 2006
Boost Ringing Power to up to Twelve
Additional Phones
The RG-10A ring generator is designed
to increase the ringing power of an
existing telephone line, PABX exten-
sion, or any other telecom device which
provides ringing.
The RG-10A duplicates the incoming
ring frequency and cadence allowing it to be compatible with custom ringing features.
The RG-10A is capable of ringing twelve standard (1 REN) telephones and does not
affect normal operation of the telephone line or features provided by the phone com-
pany, such as caller ID and call waiting. Multiple RG-10A’s may be used for even high-
er drive output.
P
Ph
ho
on
ne
e.
..
..
.7
71
15
5.
.3
38
86
6.
.8
88
86
61
1
Power: 120V AC/ 13.8VAC 1.25 UL listed adapter provided
Dimensions: 127mm x 127mm x 38mm (5” x 5” x 1.5”)
Shipping Weight: 1.2 kg (2.8 lb.)
Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95%
non-condensing humidity
Incoming Ring Detection: 40-150 VAC
Ring Generator: 90 VAC nominal, 12 REN max load @ 40VAC
Ringwave Shape: Saw tooth ring wave
DC Talk Battery Boost (if enabled): 20 Volts DC
Connections: (1) RJ11 plug, (1) RJ11 jack
S
Sp
pe
ec
ci
if
fi
ic
ca
at
ti
io
on
ns
s
F
Fe
ea
at
tu
ur
re
es
s
• Boosts ring to 12 REN
• Caller ID compatible
• Easy modular installation
• Compatible with distinctive ringing services
• Will not affect normal line operation
• Reshapes troublesome square wave ringing
• Capable of boosting talk battery and loop
current
• Made in the USA
• 1 year warranty
h
ht
tt
tp
p:
:/
//
/w
ww
ww
w.
.v
vi
ik
ki
in
ng
ge
el
le
ec
ct
tr
ro
on
ni
ic
cs
s.
.c
co
om
m
• Boost ringing power out of Analog ISDN
Terminal Adapter Ports
• Use with Viking’s doorboxes to increase the
number of phones they can ring
• Boost ring power on telephone lines or ana-
log PABX/KSU stations that are weak or fail
• Reshapes troublesome square wave ringing
from equipment, such as automatic fax
switches
A
Ap
pp
pl
li
ic
ca
at
ti
io
on
ns
s
i
in
nf
fo
o@
@v
vi
ik
ki
in
ng
ge
el
le
ec
ct
tr
ro
on
ni
ic
cs
s.
.c
co
om
m
IF YOU HAVE A PROBLEM WITH A VIKING PRODUCT, PLEASE CONTACT: VIKING TECHNICAL SUPPORT AT (715) 386-8666
Our Technical Support Department is available for assistance Monday 8am - 4pm and Tuesday through Friday 8am - 5pm central time. So that we can give you better service, before you call please:
1. Know the model number, the serial number and what software version you have (see serial label).
2. Have your Technical Practice in front of you.
3. It is best if you are on site.
RETURNING PRODUCT FOR EXCHANGE
The following procedure is for equipment that has failed out-of-box (within 10 days of purchase):
1. Customer must contact Viking’sTechnical Support at 715-386-8666 to determine possible causes for the problem. The
customer MUST be able to step through recommended tests for diagnosis.
2. If the Technical Support Product Specialist determines that the equipment is defective based on the customer's input
and troubleshooting, a ReturnAuthorization (R.A.) number will be issued. This number is valid for fourteen (14)
calendar days from the date of issue.
3. After obtaining the R.A. number, return the approved equipment to your distributor, referencing the R.A. number. Your
distributor will then replace the product over the counter at no charge. The distributor will then return the product to
Viking using the same R.A. number.
4. The distributor will NOT exchange this product without first obtaining the R.A. number from you. If you haven't
followed the steps listed in 1, 2 and 3, be aware that you will have to pay a restocking charge.
RETURNING PRODUCT FOR REPAIR
The following procedure is for equipment that needs repair:
1. Customer must contact Viking's Technical Support Department at 715-386-8666 to obtain a Return Authorization (RA)
number. The customer MUST have a complete description of the problem, with all pertinent information regarding the
defect, such as options set, conditions, symptoms, methods to duplicate problem, frequency of failure, etc.
2. Packing: Return equipment in original box or in proper packing so that damage will not occur while in transit. Static
sensitive equipment such as a circuit board should be in an anti-static bag, sandwiched between foam and individual-
ly boxed.All equipment should be wrapped to avoid packing material lodging in or sticking to the equipment. Include
ALL parts of the equipment. C.O.D. or freight collect shipments cannot be accepted. Ship cartons prepaid to:
Viking Electronics, 1531 Industrial Street, Hudson, WI 54016
3. Return shipping address: Be sure to include your return shipping address inside the box. We cannot ship to a PO Box.
4. RAnumber on carton: In large printing, write the R.A. number on the outside of each carton being returned.
I
In
ns
st
ta
al
ll
la
at
ti
io
on
n
the necessary modifications to maintain uninterrupted service.
If trouble is experienced with the RG-10A, for repair or warranty information, please contact:
Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI 54016 (715) 386-8666
If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the
equipment until the problem is resolved.
Connectionto PartyLine Serviceis subjectto StateTariffs.Contact the state public utility commission, public service com-
mission or corporation commission for information.
WHEN PROGRAMMING EMERGENCY NUMBERS AND (OR) MAKING TEST CALLS TO EMERGENCY NUMBERS:
Remain on the line and briefly explain to the dispatcher the reason for the call. Perform such activities in the off-peak
hours, such as early morning or late evenings.
It is recommended that the customer install anAC surge arrester in the AC outlet to which this device is connected. This
is to avoid damaging the equipment caused by local lightning strikes and other electrical surges.
PART 15 LIMITATIONS
This equipment has been tested and found to comply with the limits for a ClassA digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radi-
ate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at his own expense.
FCC REQUIREMENTS
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the side of this
equipment is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If
requested, this number must be provided to the telephone company.
The REN is used to determine the number of devices that may be connected to a telephone line. Excessive REN's on a
telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of
the REN's should not exceed five (5.0) To be certain of the number of devices that may be connected to a line, as deter-
mined by the total REN's, contact the local telephone company. For products approved after July 23, 2001, the REN for
this product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the
REN without a decimal point (e.g., 03 is a REN of 0.3). For earlier products, the REN is separately shown on the label.
The plug used to connect this equipment to the premises wiring and telephone network must comply with the applicable
FCC Part 68 rules and requirements adopted by theACTA. If your home has specially wired alarm equipment connected
to the telephone line, ensure the installation of this RG-10Adoes not disable your alarm equipment. If you have questions
about what will disable alarm equipment, consult your telephone company or a qualified installer.
If the RG-10A causes harm to the telephone network, the telephone company will notify you in advance that temporary
discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the cus-
tomer as soon as possible.Also, you will be advised of your right to file a complaint with the FCC if you believe it is nec-
essary.
The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the
operation of the equipment. If this happens, the telephone company will provide advance notice in order for you to make

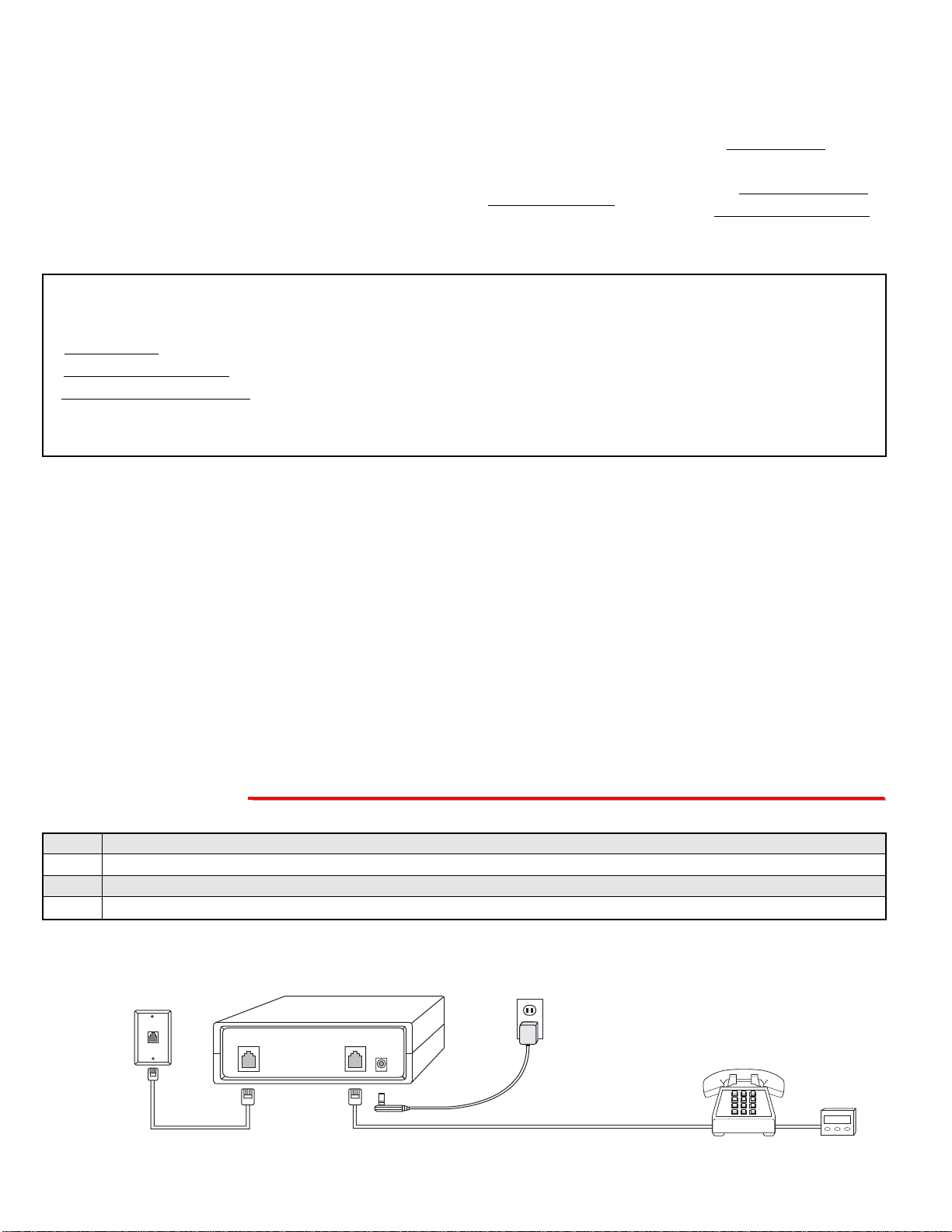

C.O. Line
or Analog
PABX/KSU
Station
120VAC
13.8V AC
Adapter
(included)
Up to 12 standard 1 REN phones
or telephone devices.
Rear View of RG-10A
USE ONLY LISTED
CLASS 2 POWER
SOURCE 13.8VAC
1.25A MAX
OUT TO
PHONES
Viking Electronics, Inc., Hudson, WI. 54016
LINE
IN
Viking Electronics
715-386-8861
Caller ID
LIMITED WARRANTY
Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of one year from the date of purchase from any authorized Viking distributor or 18 months from the date manu-
factured, which ever is greater. If at any time during the warranty period, the product is deemed defective or malfunctions, return the product to Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI., 54016. Customer must contact Viking's
Technical Support Department at 715-386-8666 to obtain a Return Authorization (R.A.) number.
This warranty does not cover any damage to the product due to lightning, over voltage, under voltage, accident, misuse, abuse, negligence or any damage caused by use of the product by the purchaser or others.
NO OTHER WARRANTIES. VIKING MAKES NO WARRANTIES RELATING TO ITS PRODUCTS OTHER THAN AS DESCRIBEDABOVE AND DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTIES OR MERCHANTABILITY OR FIT-
NESS FORANY PARTICULAR PURPOSE.
EXCLUSION OF CONSEQUENTIAL DAMAGES. VIKING SHALLNOT, UNDER ANY CIRCUMSTANCES, BE LIABLE TO PURCHASER, OR ANY OTHER PARTY, FOR CONSEQUENTIAL, INCIDENTAL, SPECIALOR EXEMPLARY DAM-
AGESARISING OUT OF OR RELATED TO THE SALE OR USE OFTHE PRODUCT SOLD HEREUNDER.
EXCLUSIVE REMEDYAND LIMITATION OF LIABILITY. WHETHER INANACTION BASED ON CONTRACT, TORT(INCLUDING NEGLIGENCE OR STRICT LIABILITY) ORANYOTHER LEGALTHEORY, ANYLIABILITY OF VIKING SHALL
BE LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT, ORAT VIKING'S OPTION, REFUND OF THE PURCHASE PRICEAS THE EXCLUSIVE REMEDYANDANY LIABILITY OF VIKING SHALL BE SO LIMITED.
IT IS EXPRESSLY UNDERSTOOD ANDAGREED THAT EACHAND EVERY PROVISION OFTHIS AGREEMENT WHICH PROVIDES FOR DISCLAIMER OF WARRANTIES, EXCLUSION OF CONSEQUENTIALDAMAGES, AND EXCLU-
SIVE REMEDYAND LIMITATION OF LIABILITY, ARE SEVERABLE FROMANYOTHER PROVISIONAND EACH PROVISION ISA SEPARABLE AND INDEPENDENT ELEMENTOF RISKALLOCATIONAND IS INTENDED TO BE ENFORCED
AS SUCH.
Step 1. Disconnect the phones from the C.O. line.
Step 2. Connect the phones to the modular jack labeled OUT TO PHONES.
Step 3. Connect the modular cord labeled LINE IN to the C.O. line.
Step 4. Plug in the included AC power supply.
ISDN Service
Up to 12 standard
1 REN phones or
telephone devices.
Rear View of RG-10A
Personal Computer
Analog / ISDN
Typical ISDN Terminal Adapter (not included)
USE ONLYLISTED
CLASS 2 POWER
SOURCE 13.8VAC
1.25A MAX
OUT TO
PHONES
Viking Electronics, Inc., Hudson, WI. 54016
LINE
IN
Viking Electronics
715-386-8861
Caller ID
A. ISDN Terminal Adapters
B. Door Boxes
Boost the ringing power of the Viking doorboxes, when used with a C-1000B controller on residential systems (Fax
Back Document 168).
A
Ap
pp
