MT 830
A
Always follow safety precautions in Owner's Manual.
Unbedingt Bedienungsanweisung vor erster Inbetriebnahme lesen.
Veuillez lire la notice d'emploi avant la première mise en service.
Owner's Manual
Gebrauchsanleitung
Manuel d’utilisation
EN
DE
FR

R
1720558-06
© 2001 VIKING Umwelttechnik, A - 6330 Kufstein

0478 189 9005. A. Sim. Printed in USA © 2000 VIKING Umwelttechnik, A - 6330 Kufstein
Dear customer,
Thank you for deciding to purchase a quality appli-
ance from VIKING.
This appliance is manufactured using the most up-
to-date production techniques and comprehensive
quality assurance procedures. Our aim is to ensure
that you are 100% satisfied.
If you have any queries about your appliance please
direct them to your retailer or directly to our marke-
ting company.
I hope you will be completely satisfied with your
VIKING appliance
Signed
Nikolas Stihl
Managing Director

English
DeutschFrançais
Table of Contents
Identification Numbers .......................................2
Safety Rules & Information ................................4
Assembly..............................................................7
Unpacking...............................................................7
Fitting the Seat........................................................7

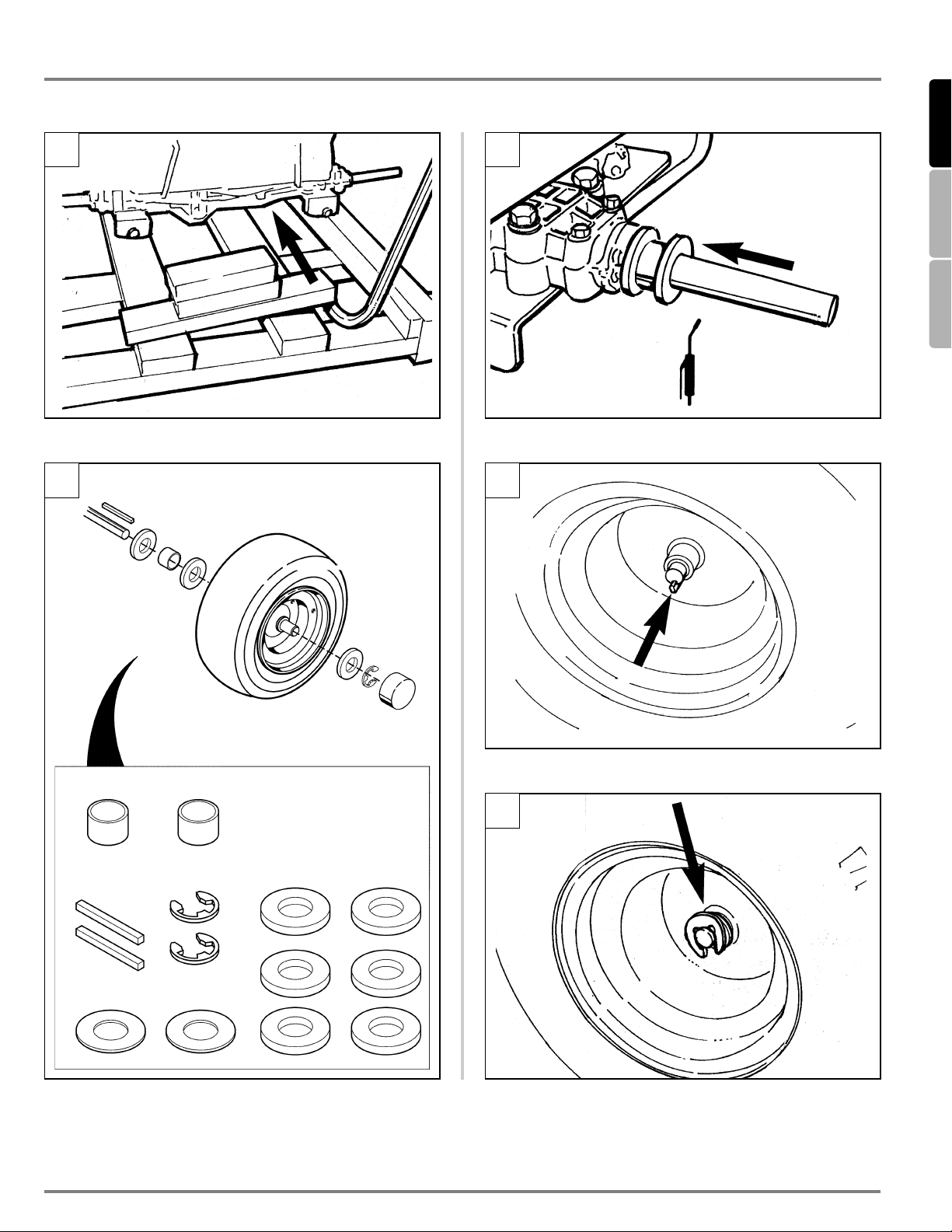

Fitting the Wheels ...................................................8
Fitting the Steering Wheel ....................................10

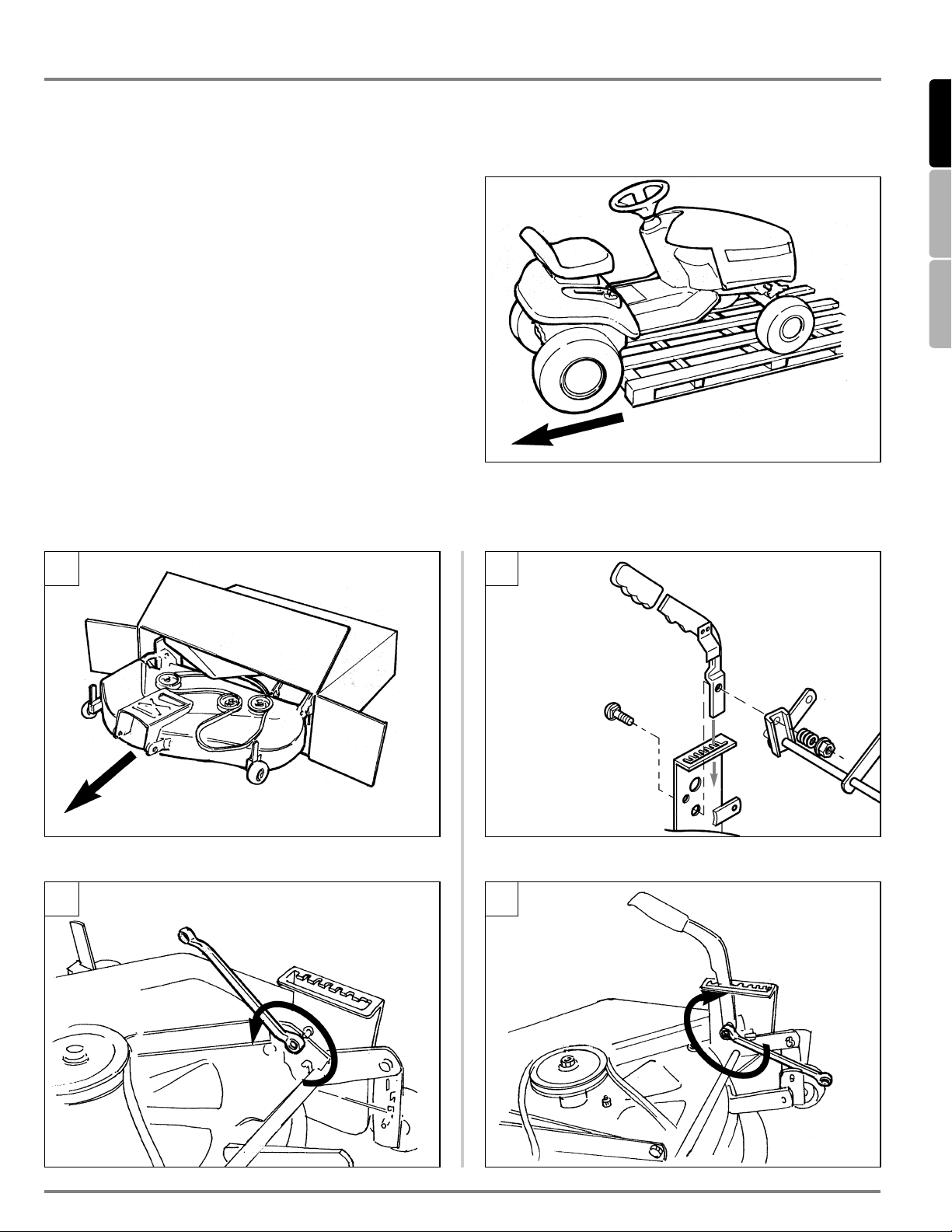

Moving the Traktor from the Pallet.........................11
Assembling the Mowerdeck ..................................11

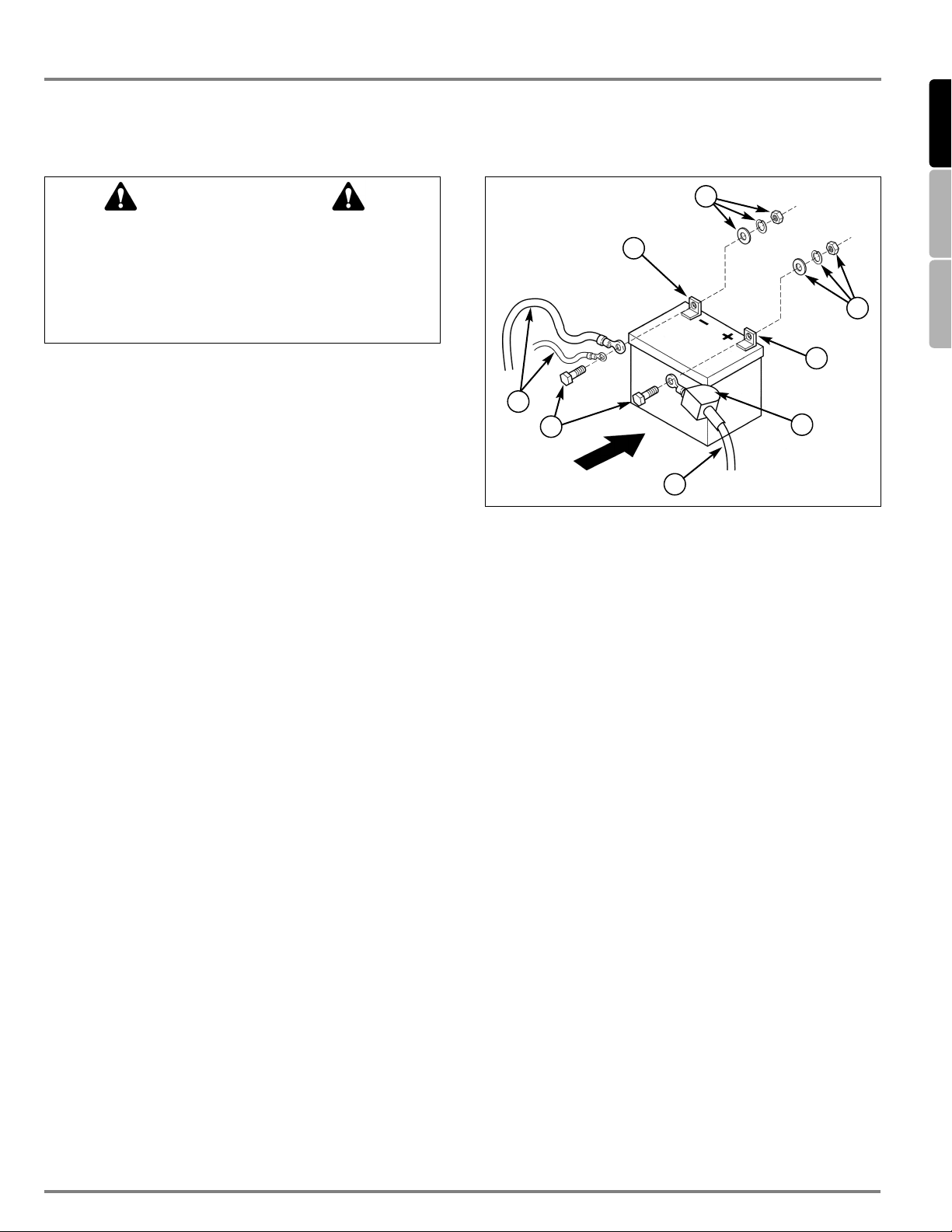

Activating the Batterie...........................................13

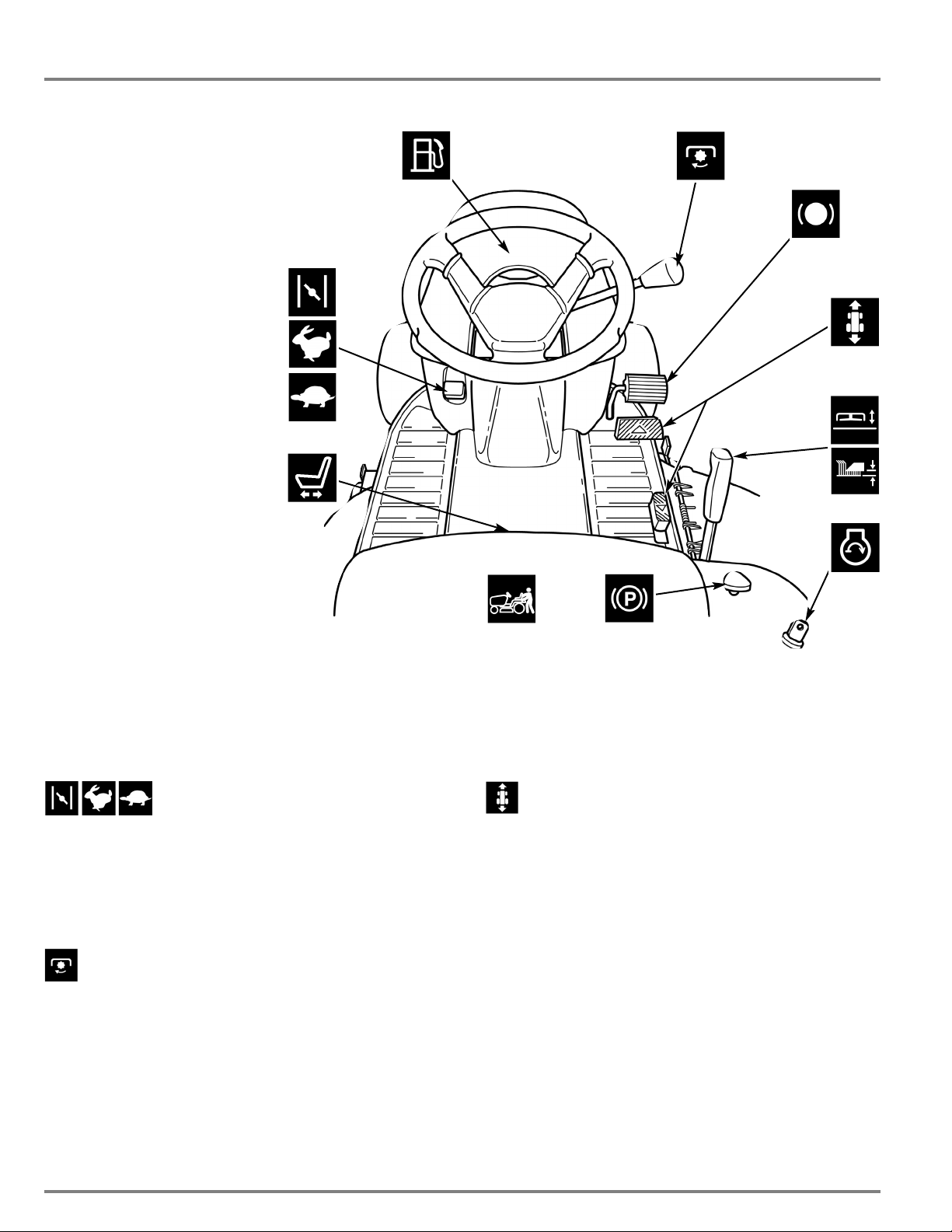

Features & Controls..........................................14
Control Functions..................................................14
Safety Interlock System Test.................................15
Operating the Tractor ........................................16
General .................................................................16
Checks Before Starting.........................................16
Clutch/Brake Pedal Operation...............................17
Starting the Engine...............................................17
Stopping the Tractor & Engine..............................17
Driving the Tractor.................................................18
Mowing..................................................................18
Pushing the Tractor by Hand.................................19
Attaching a trailer..................................................14
Mower Deck Removal & Installation......................20
Removing the Mower Deck...........................20
Installing the Mower Deck.............................21
Mower Cutting Height Adjustment........................21
Storage..................................................................22
Starting after a long Term Storage........................22
Regular Maintenance ........................................23
Maintenance Schedule..........................................23
Raising the Hood & Seat ......................................24
Checking/Adding Fuel...........................................24
Checking Tire Pressures.......................................24
Check / Replace Fuel Filter...................................25
Engine Maintenance.............................................25
Blade Brake Check ...............................................25
Safety Interlock System Check.............................25
Hydro Transmission Service .................................26
Exhaust Screen Service .......................................27
Battery Maintenance.............................................27
Lubrication ............................................................28
Lubricate Rear Axel Shafts...................................29
Servicing the Mower Blades .................................30
Common replacement parts..................................31
Maintenance Records...........................................31
Troubleshooting, Adjustments & Service .......32
Troubleshooting the Tractor...................................32
Troubleshooting the Mower...................................33
Seat Adjustment....................................................34
Steering Gear Adjustment ....................................34
Brake & Brake Spring Adjustment ........................34
Mower Adjustments ..............................................35
PTO Clutch Adjustment.................................35
Leveling the Mower.......................................36
Blade Brake Check .......................................37
Mower Belt Replacement......................................38
38” Mowers ...................................................38
44” Mowers ...................................................38
Tractor Drive Belt Replacement ...........................39
Battery Service .....................................................40
Checking the Battery Voltage............................40
Charging A Discharged Battery........................40
Jump Starting with an Auxiliary Battery............40
Transmission Purging............................................42
Specifications ....................................................43
Common International Symbols ......................44
Certificate of Conformity ..................................45
Note: In this manual, “left” and “right” are referred to as
seen from the operating position.
EN - 1
Engine exhaust from this product contains
chemicals known, in certain quantities, to cause
cancer, birth defects, or other reproductive harm.
WARNING

Identification Numbers
When contacting your Authorized Dealer for replace-
ment parts, service, or information you
MUST have these numbers.
IDENTIFICATION TAG LOCATIONS
EN - 2
SSAAMMPPLLEE
Tractor
Identification Tag
IDENTIFICATION NUMBERS
Record your model name / number and engine serial
number in the space provided for easy reference.
• The Tractor I.D. tag is located on the left-side, of the
frame, as shown below.
• For location of Engine Serial Number, refer to the
Engine Owner’s Manual.
Be sure to fill out and return the Warranty Registration
Card supplied with your unit.
ENGINE REFERENCE DATA
Model Description Name/Number
Tractor Art. Number
PRODUCT REFERENCE DATA
Tractor SERIAL Number
Dealer Name Date Purchased
Engine Make
Engine Type/Spec
Engine Model
Place copy of Identification Tag here.
Engine Code/Serial Number

Identification Numbers
EN - 3
English
DeutschFrançais

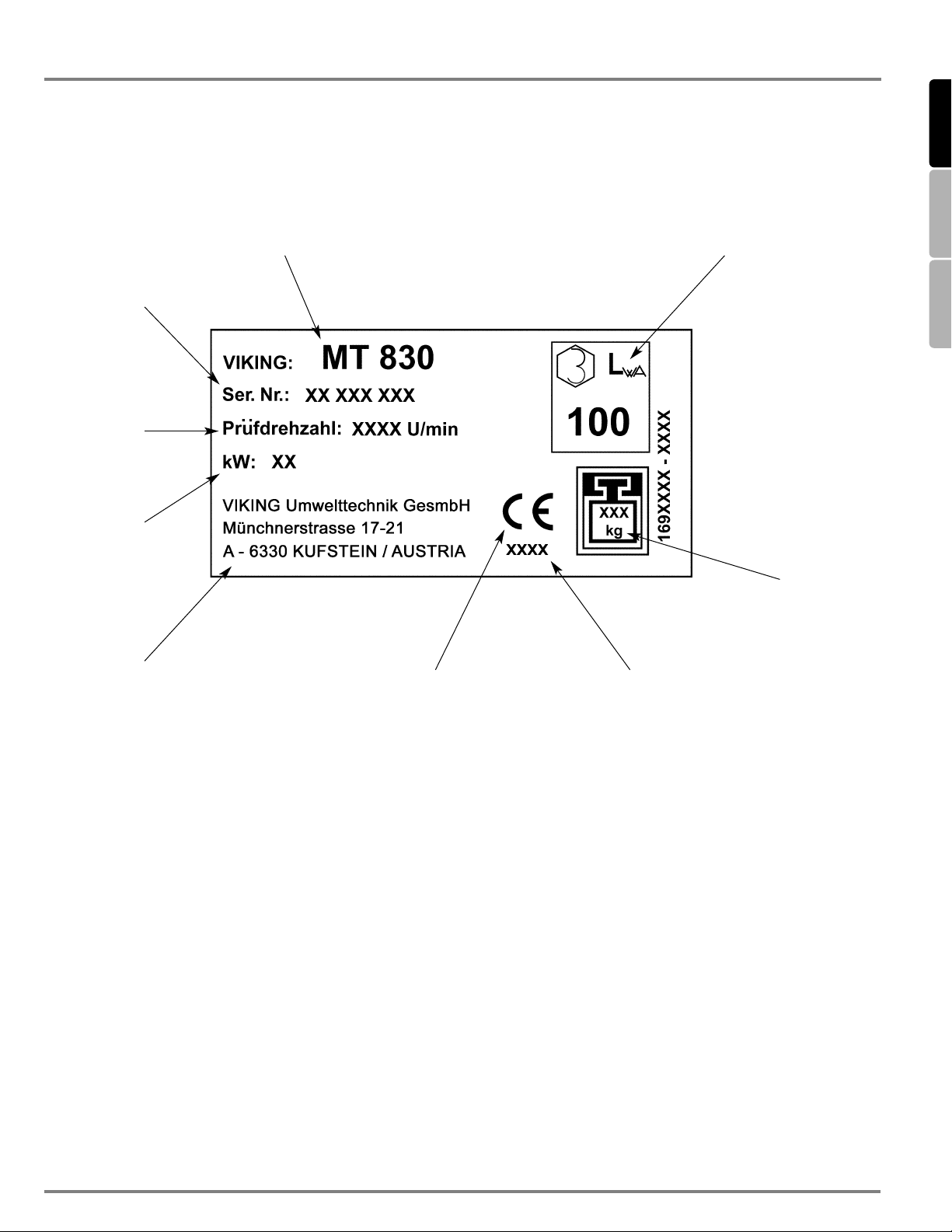

IDENTIFICATION TAG MARKINGS
1. Type of lawntractor
2. Serial number
3. Test speed in rotations per minute
4. Power rating in kilowatts
5. Name and adress of manufacturer
6. Conformity mark according to directive 98/37/EWG
7. Year of manufacture
8. Weight in kilograms
9. Sound power level in decibels
1
2
3
4
56 7
8
9

EN - 4
Safety Rules & Information
GENERAL OPERATION
• Read, understand, and follow all instructions in the manual
and on the unit before starting.
• Only allow responsible adults, who are familiar with the
instructions, to operate the unit.
• Clear the area of objects such as rocks, toys, wire, etc.,
which could be picked up and thrown by the blade(s).
• Be sure the area is clear of other people before mowing.
Stop unit if anyone enters the area.
• Never carry passengers.
• Do not mow in reverse unless absolutely necessary. Always
look down and behind before and while travelling in reverse.
• Be aware of the mower discharge direction and do not
point it at anyone. Do not operate the mower without either
the entire grass catcher or the deflector in place.
• Slow down before turning.
• Never leave a running unit unattended. Always disengage
the PTO, set parking brake, stop engine, and remove keys
before dismounting.
• Disengage the PTO lever to stop the blades when not
mowing.
• Stop engine before removing grass catcher or unclogging
chute.
• Mow only in daylight or good artificial light.
• Do not operate the unit while under the influence of alcohol
or drugs.
• Watch for traffic when operating near or crossing roadways.
• Use extra care when loading or unloading the unit into a
trailer or truck.
• Data indicates that operators, age 60 years and above, are
involved in a large percentage of riding mower-related
injuries.These operators should evaluate their ability to
operate the riding mower safely enough to protect them-
selves and others from injury.
• Keep in mind the operator is responsible for accidents
occurring to other people or property.
• All drivers should seek and obtain professional and practi-
cal instruction.
• Always wear substantial footwear and trousers. Never
operate when barefoot or wearing sandals.
• Before using, always visually check that the blades and
blade hardware are present, in-tact, and secure. Replace
worn or damaged parts.
• Never operate the machine with defective guards, or with-
out safety protective devises in place.
• Disengage attachments before: refuelling, removing an
attachment, making adjustments (unless the adjustment
can be made from the operator’s position).
• When the machine is parked, stored, or left unattended,
lower the cutting means .
Slopes are a major factor related to loss-of-control and tip-
over accidents, which can result in severe injury or death.
All slopes require extra caution. If you cannot back up
the slope or if you feel uneasy on it, do not drive on it.
Control of a ride-on machine sliding on a slope will not be
regained by the application of the brake. The main reasons
for loss of control are: insufficient tire grip on the ground,
speed too fast, inadequate braking, the type of machine is
unsuitable for it’s task, lack of awareness of the ground con-
ditions, incorrect hitching and load distribution.
Do
• See your authorized dealer for recommendations of available
weights to improve stability.
• Mow up and down slopes, not across.
• Remove obstacles such as rocks, tree limbs, etc.
• Watch for holes, ruts, or bumps. Uneven terrain could overturn
the unit.Tall grass can hide obstacles.
• Use slow speed. Choose a low gear so that you will not have to
stop or shift while on the slope.
• Use extra care with grass catchers or other attachments.These
can change the stability of the unit.
• Keep all movement on the slopes slow and gradual. Do not
make sudden changes in speed or direction.
Do Not
• Do not start or stop on a slope. If tires lose traction, disengage
the blade(s) and proceed slowly straight down the slope.
• Do not turn on slopes unless necessary, and then, turn slowly
and gradually uphill, if possible.
• Do not mow near drop-offs, ditches, or embankments.The
mower could suddenly turn over if a wheel is over the edge of a
cliff or ditch, or if an edge caves in.
• Do not mow on wet grass.Reduced traction could cause slid-
ing.
• Do not try to stabilize the unit by putting your foot on the
ground.
• Do not use grass catcher on steep slopes.
Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of
unit, severe personal injury or death to you, or bystanders, or damage to property or equipment.This mowing
deck is capable of amputating hands and feet and throwing objects.The triangle in text signifies impor-
tant cautions or warnings which must be followed.
Never operate on slopes greater than 17,6 percent (10°)
which is a rise of 1m vertically in 6m horizontally.
When operating on slopes use additional wheel weights or
counterweights.See your dealer to determine which weights
which weights are available and appropriate for your unit.
Select slow ground speed before driving onto slope.In
addition to front and rear weights, use extra caution when
operating on slopes with rear-mounted grass catcher.
Mow UP and DOWN the slope, never across the face, use
caution when changing directions and DO NOT START OR
STOP ON SLOPE.
WARNING
SLOPE OPERATION

EN - 5
English
DeutschFrançais
Safety Rules & Information
CHILDREN
Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the unit
and the mowing activity. Never assume that children will
remain where you last saw them.
• Keep children out of the mowing area and under the
watchful care of another responsible adult.
• Be alert and turn unit off if children enter the area.
• Before and during reverse operation, look behind and
down for small children.
• Never carry children. They may fall off and be seriously
injured or interfere with safe unit operation.
• Never allow children to operate the unit.
• Use extra care when approaching blind corners, shrubs,
trees, or other objects that may obscure vision.
TRANSPORTING AND STORAGE
•Always observe safe refueling and fuel handling prac-
tices when refueling the unit after transportation or stor-
age.
• Always follow the engine manual instructions for stor-
age preparations before storing the unit for both short
and long term periods.
• Always follow the engine manual instructions for proper
start-up procedures when returning the unit to service.
• Never store the unit or fuel container inside where there
is an open flame or pilot light, such as in a water heater.
Allow unit to cool before storing.
• Stop and inspect the equipment if you strike an object.
Repair, if necessary, before restarting.
• Never make adjustments or repairs with the engine run-
ning unless specified otherwise in the engine manufac-
turer’s manual.
• Grass catcher components are subject to wear, dam-
age, and deterioration, which could expose moving parts
or allow objects to be thrown. Frequently check compo-
nents and replace with manufacturer’s recommended
parts, when necessary.
• Mower blades are sharp and can cut. Wrap the blade(s)
or wear gloves, and use extra caution when servicing
them.
• Check brake operation frequently. Adjust and service as
required.
• Use only factory authorized replacement parts when
making repairs.
• Always comply with factory specifications on all settings
and adjustments.
• Only authorized service locations should be utilized for
major service and repair requirements.
• Never attempt to make major repairs on this unit unless
you have been properly trained. Improper service proce-
dures can result in hazardous operation, equipment
damage and voiding of manufacturer’s warranty.
• If fuel is spilled, do not attempt to start the engine but
move the machine away from the area of spillage and
avoid creating any source of ignition until petrol vapors
have dissipated.
• Replace all fuel tank caps and fuel container caps
securely.
• On multiple blade mowers, take care as rotating one
blade can cause other blades to rotate.
• Do not change engine governor settings or over-speed
the engine. Operating the engine at excessive speed
can increase the hazard of personal injury.
• Disengage drive attachments, stop the engine, remove
the key, and disconnect the spark plug wire(s) before:
clearing attachment blockages and chutes, performing
service work, striking an object, or if the unit vibrates
abnormally. After striking an object, inspect the machine
for damage and make repairs before restarting and
operating the equipment.
• Never place hands near the hydro pump cooling fan
when the unit is running. Cooling fan is located on top of
transaxle.
When transporting this tractor on an open trailer, make
sure unit is facing forward, toward the direction of travel. If
tractor is facing backward, wind lift could cause damage to
the hood.
WARNING
SERVICE AND MAINTENANCE
• Use extra care in handling gasoline and other fuels.
They are flammable and vapors are explosive.
a) Use only an approved container.
b) Never remove gas cap or add fuel with the engine
running. Allow engine to cool before refueling.
Do not smoke.
c) Never refuel the unit indoors.
• Never run a unit in an enclosed area.
• Keep nuts and bolts, especially blade attachment bolts,
tight and keep equipment in good condition.
• Never tamper with safety devices. Check their proper
operation regularly and make necessary repairs if they
are not functioning properly.
• Keep unit free of grass, leaves, or other debris build-up.
Clean up oil or fuel spillage.

EN - 6
Safety Rules & Information

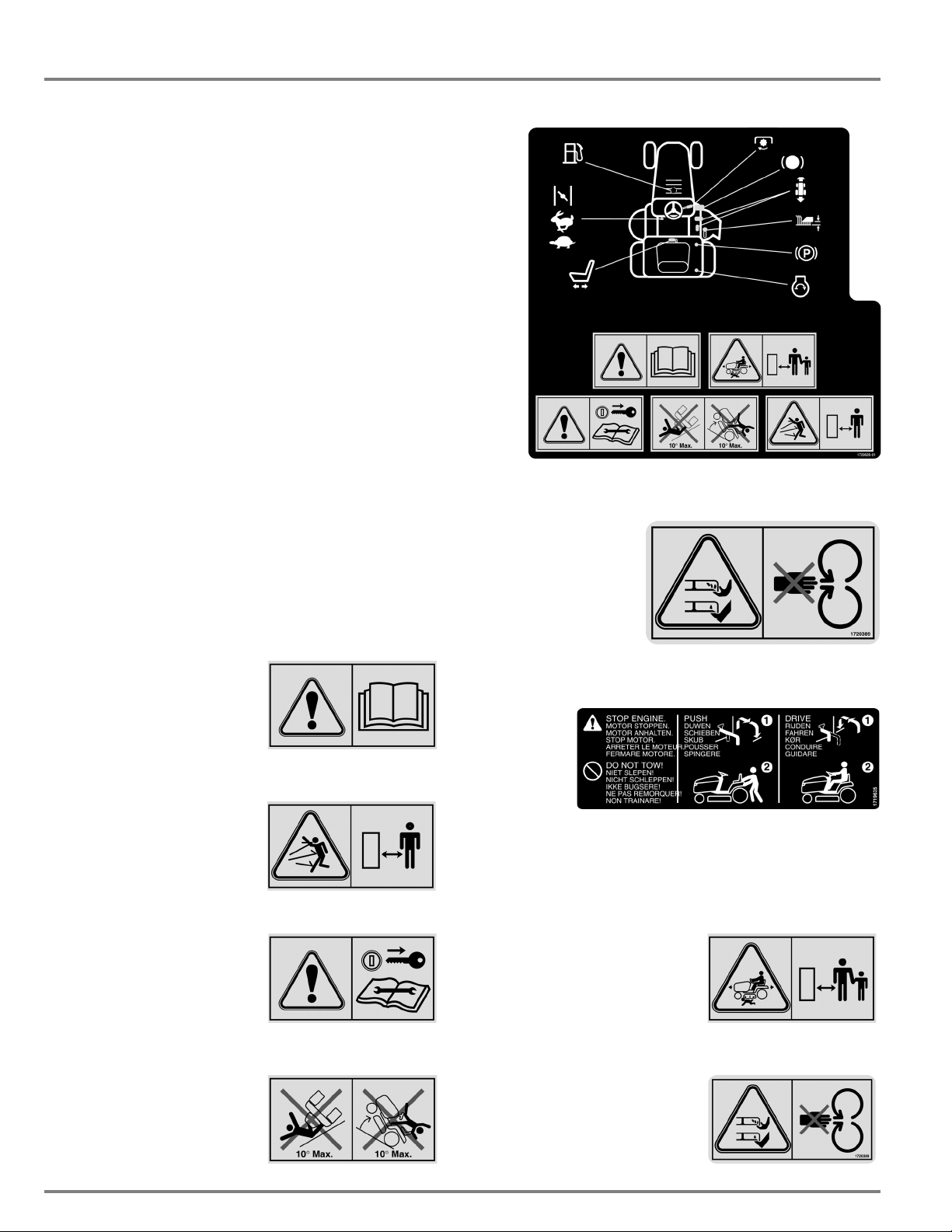

SAFETY DECALS
This unit has been designed and manufactured to pro-
vide you with the safety and reliability you would expect
from an industry leader in outdoor power equipment
manufacturing.
Although reading this manual and the safety instructions
it contains will provide you with the necessary basic
knowledge to operate this equipment safely and effec-
tively, we have placed several safety labels on the unit to
remind you of this important information while you are
operating your unit.
All DANGER, WARNING, CAUTION and instructional
messages on your rider and mower should be carefully
read and obeyed. Personal bodily injury can result when
these instructions are not followed.The information is for
your safety and it is important! The safety decals below
are on your rider and mower.
If any of these decals are lost or damaged, replace them
at once. See your local dealer for replacements.
These labels are easily applied and will act as a constant
visual reminder to you, and others who may use the
equipment, to follow the safety instructions necessary for
safe, effective operation.
Decal - Hydro Release Valve
Decal - Danger
Decal - Operating Instructions
Warning: Read Operator’s
Manual.
Read and understand the
Operator’s Manual before
using this machine
Warning: Remove Key
Before Servicing.
Remove the key and consult
technical literature before per-
forming repairs or mainte-
nance.
Danger: Dismemberment.
This machine can amputate
limbs. Keep bystanders and
children away when engine is
running.
Danger: Dismemberment.
This mower deck can ampu-
tate limbs. Keep hands and
feet away from blades.
Danger: Thrown Ogjects.
This machine is capable of
throwing objects and debris.
Keep bystanders away.
Danger: Machine Rollover.
Do not use this machine on
slopes greater than 10°

Assembly
EN - 7
English
DeutschFrançais
For storage and transport reasons, some components of the tractor are not directly installed in the factory,
but have to be assembled after their removal from the packing. Final assembly is carried out by following these
simple instructions.
UNPACKING
When unpacking the tractor, take care to gather all individual parts and fittings.

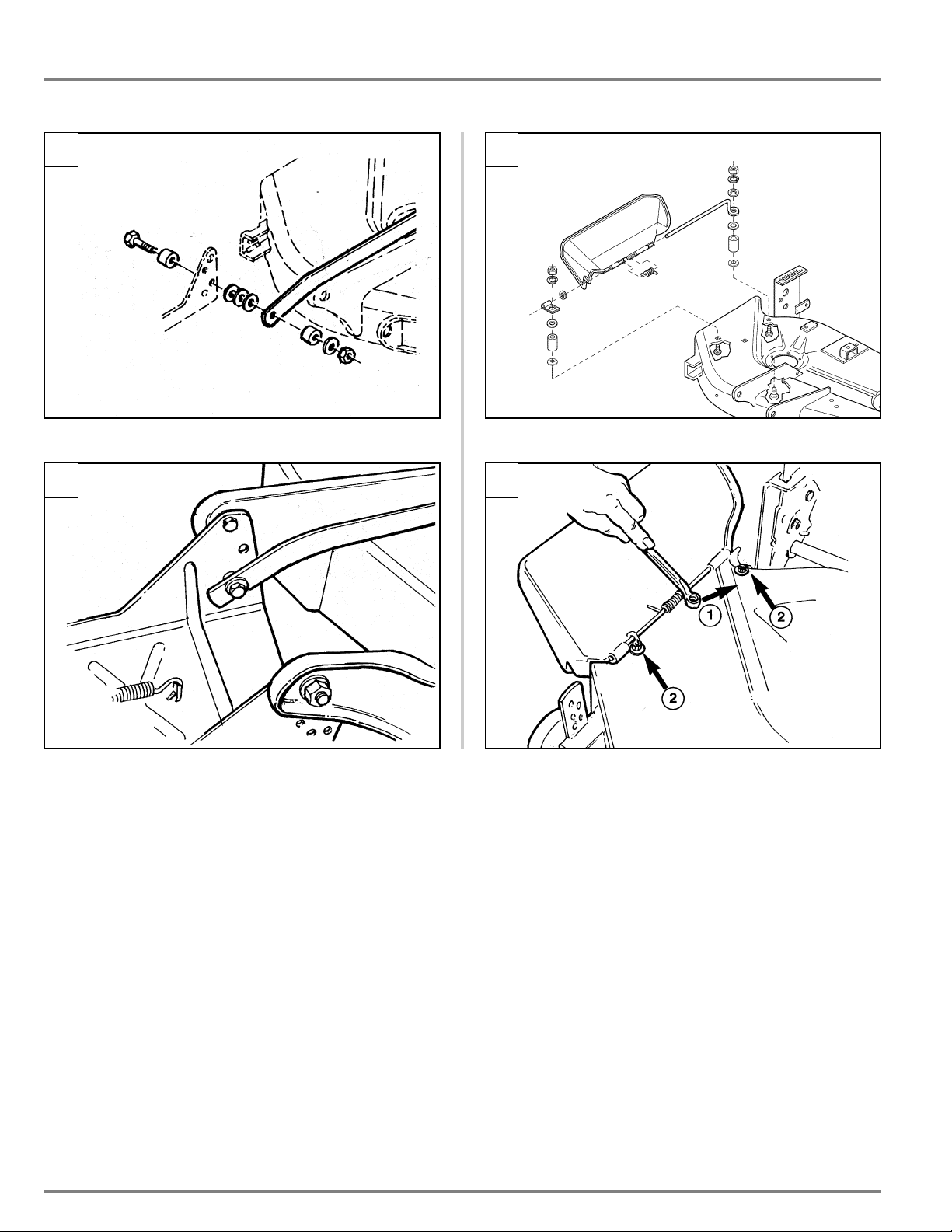

FITTING THE SEAT
The standard packing contetnts: - tractor
- steering wheel
- seat
- mower deck
- wheels
- an envelope containing the Owner’s Manual, documents, washers, spacers,
e-rings, feather keys and caps, two starter keys, a pin for blocking the steering
wheel.
For transport reasons the lawntractor is supplied
without engine oil or fuel. Before starting up the
engine, fill with oil and fuel following the instructions
given in the engine Operator’s Manual
CAUTION
1
2
A B

Assembly
EN - 8
1
2
CD
FITTING THE WHEELS
Rear wheels
AB

Assembly
EN - 9
English
DeutschFrançais
C
D
Note: Install all tires with valve stem facing in toward the tractor.
E
G
F

Assembly
EN - 10
Front wheels
FITTING THE STEERING WHEEL
Put the tractor on a flat surface and straighten up the
front wheels. Fit the steering wheel onto the protruding
shaft with the spokes direkted towards the seat.
Line up the whole in the steering wheel hub with the
hole in the shaft and insert the pin supplied.
A
B
C
Note: Install all tires with valve stem facing in toward the
tractor.

Assembly
EN - 11
English
DeutschFrançais
MOVING THE TRACTOR FROM THE PALLET
ASSEMBLING THE MOWERDECK
To make it easier to get the tractor off the pallet and to
move it, the Transmission Release Valve Lever should be
put into released position. (See Pushing the Tractor by
Hand in the Operating the Tractor Section)
A
B D
C

Assembly
EN - 12
E
FH
For installing the mower deck on the tractor see Installing the Mower Deck in the Operating the Tractor Section.
G

Assembly
EN - 13
English
DeutschFrançais
The battery is situated in a compartment under the seat.
ACTIVATE THE BATTERY
Be careful when handling the battery. Keep flames
and sparks away from the battery.
When removing or installing battery cables, disconnect
the negative cable FIRST and reconnect it LAST.If not
done in this order, the positive terminal can be shorted
to the frame by a tool.
WARNING
Position the positive battery cable over seat switch har-
ness to prevent harness from becoming pinched in seat
pivot. Make sure that protective terminal cover is in place
over positive battery post. (See also Battery Installation
in the Regular Maintenance Section)
1. Remove the battery from the battery compartment.
2. Charge battery for 1 hour at 6-10 amps.
3. Reinstall the battery in the battery compartment.
4. First, connect the positive battery cable (B)
to the positive battery terminal (F). Slide the terminal
cover (G) into place. Second, connect the negative
battery cable (A) to the negative battery terminal (E).
C
B
E
A
D
C
F
G
FRONT

EN - 14
Features & Controls
CONTROL FUNCTIONS
The information below briefly describes the function of individual controls. Starting, stopping, driving, and mowing
require the combined use of several controls applied in specific sequences.To learn what combination and sequence of
controls to use for various tasks see the OPERATION section.
Figure 1. Tractor & Mower Controls
Please take a moment and familiarize
yourself with the name, location, and
function of these controls so that you
will better understand the safety and
operating instructions provided in this
manual.
Trans. Release
Lever on Rear
of Tractor
Throttle / Choke Control
The throttle controls engine speed. Move the throttle up
to increase engine speed and down to decrease engine
speed. Always operate at FULL throttle.
Note: Moving the throttle control fully forward closes the
choke. A warm engine may not require choking.
PTO Lever
The PTO (Power Take-Off) lever engages and disengages
the blades.To engage the PTO, move the lever forward. To
disengage the PTO, move the lever all the way back.You
will feel the lever lock into both the engaged and disen-
gaged positions.
Note: The operator must be seated firmly in the tractor
seat for the PTO to function. Also note that the tractor
will not start unless the lever is in the disengaged
position.
Ground Speed Control Pedal
The tractor’s forward & reverse ground speed is con-
trolled by the ground speed pedals.
The ground speed is selected from a continuous range.
Depressing the FORWARD pedal increases FORWARD
tractor motion, depressing the REVERSE pedal increas-
es REVERSE tractor motion.The further either pedal is
depressed, the faster the tractor will travel.
Note: Depressing the clutch/brake pedal is NOT neces-
sary when changing speeds or directions. Releasing the
groend speed pedal puts the transmission in NEUTRAL,
and stops tractor motion. (Apply & set the Parking Brake
before leaving the operator’s position).
Always mow with the engine speed at full throttle.
Note: If the terrain is rough, hilly, or sloping, use a slower
forward speed. If the grass is wet or over 76 mm high,
use full engine speed with a low forward speed so the
mower will have enough power to cut the grass.
