Viking LV--1K Instructions for use

P
Pr ra ac ct ti ic ce e
T
TE EL LE EC CO OM MS SO OL LU UT TI IO ON NS SF FO OR RT TH HE E2 21 1S ST TC CE EN NT TU UR RY Y
TECHNICAL
TECHNICAL
New ASME A17.1-2010 code requires that “the two-way communi-
cations means within the (elevator) car shall include a means to
verify operability of the telephone line”. When your local municipal-
ity adopts this new ASME A17.1 code the LV-1K can be added to
fulfill all requirements for visual and audible signaling when it is
determined the telephone line is not functioning.
The LV-1K is essentially three products in one. First, it can be
added to any new or existing Viking 1600A Series elevator emer-
gency as a single phone stand alone solution. With the LV-1K
installed, the 1600A Series phone will check the telephone line for
actual dial tone on a daily basis. The LV-1K also continuously mon-
itors for loss of Talk Battery voltage and will immediately provide
an audible and visual indication when the telephone line has
been accidentally cut or disconnected.
Second, it can be wired to a Viking model LC-6 six port concentrator, to provide visual and audible signal-
ing for any grouping of elevators that are controlled by the same “FIRE RECALL” switch. The LC-6 not only
allows 2 to 6 Viking elevator emergency phones share the same LV-1K Line Verification Panel, but it also
allows the cost savings of those phones being able to share a single telephone line, and still meet all
requirements of ASME A17.1.
Third, since the LV-1K continuously watches for loss of Talk Battery voltage, it can be used to provide an audible and visual
indication when any analog station or telephone line has been accidentally cut or disconnected from any telecom device.
In accordance to ASME A17.1, the LV-1K is labeled “ELEVATOR COMMUNICATION FAILURE” in ¼” high red letters, and will
sound an audible signal every 30 seconds and flash a red light when a telephone line fault is detected. Authorized personnel
can silence the audible signal with the included key switch. The LED will remain flashing until the fault is corrected.
F
Fe ea at tu ur re es s
P
Ph ho on ne e. .. .. .7 71 15 5. .3 38 86 6. .8 88 86 61 1
S
Sp pe ec ci if fi ic ca at ti io on ns s
LV-1K
LV-1K
Line Verification Panel
with Key Switch
June 19, 2013
i
in nf fo o@ @v vi ik ki in ng ge el le ec ct tr ro on ni ic cs s. .c co om m
• Single Viking 1600A Series elevator emer-
gency phones (DOD# 215)
• Add to the Viking model LC-6 (DOD# 245) for
use with banks of two to six 1600A Series
elevator emergency phones
• Any other analog device on any analog sta-
tion or phone line
A
Ap pp pl li ic ca at ti io on ns s
h
ht tt tp p: :/ // /w ww ww w. .v vi ik ki in ng ge el le ec ct tr ro on ni ic cs s. .c co om m
Line Verification Panel with Key Switch
Power: 120V AC/ 12V DC UL Listed adapter provided
Dimensions: 124 mm x 124 mm x 33 mm (4.9” x 4.9” x 1.3”)
Shipping Weight: 0.7 kg (1.5 lbs.)
Environmental: 0 C to 32 C (32 F to 90 F) with 5% to 95% non-
condensing humidity
Maximum Power Supply Wire Length: 244m (500 ft) with #24
gauge wire
Connections: (8) color-coded wires with (8) gel-filled butt con-
nectors
• Complies with ASME A17.1 Elevator Code
• Immediately detects a cut or disconnected
phone line
• Allows Viking Model 1600A Series phones to
daily test for dial tone
• Compatible with Viking Model LC-6 Six Port
Line Concentrator
• Works with any analog device on any analog
line
• Volume adjustable audible signaling
• Mounts in standard double gang electrical box

IF YOU HAVE A PROBLEM WITH A VIKING PRODUCT, PLEASE CONTACT: VIKING TECHNICAL SUPPORT AT [phone]
Our Technical Support Department is available for assistance Monday 8am - 4pm and Tuesday through Friday 8am - 5pm central time. So that we can give you better service, before you call please:
1. Know the model number, the serial number and what software version you have (see serial label).
2. Have your Technical Practice in front of you.
3. It is best if you are on site.
RETURNING PRODUCT FOR EXCHANGE
The following procedure is for equipment that has failed out-of-box (within 10 days of purchase):
1. Customer must contact Viking’s Technical Support at 715-386-8666 to determine possible causes for the problem. The
customer MUST be able to step through recommended tests for diagnosis.
2. If the Technical Support Product Specialist determines that the equipment is defective based on the customer's input
and troubleshooting, a Return Authorization (R.A.) number will be issued. This number is valid for fourteen (14)
calendar days from the date of issue.
3. After obtaining the R.A. number, return the approved equipment to your distributor, referencing the R.A. number. Your
distributor will then replace the product over the counter at no charge. The distributor will then return the product to
Viking using the same R.A. number.
4. The distributor will NOT exchange this product without first obtaining the R.A. number from you. If you haven't
followed the steps listed in 1, 2 and 3, be aware that you will have to pay a restocking charge.
RETURNING PRODUCT FOR REPAIR
The following procedure is for equipment that needs repair:
1. Customer must contact Viking's Technical Support Department at 715-386-8666 to obtain a Return Authorization (RA)
number. The customer MUST have a complete description of the problem, with all pertinent information regarding the
defect, such as options set, conditions, symptoms, methods to duplicate problem, frequency of failure, etc.
2. Packing: Return equipment in original box or in proper packing so that damage will not occur while in transit. Static
sensitive equipment such as a circuit board should be in an anti-static bag, sandwiched between foam and individual-
ly boxed. All equipment should be wrapped to avoid packing material lodging in or sticking to the equipment. Include
ALL parts of the equipment. C.O.D. or freight collect shipments cannot be accepted. Ship cartons prepaid to:
Viking Electronics, 1531 Industrial Street, Hudson, WI 54016
3. Return shipping address: Be sure to include your return shipping address inside the box. We cannot ship to a PO Box.
4. RA number on carton: In large printing, write the R.A. number on the outside of each carton being returned.
LIMITED WARRANTY
Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of one year from the date of purchase from any authorized Viking distributor or 18 months from the date manu-
factured, which ever is greater. If at any time during the warranty period, the product is deemed defective or malfunctions, return the product to Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI., 54016. Customer must contact Viking's
Technical Support Department at 715-386-8666 to obtain a Return Authorization (R.A.) number.
This warranty does not cover any damage to the product due to lightning, over voltage, under voltage, accident, misuse, abuse, negligence or any damage caused by use of the product by the purchaser or others. This warranty does not cover
non-EWP products that have been exposed to wet or corrosive environments.
NO OTHER WARRANTIES. VIKING MAKES NO WARRANTIES RELATING TO ITS PRODUCTS OTHER THAN AS DESCRIBED ABOVE AND DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTIES OR MERCHANTABILITY OR FIT-
NESS FOR ANY PARTICULAR PURPOSE.
EXCLUSION OF CONSEQUENTIAL DAMAGES. VIKING SHALL NOT, UNDER ANY CIRCUMSTANCES, BE LIABLE TO PURCHASER, OR ANY OTHER PARTY, FOR CONSEQUENTIAL, INCIDENTAL, SPECIAL OR EXEMPLARY DAM-
AGES ARISING OUT OF OR RELATED TO THE SALE OR USE OF THE PRODUCT SOLD HEREUNDER.
EXCLUSIVE REMEDY AND LIMITATION OF LIABILITY. WHETHER IN AN ACTION BASED ON CONTRACT, TORT (INCLUDING NEGLIGENCE OR STRICT LIABILITY) OR ANY OTHER LEGAL THEORY, ANY LIABILITY OF VIKING SHALL
BE LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT, OR AT VIKING'S OPTION, REFUND OF THE PURCHASE PRICE AS THE EXCLUSIVE REMEDY AND ANY LIABILITY OF VIKING SHALL BE SO LIMITED.
IT IS EXPRESSLY UNDERSTOOD AND AGREED THAT EACH AND EVERY PROVISION OF THIS AGREEMENT WHICH PROVIDES FOR DISCLAIMER OF WARRANTIES, EXCLUSION OF CONSEQUENTIAL DAMAGES, AND EXCLU-
SIVE REMEDY AND LIMITATION OF LIABILITY, ARE SEVERABLE FROM ANY OTHER PROVISION AND EACH PROVISION IS A SEPARABLE AND INDEPENDENT ELEMENT OF RISK ALLOCATION AND IS INTENDED TO BE ENFORCED
AS SUCH.

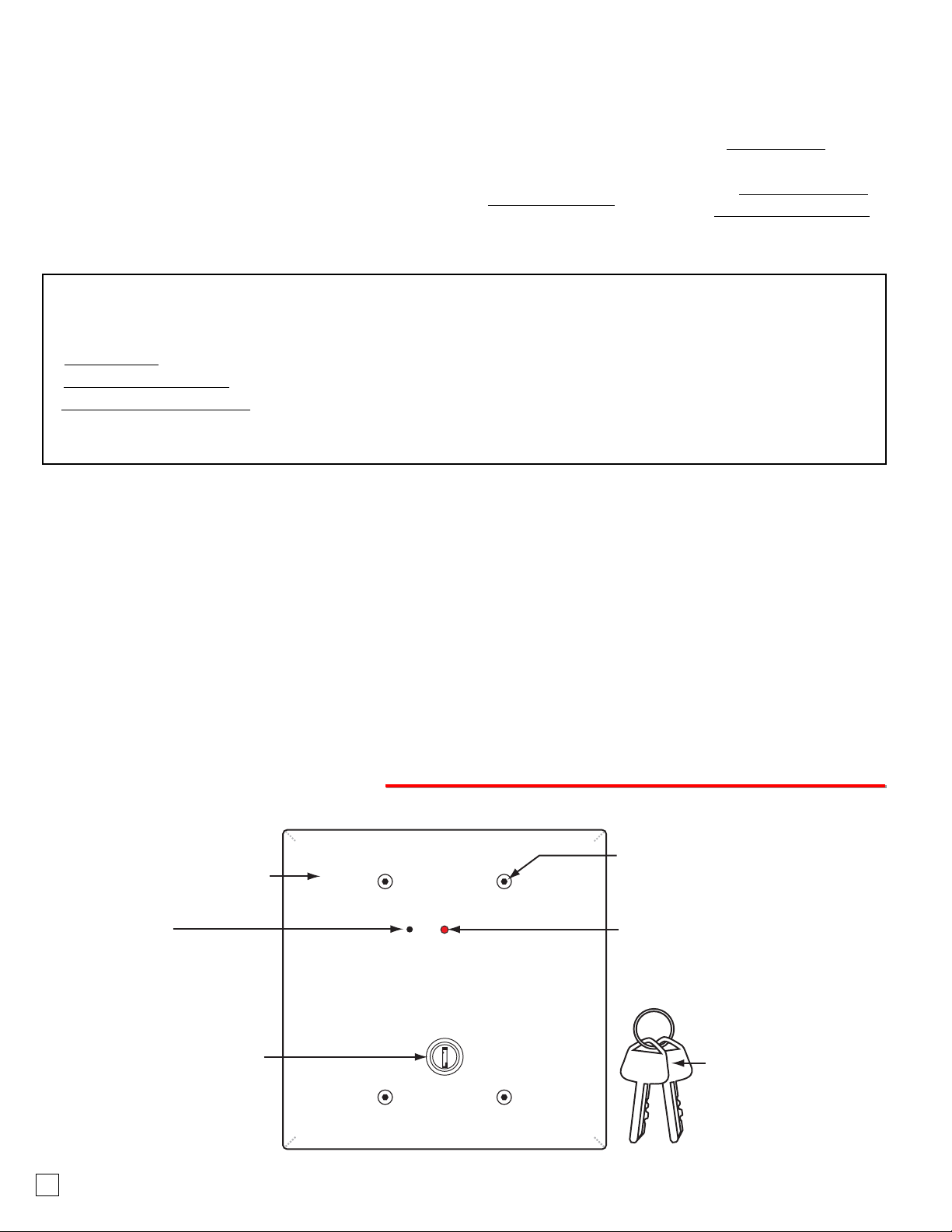

F
Fe ea at tu ur re es sO Ov ve er rv vi ie ew w
ELEVATOR
COMMUNICATIONS
FAILURE
VIKING
Faceplate: 18 gauge 304 stainless steel
Speaker Hole: Produces beep sounds
for audible indications.
Mounting Screws: 6-32 x 1.25" long flathead
with 5/64" hexdrive, 18-8 stainless steel to
prevent corrosion.
Red LED: For visual indication
Keyed: For authorized personnel to set
volume level and silence audible beeps. Keys: All units are keyed
the same. Two keys are
included with each unit.
the necessary modifications to maintain uninterrupted service.
If trouble is experienced with the LV-1K, for repair or warranty information, please contact:
Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI 54016 [phone]
If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the
equipment until the problem is resolved.
Connection to Party Line Service is subject to State Tariffs. Contact the state public utility commission, public service com-
mission or corporation commission for information.
WHEN PROGRAMMING EMERGENCY NUMBERS AND (OR) MAKING TEST CALLS TO EMERGENCY NUMBERS:
Remain on the line and briefly explain to the dispatcher the reason for the call. Perform such activities in the off-peak
hours, such as early morning or late evenings.
It is recommended that the customer install an AC surge arrester in the AC outlet to which this device is connected. This
is to avoid damaging the equipment caused by local lightning strikes and other electrical surges.
PART 15 LIMITATIONS
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communica-
tions. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
FCC REQUIREMENTS
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. Inside the front panel
of this equipment is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX.
If requested, this number must be provided to the telephone company.
The REN is used to determine the number of devices that may be connected to a telephone line. Excessive REN's on a
telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of
the REN's should not exceed five (5.0) To be certain of the number of devices that may be connected to a line, as deter-
mined by the total REN's, contact the local telephone company. For products approved after July 23, 2001, the REN for
this product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the
REN without a decimal point (e.g., 03 is a REN of 0.3). For earlier products, the REN is separately shown on the label.
The plug used to connect this equipment to the premises wiring and telephone network must comply with the applicable
FCC Part 68 rules and requirements adopted by the ACTA. If your home has specially wired alarm equipment connected
to the telephone line, ensure the installation of this LV-1K does not disable your alarm equipment. If you have questions
about what will disable alarm equipment, consult your telephone company or a qualified installer.
If the LV-1K causes harm to the telephone network, the telephone company will notify you in advance that temporary dis-
continuance of service may be required. But if advance notice isn't practical, the telephone company will notify the cus-
tomer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is nec-
essary.
The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the
operation of the equipment. If this happens, the telephone company will provide advance notice in order for you to make
2

* (6) Gel-Filled
Butt Connectors
(included)
12V DC
Adapter
(included)
120V AC
Phone
Line
1600A Series
Emergency
Phone
(not included)
Step 2:
Red/Yellow
Green/Yellow
Step 3:
Red/Black
Black/Red
Step 4:
Solid Red
Solid Green
Yellow
Orange
No
Connection
Orange
Back View of LV-1K
VIKING
Model: xxxxxxxxx
Complies with FCC Part xx
Reg. No.: xxxxxxxxxxx
REN: xxx
Viking Electronics, Inc. [phone]
1531 Industrial St., Hudson, WI 54016
P/N: DEV:xxxxxxx
S/N: xxxxxxxx
RoHS
I
In ns st ta al ll la at ti io on n
IMPORTANT: Electronic devices are susceptible to lightning surges from the telephone line. It is recommended that a surge pro-
tector be installed to protect against such surges.
A. Mounting
The LV-1K is designed to be flush mounted into a standard double gang rough-in box. A 5/64th
hexkey and four 6-32 x 1.25” long stainless steel hexdrive flathead screws and are include to mount
it to the double gang box.
B. Wiring
The LV-1K can be wired one of three different ways. For single emergency phone applications, the
LV-1K can be wired to a single 1600A Series phone. When a Viking LC-6 is used the LV-1K can
be wired as an accessory to the LC-6, or the LV-1K can be wired to any other analog telecom
device.

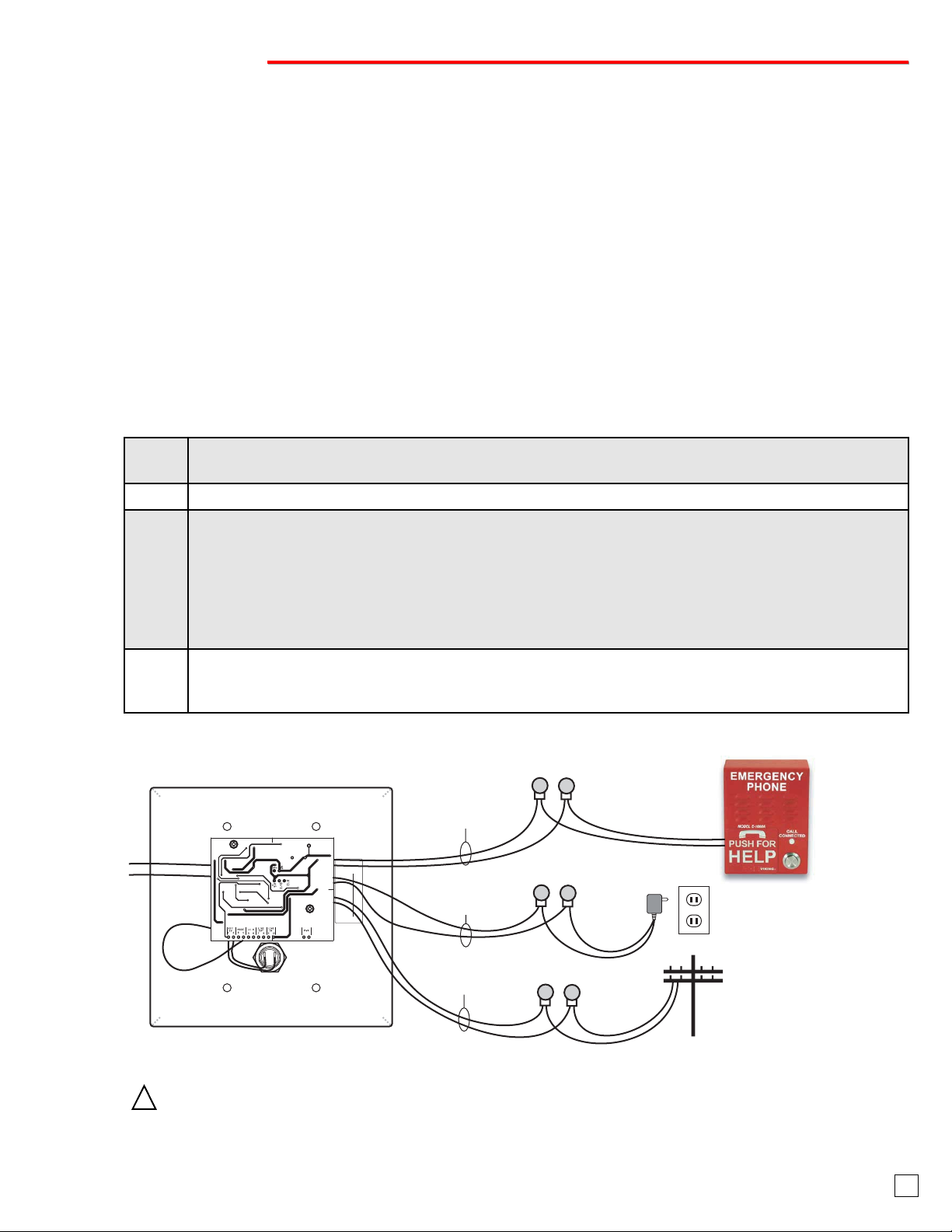

1. Single 1600A Series Phone Wiring
When the LV-1K is wired in the below sequence, it will also test the unit for proper operation.
Step 1. Set the 1600A Series emergency phone’s DIP switch 2 to ON, so that it automatically answers an
incoming call.
Step 2. Connect the Red/Yellow and Green/Yellow wires to the 1600A Series emergency phone.
Step 3.
Connect the Red/Black and Black/Red wires to the included 12 volt power adapter (cut off and discard
barrel plug). Once powered up, the LV-1K will make a buzzing sound indicating the 1600A Series
emergency phone is attempting to test the presence of telephone line dial tone. Since the telephone
line is not yet connected, the LV-1K will start continuously flashing its red LED and sounding the beep
tones every 30 seconds to show there is a line failure. The buzzing will be heard every five minutes as
the 1600A Series emergency phone continues attempting to test the presence of telephone line dial
tone.
Step 4.
Connect the solid Red and solid Green wires to the telephone line. Within five minutes the 1600A
Series emergency phone should detect the presence of telephone line dial tone, and the LV-1K will
clear its audible and visual indications.
!
* Note: The gel-filled (water-tight) butt connectors are designed for insulation displacement on 19-26 gauge wire with a maximum insula-
tion of 0.082 inches. Do not strip wires prior to terminating. 3

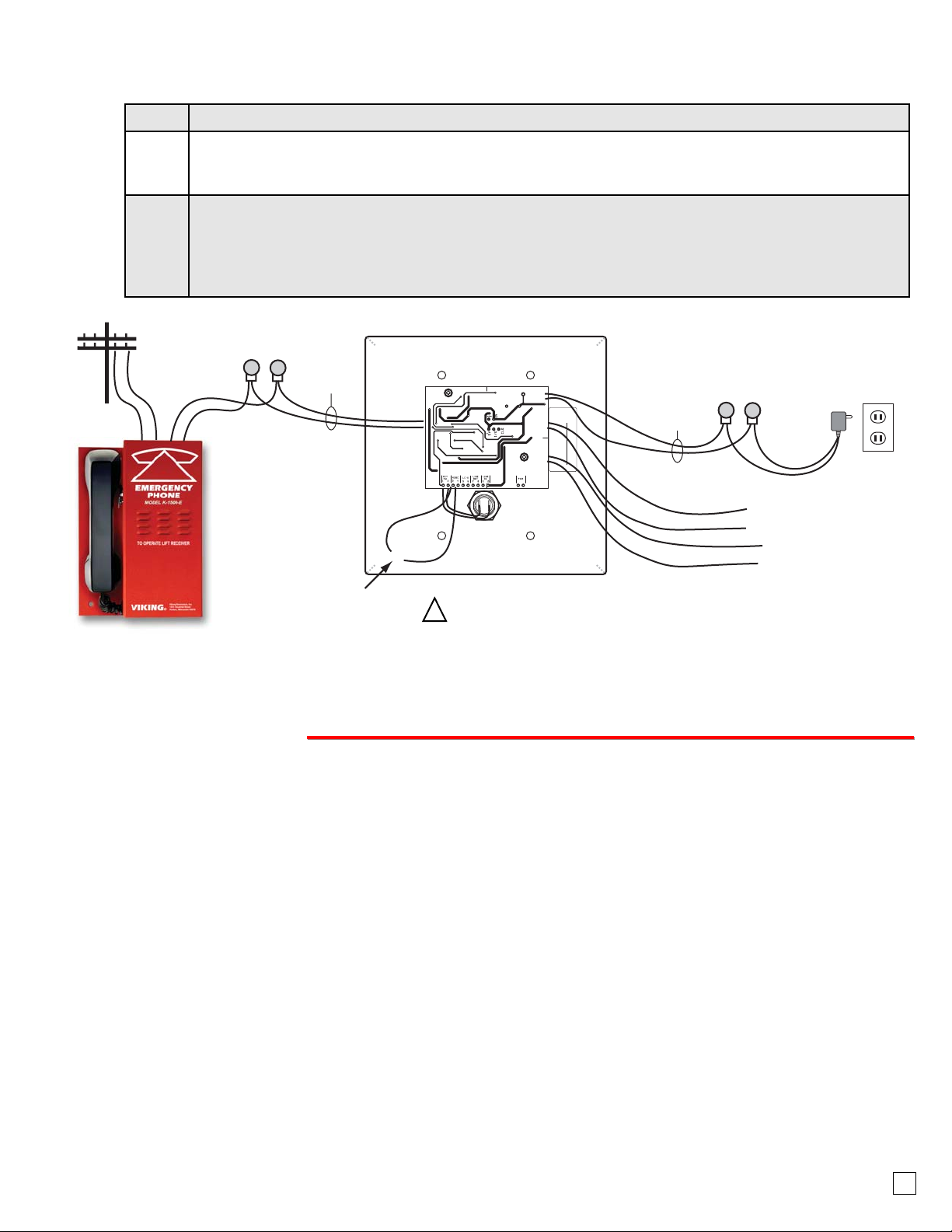

* (8) Gel-Filled
Butt Connectors
(included)
Step 2:
Red/Yellow
Green/Yellow
Step 1:
Cut Yellow wire
to put into the
"UNIVERSAL MODE"
Step 3:
Orange
Orange
S2
123
ON
12
ON
S1
VIKING
©MODEL LC-6
VIKING
ELECTRONICS
HUDSON, WI 54016
POWER
13.8 VAC
1 2 3
4 5 6 7 10 118 9 12 13
STATUS
EARTH GROUND
DIAL 9 MODE FAULT CHECK LEARN MODE
LINE IN FIRE FLOOR PHONE MACHINE ROOM PHONE LOBBY PHONE DISPLAY
LV-1 K
14 15
EMERGENCY PHONE 1 EMERGENCY PHONE 2 EMERGENCY PHONE 3 EMERGENCY PHONE 4 EMERGENCY PHONE 5 EMERGENCY PHONE 6
16 17 18 19 20 21 22 23 24 25
AUDIO SENSITIVITY
6 PORT LINE CONCENTRATOR
FOR EMERGENCY PHONES
Viking Model LC-
6
(not included)
For more information
on the LC-6, see
DOD# 245.
Yellow
Back View of LV-1K
VIKING
Model: xxxxxxxxx
Complies with FCC Part xx
Reg. No.: xxxxxxxxxxx
REN: xxx
Viking Electronics, Inc. [phone]
1531 Industrial St., Hudson, WI 54016
P/N: DEV:xxxxxxx
S/N: xxxxxxxx
RoHS
1 2 3
ON
Step 6:
12V DC
Adapter
(included)
120V AC
Step 4:
Red/Black
Black/Red
STEP 5:
Solid Red
Solid Green
* Note: The gel-filled (water-tight) butt connectors are designed for insulation displacement on 19-26 gauge wire with a maximum insulation
of 0.082 inches. Do not strip wires prior to terminating.
2. Wiring to the Viking Model LC-6
When the LV-1K is wired in the below sequence, it will also test the unit for proper operation.
Step 1.Cut the YELLOW wire loop to put the LV-1K into the “Universal Mode”.
Step 2. Connect the RED/YELLOW and GREEN/YELLOW wires to LC-6 screw terminals 2 and 3.
Step 3. Connect both ORANGE wires to LC-6 screw terminals 12 and 13.
Step 4.
Keeping the solid red and solid green wires disconnected, connect the RED/BLACK and
BLACK/RED wires to the included 12 volt power supply. Once powered up, the LV-1K will start
continuously flashing its red LED and sounding the beep tones every 30 seconds to show there is
a line failure.
Step 5. Connect the solid RED and solid GREEN wires to the telephone line. The LV-1K will detect the
presence of Talk Battery voltage and clear its audible and visual indications.
Step 6.
With the LC-6 powered up, flip its DIP Switch position 2 to ON. This will cause the LC-6 to run its
own Line Verification Test which verifies the telephone line has loop current and that each of the
emergency phones will answer an incoming call. If the LC-6 finds a fault, it will signal the LV-1K on
the orange wire pair causing the LV-1K to show there is a line failure. If this is the case, refer to the
LC-6 Technical Practice (DOD# 245), to clear the fault before proceeding. Tip: If less then six
emergency phones are used, the LC-6 needs to be programmed with the actual number of emer-
gency phones used.
IMPORTANT: Electronic devices are susceptible to lightning surges from the telephone line. It is recommended that a surge protec-
tor be installed to protect against such surges.
!
4

3. Wiring to any other anolog device on any station or phone line
When the LV-1K is wired in the below sequence, it will also test the unit for proper operation.
Step 1. Cut the YELLOW wire loop to put the LV-1K into the “Universal Mode”.
Step 2.
Connect the RED/BLACK and BLACK/RED wires to the included 12 volt power supply. Once powered
up, the LV-1K will start continuously flashing its red LED and sounding the beep tones every 30 sec-
onds to show there is a line failure.
Step 3.
Connect the phone line directly to the analog device, and from there continue on to the LV-1K’s solid
RED and solid GREEN wires. This configuration will be sure to detect when the line has been acci-
dentally cut or disconnected all the way up to the device. Once the telephone line has been connected
to the LV-1K, it will detect the presence of Talk Battery voltage and clear its audible and visual indica-
tions.
* (4) Gel-Filled
Butt Connectors
(included)
these 4 wires are
NOT Connected
12V DC
Adapter
(included)
120V AC
K-1500-E
Emergency
Phone
(not included)
Step 3:
Solid Red
Solid Green Step 2:
Red/Black
Black/Red
Orange
Orange
Red / Yellow
Green / Yellow
Back View of LV-1K
VIKING
Model: xxxxxxxxx
Complies with FCC Part xx
Reg. No.: xxxxxxxxxxx
REN: xxx
Viking Electronics, Inc. [phone]
1531 Industrial St., Hudson, WI 54016
P/N: DEV:xxxxxxx
S/N: xxxxxxxx
RoHS
Step 1:
Cut Yellow wire
to put into the
"UNIVERSAL MODE"
Yellow
Phone
Line
P
Pr ro og gr ra am mm mi in ng g
A. 1600A Mode or Universal Mode
The LV-1K comes factory set in the 1600A mode. Keep the unit in this mode when using the LV-1K with a Viking 1600A
Series emergency phone. When in this mode, in addition to continuously monitoring the phone line for loss of talk bat-
tery, it will also signal the 1600A Series emergency phone daily, to check for actual dial tone to further prove the tele-
phone line is operating properly.
When the LV-1K is used with the Viking Model LC-6 or any other analog telecom device, cut the YELLOW wire loop,
as shown in the Installation section, to put the unit into the Universal mode.
The LV-1K has two programmable items. First, it can be set to run in either the “1600A” mode or the
“Universal” mode. Second, the loudness of the audible signaling beeps can be programmed.
B. Audible Signaling Volume
There are 4 programmable volume levels for the audible beeps. The beeps are factory set to the loudest volume, and
it is recommended they be left loud so in the event a telephone line failure is detected, it will be recognized as quickly
as possible. If it is determined that lower volume level audible signaling beeps are desired, authorized personnel can
do this with the supplied keys.
When the LV-1K is powered up and idle (not in the alarm state), insert key and turn ON to the right. Two beeps will be
heard. Keep the key in the ON position and six seconds later the beeps will be heard walking down in volume from
loudest to one step lower, and lower, and lowest. The beeps will continue to loop through the four volume
levels. Once you decide you hear the desired volume level, turn the key back OFF to set that volume level. 5
IMPORTANT: Electronic devices are susceptible to lightning surges from the
telephone line. It is recommended that a surge protector be installed to
protect against such surges.
!
* Note: The gel-filled (water-tight) butt connectors are designed for insulation displacement on 19-26 gauge wire with a maximum insula-
tion of 0.082 inches. Do not strip wires prior to terminating.

Due to the dynamic nature of the product design, the information contained in this document is subject to change without notice. Viking Electronics, and its affiliates and/or subsidiaries
assume no responsibility for errors and omissions contained in this information. Revisions of this document or new editions of it may be issued to incorporate such changes.
DOD# 246
ZF303310 Rev A
Printed in the U.S.A.
P
Pr ro od du uc ct tS Su up pp po or rt tL Li in ne e. .. .. .7 71 15 5. .3 38 86 6. .8 86 66 66 6F Fa ax xB Ba ac ck kL Li in ne e. .. .. .7 71 15 5. .3 38 86 6. .4 43 34 45 5
With the LV-1K installed, the 1600A Series phone will check the telephone line on a daily basis. If dial tone is not
detected the LV-1K will sound an audible beep signal every 30 seconds and continuously flash its red LED light. The
LV-1K also continuously monitors for loss of Talk Battery voltage and will immediately provide the same audible and
visual indication when the telephone line has been accidentally cut or disconnected.
Once a line failure is detected, authorized personnel can silence the audible beep signals with the included key switch.
Insert the key and turn ON to the right. Two beeps will be heard, then turn key immediately OFF and remove. The LED
will remain flashing until the fault is corrected. The audible beep signals will remain silent for this event only. Future line
failure detections will sound the audible beep signals again, which can again be silenced.
When the LV-1K is actively showing a non functional telephone line state, the phone line will be watched for talk bat-
tery and dial tone to return. Once the telephone line is functional again, the LV-1K will clear within five minutes.
When used in this application, the key can be used to manually force an immediate dial tone test, (which otherwise
happens automatically once a day). With the LV-1K in the normal state (not showing a failure), insert the key and turn
ON to the right. Two beeps will be heard, then turn key immediately OFF and remove. The LV-1K will make a buzzing
sound indicating that it is signaling the 1600A Series emergency phone to check for dial tone. If the 1600A Series
phone is in use, the LV-1K will not produce a buzzing sound because the 1600A Series phone will be unable to check
for dial tone. Within two minutes of the phone line becoming available, the dial tone test will run. If the phone line does
not become available within an hour, the LV-1K will signal this as a fault.
B. When Wired to the LC-6
A Viking model LC-6 Six Port Line Concentrator can be used for any grouping of elevators that are controlled by the
same “FIRE RECALL” switch. The LC-6 not only allows 2 to 6 Viking elevator emergency phones share the same LV-
1K Line Verification Panel, but also allows the cost savings of those phones being able to share a single telephone
line, and still meet all requirements of ASME A17.1. Note: The LC-6 additionally features the ability to install three other
service phones. A Fire Floor Phone, a Lobby Phone, and a Machine Room Phone can all call, or be called, by any of
the elevator emergency phones.
The LC-6 has the ability to check the incoming telephone line for operability on a daily basis. The lines running from
the LC-6 to each of the Viking 1600A Series emergency phone will also be tested at this same time.
When a fault is detected, the LV-1K will sound an audible beep signal every 30 seconds and continuously flash its red
LED light. Once noticed, authorized personnel can silence the audible beep signals with the included key switch. Insert
the key and turn ON to the right. Two beeps will be heard, then turn key immediately OFF and remove. The LED will
remain flashing until the fault is corrected. The audible beep signals will remain silent for this event only. Future line
failure detections will sound the audible beep signals again, which can again be silenced. Once the fault is corrected,
the alarm state will clear within two minutes.
O
Op pe er ra at ti io on n
A. Single 1600A Series Phone
C. When Wired to any Other Analog Device
The LV-1K will continuously monitor for loss of Talk Battery voltage indicating the telephone line has been accidental-
ly cut or disconnected. When this fault is detected the LV-1K will sound an audible beep signal every 30 seconds and
continuously flash its red LED light. Once noticed, authorized personnel can silence the audible beep signals with the
included key switch. Insert the key and turn ON to the right. Two beeps will be heard, then turn key immediately OFF
and remove. The LED will remain flashing until the fault is corrected. The audible beep signals will remain silent for
this event only. Future line failure detections will sound the audible beep signals again, which can again be silenced.
Once the fault is corrected, the alarm state will clear.
6
