Videocamera IR HD
Descrizione
La videocamera si avvale di un sensore 1/3 CMOS ad alte prestazioni
da 3,15 mega pixel. La telecamera utilizza materiale nuovo con classe di
impermeabilità IP66, filtro IR-CUT, controllo smart-IR. Design moderno
e professionale.
Attenzione
Prima di cercare di collegare o utilizzare il prodotto, leggere attentamen-
te le istruzioni e conservare il manuale per consultazione futura.
1. Utilizzare una rete di alimentazione appropriata.
La tensione di ingresso della telecamera è 12 Vdc. Assicurarsi di colle-
garla a una sorgente di alimentazione idonea. Una connessione errata
può causare malfunzionamenti e/o danneggiare la telecamera.
2. Non cercare di smontare la telecamera.
All’interno non vi sono parti che possono essere riparate dall’utente.
Per l’assistenza rivolgersi a un tecnico qualificato.
3. Maneggiare la telecamera con cura.
Non utilizzare la telecamera in modo improprio. Evitare colpi, scosso-
ni e simili. La telecamera potrebbe riportare danni a seguito di utilizzo
o conservazione non idonei.
4. Non utilizzare detergenti aggressivi o abrasivi per pulire il corpo della
telecamera.
Se la telecamera è sporca, passare un panno asciutto. Se lo sporco
risulta difficile da rimuovere, utilizzare un detergente delicato e stro-
finare leggermente.
5. Pulire la piastra anteriore del sensore con cautela.
Per pulire il pannello del sensore, non utilizzare detergenti aggressivi
o abrasivi. Utilizzare carta per la pulizia di obiettivi o la punta di un
bastoncino cotonato inumidito con alcol.
6. Non cercare di puntare la telecamera verso il sole o altri oggetti molto
luminosi che farebbero comparire macchie anche se la videocamera
non è in uso. Si potrebbe danneggiare il sensore.
7. Non collocare la telecamera in luoghi soggetti a interferenza.
Quando la telecamera è installata vicino ad apparecchiature come
dispositivi che comunicano in wireless, che emettono forti campi elet-
tromagnetici, potrebbero verificarsi alcune irregolarità quali rumore
sullo schermo del monitor.
Funzioni
- Sensore 1/3 CMOS ad alte prestazioni da 3,15 mega pixel, trasmissio-
ne d'immagine in tempo reale, senza compressione e senza ritardo.
- IR-CUT incorporato, assicura che la telecamera funzioni corretta-
mente di giorno e di notte.
- Classe di impermeabilità IP66.
- Design LED IR a lunga durata, con luminosità molto superiore e
durata utile molto più lunga rispetto ai normali LED.
- SMART-IR, range di 50 metri.
Modello 46516.622C
Sensore 1/3 CMOS
Pixel effettivi 2048 (H) x 1536 (V)
Frame rate video 25/30 fps
Formato video PAL/NTSC
Illuminazione min. 0,01 Lux (IR ON)
Rapporto S/N ≥41 dB
OSD Supportato
AGC 0-15
Bilanciamento
del bianco ATW / INTERNO / ESTERNO / MANUALE
BLC AUTO
NR 2DNR
AES AUTO 1/50 (1/60) - 1/50,000 sec
AWB AUTO
Day/Night
(Giorno/Notte) EXT, COLORE, B/W, AUTO
Codice Sync Interno
Tensione 12 Vdc
Corrente 700 mA ±15% (IR ON); 62 mA ±15% (IR OFF)
Obiettivo 6-22 mm Obiettivo HD
Raggio IR 50 m
Classe di
impermeabilità IP66
Uscita video AHD
Temperatura di
stoccaggio -20° C ~50° C
Temperatura di
esercizio -10° C ~ 50° C RH 90% MAX
Dimensioni 306,2 mm (L) x 76 mm (W) x 76 mm (H)
Peso 815 g ± 15%
* Le specifiche sono soggette a modifiche senza preavviso.
Regole di installazione
L’installazione deve essere effettuata da personale qualificato con l’os-
servanza delle disposizioni regolanti l’installazione del materiale elettrico
in vigore nel paese dove i prodotti sono installati.
Conformità Normativa
Direttiva EMC
Norme EN 55032, EN 55024, EN 61000-3-2, EN 61000-3-3
70.0mm
5.0mm
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PA RTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL
1yr 2yr 3yr 4yr
Design sorgente di luce IR a lunga efficacia
Altri marchi
Durata utile
Sensibilità IR
1 anno 2 anni 3 anni 4 anni
123

IRFXV zoom

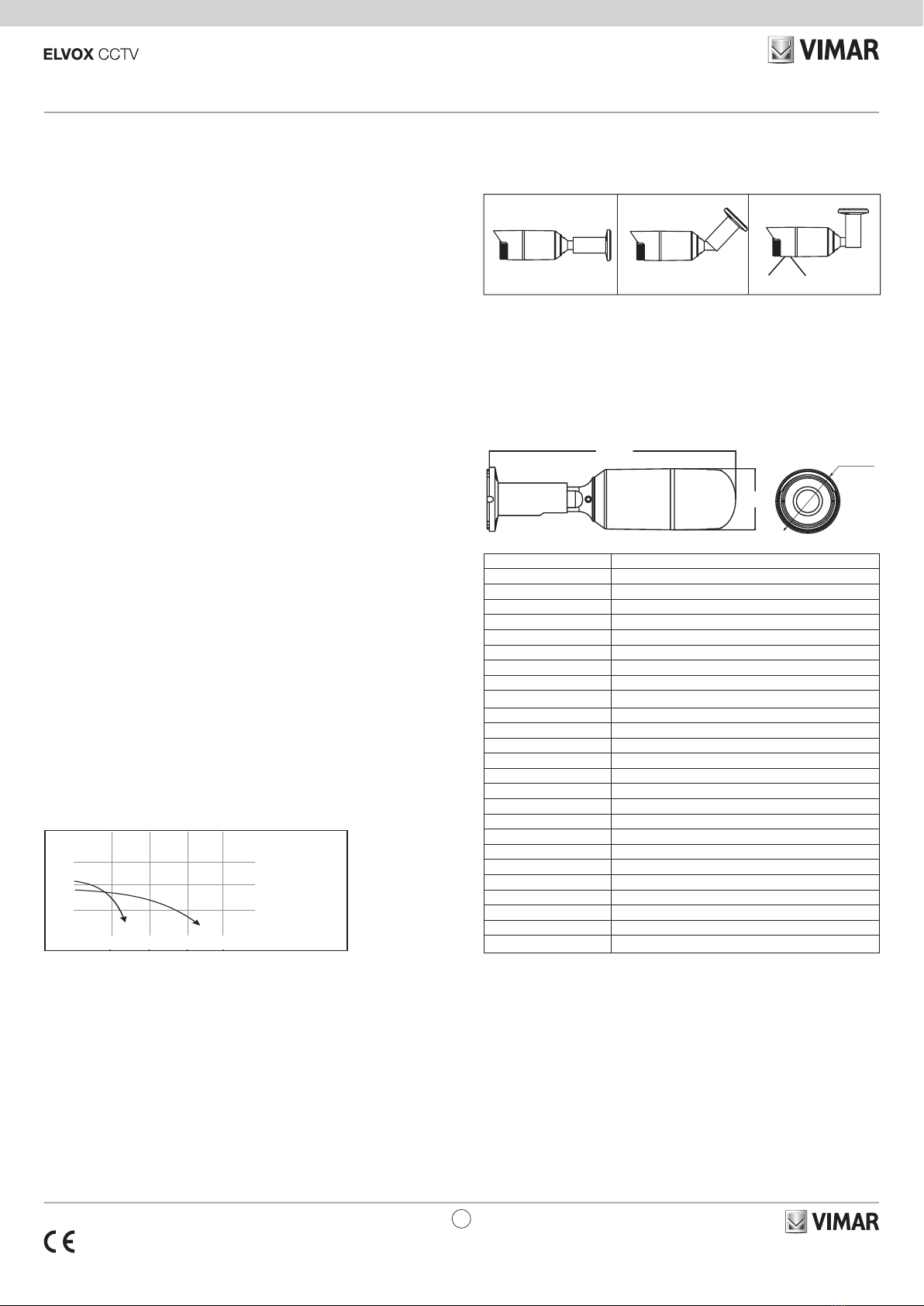

Installazione della telecamera
1. Fissare la telecamera nel luogo desiderato con le quattro viti.
2. Allentare l'anello di regolazione orizzontale, regolare nella posizione
richiesta, quindi stringerlo di nuovo.
3. Allentare la vite di fissaggio dell'angolazione, regolare nella posizione
richiesta, quindi stringerla di nuovo.
Dimensioni (mm)
Istruzioni e installazione delle parti
Φ
306,2
76
76
IT

Viale Vicenza, 14
36063 Marostica VI - Italy
www.vimar.com
46516.622C
49401307A0 00 1806
RAEE - Informazione agli utilizzatori
Il simbolo del cassonetto barrato riportato sull’apparecchiatura o
sulla sua confezione indica che il prodotto alla ne della propria
vita utile deve essere raccolto separatamente dagli altri riuti. L’u-
tente dovrà, pertanto, conferire l’apparecchiatura giunta a ne vita agli
idonei centri comunali di raccolta di󰀨erenziata dei riuti elettrotecnici ed
elettronici. In alternativa alla gestione autonoma, è possibile consegnare
gratuitamente l’apparecchiatura che si desidera smaltire al distributore,
al momento dell’acquisto di una nuova apparecchiatura di tipo equiva-
lente. Presso i distributori di prodotti elettronici con supercie di vendita
di almeno 400 m2è inoltre possibile consegnare gratuitamente, senza
obbligo di acquisto, i prodotti elettronici da smaltire con dimensioni in-
feriori a 25 cm. L’adeguata raccolta di󰀨erenziata per l’avvio successivo
dell’apparecchiatura dismessa al riciclaggio, al trattamento e allo smalti-
mento ambientalmente compatibile contribuisce ad evitare possibili e󰀨et-
ti negativi sull’ambiente e sulla salute e favorisce il reimpiego e/o riciclo
dei materiali di cui è composta l’apparecchiatura.
Funzionamento
Premere il pulsante per accedere al menu principale, impostare la mo-
dalità LENS (Obiettivo), EXPOSE (Esposizione), BACKLIGHT (Controlu-
ce), WHITE BALANCE (Bilanciamento del bianco), DAY&NIGHT (Giorno
e notte), NR (Riduzione del rumore), SPECIAL (Speciali), ADJUST (Re-
golazione) in base alle esigenze.
MAINMENU
1.EXPOSURE
2.BACKLIGHT
3.WHITE BAL
MANUAL )
4.DAY&NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.EXIT RET
OFF( BLC ,HSBLC )
ATW(AWC SET ,INDOOR,OUTDOOR,
EXT (AUTO ,COLOR,B/W )
1.LEVEL
D-WDR
2.RETURN RET
0 (0-15)
1.AGC LEVEL
NIGHT MODE
2.RETURN
20 (0-100)
RET
1.BLUE
MANUAL WB
2.RED
3.RETURN
50 (0-100)
RET
50 (0-100)
IR SMART
1.LEVEL
2.AREA
3.RETURN RET
2 (0-15)
1.2D NR
NR
3.RETURN RET
HIGH(MIDDLE,OFF,LOW)
1.D
D&N EXT
2.N
3.RETURN
2 (0-60)
RET
2 (0-60)
N DELAY()
D DELAY()
D&N AUTO
5.RETURN RET
1 (0-60)
18 (0-255)
2.DN DELAY()
4.ND DELAY()
1. ėDN(CDS)
3.NėD(CDS)
1 (0-60)
18 (0-255)
1.SHUTTER
EXPOSURE
3.BRIGHTNESS
4.D-WDR
2.AGC
15 (0-15)
34 (0-100)
AUTO(OFF,ON )
5.RETURN RET
AUTO(1/25,1/50,1/200,1/400,1/1000,1/2000,
1/5000,1/10000,1/50000,FLK)
BLC
1.LEVEL
2.AREA
3.DEFAULT
4.RETURN
MIDDLE( )HIGH,LOW
RET
1.SELECT
HSBLC
2.DISPLAY
3.BLACK MASK
4.LEVEL
6.DEFAULT
7.RETURN
5.MODE
ARE1-ARE4
20 (0-100)
ALL DAY(NIGHT )
RET
ON (OFF)
ON(OFF)
SPECIAL
1.MIRROR
2.DPC
OFF(MIRROR,V-FLIP,ROTATE)
3.LANGUAGE
4.RETURNRET
END (CHN1 ,CHN2 ,TUR ,NED ,POR ,
RUS ,POL ,SPA ,ITA ,FRA ,GER ,JPN )
DPC
1.LEVEL DPC
2.WHITE DPC
3.BLACK DPC
4.RETURN RET
ON ()OFF
ON ()OFF
ON ()OFF
1.SHARPNESS
ADJUST
2.MONITOR
5.RETURN RET
AUTO (OFF)
3.LSC
4.OUTPOT MODE
SHARRNESS
1.LEVEL
2.START AGC
3.END AGC
4.RETURN RET
2 (0-10)
20 (0-255)
20 (0-255)
MONITOR
1.GAMMA
2.BLUE GAIN
3.RED GAIN
4.RETURN RET
USER()0.45-1.00
50 (0-100)
50 (0-100)
LIVE DPC
1.AGC LEVEL
2.LEVEL
3.RETURN RET
128 (0-255)
16 (0-100)
1.POS/SIZE
WHITE DPC
2.START
3.DPC VIEW
4.LEVEL
6.RETURN
5.AGC
20 (0-60)
RET
ON(OFF)
4 (0-14)
1.POS/SIZE
BLACK DPC
2.START
3.DPC VIEW
4.LEVEL
5.RETURN
20 (0-60)
RET
ON(OFF)
OUTPUT MODE
1.FORMAT
2.VIDEO OUT
3.NRT
4.RETURN RET
AHD
PAL ()NTSC
ON(OFF)
1.IR SMART
2.IR PWM
3.RETURN RET
OFF(ON )
B/W
50 (0-100)
OFF
1. EXPOSURE (Esposizione)
Premere il pulsante menu per accedere al sottomenu EXPOSE e im-
postare le voci SHUTTER (Otturatore), AGC (Controllo automatico del
guadagno), BRIGHTNESS (Luminosità) e D-WDR in base alle esigenze.
MAINMENU
1.EXPOSURE
2.BACKLIGHT
3.WHITE BAL
MANUAL )
4.DAY&NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.EXIT RET
OFF( BLC ,HSBLC )
ATW(AWC SET ,INDOOR,OUTDOOR,
EXT (AUTO ,COLOR,B/W )
1.LEVEL
D-WDR
2.RETURN RET
0 (0-15)
1.AGC LEVEL
NIGHT MODE
2.RETURN
20 (0-100)
RET
1.BLUE
MANUAL WB
2.RED
3.RETURN
50 (0-100)
RET
50 (0-100)
IR SMART
1.LEVEL
2.AREA
3.RETURN RET
2 (0-15)
1.2D NR
NR
3.RETURN RET
HIGH(MIDDLE,OFF,LOW)
1.D
D&N EXT
2.N
3.RETURN
2 (0-60)
RET
2 (0-60)
N DELAY()
D DELAY()
D&N AUTO
5.RETURN RET
1 (0-60)
18 (0-255)
2.DN DELAY()
4.ND DELAY()
1. ėDN(CDS)
3.NėD(CDS)
1 (0-60)
18 (0-255)
1.SHUTTER
EXPOSURE
3.BRIGHTNESS
4.D-WDR
2.AGC
15 (0-15)
34 (0-100)
AUTO(OFF,ON )
5.RETURN RET
AUTO(1/25,1/50,1/200,1/400,1/1000,1/2000,
1/5000,1/10000,1/50000,FLK)
BLC
1.LEVEL
2.AREA
3.DEFAULT
4.RETURN
MIDDLE( )HIGH,LOW
RET
1.SELECT
HSBLC
2.DISPLAY
3.BLACK MASK
4.LEVEL
6.DEFAULT
7.RETURN
5.MODE
ARE1-ARE4
20 (0-100)
ALL DAY(NIGHT )
RET
ON (OFF)
ON(OFF)
SPECIAL
1.MIRROR
2.DPC
OFF(MIRROR,V-FLIP,ROTATE)
3.LANGUAGE
4.RETURNRET
END (CHN1 ,CHN2 ,TUR ,NED ,POR ,
RUS ,POL ,SPA ,ITA ,FRA ,GER ,JPN )
DPC
1.LEVEL DPC
2.WHITE DPC
3.BLACK DPC
4.RETURN RET
ON ()OFF
ON ()OFF
ON ()OFF
1.SHARPNESS
ADJUST
2.MONITOR
5.RETURN RET
AUTO (OFF)
3.LSC
4.OUTPOT MODE
SHARRNESS
1.LEVEL
2.START AGC
3.END AGC
4.RETURN RET
2 (0-10)
20 (0-255)
20 (0-255)
MONITOR
1.GAMMA
2.BLUE GAIN
3.RED GAIN
4.RETURN RET
USER()0.45-1.00
50 (0-100)
50 (0-100)
LIVE DPC
1.AGC LEVEL
2.LEVEL
3.RETURN RET
128 (0-255)
16 (0-100)
1.POS/SIZE
WHITE DPC
2.START
3.DPC VIEW
4.LEVEL
6.RETURN
5.AGC
20 (0-60)
RET
ON(OFF)
4 (0-14)
1.POS/SIZE
BLACK DPC
2.START
3.DPC VIEW
4.LEVEL
5.RETURN
20 (0-60)
RET
ON(OFF)
OUTPUT MODE
1.FORMAT
2.VIDEO OUT
3.NRT
4.RETURN RET
AHD
PAL ()NTSC
ON(OFF)
1.IR SMART
2.IR PWM
3.RETURN RET
OFF(ON )
B/W
50 (0-100)
OFF
2. BLC (Compensazione controluce)
Premere il pulsante menu per accedere al sottomenu BLC e impostare
le voci LEVEL (Livello), AREA, DEFAULT (Valore predenito) in base alle
esigenze.
MAINMENU
1.EXPOSURE
2.BACKLIGHT
3.WHITE BAL
MANUAL )
4.DAY&NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.EXIT RET
OFF( BLC ,HSBLC )
ATW(AWC SET ,INDOOR,OUTDOOR,
EXT (AUTO ,COLOR,B/W )
1.LEVEL
D-WDR
2.RETURN RET
0 (0-15)
1.AGC LEVEL
NIGHT MODE
2.RETURN
20 (0-100)
RET
1.BLUE
MANUAL WB
2.RED
3.RETURN
50 (0-100)
RET
50 (0-100)
IR SMART
1.LEVEL
2.AREA
3.RETURN RET
2 (0-15)
1.2D NR
NR
3.RETURN RET
HIGH(MIDDLE,OFF,LOW)
1.D
D&N EXT
2.N
3.RETURN
2 (0-60)
RET
2 (0-60)
N DELAY()
D DELAY()
D&N AUTO
5.RETURN RET
1 (0-60)
18 (0-255)
2.DN DELAY()
4.ND DELAY()
1. ėDN(CDS)
3.NėD(CDS)
1 (0-60)
18 (0-255)
1.SHUTTER
EXPOSURE
3.BRIGHTNESS
4.D-WDR
2.AGC
15 (0-15)
34 (0-100)
AUTO(OFF,ON )
5.RETURN RET
AUTO(1/25,1/50,1/200,1/400,1/1000,1/2000,
1/5000,1/10000,1/50000,FLK)
BLC
1.LEVEL
2.AREA
3.DEFAULT
4.RETURN
MIDDLE( )HIGH,LOW
RET
1.SELECT
HSBLC
2.DISPLAY
3.BLACK MASK
4.LEVEL
6.DEFAULT
7.RETURN
5.MODE
ARE1-ARE4
20 (0-100)
ALL DAY(NIGHT )
RET
ON (OFF)
ON(OFF)
SPECIAL
1.MIRROR
2.DPC
OFF(MIRROR,V-FLIP,ROTATE)
3.LANGUAGE
4.RETURNRET
END (CHN1 ,CHN2 ,TUR ,NED ,POR ,
RUS ,POL ,SPA ,ITA ,FRA ,GER ,JPN )
DPC
1.LEVEL DPC
2.WHITE DPC
3.BLACK DPC
4.RETURN RET
ON ()OFF
ON ()OFF
ON ()OFF
1.SHARPNESS
ADJUST
2.MONITOR
5.RETURN RET
AUTO (OFF)
3.LSC
4.OUTPOT MODE
SHARRNESS
1.LEVEL
2.START AGC
3.END AGC
4.RETURN RET
2 (0-10)
20 (0-255)
20 (0-255)
MONITOR
1.GAMMA
2.BLUE GAIN
3.RED GAIN
4.RETURN RET
USER()0.45-1.00
50 (0-100)
50 (0-100)
LIVE DPC
1.AGC LEVEL
2.LEVEL
3.RETURN RET
128 (0-255)
16 (0-100)
1.POS/SIZE
WHITE DPC
2.START
3.DPC VIEW
4.LEVEL
6.RETURN
5.AGC
20 (0-60)
RET
ON(OFF)
4 (0-14)
1.POS/SIZE
BLACK DPC
2.START
3.DPC VIEW
4.LEVEL
5.RETURN
20 (0-60)
RET
ON(OFF)
OUTPUT MODE
1.FORMAT
2.VIDEO OUT
3.NRT
4.RETURN RET
AHD
PAL ()NTSC
ON(OFF)
1.IR SMART
2.IR PWM
3.RETURN RET
OFF(ON )
B/W
50 (0-100)
OFF
3. WB (Bilanciamento del bianco)
Premere il pulsante menu per accedere al sottomenu WB e im-
postare i toni di BLUE (Blu) e RED (Rosso) in base alle esigenze.
MAINMENU
1.EXPOSURE
2.BACKLIGHT
3.WHITE BAL
MANUAL )
4.DAY&NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.EXIT RET
OFF( BLC ,HSBLC )
ATW(AWC SET ,INDOOR,OUTDOOR,
EXT (AUTO ,COLOR,B/W )
1.LEVEL
D-WDR
2.RETURN RET
0 (0-15)
1.AGC LEVEL
NIGHT MODE
2.RETURN
20 (0-100)
RET
1.BLUE
MANUAL WB
2.RED
3.RETURN
50 (0-100)
RET
50 (0-100)
IR SMART
1.LEVEL
2.AREA
3.RETURN RET
2 (0-15)
1.2D NR
NR
3.RETURN RET
HIGH(MIDDLE,OFF,LOW)
1.D
D&N EXT
2.N
3.RETURN
2 (0-60)
RET
2 (0-60)
N DELAY()
D DELAY()
D&N AUTO
5.RETURN RET
1 (0-60)
18 (0-255)
2.DN DELAY()
4.ND DELAY()
1. ėDN(CDS)
3.NėD(CDS)
1 (0-60)
18 (0-255)
1.SHUTTER
EXPOSURE
3.BRIGHTNESS
4.D-WDR
2.AGC
15 (0-15)
34 (0-100)
AUTO(OFF,ON )
5.RETURN RET
AUTO(1/25,1/50,1/200,1/400,1/1000,1/2000,
1/5000,1/10000,1/50000,FLK)
BLC
1.LEVEL
2.AREA
3.DEFAULT
4.RETURN
MIDDLE( )HIGH,LOW
RET
1.SELECT
HSBLC
2.DISPLAY
3.BLACK MASK
4.LEVEL
6.DEFAULT
7.RETURN
5.MODE
ARE1-ARE4
20 (0-100)
ALL DAY(NIGHT )
RET
ON (OFF)
ON(OFF)
SPECIAL
1.MIRROR
2.DPC
OFF(MIRROR,V-FLIP,ROTATE)
3.LANGUAGE
4.RETURNRET
END (CHN1 ,CHN2 ,TUR ,NED ,POR ,
RUS ,POL ,SPA ,ITA ,FRA ,GER ,JPN )
DPC
1.LEVEL DPC
2.WHITE DPC
3.BLACK DPC
4.RETURN RET
ON ()OFF
ON ()OFF
ON ()OFF
1.SHARPNESS
ADJUST
2.MONITOR
5.RETURN RET
AUTO (OFF)
3.LSC
4.OUTPOT MODE
SHARRNESS
1.LEVEL
2.START AGC
3.END AGC
4.RETURN RET
2 (0-10)
20 (0-255)
20 (0-255)
MONITOR
1.GAMMA
2.BLUE GAIN
3.RED GAIN
4.RETURN RET
USER()0.45-1.00
50 (0-100)
50 (0-100)
LIVE DPC
1.AGC LEVEL
2.LEVEL
3.RETURN RET
128 (0-255)
16 (0-100)
1.POS/SIZE
WHITE DPC
2.START
3.DPC VIEW
4.LEVEL
6.RETURN
5.AGC
20 (0-60)
RET
ON(OFF)
4 (0-14)
1.POS/SIZE
BLACK DPC
2.START
3.DPC VIEW
4.LEVEL
5.RETURN
20 (0-60)
RET
ON(OFF)
OUTPUT MODE
1.FORMAT
2.VIDEO OUT
3.NRT
4.RETURN RET
AHD
PAL ()NTSC
ON(OFF)
1.IR SMART
2.IR PWM
3.RETURN RET
OFF(ON )
B/W
50 (0-100)
OFF
4. DAY&NIGHT (Giorno e Notte)
Premere il tasto SINISTRA o DESTRA per selezionare la modalità D&N,
quindi premere il pulsante menu per accedere al sottomenu e impostare
i parametri in base alle esigenze.
MAINMENU
1.EXPOSURE
2.BACKLIGHT
3.WHITE BAL
MANUAL )
4.DAY&NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.EXIT RET
OFF( BLC ,HSBLC )
ATW(AWC SET ,INDOOR,OUTDOOR,
EXT (AUTO ,COLOR,B/W )
1.LEVEL
D-WDR
2.RETURN RET
0 (0-15)
1.AGC LEVEL
NIGHT MODE
2.RETURN
20 (0-100)
RET
1.BLUE
MANUAL WB
2.RED
3.RETURN
50 (0-100)
RET
50 (0-100)
IR SMART
1.LEVEL
2.AREA
3.RETURN RET
2 (0-15)
1.2D NR
NR
3.RETURN RET
HIGH(MIDDLE,OFF,LOW)
1.D
D&N EXT
2.N
3.RETURN
2 (0-60)
RET
2 (0-60)
N DELAY()
D DELAY()
D&N AUTO
5.RETURN RET
1 (0-60)
18 (0-255)
2.DN DELAY()
4.ND DELAY()
1. ėDN(CDS)
3.NėD(CDS)
1 (0-60)
18 (0-255)
1.SHUTTER
EXPOSURE
3.BRIGHTNESS
4.D-WDR
2.AGC
15 (0-15)
34 (0-100)
AUTO(OFF,ON )
5.RETURN RET
AUTO(1/25,1/50,1/200,1/400,1/1000,1/2000,
1/5000,1/10000,1/50000,FLK)
BLC
1.LEVEL
2.AREA
3.DEFAULT
4.RETURN
MIDDLE( )HIGH,LOW
RET
1.SELECT
HSBLC
2.DISPLAY
3.BLACK MASK
4.LEVEL
6.DEFAULT
7.RETURN
5.MODE
ARE1-ARE4
20 (0-100)
ALL DAY(NIGHT )
RET
ON (OFF)
ON(OFF)
SPECIAL
1.MIRROR
2.DPC
OFF(MIRROR,V-FLIP,ROTATE)
3.LANGUAGE
4.RETURNRET
END (CHN1 ,CHN2 ,TUR ,NED ,POR ,
RUS ,POL ,SPA ,ITA ,FRA ,GER ,JPN )
DPC
1.LEVEL DPC
2.WHITE DPC
3.BLACK DPC
4.RETURN RET
ON ()OFF
ON ()OFF
ON ()OFF
1.SHARPNESS
ADJUST
2.MONITOR
5.RETURN RET
AUTO (OFF)
3.LSC
4.OUTPOT MODE
SHARRNESS
1.LEVEL
2.START AGC
3.END AGC
4.RETURN RET
2 (0-10)
20 (0-255)
20 (0-255)
MONITOR
1.GAMMA
2.BLUE GAIN
3.RED GAIN
4.RETURN RET
USER()0.45-1.00
50 (0-100)
50 (0-100)
LIVE DPC
1.AGC LEVEL
2.LEVEL
3.RETURN RET
128 (0-255)
16 (0-100)
1.POS/SIZE
WHITE DPC
2.START
3.DPC VIEW
4.LEVEL
6.RETURN
5.AGC
20 (0-60)
RET
ON(OFF)
4 (0-14)
1.POS/SIZE
BLACK DPC
2.START
3.DPC VIEW
4.LEVEL
5.RETURN
20 (0-60)
RET
ON(OFF)
OUTPUT MODE
1.FORMAT
2.VIDEO OUT
3.NRT
4.RETURN RET
AHD
PAL ()NTSC
ON(OFF)
1.IR SMART
2.IR PWM
3.RETURN RET
OFF(ON )
B/W
50 (0-100)
OFF
IT

Viale Vicenza, 14
36063 Marostica VI - Italy
www.vimar.com
46516.622C
49401307A0 00 1806
MAINMENU
1.EXPOSURE
2.BACKLIGHT
3.WHITE BAL
MANUAL )
4.DAY&NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.EXIT RET
OFF( BLC ,HSBLC )
ATW(AWC SET ,INDOOR,OUTDOOR,
EXT (AUTO ,COLOR,B/W )
1.LEVEL
D-WDR
2.RETURN RET
0 (0-15)
1.AGC LEVEL
NIGHT MODE
2.RETURN
20 (0-100)
RET
1.BLUE
MANUAL WB
2.RED
3.RETURN
50 (0-100)
RET
50 (0-100)
IR SMART
1.LEVEL
2.AREA
3.RETURN RET
2 (0-15)
1.2D NR
NR
3.RETURN RET
HIGH(MIDDLE,OFF,LOW)
1.D
D&N EXT
2.N
3.RETURN
2 (0-60)
RET
2 (0-60)
N DELAY()
D DELAY()
D&N AUTO
5.RETURN RET
1 (0-60)
18 (0-255)
2.DN DELAY()
4.ND DELAY()
1. ėDN(CDS)
3.NėD(CDS)
1 (0-60)
18 (0-255)
1.SHUTTER
EXPOSURE
3.BRIGHTNESS
4.D-WDR
2.AGC
15 (0-15)
34 (0-100)
AUTO(OFF,ON )
5.RETURN RET
AUTO(1/25,1/50,1/200,1/400,1/1000,1/2000,
1/5000,1/10000,1/50000,FLK)
BLC
1.LEVEL
2.AREA
3.DEFAULT
4.RETURN
MIDDLE( )HIGH,LOW
RET
1.SELECT
HSBLC
2.DISPLAY
3.BLACK MASK
4.LEVEL
6.DEFAULT
7.RETURN
5.MODE
ARE1-ARE4
20 (0-100)
ALL DAY(NIGHT )
RET
ON (OFF)
ON(OFF)
SPECIAL
1.MIRROR
2.DPC
OFF(MIRROR,V-FLIP,ROTATE)
3.LANGUAGE
4.RETURNRET
END (CHN1 ,CHN2 ,TUR ,NED ,POR ,
RUS ,POL ,SPA ,ITA ,FRA ,GER ,JPN )
DPC
1.LEVEL DPC
2.WHITE DPC
3.BLACK DPC
4.RETURN RET
ON ()OFF
ON ()OFF
ON ()OFF
1.SHARPNESS
ADJUST
2.MONITOR
5.RETURN RET
AUTO (OFF)
3.LSC
4.OUTPOT MODE
SHARRNESS
1.LEVEL
2.START AGC
3.END AGC
4.RETURN RET
2 (0-10)
20 (0-255)
20 (0-255)
MONITOR
1.GAMMA
2.BLUE GAIN
3.RED GAIN
4.RETURN RET
USER()0.45-1.00
50 (0-100)
50 (0-100)
LIVE DPC
1.AGC LEVEL
2.LEVEL
3.RETURN RET
128 (0-255)
16 (0-100)
1.POS/SIZE
WHITE DPC
2.START
3.DPC VIEW
4.LEVEL
6.RETURN
5.AGC
20 (0-60)
RET
ON(OFF)
4 (0-14)
1.POS/SIZE
BLACK DPC
2.START
3.DPC VIEW
4.LEVEL
5.RETURN
20 (0-60)
RET
ON(OFF)
OUTPUT MODE
1.FORMAT
2.VIDEO OUT
3.NRT
4.RETURN RET
AHD
PAL ()NTSC
ON(OFF)
1.IR SMART
2.IR PWM
3.RETURN RET
OFF(ON )
B/W
50 (0-100)
OFF
5. NR (Riduzione del rumore)
Premere il pulsante menu per selezionare la modalità NR, quindi preme-
re il pulsante menu per accedere al sottomenu e impostare i parametri in
base alle esigenze.
MAINMENU
1.EXPOSURE
2.BACKLIGHT
3.WHITE BAL
MANUAL )
4.DAY&NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.EXIT RET
OFF( BLC ,HSBLC )
ATW(AWC SET ,INDOOR,OUTDOOR,
EXT (AUTO ,COLOR,B/W )
1.LEVEL
D-WDR
2.RETURN RET
0 (0-15)
1.AGC LEVEL
NIGHT MODE
2.RETURN
20 (0-100)
RET
1.BLUE
MANUAL WB
2.RED
3.RETURN
50 (0-100)
RET
50 (0-100)
IR SMART
1.LEVEL
2.AREA
3.RETURN RET
2 (0-15)
1.2D NR
NR
3.RETURN RET
HIGH(MIDDLE,OFF,LOW)
1.D
D&N EXT
2.N
3.RETURN
2 (0-60)
RET
2 (0-60)
N DELAY()
D DELAY()
D&N AUTO
5.RETURN RET
1 (0-60)
18 (0-255)
2.DN DELAY()
4.ND DELAY()
1. ėDN(CDS)
3.NėD(CDS)
1 (0-60)
18 (0-255)
1.SHUTTER
EXPOSURE
3.BRIGHTNESS
4.D-WDR
2.AGC
15 (0-15)
34 (0-100)
AUTO(OFF,ON )
5.RETURN RET
AUTO(1/25,1/50,1/200,1/400,1/1000,1/2000,
1/5000,1/10000,1/50000,FLK)
BLC
1.LEVEL
2.AREA
3.DEFAULT
4.RETURN
MIDDLE( )HIGH,LOW
RET
1.SELECT
HSBLC
2.DISPLAY
3.BLACK MASK
4.LEVEL
6.DEFAULT
7.RETURN
5.MODE
ARE1-ARE4
20 (0-100)
ALL DAY(NIGHT )
RET
ON (OFF)
ON(OFF)
SPECIAL
1.MIRROR
2.DPC
OFF(MIRROR,V-FLIP,ROTATE)
3.LANGUAGE
4.RETURNRET
END (CHN1 ,CHN2 ,TUR ,NED ,POR ,
RUS ,POL ,SPA ,ITA ,FRA ,GER ,JPN )
DPC
1.LEVEL DPC
2.WHITE DPC
3.BLACK DPC
4.RETURN RET
ON ()OFF
ON ()OFF
ON ()OFF
1.SHARPNESS
ADJUST
2.MONITOR
5.RETURN RET
AUTO (OFF)
3.LSC
4.OUTPOT MODE
SHARRNESS
1.LEVEL
2.START AGC
3.END AGC
4.RETURN RET
2 (0-10)
20 (0-255)
20 (0-255)
MONITOR
1.GAMMA
2.BLUE GAIN
3.RED GAIN
4.RETURN RET
USER()0.45-1.00
50 (0-100)
50 (0-100)
LIVE DPC
1.AGC LEVEL
2.LEVEL
3.RETURN RET
128 (0-255)
16 (0-100)
1.POS/SIZE
WHITE DPC
2.START
3.DPC VIEW
4.LEVEL
6.RETURN
5.AGC
20 (0-60)
RET
ON(OFF)
4 (0-14)
1.POS/SIZE
BLACK DPC
2.START
3.DPC VIEW
4.LEVEL
5.RETURN
20 (0-60)
RET
ON(OFF)
OUTPUT MODE
1.FORMAT
2.VIDEO OUT
3.NRT
4.RETURN RET
AHD
PAL ()NTSC
ON(OFF)
1.IR SMART
2.IR PWM
3.RETURN RET
OFF(ON )
B/W
50 (0-100)
OFF
6. SPECIAL (Speciali)
Premere il pulsante menu per accedere al sottomenu e impostare le voci
MIRROR (Specchio), DPC e LANGUAGE (Lingua) in base alle esigenze.
MAINMENU
1.EXPOSURE
2.BACKLIGHT
3.WHITE BAL
MANUAL )
4.DAY&NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.EXIT RET
OFF( BLC ,HSBLC )
ATW(AWC SET ,INDOOR,OUTDOOR,
EXT (AUTO ,COLOR,B/W )
1.LEVEL
D-WDR
2.RETURN RET
0 (0-15)
1.AGC LEVEL
NIGHT MODE
2.RETURN
20 (0-100)
RET
1.BLUE
MANUAL WB
2.RED
3.RETURN
50 (0-100)
RET
50 (0-100)
IR SMART
1.LEVEL
2.AREA
3.RETURN RET
2 (0-15)
1.2D NR
NR
3.RETURN RET
HIGH(MIDDLE,OFF,LOW)
1.D
D&N EXT
2.N
3.RETURN
2 (0-60)
RET
2 (0-60)
N DELAY()
D DELAY()
D&N AUTO
5.RETURN RET
1 (0-60)
18 (0-255)
2.DN DELAY()
4.ND DELAY()
1. ėDN(CDS)
3.NėD(CDS)
1 (0-60)
18 (0-255)
1.SHUTTER
EXPOSURE
3.BRIGHTNESS
4.D-WDR
2.AGC
15 (0-15)
34 (0-100)
AUTO(OFF,ON )
5.RETURN RET
AUTO(1/25,1/50,1/200,1/400,1/1000,1/2000,
1/5000,1/10000,1/50000,FLK)
BLC
1.LEVEL
2.AREA
3.DEFAULT
4.RETURN
MIDDLE( )HIGH,LOW
RET
1.SELECT
HSBLC
2.DISPLAY
3.BLACK MASK
4.LEVEL
6.DEFAULT
7.RETURN
5.MODE
ARE1-ARE4
20 (0-100)
ALL DAY(NIGHT )
RET
ON (OFF)
ON(OFF)
SPECIAL
1.MIRROR
2.DPC
OFF(MIRROR,V-FLIP,ROTATE)
3.LANGUAGE
4.RETURNRET
END (CHN1 ,CHN2 ,TUR ,NED ,POR ,
RUS ,POL ,SPA ,ITA ,FRA ,GER ,JPN )
DPC
1.LEVEL DPC
2.WHITE DPC
3.BLACK DPC
4.RETURN RET
ON ()OFF
ON ()OFF
ON ()OFF
1.SHARPNESS
ADJUST
2.MONITOR
5.RETURN RET
AUTO (OFF)
3.LSC
4.OUTPOT MODE
SHARRNESS
1.LEVEL
2.START AGC
3.END AGC
4.RETURN RET
2 (0-10)
20 (0-255)
20 (0-255)
MONITOR
1.GAMMA
2.BLUE GAIN
3.RED GAIN
4.RETURN RET
USER()0.45-1.00
50 (0-100)
50 (0-100)
LIVE DPC
1.AGC LEVEL
2.LEVEL
3.RETURN RET
128 (0-255)
16 (0-100)
1.POS/SIZE
WHITE DPC
2.START
3.DPC VIEW
4.LEVEL
6.RETURN
5.AGC
20 (0-60)
RET
ON(OFF)
4 (0-14)
1.POS/SIZE
BLACK DPC
2.START
3.DPC VIEW
4.LEVEL
5.RETURN
20 (0-60)
RET
ON(OFF)
OUTPUT MODE
1.FORMAT
2.VIDEO OUT
3.NRT
4.RETURN RET
AHD
PAL ()NTSC
ON(OFF)
1.IR SMART
2.IR PWM
3.RETURN RET
OFF(ON )
B/W
50 (0-100)
OFF
7. ADJUST (Regolazione)
Premere il pulsante menu per accedere al sottomenu e impostare le voci
SHARPNESS (Nitidezza), MONITOR, LSC (Compensazione luce circo-
stante), OUTPUT MODE (Modo uscita) in base alle esigenze.
MAINMENU
1.EXPOSURE
2.BACKLIGHT
3.WHITE BAL
MANUAL )
4.DAY&NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.EXIT RET
OFF( BLC ,HSBLC )
ATW(AWC SET ,INDOOR,OUTDOOR,
EXT (AUTO ,COLOR,B/W )
1.LEVEL
D-WDR
2.RETURN RET
0 (0-15)
1.AGC LEVEL
NIGHT MODE
2.RETURN
20 (0-100)
RET
1.BLUE
MANUAL WB
2.RED
3.RETURN
50 (0-100)
RET
50 (0-100)
IR SMART
1.LEVEL
2.AREA
3.RETURN RET
2 (0-15)
1.2D NR
NR
3.RETURN RET
HIGH(MIDDLE,OFF,LOW)
1.D
D&N EXT
2.N
3.RETURN
2 (0-60)
RET
2 (0-60)
N DELAY()
D DELAY()
D&N AUTO
5.RETURN RET
1 (0-60)
18 (0-255)
2.DN DELAY()
4.ND DELAY()
1. ėDN(CDS)
3.NėD(CDS)
1 (0-60)
18 (0-255)
1.SHUTTER
EXPOSURE
3.BRIGHTNESS
4.D-WDR
2.AGC
15 (0-15)
34 (0-100)
AUTO(OFF,ON )
5.RETURN RET
AUTO(1/25,1/50,1/200,1/400,1/1000,1/2000,
1/5000,1/10000,1/50000,FLK)
BLC
1.LEVEL
2.AREA
3.DEFAULT
4.RETURN
MIDDLE( )HIGH,LOW
RET
1.SELECT
HSBLC
2.DISPLAY
3.BLACK MASK
4.LEVEL
6.DEFAULT
7.RETURN
5.MODE
ARE1-ARE4
20 (0-100)
ALL DAY(NIGHT )
RET
ON (OFF)
ON(OFF)
SPECIAL
1.MIRROR
2.DPC
OFF(MIRROR,V-FLIP,ROTATE)
3.LANGUAGE
4.RETURNRET
END (CHN1 ,CHN2 ,TUR ,NED ,POR ,
RUS ,POL ,SPA ,ITA ,FRA ,GER ,JPN )
DPC
1.LEVEL DPC
2.WHITE DPC
3.BLACK DPC
4.RETURN RET
ON ()OFF
ON ()OFF
ON ()OFF
1.SHARPNESS
ADJUST
2.MONITOR
5.RETURN RET
AUTO (OFF)
3.LSC
4.OUTPOT MODE
SHARRNESS
1.LEVEL
2.START AGC
3.END AGC
4.RETURN RET
2 (0-10)
20 (0-255)
20 (0-255)
MONITOR
1.GAMMA
2.BLUE GAIN
3.RED GAIN
4.RETURN RET
USER()0.45-1.00
50 (0-100)
50 (0-100)
LIVE DPC
1.AGC LEVEL
2.LEVEL
3.RETURN RET
128 (0-255)
16 (0-100)
1.POS/SIZE
WHITE DPC
2.START
3.DPC VIEW
4.LEVEL
6.RETURN
5.AGC
20 (0-60)
RET
ON(OFF)
4 (0-14)
1.POS/SIZE
BLACK DPC
2.START
3.DPC VIEW
4.LEVEL
5.RETURN
20 (0-60)
RET
ON(OFF)
OUTPUT MODE
1.FORMAT
2.VIDEO OUT
3.NRT
4.RETURN RET
AHD
PAL ()NTSC
ON(OFF)
1.IR SMART
2.IR PWM
3.RETURN RET
OFF(ON )
B/W
50 (0-100)
OFF
MAINMENU
1.EXPOSURE
2.BACKLIGHT
3.WHITE BAL
MANUAL )
4.DAY&NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.EXIT RET
OFF( BLC ,HSBLC )
ATW(AWC SET ,INDOOR,OUTDOOR,
EXT (AUTO ,COLOR,B/W )
1.LEVEL
D-WDR
2.RETURN RET
0 (0-15)
1.AGC LEVEL
NIGHT MODE
2.RETURN
20 (0-100)
RET
1.BLUE
MANUAL WB
2.RED
3.RETURN
50 (0-100)
RET
50 (0-100)
IR SMART
1.LEVEL
2.AREA
3.RETURN RET
2 (0-15)
1.2D NR
NR
3.RETURN RET
HIGH(MIDDLE,OFF,LOW)
1.D
D&N EXT
2.N
3.RETURN
2 (0-60)
RET
2 (0-60)
N DELAY()
D DELAY()
D&N AUTO
5.RETURN RET
1 (0-60)
18 (0-255)
2.DN DELAY()
4.ND DELAY()
1. ėDN(CDS)
3.NėD(CDS)
1 (0-60)
18 (0-255)
1.SHUTTER
EXPOSURE
3.BRIGHTNESS
4.D-WDR
2.AGC
15 (0-15)
34 (0-100)
AUTO(OFF,ON )
5.RETURN RET
AUTO(1/25,1/50,1/200,1/400,1/1000,1/2000,
1/5000,1/10000,1/50000,FLK)
BLC
1.LEVEL
2.AREA
3.DEFAULT
4.RETURN
MIDDLE( )HIGH,LOW
RET
1.SELECT
HSBLC
2.DISPLAY
3.BLACK MASK
4.LEVEL
6.DEFAULT
7.RETURN
5.MODE
ARE1-ARE4
20 (0-100)
ALL DAY(NIGHT )
RET
ON (OFF)
ON(OFF)
SPECIAL
1.MIRROR
2.DPC
OFF(MIRROR,V-FLIP,ROTATE)
3.LANGUAGE
4.RETURNRET
END (CHN1 ,CHN2 ,TUR ,NED ,POR ,
RUS ,POL ,SPA ,ITA ,FRA ,GER ,JPN )
DPC
1.LEVEL DPC
2.WHITE DPC
3.BLACK DPC
4.RETURN RET
ON ()OFF
ON ()OFF
ON ()OFF
1.SHARPNESS
ADJUST
2.MONITOR
5.RETURN RET
AUTO (OFF)
3.LSC
4.OUTPOT MODE
SHARRNESS
1.LEVEL
2.START AGC
3.END AGC
4.RETURN RET
2 (0-10)
20 (0-255)
20 (0-255)
MONITOR
1.GAMMA
2.BLUE GAIN
3.RED GAIN
4.RETURN RET
USER()0.45-1.00
50 (0-100)
50 (0-100)
LIVE DPC
1.AGC LEVEL
2.LEVEL
3.RETURN RET
128 (0-255)
16 (0-100)
1.POS/SIZE
WHITE DPC
2.START
3.DPC VIEW
4.LEVEL
6.RETURN
5.AGC
20 (0-60)
RET
ON(OFF)
4 (0-14)
1.POS/SIZE
BLACK DPC
2.START
3.DPC VIEW
4.LEVEL
5.RETURN
20 (0-60)
RET
ON(OFF)
OUTPUT MODE
1.FORMAT
2.VIDEO OUT
3.NRT
4.RETURN RET
AHD
PAL ()NTSC
ON(OFF)
1.IR SMART
2.IR PWM
3.RETURN RET
OFF(ON )
B/W
50 (0-100)
OFF
IT

Viale Vicenza, 14
36063 Marostica VI - Italy
www.vimar.com
46516.622C
49401307A0 00 1806
Parts instruction and installation
HD IR Camera
Description
The camera adopt 3.15 mega pixels high performance 1/3 CMOS
sensor. The camera adopt new material with IP66 waterproof standard,
IR-CUT filter, smart-IR control. Fashionable and professional design.
Attention
Before attempting to conn-ect or operate this product, please read these
instructions carefully and save this manual for future use.
1. Use the Appropriate Power Supply
The input power for the camera is 12 Vdc. Be sure to connect it to the
appropriate power. Wrong connection may cause malfunction and/or
damage to the video camera.
2. Do not attempt to disassemble the camera.
There are no user serviceable parts inside. Ask a qualified service
person for servicing.
3. Handle the camera with care.
Do not abuse the camera. Avoid striking, shaking, etc. The camera
could be damaged by improper handling or storage.
4. Do note use strong or abrasive detergents when cleaning the camera
body.
Use a dry cloth to clean the camera when dirty. In case the dirt is hard
to remove. Use a mild detergent and wipe gently.
5. Clean the sensor faceplate with care.
When cleaning the sensor panel, do not use strong or abrasive
detergents.Use a piece of lens tissue or cotton tipped applicator and
ethanol.
6. Do not attempt to aim the camera at the sun or other extremely
brightobjects that causes mear to appear irrespective of whether the
camera is operating or not. This can damage the sensor.
7. Do not put the camera in a place with interference.
When this camera is installed near the equipment like wireless com-
munication device which emits strong electromagnetic field, some
irregularity such as noise on monitor screen may happen.
Features
- 3.15 Megapixel high performance 1/3 CMOS sensor, no com-
pressed, no delay, and real-time transmission image .
- Built in IR-CUT, ensure the camera work properly both day and night.
- IP66 waterproof standard
- Long-life IR LED design, whose brightness is several times higher
and service life longer than ordinary LED’s
- SMART-IR, 50 meters IR range
Model 46516.622C
Sensor 1/3 CMOS
Effective Pixels 2048 (H) x 1536 (V)
Video Frame Rate 25/30 fps
Video format PAL/NTSC
Mini-illumination 0.01 Lux (IR ON)
S/N Ration ≥41 dB
OSD Support
AGC 0-15
White Balance ATW / INDOOR / OUTDOOR / MANUAL
BLC AUTO
NR 2DNR
AES AUTO 1/50 (1/60) - 1/50.000 sec
AWB AUTO
Day/Night EXT, COLOR, B/W, AUTO
Sync code Internal
Voltage 12 Vdc
Current 700 mA ±15% (IR ON); 62 mA ±15% (IR OFF)
Lens 6-22 mm HD Lens
IR range 50 m
Waterproof standard IP66
Video output AHD
Storage temperature -20° C ~50° C
Operate Temperature -10° C ~ 50° C RH 90% MAX
Size 306.2 mm (L) x 76 mm (W) x 76 mm (H)
Weight 815 g ±15%
*Specifications subject to change without notice.
Installations rules
Installation should be carried out by qualified staff in compliance with the
current regulations regarding the installation of electrical equipment in the
country where the products are installed.
Conformity to Standards
EMC Directive
EN 55032, EN 55024, EN 61000-3-2, EN 61000-3-3 standards
123

IRFXV zoom
Camera Installation
1. Fix the camera to the needed place with the four pieces of screws.
2. Loosen the horizontal adjusting ring, adjust it to the needed place,
then fix the horizontal adjusting ring.
3. Loosen the angle fixing screw, adjust it to the needed place, then fix
the angle fixing screw.
Dimension (mm)
Φ
306,2
76
76
EN
70.0mm
5.0mm
CAUTION
RISK OF ELECTRIC
SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PA RTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL
1yr 2yr 3yr 4yr
Long-effective IR Light Source Design
Other
brands
Service Life
IR Sensitivity
1 year 2 years 3 years 4 years

Viale Vicenza, 14
36063 Marostica VI - Italy
www.vimar.com
46516.622C
49401307A0 00 1806
EN
WEEE - Information for users
If the crossed-out bin symbol appears on the equipment or packa-
ging, this means the product must not be included with other gene-
ral waste at the end of its working life. The user must take the worn
product to a sorted waste center, or return it to the retailer when purcha-
sing a new one. Products for disposal can be consigned free of charge
(without any new purchase obligation) to retailers with a sales area of at
least 400 m2, if they measure less than 25 cm. An e󰀩cient sorted waste
collection for the environmentally friendly disposal of the used device, or
its subsequent recycling, helps avoid the potential negative e󰀨ects on
the environment and people’s health, and encourages the re-use and/or
recycling of the construction materials.
Operation
Press the button into the main menu, set the LENS mode, EXPOSE,
BACKLIGHT, WHITE BALANCE, DAY&NIGHT, NR, SPECIAL, ADJUST
as needed.
MAINMENU
1.EXPOSURE
2.BACKLIGHT
3.WHITE BAL
MANUAL )
4.DAY&NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.EXIT RET
OFF( BLC ,HSBLC )
ATW(AWC SET ,INDOOR,OUTDOOR,
EXT (AUTO ,COLOR,B/W )
1.LEVEL
D-WDR
2.RETURN RET
0 (0-15)
1.AGC LEVEL
NIGHT MODE
2.RETURN
20 (0-100)
RET
1.BLUE
MANUAL WB
2.RED
3.RETURN
50 (0-100)
RET
50 (0-100)
IR SMART
1.LEVEL
2.AREA
3.RETURN RET
2 (0-15)
1.2D NR
NR
3.RETURN RET
HIGH(MIDDLE,OFF,LOW)
1.D
D&N EXT
2.N
3.RETURN
2 (0-60)
RET
2 (0-60)
N DELAY()
D DELAY()
D&N AUTO
5.RETURN RET
1 (0-60)
18 (0-255)
2.DN DELAY()
4.ND DELAY()
1. ėDN(CDS)
3.NėD(CDS)
1 (0-60)
18 (0-255)
1.SHUTTER
EXPOSURE
3.BRIGHTNESS
4.D-WDR
2.AGC
15 (0-15)
34 (0-100)
AUTO(OFF,ON )
5.RETURN RET
AUTO(1/25,1/50,1/200,1/400,1/1000,1/2000,
1/5000,1/10000,1/50000,FLK)
BLC
1.LEVEL
2.AREA
3.DEFAULT
4.RETURN
MIDDLE( )HIGH,LOW
RET
1.SELECT
HSBLC
2.DISPLAY
3.BLACK MASK
4.LEVEL
6.DEFAULT
7.RETURN
5.MODE
ARE1-ARE4
20 (0-100)
ALL DAY(NIGHT )
RET
ON (OFF)
ON(OFF)
SPECIAL
1.MIRROR
2.DPC
OFF(MIRROR,V-FLIP,ROTATE)
3.LANGUAGE
4.RETURNRET
END (CHN1 ,CHN2 ,TUR ,NED ,POR ,
RUS ,POL ,SPA ,ITA ,FRA ,GER ,JPN )
DPC
1.LEVEL DPC
2.WHITE DPC
3.BLACK DPC
4.RETURN RET
ON ()OFF
ON ()OFF
ON ()OFF
1.SHARPNESS
ADJUST
2.MONITOR
5.RETURN RET
AUTO (OFF)
3.LSC
4.OUTPOT MODE
SHARRNESS
1.LEVEL
2.START AGC
3.END AGC
4.RETURN RET
2 (0-10)
20 (0-255)
20 (0-255)
MONITOR
1.GAMMA
2.BLUE GAIN
3.RED GAIN
4.RETURN RET
USER()0.45-1.00
50 (0-100)
50 (0-100)
LIVE DPC
1.AGC LEVEL
2.LEVEL
3.RETURN RET
128 (0-255)
16 (0-100)
1.POS/SIZE
WHITE DPC
2.START
3.DPC VIEW
4.LEVEL
6.RETURN
5.AGC
20 (0-60)
RET
ON(OFF)
4 (0-14)
1.POS/SIZE
BLACK DPC
2.START
3.DPC VIEW
4.LEVEL
5.RETURN
20 (0-60)
RET
ON(OFF)
OUTPUT MODE
1.FORMAT
2.VIDEO OUT
3.NRT
4.RETURN RET
AHD
PAL ()NTSC
ON(OFF)
1.IR SMART
2.IR PWM
3.RETURN RET
OFF(ON )
B/W
50 (0-100)
OFF
1. EXPOSURE
Press the menu button into the expose’s submenu, set the SHUTTER\
AGC\ BRIGHTNESS\D-WDR as needed.
MAINMENU
1.EXPOSURE
2.BACKLIGHT
3.WHITE BAL
MANUAL )
4.DAY&NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.EXIT RET
OFF( BLC ,HSBLC )
ATW(AWC SET ,INDOOR,OUTDOOR,
EXT (AUTO ,COLOR,B/W )
1.LEVEL
D-WDR
2.RETURN RET
0 (0-15)
1.AGC LEVEL
NIGHT MODE
2.RETURN
20 (0-100)
RET
1.BLUE
MANUAL WB
2.RED
3.RETURN
50 (0-100)
RET
50 (0-100)
IR SMART
1.LEVEL
2.AREA
3.RETURN RET
2 (0-15)
1.2D NR
NR
3.RETURN RET
HIGH(MIDDLE,OFF,LOW)
1.D
D&N EXT
2.N
3.RETURN
2 (0-60)
RET
2 (0-60)
N DELAY()
D DELAY()
D&N AUTO
5.RETURN RET
1 (0-60)
18 (0-255)
2.DN DELAY()
4.ND DELAY()
1. ėDN(CDS)
3.NėD(CDS)
1 (0-60)
18 (0-255)
1.SHUTTER
EXPOSURE
3.BRIGHTNESS
4.D-WDR
2.AGC
15 (0-15)
34 (0-100)
AUTO(OFF,ON )
5.RETURN RET
AUTO(1/25,1/50,1/200,1/400,1/1000,1/2000,
1/5000,1/10000,1/50000,FLK)
BLC
1.LEVEL
2.AREA
3.DEFAULT
4.RETURN
MIDDLE( )HIGH,LOW
RET
1.SELECT
HSBLC
2.DISPLAY
3.BLACK MASK
4.LEVEL
6.DEFAULT
7.RETURN
5.MODE
ARE1-ARE4
20 (0-100)
ALL DAY(NIGHT )
RET
ON (OFF)
ON(OFF)
SPECIAL
1.MIRROR
2.DPC
OFF(MIRROR,V-FLIP,ROTATE)
3.LANGUAGE
4.RETURNRET
END (CHN1 ,CHN2 ,TUR ,NED ,POR ,
RUS ,POL ,SPA ,ITA ,FRA ,GER ,JPN )
DPC
1.LEVEL DPC
2.WHITE DPC
3.BLACK DPC
4.RETURN RET
ON ()OFF
ON ()OFF
ON ()OFF
1.SHARPNESS
ADJUST
2.MONITOR
5.RETURN RET
AUTO (OFF)
3.LSC
4.OUTPOT MODE
SHARRNESS
1.LEVEL
2.START AGC
3.END AGC
4.RETURN RET
2 (0-10)
20 (0-255)
20 (0-255)
MONITOR
1.GAMMA
2.BLUE GAIN
3.RED GAIN
4.RETURN RET
USER()0.45-1.00
50 (0-100)
50 (0-100)
LIVE DPC
1.AGC LEVEL
2.LEVEL
3.RETURN RET
128 (0-255)
16 (0-100)
1.POS/SIZE
WHITE DPC
2.START
3.DPC VIEW
4.LEVEL
6.RETURN
5.AGC
20 (0-60)
RET
ON(OFF)
4 (0-14)
1.POS/SIZE
BLACK DPC
2.START
3.DPC VIEW
4.LEVEL
5.RETURN
20 (0-60)
RET
ON(OFF)
OUTPUT MODE
1.FORMAT
2.VIDEO OUT
3.NRT
4.RETURN RET
AHD
PAL ()NTSC
ON(OFF)
1.IR SMART
2.IR PWM
3.RETURN RET
OFF(ON )
B/W
50 (0-100)
OFF
2. BLC
Press the menu button into the BLC’s submenu, set the LEVEL\ AREA\
DEFAULT as needed.
MAINMENU
1.EXPOSURE
2.BACKLIGHT
3.WHITE BAL
MANUAL )
4.DAY&NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.EXIT RET
OFF( BLC ,HSBLC )
ATW(AWC SET ,INDOOR,OUTDOOR,
EXT (AUTO ,COLOR,B/W )
1.LEVEL
D-WDR
2.RETURN RET
0 (0-15)
1.AGC LEVEL
NIGHT MODE
2.RETURN
20 (0-100)
RET
1.BLUE
MANUAL WB
2.RED
3.RETURN
50 (0-100)
RET
50 (0-100)
IR SMART
1.LEVEL
2.AREA
3.RETURN RET
2 (0-15)
1.2D NR
NR
3.RETURN RET
HIGH(MIDDLE,OFF,LOW)
1.D
D&N EXT
2.N
3.RETURN
2 (0-60)
RET
2 (0-60)
N DELAY()
D DELAY()
D&N AUTO
5.RETURN RET
1 (0-60)
18 (0-255)
2.DN DELAY()
4.ND DELAY()
1. ėDN(CDS)
3.NėD(CDS)
1 (0-60)
18 (0-255)
1.SHUTTER
EXPOSURE
3.BRIGHTNESS
4.D-WDR
2.AGC
15 (0-15)
34 (0-100)
AUTO(OFF,ON )
5.RETURN RET
AUTO(1/25,1/50,1/200,1/400,1/1000,1/2000,
1/5000,1/10000,1/50000,FLK)
BLC
1.LEVEL
2.AREA
3.DEFAULT
4.RETURN
MIDDLE( )HIGH,LOW
RET
1.SELECT
HSBLC
2.DISPLAY
3.BLACK MASK
4.LEVEL
6.DEFAULT
7.RETURN
5.MODE
ARE1-ARE4
20 (0-100)
ALL DAY(NIGHT )
RET
ON (OFF)
ON(OFF)
SPECIAL
1.MIRROR
2.DPC
OFF(MIRROR,V-FLIP,ROTATE)
3.LANGUAGE
4.RETURNRET
END (CHN1 ,CHN2 ,TUR ,NED ,POR ,
RUS ,POL ,SPA ,ITA ,FRA ,GER ,JPN )
DPC
1.LEVEL DPC
2.WHITE DPC
3.BLACK DPC
4.RETURN RET
ON ()OFF
ON ()OFF
ON ()OFF
1.SHARPNESS
ADJUST
2.MONITOR
5.RETURN RET
AUTO (OFF)
3.LSC
4.OUTPOT MODE
SHARRNESS
1.LEVEL
2.START AGC
3.END AGC
4.RETURN RET
2 (0-10)
20 (0-255)
20 (0-255)
MONITOR
1.GAMMA
2.BLUE GAIN
3.RED GAIN
4.RETURN RET
USER()0.45-1.00
50 (0-100)
50 (0-100)
LIVE DPC
1.AGC LEVEL
2.LEVEL
3.RETURN RET
128 (0-255)
16 (0-100)
1.POS/SIZE
WHITE DPC
2.START
3.DPC VIEW
4.LEVEL
6.RETURN
5.AGC
20 (0-60)
RET
ON(OFF)
4 (0-14)
1.POS/SIZE
BLACK DPC
2.START
3.DPC VIEW
4.LEVEL
5.RETURN
20 (0-60)
RET
ON(OFF)
OUTPUT MODE
1.FORMAT
2.VIDEO OUT
3.NRT
4.RETURN RET
AHD
PAL ()NTSC
ON(OFF)
1.IR SMART
2.IR PWM
3.RETURN RET
OFF(ON )
B/W
50 (0-100)
OFF
3. WB (white balance)
Press the menu button into the WB’s submenu, set the BLUE\ RED
tone as needed.
MAINMENU
1.EXPOSURE
2.BACKLIGHT
3.WHITE BAL
MANUAL )
4.DAY&NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.EXIT RET
OFF( BLC ,HSBLC )
ATW(AWC SET ,INDOOR,OUTDOOR,
EXT (AUTO ,COLOR,B/W )
1.LEVEL
D-WDR
2.RETURN RET
0 (0-15)
1.AGC LEVEL
NIGHT MODE
2.RETURN
20 (0-100)
RET
1.BLUE
MANUAL WB
2.RED
3.RETURN
50 (0-100)
RET
50 (0-100)
IR SMART
1.LEVEL
2.AREA
3.RETURN RET
2 (0-15)
1.2D NR
NR
3.RETURN RET
HIGH(MIDDLE,OFF,LOW)
1.D
D&N EXT
2.N
3.RETURN
2 (0-60)
RET
2 (0-60)
N DELAY()
D DELAY()
D&N AUTO
5.RETURN RET
1 (0-60)
18 (0-255)
2.DN DELAY()
4.ND DELAY()
1. ėDN(CDS)
3.NėD(CDS)
1 (0-60)
18 (0-255)
1.SHUTTER
EXPOSURE
3.BRIGHTNESS
4.D-WDR
2.AGC
15 (0-15)
34 (0-100)
AUTO(OFF,ON )
5.RETURN RET
AUTO(1/25,1/50,1/200,1/400,1/1000,1/2000,
1/5000,1/10000,1/50000,FLK)
BLC
1.LEVEL
2.AREA
3.DEFAULT
4.RETURN
MIDDLE( )HIGH,LOW
RET
1.SELECT
HSBLC
2.DISPLAY
3.BLACK MASK
4.LEVEL
6.DEFAULT
7.RETURN
5.MODE
ARE1-ARE4
20 (0-100)
ALL DAY(NIGHT )
RET
ON (OFF)
ON(OFF)
SPECIAL
1.MIRROR
2.DPC
OFF(MIRROR,V-FLIP,ROTATE)
3.LANGUAGE
4.RETURNRET
END (CHN1 ,CHN2 ,TUR ,NED ,POR ,
RUS ,POL ,SPA ,ITA ,FRA ,GER ,JPN )
DPC
1.LEVEL DPC
2.WHITE DPC
3.BLACK DPC
4.RETURN RET
ON ()OFF
ON ()OFF
ON ()OFF
1.SHARPNESS
ADJUST
2.MONITOR
5.RETURN RET
AUTO (OFF)
3.LSC
4.OUTPOT MODE
SHARRNESS
1.LEVEL
2.START AGC
3.END AGC
4.RETURN RET
2 (0-10)
20 (0-255)
20 (0-255)
MONITOR
1.GAMMA
2.BLUE GAIN
3.RED GAIN
4.RETURN RET
USER()0.45-1.00
50 (0-100)
50 (0-100)
LIVE DPC
1.AGC LEVEL
2.LEVEL
3.RETURN RET
128 (0-255)
16 (0-100)
1.POS/SIZE
WHITE DPC
2.START
3.DPC VIEW
4.LEVEL
6.RETURN
5.AGC
20 (0-60)
RET
ON(OFF)
4 (0-14)
1.POS/SIZE
BLACK DPC
2.START
3.DPC VIEW
4.LEVEL
5.RETURN
20 (0-60)
RET
ON(OFF)
OUTPUT MODE
1.FORMAT
2.VIDEO OUT
3.NRT
4.RETURN RET
AHD
PAL ()NTSC
ON(OFF)
1.IR SMART
2.IR PWM
3.RETURN RET
OFF(ON )
B/W
50 (0-100)
OFF
4. D&N (day & night)
Press the LEFT OR RIGHT button choose the D&N’s mode, and then
press the menu button into the submenu, set the params as needed.
MAINMENU
1.EXPOSURE
2.BACKLIGHT
3.WHITE BAL
MANUAL )
4.DAY&NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.EXIT RET
OFF( BLC ,HSBLC )
ATW(AWC SET ,INDOOR,OUTDOOR,
EXT (AUTO ,COLOR,B/W )
1.LEVEL
D-WDR
2.RETURN RET
0 (0-15)
1.AGC LEVEL
NIGHT MODE
2.RETURN
20 (0-100)
RET
1.BLUE
MANUAL WB
2.RED
3.RETURN
50 (0-100)
RET
50 (0-100)
IR SMART
1.LEVEL
2.AREA
3.RETURN RET
2 (0-15)
1.2D NR
NR
3.RETURN RET
HIGH(MIDDLE,OFF,LOW)
1.D
D&N EXT
2.N
3.RETURN
2 (0-60)
RET
2 (0-60)
N DELAY()
D DELAY()
D&N AUTO
5.RETURN RET
1 (0-60)
18 (0-255)
2.DN DELAY()
4.ND DELAY()
1. ėDN(CDS)
3.NėD(CDS)
1 (0-60)
18 (0-255)
1.SHUTTER
EXPOSURE
3.BRIGHTNESS
4.D-WDR
2.AGC
15 (0-15)
34 (0-100)
AUTO(OFF,ON )
5.RETURN RET
AUTO(1/25,1/50,1/200,1/400,1/1000,1/2000,
1/5000,1/10000,1/50000,FLK)
BLC
1.LEVEL
2.AREA
3.DEFAULT
4.RETURN
MIDDLE( )HIGH,LOW
RET
1.SELECT
HSBLC
2.DISPLAY
3.BLACK MASK
4.LEVEL
6.DEFAULT
7.RETURN
5.MODE
ARE1-ARE4
20 (0-100)
ALL DAY(NIGHT )
RET
ON (OFF)
ON(OFF)
SPECIAL
1.MIRROR
2.DPC
OFF(MIRROR,V-FLIP,ROTATE)
3.LANGUAGE
4.RETURNRET
END (CHN1 ,CHN2 ,TUR ,NED ,POR ,
RUS ,POL ,SPA ,ITA ,FRA ,GER ,JPN )
DPC
1.LEVEL DPC
2.WHITE DPC
3.BLACK DPC
4.RETURN RET
ON ()OFF
ON ()OFF
ON ()OFF
1.SHARPNESS
ADJUST
2.MONITOR
5.RETURN RET
AUTO (OFF)
3.LSC
4.OUTPOT MODE
SHARRNESS
1.LEVEL
2.START AGC
3.END AGC
4.RETURN RET
2 (0-10)
20 (0-255)
20 (0-255)
MONITOR
1.GAMMA
2.BLUE GAIN
3.RED GAIN
4.RETURN RET
USER()0.45-1.00
50 (0-100)
50 (0-100)
LIVE DPC
1.AGC LEVEL
2.LEVEL
3.RETURN RET
128 (0-255)
16 (0-100)
1.POS/SIZE
WHITE DPC
2.START
3.DPC VIEW
4.LEVEL
6.RETURN
5.AGC
20 (0-60)
RET
ON(OFF)
4 (0-14)
1.POS/SIZE
BLACK DPC
2.START
3.DPC VIEW
4.LEVEL
5.RETURN
20 (0-60)
RET
ON(OFF)
OUTPUT MODE
1.FORMAT
2.VIDEO OUT
3.NRT
4.RETURN RET
AHD
PAL ()NTSC
ON(OFF)
1.IR SMART
2.IR PWM
3.RETURN RET
OFF(ON )
B/W
50 (0-100)
OFF

Viale Vicenza, 14
36063 Marostica VI - Italy
www.vimar.com
46516.622C
49401307A0 00 1806
MAINMENU
1.EXPOSURE
2.BACKLIGHT
3.WHITE BAL
MANUAL )
4.DAY&NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.EXIT RET
OFF( BLC ,HSBLC )
ATW(AWC SET ,INDOOR,OUTDOOR,
EXT (AUTO ,COLOR,B/W )
1.LEVEL
D-WDR
2.RETURN RET
0 (0-15)
1.AGC LEVEL
NIGHT MODE
2.RETURN
20 (0-100)
RET
1.BLUE
MANUAL WB
2.RED
3.RETURN
50 (0-100)
RET
50 (0-100)
IR SMART
1.LEVEL
2.AREA
3.RETURN RET
2 (0-15)
1.2D NR
NR
3.RETURN RET
HIGH(MIDDLE,OFF,LOW)
1.D
D&N EXT
2.N
3.RETURN
2 (0-60)
RET
2 (0-60)
N DELAY()
D DELAY()
D&N AUTO
5.RETURN RET
1 (0-60)
18 (0-255)
2.DN DELAY()
4.ND DELAY()
1. ėDN(CDS)
3.NėD(CDS)
1 (0-60)
18 (0-255)
1.SHUTTER
EXPOSURE
3.BRIGHTNESS
4.D-WDR
2.AGC
15 (0-15)
34 (0-100)
AUTO(OFF,ON )
5.RETURN RET
AUTO(1/25,1/50,1/200,1/400,1/1000,1/2000,
1/5000,1/10000,1/50000,FLK)
BLC
1.LEVEL
2.AREA
3.DEFAULT
4.RETURN
MIDDLE( )HIGH,LOW
RET
1.SELECT
HSBLC
2.DISPLAY
3.BLACK MASK
4.LEVEL
6.DEFAULT
7.RETURN
5.MODE
ARE1-ARE4
20 (0-100)
ALL DAY(NIGHT )
RET
ON (OFF)
ON(OFF)
SPECIAL
1.MIRROR
2.DPC
OFF(MIRROR,V-FLIP,ROTATE)
3.LANGUAGE
4.RETURNRET
END (CHN1 ,CHN2 ,TUR ,NED ,POR ,
RUS ,POL ,SPA ,ITA ,FRA ,GER ,JPN )
DPC
1.LEVEL DPC
2.WHITE DPC
3.BLACK DPC
4.RETURN RET
ON ()OFF
ON ()OFF
ON ()OFF
1.SHARPNESS
ADJUST
2.MONITOR
5.RETURN RET
AUTO (OFF)
3.LSC
4.OUTPOT MODE
SHARRNESS
1.LEVEL
2.START AGC
3.END AGC
4.RETURN RET
2 (0-10)
20 (0-255)
20 (0-255)
MONITOR
1.GAMMA
2.BLUE GAIN
3.RED GAIN
4.RETURN RET
USER()0.45-1.00
50 (0-100)
50 (0-100)
LIVE DPC
1.AGC LEVEL
2.LEVEL
3.RETURN RET
128 (0-255)
16 (0-100)
1.POS/SIZE
WHITE DPC
2.START
3.DPC VIEW
4.LEVEL
6.RETURN
5.AGC
20 (0-60)
RET
ON(OFF)
4 (0-14)
1.POS/SIZE
BLACK DPC
2.START
3.DPC VIEW
4.LEVEL
5.RETURN
20 (0-60)
RET
ON(OFF)
OUTPUT MODE
1.FORMAT
2.VIDEO OUT
3.NRT
4.RETURN RET
AHD
PAL ()NTSC
ON(OFF)
1.IR SMART
2.IR PWM
3.RETURN RET
OFF(ON )
B/W
50 (0-100)
OFF
5. NR (Noise reduce)
Press the menu button choose the NR mode, and then press the menu
button into the submenu, set the params as needed.
MAINMENU
1.EXPOSURE
2.BACKLIGHT
3.WHITE BAL
MANUAL )
4.DAY&NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.EXIT RET
OFF( BLC ,HSBLC )
ATW(AWC SET ,INDOOR,OUTDOOR,
EXT (AUTO ,COLOR,B/W )
1.LEVEL
D-WDR
2.RETURN RET
0 (0-15)
1.AGC LEVEL
NIGHT MODE
2.RETURN
20 (0-100)
RET
1.BLUE
MANUAL WB
2.RED
3.RETURN
50 (0-100)
RET
50 (0-100)
IR SMART
1.LEVEL
2.AREA
3.RETURN RET
2 (0-15)
1.2D NR
NR
3.RETURN RET
HIGH(MIDDLE,OFF,LOW)
1.D
D&N EXT
2.N
3.RETURN
2 (0-60)
RET
2 (0-60)
N DELAY()
D DELAY()
D&N AUTO
5.RETURN RET
1 (0-60)
18 (0-255)
2.DN DELAY()
4.ND DELAY()
1. ėDN(CDS)
3.NėD(CDS)
1 (0-60)
18 (0-255)
1.SHUTTER
EXPOSURE
3.BRIGHTNESS
4.D-WDR
2.AGC
15 (0-15)
34 (0-100)
AUTO(OFF,ON )
5.RETURN RET
AUTO(1/25,1/50,1/200,1/400,1/1000,1/2000,
1/5000,1/10000,1/50000,FLK)
BLC
1.LEVEL
2.AREA
3.DEFAULT
4.RETURN
MIDDLE( )HIGH,LOW
RET
1.SELECT
HSBLC
2.DISPLAY
3.BLACK MASK
4.LEVEL
6.DEFAULT
7.RETURN
5.MODE
ARE1-ARE4
20 (0-100)
ALL DAY(NIGHT )
RET
ON (OFF)
ON(OFF)
SPECIAL
1.MIRROR
2.DPC
OFF(MIRROR,V-FLIP,ROTATE)
3.LANGUAGE
4.RETURNRET
END (CHN1 ,CHN2 ,TUR ,NED ,POR ,
RUS ,POL ,SPA ,ITA ,FRA ,GER ,JPN )
DPC
1.LEVEL DPC
2.WHITE DPC
3.BLACK DPC
4.RETURN RET
ON ()OFF
ON ()OFF
ON ()OFF
1.SHARPNESS
ADJUST
2.MONITOR
5.RETURN RET
AUTO (OFF)
3.LSC
4.OUTPOT MODE
SHARRNESS
1.LEVEL
2.START AGC
3.END AGC
4.RETURN RET
2 (0-10)
20 (0-255)
20 (0-255)
MONITOR
1.GAMMA
2.BLUE GAIN
3.RED GAIN
4.RETURN RET
USER()0.45-1.00
50 (0-100)
50 (0-100)
LIVE DPC
1.AGC LEVEL
2.LEVEL
3.RETURN RET
128 (0-255)
16 (0-100)
1.POS/SIZE
WHITE DPC
2.START
3.DPC VIEW
4.LEVEL
6.RETURN
5.AGC
20 (0-60)
RET
ON(OFF)
4 (0-14)
1.POS/SIZE
BLACK DPC
2.START
3.DPC VIEW
4.LEVEL
5.RETURN
20 (0-60)
RET
ON(OFF)
OUTPUT MODE
1.FORMAT
2.VIDEO OUT
3.NRT
4.RETURN RET
AHD
PAL ()NTSC
ON(OFF)
1.IR SMART
2.IR PWM
3.RETURN RET
OFF(ON )
B/W
50 (0-100)
OFF
6. SPECIAL
Press the menu button into the submenu, set the MIRROR, DPC, LAN-
GUAGE as needed.
MAINMENU
1.EXPOSURE
2.BACKLIGHT
3.WHITE BAL
MANUAL )
4.DAY&NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.EXIT RET
OFF( BLC ,HSBLC )
ATW(AWC SET ,INDOOR,OUTDOOR,
EXT (AUTO ,COLOR,B/W )
1.LEVEL
D-WDR
2.RETURN RET
0 (0-15)
1.AGC LEVEL
NIGHT MODE
2.RETURN
20 (0-100)
RET
1.BLUE
MANUAL WB
2.RED
3.RETURN
50 (0-100)
RET
50 (0-100)
IR SMART
1.LEVEL
2.AREA
3.RETURN RET
2 (0-15)
1.2D NR
NR
3.RETURN RET
HIGH(MIDDLE,OFF,LOW)
1.D
D&N EXT
2.N
3.RETURN
2 (0-60)
RET
2 (0-60)
N DELAY()
D DELAY()
D&N AUTO
5.RETURN RET
1 (0-60)
18 (0-255)
2.DN DELAY()
4.ND DELAY()
1. ėDN(CDS)
3.NėD(CDS)
1 (0-60)
18 (0-255)
1.SHUTTER
EXPOSURE
3.BRIGHTNESS
4.D-WDR
2.AGC
15 (0-15)
34 (0-100)
AUTO(OFF,ON )
5.RETURN RET
AUTO(1/25,1/50,1/200,1/400,1/1000,1/2000,
1/5000,1/10000,1/50000,FLK)
BLC
1.LEVEL
2.AREA
3.DEFAULT
4.RETURN
MIDDLE( )HIGH,LOW
RET
1.SELECT
HSBLC
2.DISPLAY
3.BLACK MASK
4.LEVEL
6.DEFAULT
7.RETURN
5.MODE
ARE1-ARE4
20 (0-100)
ALL DAY(NIGHT )
RET
ON (OFF)
ON(OFF)
SPECIAL
1.MIRROR
2.DPC
OFF(MIRROR,V-FLIP,ROTATE)
3.LANGUAGE
4.RETURNRET
END (CHN1 ,CHN2 ,TUR ,NED ,POR ,
RUS ,POL ,SPA ,ITA ,FRA ,GER ,JPN )
DPC
1.LEVEL DPC
2.WHITE DPC
3.BLACK DPC
4.RETURN RET
ON ()OFF
ON ()OFF
ON ()OFF
1.SHARPNESS
ADJUST
2.MONITOR
5.RETURN RET
AUTO (OFF)
3.LSC
4.OUTPOT MODE
SHARRNESS
1.LEVEL
2.START AGC
3.END AGC
4.RETURN RET
2 (0-10)
20 (0-255)
20 (0-255)
MONITOR
1.GAMMA
2.BLUE GAIN
3.RED GAIN
4.RETURN RET
USER()0.45-1.00
50 (0-100)
50 (0-100)
LIVE DPC
1.AGC LEVEL
2.LEVEL
3.RETURN RET
128 (0-255)
16 (0-100)
1.POS/SIZE
WHITE DPC
2.START
3.DPC VIEW
4.LEVEL
6.RETURN
5.AGC
20 (0-60)
RET
ON(OFF)
4 (0-14)
1.POS/SIZE
BLACK DPC
2.START
3.DPC VIEW
4.LEVEL
5.RETURN
20 (0-60)
RET
ON(OFF)
OUTPUT MODE
1.FORMAT
2.VIDEO OUT
3.NRT
4.RETURN RET
AHD
PAL ()NTSC
ON(OFF)
1.IR SMART
2.IR PWM
3.RETURN RET
OFF(ON )
B/W
50 (0-100)
OFF
7. ADJUST
Press the menu button into the submenu, set the SHARPNESS, MINI-
TOR, LSC, OUTPOT MODE as needed.
MAINMENU
1.EXPOSURE
2.BACKLIGHT
3.WHITE BAL
MANUAL )
4.DAY&NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.EXIT RET
OFF( BLC ,HSBLC )
ATW(AWC SET ,INDOOR,OUTDOOR,
EXT (AUTO ,COLOR,B/W )
1.LEVEL
D-WDR
2.RETURN RET
0 (0-15)
1.AGC LEVEL
NIGHT MODE
2.RETURN
20 (0-100)
RET
1.BLUE
MANUAL WB
2.RED
3.RETURN
50 (0-100)
RET
50 (0-100)
IR SMART
1.LEVEL
2.AREA
3.RETURN RET
2 (0-15)
1.2D NR
NR
3.RETURN RET
HIGH(MIDDLE,OFF,LOW)
1.D
D&N EXT
2.N
3.RETURN
2 (0-60)
RET
2 (0-60)
N DELAY()
D DELAY()
D&N AUTO
5.RETURN RET
1 (0-60)
18 (0-255)
2.DN DELAY()
4.ND DELAY()
1. ėDN(CDS)
3.NėD(CDS)
1 (0-60)
18 (0-255)
1.SHUTTER
EXPOSURE
3.BRIGHTNESS
4.D-WDR
2.AGC
15 (0-15)
34 (0-100)
AUTO(OFF,ON )
5.RETURN RET
AUTO(1/25,1/50,1/200,1/400,1/1000,1/2000,
1/5000,1/10000,1/50000,FLK)
BLC
1.LEVEL
2.AREA
3.DEFAULT
4.RETURN
MIDDLE( )HIGH,LOW
RET
1.SELECT
HSBLC
2.DISPLAY
3.BLACK MASK
4.LEVEL
6.DEFAULT
7.RETURN
5.MODE
ARE1-ARE4
20 (0-100)
ALL DAY(NIGHT )
RET
ON (OFF)
ON(OFF)
SPECIAL
1.MIRROR
2.DPC
OFF(MIRROR,V-FLIP,ROTATE)
3.LANGUAGE
4.RETURNRET
END (CHN1 ,CHN2 ,TUR ,NED ,POR ,
RUS ,POL ,SPA ,ITA ,FRA ,GER ,JPN )
DPC
1.LEVEL DPC
2.WHITE DPC
3.BLACK DPC
4.RETURN RET
ON ()OFF
ON ()OFF
ON ()OFF
1.SHARPNESS
ADJUST
2.MONITOR
5.RETURN RET
AUTO (OFF)
3.LSC
4.OUTPOT MODE
SHARRNESS
1.LEVEL
2.START AGC
3.END AGC
4.RETURN RET
2 (0-10)
20 (0-255)
20 (0-255)
MONITOR
1.GAMMA
2.BLUE GAIN
3.RED GAIN
4.RETURN RET
USER()0.45-1.00
50 (0-100)
50 (0-100)
LIVE DPC
1.AGC LEVEL
2.LEVEL
3.RETURN RET
128 (0-255)
16 (0-100)
1.POS/SIZE
WHITE DPC
2.START
3.DPC VIEW
4.LEVEL
6.RETURN
5.AGC
20 (0-60)
RET
ON(OFF)
4 (0-14)
1.POS/SIZE
BLACK DPC
2.START
3.DPC VIEW
4.LEVEL
5.RETURN
20 (0-60)
RET
ON(OFF)
OUTPUT MODE
1.FORMAT
2.VIDEO OUT
3.NRT
4.RETURN RET
AHD
PAL ()NTSC
ON(OFF)
1.IR SMART
2.IR PWM
3.RETURN RET
OFF(ON )
B/W
50 (0-100)
OFF
MAINMENU
1.EXPOSURE
2.BACKLIGHT
3.WHITE BAL
MANUAL )
4.DAY&NIGHT
5.NR
6.SPECIAL
7.ADJUST
8.EXIT RET
OFF( BLC ,HSBLC )
ATW(AWC SET ,INDOOR,OUTDOOR,
EXT (AUTO ,COLOR,B/W )
1.LEVEL
D-WDR
2.RETURN RET
0 (0-15)
1.AGC LEVEL
NIGHT MODE
2.RETURN
20 (0-100)
RET
1.BLUE
MANUAL WB
2.RED
3.RETURN
50 (0-100)
RET
50 (0-100)
IR SMART
1.LEVEL
2.AREA
3.RETURN RET
2 (0-15)
1.2D NR
NR
3.RETURN RET
HIGH(MIDDLE,OFF,LOW)
1.D
D&N EXT
2.N
3.RETURN
2 (0-60)
RET
2 (0-60)
N DELAY()
D DELAY()
D&N AUTO
5.RETURN RET
1 (0-60)
18 (0-255)
2.DN DELAY()
4.ND DELAY()
1. ėDN(CDS)
3.NėD(CDS)
1 (0-60)
18 (0-255)
1.SHUTTER
EXPOSURE
3.BRIGHTNESS
4.D-WDR
2.AGC
15 (0-15)
34 (0-100)
AUTO(OFF,ON )
5.RETURN RET
AUTO(1/25,1/50,1/200,1/400,1/1000,1/2000,
1/5000,1/10000,1/50000,FLK)
BLC
1.LEVEL
2.AREA
3.DEFAULT
4.RETURN
MIDDLE( )HIGH,LOW
RET
1.SELECT
HSBLC
2.DISPLAY
3.BLACK MASK
4.LEVEL
6.DEFAULT
7.RETURN
5.MODE
ARE1-ARE4
20 (0-100)
ALL DAY(NIGHT )
RET
ON (OFF)
ON(OFF)
SPECIAL
1.MIRROR
2.DPC
OFF(MIRROR,V-FLIP,ROTATE)
3.LANGUAGE
4.RETURNRET
END (CHN1 ,CHN2 ,TUR ,NED ,POR ,
RUS ,POL ,SPA ,ITA ,FRA ,GER ,JPN )
DPC
1.LEVEL DPC
2.WHITE DPC
3.BLACK DPC
4.RETURN RET
ON ()OFF
ON ()OFF
ON ()OFF
1.SHARPNESS
ADJUST
2.MONITOR
5.RETURN RET
AUTO (OFF)
3.LSC
4.OUTPOT MODE
SHARRNESS
1.LEVEL
2.START AGC
3.END AGC
4.RETURN RET
2 (0-10)
20 (0-255)
20 (0-255)
MONITOR
1.GAMMA
2.BLUE GAIN
3.RED GAIN
4.RETURN RET
USER()0.45-1.00
50 (0-100)
50 (0-100)
LIVE DPC
1.AGC LEVEL
2.LEVEL
3.RETURN RET
128 (0-255)
16 (0-100)
1.POS/SIZE
WHITE DPC
2.START
3.DPC VIEW
4.LEVEL
6.RETURN
5.AGC
20 (0-60)
RET
ON(OFF)
4 (0-14)
1.POS/SIZE
BLACK DPC
2.START
3.DPC VIEW
4.LEVEL
5.RETURN
20 (0-60)
RET
ON(OFF)
OUTPUT MODE
1.FORMAT
2.VIDEO OUT
3.NRT
4.RETURN RET
AHD
PAL ()NTSC
ON(OFF)
1.IR SMART
2.IR PWM
3.RETURN RET
OFF(ON )
B/W
50 (0-100)
OFF
