Vincent Associates UNIBLITZ ED12DSS User manual

User Manual
ED12DSS Shutter Driver
14-0045
Version 2.10
2020
1.800.828.6972

ED12DSS User Manual
2
For information regarding applicable intellectual property, please visit www.uniblitz.com/patents.
Information in this publication supersedes that in all previously published material. Due to our ongoing
development program, Vincent Associates reserves the right to discontinue or change specifications or
designs, at any time, without incurring any obligation.
Revision Table
Version 2.10 - 2020
6/25/20 STP Updated Warranty to current version. Updated Drawing 16-0618 (Figure #1 and Figure
#3). This document was version 2.00 - 2013 prior to these changes.
Vincent Associates, a Division of VA, Inc.
803 Linden Ave.
Rochester, NY 14625
Tel: [phone]
Fax: [phone]
UNIBLITZ, N-CAS and VINCENT ASSOCIATES are registered trademarks of VA, Inc.
Printed in the U.S.A.

ED12DSS User Manual
3
Warranty
LIMITED PRODUCT WARRANTY: All Products manufactured by VINCENT ASSOCIATES®
(MANUFACTURER) are warranted to meet published specifications and to be free of defects in
materials and workmanship as defined in the specifications for 365 days - one year - (WARRANTY
PERIOD) from the date of original shipment of the product. DSS series shutters are additionally
warranted as defined in the DSS SERIES CYCLE WARRANTY CRITERION below.
MANUFACTURER will, at its own option within the WARRANTY PERIOD, repair or replace without
charge any listed item discovered to be defective excepting transportation charges. Burned out or
otherwise damaged actuator coils are not covered under this warranty. Any defective product returned to
the MANUFACTURER must follow the RETURN MATERIAL AUTHORIZATION PROCEDURE as
defined below. This warranty does not extend to cover damage resulting from alteration, misuse,
negligence, abuse, normal wear and tear, or accident. The MANUFACTURER will consider the return
of unused equipment if returned within 30 days from the original date of shipment, subject to a 20%
restocking charge. This offer does not apply to used or damaged equipment. This warranty extends only
to the original purchase and is not available to any third party, including any purchaser assemblies or
other Products of which the goods may become component equipment.
DSS AND ES SERIES CYCLE WARRANTY CRITERION: The DSS10B, DSS20B and DSS25B, are
guaranteed for 2,000,000 operations or one year. DSS35B devices are guaranteed for 5,000,000
operations or one year. ES6 devices are guaranteed for 25,000,000 operations or one year. One
“operation” is considered one opening and one closure of the shutter. DSS and ES Series shutters
(excluding the DSS35B) must be operated with the ED12DSS or VED24 driver. The DSS35B shutter
devices must be operated with the VED24 driver. All DSS and ES Series shutters must be operated
within the defined environmental, electrical and mechanical specifications as listed on the device’s data
sheet. After one year (WARRANTY PERIOD), the cycle warranty is null and void. If returned, the
device must be accompanied by a written statement indicating the approximate number of cycles
contained on the device, include all parameters to which the shutter was operated and follow the
RETURN MATERIAL AUTHORIZATION PROCEDURE as defined below.
RETURN MATERIAL AUTHORIZATION PROCEDURE: MANUFACTURER will only accept
returned Products from customers that have obtained an RMA (Return Material Authorization) number
from the MANUFACTURER. The customer must also include an itemized statement of defect(s). The
Product will then be evaluated per the MANUFACTURER'S standard repair guidelines. Any Product
which has been returned to the MANUFACTURER, but which is found to meet the applicable
specifications and not defective in materials and workmanship shall be subject to the
MANUFACTURER's standard evaluation charge. The MANUFACTURER assumes no liability for
customer returned material.
LIMIT OF LIABILITY: The buyer's exclusive remedy and the limit of MANUFACTURER'S liability
for any loss whatsoever shall not exceed the purchase price paid by the buyer for the goods to which a
claim is made. MANUFACTURER does not give any implied warranties of merchantability, fitness for
a particular purpose, or of any other nature in connection with the sale of any Products.

ED12DSS User Manual
4
Table of Contents
WARRANTY ................................... ERROR! BOOKMARK NOT DEFINED.
TABLE OF CONTENTS .................................................................................. 4
LIST OF FIGURES .......................................................................................... 5
GENERAL SAFETY SUMMARY .................................................................. 6
Injury Precautions ...................................................................................................... 6
Product Damage Precautions .................................................................................... 6
Safety Terms and Symbols ........................................................................................ 7
PREFACE .......................................................................................................... 8
GETTING STARTED ...................................................................................... 9
Features ....................................................................................................................... 9
Introduction .............................................................................................................. 10
Start Up ..................................................................................................................... 1 1 
Initial Operation and Testing .................................................................................. 12
Fuse Replacement ..................................................................................................... 15
Dimensions ................................................................................................................ 16
Maintenance .............................................................................................................. 17
Inspection 17
Cleaning Procedure 17
SPECIFICATIONS ......................................................................................... 18
System Characteristics ............................................................................................. 18
External Input Characteristics ............................................................................... 18
External Output Characteristics ............................................................................. 19
ED12DSS General Characteristics ......................................................................... 20
INDEX .............................................................................................................. 21

ED12DSS User Manual
5
List of Figures

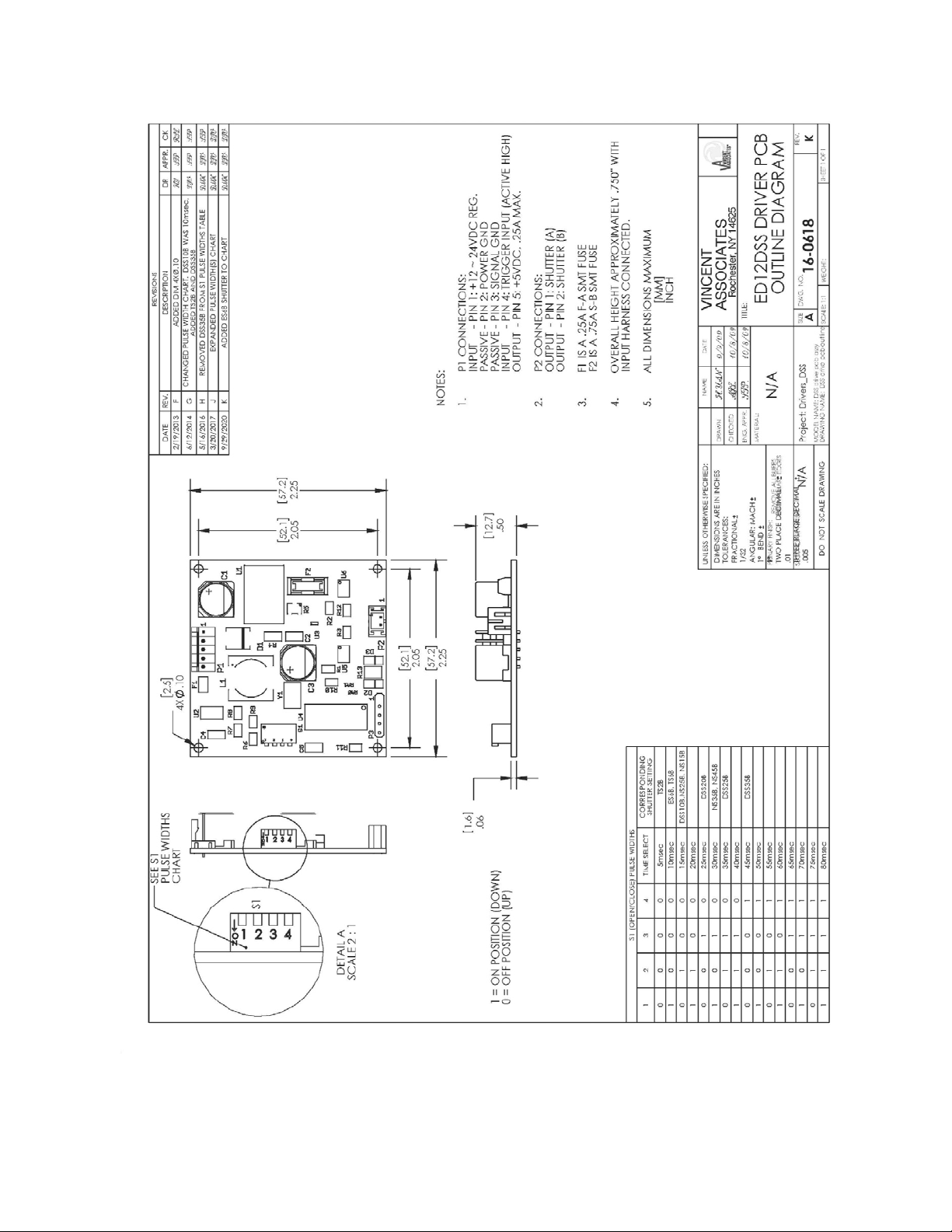

Figure 1: ED12DSS Connection – I/O Layout ..................................................................................... 13

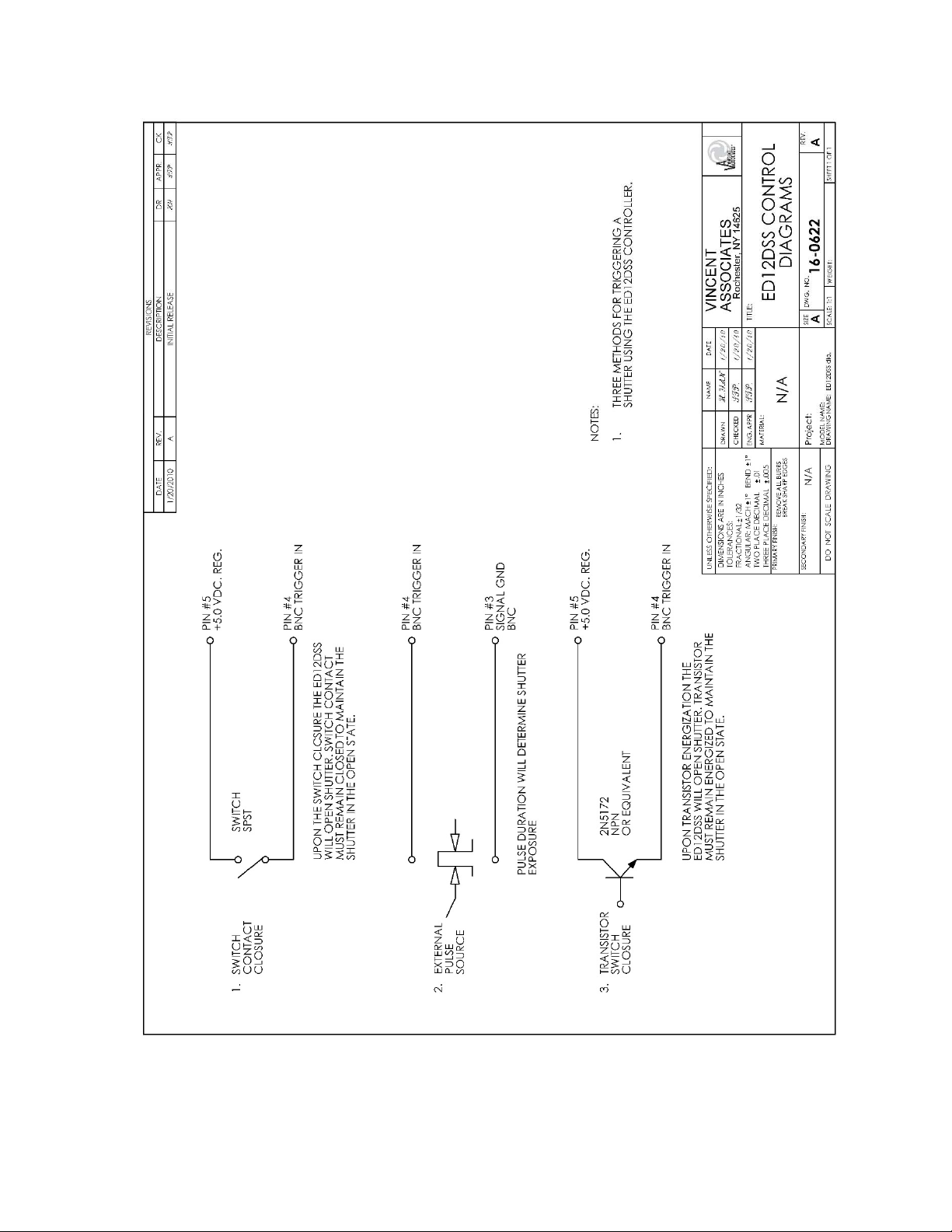

Figure 2: ED12DSS Control Diagrams ................................................................................................ 14
Figure 3: ED12DSS Dimensions ............................................................................................................ 16

ED12DSS User Manual
6
General Safety Summary
Review the following safety precautions to avoid injury and prevent damage to this product or any
products connected to it. To avoid potential hazards, use the product only as specified.
Only qualified personnel should perform service procedures.
Injury Precautions
 Avoid Electric Overload – To avoid electrical shock or fire hazard, do not apply a voltage to a
terminal that is outside the range specified for that terminal.
 Avoid Electric Shock – To avoid injury or loss of life, do not connect or disconnect line cord
while it is connected to the line voltage.
 Ground the Product – This product is grounded through the ED12DSS 5-pin (P1) connector,.
To avoid electrical shock, the grounding connector must be connected to earth ground. Before
making connections to the input or output terminals of the product, ensure that the product is
properly grounded.
 Use Proper Fuse – To avoid fire hazard, use only the fuse type and rating specified for this
product.
 Do Not operate in Wet/Damp Conditions – To avoid electric shock, do not operate this product
in wet or damp conditions.
 Do Not Operate in an Explosive Atmosphere – To avoid injury or fire hazard, do not operate
this product in an explosive atmosphere.
Product Damage Precautions
 Use Proper Power Source – Do not operate this product from a power source that applies more
than the voltage specified.
 Provide Proper Ventilation – To prevent product overheating, provide proper ventilation.
 Do Not Operate with Suspected Failures – If you suspect there is damage to this product, have
it inspected by qualified service personnel.

ED12DSS User Manual
7
Safety Terms and Symbols
These terms appear in this manual
CAUTION
Warning statements identify conditions or practices that
could result in injury or loss of life.
Caution statements identify conditions or practices that
could result in damage to this product or other property.
WARNING

ED12DSS User Manual
8
Preface
This Manual provides information for the ED12DSS Shutter Driver. The manual contains the
following chapters:
 Getting Started contains a brief product description, information needed to power on the driver
and a brief procedure to verify that it functions.
 Operating Basics gives further details to the operational features of the driver.
 Specifications are described for all input/output controls as well as operational features of the
ED12DSS.
 Index contains a full index.
What follows is the complete operator’s manual for the UNIBLITZII N-CAS ED12DSS Shutter
Driver.Please read this manual completely before operating the unit. Due to the construction of this
unit, Vincent Associates recommends that the unit be returned to the manufacturer for repair. There are
no user-serviceable parts inside.

ED12DSS User Manual
9
Getting Started
Features
 Open-frame printed circuit card suitable for OEM applications.
 RoHS Compliant
 Operates DSS or NS series bi-stable shutter devices.
 2-Pin JST shutter interface connector
 203D Shutter interconnect cable included – JST 2-pin to JST 2-pin, 1 meter in length
 Exposure determined by external pulse (BNC,TTL active-high) or switch contact closure when
switching internal +5 VDC into trigger input
 In-line PULSE INPUT BNC active-high +5.0 V TTL
 Selectable pulse high-current duration for specific DSS/NS series shutters via 4-position piano
switch
 Internal fuse protection for SHUTTER OUTPUT
 Operates on +12 to +24 VDC at 1.5 A
 Power input to controller via 2-wire input harness
 ED-IOP Input cable harness included for power and trigger signal input.
 +5.0 V TTL signal input (BNC)
 +5.0 VDC output to enable driver from external switch contact or transistor switch
closure.
 Input/output interface cable
 18-inch red/black bare power leads
 6-inch BNC trigger input with reference ground.
 Both terminate to Tyco/Amp 5-pin polarized connector for connection to
ED12DSS.
 Requires +12 to +24 VDC External power supply (user supplied) for operation
 Size: 0.50 x 2.25 x 2.25 inches (12.7 x 57.2 x 57.2 mm)
 Weight: 0.730 ounces (0.021 Kg)

ED12DSS User Manual
10
Introduction
The ED12DSS is the optimal driver for the new UNIBLITZ® N-CAS® DSS Shutter Series. This
device will operate a single DSS shutter or a single NS series bi-stable shutter from a +12 to 24 VDC
power supply. The bi-stable mode only requires power when switching the shutter’s state.
The repeat exposure specification of the ED12DSS is limited by the type of shutter used and the
open/close pulse duration selected by the 4-position piano DIP switch, S1.
Please note that at higher shutter cycling frequencies heat will begin to rise in the shutter coil especially
if the shutter is in an area with limited air flow. This heat can cause premature failure. Please contact
the factory for specific information concerning shutter modifications and/or drive modifications that
may be necessary for operating shutters at their higher frequency. Please note that the shutter output is
fuse protected.
Please see SPECIFICATIONS, GENERAL CHARACTERISTICS, S1 Settings Chart for further
information.
Note: Under certain circumstances multiple ED12DSS drive units can be operated from one power
supply. If the user requirement does not require that shutters open simultaneously, two drivers may be
operated from one supply. For further information and guidance please discuss your particular
application with a Vincent Associates technical service representative.

ED12DSS User Manual
11
Start Up
After unpacking your unit inspect for any defects. Upon inspection if a visible defect is found, or a part
(or parts) is missing, notify Vincent Associates immediately.
Prior to the connection of input/output signals to the ED12DSS be sure that:
1. The 5-pin connector of the ED-IOP (power/trigger input connector) is disconnected from the 5-
pin post connector P1 of the ED12DSS.
2. The power supply is in the off position.
3. Set S1 to the pulse duration required for the shutter being used. See SPECIFICATIONS and
Figure 1 elsewhere in this manual for required settings.
4. Connect the Red wire of the ED-IOP harness to the (+) side of a +12 VDC to +24 VDC 1.5A
power supply.
5. Connect the Black wire of the harness to the (-) return side of the power supply.
6. Connect the 5-pin female connector of the ED-IOP onto P1 of the ED12DSS. (The connector is
polarized and can only be properly connected in one orientation)
7. Connect the 203D shutter interconnect cable between the 2-pin P2 connector on the ED12DSS to
the 2-pin connector on the shutter’s flex interconnect.
8. Turn on the power supply.
9. Connect an input signal, active-high TTL to the input BNC.
Be sure to observe Electro-Static Discharge (ESD) anti-static
unpacking procedures when removing the ED12DSS from the
static shielding bag. Improper handling can result in
destruction of the CMOS integrated circuits on the board.
CAUTION

ED12DSS User Manual
12
Initial Operation and Testing
The ED12DSS provides the circuitry necessary to drive DSS shutter units.
The on-board microprocessor accepts a pulse with determined exposure time and produces a bi-
stable open and close pulse whose duration is selected by the on-board piano switch, S1. Please see
Figure 1.
When the ED12DSS receives the correct initiating control signal, the shutter will open and close on
command.
Once the ED12DSS receives an input signal, the shutter should open at the rising edge of the input
pulse and close at the falling edge of the input pulse. Please see Figure 2.
If the requirement is to operate the shutter from a switch contact closure, follow this procedure:
1. Connect a wire to pin #5 of the ED-IOP harness, this is the +5 VDC output.
2. Switch the +5 VDC output voltage to the BNC input.
The shutter will open and remain open for as long as the switch contact is depressed. When the +5
VDC is removed from the input, the shutter will close. Please see Figure 2.
After connecting the input and output harnesses, the user selects the open and close pulse duration
using the on-board, 4-position piano switch and connects a user supplied power supply. After the
shutter and TTL input signals are connected, the shutter’s exposure can be controlled via a TTL
square pulse input.
Pulse duration is determined by exposure time.
The ED12DSS can be easily integrated into OEM applications where a +12 to +24 VDC power
supply is available.
Please read the entire manual carefully before attempting to operate the unit.

ED12DSS User Manual
13
Figure 1: ED12DSS Connection – I/O Layout2

ED12DSS User Manual
14
Figure 3: ED12DSS Control Diagrams

ED12DSS User Manual
15
Fuse Replacement
1. F1 is a 0.25A fast-acting SMT fuse that is soldered to the ED12DSS PCB. This fuse is non-
replaceable.
2. F2 is an SMT user-replaceable fuse rated for 0.75 A, 125 V, time lag.
3. This fuse can be removed and replaced in the field. Fuses can be procured from the
manufacturer.
Be sure to observe Electro-Static Discharge (ESD) and
anti-static procedures when replacing the fuse.
CAUTION

ED12DSS User Manual
16
Dimensions
The overall dimensions of the ED12DSS driver board are shown below in Figure 3.
Figure 4: ED12DSS Dimensions

ED12DSS User Manual
17
Maintenance
Proper care and maintenance of the ED12DSS should be taken as with any sensitive electronic
instrument.
There are no user-serviceable parts on the ED12DSS except for F2.
Although the stability of the drive voltage is checked and calibrated prior to shipment, it may become
necessary to make some minor adjustments to the operating systems of the ED12DSS over time.
It is highly recommended that if a problem is suspected with the unit that it be returned to the factory for
checkout, proper adjustments and calibration. Failure to do this may damage the unit’s circuitry and/or
functionality and will void the factory warranty.
Inspection
Inspect the ED12DSS for damage, wear, and missing parts. If the unit appears to show signs of damage,
it should be checked thoroughly to verify correct operation and performance. If damage is suspected,
please return the unit to the factory for repair – there are no user-serviceable parts on the board.
If there is a significant build-up of dust or other material, follow the cleaning procedure below.
Cleaning Procedure
Do not use any tools to brush or scrape away accumulated materials.
Do not use any liquids to clean the board.
Simply use low-pressure air to blow away any dust.
There is no other cleaning required.

ED12DSS User Manual
18
Specifications
System Characteristics
Name Description
Repeat Exposure Minimum time between exposures is determined by
shutter used and open close pulse duration.
Shutter Drive
 Continuously variable exposure frequency from DC to
the shutter’s maximum rate.
 Pulse Voltage: +10.7 VDC
Power Supply
 + 12 to +24 VDC regulated ±2%
 1.5 A, minimum
 User Supplied
External Input Characteristics
Name Description
TRIGGER INPUT
P1
 Trigger Input: P1-Pin 4
 Ground Return: P1-Pin 3
 Active-high input
 TTL compatible:
 Minimum high-level +2.0 VDC
 Maximum low-level +0.8 VDC.
POWER
REQUIREMENTS
P1
 Power In: P1-Pin 1
 Ground Return: P1-Pin 2
 +12 VDC to +24 VDC at 1.5A for operating shutter to
its maximum rated exposure and frequency.

ED12DSS User Manual
19
External Output Characteristics
Name Description
REGULATED OUTPUT
P1
 Output: P1- Pin 5
 +5 VDC, 50 mA max
 Regulated output provided for use in remote switching
and/or control circuits.
 Internal fuse protected.
SHUTTER OUTPUT
(JST 2-pin connector)
P2
 P2-Pin 1
 P2-Pin 2
 Shutter drive signal H Switch output.
 Factory adjusted to +10.7 VDC.
 This circuit provides a drive pulse to open and drive
pulse to close at the output.
 These pulse durations are set by 4-position piano
switch, S1. See PULSE SELECTION chart of Figure 1
for open/close pulses.

ED12DSS User Manual
20
ED12DSS General Characteristics
Name Description
Dimensions (HWD) 0.50 x 2.25 x 2.25 inches (12.7 x 57.2 x 57.2 mm)
Weight 0.730 oz (0.021 kg)
S1 Pulse widths
(open/close) Pin 1 2 3 4 TIME SELECT
000N/
A
5msec
Ke
y
: 100N/
A
10msec
1 = on - down position 0 1 0 N/
A
15msec
0 = off- up position 1 1 0 N/
A
20msec
001N/
A
25msec
101N/
A
30msec
011N/
A
35msec
111N/
A
40msec
Recommended Pulse
Width Settings
(See S1 Chart)
DSS10B 10 msec
DSS20B 25 msec
DSS25B 35 msec
NS15B 10 msec
NS25B 15 msec
NS35B 20 msec
NS45B 25msec
NS65B 40 msec
Fuse Requirements
 F1: 0.25A Fast Acting SMT fuse – non-replaceable
(+5VDC – pin #5 output protection)
 F2: 0.75A Time Delay SMT fuse – user replaceable
(Shutter Fuse)
Accessories (supplied)  203D Shutter interconnect cable
 ED-IOP Power/Trigger Input cable
