Vinten V4083-0001 User manual

Part No. V4083-0001
www.vintenradamec.com
EN
Installation Guide
VRi Box
Virtual Reality Interface
Installation

Copyright © 2012
All rights reserved.
Original Instructions: English
All rights reserved throughout the world. No part of this document may be stored in a retrieval system,
transmitted, copied or reproduced in any way, including, but not limited to, photocopy, photograph,
magnetic or other record without the prior agreement and permission in writing of the Vitec Group plc.
Disclaimer
The information contained in this manual is believed to be correct at the time of printing. Vitec Videocom
Ltd reserves the right to make changes to the information or specifications without obligation to notify any
person of such revision or changes. Changes will be incorporated in new versions of the publication.
We are making every effort to ensure that our manuals are updated on a regular basis to reflect changes
to product specifications and features. Should this manual not contain information on the core functionality
of your product, please let us know. You may be able to access the latest revision of this manual from our
website.
Vitec Videocom Ltd reserves the right to make changes to product design and functionality without
notification.
Trademarks
All product trademarks and registered trademarks are the property of The Vitec Group Plc.
All other trademarks and registered trademarks are the property of their respective companies.
Published by:
Vitec Videocom Ltd
Supports Technical Publications Department
Western Way, Bury St Edmunds
Suffolk IP33 3TB
United Kingdom
Email: [email protected]

1
Contents
Safety & Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Components and Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Rear View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Box Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Compatibility and Mounting Kits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Mounting to a Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Mounting to a Tripod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Mounting to Lens Rods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Power Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Power Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Genlock I/O Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
System Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Powering Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Maintenance and General Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Technical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
FCC Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Environmental considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Pollution statement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

2
Safety & Warnings
Important information on the safe installation and operation of this
product. Read this information before operating the product. For
your personal safety, read these instructions. Do not operate the
product if you do not understand how to use it safely. Save these
instructions for future reference
Warning Symbols Used in these Instructions
Safety warnings and cautions are included in these instructions. These
safety instructions must be followed to avoid possible personal injury
and avoid possible damage to the product.
Intended Use
The VRi box is designed to interface with instrumented support
equipment and lenses to provide camera tracking data for use with VR/
AR systems. The VRi box is intended for use by television camera
operators within a TV studio environment or on outside broadcasts
(OB) when protected from weather by a suitable waterproof cover.
Electrical Connection
WARNING!
Where there is a risk of personal injury or injury to others,
comments appear supported by the warning triangle symbol.
Where there is a risk of damage to the product, associated
equipment, process or surroundings, comments appear
supported by the word ‘Caution’.
ELECTRIC SHOCK
Where there is a risk of electric shock, comments appear
supported by the hazardous voltage warning triangle.
WARNING! Risk of electric shock. Always disconnect and
isolate the product from the power supply before attempting
any servicing or removing the covers.
WARNING! Risk of electric shock. Always check cables
for signs of damage. Damaged cables can cause personal
injury and/or damage the equipment.
WARNING! The external DC PSU used must be approved
to IEC 60950-1, 2nd edition, and have a power output
limited to the requirements of the equipment.
CAUTION! This product must be connected to a power
supply of the same voltage (V) and current (A) as indicated
on the product. Refer to the Technical Specifications for the
product.
CAUTION! All connections to other devices must be made
using shielded cables.
CAUTION! We recommend that you use the power supply
cable supplied with the product.
CAUTION! Using alternative power sources will invalidate
the system EMC liability.
CAUTION! Do not exceed the current output limit of the
product when powering auxiliary devices.
CAUTION! Always use a fuse of the correct type and rating
for the product. Refer to the Technical Specifications for the
product.

3
Safety & Warnings
Basic Electrical Insulation (Class 1 equipment)
Mounting and Installation
Water, moisture and dust
Ventilation
Operating Environment
Cleaning
Maintenance
WARNING! This product is Class 1 equipment. For safe
operation this equipment must be connected to a power supply
that has a protective earth connection (US: ground).
WARNING! Do not install this product onto a bracket,
support or other equipment that is not designed to support
the weight of the product and its payload. All ceiling or wall
supports must comply with local government regulations.
WARNING! Installation of this product must only be
performed by qualified and trained electrical engineers.
WARNING! Always ensure that all power and auxiliary
communications cables are routed so that they do not
present any danger to personnel.
WARNING! Protect the product from water, moisture and
dust. The presence of electricity near water can be
dangerous. When using this product outside, protect from
rain using a suitable waterproof cover.
CAUTION! Slots and openings are intended for ventilation
purposes to ensure reliable operation of the product and
protect it from overheating. Do not block or cover any slots
and openings.
CAUTION! The product should not be used outside the
operating temperature limits. Refer to the product Technical
Specifications for the operating limits for the product.
WARNING! Risk of electric shock. Always disconnect and
isolate the product from the power supply before cleaning.
CAUTION! Do not use solvent or oil-based cleaners,
abrasives or wire brushes. Only use detergent-based
cleaners.
WARNING! The fitting of non-approved parts and
accessories, or the carrying out of non-approved alterations
or servicing can be dangerous and could affect the safety of
the product. It may also invalidate the terms and conditions
of the product warranty.

4
About this Manual
The Virtual Reality interface (VRi) box has been designed to integrate
with the Vinten Vector ‘i’ series heads and the Quattro SE pedestal.
This manual covers the installation of the VRi box and its connections
with compatible products and studio equipment.
When installation is complete, the VR system must be configured
before the VRi box is used for VR tracking.
The VRi box can be configured using the VR software application
running on a Windows-based PC or on a Vinten Radamec PDA. The
configuration software is provided on a USB stick for installation on a
PC or is pre-installed on a Vinten Radamec PDA.
For more information on configuring the VRi box, refer to the
configuration guides installed on the USB memory stick supplied with
this product, or contact Vinten Radamec.

5
Components and Connections

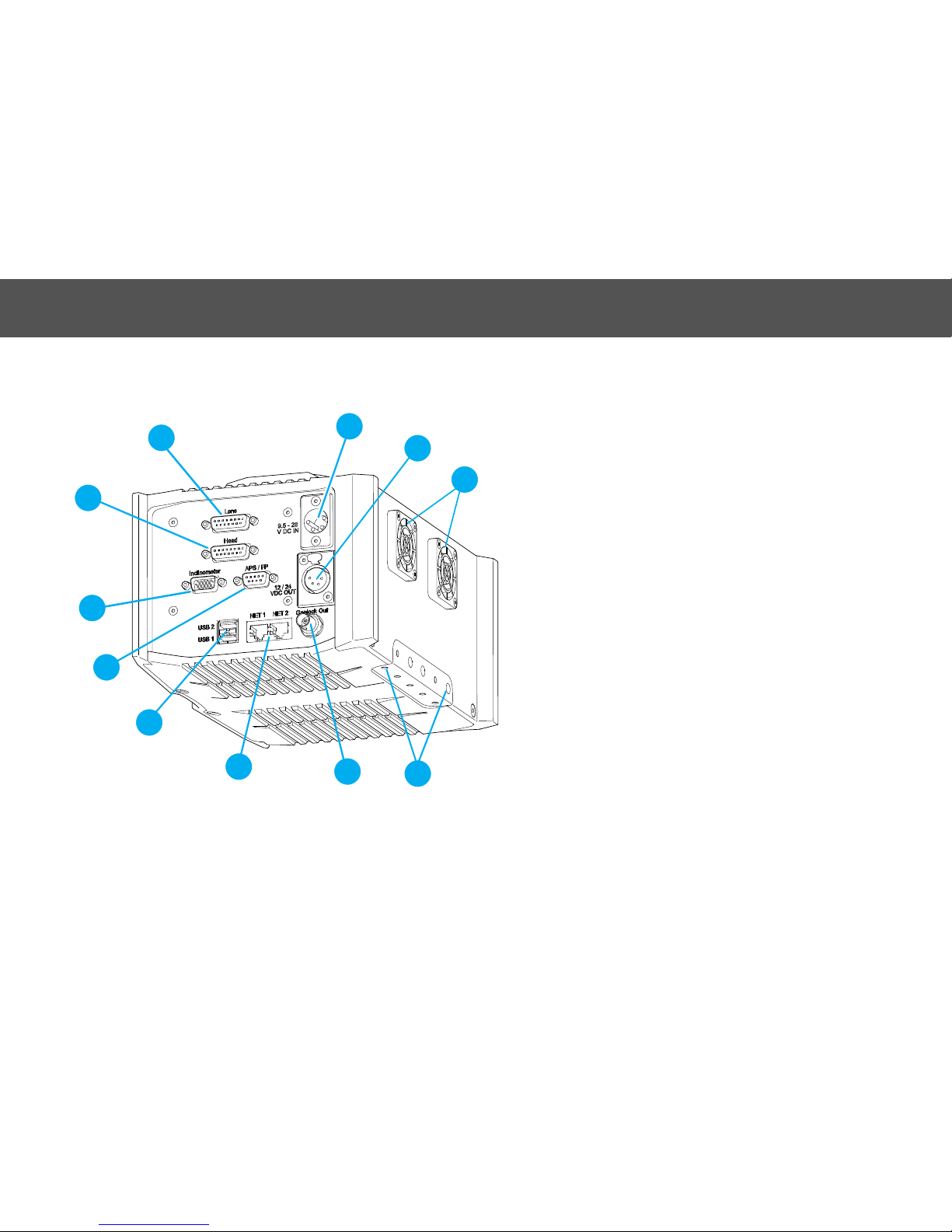

Front View
1 . . . . . . . . . . . . . . . . . . . . . . . DC In power supply socket
2 . . . . . . . . . . . . . . . . . . . . . . DC Out power supply socket
3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ventilation slots
4 . . . . . . . . . . . . . . . . . Screw holes (for shoulder mounts)
5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Genlock Out
6 . . . . . . . . . . . . . Ethernet connectors (Network/Comms)
7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .USB connectors
8 . . . . . . . . . . . . . . . . . .APS/FP port (not currently in use)
9 . . . . . . . . . . . . . . . . . . . . . . . . . . Inclinometer connector
10 . . . . . . . . . . . .Head encoder port (for ‘E’ series heads)
11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Lens encoder port
2
1
3
4
5
6
7
8
11
9
10

6
Components and Connections

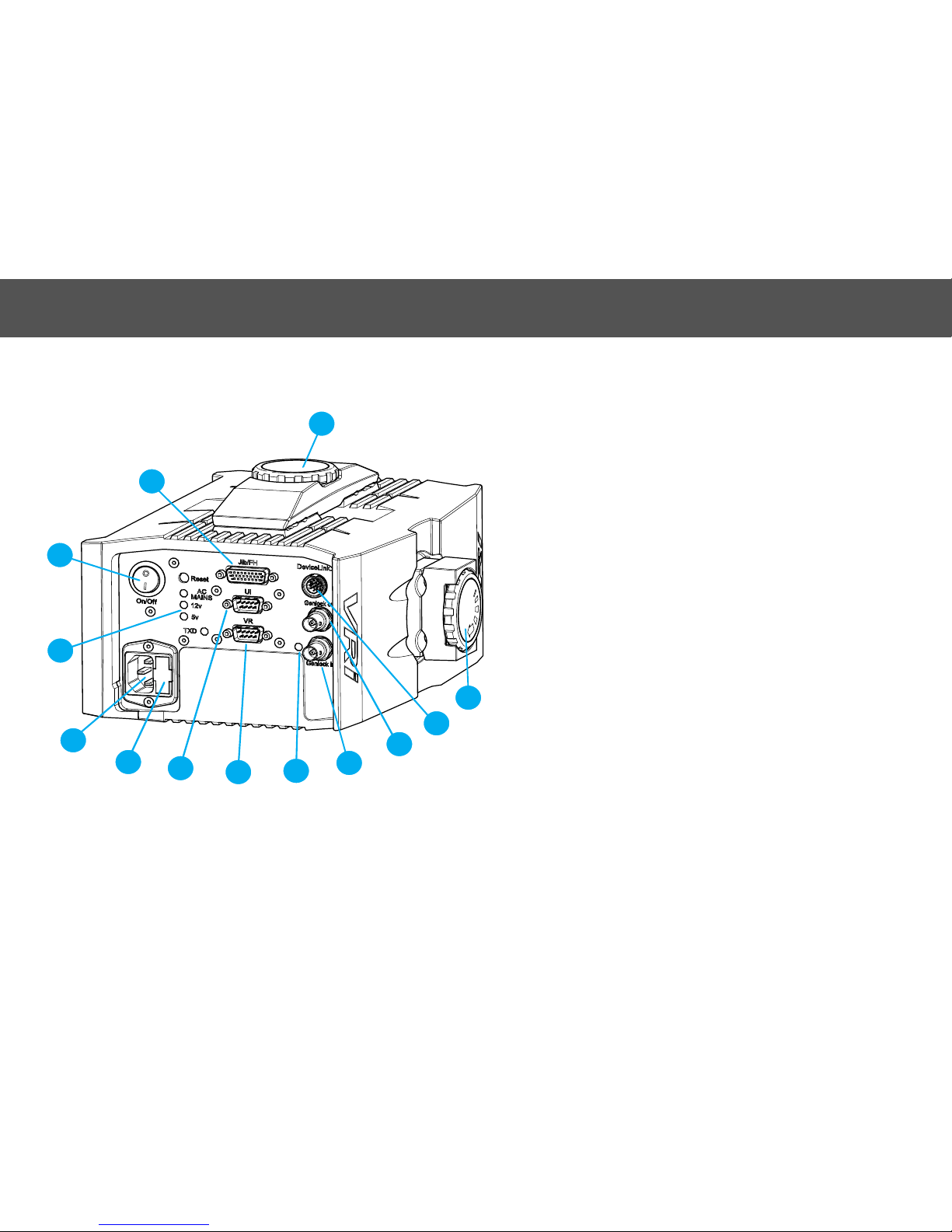

Rear View
12 . . . . . . . . . . . . . . . . . . . . . . . . . . Mounting/cable clamp
13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cable clamp
14 . . . . . . . . . . . . . . DeviceLink.i port (for ‘i’ series heads)
15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Genlock Out
16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Genlock In
17 . . . . . . . . . . . . . . . . . . . . . . . . . Genlock indicator LED
18 . . . . . . . . . . . . . . . . . . . . . . . . . VR port (tracking data)
19 . . . . . . . . . User Interface (UI) connector (for PC/PDA)
20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fuse holder
21 . . . . . . . . . . . . . . . . . . . . . . . Power socket – AC mains
22 . . . . . . . . . . . . . . . . . . . .RESET button/indicator LEDs
23 . . . . . . . . . . . . . . . . . . . . . . . . . . . Power On/Off switch
24 . . . . . . . . . . . . . . . . . . .Jib/FH port (not currently used)
16
15
14
17
19
13
12
23
20
21
22
18
24

7
Installation

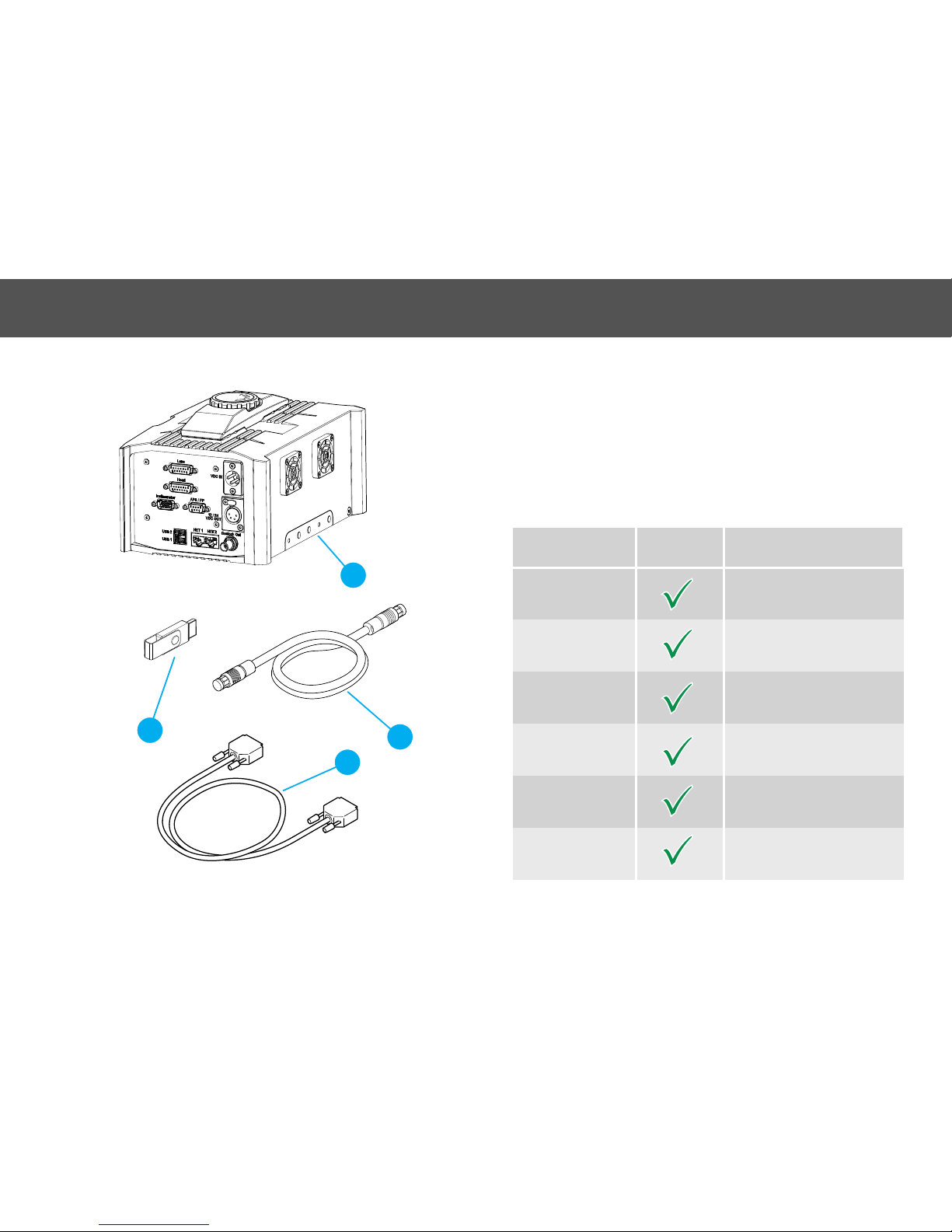

Box Contents
1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VRi Box
2 . . . . . . . . . . . . . . . . . . . . . . . . Devicelink.i interconnect cable, 0.75m
3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RS232 null modem cable
4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . USB memory stick
NI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Installation Guide
NI = Not Illustrated
Compatibility and Mounting Kits
1
2
4
3
PRODUCT
VRi BOX
MOUNTING KIT PART NO.
Vector 430i
V4089-1004
Vector750i
V4080-1010
V4080-1011
Vector 950i
V4056-1002
Tripod
Use mounting clamp
Lens Rods
Use mounting clamp
Slip Rings
V4094-0001

8
Installation
Mounting to a Head
The VRi box can be mounted directly to a Vinten Vector ‘i’ series head
using the appropriate mounting kit. For information about mounting the
VRi box to a head, refer to the Mounting Kits Installation Guide
(publication part no. V4006-4981).

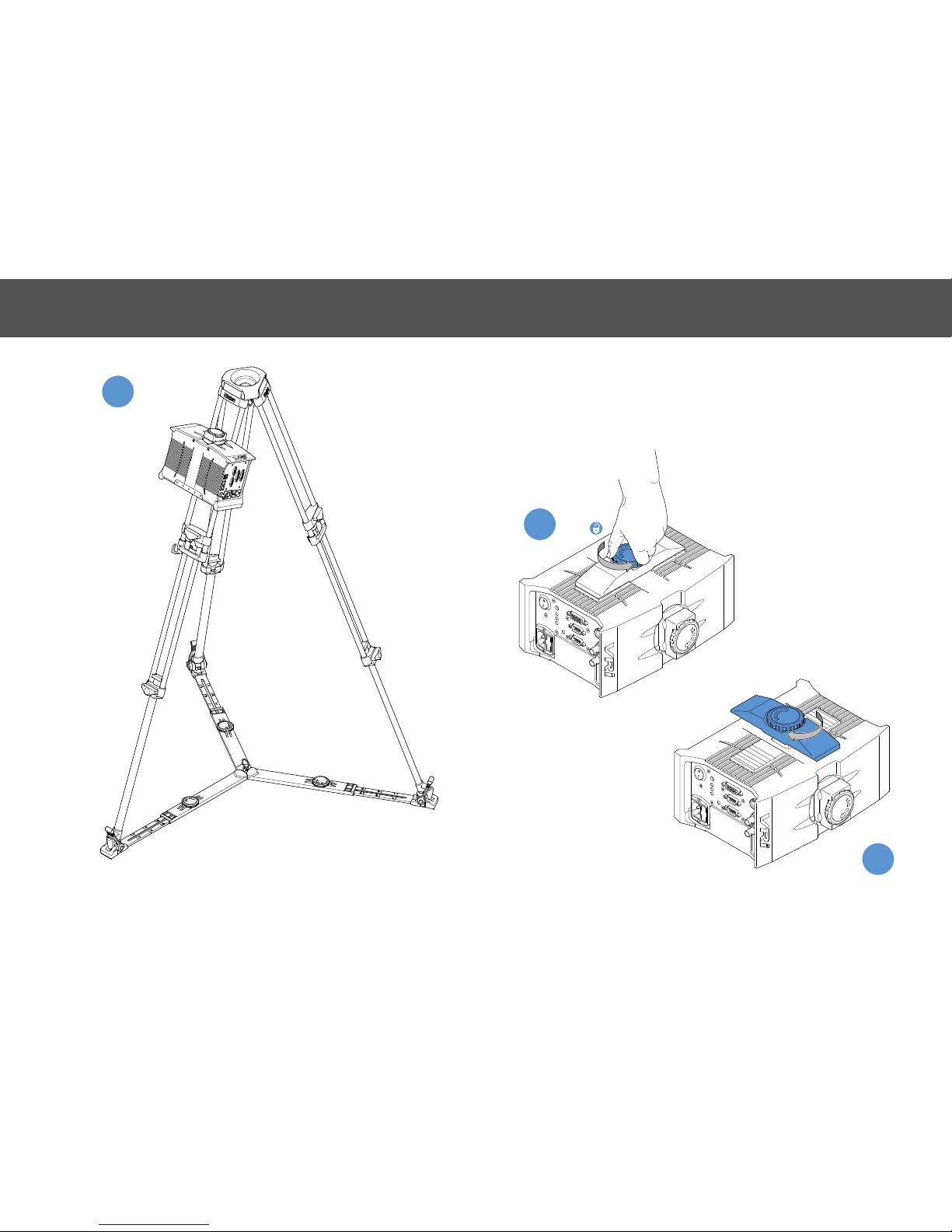

Mounting to a Tripod
To mount the VRi box on to a tripod, proceed as follows:
Mount to the second stage of the tripod if a two-stage tripod is used.
CAUTION! To prevent overheating, the VRi box must be
mounted with the ventilation slots facing downwards.
2
1
4
3
5

9
Installation
Mounting to Lens Rods
When mounting the VRi box on to lens rods attached to a Vector head,
the additional payload will affect the balance. This will need to be re-
adjusted as necessary. To mount the VRi box onto lens rods, proceed
as follows:
6
1
2

10
Installation
3
4
5
6
CAUTION! Check and re-adjust the balance of the
head after fitting the VRi box.

11
Installation

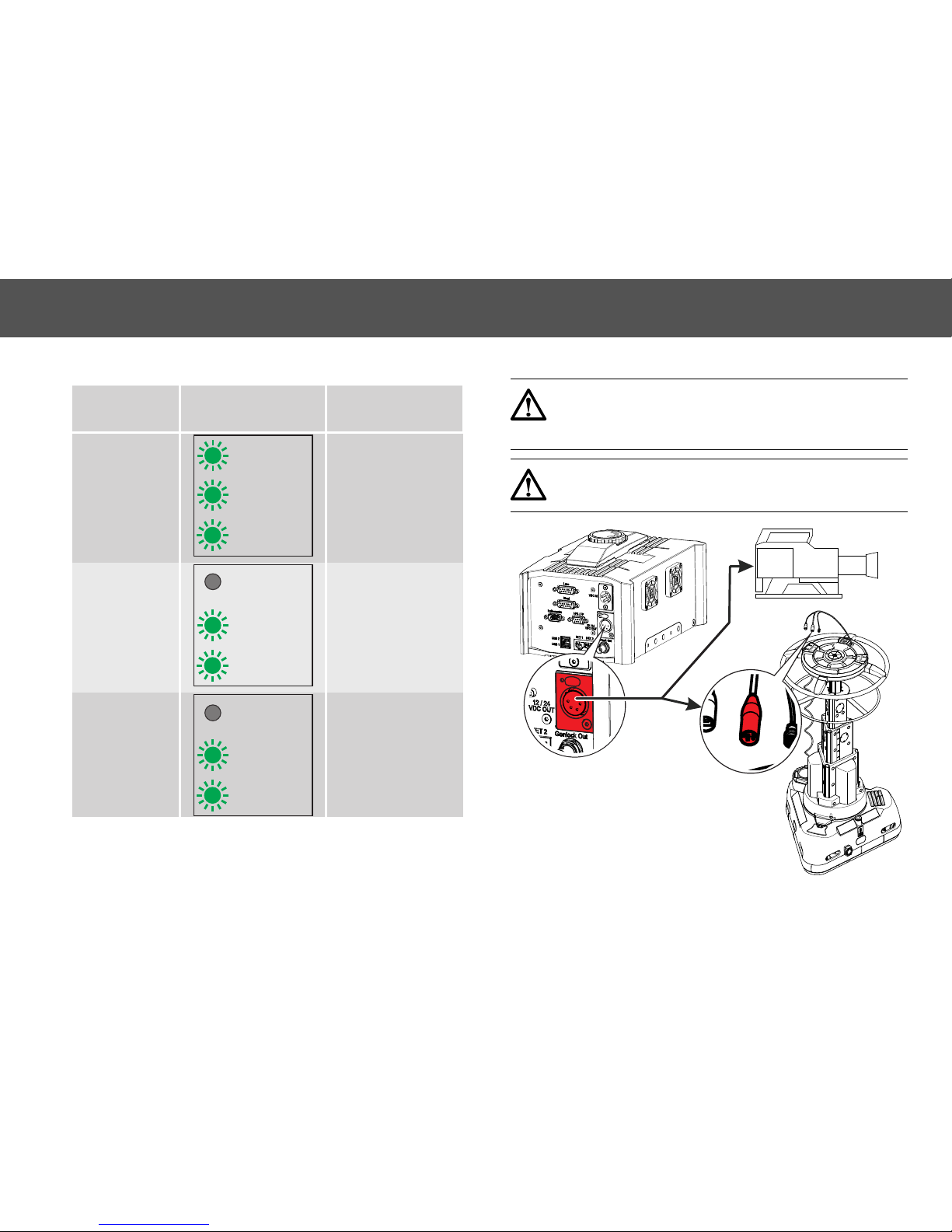

Power Options Power Output
POWER
SOURCE
POWER LEDS
POWER OUPUT
AC Mains
AC Mains
12V Available
12V
24V Available
5V
DC Supply
AC Mains
12V Available, but
restricted by the
input DC supply
12V
24V Not available
5V
Battery Pack
AC Mains
12V Available, but
restricted by the
input battery pack
12V
24V Not available
5V
CAUTION! 24 volts potentially present on the VDC OUT
XLR socket. Check the compatibility of the auxiliary device
with the pin out configuration of the XLR socket. Refer to
the Technical Specification section of this manual.
CAUTION! Do not exceed the current output limit of the
product when powering auxiliary devices.

12
Installation
Genlock I/O Connections
Genlock
Source
Genlock
Source
Note: Genlock output from the
camera must be configured
as genlock black.

13
Installation

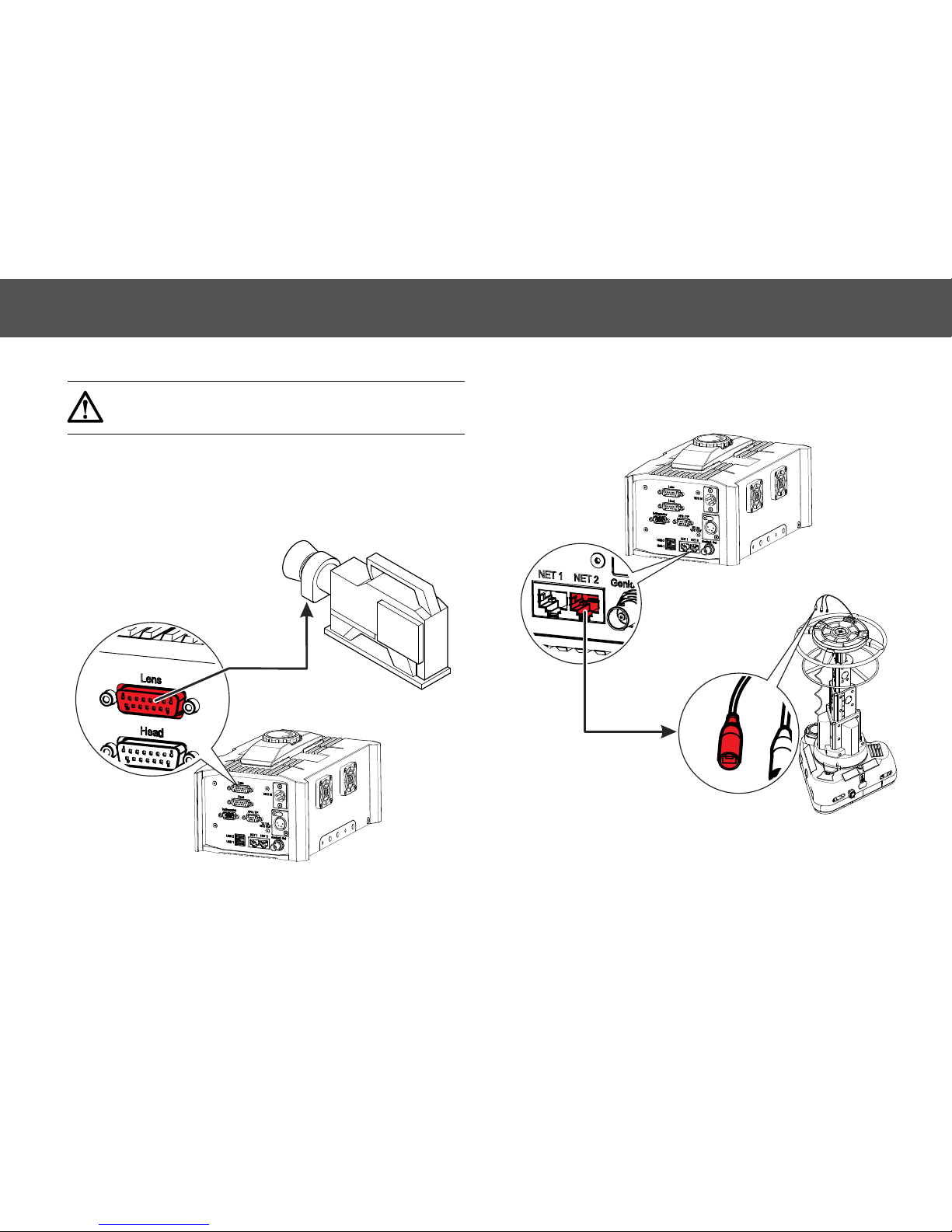

System Connections
Lens Encoder Connection
Use the appropriate compatible cable to connect Canon or Fujinon
lenses with quadrature encoder output. The lens port can also be used
to connect externally mounted (bolt-on) lens encoder devices.
Ethernet Connection
The ethernet (NET2) port is used to communicate with a Quattro SE
pedestal. The ethernet port can also be used for diagnostic and
servicing purposes.
Note: If the Quattro SE is fitted with a slip ring, refer to the Slip Ring
Setup Guide (publication p/n V4094-4980) for more details on
connections.
CAUTION! All cables must be secured and dressed using
the cable clamp to minimise the risk of damage.

14
Installation

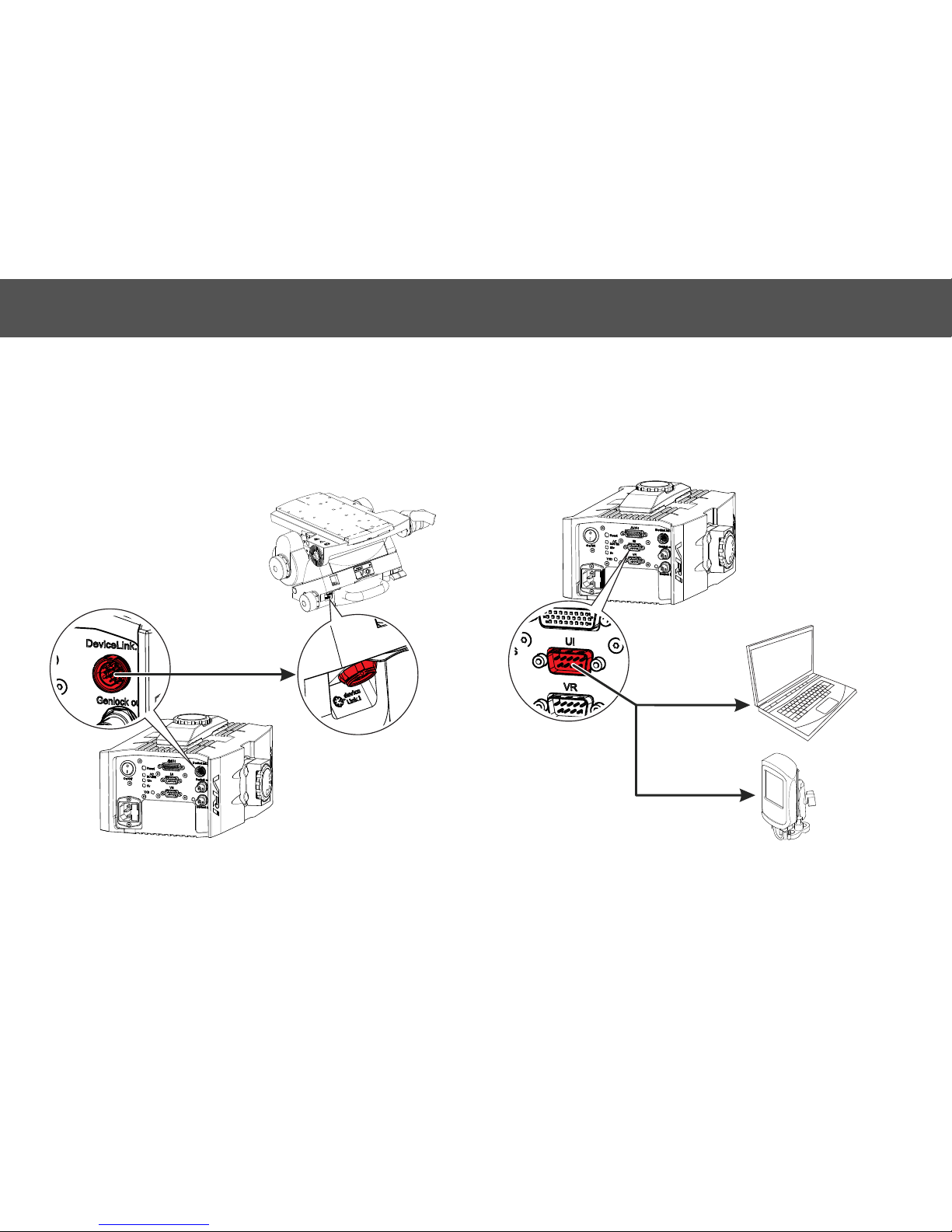

Head Connection
Use the supplied Devicelink.i cable (V3980-5052-9075) to connect to
the ‘i’ series head to the VRi box. The length of this cable
accommodates head mounting of the VRi box
Note: A longer version of the Devicelink.i cable will be required for
other mounting configurations, such as when mounted to a
tripod.
User Interface Connection
Use the PDA power/data cable (V3980-5051-9075) supplied with the
PDA to connect the VRi box to the Vinten Radamec PDA.
Alternatively, use the supplied RS232 null modem cable (D200-157) to
connect the VRi box to a host PC or laptop.

15
Installation
Studio VR Connection
Connect the VR port to the studio VR graphics system. This port
provides formatted tracking data from the head, lens and pedestal.
VR Data Port Pin Designations
The VR Data port transmits the VR data to the studio VR graphics
system. The RS422 pin designations are as follows:
Powering Up
Before powering up the VRi box, ensure that all external cable
connections are secured correctly.
To power up, operate the on/off rocker switch. If powering the VRi box
from the AC power supply all three power LEDs will illuminate. If
powering from the DC power supply, only the 5V and 12V LEDs will
illuminate.
If the power LEDs do not illuminate, refer to the Troubleshooting section
of this manual.
Studio VR
graphics
system
12345
6789
VR Connector
Pin Number
Function on VR
Connector
Function on VR Studio
System
2
RXD-/RXA
TXD-/TXA
6
RXD+/RXB
TXD+/TXB
3
TXD-/TXA
RXD-/RXA
7
TXD+/TXB
RXD+/RXB
Note: Pin number allocations at the VR studio system end are
product-specific.

16
Troubleshooting
Fault Check Comments
VRi box is switched on, but
mains, 5V and 12V power
indicator LEDs are not
illuminated.
Check that either a 50–60 Hz AC mains power supply of 100–
240V or a DC power supply of 9.5–28V is connected.
If DC output from the VRi box is in use, try disconnecting it in
case the load is too high
If a mains supply is connected to the VRi box, check and/or
replace the fuse.
Genlock indicator LED is red. Check that the genlock signal from the studio supply is con-
nected to the Genlock In BNC connector.
If using a camera as a genlock source, the output must be
configured to genlock black.
If the problem persists, contact Vinten or
Vinten Radamec customer support.

17
Maintenance and General Notices
Routine Maintenance
The VRi box requires minimal routine maintenance, apart from
checking the connections and overall operation periodically.
Routine checks
During use, check the following:
• Check cables for signs or wear or damage. Replace as necessary.
• Periodically, check the fixings securing the VRi box to the head or
tripod.
• Check that all cables are connected properly.
Cleaning
During normal use the only cleaning required should be a regular wipe
over with a dry, lint-free cloth. Dirt accumulated during storage or
periods of disuse may be removed with a vacuum cleaner. Particular
attention should be paid to all connection ports.
Technical Specification
Dimensions
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.2 kg (9.3 lb)
Height (incl. adaptor clamp) . . . . . . . . . . . . . . . . . . . . 148 mm (5.8 in.)
Width (incl. cable clamp) . . . . . . . . . . . . . . . . . . . . . . 204 mm (8.0 in.)
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260 mm (10.2 in.)
Power
AC power input . . . . . . . . Autoranging 80–250V, 50–60Hz, 2.6A max.
DC power input . . . . . . . . . . . .Autoranging 9.5–28V DC @ 4.4A max.
Power output . . . . . . . . . . . . . . . . . . . 12V DC @ 1A / 24V DC @ 1.5A
Fuse type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T3.15A
Environmental
Temperature range (operation) . . . . . . 0°C to +40°C (32°F to +104°F)
Data Specification
Supported data protocol. . . .RS422 (Vinten Radamec D1 data packet)
RS232 compatible.
Genlock Specification
Composite Video (CVBS) and S-Video (Y/C):
SDTV . . . . . . . . . . . . . . . . SMPTE 170M (NTSC), ITU-R BT.140 (PAL)
Component Video (YPBPR/GBR):
SDTV . . . . . .SMPTE 125M, SMPTE 267M, ITU-R BT.601 (480I, 576I)
EDTV . . . . . . . . . . . . . . . . . . . . . . . . . . . . ITU-R BT.1358 (480P, 576P)
HDTV . . . . . . . . . . . . . SMPTE 296M (720P), SMPTE 274M (1080I/P)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .SMPTE RP211 (1080PsF)
WARNING! Risk of electric shock. Always check cables
for signs of damage. Damaged cables can cause personal
injury and/or damage the equipment.
WARNING! Risk of electric shock. Always disconnect and
isolate the product from the power supply before cleaning.

18
General Notices

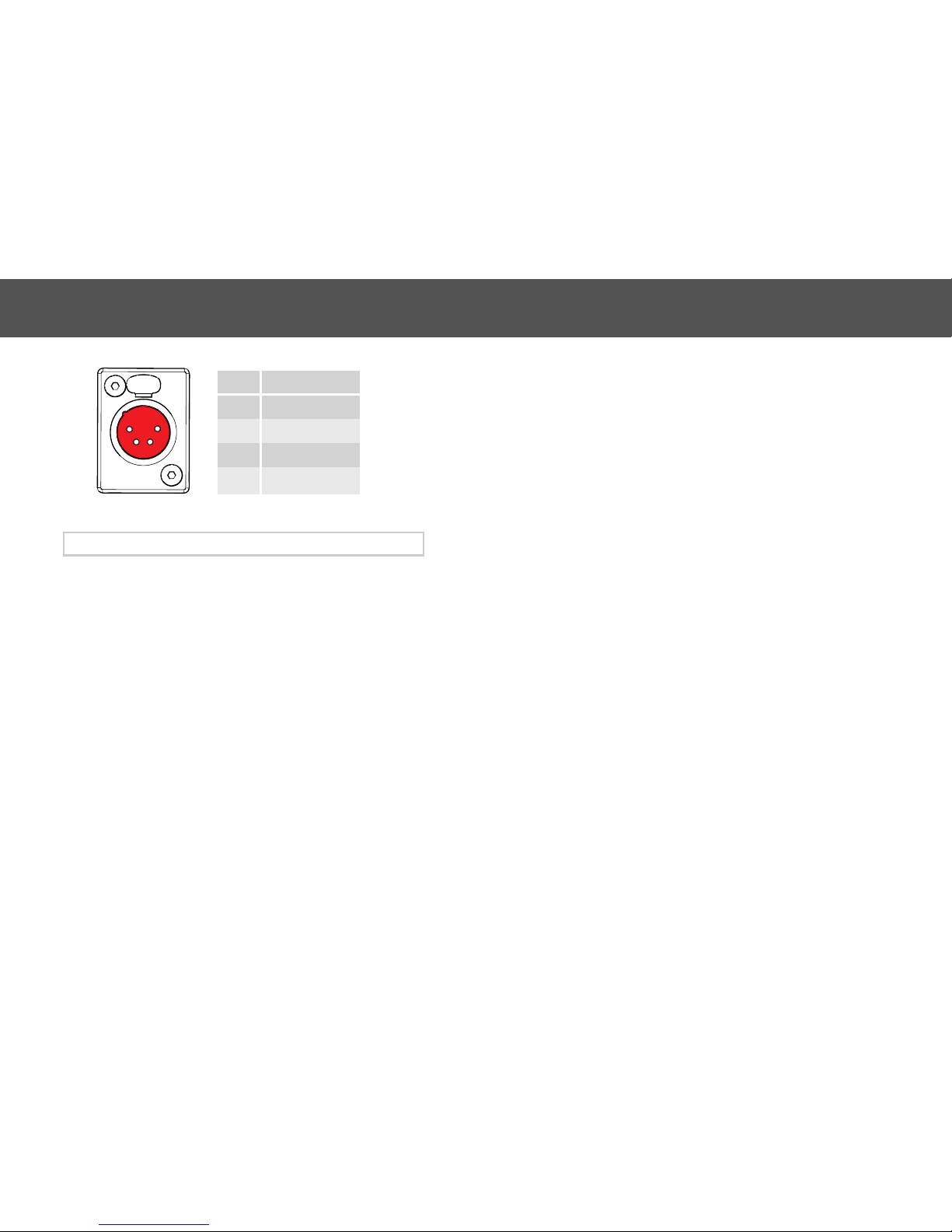

VDC OUT XLR Socket
Technical specifications are subject to change without notice.
1
2
4
3
PIN
Description
1
-12V
2
-24V
3
+24V
4
+12V
