Section 1: Safety Precautions
Read and observe the following warnings and information below.
1. Before cleaning, always unplug your monitor. It is recommended that you use
dry cloth or lightly damp cloth to clean your monitor. Dry cloth is, however,
the safest. If using damp cloth, wait for your monitor to completely dry before
plugging it in again.
2. Do not use alcohol or ammonia-based cleaner and/or liquids to clean your
monitor.
3. This monitor features ventilation openings on the back of the unit. Avoid blocking
these openings to prevent the monitor from overheating.
4. Avoid placing this monitor near any heat sources e.g: portable heaters or heating
vents, as this may cause damage to your monitor.
5. Do not spray cleaner and or any kind of liquid directly onto the monitor’s screen
or any part of the monitor.
6. Do not insert anything into any part of the monitor especially the ventilation
openings.
7. Always make sure your monitor is placed on a secure, level surface to prevent it
from falling and sustaining damage.
8. Unplug your monitor during any extended periods of non-use.
9. Do not place heavy items on the monitor or monitor cables.
10. Do not attempt to disassemble or remove parts from the monitor. Any
disassembly or modication etc. not performed by an authorized technician
can result in damage to the monitor and/or possible exposure to high voltage
electricity which may lead to serious injury or death.
VIOTEK shall not be held responsible for injury or damage of products or persons
due to failure to adhere to the aforementioned precautions or any others noted
hereafter.
The terms HDMI and HDMI High-Denition Multimedia
Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing Administrator, Inc. in the United
States and other countries.

5
Section 2: Box Contents
Monitor x 1 Stand Stem x 1
Stand Base x 1
Power Adapter x 1
(DC 19V, 3.42A)
Screws x 4
DP Cable x 1 Screwdriver x 1
User Manual x 1
Type-C Cable x 1

6
Section 3: Product Overview
3.1 – Rocker Button
6 Audio Output
7 DisplayPort
8 HDMI Ports
9 Type-C Port
10 Power
Monitor resolution and refresh rates are largely dependent on the type of
connecting cable used. For optimal refresh rates, we recommend using
DisplayPort connectors whenever possible.
1 Press Rocker up: Crosshairs shortcut; OSD menu navigation.
2 Power Button: Turn off monitor (longpress); put monitor to sleep (quick-
press)
3 Press Rocker to the left: RGB Range/Port Selection shortcut.
When connecting a Type-C device (phone, laptop, etc.) and using the monitor
in portrait mode (vertical position), long-press the Rocker to the left to open
the Port Selection shortcut menu. Then select the appropriate device (refer to
Section 9: Port Selection for more info).
4 Press Rocker down:display scene mode shortcut; OSD menu navigation
5 Press Rocker to the right:OSD shortcut; menu input selection
3.2 – Monitor Ports
2 3 4 51
6 7 8 9 10
HDMI 2.0 HDMI 1.4

7
Section 4: Stand Installation
Keep the foam underneath the monitor while attaching the stand.
1. Open the package, take out the product with foam still attached, and gently
place it on a desktop or table.
Monitor
Stand Base
Foam
Foam
Stand Stem
2. Take out the two main parts of the stand and remove the foam covering the top
of the monitor. Release the screw attached on the base, then attach the stand
base to the stand stem. Tighten the screw back to the base.
Stand Base
Screw x 1
Stand Stem
3. Remove the foam covering the back of the monitor. Locate the top slot of the
opening on the back of monitor. Insert the mounting plate into the top slot.
Continue to press in until it clicks into place to make sure the stand is installed in
place.

8
4. Place the monitor on your desktop or table after completing installation.
To avoid damage, do not touch the screen when moving the monitor.

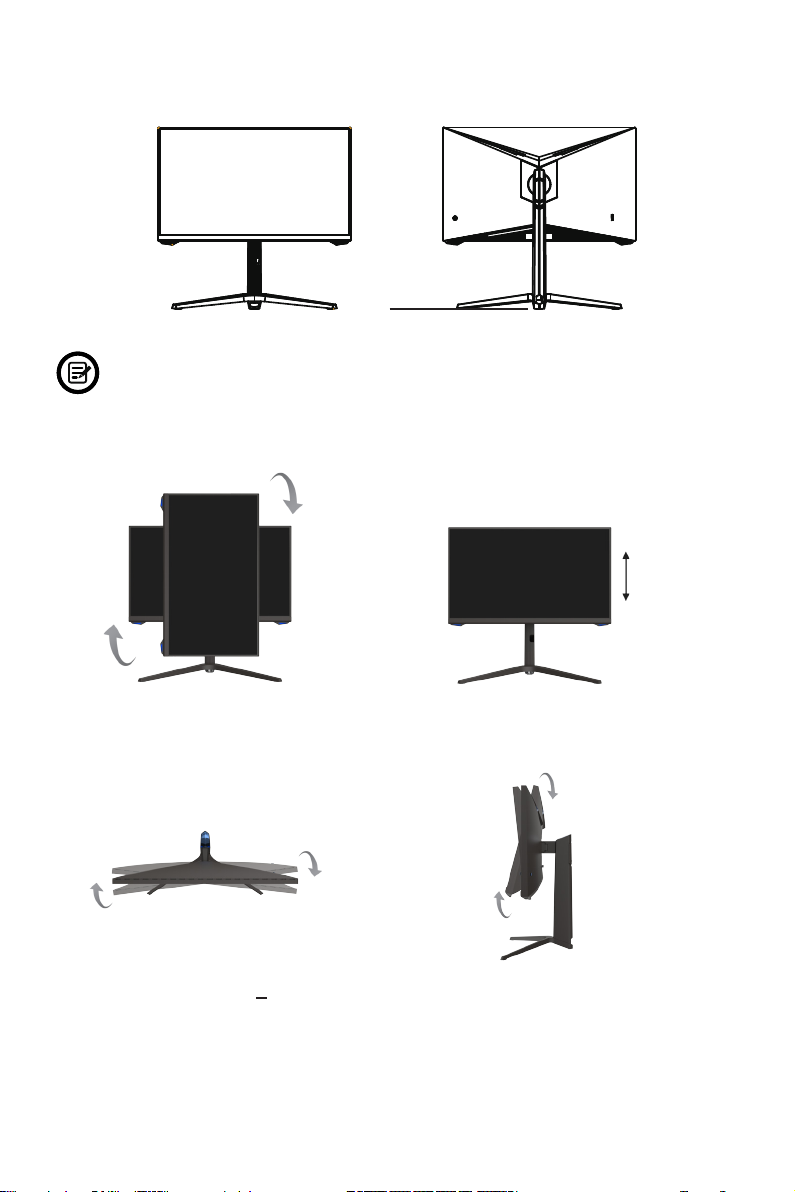

5. Carefully adjust monitor’s height, angle and/or orientation as desired.
Orientation adjust 90oHeight adjust 4.72 ±0.20 in. (120 ±5 mm)
Pivot adjust 30o+ 2oTilt adjust -5~20o

9
Section 5: Wall Mounting
This monitor includes screws that may only be used when attaching the
monitor to a mount. No mount or mounting accessory is included.
1. Open the package, take out the product with foam still attached, and gently
place it on a desktop or table. Remove the extra parts and the foam covering the
monitor. If the monitor was already attached to the stand, remove the stand.
Monitor
Stand Base
Foam
Foam
Stand Stem
2. Remove the original screws ( 1) from the opening in the back of the monitor.
Then use the included 4x screws to attach the adapters inside the opening.
- Do not discard the original screws.
- Use only the Screws ( 2) provided.
1
2
4x Screws (included)
4x Screws (original screws)
3. Follow the directions received with your mount, stand, or accessory and install
the monitor on the wall or xture as desired.
Mount
(Not included)

10
Section 6: Basic Operation
1. Insert one end of the DP cable (included) into your PC’s graphics card. An HDMI
cable (not included) or, in some cases, a USB Type-C cable can also be used.
Monitor resolution can be limited based on the input/cable used (i.e., DP vs
HDMI).
2. Connect the other end of the cable to the corresponding port on your monitor.
DP Port Type-C Port
Audio Out
HDMI Ports
3. Connect the power cable to your monitor, then connect the other end to your
power source. It is recommended that you use a surge protector with adequate
voltage if a wall outlet cannot be reached directly.
4. Locate the power button on the monitor and press and hold it for ~6s to turn the
monitor on.
If you cannot locate the power button, please refer to Section 3.1.
Adaptive Sync
Adaptive sync eliminates image tearing, stuttering and ghosting by adjusting of a
monitor’s vertical refresh rate to the frame rate of the graphics card. It is compatible
with GPUs that use AMD® FreeSync™ or NVIDIA® G-Sync™. The feature is off
on VIOTEK monitors by default and must be manually enabled in the monitor’s
OSD (see Section 8: OSD). To use this feature, the connecting device must be
compatible with adaptive sync (FreeSync and/or G-Sync); have the latest graphic
drivers; and be connected to the monitor using a DisplayPort (DP) cable.
Section 7: Indicator Light
Solid blue light indicates power is on and the monitor
is operating normally. Flashing blue light indicates
no video source, no horizontal/vertical signal has
been detected or voltage is low. Please ensure
your computer is on and all video cables are fully
connected. Indicator light

11
Section 8: OSD
The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings
and appears on screen after turning on the monitor and pressing Rocker to the right.
When using the monitor for the rst time, settings will automatically adjust
to optimal settings according to your computer’s conguration.
1. The shortcut keys of the Rocker button.
OSD main menu
Gameplus crosshairs
Color switchshortcut
Power button
Color profile shortcut
2. Press rocker to the right to enter the OSD screen.
Resolution: 1920x1080@120Hz SDR
HDMI2
Type-C
DP
HDMI1
HDMI2
InputSource: HDMI2
Resolution: 1920x1080@120Hz
InputSource：
Resolution：
3. Press rocker up or down to browse functions.
a. Highlight the functions you want to set and press rocker right to enter the sub-
menu.
b. Press rocker up or down to browse the sub-menu and press the rocker
right to highlight the functions you want to set.
c. Press rocker up or down to highlight the options and press the rocker right
to conrm the settings and exit the current screen.
4. Press rocker to the left to exit the current screen.

12
8.1 – OSD Menu Functions
Main Menu Sub-Menu Options Description
Input Source Type - C NONE Switch to USB Type-C signal input
DP NONE Switch to DP signal input
HDMI 1 NONE Switch to HDMI 1 signal input
HDMI 2 NONE Switch to HDMI 2 signal input
Brightness/
Contrast
Brightness 0~100 Adjust the balance between light
and dark shades
Blacklevel 0~100 Adjust the balance of the darkest
areas of the image
Contrast 0~100 Adjust the degree of difference
between dark and bright
DCR On Turn on DCR function
Off Turn off DCR function
Color Setting Gamma Gamma 1.8,
Gamma 2.0,
Gamma 2.2,
Gamma 2.4,
Gamma 2.6
Adjust the tone luminance (gamma)
of the display
Picture Mode Standard, Photo,
Movie, Game,
FPS, RTS,
sRGB
Set visual mode according to activity
and/or preference
Color
Temperature
Warm, Cool,
User
Select color temperature
Low Blue
Light
0~100 Adjust the lter to reduce the risk of
blue light exposure to your eyes by
reducing the blue light emitted from
the display
Hue 0~100 Adjust the degree of perceived
colors
Saturation 0~100 Adjust the purity of perceived colors
levels

13
Main Menu Sub-Menu Options Description
Quality
Setting
Sharpness 0~100 Adjust the clarity and visibility of the
edges in the image
Response
Time
Off, High,
Middle, Low
Activate and adjust overdrive
function to decrease response time
Noise
Reduction
Off, High,
Middle, Low
Reduce the interference of image
noise caused by signal source
interference
Super
Resolution
Off, High,
Middle, Low
Enhance image quality of upscaled
images
Dynamic
Luminous
Control
On, Off Auto compensation for gray scale
display screen and strengthen the
expression of gray scale
MPRT On, Off Turn on/off advanced motion blur
reduction mode (not compatible with
Adaptive Sync)
Display Aspect Ratio Wide Screen,
4:3, 1:1, Auto
Select on-screen aspect ratio
LedMode Normal, Off,
Flicker
Turn on/off and control the LED
lights under the frame and in the
back.
Audio Mute On, Off Turn mute mode on/off
Volume 0-100 Adjust audio volume
Audio Source Auto Source,
Type-C, DP,
HDMI 1, HDMI 2
Select audio signal input via Type-C,
HDMI or DP
Multi-
Window
Multi-Window Off, PIP Mode,
PBP 2Win, PBP
Phone
Select PIP/PBP modes according
to the number of input signals
connected (PBP Phone mode
specially set for mobile phones)
Sub Win2
Input
HDMI1.4,
HDMI2.0, DP1.2,
Type - C
Select according to input signal for
PIP/PBP mode (when PBP phone
mode in use, the second window
signal cannot be selected)
PIP Size Small, Medium,
Large
Adjust the PIP/PBP display window
size
PIP Position Top Right, Top
Left, Bottom
Right, Bottom
Left
Adjust the PIP/PBP window position
Swap NONE Swap between the PIP/PBP screens
(PBP phone mode cannot be
swapped)

14
Main Menu Sub-Menu Options Description
OSD Language English，
简体中文，
한국어，Русский,
Español, 日本語,
Français
Set OSD language
OSD
H-Position
0-100 Adjust the OSD’s horizontal position
OSD
V-Position
0-100 Adjust the OSD’s vertical position
OSD
Transparency
0-100 Set the OSD’s overall transparency
OSD Time
Out
5-100 Set how long the OSD remains open
after non-use
OSD Rotation Normal, 90, 180,
270
Adjust the OSD menu orientation
based on the monitor’s orientation
(vertical vs horizontal)
Other DP Version DP1.2 Display the current signal inputs
version
FreeSync
(Adaptive
Sync)
On, Off Turn the Adaptive Sync function on/
off
Turn on
Type - C
On, Off Turn on/off Type-C feature
Gravity
Induction*
On, Off Turn the Gravity Induction function
on/off
Reset None Reset monitor congurations
*Gravity induction (or gravity sensing) works to detect the orientation of the
connected TYPE-C device (PC, iPad, Tablet, etc.) and automatically adjusts the
display accordingly when enabled. Settings for rst use of Gravity Inductlon:
Open the display settings in your computer’s OS and select the display adapter
properties of display 2, and select 1080x1920 in all modes.
Section 9: Port Selection
After rotating the monitor 90° to portrait mode (vertical position), the port selection
screen may pop-up when the Type-C input is rst connected. Press Rocker up or
down to select the correct Type-C device; otherwise, it won’t display properly.
Attention: Please select the correct Type-C device
otherwise it can’t display properly.
Phone PC/Pad
Port Select

15
• The monitor can provide power to your connected mobile device when
connected via Type-C.
• When using the monitor in vertical position (portrait mode) for the rst
time, set a proper resolution ratio on your computer; otherwise, the
monitor may not display properly.
• Always select the correct Type-C device type for the Port Select pop-up.
The connected Type-C device (tablet, smartphone, etc.) and the USB-C
cable must support DP ALT-MODE.
Section 10: ECO Modes and Gameplus Switching
1. Press Rocker to the left to switch RGB Ranges included Limited and Full. Full
Range is suitable for most activities.
RGB Range:Full
2. Press Rocker down button to switch ECO modes. These modes (Standard,
Photo, Movie, Game, FPS, RTS, sRGB) can be used to optimize settings
according to your activity and/or preference. Standard mode is suitable for most
activities and sRGB delivers better color matching representation with peripheral
devices (printers, digital cameras, etc.).
Standard
3. Press Rocker up to switch Gameplus modes. Choose the corresponding
crosshair icon according to the needs of your game. These game icons are
primarily designed to optimize your aim during shooting games, though they can
be used for other purposes.

16
Section 11: Troubleshooting
11.1 – General Problems
The screen is blank
• Press the power button to turn the monitor on.
• Conrm the brightness and contrast settings are set normally.
• Check if the indicator light is ashing. If so, there is no signal from your video
source.
• If your source is a notebook or laptop, make sure it’s powered on and set to mirror
or extension mode.
The image is out of focus
• Make sure the video cable is inserted properly at both ends.
The screen is flashing
• Try an alternative power source. Insufcient power can cause this issue.
• Make sure devices such as non-shielded speakers, uorescent lighting, AC
transformers, table fans, etc., are a safe distance away from your screen to avoid
magnetic disturbances.
The color bleeds or visual effects appear unusual.
• If your screen is all red or blue, or any colors disappear, check to see that the
cable is properly inserted. A loose connection can cause a bad signal.
• Try connecting to another video source for comparison.
The screen appears to be scrolling, rolling, or moving unusually.
• Check that your source frequency is within 55-76Hz.
• Reconnect and ensure your video cable is secure.
The indicator light does not work
• Check if the power is on.
• Make sure the power cable is properly connected to the monitor and power
source.
Cannot plug and play.
• Check PC requirements to make sure it is compatible with the monitor.
• Check graphics card requirements to make sure it is compatible with the monitor.
Connected smartphone/tablet using USB-C but images do not show.
• Make sure your connected device is compatible with DP ALT MODE.
• Make sure the USB Type-C cable is compatible with DP ALT MODE and can
transmit video/data signals. Not all USB-C cables can do this. (Replace the
USB-C cable if it does not support video signals.)

17
Dim image
• Adjust the brightness and contrast ratio.
Image jitter/moire pattern
• Nearby electric equipment may be interfering with the monitor.
Light indicator is on or flashing, but there is no image displayed on screen
• Check if the monitor power is on.
• Check if the graphics card is installed properly.
• Make sure the power cable is properly connected to the monitor and power
source.
Image position is not centered/the size is not right
• Please adjust Clock or Auto settings.
Color difference (colors are not optimized)
• Adjust RGB color settings or reset color temperature.
11.2 – PIP (Picture in Picture) Input Information
Mode Primary
Screen
Source
Picture in Picture Additional
Source
Swap
Windows
Mode
DP HDMI Ty pe - C
Mode 1 DP X
Mode 2 HDMI X
Mode 3 DVI X
Note: ” ” means this feature is supported while “X” means it is not supported.
11.3 – PBP (Picture by Picture) Resolution Information
For optimal viewing experience while using these features, it is recommended to set
both panels to the same resolution, unless in Phone PBP mode.
It is recommended to set
the rst panel to 960 x
1080 resolution.
1
It is recommended to set
the second panel to 960
x 1080 resolution.
2

18
It is recommended to set
the rst panel to 1440 x
1080 resolution.
1
It is recommended
to set the phone
panel to 480 x
1080 resolution.
2
PBP Phone Mode
At this resolution, tearing and visual deformation should be minimized.
Section 12: Cleaning
Take the following steps when cleaning the monitor. Do not press the monitor display
with hands or other objects; otherwise, there is a risk of damaging the screen.
1. Power off the monitor and PC.
2. Disconnect the power cord from the product.
Do not touch any cords or cables with wet hands. Electric shock may result.
3. Use a dry, non-abrasive cloth to gently remove dust and debris.
4. Lightly wet another soft cloth in water. Ring the cloth out well. Gently wipe the
exterior of the product.
Never use alcohol, solvent, surfactant or ammonia-based cleaning solutions.
Do not spray water or detergent directly on the product.
5. Connect the power cord to the product when cleaning is nished.
6. Power on the product and PC.

19
Section 13: Information
13.1 – Specications
Item Detail
Model Number RFI25CBA
Screen Size 24.5’’
Viewing Angle 178°/178° (H/V)
Aspect Ratio 16:9
Resolution 1920 x 1080p
Backlight E-LED
Typical Brightness 250 cd/m2 (min); 300cd/m2 (max)
Default Color Temperature 6500
Colors sRGB 98%; NTSC 85%
Contrast Ratio 1000:1
Pixel pitch 0.2832 mm x 0.2802 mm (H x V)
Response Time 5ms (OD), 1ms MPRT
Refresh Rate 144Hz
Ports 1x DP, 2x HDMI, 1x 3.5 Audio Out, 1x Type-C
Power 65W (19V 3.42A)
OSD Language English，简 体 中 文 ，한국어，Русский, Español, 日本語,
Français
Environmental
Temperature & Humidity
Operating temperature: 32ºF to 104ºF
Storage temperature: -4ºF to 140ºF
Operating relative humidity: RH 10% to 85% (non-
condensation)
Orientation Vertical (portrait), Horizontal (landscape)
Height Adjustment Yes, 4.72 ±0.20 in. 120 ±5 mm
Tilt Angle Forward 5°; Backward 20°
VESA Mounting 75 x 75 mm
Dimension (with Stand) 21.9 x 20.64 x 9.35 in (556.4 x 524.2 x 237.6 mm)
Weight 11.16 lb. / 15.87 lb. (incl. packaging)

20
13.2 – Resolution Compatibility for DP
System Requirements below are the minimum system requirements for your
RFI25CBA monitor. The requirements are recommended in order to properly use all
of the monitor’s features and ensure high-quality picture. Minimum Requirements
Operating System: Windows® 7 / Windows® 8 / Windows® 10 64-bit (latest service
pack) or higher, Processor (CPU): Intel® Core™ i5 or AMD Phenom™ II X3 or
higher, Graphics Card: NVIDIA® GeForce® GTX 950 or AMD Radeon™ R9 380
or higher, Memory: 6 GB RAM* All trademarks and registered trade names are the
property of their respective owners.
Important Resolution Details
Max. resolution/refresh for HDMI 2.0: 1080p @ 120Hz.
Max. resolution/refresh for DisplayPort: 1080p @ 144Hz.
For your convenience, a DP cable is included
Section 14: Three-Year Limited Hardware Warranty
Your VIOTEK®RFI25CBA Game Monitor (”Product”) includes a Three-Year Limited
Hardware Warranty (“Warranty”). The Warranty covers product defects in materials
and workmanship under normal use. This Warranty is limited to residents of the United
States and Canada only and is available only to original purchasers. This Warranty
gives you specic legal rights and you may also have other rights which vary from
state to state.
This Warranty starts on the date of your purchase and lasts for three years (the
“Warranty Period”). The Warranty Period is not extended if the Product is repaired or
replaced. We may change the availability of this limited warranty at our discretion, but
any changes will not be retroactive.
Warranty services are provided by Viotek Warranty Pro (“WP”). If a hardware defect
arises and a valid claim is received within the Warranty Period, at its option and to
the extent permitted by law, WP will: (1) repair the hardware defect by using new
or refurbished parts that are equivalent to new in performance and reliability; or (2)
exchange the Product with a new product or a refurbished one that is substantially
equivalent to the original product. This Warranty is for one replacement only of like-
items and does not cover items out of production if the product is no longer made or
stocked. This Warranty is not assignable or transferable. The original purchaser may
call WP’s toll-free number at 1-855-229-9472 for service requests.
When a product or part is exchanged, any replacement item becomes your property
and the replaced item becomes WP’s property. This warranty only covers technical
hardware defectiveness during the warranty period and under normal use conditions.
WP does not warrant uninterrupted or error-free operation of this Product. This
Warranty does not cover any damage due to: (a) transportation; (b) storage; (c)
improper use; (d) failure to follow the product instructions or to perform any preventive
maintenance; (e) modications; (f) unauthorized repair; (g) normal wear and tear; or
(h) external causes such as accidents, abuse, or other actions or events beyond our
reasonable control.
