Viper 5706V User manual

MODEL
5706V
OWNER’S GUIDE
®
NO ONE DARES
COME CLOSE ®

iii
© 2016 Directed. All rights reserved.
Congratulations
Congratulations on the purchase of your state-of-the-art security and
remote start system. Reading this Owner’s Guide prior to using your
system will help maximize the use of your system and its many fea-
tures. For any additional questions please contact your authorized
Directed dealer or contact Directed at 1-800-753-0600. (U.S. only)
or 1-800-361-7271 (Canada only). Additional support is also avail-
able at: http://support.directed.com.
Important information
Government Regulations and Safety information
Read the Government Regulations and Warning! Safety
First sections of this manual prior to operating this system.
Warning! Failure to heed this information can result in
death, personal injury or property damage and may also
result in the illegal use of the system beyond its intended
purpose.
Your Warranty
Your system comes with a warranty. The warranty terms are detailed at
the end of this guide. Make sure that you receive the proof of purchase
from your dealer, indicating the product was installed by an autho-
rized Directed dealer.
G5706 2016-02

iv © 2016 Directed. All rights reserved.
Replacement remote controls
Please see your authorized dealer or visit us at www.directedstore.
com to order additional remote controls. Remote control part numbers
are found on the back of the device.

Contents
Congratulations ................................................................................................. iii
Important information ........................................................................................ iii
Government Regulations and Safety information .....................................iii
Your Warranty.....................................................................................iii
Replacement remote controls ................................................................. iv
Getting Started.................................................................................................... 4
Charging the remote control:................................................................. 4
Keys to using this manual...................................................................... 5
Responder LC Remote Control .............................................................................. 6
Control Center .................................................................................................... 7

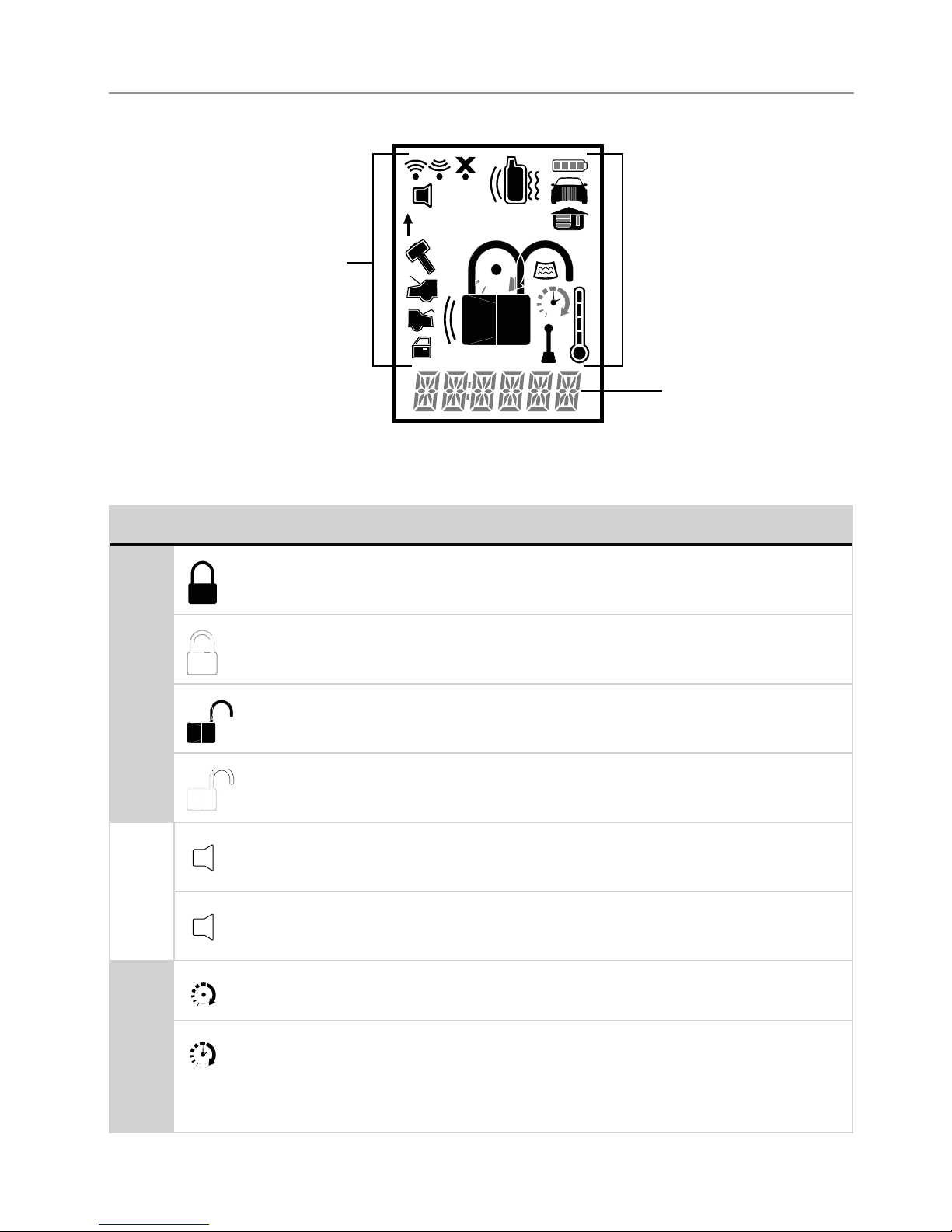

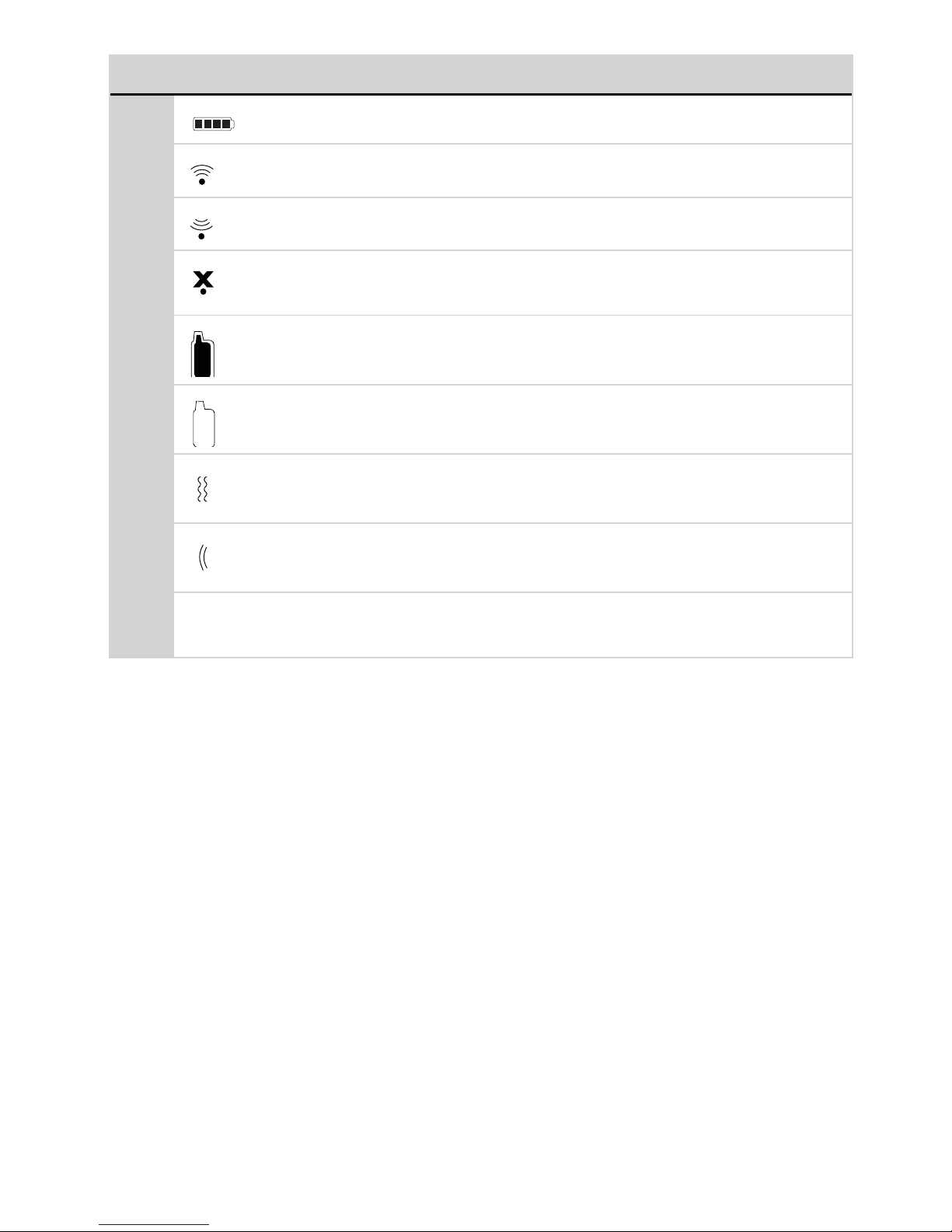

Status Screen Icons.............................................................................................. 8
Using your System............................................................................................. 11
Commands and Confirmations ............................................................ 11
Performing Commands ....................................................................... 11
Responder LC Command table ............................................................ 12
Fault Condition Alerts......................................................................... 12
Basic Commands (Direct Access) ........................................................................ 14
Arm ................................................................................................. 14
Disarm ............................................................................................. 14
Remote Start...................................................................................... 15
Advanced Commands: (Level 1) ......................................................................... 16
Silent Arm......................................................................................... 16
AUX 1.............................................................................................. 16
Runtime Reset .................................................................................... 17
Temp Request .................................................................................... 17
Advanced Commands: (Level 2) ......................................................................... 18
Sensor Bypass ................................................................................... 18
Remote Valet .................................................................................... 18
AUX 2.............................................................................................. 19
Timer Start ........................................................................................ 19
Runtime Remaining ............................................................................ 19
Advanced Commands: (Level 3) ......................................................................... 20
Sensor Silent Arm .............................................................................. 20
AUX 3.............................................................................................. 20
Smart Start........................................................................................ 21
Alarm Report..................................................................................... 21
Advanced Commands: (Level 4) ......................................................................... 22
Full Silent Arm ................................................................................... 22
AUX 4.............................................................................................. 22
Defogger .......................................................................................... 22

Responder LC Configuration............................................................................... 23
Navigating Menus and Options .......................................................... 23
Button Operation ............................................................................... 23
Access Menu Items ............................................................................ 23
Main Menu....................................................................................................... 24
Setup Remote Menu: .......................................................................... 24
Remote Start Info ............................................................................... 25
Runtime Alert..................................................................................... 26
Car 2............................................................................................... 26
Screen Color..................................................................................... 26
Temp Unit ......................................................................................... 26
Button Beep....................................................................................... 27
System Type ...................................................................................... 27
Clock Set .......................................................................................... 27
Review ............................................................................................. 27
Exit .................................................................................................. 27
Sensor Adjust: ................................................................................... 27
Remote Pairing .................................................................................. 28
Demo Mode...................................................................................... 29
Power Off......................................................................................... 30
Exit .................................................................................................. 30
Alarm Features ................................................................................................. 31
Normal Arm Protection....................................................................... 31
Sensor Silent Arm Protection................................................................ 31
Full Silent Arm Protection .................................................................... 32
Sensor Warn Away Messages............................................................. 32
Full Trigger Messages......................................................................... 32
Emergency Override .......................................................................... 32
Trigger Zone Fault Report.................................................................... 33
Alarm Report when disarming ............................................................. 33
Alarm Report when requested ............................................................. 34
NPC (Nuisance Prevention Circuitry).................................................... 34
Remote Start Features ........................................................................................ 35
Key Takeover..................................................................................... 35
Remote Start Safelock......................................................................... 35
Disabling Remote Start ....................................................................... 35
Advanced Start ................................................................................. 36
Temperature Reporting........................................................................ 37
Remote Start Time-out Alert.................................................................. 37
Pit Stop Mode ................................................................................... 37
MTS Mode (Manual Transmission Start)................................................ 38
Turbo Timer Mode.............................................................................. 39
Remote Start Error.............................................................................. 40

Remote and System Operations.......................................................................... 41
Passive Arming.................................................................................. 41
Auto Re-arming.................................................................................. 41
Valet Mode ....................................................................................... 42
Power Save....................................................................................... 42
Rapid Resume ................................................................................... 42
Automatic Remote Updates ................................................................. 42
Out of Range .................................................................................... 43
No Remote Output............................................................................. 43
Feature not Available ......................................................................... 43
Car Select (LCD 2-way) ...................................................................... 43
1-Way Companion Remote Control .................................................................... 45
Accessing Commands ........................................................................ 45
Button Auto Lock................................................................................ 46
Car Select......................................................................................... 46
1-Way Remote Control Configuration................................................... 47
System Expansion Options................................................................................. 51
Battery Information (Responder LC)..................................................................... 53
Low Battery....................................................................................... 53
Battery Life........................................................................................ 54
Battery Information (1-Way) ................................................................ 55
Battery Disposal ................................................................................ 55
Glossary of Terms.............................................................................................. 56
Patent Information ............................................................................................. 57
Government Regulations .................................................................................... 58
Warning! Safety First......................................................................................... 60
Limited lifetime consumer warranty ..................................................................... 62

4© 2016 Directed. All rights reserved.
Getting Started
Your Responder LC remote is powered by an internal rechargeable
battery that can only be serviced by an authorized Directed dealer.
Due to transit and storage time prior to your purchase, the battery
charge may have depleted. To ensure proper operation, check the
battery level and if not fully charged, use the provided cable to con-
nect to the USB port on a computer. See “Battery Information (Re-
sponder LC)” on page 53 and “Status Screen Icons” on page
8for more information about the battery.

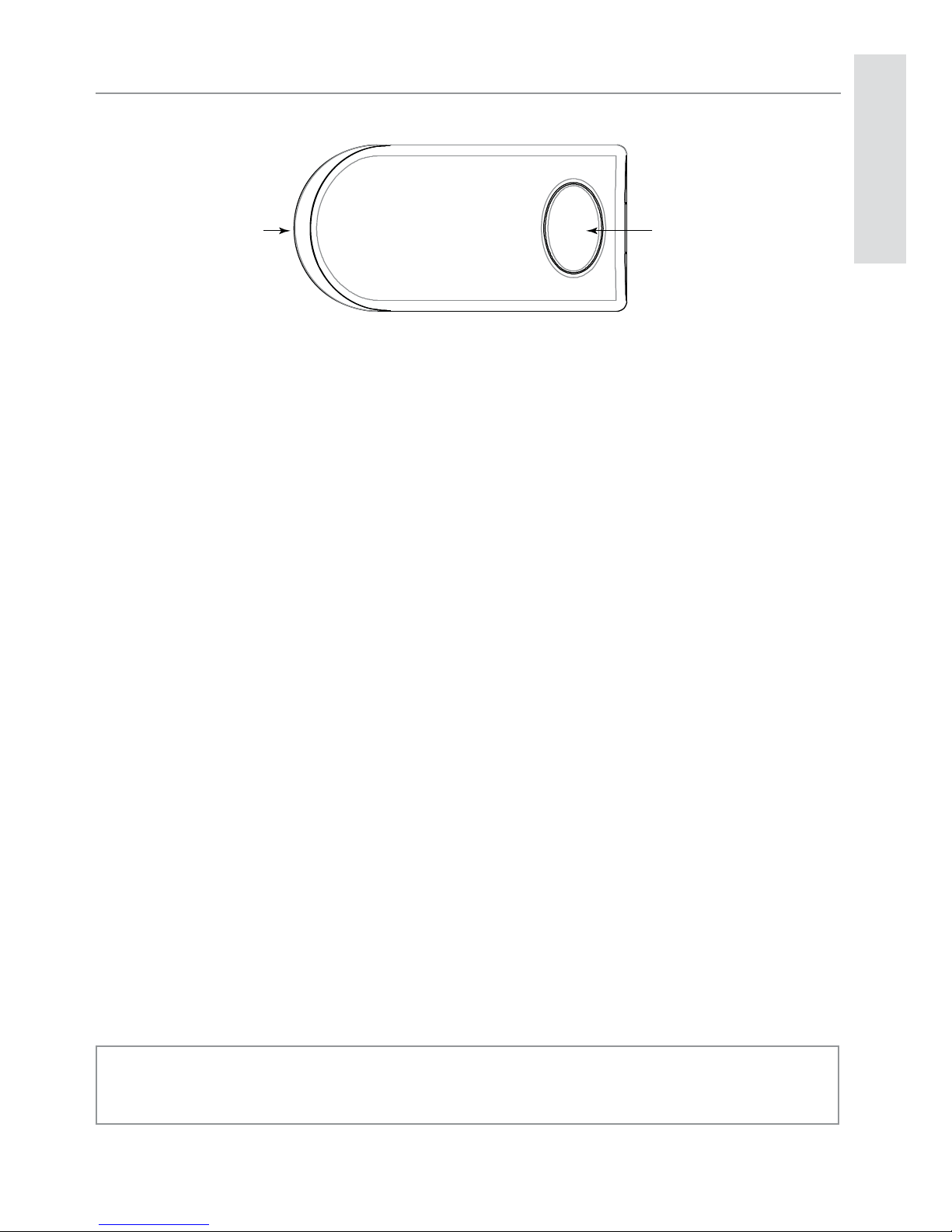

Charging the remote control:
1. Plug the USB end of the provided USB cable into the USB port
on a computer. Insert the micro-USB connector into the micro-
USB port located on the side of the remote control. The text field
will display CHARGE to indicate the remote control is charging
(The remote remains operational while charging and can com-
mand the system).
2. Once fully charged the text field will display FULL .
3. The remote control is then ready for use. Disconnect the cable
from the remote control end first.
Note If the battery is excessively depleted when charging, func-
tionality may be delayed while it charges to the minimum
voltage required to operate the display, after which normal
charging resumes.

5
© 2016 Directed. All rights reserved.
At a Glance
5
Keys to using this manual
Specific actions (in bold type) and style conventions are used consis-
tently throughout this manual, they are as follows:
• Press: implies pushing in and releasing a button.
• Hold: is used after Press actions when a button needs to be held
in position for an extended period of time, typically several sec-
onds.
• ARMED this style denotes the text which appears in the text field
portion of the Display during operations described in the manual.
If the text string is too long for the text field, it then plays and loops
sequentially word by word.
• Italicized words denote section/sub headings in this guide and
can be located through the table of contents.
• An asterisk (*) when used after a word or phrase denotes that
additional details can be found in related sections usually noted
at the bottom of the page or end of the section.

6© 2016 Directed. All rights reserved. 6
Responder LC Remote Control
Feature Description
Internal Antenna Used for transmitting and receiving information
Display Status screen - the upper portion of the display contains status
icons for the System, Siren, Alarm zones, Remote Start and
Remote Control.
Text field - the lower portion of display - shows the Clock,
Runtime or Temperature during Remote Start, as well as
Command confirmations, Page messages and programming
menus.
Command Buttons (4)
A U X
Used to perform Arming, Disarming, Auxiliary channel and
Remote Start commands.
Function Button Used to access function levels for commands, configura-
tion menus for programming, Car Selection, and to request
reports.
USB Port The USB cable plugs into this port (located on remote control
side).
