Virus Zero S-Plasms ion User manual

Wall-mounted/Stand type
Wall-mounted/Stand type
Wall-mounted/Stand type
Wall-mounted/Stand type
Wall-mounted/Stand type
Wall-mounted/Stand type
Wall-mounted/Stand type
Wall-mounted/Stand type
Wall-mounted/Stand type
SPi ｹﾙﾀﾌｷｯｽｺﾁｦｷﾎ ｽｺﾅﾄｵ衂・IB_E(110420).indd 20 2011-04-20 ｿﾀﾀ・9:41:02

1
Feature of Your product
Mechanism of ion generation
Micro Plasma discharger generates Hydrogen and Oxygen ion (O₂-).
- Ceramic electrode (+ electrode): Micro plasma discharger splits water molecules in the air
and forms positively charged hydrogen atoms (H+).
- Pin electrode (- electrode): High-voltage electric discharger emits electrons (e) which react
with H+ and O₂ to form Hydrogen atom (H) and Oxygen ion (O₂-).
- Hydrogen atom (H) and Oxygen ion (O₂-) together form Hydroperoxy radicals (HOO-).
Excellent air purifying technology
SPi generates Hydrogen atom (H) and Oxygen ion(O₂-) which reacts together to form
Hydroperoxy radicals which the positively charged biological contaminants then reacts with
three hydrogen elements of its protein structure before forming water vapor. Also, the Hydrogen
atom (H) will combine with OH-radical to form a water vapor and neutralize harmful OH-radical.

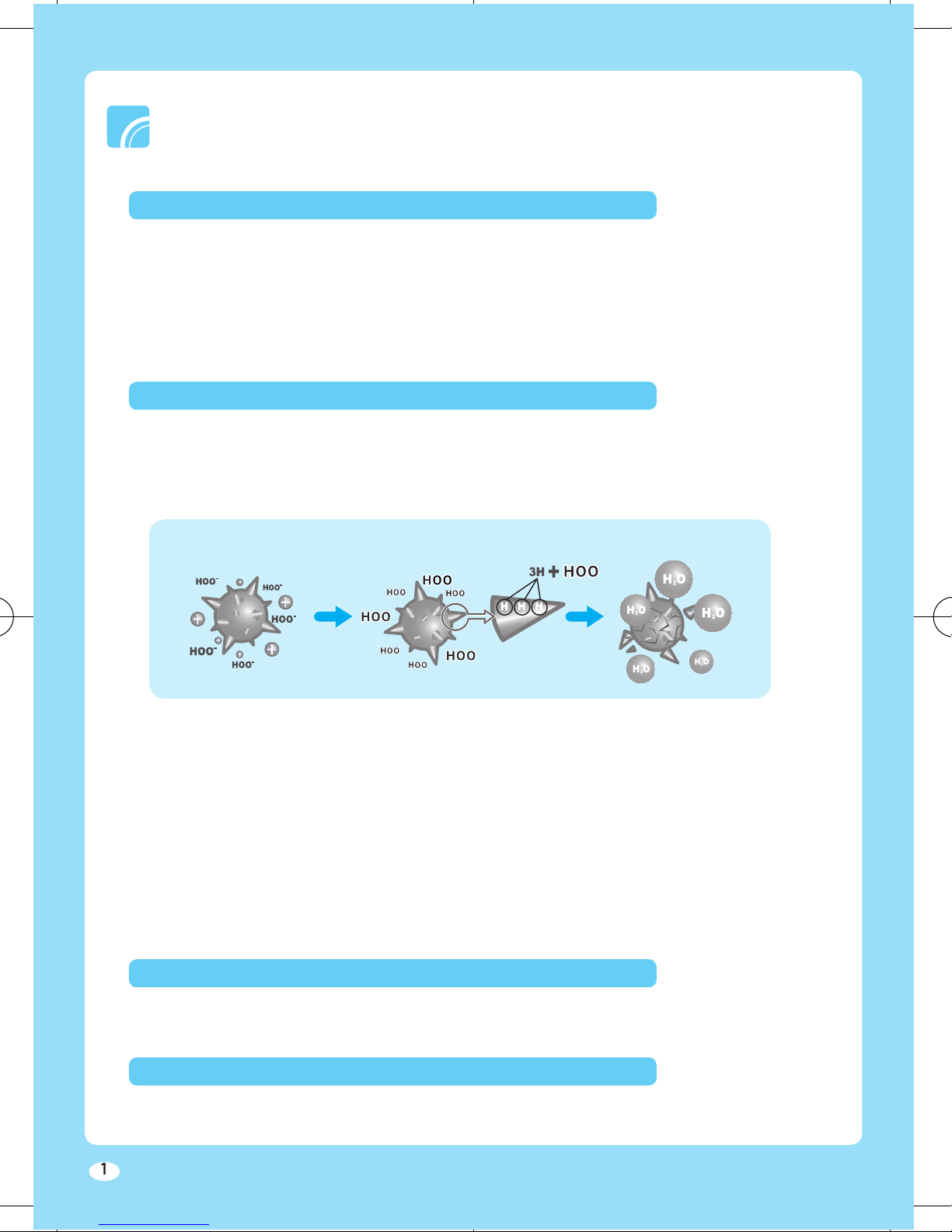

Virus Elimination Mechanism
Perfect Elimination of Biological Contaminant
SPi eliminates biological contaminants (such as bacteria, viruses, molds etc.) more
effectively in
airtight area.
Anti Allergen
SPi eliminates harmful allergens (such as dust mites, dusts and dog/cat hair) which can cause
rhinitis, asthma or other allergic symptoms.
World Recognized Technology
SPi technology is tested and its effectiveness was proven from many academic
organizations in Korea, Japan and United Kingdom etc.
Stylish design
Simple and luxury style allow you to place the product in any interior or automobile.
Enhanced performance
Through the pin electrodes mounted on both sides of the product, SPi provides faster and more
powerful antibacterial performance.
SPi ｹﾙﾀﾌｷｯｽｺﾁｦｷﾎ ｽｺﾅﾄｵ衂・IB_E(110420).indd 1 2011-04-20 ｿﾀﾀ・9:40:34

2
Contents
Safety Information
........................................................................................................................................
3
Checking the Components
....................................................................................................................
Checking the Components ....................................................................................................................Checking the Components
7
Checking the Parts
........................................................................................................................................
Checking the Parts ........................................................................................................................................Checking the Parts
8
Before Using the Product
Installing the Product
..................................................................................................................................
Installing the Product ..................................................................................................................................Installing the Product
9
Operating the Product
...............................................................................................................................
Operating the Product ...............................................................................................................................Operating the Product
12
Basic Operation
Cleaning and Maintaining the Product
...........................................................................................
Cleaning and Maintaining the Product ...........................................................................................Cleaning and Maintaining the Product
14
Troubleshooting
.............................................................................................................................................
16
Product Specification
..................................................................................................................................
17
Other Information
Recommended instructions or useful information for use.

SPi ｹﾙﾀﾌｷｯｽｺﾁｦｷﾎ ｽｺﾅﾄｵ衂・IB_E(110420).indd 2 2011-04-20 ｿﾀﾀ・9:40:34

3

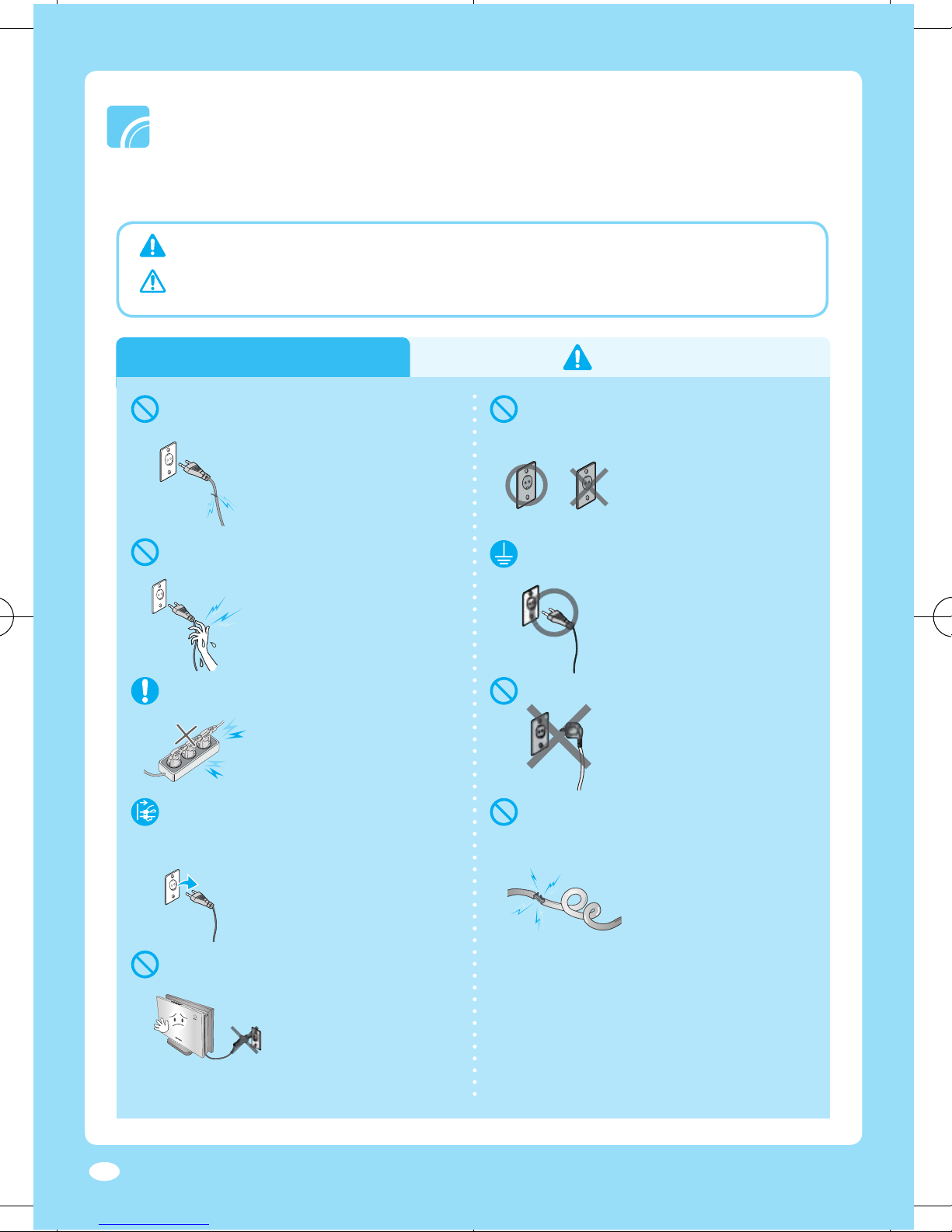

Safety Information
Please read and follow the instructions in this manual for safety of user and to prevent any
possible damage or loss of property.
Power supply
220V 110V
Do not use the product connected to
unrated power supply.
▶ Product may not
operate normally and there
is potential risk of fire.
Never use a damaged power plug or
loosened power receptacle.
▶ Potential risk of fire or
electric shock.
Do not use the multi outlet.
▶ Potential risk of fire or
electric shock.
Use the authorized power cable only.
▶ Potential risk of fire or
electric shock.
Do not bend the power cable
excessively or place heavy object on
the power cable.
▶ Potential risk of fire or
electric shock.
If the product is not going to be used
for an extended period of time, unplug
the power from the wall.
▶ You can save energy and
prevent electric leak or fire.
Do not unplug the power cable to turn
off the power.
▶
Potential risk of product
damage or electric shock. Use
the power button to turn off the
power.
Do not yank the power cable and touch
the power plug with wet hands.
▶ Potential risk of fire or
electric shock.
Connect the power plug to a grounded
receptacle.
▶ Potential risk of fire or
electric shock.
Hazards or unsafe practices that may result in severe personal injury or death.


Hazards or unsafe practices that may result in minor personal injury or
property damage.

SPi ｹﾙﾀﾌｷｯｽｺﾁｦｷﾎ ｽｺﾅﾄｵ衂・IB_E(110420).indd 3 2011-04-20 ｿﾀﾀ・9:40:36

4
Follow the direction carefully.
Do not attempt.
Do not disassemble.
Make sure the machine is grounded to prevent electric shock.
Unplug the power plug from the wall socket.
Installing
Installing
Do not install the product in a place
where fl ammable gas leaks or may
potentially leak.
▶ Potential risk of explosion
or fire.
Install the product away from direct
exposure to sunlight, heating
appliance and humid places.
▶
There are potential risk of
electric shock and
performance decrease.
10cm
10cm
Make sure to clear at least 10cm
around the product.
▶ If you cannot clear space
around the product, it may
cause performance decrease.
Do not install the product in uneven or
sloped surface.
▶ If the product falls, it can
be damaged or perform
abnormally.
Do not install the product in a place
with oil fume or metallic dust.
▶ Potential risk of fire or
product damage.
Do not install the product near heating
appliance such as stove.
▶ Potential risk of fire.


SPi ｹﾙﾀﾌｷｯｽｺﾁｦｷﾎ ｽｺﾅﾄｵ衂・IB_E(110420).indd 4 2011-04-20 ｿﾀﾀ・9:40:37

5
Safety Information
( Continued)

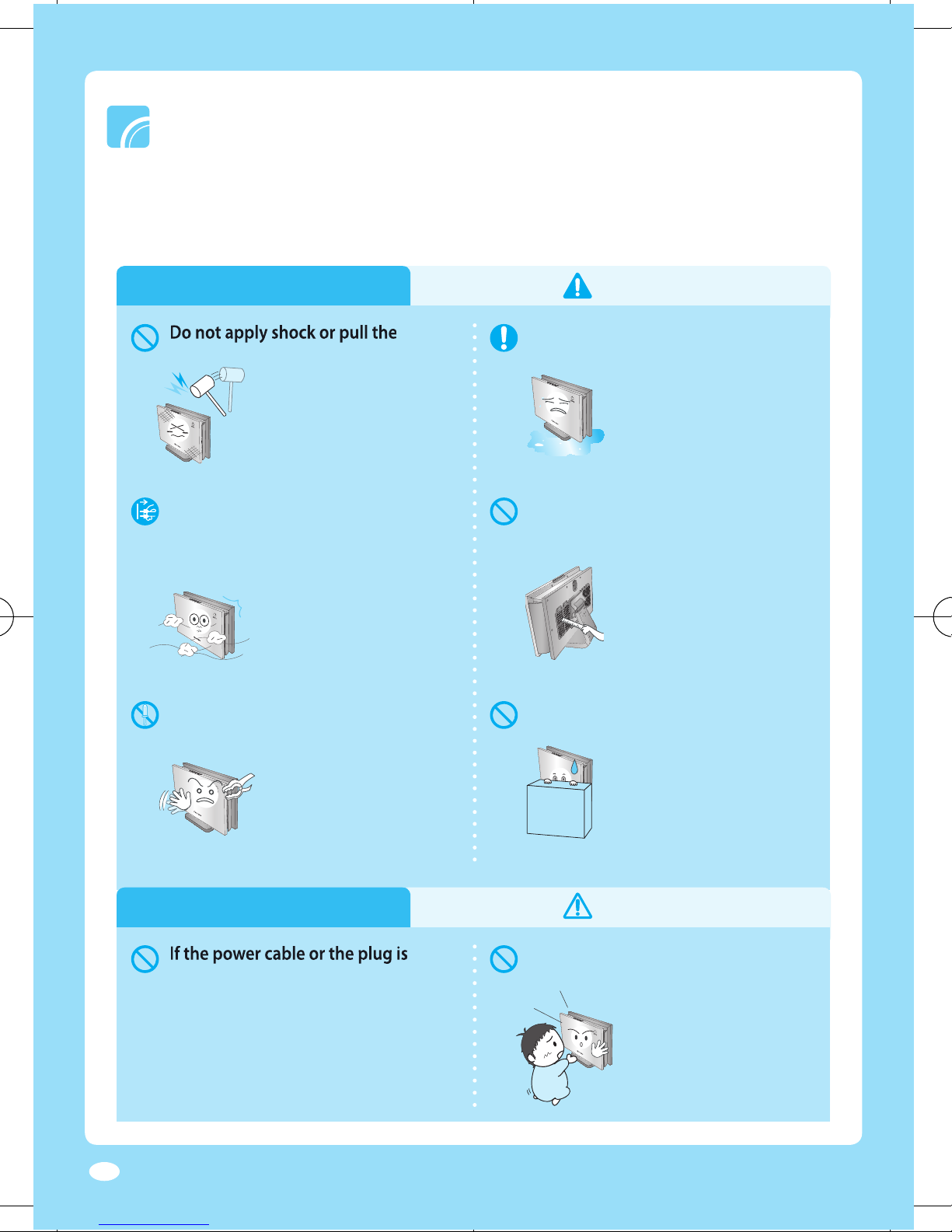

Operating
Do not apply shock or pull the
appliance with excessive power.
▶ This may result in fire, injury
or a problem with the
product.
Do not insert fi ngers or foreign
substances into the air inlet or ion
outlet.
▶
Potential risk of product
damage or electric shock.
If the product generates a strange
noise, burning smell or smoke, unplug
the power plug immediately and
contact service center.
▶ Potential risk of fire or
electric shock.
If the appliance is fl ooded, contact
nearest service center.
▶ Potential risk of fire or
electric shock.
Make sure there is no obstacle near air
inlet or the ion outlet.
▶
It may cause product damage
or performance decrease.
Do not attempt to repair, disassemble
or modify the appliance yourself.
▶ Potential risk of product
damage, electric shock or fire.
Contact service center when
repair is needed.
Operating
If the power cable or the plug is
damaged, the manufacturer or a
qualifi ed service technician must
replace it.
NO!
Make sure children does not touch or
use the product.
▶ If the product falls, they may
get injured.


SPi ｹﾙﾀﾌｷｯｽｺﾁｦｷﾎ ｽｺﾅﾄｵ衂・IB_E(110420).indd 5 2011-04-20 ｿﾀﾀ・9:40:39

6

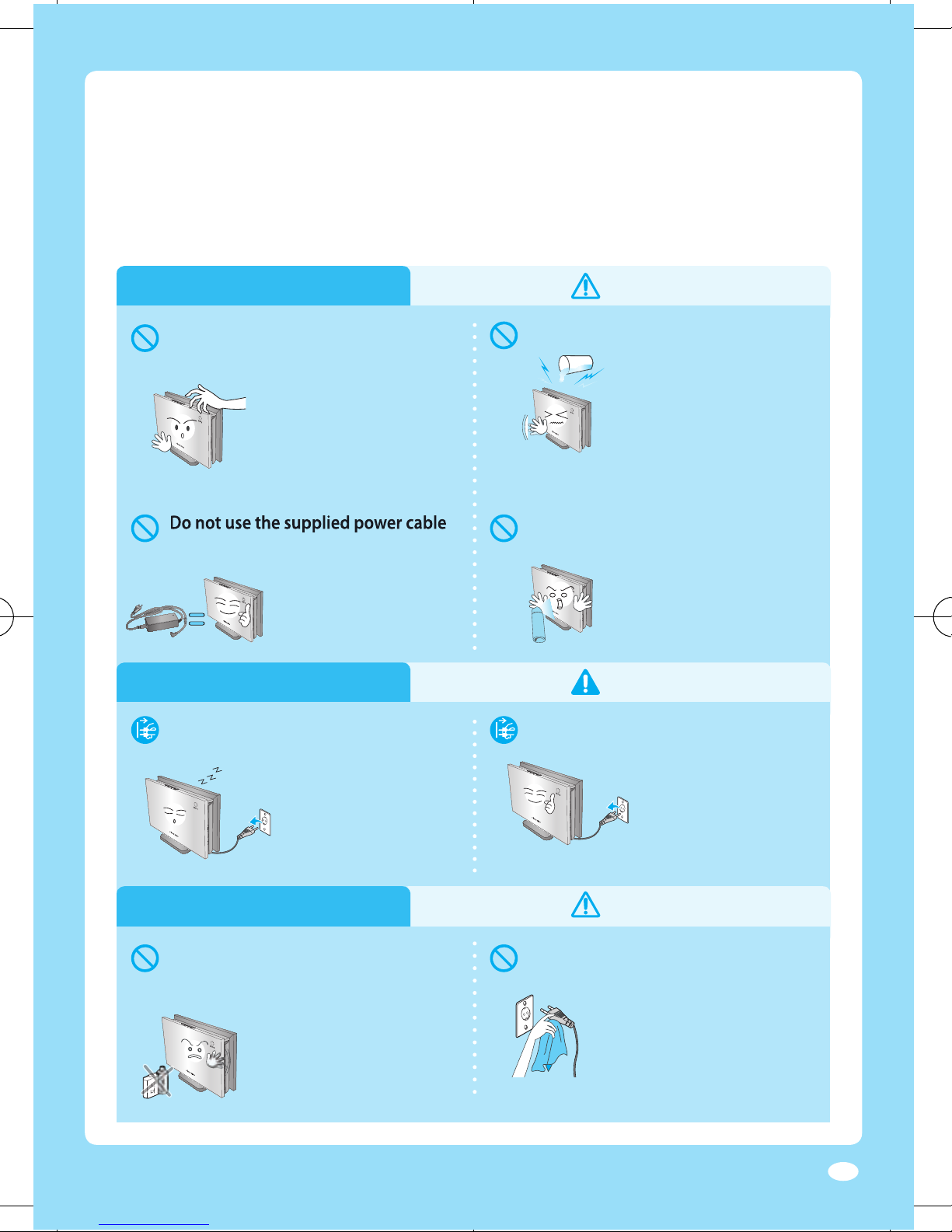

Operating
Do not touch the ion outlet while
product is operating.
▶ Potential risk of product
damage or electric shock.
Ensure no water gets into the product.
▶ Potential risk or
electric shock.
▶ If the water gets into the
product, stop the operation
and unplug the power
cable.
Do not spray infl ammable gases such
as insecticide near the product.
▶
Potential risk of electric shock,
fire or unit malfunction.
Do not use the supplied power cable
with any other products.
▶
Potential risk of product
damage or electric shock.
Cleaning
Cleaning
Unplug the power before cleaning the
product.
▶ Potential risk of personal injury
or electric shock.
Unplug the power before changing the
air fi lter.
Do not spray water directly on the
product or use benzene, thinner or
alcohol to clean the product.
▶ Potential risk of fire or
electric shock.
▶ It may damage the surface
of the product.
Clean the dusts on the power plug
pins.
▶ Potential risk of fire or
electric shock.



SPi ｹﾙﾀﾌｷｯｽｺﾁｦｷﾎ ｽｺﾅﾄｵ衂・IB_E(110420).indd 6 2011-04-20 ｿﾀﾀ・9:40:41

7
Checking the Components
The fi gure in this manual may diff er from actual product.
Main Unit
※
Check if any contents are missing or damaged before using.
※
To purchase additional power adapter, contact our customer center (714-530-5791)
Remote
Controller
Power Adapter
Stand
Wall Bracket
Installing a battery
Screws
(6 ea)
User’s
Manual
Cleaning
Brush
Anchor
(6 ea)
Clamping Bolt
(1 ea)
2
1
1
Open the battery holder on the back of the remote control.
▶
Press the smaller piece in the direction of the arrow
(
①
) and pull the battery holder out(
②
).
2
Insert a battery (Lithium Ion).
▶
Make sure that you check the (+) and (-) signs of
the battery.
3
Slide the battery holder back in.
▶
Push it until you hear click sound.
●
Point the remote controller towards the remote control
sensor of the main unit.
●
The signal may not be received well of electronic lighting
style fluorescent lamps such as inverter fluorescent lamps
are in the same space.
●
If other electrical products operate by the remote controller,
contact the customer service center.
SPi ｹﾙﾀﾌｷｯｽｺﾁｦｷﾎ ｽｺﾅﾄｵ衂・IB_E(110420).indd 7 2011-04-20 ｿﾀﾀ・9:40:45

8
Checking the Parts
Check the names and functions of each part.
Front side Rear side
Ion outlet
Ions are emitted
through here
Control panel
Remote controller sensor
LED indicator
Indicates operation status and
ion strength
Air flow blades
Adjusts the
air flow direction
Air inlet
Dust filter
(detachable)
Filters dust from intake air
Bottom
Power input port
Connects the power adapter jack
Height/Angle adjustment
Adjusts the height and the angle of the
product
Bracket bar
Fixes the product when installing on a wall
or on the stand
※
Remote controller and control panel have same buttons and adjusts same functions.
※ Remote controller and control panel have same buttons and adjusts same functions. ※

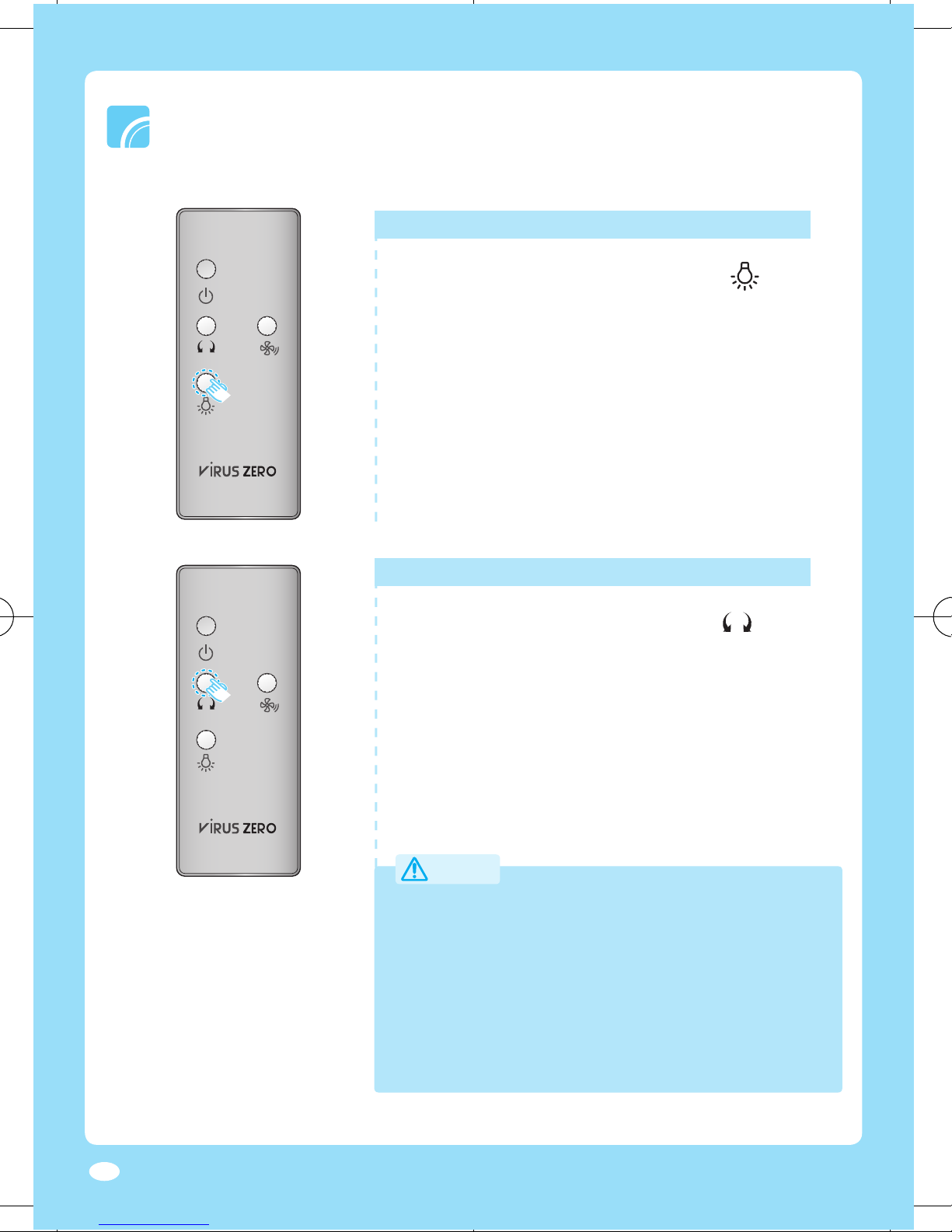

Buttons on control panel and remote controller
Power Button
Turns the power on/off
Ion Strength Button
Controls ion strength
LED Indicator Button
Turns LED indicator on/off
Wind Button
Adjusts the air fl ow direction
Remote controller
SPi ｹﾙﾀﾌｷｯｽｺﾁｦｷﾎ ｽｺﾅﾄｵ衂・IB_E(110420).indd 8 2011-04-20 ｿﾀﾀ・9:40:49

9
Installing the Product

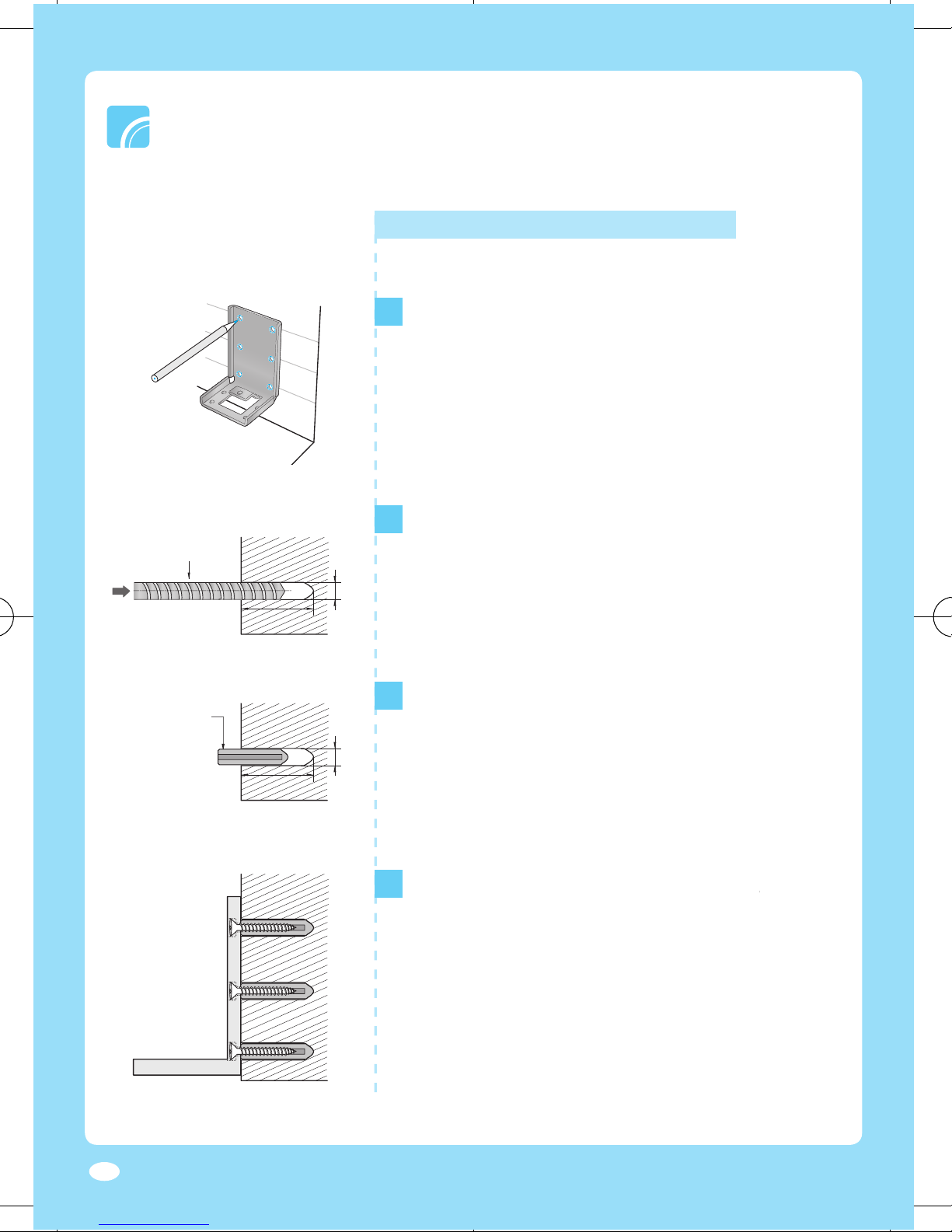

Installing a wall mount type
(Preparations: Spirit level, pen or pencil, electric hammer drill,
hammer and driver)
1
After locating the bracket to be attached on a
wall, adjust it horizontally with a spirit level and
mark the positions of 6 bracket holes with a pen.
2
Make holes (diameter: 6.5 mm) on the marked
wall with an electric hammer drill.
3
After inserting anchor into the drilled holes, strike
them with a hammer to insert deeply and then
remove the ends of the anchor protruding from
the wall with a knife.
Wear protective equipment (gloves, safety glasses, etc.) for your safety.
4
Align the bracket holes on the wall where
anchors
are
anchors are anchors
inserted and secure the bracket with screws.
Electric
Hammer Drill
Anchor
SPi ｹﾙﾀﾌｷｯｽｺﾁｦｷﾎ ｽｺﾅﾄｵ衂・IB_E(110420).indd 9 2011-04-20 ｿﾀﾀ・9:40:50

10
10
●

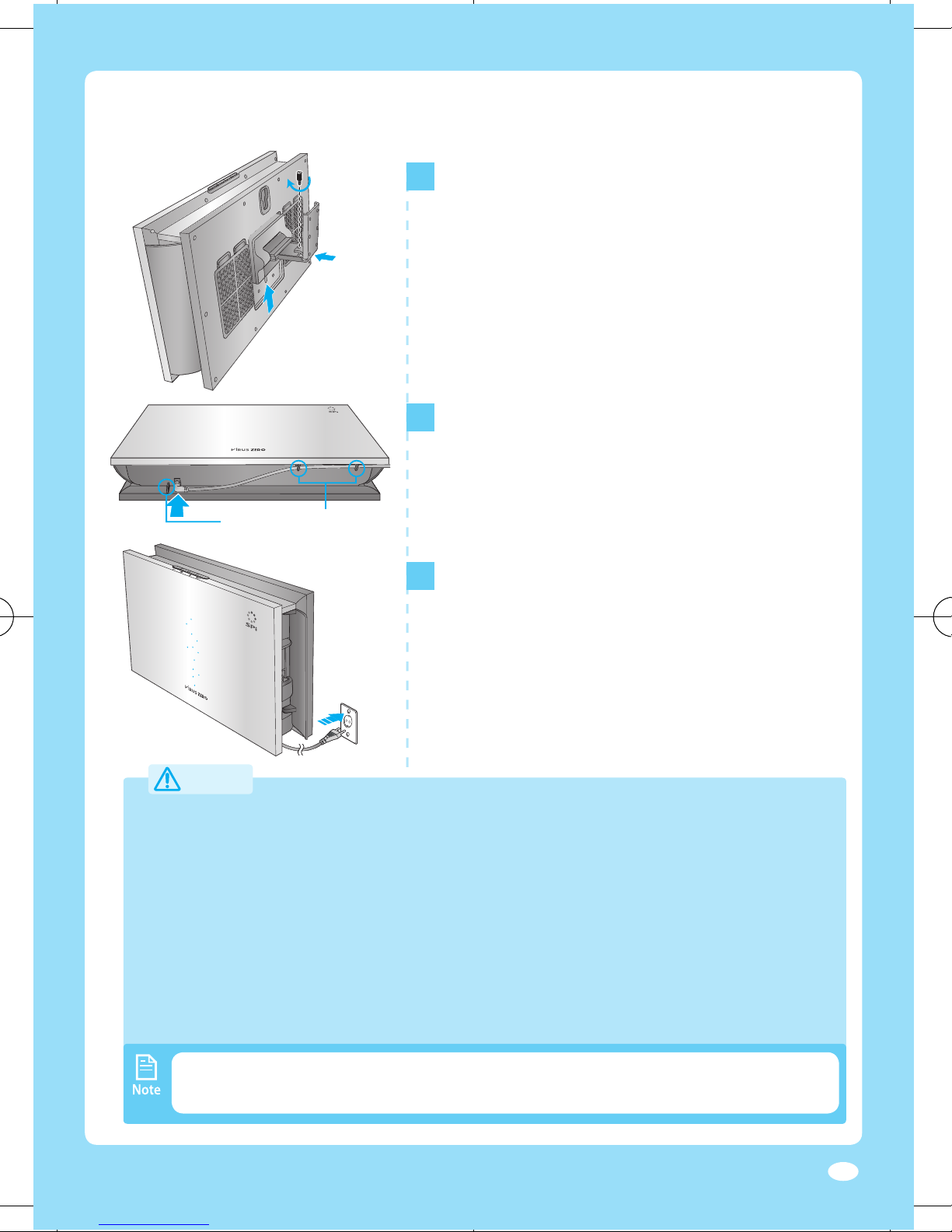

For the location on a wall to install the product, select a place where you can easily
separate the product for regular cleaning of the dust filter and repairs.
●
After checking the internal structure of the wall, install the product on a solid place that
can withstand the weight of the product. If the wall structure is weak (e.g., sheetrock or
thin plywood), the product may fall.
●
When installing the product on a wall, keep and secure it horizontally to prevent it from
swaying on the wall.
●
Always use a exclusive power adapter.
Using a power adapter with different rating voltage may result in product malfunction or
fire.
5
After inserting the bracket bar on the rear side of
the product into the bracket attached on the wall,
fi x the product with a clamping bolt.
▶
When fi xing the product on the bracket, lift the
Height/Angle Adjustment up to the maximum
extent by taking account of product’s weight and
center of gravity.
6
Plug the power adapter jack to the power input
port and insert the power cable to the power
cable holders in the correct direction that a power
socket is located.
7
Connect the power adapter to the power socket.
▶
When connecting the power, the LED indicator of
the power adapter turns blue (operation standby)
and a dingdong sound is heard.
●
Using the product in a place with low humidity (below 20%) may deteriorate the
performance of the product.
Power Cable Holders

SPi ｹﾙﾀﾌｷｯｽｺﾁｦｷﾎ ｽｺﾅﾄｵ衂・IB_E(110420).indd 10 2011-04-20 ｿﾀﾀ・9:40:52

11
11
Installing the Product
(Continued)
Installing a stand type
(Preparation: Screwdriver)
1
After inserting a bracket bar on the rear side of
the product into the supplied stand, fi x the
product with a clamping bolt.
▶
When mounting the product on the stand, you
can adjust the angle with the height/angle
adjustment.
2
Plug the power adapter jack into the power input
port and insert the power cable to the power
cable holders in the correct direction that the
power socket is located.
3
Connect the power adapter to a power socket.
▶
When connecting the power, the LED
indicator of the power adapter turns blue
(operation standby) and a dingdong sound is
heard.
●
Always use a exclusive power adapter.
Using a power adapter with different rating
voltage may result in product malfunction or fire.
●
Using the product in a place with low humidity
● U sing the product in a place with low humidity ●
(below 20%) may deteriorate the performance of
the product.
Power Cable Holders

SPi ｹﾙﾀﾌｷｯｽｺﾁｦｷﾎ ｽｺﾅﾄｵ衂・IB_E(110420).indd 11 2011-04-20 ｿﾀﾀ・9:40:53

12
12
Operating the Product
Learn how to use the buttons on the remote controller or the control panel.
(
Remote controller and control panel have same buttons and adjusts same functions.
)
Turning on the power
To start the operation, press [
] button on the
remote controller or control panel.
▶
The LED indicator is turned on along with the
The LED indicator is turned on along with the
operation startup sound.
▶
If the operation starts, the air fl ow blades
automatically moves to adjust air fl ow direction
regardless of the previous setting.
▶
The ion strength at the start of its operation is ‘low’.
The ion strength at the start of its operation is ‘low’.
Powering on/off
Turning off the power
To stop the operation, press [
] button on the
remote controller or control panel.
▶
The LED indicator is turned off along with the
The LED indicator is turned off along with the
operation end sound.
▶
If the operation stops, the air fl ow blades will be
closed automatically.
To select ion strength, press [
] button on the
remote
controller or control panel
while operating.
▶
Whenever the button is pressed, the operation mode
will be selected in order of (low)
▷
(high)
▷
(turbo)
along with dingdong sounds.
▶
If you start the operation, the ion strength is set to ‘low’
regardless of the previous setting.
Adjusting ion strength
SPi ｹﾙﾀﾌｷｯｽｺﾁｦｷﾎ ｽｺﾅﾄｵ衂・IB_E(110420).indd 12 2011-04-20 ｿﾀﾀ・9:40:55

13
13
To adjust the air fl ow direction, press [
] button
on the remote controller or control panel while
operating.
▶
If you press the button, the air fl ow blades will move
or stop.
▶
If you start the operation, the air fl ow blades will
automatically move regardless of the previous
setting.
Adjusting air fl ow direction
Operating the Product
(Continued)
To turn on/off the LED indicator, press [
] button
on the remote controller or control panel.
▶
If you press the button, the LED indicator is turned on
or off along with a ‘ding’ sound.
▶
The stronger the ion strength is, the faster the blink
The stronger the ion strength is, the faster the blink
speed of the LED indicator is.
▶
If you start the operation, the LED indicator is always
turned on regardless of the previous setting.
Turning on/off the LED indicator
●
Do not press any button by force or multiple buttons
simultaneously. It may result in product malfunction.
●
Do not open or close the air flow blades in any way.
In particular, if you close the air flow blades during
operation, it may result in product malfunction due to
the overload of the fan motor by directing the wind to
the inside of the product.

SPi ｹﾙﾀﾌｷｯｽｺﾁｦｷﾎ ｽｺﾅﾄｵ衂・IB_E(110420).indd 13 2011-04-20 ｿﾀﾀ・9:40:56

14
14

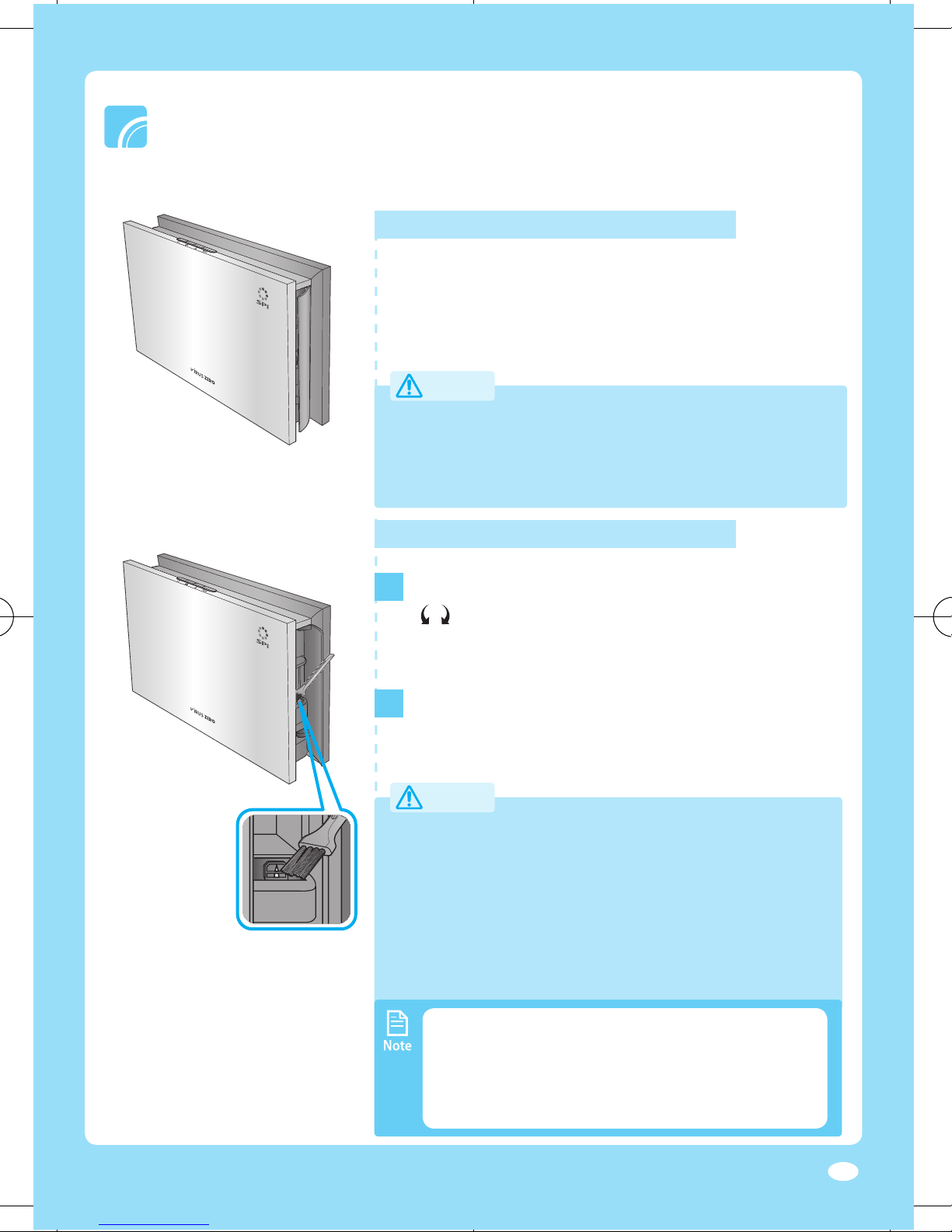

Cleaning and Maintaining the Product
Turn off the power and unplug the adapter before cleaning the product.
1
To stop the operation of the air fl ow blades, press
[
] button on the remote controller or the
control panel when it is completely inclined to any
side during the operation.
2
Use the cleaning brush to clean the tip of the pin
electrode on left and right side of the product as
shown in the picture.
●
Do not spray water directly on the product or use alkaline
detergent and organic solvent (Benzene, thinner or
alcohol) to clean the product. They may damage the
surface of the product or cause fire and electric shock.
Cleaning the pin electrode
Wipe the surface of the product with a slightly
wet or dry cloth when needed.
▶
Use the cleaning brush to clean the dust or other
foreign substances on the ion outlet.
Cleaning the exterior
●
Pin electrodes can be damaged by strong external
impact from the. Do not apply excessive force to the pin
electrodes to prevent them from bending or breaking
when cleaning.
●
Do not open the air flow blades in any manner when
its operation is stopped. It may result in product
malfunction.
●
Clean the pin electrode every two weeks.
The cleaning term may differ on usage and
environmental condition.
Accumulated dust on the pin electrode may
cause performance decrease.


SPi ｹﾙﾀﾌｷｯｽｺﾁｦｷﾎ ｽｺﾅﾄｵ衂・IB_E(110420).indd 14 2011-04-20 ｿﾀﾀ・9:40:58

15
15
Cleaning and Maintaining the Product
(Continued)
Cleaning the dust fi lter
1
Disassemble the power adapter jack from the
power input port.
2
Disassemble the dust fi lter.
▶
As shown in the fi gure on the left, you can
separate the dust fi lter by pulling it in the
direction of the arrow.
3
Remove the dust accumulated in the dust fi lter
with a cleaning brush.
4
After cleaning, assemble the fi lter again.
▶
After aligning the lower part of the fi lter with the
groove of the product, slide the fi lter until you
hear a ‘click’ sound.
●
When cleaning the dust filter of a wall mount-type product, disassemble the filter after
separating the product from the bracket attached to a wall.
If you disassemble the dust filter with the product connected to the bracket, it induces
improper posture or excessive force due to the narrow space between the product and the
wall. It may result in personal injury or product damage.
●
Clean the dust filter every two weeks. The cleaning term may differ on usage
and environmental condition. Accumulated dust on the dust filter may cause
performance decrease.

SPi ｹﾙﾀﾌｷｯｽｺﾁｦｷﾎ ｽｺﾅﾄｵ衂・IB_E(110420).indd 15 2011-04-20 ｿﾀﾀ・9:41:00

16
16
Troubleshooting
Problem
Check
Solution
Product is not operating.
Check if there is power failure.
Make sure that the power is on
before trying again.
Check if the power plug is
properly connected.
Connect the power plug properly and
try again.
Check if the adapter is
working properly.
Try another power receptacle.
Strange odors
permeate in the room
during operation.
Check if you are using the
product in a place with smoke
or other odor.
It can be less eff ective when the
product is being used in a place with
excessive odor or smoke. Ventilate the
area before using the product.
Check if there is dust or foreign
substances on the ion outlet.
Clean the ion outlet and operate the
product.
Not sure if the product is
operating.
Is the LED indicator of the
product turned off ?
Press [
] to turn on the LED
indicator.
There is no air coming out.
Check if the air fi lter is blocked
with dust.
Clean the air fi lter if it is dirty.
Noise is coming out from
the product.
Check if the ion outlet is
blocked.
Remove any obstacles blocking the
ion outlet.
This product is equipped with a small fan. A small noise during opera-
tion is normal.
Check the following list before reporting the problem.
SPi ｹﾙﾀﾌｷｯｽｺﾁｦｷﾎ ｽｺﾅﾄｵ衂・IB_E(110420).indd 16 2011-04-20 ｿﾀﾀ・9:41:00

17
17
Model name
SP-SA6
Dimension
(Length X Width X Height)
419 X 80 X 246 mm
Rated Voltage
DC 12V exclusive adapter
Product Specifi cation
● Due to ongoing improvement of the product, specification and design may change without
prior notice.
SPi ｹﾙﾀﾌｷｯｽｺﾁｦｷﾎ ｽｺﾅﾄｵ衂・IB_E(110420).indd 17 2011-04-20 ｿﾀﾀ・9:41:00

18
18
Product Warranty
제품보증서
Product Name Model Name
Date of Purchase . . . Serial No.
Place of Purchase Price
About warranty service
Mag & Brook,Inc. provide warranty service according to following
guideline stated below. When the product repair is required, Mag
& Brook,Inc. will provide warranty service and the detail status of
the product will be notifi ed within 7days and the refund or pro
duct exchange will be done within a 14 days from repair request.
If the product is used in commercial place, warranty period will be shortened by half.
 Type of defects or trouble Within warranty period After warranty expires
When the product shows performance or functional failure within the part service period.
 Critical performance and Exchange or refund N/A
functional failure within 10 days
from purchasing the product
 Critical performance and Exchange or free repair N/A
functional failure within
a month from purchasing
the product
 Defect occurred during Exchange N/A
shipping or installationn
 Critical performance and Refund N/A
functional failure within a
month from product exchange
 When product Refund N/A
exchange is impossible
 When same failure Free repair Paid service
occurred twice
 When same failure Exchange or refund Paid service
occurred three times
 When different failures Exchange or refund Paid service
occurred five times
 When the product is lost Exchange or refund Refund the price
during repair service deducted by the
depreciation amount
and added by its 10%
 When the product repair is Exchange or refund Refund the price
impossible because parts deducted by the
are not in stock within the depreciation amount
part service period and added by its 10%
When the product is not defected
 Re-installation is required due to
false installation by installation
agency or repair doesn’t require
disassembling.
 When the product requires
internal cleaning and
re-installation due to moving,
false installation or other reasons.
Others
 Defects resulting from natural
disasters such as fire, earthquake,
flood, etc.
 Expiry of life time of consumable
parts (filters etc.)
※
Service fee will be charged if the product repair is requested when the
product is not defected.
If the product defect is caused by user
 When repair is impossible Refund after equivalent Refund the price
even though the parts are repair service fee is charged deducted by the
available depreciation amount
after equivalent repair
service fee is charged
 When the product Paid service Paid service
repair is possible
Free warranty service Paid service
Product warranty is for 1 Year
When the defect is caused by user
 Defects caused by careless
handling or improper repairing
and modification.
 Defects caused by using
improper power supply.
 Defects caused by repairs done
at a place other than the Mag &
Brook, Inc
 Defects or damages resulting
from dropping the product.
 Defects caused by using
accessories not provided by
Mag & Brook, Inc
 Defects caused by not following
the ‘Safety information’ on the
user manual
SPi ｹﾙﾀﾌｷｯｽｺﾁｦｷﾎ ｽｺﾅﾄｵ衂・IB_E(110420).indd 18 2011-04-20 ｿﾀﾀ・9:41:01

2010-0003-01
Customer Service Center
714-530-5791
Let us know the product model, problem and the contact
information. We will try to provide you with the fast and
satisfying solution.
Distributor / Manufacturer : Mag & Brook, Inc.
Device provider : Samsung Electronics Co., Ltd.
Mag & Brook, Inc.
SPi ｹﾙﾀﾌｷｯｽｺﾁｦｷﾎ ｽｺﾅﾄｵ衂・IB_E(110420).indd 19 2011-04-20 ｿﾀﾀ・9:41:01
