VisionTrack VT4500 User manual

THE UK'S MOST AWARD-WINNING CAMERA TELEMATICS COMPANY
www.visiontrack.com
INSTALLATION GUIDE
VT4500

VT4500 INSTALLATION GUIDE
t [phone] | e[email protected] | wvisiontrack.com
1
Failure to comply with the following Warnings, Approval and Safety information may
invalidate warranty, certification or type approval of this product.
Before you begin installing and commissioning the system please ensure that you have read
this manual thoroughly referring to any supplementary information provided for the unit as
required.
Unauthorised modification to this equipment or associated accessories is forbidden without
the expressed permission and agreement from the product manufacturer.
This equipment should not be operated in hazardous environments i.e. areas that contain
explosive materials or flammable vapours.
This equipment should not be operated within aircrafts or in close proximity to medical
equipment.
This equipment may only be located in a position where it cannot interfere with the normal
operation of the vehicle or present a hazard to the driver or passengers.
Care must be taken in the routing of all cables so that the insulation does not become worn
or damaged.
All installation and service work must be carried out in accordance with FCS1362, FCS1372,
RQAS, 95/54/EC, ISO 21609 and / or any other statutory guidelines or Directives currently in
force. Therefore it is strongly recommended that the unit is installed and commissioned by
suitably trained and qualified installation personnel with accreditation.
Unauthorised changes or alterations to the equipment or the installation will invalidate
certification issued by the Approved Accreditation Bodies and may also affect the vehicle
manufacturers warranty.
Under no circumstances may any part of the product be installed inside the engine
compartment area.
Important Information: !

VT4500 INSTALLATION GUIDE
2
t [phone] | e[email protected] | wvisiontrack.com
Important Information: !
Power: All VisionTrack devices MUST be wired to their own power supply and not
connected/shared to an existing power pickup point. We recommend that the vehicle power
pickup points should be located using the vehicle manufactures instructions. *THIS MEANS YOU
CANNOT USE ANOTHER TELEMATICS PROVIDERS POWER SUPPLY OR PICK UP POINTS TO
POWER A VISIONTRACK DEVICE.
To avoid interference, the VisionTrack power supply MUST be installed as far away from other
Telematics devices and power supplies already installed within the vehicle as possible. Ideally on
the opposite side of the vehicle.
GPS/3G and 4G Antennas: To avoid interference the VisionTrack device antennas MUST be
installed as far away from each other as well as other Telematics devices already installed within
the vehicle as possible. Ideally in the opposite side A-pillar.
Securing: The MDVR has an internal accelerometer to measure harsh driving events so you
MUST ensure that it is firmly secured in the vehicle.
You MUST also ensure the device is calibrated as part of the commission process.
List of do’s and don’t’s when installing a VisionTrack MDVR.

The VT4500 is a compact mobile digital video
recorder (MDVR) that supports our full range of
multi-channel cameras, monitors and fleet
safety devices. This five-channel solution
offers 360º coverage of a vehicle, providing
excellent footage and picture clarity
that is uploaded automatically to our
multi-award-winning IoT platform in the
event of an incident.
VT4500 INSTALLATION GUIDE
t [phone] | e[email protected] | wvisiontrack.com
3
Overview
Key features:
INSTANT
NOTIFICATIONS
Sppors 5-chnnels
(1 chnnel FHD,
4 Chnnels AHD)
Accre G-shock sensor
mesres impc force n
riving sle
Monior river behvior from
nwhere sing he VisionTrck
IoT plform
Provies HD imges
before, ring n
fer n incien
API vilble for
irec inegrion wih
elemics sofwre
Fll lockble
mper-proof cse

VT4500 INSTALLATION GUIDE
4
What’s in the box:
t [phone] | e[email protected] | wvisiontrack.com
VT4500 Mobile DVR
1VT4500 Locking Case
2
S-VT4500 GPS MODULE3S-VT4500 4G MIMO ANTENNA
4
Camera Input Cable5Monitor Output/Alarm Input
Cable
6
Power Cable7VT4500 REMOTE CONTROL
8
Screws and Torx Key10Cable Clips9Preperation Pad
11

VT4500 INSTALLATION GUIDE
5
VT4500 Details:
Micro USB Port
Device Status
Indicators (LED)
SSD Access Cover SIM/SD Card
Access Cover
Cover Mounting Clips
See page 8
t [phone] | e[email protected] | wvisiontrack.com

6
VT4500 Installation:
VT4500 INSTALLATION GUIDE
1
Find installation location for VT4500 like in the glove box, under the dash
or in the trunk.
2
Install the VT4500 Remote Control (Panic Button) onto the dash within reach
of the driver using the 3M™ Pad provided. (Example shown below).
Panic Button install location example.
4
Arrange the power cable neatly alongside the door pillar trim. The VT4500
requires a continuous 12 to 24 volt power supply from the vehicle. As well as
ignition, this can be installed into the 24/12v vehicle.
5
Use provided Velcro adhesive to secure VT4500 recorder. Velcro can be
attached and detached freely.
NOTE: The adhesive will not stick well with dust or oil, etc.
Please make sure the surface is clean before applying.
3
t [phone] | e[email protected] | wvisiontrack.com
Park your vehicle on a flat level surface. Turn off the engine before installing
the VT4500.

Items Definition
Panic Button
1.
Red LED (Warning)
2.
Blue LED (Record)
3.
Green LED (Network)
4.
VT4500 INSTALLATION GUIDE
7
VT4500 Wiring:
Panic Button:
Power
Triggers
t [phone] | e[email protected] | wvisiontrack.com
GND_SIGNAL1 Ground
2 BAT+ Power Battery +
3 ACC_IN Power ACC + (Ignition Feed)
1 ALARM_IN1 Alarm In1, Voltage on/off (3~70V)
2 ALARM_IN2 (Alarm In2, Voltage on/off (3~70V)
3 ALARM_IN3 (Alarm In3, Voltage on/off (3~70V)
4 RPM_IN RPM
5 SPEED_IN Speed
6 ALARM_IN4 Alarm in4, NC/NO
7 ALARM_OUT1A Alarm out
8 GND (x2) Ground
Label DescriptionColourPin
1
2
3
4

VT4500 INSTALLATION GUIDE
8
VT4500 Wiring:
t [phone] | e[email protected] | wvisiontrack.com
VT4500 MDVR
1
6 7
2 3 4 5
Cable Connections
Locate the cables and connect using
the diagram and descriptions below.
Camera Input Cable
Line the connection up with the AV IN (shown above) and
push until click to secure.
1
Panic Button
Line the connection up with the REMOTE input (shown above)
and push until click to secure.
2
VT4500 GPS Module
Line the connection up with the GPS input (shown above) and
push until click to secure.
3
Monitor Output/Alarm Input Cable
Line the connection up with the AV OUT/ALARM (shown above)
and push until click to secure.
4
Power Cable
Line the connection up with POWER (shown above) and push
until click to secure.
5
S-VT4500 4G MIMO ANTENNA
Line the antenna connections up with the VT4500 inputs and
twist to secure (clockwise). ANT 1 (8) ANT (9).
6 7

VT4500 INSTALLATION GUIDE
9
VT4500 Specifications:
t [phone] | e[email protected] | wvisiontrack.com
FHD(1920x1080) x 1 Channel, AHD(1280×720) x 4 Channels
5CH from cameras
1 Video out, 1 Audio out
LTE : B1/B3/B7/B8/B20 (EU) | B2/B4/B5 (NF)
WCDMA : B1/B8 (EU) | B2/B5 (NF)
UL:5.76Mbps, DL : 7.2Mbps
1080p HD (1920x1080), 720P (1280x720),
D1(NTSC:720x480, PAL 720x576)
Full HD: 30fps(25fps), HD: 60fps(50fps)
D1: Up to 120 fps (NTSC) or 100fps(PAL)
Continuous , Event, Dual Mode
Support 32GB, 64GB(FAT32), 128GB(FAT32)
Internal 3-axis G-sensor
3Axis(X,Y,Z), output rate:100 Hz,
Internal battery
4 x Alarm In, 1 x Alarm Out
3x LED, Panic button, M1 & M2 button
Green LED (Network), Blue LED (Record), Network (Red LED)
Enable recording of last file and shut down
DC 12V/24V 3A
Supports Delayed Power Shutdown
195mm X 144mm X 31mm / 323g
-10˚~55˚
Video In
Audio In
AV Out
Band support
Max Data Rate
Video resolution
Recording Speed
Recording Mode
Memoryt
G-Sensor
Gyro
RTC
Alarm In/Out
Remote controller
LED
Super Capacitor
Power input
Delayed Power Shutdown
Size / Weight
Operation Temp.

VT4500 INSTALLATION GUIDE
10
LEDs and Buzzer Specification:
t [phone] | e[email protected] | wvisiontrack.com

VT4500 INSTALLATION GUIDE
11

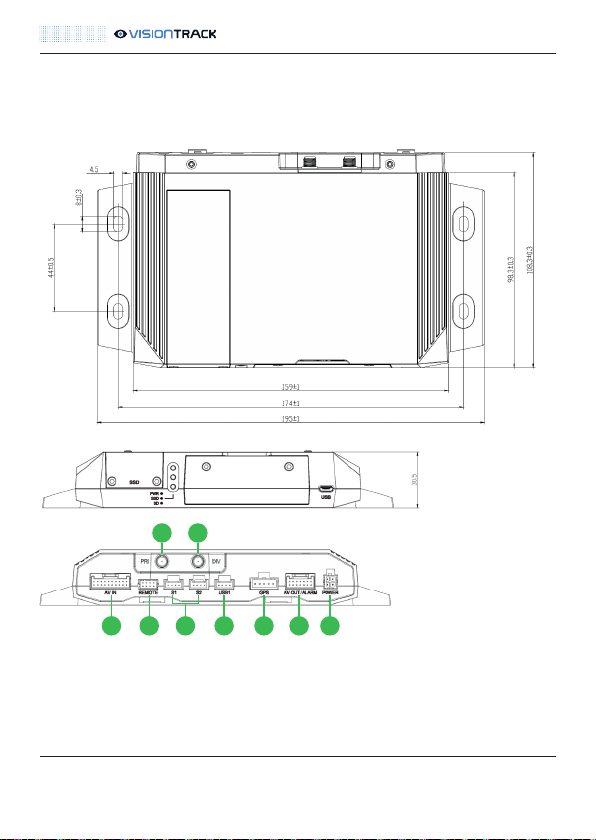

VT4500 Dimensions LxHxW:
t [phone] | e[email protected] | wvisiontrack.com
Items Definition
AV Input
1.
Remote Control
2.
n/a
3.
n/a
4.
AV Output/Alarm
5. Diversity Antenna 9.
AV Output
6.
DC Power In
7.
Primary Antenna
8.
Dimensions 108.3x30.5x195LxHxW
1
8 9
2 4 5 6 73
