Sony DVCAM DSR-80 User manual

DSR-80P
DIGITAL VIDEOCASSETTE RECORDER
DSR-80
DIGITAL VIDEOCASSETTE PLAYER
DSR-60
DSR-60P
INSTALLATION MANUAL
1st Edition (Revised 1)
DSR-80
DSR-80P
DSR-60 Printed in Japan
DSR-60P (UC, CE, ) 1997. 5 16
9-977-694-02 Image & Sound Communication Company  1997
Published by
Engineering Services Dept.
Sony Corporation

SAFETY CHECK-OUT
After correcting the original service problem, perform the
following safety checks before releasing the set to the
customer :
Check the metal trim, “metallized” knobs, screws, and all
other exposed metal parts for AC leakage. Check leakage
as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth
ground and from all exposed metal parts to any exposed
metal part having a return to chassis, must not exceed 0.5
mA (500 microampers). Leakage current can be measured
by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229
or RCA WT-540A. Follow the manufacturers’
instructions to use these instruments.
2. A battery-operated AC milliammeter. The Data
Precision 245 digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means
of a VOM or battery-operated AC voltmeter. The
“limit” indication is 0.75 V, so analog meters must
have an accurate low-voltage scale. The Simpson 250
and Sanwa SH-63Trd are examples of a passive VOM
that is suitable. Nearly all battery operated digital
multimeters that have a 2 V AC range are suitable. (See
Fig. A)
The material contained in this manual consists of
information that is the property of Sony Corporation and
is intended solely for use by the purchasers of the
equipment described in this manual.
Sony Corporation expressly prohibits the duplication of
any portion of this manual or the use thereof for any
purpose other than the operation or maintenance of the
equipment described in this manual without the express
written permission of Sony Corporation.
Le matériel contenu dans ce manuel consiste en
informations qui sont la propriété de Sony Corporation
et sont destinées exclusivement à l'usage des
acquéreurs de l'équipement décrit dans ce manuel.
Sony Corporation interdit formellement la copie de
quelque partie que ce soit de ce manuel ou son emploi
pour tout autre but que des opérations ou entretiens
de l'équipement à moins d'une permission écrite de
Sony Corporation.
Das in dieser Anleitung enthaltene Material besteht aus
Informationen, die Eigentum der Sony Corporation sind,
und ausschließlich zum Gebrauch durch den Käufer der
in dieser Anleitung beschriebenen Ausrüstung bestimmt
sind.
Die Sony Corporation untersagt ausdrücklich die Ver-
vielfältigung jeglicher Teile dieser Anleitung oder den
Gebrauch derselben für irgendeinen anderen Zweck als
die Bedienung oder Wartung der in dieser Anleitung
beschriebenen Ausrüstung ohne ausdrückliche schriftli-
che Erlaubnis der Sony Corporation.
To Exposed Metal
Parts on Set
0.15 µF 1.5 k Ω
Earth Ground
AC
voltmeter
(0.75 V)
Fig A. Using an AC voltmeter to check AC leakage.

Introducing this manual
This manual is the installation manual of the digital videocassette recorder model DSR-80/80P
and the digital videocassette player model DSR-60/60P.
This manual contains rack mount information necessary for installation of the equipment,
the connector information necessary for connecting the unit with peripherals and others.
Related manuals
In addition to this Installation Manual, the following manuals are provided.
• Operating Instructions (Supplied with equipment)
Parts number : 3-859-358-11 (English, for UC, CE)
3-859-358-21 (French, for UC, CE)
3-859-358-31 (German, for CE)
3-859-358-41 (Italian, for CE)
Explains how to operate this equipment.
• Service Manual vol. 1 (Not supplied with equipment)
Parts number : 9-977-696-12
Contains the maintenance information and servicing information necessary for parts
replacement and adjustment.
• Service Manual vol. 2 (Not supplied with equipment)
Parts number : 9-977-696-21, 9-977-696-81
Contains the block diagrams, board layouts, schematic diagrams and parts lists.

–1–
TABLE OF CONTENTS
INSTALLATION
1. Installation Procedure .......................................................... 1
2. Operational Environment ..................................................... 1
3. Operating Voltage ................................................................ 1
4. Installation Space ................................................................. 2
5. Supplied Accessories ........................................................... 2
6. Optional Accessories ........................................................... 2
7. Rack Mounting..................................................................... 3
8. Connection of Editing Equipment, and Input/Output Signals
of Connectors ....................................................................... 5
8-1. Connection of Editing Equipment............................... 5
8-2. Matching Connectors .................................................. 9
8-3. Input/Output Signals of the Connectors.................... 10
9. Installation Setup and Adjustment ..................................... 13
9-1. Switch Settings on the Connector Panel ................... 13
9-2. Setting on the Front Panel Unit ................................. 13
9-3. On-board Switch Setting ........................................... 14
9-4. System Adjustment After Installation ....................... 16
9-5. Connection of Editor Controller ............................... 16
10. Setup Check Sheet ............................................................. 18

1
Be sure to install the DSR-80/80P/60/60P in location satisfying the required operational environment described below
to assure the DSR-80/80P/60/60P superior performance and to maintain the excellent serviceability and accessibility.
1. INSTALLATION PROCEDURE
2. OPERATIONAL ENVIRONMENT
.Operating temperature : +5 dC to +40 dC
.Humidity : 80 % or less
.Storage temperature : _20 dC to +60 dC
.Locations to avoid : .Areas where the unit will be exposed to direct sunlight or any other strong lights.
.Dusty areas or areas where it is subject to vibration.
.Areas with strong electric or magnetic fields.
.Areas near heat sources.
(Good air circulation is essential to prevent internal heat build-up. Place the unit in
location with sufficient air circulation. Do not block the ventilation holes on the cabinet
and the rear panel.)
.Horizonal condition : within ±30 d
3. OPERATING VOLTAGE
.Power voltage : AC 100 V to 120 V/NTSC
AC 200 V to 240 V/PAL
.Power frequency : 50/60 Hz
.Power consumption : NTSC (UC): 85 W/DSR-60, 140 W/DSR-80
PAL (CE) : 87 W/DSR-60P, 145 W/DSR-80P
INSTALLATION
START
DETERMINATION OF
INSTALLATION PLACE
UNPACKING
RACK MOUNTING
CONNECTORS
INITIAL SETUP
OPERATION CHECK
END
· · · 2. OPERATIONAL ENVIRONMENT
· · · 3. OPERATING VOLTAGE
· · · 4. INSTALLATION SPACE
· · · 5. SUPPLIED ACCESSORIES
· · · 7. RACK MOUNTING
· · · 8-2. MATCHING CONNECTORS
· · · 8-3. INPUT/OUTPUT SIGNALS OF THE CONNECTORS
· · · 9. INSTALLATION SETUP AND ADJUSTMENT
· · · If an error message is shown on the time counter, refer to
“3-3. ERROR MESSAGE” in SERVICE MANUAL VOL. 1.

2
4. INSTALLATION SPACE
(1) The rear side must be at least 40 cm away from the walls for ventilation and maintenance.
(2) When the unit is operated on a desk or similar condition, assure that the clearance above the unit is at least 40 cm to provide accessibility
to the printed circuit boards and other mechanical parts. Note that it is not necessary to provide the space when the unit is mounted in a
rack since the printed circuit boards can be repaired after it is pulled out.
5. SUPPLIED ACCESSORIES
.AC power cord : (1)
.RCC-5G 9-pin remote cable : (1)
.Operating instructions : (1)
.ClipLink™Guide : (1)
6. OPTIONAL ACCESSORIES
.TBC remote control unit : UVR-60/60P
.Rack mount Kit : RMM-130
(The unit can be mounted in a 19-inch standard rack)
.Remote control cable : RCC-5G/10G/30G
.Cleaning cassette tape : PDVM-12CL
.Circus Remote control : SVRM-100A/DSRM-10
.Digital video cassette (Mini size) : PDVM-12ME/22ME/32ME/40ME
.Digital video cassette (Standard size) : PDV-64ME/94ME/124ME/184ME
.SDI output board : DSBK-100/100P (DSR-60/60P)
.QSDI output board : DSBK-110/110P (DSR-60/60P)
.SDI input/output board : DSBK-120/120P (DSR-80/80P)
.Time code input/output board : DSBK-130/130P
Unit : mm
30 (handle hight)
Set’s height at
rack mounting.
( )
191
174
87 174 (4U)
372 27.5
427
577 (maximum traveling distance)
400 44
494
512
when rack-mounted
(height as slide rail center)

3
7. RACK MOUNTING
The unit can be mounted in a 19-inch standard rack.
It is recommended to use the following kit.
Rack Mount Kit : RMM-130 (optional accessory)
or
RACK-MOUNT SLIDES : MODEL 305
slide length 22 inch
(ACCURIDE)
Note for rack mounting :
.When several VTRs are mounted in a rack, it is recommended to
install a fan for ventilation. Good air circulation is essential to
prevent internal heat build-up in a rack (+5 dC to +40 dC must be
met for all units).
.Never remove an upper panel and lower panel during rack
mounting.
.Be sure to secure the rack to the floor to avoid accidents when a
unit is pulled out.
.Connect long enough cables on the connector panel, considering
that the unit is pulled out.
.This equipment can use with two tiers.
But with three tiers and more, keep the spaces between the each
VTRs in the rack 1 unit (about 44 mm) or more.

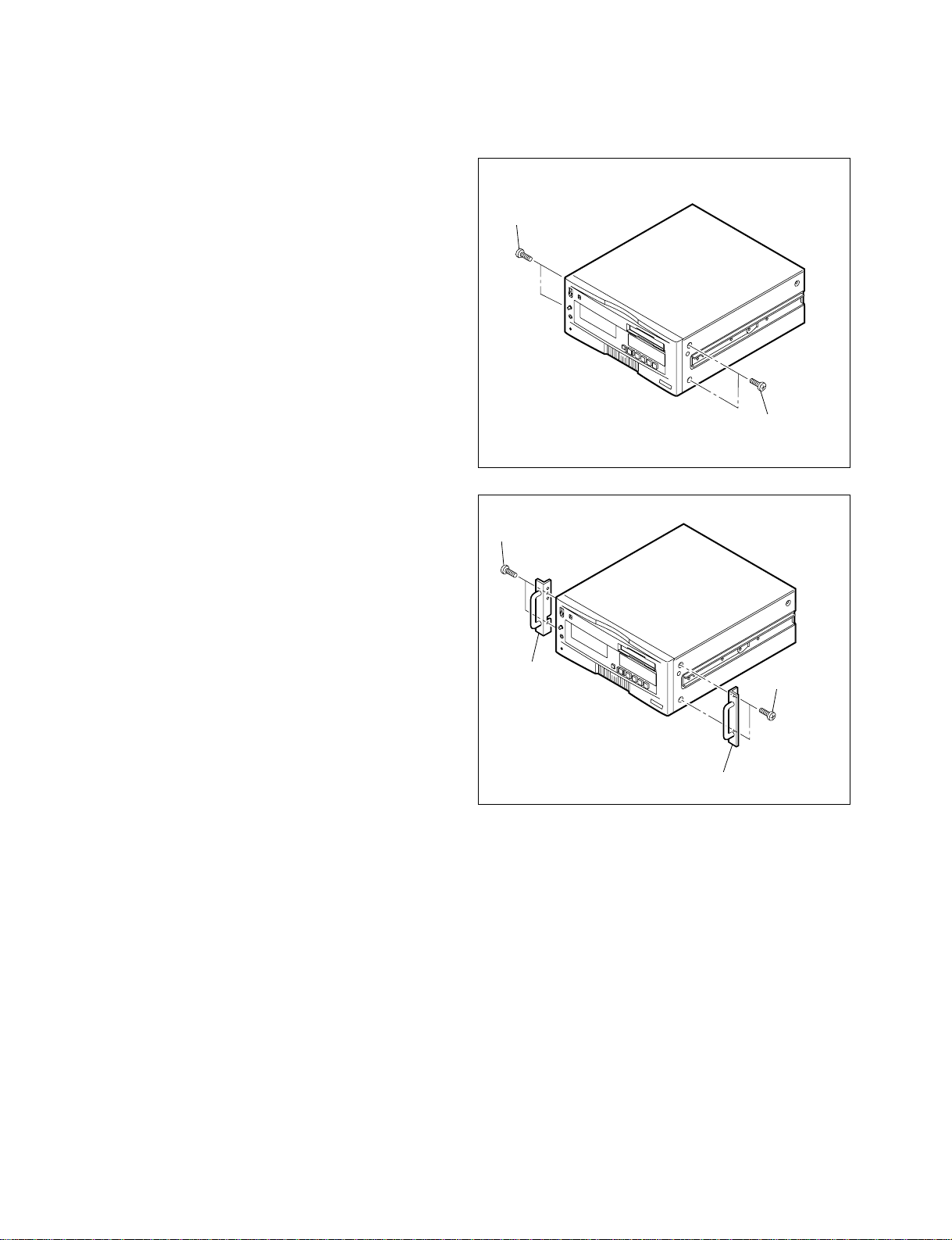

1. Remove the four screws on right and left side panels.
And install the Inner Members of the rails to the right and left
side panels with the screws removed.
2. Install the Outer Member Brackets of the slide rails to the rack.
Adjust the distance from the edge of the slide rail to the outside
of the rack so that it meets the required specification.
Inner memeber
Inner member
Screws (B 4x6)
Screws (B 4x6)
L-angle Rack
L-angle Outer member
Bracket
50 mm
+5
_0

4
3. Remove the two screws (B 4x8) on the right and left side
panels. (Be careful not to lose these four screws.)
4. Install the L-angles to the holes described in step 3 with the
supplied screws (PSW 4x16) in RMM-130 for these L-angles.
Note: Never use screws PSW 4x16 to install the right and left
side panels without L-angles. Be sure to install the panels
with the screws B 4x8 removed in step 3. Screws for L-
angles are longer than the side panels. Therefore, using the
screws PSW 4x16 may cause trouble in the unit.
Screws (B 4x8)
Screws (B 4x8)
L-angle
L-angle
Screws
(PSW 4x16)
Screws (PSW 4x16)

5
8. CONNECTION OF EDITING EQUIPMENT, AND INPUT/OUTPUT SIGNALS OF CONNECTORS
8-1. Connection of Editing Equipment
Connection for Digital Non-Linear Editing System
The digital non-linear editing system can be configured by connecting between DSR-80/80P/60/60P and the edit station ES-7.
Use of the QSDI interface (optional board as to DSR-60/60P) enables transfer of the compressed data such as video, audio and timecode from
DSR-80/80P/60/60P to ES-7.
DSR-80/80P/60/60P supports the ClipLink function. The index picture which is recorded on tape and the ClipLink log data which is stored
in the cassette memory can be transferred immediately to ES-7.
.Refer to “ClipLink™Guide”supplied with the unit for general description of ClipLink functions.

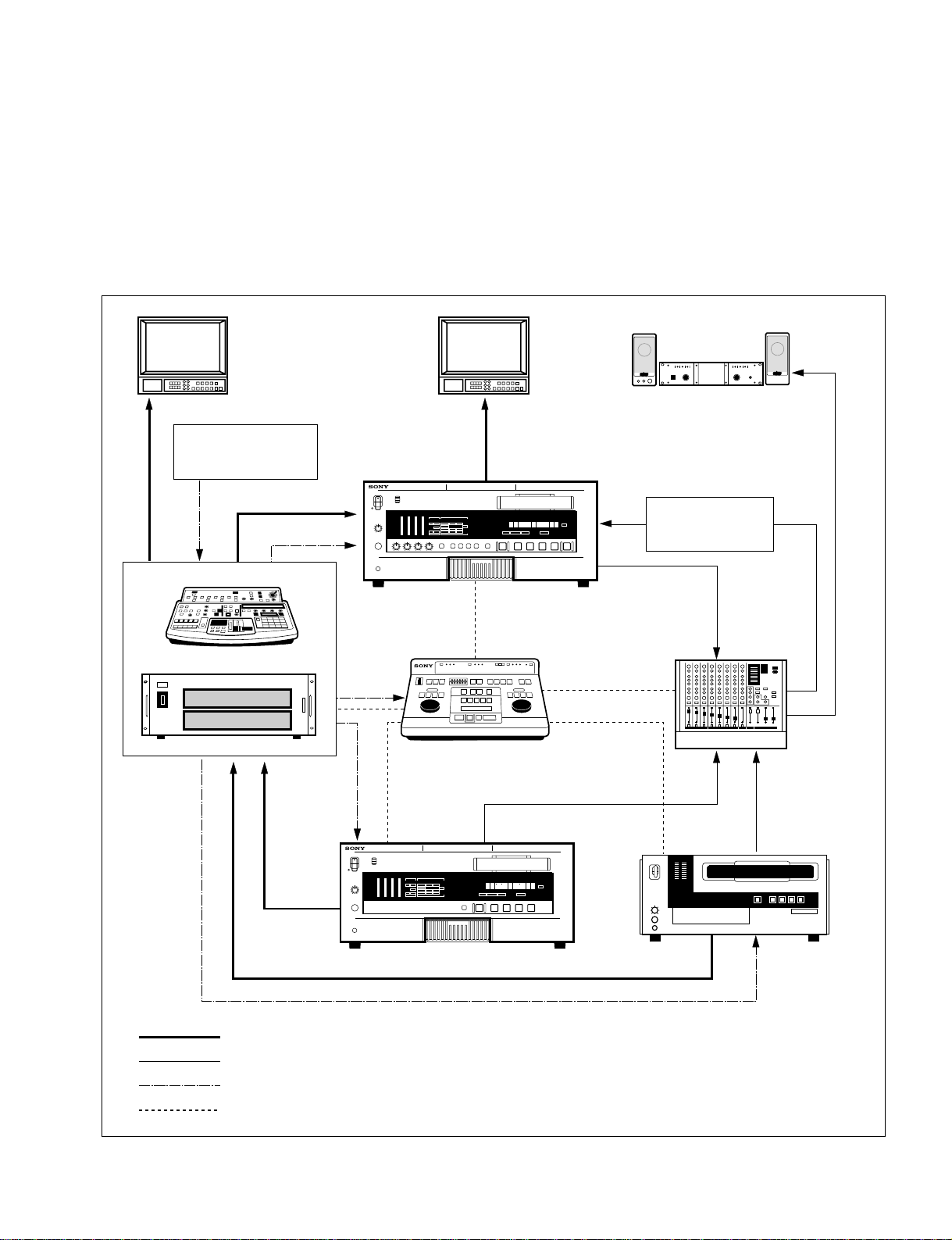

Connection example of digital non-linear editing system when DSR-80/80P is used as a recorder and DSR-60/60P as a player, is shown
below.
.Refer to the Operating Instructions supplied with ES-7 for the connection procedure of the peripheral equipment (such as control panel
ESBK-7011, disk unit ESBK-7045, etc.,) of ES-7.
Note : In this connection example, DSR-80/80P/60/60P is equipped with the optional board DSBK-100/100P/110/110P/
120/120P/130/130P.
DSR-80/80P/60/60P setting
* : DSR-80/80P only
Switch Setting
REMOTE/LOCAL REMOTE
REF. VIDEO IN terminated in 75 ZON
1
1
1
2
3
REF. VIDEO IN QSDI OUT
B B OUT (1/2/3/4)
QSDI OUT
QSDI IN
PLAYER
MONITOR
AUDIO VIDEO OUT 2 (SUPER) DSR-80/80P (Recorder)
DSR-60/60P (Player)
REMOTE
Edit station ES-7
Audio input Composite video input
Video monitor
175 Zco-axial cable (optional)
29-pin remote cable (5 meter long, supplied)
3RCA plug (optional)
1*

6
1
12 23 13
175 Zco-axial cable (optional)
29-pin remote cable (5 meter long, supplied)
3RCA plug (optional)
DSR-60/60P
DSR-80/80P
(player) QSDI OUT DSR-80/80P
(recorder)
QSDI IN
REF. VIDEO
OUT
MONITOR
AUDIO VIDEO
OUT 2
(SUPER)
REMOTE MONITOR
AUDIO VIDEO
OUT 2
(SUPER)
REMOTE
Audio input Composite video input
Source monitor
PLAYER REF. VIDEO IN
Editing control unit
RM-450/PVE-500 (editing side)
RECORDER
Main monitor
Audio input Composite video input
When ASSEMBLE edit or INSERT edit is selected
at the editor, the EDIT MODE indicator on the
front panel of DSR-80/80P (recorder) lights,
entering the editing mode automatically.
88:88:88:88 88:88:88:88 88:88:88:88 888
Switch Recorder Player
REMOTE/LOCAL REMOTE REMOTE
Connection for Cut Editing System
Connection example of the cut editing system when DSR-60/60P is connected with DSR-80/80P or DSR-80/80P is connected with another
DSR-80/80P is shown below.
.Refer to the Operating Instructions of other equipment at the same time for connection.
Switch setting of DSR-80/80P/60/60P (player) and DSR-80/80P (recorder)
.Refer to the Operating Instructions of DSR-80/80P for video/audio input of recorder and for audio mode setting.
Note : When the QSDI interface is used for the connection, monitor of the JOG audio cannot be switched to the recorder
monitor even through recorder enters the E-E mode. Therefore, monitor the JOG audio at the player side.
About the reference video signal
The reference video signal which is synchronized with the video signal in use, is necessary and must be input to the REF. VIDEO IN
connector for analog signal editing in order that the built-in TBC works correctly and the stable picture and audio are obtained.

7
Connection for A/B Roll Editing System
Connection example of the A/B roll editing system using a recorder and two players is shown below.
In this example, DSR-80/80P is used as recorder, DSR-60/60P is used as player-1 and an analog betacam video cassette player UVW-1600/
1600P is used as player-2. When you require the completed tape (the tape in which complete packaged program is stored) in the betacam
format, use a betacam VTR as recorder.
The following system configuration diagram is shown with the main emphasis placed on the signal flow. Refer to the following pages for
actual connection procedure and setting of DSR-80/80P (recorder).
Source video
monitor
Main video monitor
Audio monitor system
Delay unit (DPS-D7
or equivalent) a)
Video signal generator
(Sony Tectronix
TSG-130 or equivalent)
DSR-60/60P (player-1)
DSR-80/80P
(recorder)
DME switcher
DFS-500
Editing control unit
PVE-500 or equivalent (editing side)
Audio mixer
MXP-290
Video singal
Audio signal
Reference video signal
Control signal
UVW-1600/1600P
(player-2)
a) When the DME switcher DFS-500 is used, video signal phase is
delayed due to processing in DFS-500. Adelay unit must be
inserted between the audio mixer MXP-290 output and
DSR-80/80P (recorder) audio input.
SONY
SONY
BETACAM SP
00:00.00.
88:88:88:88 88:88:88:88 88:88:88:88
888

8
QSDI dubbing
A connection example of QSDI dubbing using DSR-80/80P as a recorder and the DSR-60/60P as a player, is shown below.
Switch setting of DSR-80/80P (recorder) and DSR-60/60P (player)
1
2 213
DSR-60/60P
(player) QSDI OUT
REMOTE
QSDI IN DSR-80/80P
(recorder)
MONITOR
AUDIO VIDEO
OUT 2
(SUPER)
REMOTE
Audio input Composite video input
Video monitor
175 Zco-axial cable (optional)
29-pin remote cable (5 meter long, supplied)
3RCA plug (optional)
Switch Recorder Player
REMOTE/LOCAL LOCAL REMOTE

9
8-2. Matching Connectors
When external cables are connected to the connector on a connector panel during maintenance, the hardware listed
below (or equivalents) must be used.
For DSR-80/80P DSR-80/80P, 60/60P Side connector Matching Connector/Cable
only Panel indication Connector/Cable Sony Part No.
ANALOG IN
OREF. VIDEO IN
OTIME CODE IN BNC, MALE 1-560-069-11
OVIDEO IN
OCOMPONENT/RGB VIDEO IN
OS VIDEO IN YC-15 V(1.5 m) optional accessory
OAUDIO IN CH-1/2/3/4 XLR 3P, MALE 1-508-084-11
ANALOG OUT
REF. VIDEO OUT
TIME CODE OUT BNC, MALE 1-560-069-11
VIDEO OUT
COMPONENT/RGB VIDEO OUT
MONITOR AUDIO OUT PIN PLUG Standard Product
S VIDEO OUT YC-15 V(1.5 m) optional accessory
AUDIO OUT CH-1/2/3/4 XLR 3P, FEMALE 1-508-083-11
OQSDI INPUT BNC, MALE 1-560-069-11
QSDI OUTPUT BNC, MALE 1-560-069-11
DIGITAL AUDIO (AES/EBU) XLR 3P, MALE 1-508-084-11
OINPUT CH-1/2, CH-3/4
OOUTPUT CH-1/2, CH-3/4 XLR 3P, FEMALE 1-508-083-11
TBC REMOTE CONNECTOR, D-SUB 15P, FEMALE 1-561-610-21
and JUNCTION SHELL, 15P 1-561-929-00
REMOTE CONNECTOR, D-SUB 9P, MALE 1-560-651-11
and JUNCTION SHELL, 9P 1-561-749-11
RCC-5G(5 m) supplied accessory
RCC-10G (10 m) optional accessory
RCC-30G (30 m) optional accessory

10
8-3. Input/Output Signals of the Connectors
INPUT
REF.VIDEO : BNCx2 (loop-through)
1.0 Vp-p, 75 Z, sync negative : for composite video signal (black burst signal possible)
VIDEO IN : BNCx2 (loop-through)/DSR-80/80P
1.0 Vp-p, 75 Z, sync negative
COMPONENT/RGB IN VIDEO : BNCx3/DSR-80/80P
Luminance : 1.0 Vp-p, 75 Z, sync negative
R-Y/B-Y : 0.7 Vp-p, 75 Z(NTSC : 75 % PAL : 100 %)
S VIDEO IN : DIN 4Px1/DSR-80/80P
Y : 1.0 Vp-p, 75 Z, sync negative
C : NTSC 0.286 Vp-p (burst level), 75 Z
PAL 0.3 Vp-p (burst level), 75 Z
SDI* : BNCx2 (active-through)/DSR-80/80P
Serial digital interface format (270 Mbps),
SMPTE 259M/ITU-R BT.656
*Using optional DSBK-120/120P (SDI output board)
QSDI IN : BNCx1/DSR-80/80P
Serial digital interface (DVCAM compression signal : Video +Audio +TC signal)
AUDIO IN : XLR 3Px4/DSR-80/80P
Reference level switchable (_6/0/+4 dBu), 600 Z/10 kZswitchable, balanced
AES/EBU : XLR 3Px2/DSR-80/80P
110 Z, balanced
TIME CODE* : BNCx1/DSR-80/80P
0.5 to 18 Vp-p, 3 kZ, unbalanced
*Using optional DSBK-130/130P (time code input/output board)
CONTROL-S (SIRCS) : Mini jack (exclusive use)

11
OUTPUT
REF.VIDEO : BNCx1
NTSC 0.286 Vp-p, 75 Z, sync negative (composite sync +burst signal)
PAL 0.3 Vp-p, 75 Z, sync negative (composite sync)
VIDEO OUT : BNCx2
1/2 (SUPER) 1.0 Vp-p, 75 Z, sync negative
COMPONENT/RGB OUT VIDEO : BNCx3
Luminance : 1.0 Vp-p, 75 Z, sync negative
R-Y/B-Y : 0.7 Vp-p, 75 Z(NTSC : 75 % PAL : 100 %)
S VIDEO OUT : DIN 4Px1
Y : 1.0 Vp-p, 75 Z, sync negative
C : NTSC 0.286 Vp-p (burst level), 75 Z
PAL 0.3 Vp-p (burst level), 75 Z
SDI* : BNCx2
Serial digital interface format (270 Mbps),
SMPTE 259M/ITU-R BT.656
*Using optional DSBK-100/100P (SDI output board)/DSR-60/60P
*Using optional DSBK-120/120P (SDI input/output board)/DSR-80/80P
QSDI* OUT : BNCx1
Serial digital interface (DVCAM compression signal : Video +Audio +TC signal)
*Using optional DSBK-110/110P (QSDI output board)/DSR-60/60P
AUDIO OUT : XLR 3Px4, MALE
+4 dBu, 600 Zload, balanced (low impedance)
MONITOR AUDIO : PHONO JACKx1
_6 dBu, 47 kZload, unbalanced
HEADPHONES : Stereo phone jackx1
_16 dBu (front VR max.), 8 Zload, unbalanced ø6.3
TIME CODE* : BNCx1
2.2 Vp-p±3.0 dB, 75 Z, unbalanced
*Using optional DSBK-130/130P (time code input/output board)

12
TBC REMOTE (D-sub 15 pin : MALE) <external view>
REMOTE (D-sub 9 pin : FEMALE) <external view>
S VIDEO (Circular 4 pin) <external view>
Pin No. Signal Operating Voltage IN/OUT
1 SYNC CONTROL _5 to +5 V IN
2 HUE CONTROL _5 to +5 V IN
3 SC CONTROL _5 to +5 V IN
4 VIDEO LEVEL CONTROL _5 to +5 V IN
5 SET UP CONTROL _5 to +5 V IN
6 CHROMA LEVEL CONTROL _5 to +5 V IN
7_9 V SUPPLY _9 V OUT
8 GND
9 FRAME GND
10 ––––– ––––– –––––
11 ––––– ––––– –––––
12 ––––– ––––– –––––
13 Y/C DELAY CONTROL _5 to +5 V IN
14 ––––– ––––– –––––
15 +9 V SUPPLY +9 V OUT
Pin No. Controlling Device Controlled Device
1 Frame Ground Frame Ground
2 Receive A Transmit A
3 Transmit B Receive B
4 Transmit Common Receive Common
5––––– –––––
6 Receive Common Transmit Common
7 Receive B Transmit B
8 Transmit A Receive A
9 Frame Ground Frame Ground
Pin No. Output Signal
1 Y (G)
2 C (G)
3 Y (X)
4 C (X)

13
9. INSTALLATION SETUP AND ADJUSTMENT
9-1. Switch Settings on the Connector Panel
When the unit is installed, be sure to perform the following setup and adjustment. If the adjustment is not performed, the unit may not operate
properly.
Refer to the operating instruction “Chapter 1 Editing”for setup and adjustment.
[Connector Panel]
(1) The setting of 75 Ztermination switch :
REF VIDEO 75 ZON/OFF
ON : When the line is terminated in this unit.
OFF : When another unit is connected with this unit.
REMOTE (9P) : LOCAL
RGB OUT : OFF
(2) The setting of audio input level select switch / DSR-80/80P :
+4 dBm : +4 dBu reference level on output side
0 dBm : 0 dBu reference level on output side
_6 dBm : _6 dBu reference level on output side
9-2. Setting on the Front Panel Unit
[Front Panel] (DSR-80/80P)
(1) AUDIO REC MODE SELECT : Select 2CH/4CH
2CH : FS48 kHz 16 bit
4CH : FS32 kHz 12 bit
(2) VIDEO INPUT select switch setting : VIDEO IN Y-R, B/COMPOSITE/S VIDEO/ (SDI)
Y-R, B ; Betacam component signal
COMPOSITE ; Ordinary video signal
S VIDEO ; Y/C separation type S Video signal
(3) AUDIO INPUT SELECT : Analog/Digital (AES/EBU) / (SDI)
(4) QSDI : Audio, Video, Time code (EXT. sel) is inputted from QSDI through the 1 BNC Cable.
[MENU Panel]
(1) SYNC PHASE : Adjusts the H sync phase of video output signal with reference to the REF. IN signal.
(2) SC PHASE : Adjusts the subcarrier phase of the composite video output signal with reference to the REF. IN signal.
(3) MENU : Turns on and off the menu mode.
(4) : Used for item setting in the menu, and for setting the points A and B of REPEAT.
(5) RESET (NO) : Used for the following purposes:
.Initialization of the menu setting
.“No”reply from the DSR-80/80P/60/60P to the inquiry.
.COUNTER reset (on display block)
(6) SET (YES) : Used for the following purposes:
.Storing the menu and setting the points A and B of REPEAT
.“Yes”reply from the DSR-80/80P/60/60P to the inquiry.
(7) TC PRESET / DSR-80/80P : Used for setting the TC initial value and UB data (on display block).

14
9-3. On-board Switch Setting
SV-184
S101 : 8 bit
S201 : 4 bit
1
2
3
4
5
6
ABC DEFGH JKLM N P
S201 S101
Switch No. Description Factory Setting
1 Set this switch to ON in some adjustment modes. OFF
.Search speed in LOCAL is as follows :
PLAY/F.FWD pressed simultaneously: FWD searchx5
PLAY/REW pressed simultaneously : REW searchx5
.HOURS METER can enter reset mode.
2 factory use OFF
3 Use this switch when operating the machine with casseette removed. OFF
4 This defeats an error detection of mechanism and servo system alignment. OFF
5 factory use OFF
6 factory use OFF
7 factory use OFF
8 factory use OFF
Switch No. Description Factory Setting
1 ITI center shift switch: OFF
Set to ON when playing back the tracking reference tape.
2 factory use OFF
3 factory use OFF
4 factory use OFF
