Vista 2165 User manual

FOR USE ONLY WITH LOW VOLTAGE LANDSCAPE POWER UNITS THAT DO NOT EXCEED 25 AMPS, 15 VOLT MAXIMUM.
WARNING: Luminaires must be installed in accordance with the National Electrical Code (NEC) and local codes. Failure to do so will void the warranty and may
result in serious injury and/or damage to the luminaire.
SAFETY WARNING: Luminaire can become very hot depending on lamp wattage used. Lens and metal around lamp can become hot enough to blister hands.
Particular care should be taken not to locate luminaires where small children can reach them if high wattage lamps are used.
LUMINAIRES ARE NOT TO BE INSTALLED WITHIN 10 FT. (3.05M) OF A POOL OR SPA. SECONDARY CABLE IS NOT TO BE BURIED MORE THAN 6”.
WHEN USING MULTIPLE LUMINAIRES, LOAD IS NOT TO EXCEED THE TOTAL WATTS OF TRANSFORMER RATING. DO NOT USE EXTENSION CORDS
ON POWER UNITS.
NOTE: Always use UL recognized wire connectors for connections.
LUMINAIRE IS UL LISTED FOR ABOVE GROUND INSTALLATION ONLY.
1625 Surveyor Avenue • Simi Valley, CA 93063 • [phone] • (800) 766-VISTA (8478)
FAX: (888) 670-VISTA (8478) • [email protected] • www.vistapro.com
Vista Professional Outdoor Lighting reserves the right to modify the design and/or construction of the fixture shown without further notification.
Stem
36” Pigtail
Silicone Filled
Safety Connectors
Shade
Lamp Base
Ground Stake
Main Supply Cable
FEMALE CONNECTOR
FROM BASE
MALE CONNECTOR
FROM DRIVER
LOCKING
SET SCREW
LED BASE
CONNECTOR
ASSEMBLY
SPT-1 CABLE
VISTA LED DRIVER
HALOGEN
LED
HALOGEN
SET-SCREW
CHANNEL
HALOGEN
SET-SCREW
CHANNEL
LED
SET-SCREW
CHANNEL
SET-SCREW
LED
SET-SCREW
CHANNEL
SET-SCREW
LED LAMP
HALOGEN LAMP

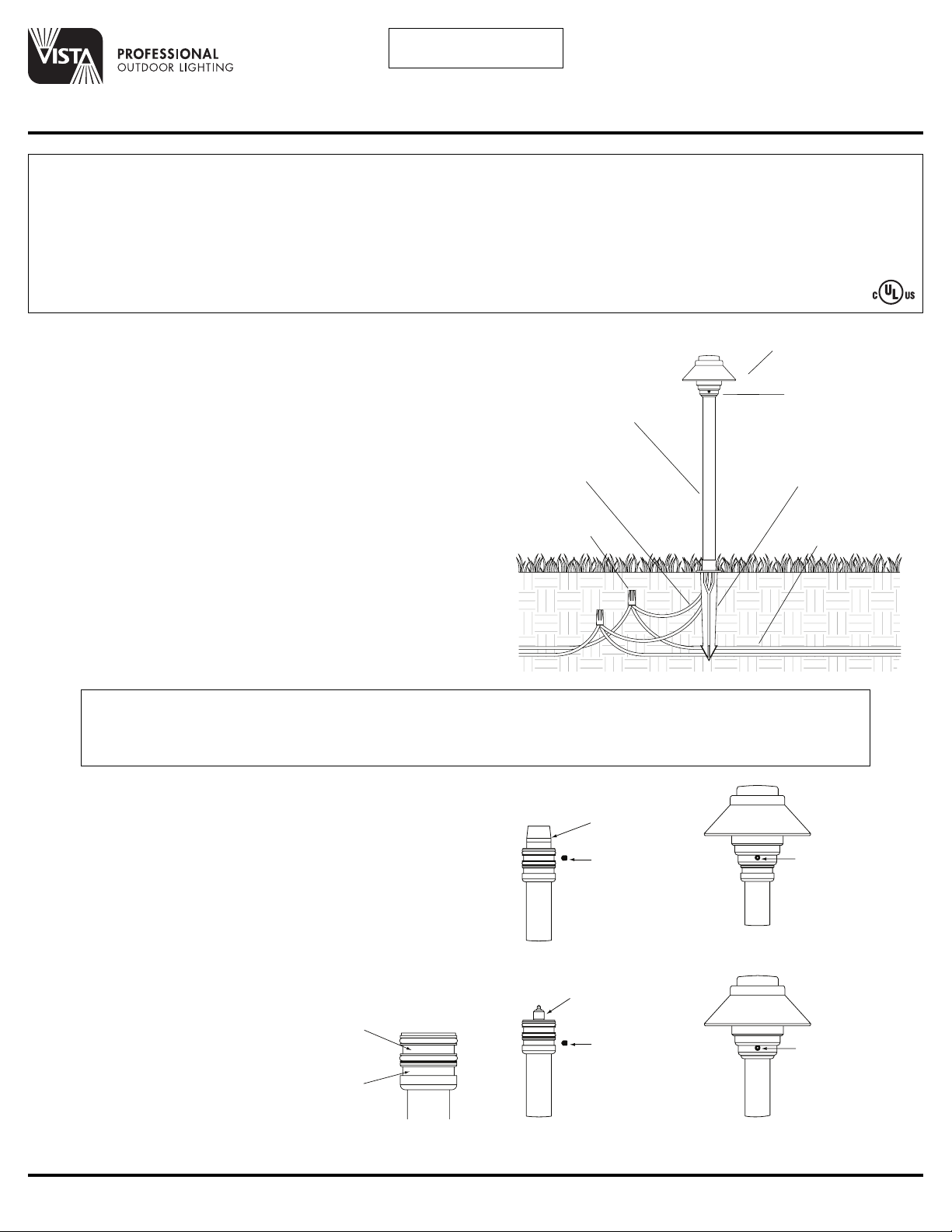

INSTALLATION INSTRUCTIONS - For T3-LED & T3-Halogen
WARNING - TO REDUCE THE RISK OF FIRE, OR INJURY TO PERSONS:
1. Turn off/unplug and allow to cool before replacing lamp.
2. Lamps get hot! Contact only switch/plug when turning on.
3. Do not touch hot lens, guard or enclosure.
4. Keep lamp away from material that may burn.
6. Do not operate luminaire fitting with a missing or damaged cover.
IMPORTANT SAFETY INSTRUCTIONS - THE LIGHTED LAMP IS HOT!
SAVE THESE INSTRUCTIONS (Leave with property owner/manager)
See Reverse for Fixtures with
Integrated LED Module
Brass & Copper
Landscape Series
2165
Path & Spread Lights
LUMINAIRE MOUNTING:
1. To prevent electrical shock, disconnect transformer from electrical supply
before installation or service.
2. Run wire pigtail from luminaire through mounting hole in top of ground
stake.
3. Thread luminaire into threaded hole in ground stake.
4. Place stake in desired position and insert into ground until ange of stake is
ush to grade.
5. Strip two leads from luminaire pigtail. Using two silicone filled safety
connectors (provided), connect leads from luminaire to main supply cable
leads.
NOTE: Luminaires are supplied with 36” of 18-2 cable pigtail for secure
connection to main supply cable. Wire is to be protected by routing in close
proximity to luminaire. Wiring should be buried a maximum depth of 6 inches
(15.2 cm) in order to connect to main supply cable.
6. Provide power to luminaire and check for proper operation.
LAMP INSTALLATION/REPLACEMENT:
CAUTION: Do not exceed maximum wattage marked on luminaire label.
1. To prevent electrical shock, disconnect transformer from electrical supply
before service.
2. Loosen lock fastener.
3. Pull up to remove shade and lens to expose lamp.
4. Replace lamp with correct wattage and type marked on xture label.
• When installing a halogen lamp, align and tighten set-screw to lower set-
screw channel to ensure proper seating of halogen lamp.
• When installing a LED lamp, align and tighten set-screw to upper set-screw
channel to ensure proper seating for LED.
NOTE: DO NOT touch lamp with bare hands. Use soft cloth to handle lamp.
5. Re-install shade and lens.
6. Tighten lock fastener.
Stem
36” Pigtail
Silicone Filled
Safety Connectors
Shade
Lamp Base
Ground Stake
Main Supply Cable
FEMALE CONNECTOR
FROM BASE
MALE CONNECTOR
FROM DRIVER
LOCKING
SET SCREW
LED BASE
CONNECTOR
ASSEMBLY
SPT-1 CABLE
VISTA LED DRIVER
HALOGEN
LED
HALOGEN
SET-SCREW
CHANNEL
HALOGEN
SET-SCREW
CHANNEL
LED
SET-SCREW
CHANNEL
SET-SCREW
LED
SET-SCREW
CHANNEL
SET-SCREW
LED LAMP
HALOGEN LAMP
Stem
36” Pigtail
Silicone Filled
Safety Connectors
Shade
Lamp Base
Ground Stake
Main Supply Cable
FEMALE CONNECTOR
FROM BASE
MALE CONNECTOR
FROM DRIVER
LOCKING
SET SCREW
LED BASE
CONNECTOR
ASSEMBLY
SPT-1 CABLE
VISTA LED DRIVER
HALOGEN
LED
HALOGEN
SET-SCREW
CHANNEL
HALOGEN
SET-SCREW
CHANNEL
LED
SET-SCREW
CHANNEL
SET-SCREW
LED
SET-SCREW
CHANNEL
SET-SCREW
LED LAMP
HALOGEN LAMP

1625 Surveyor Avenue • Simi Valley, CA 93063 • [phone] • (800) 766-VISTA (8478)
FAX: (888) 670-VISTA (8478) • [email protected] • www.vistapro.com
Vista Professional Outdoor Lighting reserves the right to modify the design and/or construction of the fixture shown without further notification.
The operating voltage range for this LED luminaire is 6 - 15 volt AC. The Vista electronic driver ensures the LED operates at the intended lumen output while
receiving voltage as low as 6 volts, and as high as 15 VAC, resulting in a balanced lumen output from the rst xture to the last. Eliminating the dimness issues
often attributed to voltage drop.
Note: Operating voltage range for LED luminaries will vary depending on model, style and total number of LEDs. To help determine the operating
voltage range for each Vista luminaire, always consult factory’s specification sheet and/or installation instructions before installation.
2165 (03/15)
FOR USE ONLY WITH LOW VOLTAGE LANDSCAPE POWER UNITS THAT DO NOT EXCEED 25 AMPS, 15 VOLT MAXIMUM.
WARNING: Luminaires must be installed in accordance with the National Electrical Code (NEC) and local codes. Failure to do so will void the warranty and may
result in serious injury and/or damage to the luminaire.
SAFETY WARNING: Luminaire can become very hot depending on lamp wattage used. Lens and metal around lamp can become hot enough to blister hands.
Particular care should be taken not to locate luminaires where small children can reach them if high wattage lamps are used.
LUMINAIRES ARE NOT TO BE INSTALLED WITHIN 10 FT. (3.05M) OF A POOL OR SPA. SECONDARY CABLE IS NOT TO BE BURIED MORE THAN 6”.
WHEN USING MULTIPLE LUMINAIRES, LOAD IS NOT TO EXCEED THE TOTAL WATTS OF TRANSFORMER RATING. DO NOT USE EXTENSION CORDS
ON POWER UNITS.
NOTE: Always use UL recognized wire connectors for connections.
LUMINAIRE IS UL LISTED FOR ABOVE GROUND INSTALLATION ONLY.
See Reverse for Fixtures with
T3-LED or T3-Halogen
INSTALLATION INSTRUCTIONS - For Integrated LED Module
LUMINAIRE MOUNTING:
1. To prevent electrical shock, disconnect transformer from electrical supply
before installation or service.
2. Run wire pigtail from luminaire through mounting hole in top of ground
stake.
3. Thread luminaire into threaded hole in ground stake.
4. Place stake in desired position and insert into ground until ange of stake is
ush to grade.
5. Strip two leads from luminaire pigtail. Using two silicone filled safety
connectors (provided), connect leads from luminaire to main supply cable
leads.
NOTE: Luminaires are supplied with 36” of 18-2 cable pigtail for secure
connection to main supply cable. Wire is to be protected by routing in close
proximity to luminaire. Wiring should be buried a maximum depth of 6 inches
(15.2 cm) in order to connect to main supply cable.
6. Provide power to luminaire and check for proper operation.
LED ENGINE INSTALLATION/REPLACEMENT:
1. To prevent electrical shock, disconnect transformer from electrical supply
before service.
2. Loosen locking set screw.
3. Rotate Twist-to-Lock shade to unlock position.
4. Remove shade and lens assembly to expose LED Engine.
5. Unscrew brass base from stem.
6. Pull up LED base assembly out of stem.
7. Disconnect connector assembly.
8. Connect new eld replaceable LED engine to connector assembly.
9. Reinstall LED base assembly onto stem.
10. Reinstall Twist-to-Lock shade and secure with locking set screw.
Brass & Copper
Landscape Series
2165
Path & Spread Lights
Stem
36” Pigtail
Silicone Filled
Safety Connectors
Shade
Lamp Base
Ground Stake
Main Supply Cable
FEMALE CONNECTOR
FROM BASE
MALE CONNECTOR
FROM DRIVER
LOCKING
SET SCREW
LED BASE
CONNECTOR
ASSEMBLY
SPT-1 CABLE
VISTA LED DRIVER
HALOGEN
LED
HALOGEN
SET-SCREW
CHANNEL
HALOGEN
SET-SCREW
CHANNEL
LED
SET-SCREW
CHANNEL
SET-SCREW
LED
SET-SCREW
CHANNEL
SET-SCREW
LED LAMP
HALOGEN LAMP
Stem
36” Pigtail
Silicone Filled
Safety Connectors
Shade
Lamp Base
Ground Stake
Main Supply Cable
FEMALE CONNECTOR
FROM BASE
MALE CONNECTOR
FROM DRIVER
LOCKING
SET SCREW
LED BASE
CONNECTOR
ASSEMBLY
SPT-1 CABLE
VISTA LED DRIVER
HALOGEN
LED
HALOGEN
SET-SCREW
CHANNEL
HALOGEN
SET-SCREW
CHANNEL
LED
SET-SCREW
CHANNEL
SET-SCREW
LED
SET-SCREW
CHANNEL
SET-SCREW
LED LAMP
HALOGEN LAMP
