Visual Sound H2O User manual

Visual Sound H2O
Instructions
The new V3 H2O is a true dual pedal, even more so than its predecessors.
Think of it as two separate pedals in one housing. The following instructions will
give you some tips on setup and use, although you can pro a ly just plug in and
start using it right away.
Echo:
- Delay: Controls delay time; how fast the notes are repeated.
- Repeats: Controls how many times the notes are repeated, from once to infinite.
- Level: Controls the volume of the repeated notes.
- Short/Long: This switch splits the Delay kno into two ranges; Short is approximately
10 – 225ms, and Long is approx. 225 – 450ms.
Liquid Chorus:
- Speed: Controls the speed of the vi rato effect that is inherent in the Chorus circuit.
- Width: Controls the overall wavelength of the vi rato effect.
- Depth: Controls the overall lushness of the Chorus, from very su tle to very lush.
- Chor-Vi : Controls whether the effect is Chorus, Vi rato, or a lend of oth. Vi rato
removes the clean signal entirely, leaving only the effected signal.

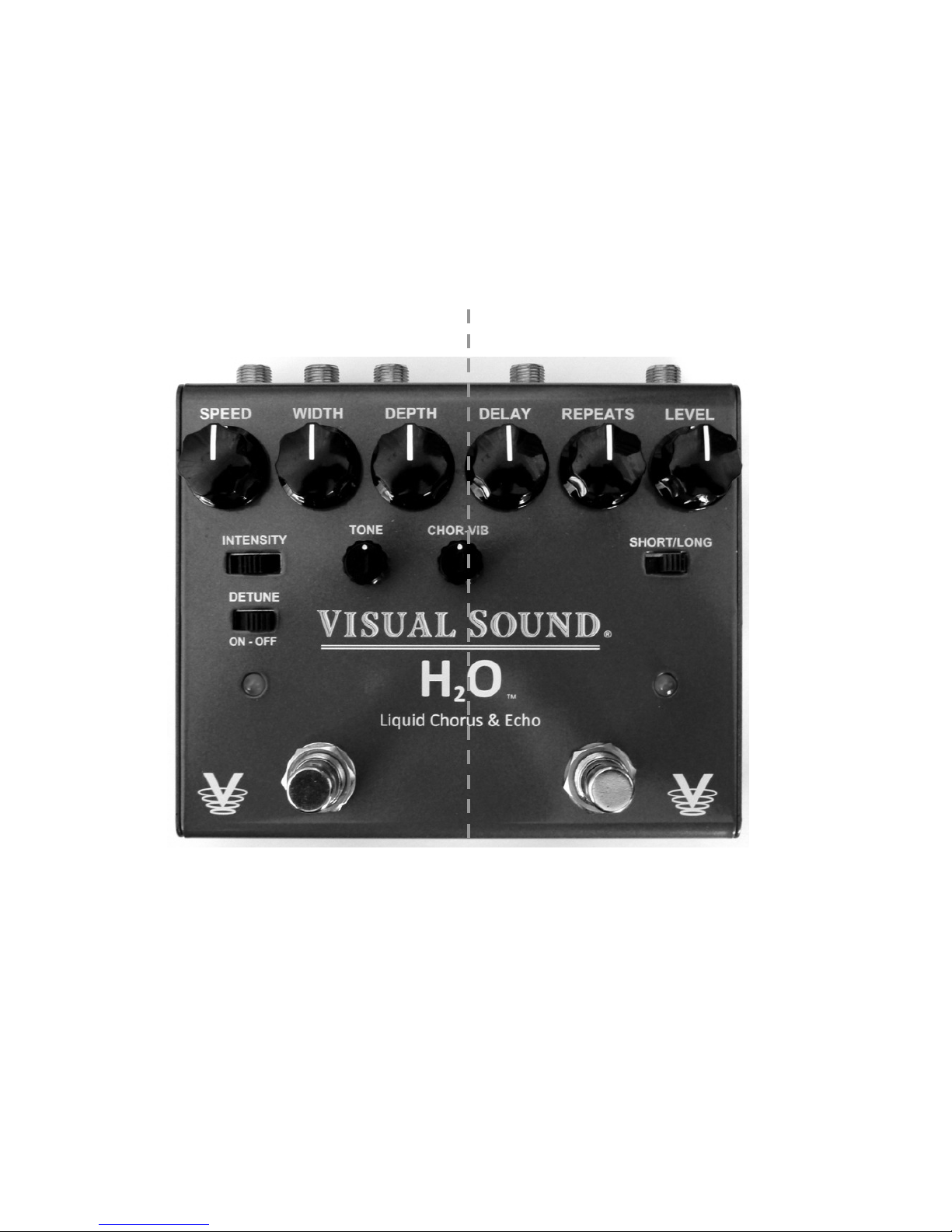

Echo Liquid Chorus

Liquid Chorus (continued):
- Tone: This is a typical high-cut tone control, effecting the entire Chorus circuit.
- Intensity: This 3-position switch chooses etween 3 levels of intensity in the Chorus
circuit. From left to right: Light – Medium – High.
- Detune: “Off” is normal Chorus. “On” allows the Liquid Chorus to go into ranges that
other chorus pedals never go, from relatively normal lush chorus to true noise effects.
- OUT 2: Use this jack in com ination with OUT 1 for true stereo chorus. The Echo
channel will e parallel mono, not stereo, when using this jack in a normal setup.
Internal Buffer On/Off: If you open the pedal, you will see a slide switch for each channel
which allows you to turn on/off the Pure Tone uffer circuit. We recommend that you leave the
first channel uffer on. However, if you want pure true ypass switching, you may turn oth
switches off.
IN and OUT:
Normal
IN
OUT 1
(mono chorus)
INSTRUMENT
IN
PUT
OUT #1
IN #
2
OUT #2
Change
Order
IN
Echo
OUT
Chorus
OUT
Echo
IN
Chorus
Separate
Pedals
For demos, sample settings and assistance, please go to:
www.VisualSound.net
OUT 2
(stereo chorus)
