VISUAL SAFETY BAR 20 EVO User manual

SAFETY BAR 20 EVO
USER MANUAL
www.visualworkplaceinc.com |7381 Ardith Ct. Byron Center, MI 49315 |p: 616.878.4400 |f: 616.583.9409

SAFETY BAR 20 EVO USER MANUAL Page 1
WARNINGS
The following instructions must be reviewed for proper installation, use and
maintenance of the product, as well as ensuring your safety.
Still retain this documentation for future reference, even for those who will later work on
the projector for any reason.
FEATURES
Industrial LED projector made with aluminum structure and heatsink, painted steel
brackets and a glass lens.
The overall dimensions are approximately 6.75” (L) x 2“ (W) x 4”(H).
• LED light source
• LED Colour BLUE or RED
• Absorption MAX 2.0A (Safety Bar 20 BLUE), 1,7A (Safety Bar 20 RED)
• Frequency: 50-60 Hz
• Input voltage From 12Vac to 48Vac
• Consumption 25W (Safety Bar 20 BLUE), 20W (Safety Bar 20 RED)
• Appliance with isolation class III
• Max nominal ambient temperature: +122°F
• Min nominal ambient temperature: -22°F
• IP Protection class: IP65
• Use of heat-resistant power cables, interconnection cables or
external wiring till +194°F
FEATURES OF THE POWER CONNECTOR
• Number of poles 2
• Contact marking 1 + and 2 -
• Type of connection crimping
• Operating current max. 14A
• Operating voltage max. 50V
• Protection against solid/water IP67
• Wire cross-section min 0,75mmq : max 1,5mmq
• Cable diameter min. 3mm - max 5mm

Page 2
SAFETY RULES
Always switch off the fixture before carrying out any cleaning.
Before taking any action on it make sure it has completely cooled.
Fixture suitable for installation on normally inflammable surfaces.
Designed for direct illumination of horizontal and vertical surfaces.
LED light source: it is recommended not to fix the beam to avoid possible permanent
damage to the retina.
Device suitable for indoor use. The light source of this appliance is not replaceable;
when the light source reaches the end of life, the projector must be replaced.
Electrical part consists of a stabilized power supply: built in protection circuit shuts down
the device in case of open circuit, short circuit, overload or overheating; the power
supply may not be turned on even after the fault. In this case, contact the manufacturer.
Conductor cross section min. min 1mmq.
The projector must be positioned in such a way that a prolonged observation of the
luminaire is not possible at a distance of less than 10 feet.
Notes for the disposal of the device, see RAEE standards.
Wiring: Please refer to table below for wire color definition.
USA EUROPE
POWER BLACK BROWN
NEUTRAL WHITE BLUE
GROUND GREEN GREEN/YELLOW
• Connect the brown wire of the LED power supply to the black wire or hot for the device which
will supply power to the unit.
• Connect the blue wire of the LED power supply to the white wire or neutral for the device which will
supply power to the unit.
• Connect the green/yellow wire of the LED power supply to the green or ground for the device which
will supply power to the unit
SAFETY BAR 20 EVO USER MANUAL
WIRING SCHEMATIC
(for reference only)
BLACK
WHITE
GROUND
BROWN
BLUE
GREEN/YELLOW
LED DRIVERPOWER SUPPLY

Page 3
HOW TO USE
Open the box, extract the fixture carefully and store the packaging.
Fix the lamp on the structure of the forklift, thanks to the special bracket.
The lamp has at its output a 2-pole male connector, model SUPER SEAL (rubber cod
0-0880810-1 + connector code 0-0282104-1 + male terminals cod 0-0282109-1). In the
kit of the lamp there are the SUPERSEAL counterpart (code 0-0282080-1) and relative
rubber pad (code 0-0880810-1), with the female crimping terminals (cod 0-0282110-1);
see section of the conductors and cable diameter in the specifications in the manual.
he components of the kit must be mounted on the cable that will power the lamp (from
12Vdc to 48Vdc);j then connect the two male and female connectors pressing, until you
hear the “click” that indicates the correct connection of the two counterparts.
If the external flexible cable of this appliance is damaged, it must be replaced exclusive-
ly by the manufacturer.
Do not cover the device with plastic sheets, cloths, tissues cause it has to dissipate the
heat produced by the light source.
For cleaning and maintenance always use a damp cloth without any solvents or acids.
For your safety, do not attempt to modify the unit.
The information contained in the following documents are subject to change without any
notice by the company. The company guarantees the conformity of the products with
the applicable European safety and EMC. We accept no responsibility for any damage to
the product, to things and/or people, due to improper installation and/or because of
changes made to the device, using accessories and/or electrical/electronic components
are not suitable. It’s strictly forbidden any reproduction, even partial, of the information
contained in this leaflet.
It’s strictly forbidden any reproduction, even partial, of the information contained in this
manual.
SAFETY BAR 20 EVO USER MANUAL

Page 4

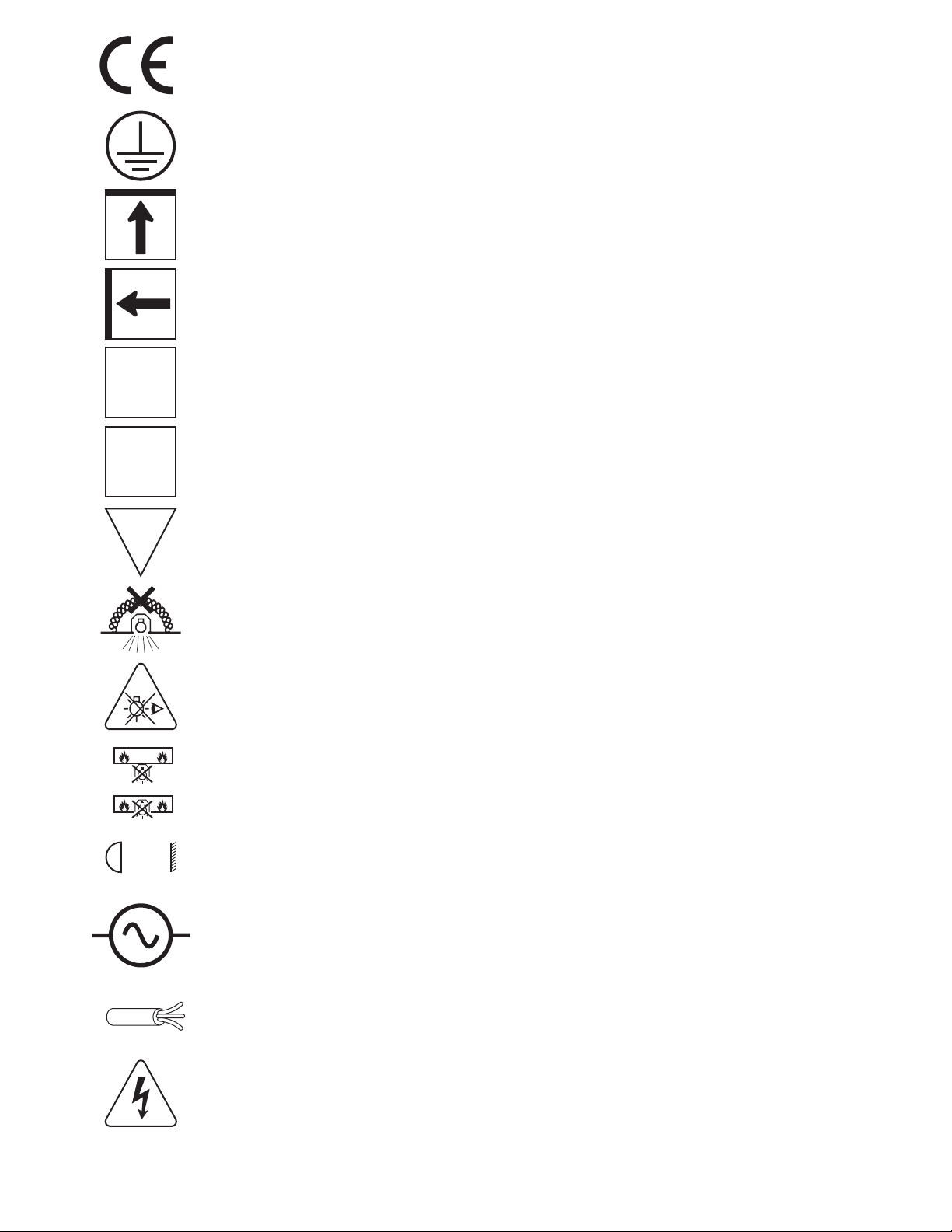

Product in conformity with the CEI 34-21 norms, EN60598 and compliant to SELV
directives 73/23/CEE and their updates.
SAFETY BAR 20 EVO USER MANUAL
Appliance with Class of Insulation III: there are no voltages above the safety extra-low
voltage SELV (Safety Extra-Low Voltage).
Ceiling mounting.
Wall mounting.
Power supply included in the fixture.
Index of protection against dust and sprinkling of water from all directions.
Fixture suitable for direct mounting on normally inflammable surfaces. Normal
operating temperature not exceeding 363K. Temperature of operation in case of
failure not more than 403K. EN 60598-1 ED.2000; +A11:2000; +A12:2002; +A1:2006.
The device is not eligible to be covered with thermally insulating materials.
Do not fix the light source in operation
Appliance not suitable for direct mounting on surfaces normally flammable
(suitable only for surfaces non-combustible).
Power cables, interconnection cables or external wiring heat resistant.
Live part not accessible after parts have been opened by hand or tools (cl. 4.29 EN
60598-1, cl. 5.6 EN 60598-2-5) heat resistant.
Minimum distance from luminaires 7 feet.
AC power supply.
A
IP65
F
7 ft
t176°F

Page 5 SAFETY BAR 20 EVO USER MANUAL
THE LIGHT SOURCE CONTAINED IN THIS LUMINAIRE SHALL ONLY BE REPLACED
BY THE MANUFACTURER OR A SIMILAR QUALIFIED PERSON
