Vitagoods VGP-3050 SERIES User manual

Enhanced Body Analysis System
VGP-3050 SERIES
™
Digital Body Analyzer
MODEL: VGP-3050
MADE IN CHINA

Congratulations on your Vitagoods purchase.
This Digital Body Analyzer allows you to measure
and track your vital body compositions statistics
from the comfort of your home.
To get the most out of your new digital body
analyzer and ensure safety, please read this user
manual prior to use.
Please follow these instructions carefully, and
retain this user manual for future reference.
For assistance, call 1-888-870-2786 or visit

Table of Contents
Safety Information .......................................................................................................1
Safety and Usage Information ...................................................................................2
Device Components....................................................................................................2
LCD Display..................................................................................................................3
About Weight Measurement......................................................................................4
General Instructions ....................................................................................................5
Inserting and Replacing Batteries .......................................................................................................5
Setting Up Your Prole................................................................................................6
Assigning a User ID...............................................................................................................................6
Setting Gender......................................................................................................................................6
Setting Your Activity Level....................................................................................................................6
Setting Your Height ..............................................................................................................................6
Setting Your Age...................................................................................................................................7
Setting Your Target Weight..................................................................................................................7
Selecting Units of Measure ..................................................................................................................7
Weight Only Operation........................................................................................................................7
Taking a Measurement................................................................................................8
Your First Measurement .......................................................................................................................8
Daily Measurement...............................................................................................................................9
Reviewing Records ....................................................................................................10
Cleaning .....................................................................................................................10
Warranty .....................................................................................................................11
Your Readings ............................................................................................................12
Body Fat Analysis................................................................................................................................12
Body Water%.......................................................................................................................................12
Muscle Mass........................................................................................................................................13
Bone Mass ...........................................................................................................................................13
Activity Level .......................................................................................................................................13
Troubleshooting.........................................................................................................14
Product Specications...............................................................................................15
EMC Guidance...........................................................................................................16
Table 1..................................................................................................................................................16
Table 2..................................................................................................................................................17
Table 3..................................................................................................................................................18
Table 4..................................................................................................................................................19
Thank You...................................................................................................................20
TABLE OF CONTENTS

SAFETY INFORMATION
1
Safety Information
This Vitagoods Digital Body Analyzer allows you to measure and track your
vital body composition statistics from the comfort of your home. Intended
for use by adults this Digital Body Analyzer measures weight and uses bio-
electrical impedance analysis (BIA) technology to estimate body fat %, body
water %, bone mass, and muscle mass in generally healthy adults 18 years of
age or older. The device is designed for home use only.
If you suffer from arrhythmia, only use this device with the approval of your
physician. In certain cases, this measurement method may produce incorrect
readings.
Pregnant women should not use this scale. If you are or think you might be
pregnant, do not use this device as its affects on the fetus are unknown. If
you are connected to a wearable or have an implantable electronic device or
instrument, such as a pacemaker or debrillator, avoid use.
CAUTION
Read this user manual thoroughly before use. This device is designed and
manufactured to operate within dened design limits. Misuse may result
in harm. The following should be observed to best use and maintain your
device:
• This device is intended for adult use only.
• This device is intended solely to monitor and determine weight and BMI.
• Its sole function is measurement.
• Monitoring weight and BMI with this device does not equate to a
medical diagnosis.
• This device allows you to monitor your weight and BMI under the care
of a physician.
• If you are taking medication, consult with your physician to determine if
it will affect the scale’s measurments.
• This device is not suitable for continuous monitoring during medical
emergencies or operations.
• Do not use the monitor under the conditions of strong electromagnetic
eld (e.g. medical radio frequency equipment) that radiates interference
signal or electrical fast transient/burst signal.
• The device is not AP/APG equipment. It is not suitable for use in the
presence of ammable gases (avoid oxygen, nitrous oxide).
• Keep the unit out of reach of infants or children.
• Use only accessories and detachable parts specied and authorized by the
manufacturer. Not doing so may cause damage to the unit or the user.

SAFETY & USAGE
2
Safety & Usage
The following warning signs and symbols are essential to ensure proper and
safe use of this product and to protect you from injury.
Please review these symbols and their meanings as you may encounter them
as you proceed through this user manual:
Package Includes:
Digital Body Analyzer, 2xCR2032 Lithium
Batteries, User Manual
Down Sensor Key
Set Sensor Key
Up Sensor Key
Unit Selection Button
LCD Display
Battery Compartment
Represents the
Manufacturer
Indicates the
Serial Number
Indicates Direct
Current
ENVIRONMENT PROTECTION
Electronic products should not
be disposed of with household
waste. Please recycle.
This part of the Operation
Guide Must be Read
Indicate compliance with MDD
93/42/ECC Requirements
Indicates Type BF
Applied Parts

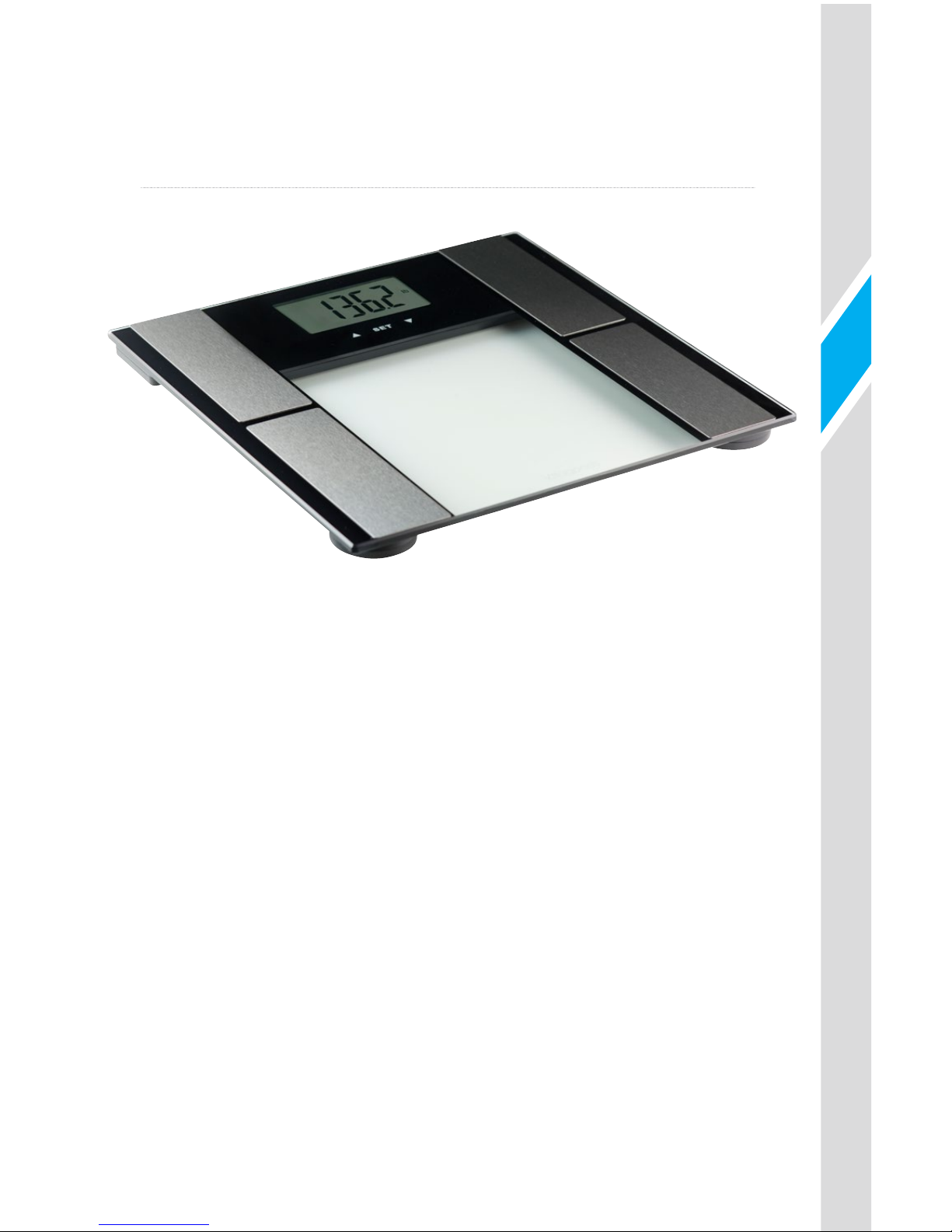

Device Components
Electrodes

LCD DISPLAY
3
LCD Display
Percentage
Calorie
Male
Muscle Mass Analysis Result
Kilogram
Centimeter
Body Fat Analysis Result
User ID (Range from P1 to P10)
Calorie
Pound
Foot
Target Weight
Female
Bone Mass Analysis Result
Stone
Age
Total Body Water
Analysis Result
Difference compared with
target weight
Less than target weight
More than target weight

WEIGHT MEASUREMENT
4
About Weight Measurement
Measuring your own weight and BMI is an important way of monitoring your
health. Excessive weight and high BMI levels are a major health problem,
which can be treated effectively once addressed. Measuring your own
weight and BMI levels between doctor visits on a regular basis and keeping
accurate records helps monitor any signicant changes in health.
Fat is essential for the human body. It stores energy, protects internal organs,
regulates body temperature, and maintains normal physiological function
of the human body. However, too much body fat is harmful. Excessive
weight and high BMI levels may lead to illness and a wide array of diseases.
Since the scale uses BIA (Bio-impedance Analysis) technology, it accurately
discerns weight and BMI.

GENERAL INSTRUCTIONS
5
The Vitagoods Digital Body Analyzer uses BIA (Bio-impedance Analysis)
technology. A weak current ows through the human body to detect the bio-
impedance and estimate body fat, body water, muscle mass bone mass and
BMR. The electrical current is small and not usually felt by the user.
This BIA technology is safe, non-invasive, non-toxic and harmless.
The current mentioned above is less than 1mA. However, please be aware
that anyone with an wearable or implantable medical electronic instrument,
such as a pacemaker, must avoid using this device.
Installing Batteries
• Open the battery compartment
located on the back of the scale.
• Insert the batteries with the correct
polarities (+/-).
(Always use 2 x CR2032 batteries.)
• The LCD displays “8888” to alert
activation.
• Close the battery compartment.
• The LCD then displays “0.0 lb” to alert
completion.
Replace the batteries under following
circumstances:
• “Lo” displays on the LCD (the device powers off in four [4] seconds)
• The LCD display dims
• Always replace with 2 x CR2032 new batteries. Do not use old batteries
with new ones.
• Worn batteries are hazardous waste. Do NOT dispose of them together
with the household garbage. Please refer to the local ordinances and
recycling instructions regarding disposal of the worn batteries.
General Instructions
CAUTION
• Remove batteries if the device is not likely to be used for an extended time.
• Alkaline batteries are recyclable and should not be disposed of with regular waste.
• Do not handle damaged or leaking batteries.

SETTING UP YOUR PROFILE
6
Setting Up Your Prole
Follow the directions below to set up your User ID and prole that include
your Gender, Activity Level, Height, Age and Target weight. The Digital Body
Analyzer supports up to 10 User Proles.
Assigning a User ID
• With batteries correctly installed, press the “SET” key to enter setup.
• The system will request the selection of a User ID rst by ashing the
“P1” indicator. Use the function keys or to select your User ID from
P1 to P10.
• Press the “SET” key to conrm your User ID selection.
Setting Gender
• After assigning your User ID, the system will ask you to select your
Gender.
• When the gender portrait ( ) begins to ash press the function keys to
select male ( ) of female ( ).
• Press the “SET” key to conrm your Gender selection.
Setting Your Activity Level
• After conrming your Gender, the system will ask you to select your
Activity Level setting.
• The number “3” will begin to ash on the display.
• Use the function keys or to increase or decrease this number based
on your Activity Level. (Range: 1 to 5 ) - see page 13 for details
• Press the “SET” key to conrm your Activity Level.
Setting Your Height
• After setting your Metabolic Level, the system will ask you to select your
Height, indicated by the blinking digits on the display.
• Use the function key or to set your height on the display.
(Range: 3’3.5”~7’2.5” ft / 100 cm to 220 cm)
• Press the “SET” key to conrm your height.

SETTING UP YOUR PROFILE
7
Setting Your Age
• After setting your Height, the system will ask you to select your Age,
indicated by the ashing digits on the display.
• Use the function key or to set your age, indicated by the ashing
digits on the display.
• Uses the function key or set your age on the display.
(Setting Range: 10 to 80 years old)
• Press the “SET” key to conrm Age..
Setting Your Target Weight
• After setting your Age, the system will ask you to select your Target
Weight, indicated by the ashing digits on the display.
• Use the function key or to set your Target Weight on the display.
(Range: 20kg to 150 kg/ 44.0lb~330.6lb)
• Press the “SET” key to conrm your Target Weight
Once you have completed this process and the LCD displays “0.0lb”, you
may begin measuring.
Selecting Units of Measure
With batteries correctly installed, press the “UNIT” button in the back of the
scale to select measurement unit. The default measurement unit is “pound”.
You may press “UNIT” button again to select a different unit of measure.
(pounds, kilogram, stone).
Weight Only Operation
You may skip the above steps for programing and your Vitagoods Digital
Body Analyzer will operate as a conventional weight reading scale. Once the
scale is initialized, as previously described, you may simply step on the scale
to measure your current weight.
For a weight only reading:
1. Position the scale on a at, hard surface.
Carpeted or uneven oors may affect accuracy.
2. Step onto the scale platform and remain
still while the scale computes your weight.
3. The scale will save your weight value.
4. The scale will automatically turn off after a
few seconds.
Setting Up Your Prole

TAKING A MEASUREMENT
8
Your First Measurement
Please complete the Prole Set Up process before
your rst measurement.
Step 1
• Position the scale on a at, hard surface.
Carpeted or uneven oors may affect accuracy.
• Tap the platform with your foot
• When the LCD displays “0.0” step onto the
platform barefooted
Step 2
• Stand still and keep full contact with the
electrodes (metal plates) until the LCD stops
displaying the moving “o”
Step 3
• The following measurments:
Weight, Weight Difference, Body Fat, Total
Body Water, Muscle Mass, Bone Mass and
BMR will all be displayed twice.
Step 4
• The user’s personal information will then display
before the Digital Body Analyzer turns off.
• If a complete analysis fails only your weight
will be displayed If this happens refer to the
Troubleshooting section of this manual.

TAKING A MEASUREMENT
9
Step 1
• The patented SENSE ON technology will automatically switch on your
Digital Body Analyzer as you step onto the platform with your bare feet.
Step 2
• Stand still and keep full contact with the electrodes (metal plates) until
the LCD stops displaying the moving “o”
Step 3
• According to the analysis results, the system will automatically identify
the most likely User ID by matching similar history records. Then the
measuring results will be displayed twice, sequentially.
• When the system nds two or more users with similar history records, it
will ask you to choose the correct User ID, for example, P1 and P2. You
may press key for P1 and or key for P2. The measurement results
will then be sorted for the User ID you selected and displayed twice
sequentially.
Step 4
• The user’s personal information will then display before the Digital
Body Analyzer turns off.
• If a complete analysis fails only your weight will be displayed If this
happens refer to the Troubleshooting section of this manual.
Daily Measurements

REVIEWING RECORDS
10
Reviewing Records
Cleaning
Step 1
• To review the most recent record, press the “SET” button to activate
your digital body analyzer, the LCD will display “0.0” when ready.
Step 2
• Press the or key to select the user you would like to review records
for. One you have made your choice the records for the selected user
will display twice on the screen.
• The digital body analyzer will then switch to weight mode and be ready
to use.
Before cleaning your digital body analyzer, please review and practice the
following Do’s and Don’ts:
DO’s
• Do use a soft dry cloth to wipe off dust.
• Do use a soft wet cloth to wipe off any dirt.
• Do use a soft dry cloth to wipe the device dry.
DONT’s
• Don’t immerse the device or wash it in water.
• Don’t use propellant, abrasive or other chemicals to remove dirt or
clean the device as it may result in discoloration or malfunction.
• Don’t disassemble the device. If you have any problems, please contact
Vitagoods. (Please refer to Warranty for contact information)

ONE YEAR WARRANTY
11
ONE-YEAR WARRANTY
This Vitagoods product is warranted to be free of
manufacturer’s defects in materials or workmanship
for one year from the date of purchase. Damage
or wear resulting from an accident, misuse, abuse,
commercial use, or unauthorized adjustment and/or
repair are not covered under this warranty.
Should this product require warranty service (or
replacement at our discretion) please contact client
service to obtain a Return Merchandise Authorization
number (RMA) and return instructions, proof of
purchase is required. Products returned without
a Vitagoods generated RMA number will not be
accepted and the sender will not receive a refund,
replacement, or repaired product.
clien[email protected]
1.888.870.2786
There are no express warranties except as listed
above. This warranty gives you specific legal rights
and you may have other rights which very from state
to state.
DO NOT RETURN TO RETAILER, PLEASE CONTACT
US DIRECTLY FOR WARRANTY SERVICE OR REPAIR,
THANK YOU.

YOUR READINGS
12
Source:Derived fr. Wang & Deurenberg: “Hydration of fat-free body mass”. American Journal Clin Nutr 1999, 69833-841
AGE
MALE FEMALE
LOW NORMAL HIGH V. HIGH LOW NORMAL HIGH V. HIGH
20-29 <13 13.1-20 20.1-23 >23 <19 19.1-28 28.1-31 >31
30-39 <14 14.1-21 21.1-24 >24 <20 21.1-29 29.1-32 >32
40-49 <16 16.1-23 23.1-26 >26 <22 22.1-30 30.1-33 >33
50-59 <17 17.1-24 24.1-27 >27 <23 23.1-31 31.1-34 >34
60+ <18 18.1-25 25.1-28 >28 <24 24.1-32 32.1-35 >35
AGE MALE FEMALE
NORMAL NORMAL
10-12 >64 >60
13-18 >63.5 >58.5
19-30 >62.5 >56
31-40 >61 >53
41-50 >60 >52
51-60 >59 >51
60+ >58 >50
Your Readings
Body Fat
Fat is essential for human body. It can not only store energy and protect
internal organs, but also regulate body temperature and maintain normal
physiological function. However, too much body fat is harmful to the
body. It is frequently accompanied by Fatty Liver, diabetes, coronary heart
disease, etc.
Therefore self-measuring and self-monitoring body fat level are benecial
to your health. Since we can’t judge body fat level simply by our weight, this
Digital Body Analyzer, with BIA (Bio-impedance Analysis) technology is an
accurate device that offers a quick and comfortable way to obtain your body
fat level.
Body Water Ratio (%): 20 - 80%
Body Fat Analysis (%): 5 - 60%

YOUR READINGS
13
Your Readings
Muscle Mass (%): 0 - 70%
Bone Mass: 0 - 22 lb.
Bone Mass: 0 - 10 kg
Activity Level
AGE MALE FEMALE
NORMAL NORMAL
10-99 >40 >34
MALE FEMALE
Weight < 132 lb 132 -165 lb >165 lb < 99 lb 99 - 132 lb > 132 lb
Bone 5.5 lb 6.4 lb 7.1 lb 4.0 lb 4.9 lb 5.5 lb
MALE FEMALE
Weight < 60 kg 45 - 60 kg >75 kg < 45 kg 45 - 60 kg > 60 kg
Bone 2.5 kg 2.9 kg 3.2 kg 1.8 kg 2.2 kg 2.5 kg
ACT - CATEGORY ACTIVITY FACTOR F
1 - Very Low Sedentary activities such as reading, studying, speaking
with no more than 2 hours of standing or walking per day f=1.2
2 - Low Your day consists of light activity that involves active sitting
or standing activities f=1.3
3 - Moderate
Your daily activity consists of light work such as house
work or gardening and you are frequently walking and
sometimes sitting
f=1.5
4 - High Your daily activity includes lots of movement and 2 or
more hours of exercise or sports f=1.75
5 - Very Hgih Your daily activity includes strenuous work such as that of a
construction worker. f=2.0

TROUBLESHOOTING
14
Troubleshooting
Error Prompts
When Taking a Measurement
ERROR DESCRIPTION SOLUTION
Overload. The device will power
off in four seconds.
Stop using this scale for
measurement.
Low Battery. The device will
power off in four seconds.
Replace both batteries at the same
time. Please purchase the correct
batteries for replacement.
PROBLEM ROOT CAUSE SOLUTION
Abnormal
measuring results:
- Too high; OR
- Too low; OR
- Huge difference
between
two recent
measurements.
Incorrect posture Please step on the platform
barefooted and stand still.
The device is located on the soft
ground such as a carpet OR on a
rugged surface.
Please place the device on a flat,
hard surface.
Cold body that may result in poor
blood circulation.
Warm up your hands and feet to
resume blood circulation and then
measure again.
Abnormal
measuring results:
- Too high; OR
- Too low; OR
- Huge difference
between
two recent
measurement.
Cold Electrodes. Place the device in a warm room
for a while and then measure again.
Either your hands or your feet are
too dry.
Wipe your feet with a damp cloth,
keeping them slightly damp when
starting measurement.
The device powers
off automatically. Low battery.
Replace both batteries at the
same time. Please replace with the
correct batteries for this product.
CANNOT proceed
to analyze body
fat, total body
water, muscle
mass and bone
mass.
Step onto the platform wearing
socks or shoes.
Please keep barefooted during
the measurement, and keep full
contact with the electrodes as well.
The system cannot identify the
possible User ID with most similar
data.
Please assign a User ID following
the instruction in Set Up Your
Profile.
The user fails to select the User ID
from what the system found.
Please assign a User ID following
the instruction in Set Up Your
Profile.

PRODUCT SPECIFICATIONS
15
Product Specications
Product Name VGP-3050 Series
Digital Body Analyzer
Dimension 12.2 in x 12.2 in x 0.8 in
Net Weight Approximately 0.8 lb
Display Digital LCD V.A.: 3.7 x 2 in
Measurement Unit Kilograms / Stones / Pounds
Measurement Range 5kg to 180kg / 0st: 11lb to 28st: 5lb / 11lb to 397lb
Division 0.1kg / 0.2lb
Accuracy 0-50kg: ±0.3kg; 50-100kg: ±0.4kg;
100-150kg: ±0.5kg; 150-180kg: ±0.7kg
Working Environment Temperature: 10° to 40° Humidity: 15%RH to 90% RH
Storage Environment Temperature: -20° to 55° Humidity: ≤90% RH
Power Source 6V (2xCR2032 Lithium Batteries)
Auto-ON SENSE ON technology
Auto-OFF 8 to 12 seconds after clearing
Otherwise, 8-12 seconds after last operation
Accessories 1. 2xCR2032 Lithium batteries
2. User Manual
Mode of Operation Continuous Operation
Protection Against
Ingress of Water IPX0
Software Version 1.0
About the Accuracy of This Product
This product passes strict inspection before delivery and therefore its accuracy is guaranteed by
the manufacturer. Please refer to the above table for the descriptions on accuracy.
This product is specially designed for body fat analysis as well as weight measurement. It should
NOT be used by anyone during the process of transaction for verication of goods’ weight.

EMC GUIDANCE
16
EMC Guidance
GUIDANCE AND MANUFACTURER’S DECLARATION – ELECTROMAGNETIC EMISSIONS
The Digital Body Analyzer is intended for use in the electromagnetic environment specified
below. The customer or the user of the Digital Body Analyzer should assure that it is used in
such an environment.
Emission Test Compliance Electromagnetic Environment - Guidance
RF Emission
CISPR 11 Group 1
The Digital Body Analyzer uses RF energy for its
internal function. Therefore, its RF emissions are
very low and are not likely to cause any interfer-
ence in nearby electronic equipment.
RF Emission
CISPR 11 Class B
Harmonic Emission
CISPR 11 Not Applicable
Voltage Fluctuations / flick-
er emissions IEC 61000-3-3 Not Applicable
Table 1
Guidance and MANUFACTURER’S declaration – ELECTROMAGNETIC
EMISSIONS – for all ME EQUIPMENT and ME SYSTEMS

EMC GUIDANCE
17 Guidance and manufacturer’s declaration - electromagnetic immunity
The Digital Body Analyzer in intended for use in the electromagnetic environment specified below. The
user of the Digital Body Analyzer should assure that it is used in such an environment.
Immunity Test IEC 6060 1
Test Level
Compliance
Level Electromagnetic environment - guidance
Electrostatic discharge
(ES D) IEC 61000-4-2
±6 kV contact
±8 kV air
±6 kV contact
±8 kV air
Floors should be wood, concrete or ceramic
time. If floors are covered with synthetic
material, the relative humidity should be at
least 30%
Electrical fast transient
/ burst IEC 61000-4-4
±2 kV for
power supply
lines
N/A
Surge IEC
61000-4-5
±1 kV line(s)
to line(s)
±2 kV line(s) to
earth
N/A
Voltage dips, short
interruptions and
voltage variations on
power supply input
lines
IEC 61000-4-11
<5% UT
(>95% dip in
the UT)
for 0.5 cycles
N/A
40% UT
(60% dip in the
UT)
for 5 cycles
N/A
70% UT
(30% dip in the
UT)
for 25 cycles
N/A
<5% UT
(>95% dip in
the UT)
for 5 cycles
N/A
Power Frequency
(50Hz) magnetic field
IEC 61000-4-8
3 A/m 3 A/m
Power frequency magnetic fields should
be at levels characteristic of a typical
location in a typical commercial or hospital
environment.
Note: UT is the a.c. mains voltage prior to application of the test level
EMC Guidance
Table 2
Guidance and manufacturer’s declaration – electromagnetic immunity – for
all ME EQUIPMENT and ME SYSTEMS
