Vitek VTC-TNB4RMA4B User manual

VITEK
VITEK
VTC-TNB4RMA4
Transcendent Series 4 MegaPixel
Gen. IV Advanced A.I.
Motorized IP Bullet Camera
QUICK START GUIDE
FEATURES:
• 1/3” 4.0 Megapixel CMOS Image Sensor
• NDAA Compliant
• Up to 30fps live view @ 4 MegaPixel (2592x1520)
• 2.8~12mm Motorized Varifocal Lens
• Matrix IR (up to 165’ IR Range)
• True Wide Dynamic Range
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Gen. IV Advanced Analytics: Regional Entrance / Exit Detection, Line
Crossing, Target Counting [All by Human / Motor Vehicle Classification]
Face Detection, Object Abandoned / Missing, Heat Map, Video Blur, Video
Color Cast Detection, Abnormal Video
• H.265+/H.265/H.264+/H.264/MJPEG
• 1 Ch. Audio In*
• Remote Viewing via CMS, Internet Explorer, iOS & Android Apps
• ONVIF Compliant
• MicroSD Card Slot for Local Recording (256GB)
• IP67 Weather Resistance
• Wall Mount Included & Junction Boxes (VT-TJB08) Available
(see pg. 9 for additional mounting options)
• 12VDC & PoE (Power over Ethernet) Operation
*Please research local, state and federal laws regarding the implementation of audio surveillance.
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Also Available in Charcoal,
VTC-TNB4RMA4B

2

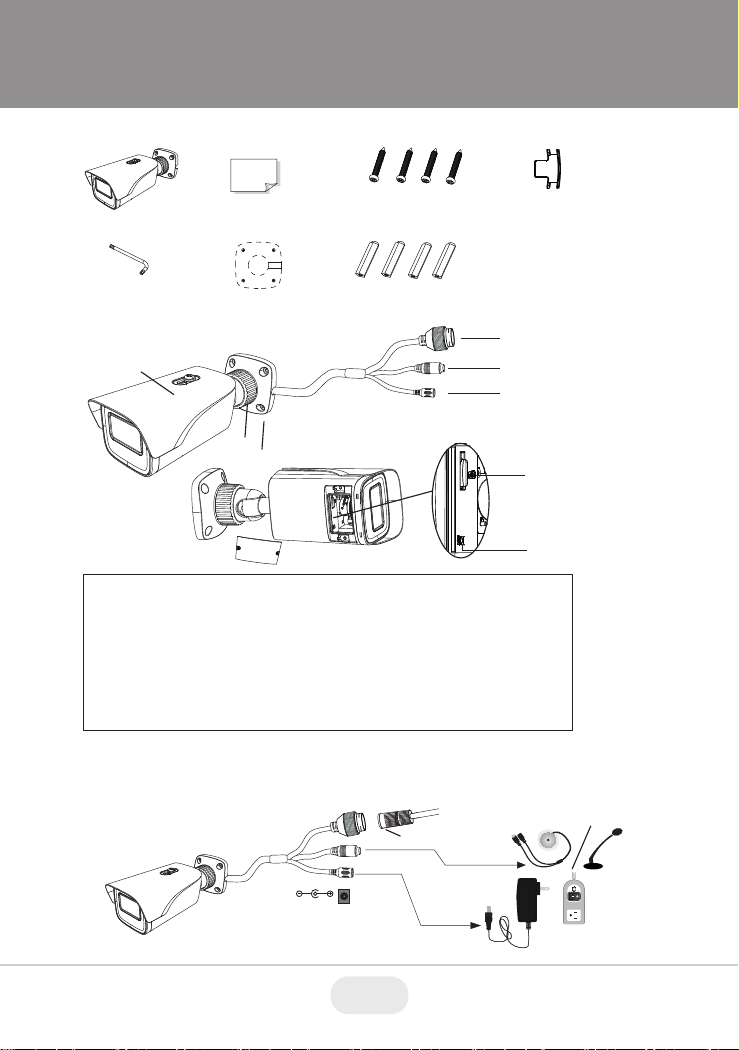

Components and Accessories
Overview
Connect the Weather Resistant Cap to an Ethernet patch cable.
Connect the cameras ethernet adaptor. If not powering the camera
with PoE, also connect the power Cable to an approved 12VDC
Power supply.
Camera Quick start guide
Drill template
Rubber plug
4 tapping screws PA 4×2
12
3
4
5
6
7
8
Secur ity cap
DC12V
1 Fixed Ring
2Mounting Base
3
4
Network connector*
Audio Input
5Power connector*
6Micro SD card slot
7Reset
8 Sunshield
Allen Key Plastic plug × 4

3
Weather Resistant Network Coupler
Installation
Before beginning installation, make sure that the wall or ceiling is
strong enough to withstand 3 times the weight of the camera. The
mounting steps are as follows:
MicroSD Card Installation: Remove the bottom of the cover from the
camera, insert card and replace the cover (be sure it is even).

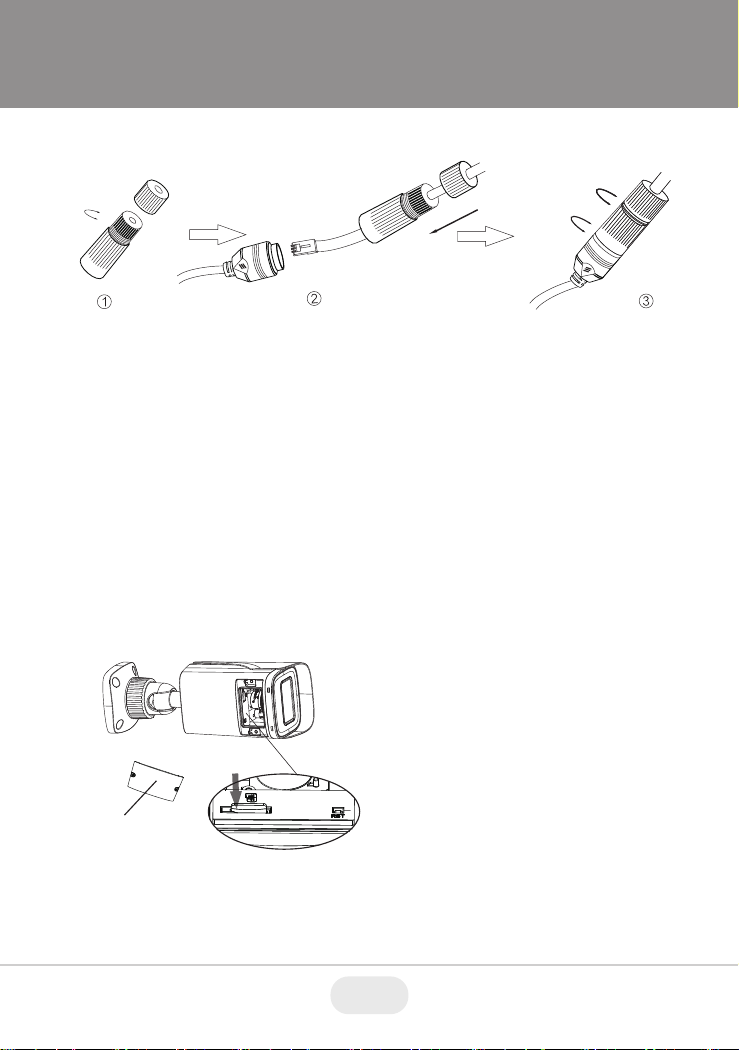

1. Loosen the nut from the Weather Resistant Network Coupler,
2. Run ethernet cable through coupler, then attach a RJ-45 connector.
3. Tighten the nut and coupler for a weather resistant seal.
Insert a micro
SD card
Cover

4

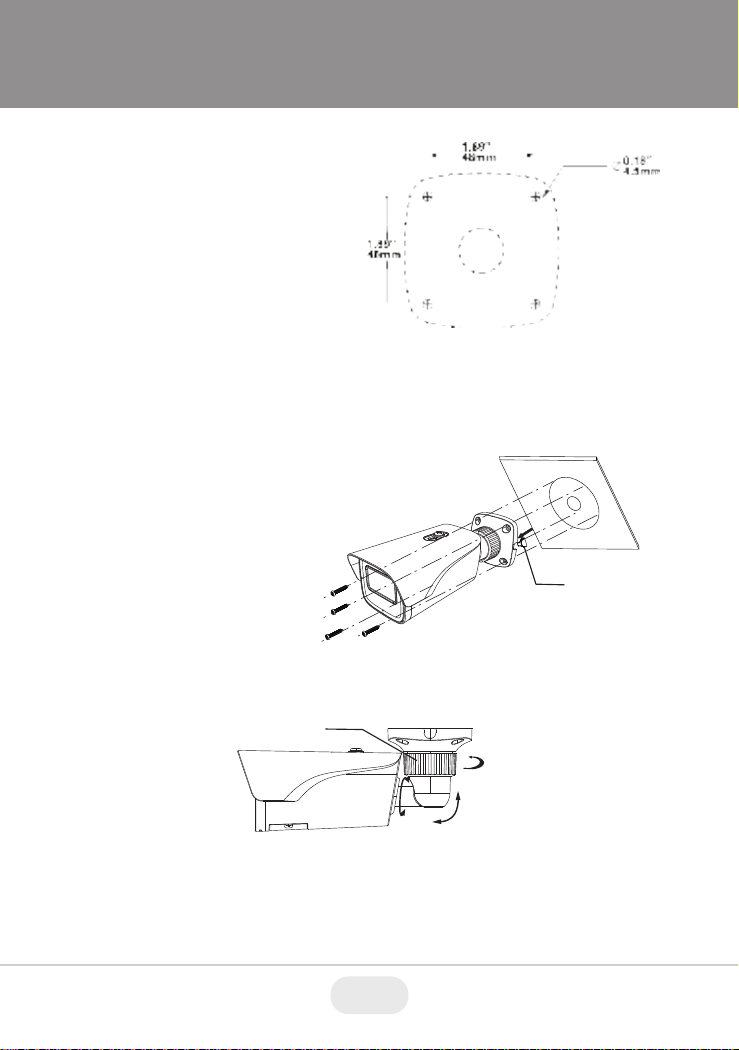

1. Attach the drill template to
the place where you want to
install the camera, then drill
3 screw holes and 1 cable
hole (if routing the cables
through the mounting base)
according to the drill
template
2. Route the cables and connect the power & video cables, use the
rubber plug to fill the gap of the mounting base, then secure the
mounting base to the ceiling or wall with screws.
Rubber plug
3. Loosen the mount lock to adjust the pan and tilt, then tighten the
mount lock to secure the viewing angle adjustments.
4. Carefully remove the protective film from the lens to complete the
installation.
90° Tilt
360° Rotation
360° Pan
Fixed Ring

5
LAN Configuration
The camera can be accessed on the local network either using the
IP-Tool or directly in a web browser.
Accessing the Camera Using the IP-Tool
1. Make sure the camera and PC are connected to the LAN.
2. Locate the IP-Tool installer at www.
vitekcctv.com/Downloads/Soft-
ware/Transcendent-IPTool_v2.0.2.zip , then install on the PC. Open
the installed application.
3. Modify the IP address. The default IP address is 192.168.226.201.
Click the information of the camera listed in the above table to show
the network information on the right side. Modify the IP address and
gateway of the camera and make sure its network address is in the
same local network segment as the computer’s. Please modify the
IP address of your device according to the practical situation.
For example, the IP address of your computer
is 192.168.13.4. So the IP address of the
camera shall be changed to 192.168.13.X.
After modification, please input the password
of the administrator and click “Modify” button
to modify the setting.
** Default admin password: “123456".
MENU
IP Camera
Network Cable Network Cable
Switch
Router Computer

6

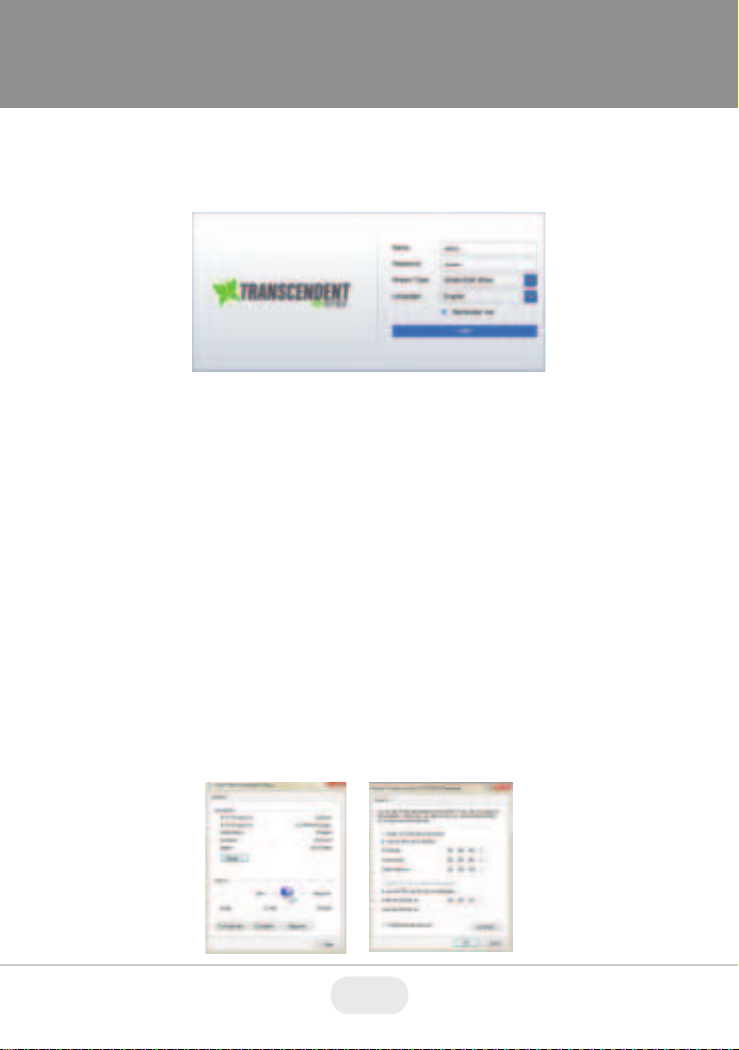

4. Double-click the IP address and then the system will pop up the web
browser to connect IP-CAM . IE browser will download the Active X
control. After downloading, a login window will pop up as shown
below:
Input the user name and password to log in.
Default user name: admin / Default password: 123456.
Directly Access Through a Web Browser
The default network settings are as shown below:
IP address: 192.168.226.201 HTTP: 80
Subnet Mask: 255.255.255.0 Data Port: 9008
Gateway: 192.168.226.1
You may use the above default settings when you log in the camera for
the first time.
1. Manually set the IP address of the PC. The network segment should
be the same as the default settings of IP-CAM. Open the network
and share center. Click “Local Area Connection” to pop up the
following window.
Select “Properties” and then select Internet protocol according to the
actual situation (for example: IPV4). Next, click “Properties” button to
set the network of the PC.

7
2. Open the IE Browser and input the default address of IP-CAM and
confirm. The IE browser will download Active X control.
3. After downloading Active X control, the login dialog box will pop up.
4. Input the default username and password and then enter to view.
WAN Configuration
Access the camera by the router or virtual server for example.

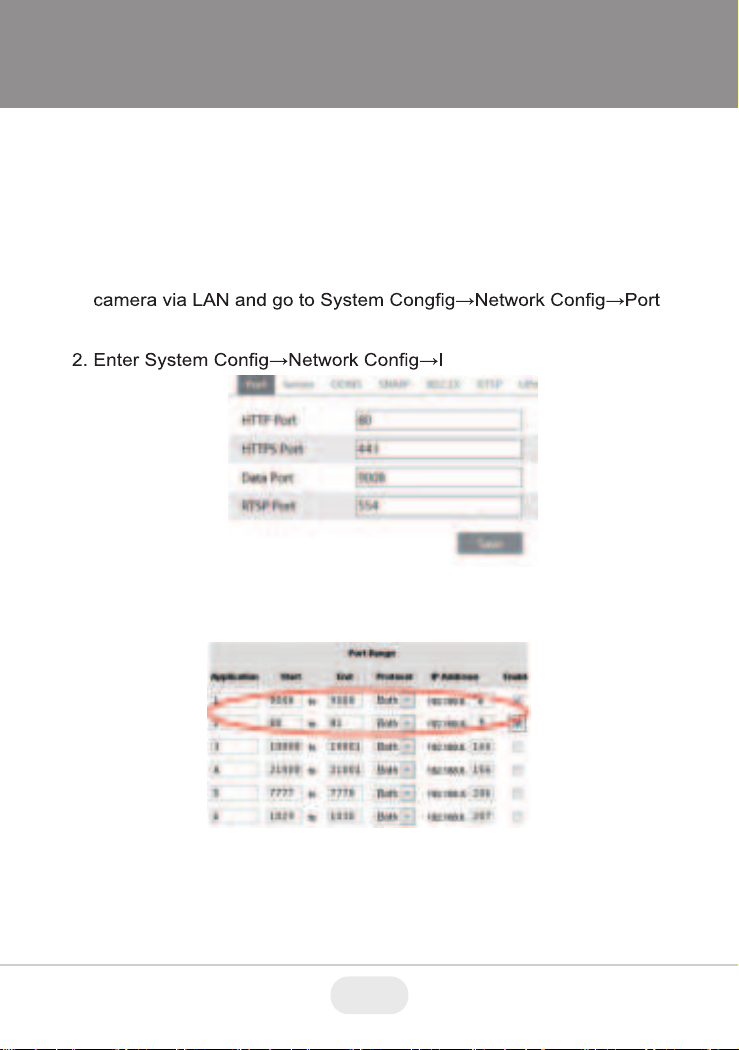

1. Make sure the camera is connected to the LAN; Then log into the
menu to set up the port number.
P Address menu to modify
the IP address.
4. Open the web browser and input its WAN IP and HTTP port to
access the IP-CAM.
3. Go to the router’s management interface through IE browser to
forward the IP address and port of IP-CAM in the “Virtual Server”.
5. For additional setup, features and functions, please scan the
QR code on the front page of this quick guide and download
the complete manual.

8
Image Sensor
Image Size
Resolution
Min. Illumination
Lens
Day / Night
IR LEDs / IR Distance
Video Compression
Audio Compression
Main-Stream
Bit Rate / Type
Wide Dynamic Range (WDR)
Digital Noise Reduction (DNR)
Quality
Image Setting
Gen. IV Advanced Analytics
Smart Alarm
Region of Interest (ROI)
Network
Audio
Local Storage
Remote Viewing
Supported Browsers
Connection Protocol
Weather Protection
Power Input
Power Consumption 12VDC / POE
Working Environment
Weight / Dimensions L × W × H
1/3” 4.0 Megapixel CMOS Image Sensor
4 MegaPixel (2592 × 1520)
4 MP(2592 × 1520) / 3 MP(2304 × 1296) / 1080P(1920 × 1080)
/ 720P(1280 × 720) / D1 / CIF(480 × 240)
0.005 [email protected], AGC ON; 0 lux with IR
Motorized 2.8-12mm
True Day/Night by ICR
2 Matrix / 165’
H.265+ / H.265 / H.264+ / H.264 / MJPEG
G.711A / G.711U
1~30fps: 4MP, 3MP, 1080P, 720P, D1, CIF, 480x240
64Kbps ~ 8Mbps
120dB Super WDR
XD-DNR (2D-DNR & 3D-DNR)
VBR (Five Levels of Adjustment) / CBR (Adjustable)
Saturation, Brightness, Contrast, WDR, Noise Reduction
Regional Entrance / Exit Detection, Line Crossing, Target Counting [All by Human / Motor Vehicle Classification]
Face Detection, Object Abandoned / Missing, Heat Map, Video Blur, Video Color Cast Detection, Abnormal Video
Motion Alarm / SD Card Error / SD Card Full
Each ROI to be Configured Separately
RJ45
1 Ch. Audio In*
MicroSD Card Slot (Up to 256GB)
CMS / Web Browser / Mobile (iOS/Android)
IE, Edge, Chrome and Safari (no plug-in required)
ONVIF
IP67 Weather Rating
12VDC / PoE
350mA (LEDs Off), 750mA (LEDs On) / 9W
-22° ~140° / < 95% Humidity
22.93 oz. / 1.43 lbs. / 650g, 8.68” × 3.15” × 2.78” (220.5 × 80.1 × 70.5mm)
VTC-TNB4RMA4 Detailed Specifications
*Please research local, state and federal laws regarding the implementation of audio
surveillance.

9
VT-TPLMT
Transcendent Universal
Pole Mount (reqs. VT-TJB08)
VT-TCNMT
Transcendent Universal
Corner Mount (reqs. VT-TJB08)
OPTIONAL ACCESSORIES
AND RELATED PRODUCTS
FOR VTC-TNB4RMA4
VT-TJB08
Optional Junction Box
8.46”
6.43”
8.46”
8.47”

10
OPTIONAL ACCESSORIES AND
RELATED PRODUCTS FOR
NDAA COMPLIANT
TRANSCENDENT IP CAMERAS
NEWLYNEWLY UPDATEDUPDATED
VT-TNR1626PN
VT-TNR414PN
VT-TNR818PN
• 8MP (4K) HDMI Output
• H.265S / H.265+ / H.265 / H.264 Video Compression
• Analytic Support Including Basic Face Detection,
License Plate Recognition, and More!
• Available in 4, 8, and 16 Channels
• Up to 24TB Depending on Model (12TB per HDD)
• PoE Support on ALL Models
Transcendent NVRs
A Standalone Solution with
Analytic Support and
NDAA Compliance!

11
Also Consider Vitek NDAA Compliant Wireless
Access Points to Reduce Costly Cable Installation!
VT-WAP1150 and VT-WAP2150 High Speed 5.8GHz DIP
AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM,
150MBps transmission, and Point-to-Multi-Point (P2MP)
Topology
With high speed transmission of 150Mbps and a wireless range
of 3000ft. (VT-WAP1150) and 1.25 miles (VT-WAP2150) these
products eliminate the need for expensive and troublesome long-
distance cables in areas where CCTV monitoring and rigorous
surveillance take place. These small, lightweight and durable units are
easy to install and easy to use with an innovative and straightforward
10-button plug-and-play dip switch that facilitates the creation of a
robust wireless network without a computer. Set-up can be simply
configured for point-to-point or point-to-multipoint topology depending
on the application, with up to 128 IP group configurations!
VT-WAP1150 VT-WAP2150

28492 CONSTELLATION ROAD VALENCIA, CA 91355
WWW.VITEKCCTV.COM
Version 1.0
Dec. 2021
