Safety information
User manual one, page of2 7
! Warning
Please read the assembly instructions included carefully. Please read
this iPad wallmount user manual completely before using it. Please
follow the instructions and recommendations to ensure proper use
and maximum enjoyment.
Safety
information
All viveroo mounting sets are intended for use in enclosed and dry
living spaces.
The following conditions must be provided:
-Operating temperature between 0° C (32° F) and 35° C (95° F).
-Relative humidity (during use): 20!% to 90!%, non-condensing.
-No external environmental influences such as oil, chemicals, salt,
extensive dust, etc.
Installation, service or repairs, if necessary, may only be performed by
authorized persons.
The maximum altitude is 2.000m.
The installer is responsible for selecting the proper mounting location
and safe installation of the one. This also applies to installation in
movable parts, such as doors. The installer is responsible for
performing and documenting all necessary safety tests.
All electrical installation work may only be conducted by authorized,
trained electricians, always adhering to the general rules and
regulations applying to electrical installation.
Should it become apparent that safe operation of the one is not
assured, then the one must immediately be taken out of service and
secured against potential misuse. If the one functions are limited,
blocked or disabled, if an unusual odor is present, if noises such as
scratching are audible or damage is visible, safe operation can no
longer be guaranteed.
!

Technical Data
User manual one, page of3 7
Measurements
in millimeter
Measurements design cover
one for …
… iPad mini
… iPad 10.2 inch, Air,
Pro 10.5 inch
… iPad Pro 11 inch
… iPad Pro 12.9 inch
217 x 143
267 x 164
275 x 178
307 x 215
Depth one
Mounting plate
15
3
Size of opening
(for furniture installation)
Size of opening
(for flush-mounted box)
Round hole 40mm to put
the connector through
elongated hole 68 x 139
Installation depth (for furniture)
Installation depth (for flush-mounted box)
30
75
Weight in gram
one for …
… iPad mini 4/5
… iPad 10.2 inch (09/2019), Air (2019),
Pro 10.5 inch
… iPad Pro 11 inch
… iPad Pro 12.9 inch
(3rd/4th Generation, 2018/2020)
740
866
952
1.118
Electrical
connections
Power supply
Power consumption
100-240Vac, 50-60Hz
12,5Watt - 18Watt
depending on iPad and
power supply
Removal from
power supply
The one may be removed from the power supply via the circuit breaker
in the respective rooms.
Technical changes and mistakes are excepted.
Apple, iPad and Lightning are registeres tradem geschützte Marken von Apple Inc.
Product
contents
-User manual one
-one
-Mounting plate
-screw set
Compatability
Electrical operation of viveroo iPad mounts is permitted only in
connection with viveroo MountingSet and power supply and cable
included in the MountingSet. Operation of viveroo iPad mounts
without a MountingSet will lead to immediate loss of guarantee and
warranty.

Installation
Use the corresponding MountingSet to install your one. All MountingSets come with specific mounting instructions.
Illustration are examples. Depending on the iPad and USB port, another power adapter and cables can be supplied.
User manual one, page of4 7

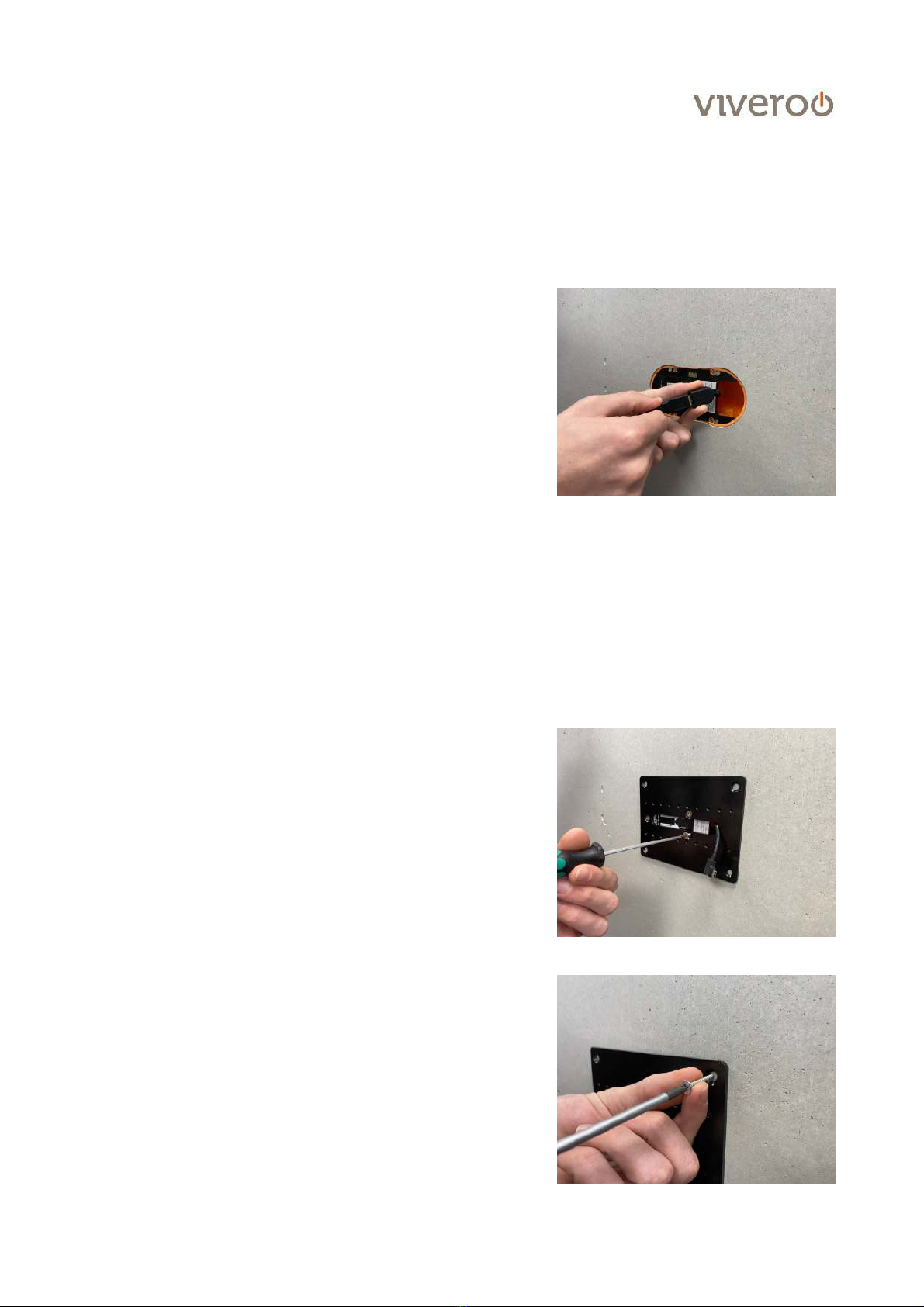

Step 1
The one can be installed in both portrait and landscape
format. Please refer to the assembly instructions for the
respective assembly set.
! Note: These instructions show the assembly in a
cavity wall with a flush-mounted cavity wall socket
(Inwall assembly set). The one is installed here in
landscape format as an example. If you screwed the
one directly to the surface without a flush-mounted
box, please continue with Step 2.
Connect the USB connector that will later be used to
power the iPad.
For one with PoE (power and data via the network
cable): Insert the PoE adapter into the installation
socket from your mounting set and attach the adapter
plate of the mounting set. For using the one with a PoE
Adapter, also see the notes on page 6 of this document.
Step 2
2.1 Attach the adapter plate of the one to the assembly
set using the holes provided for this purpose. Guide the
USB cable through the long hole in the middle of the
plate.
Alternatively
2.2 If you want to install the one without the viveroo
mounting set or if you want to screw the bracket
directly onto the wall, use the four outer holes and the
screws provided. See also the notes on page 6 of these
instructions.
Step 1
Step 2.1
Step 2.2 (Alternativ zu 2.1)

Installation
User manual one, page of5 7

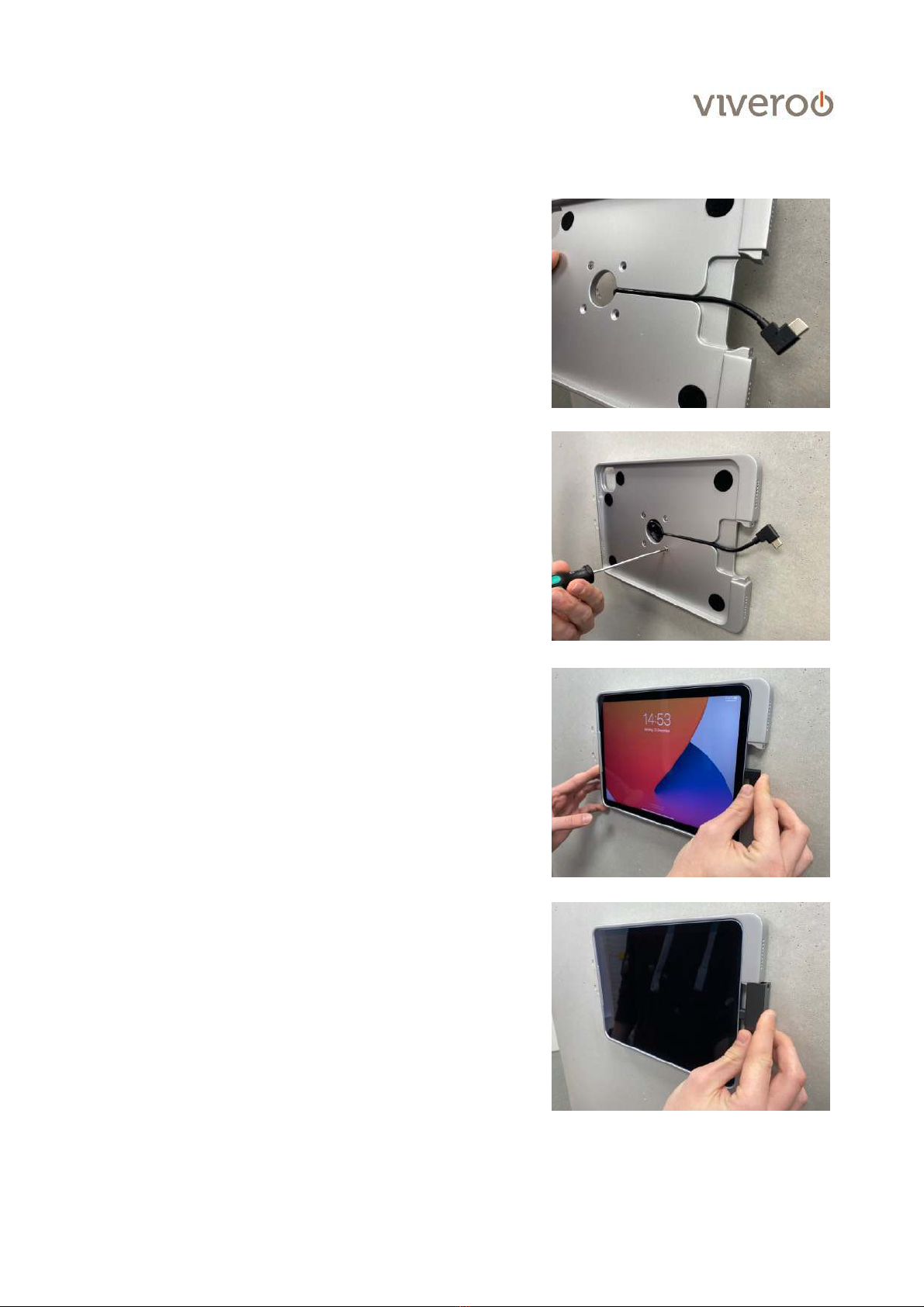

Step 3
Take the frame of the one and run the USB cable in the
middle and fix it in the cable duct. The cable should
then protrude about 2 cm from the cable duct.
Step 4
Mount the frame on the adapter plate. The 4 middle
holes are used for this. There are several threads for
aligning the one.
Step 5
Place the iPad in the iPad in the one and connect the
USBC or Lightning connector. Warning: In this state, the
iPad is not yet secured in the one to prevent it from
falling out.
Step 6
Secure the iPad with the cap and fix it with the two
small screws. Now the iPad is secured and can no
longer fall out.
Step 3
Step 4
Step 5
Step 6

Notes on PoE Adapters
User manual one, page of6 7
PoE Adapter for iPads with Lightning connector.
PoE Adapter for iPads with USB-C connector.
Note: Use the orange wall box and mounting plate
to attach the viveroo iPad mount to the wall. Place
the PoE Adapter inside the backbox. Please also
note the enclosed instructions of the PoE Adapter.
PoE Adapter
USBC/ Lightning

Warranty
User manual one, page of7 7
Warranty
viveroo products come with a one year warranty from date of purchase by the original
end customer, unless the device was repaired or replaced during the warranty period. In
this case, the warranty is valid until the end of the regular two year warranty or six
months following the repair/replacement, whichever comes first.
Warranty claims and
verification
Should your viveroo product for any reason not perform as expected, please contact
your dealer and provide the original invoice with serial number as well as a brief
description of your complaint.
Warranty claims and
verification
The following devices are excluded from the warranty
Devices with damages caused by:
-acts of nature,
-misuse, including but not limited to disregarding the user manual and mounting
instructions,
-inappropriate handling,
-connection to an incorrect power supply,
-repairs or attempted repairs by unauthorized persons,
-use of the device in connection with third party products,
devices on which the serial number of the producer has been changed, deleted, removed
or made illegible.
Apple, iPad and Lightning are registered trademarks of Apple Inc.
