Vivitek Qumi Z1H User manual

- 2 -
TABLE OF CONTENTS
Important Safety Information ............................... 5
Regulatory Compliance ......................................... 8
Introduction ........................................................ 9
Package Contents ............................................... 10
Your Projector.................................................... 11
Remote Control .................................................. 14

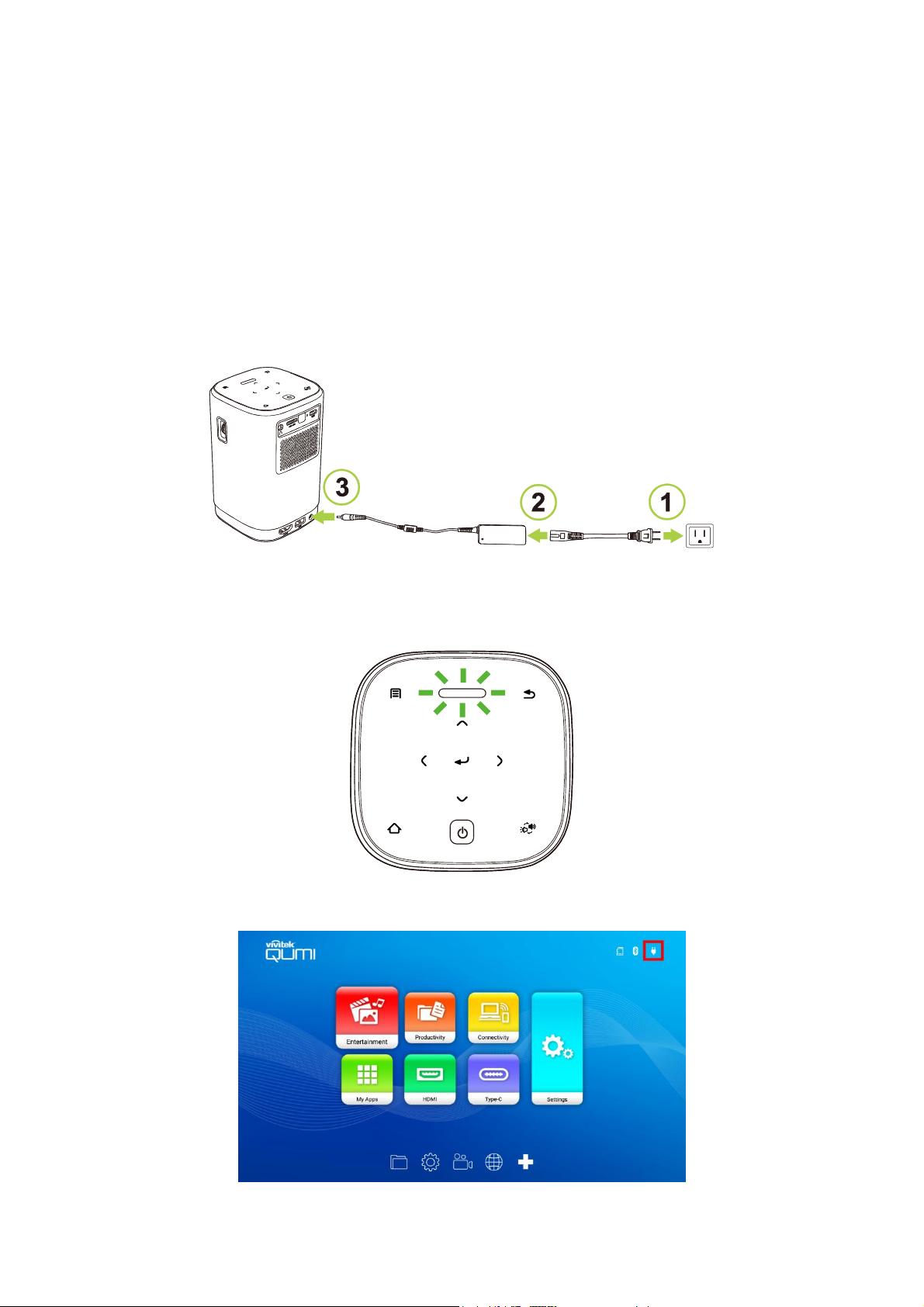

Powering/Charging the Projector ........................ 17
Symbols Used .............................................................. 5
General Safety Information ............................................ 6
Qumi Z1H Installation Notice .......................................... 6
Power Supply Safety ..................................................... 7
Cleaning Qumi ............................................................. 7
Control Warning ........................................................... 7
Battery Warning ........................................................... 7
FCC Warning ................................................................ 8
Canada ....................................................................... 8
Safety Certifications...................................................... 8
Disposal and Recycling .................................................. 8
About this Manual ......................................................... 9
Qumi Z1H Main Features ................................................ 9
Front-Left View ...........................................................11
Rear View...................................................................11

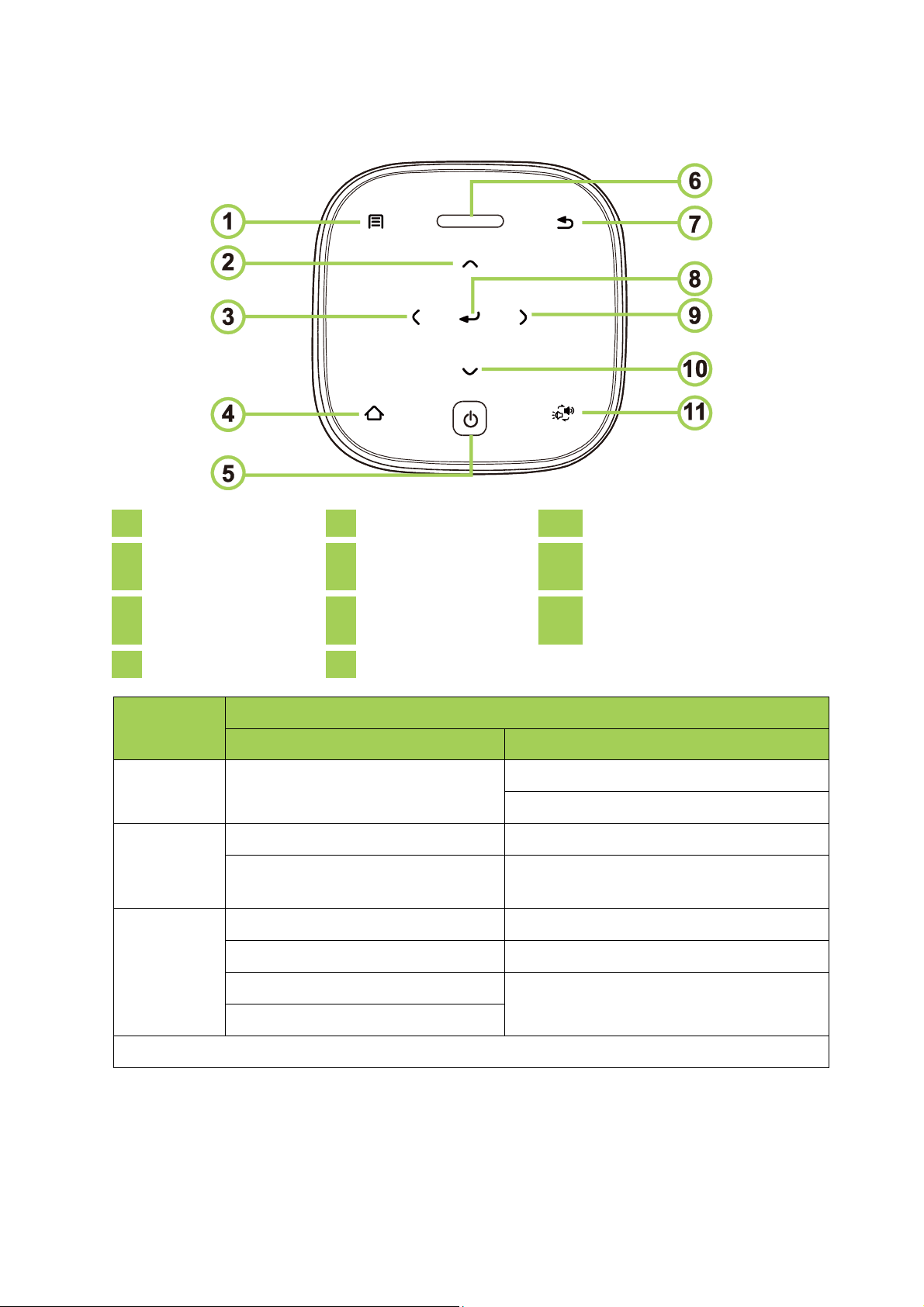

Top View ....................................................................12
Bottom View ...............................................................13

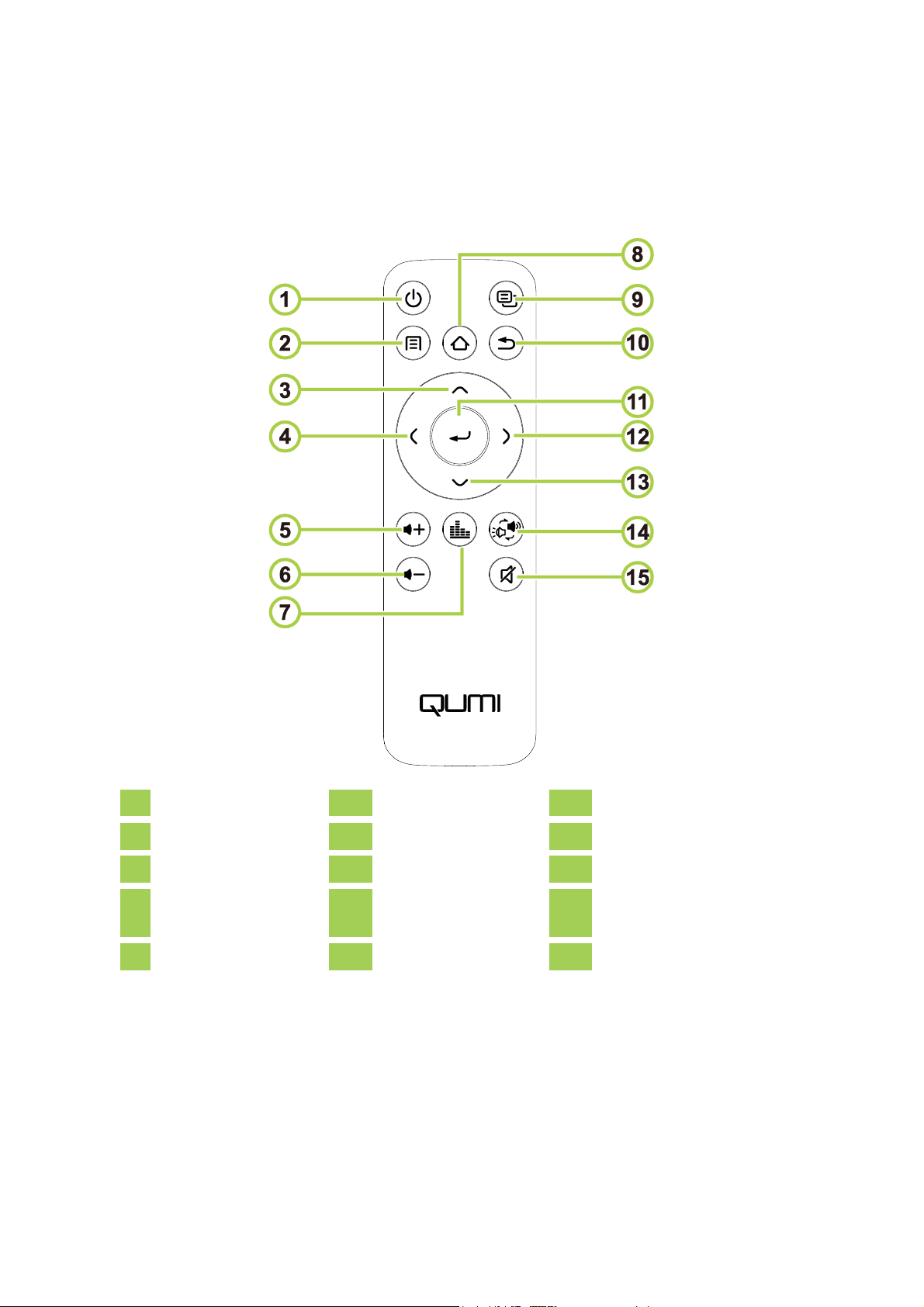

Remote Control Keypad ................................................14

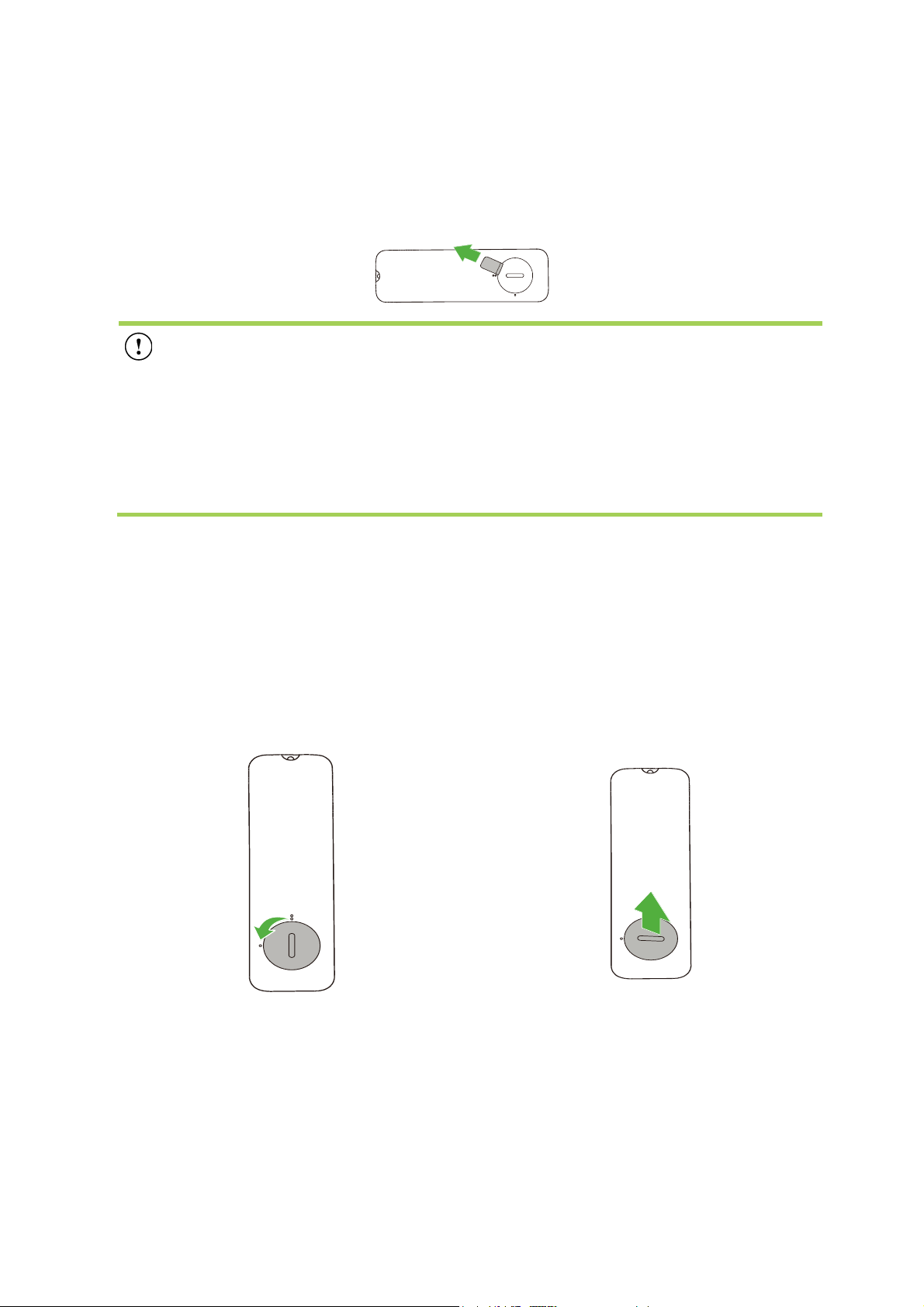

Activating the Remote Control Battery .............................15
Replacing the Remote Control Battery .............................15

- 3 -
Making Connections............................................ 20
Using the Projector ............................................ 23
Screencasting with an iOS Device ......................................29
Screencasting with a MacOS Device ...................................29
Screencasting with an Android Device ................................31
Screencasting with a Windows PC ......................................31
Bluetooth®Connections ...................................... 37
The Home Screen ............................................... 41
Using the Settings Menus ................................... 44
Device Settings ................................................................47
Preferences ......................................................................48
Remote & Accessories Settings ..........................................48
Personal Settings .............................................................49
Troubleshooting/FAQ ......................................... 50
Powering On/Off the Projector .......................................18
Connecting to a Wi-Fi Network .......................................21
Adjusting the Focus .....................................................23
Playing Media Files from a Storage Device (USB Flash Drive,
microSD Card) ............................................................24
Screencasting with a Smartphone, Tablet, or PC ...............28
Playing from a Video Source (HDMI) ...............................33
Playing from a Video Source (Type-C / DisplayPort) ...........34
Viewing Documents from a Storage Device (USB Flash Drive,
microSD Card) ............................................................35
Using the Bluetooth®Speaker ........................................37
Connecting the Projector to Bluetooth Devices ..................39
Customizing the App Shortcuts on the Home Screen ..........42
Customizing the Category Menus ....................................43
The Projector Settings Menu ..........................................44
The System Settings Menu ............................................46

- 4 -
Additional Information ....................................... 55
Tips ..........................................................................50
System Reset Method (Reboot) ......................................50
Image Problems ..........................................................51
Screencasting Problems ................................................51
Remote Control Problems ..............................................52
Audio Problems ...........................................................52
FAQs .........................................................................52
Vivitek Support Site .....................................................54
Projection Distance vs Projection Size .............................55
Timing Mode Table .......................................................56
Specifications .............................................................57

- 5 -
IMPORTANT SAFETY INFORMATION
IMPORTANT:
It is strongly recommended that you read this section carefully before using Qumi
Z1H. These safety and usage instructions will make sure you enjoy many years of
safe use of Qumi Z1H. Keep this manual for future reference.
Symbols Used
Warning symbols are used on the unit and in this manual to alert you of hazardous
situations. The following symbols are used to call attention to important information.
NOTE:
Provides additional information on the topic at hand.
IMPORTANT:
Provides additional information that should not be overlooked.
CAUTION:
Alerts you to situations that may damage the unit.
WARNING:
Alerts you to situations that may damage the unit, create a hazardous
environment, or cause personal injury.
Throughout this manual, component parts and items in the OSD (On-Screen Display)
menus are denoted in bold font as in this example:
“Press the Menu button on top of the projector or remote control to open the Settings
menu”.

- 6 -
General Safety Information
RG1 IEC 62471-5:2015
Do not open the casing. There are no user-maintainable parts inside the machine.
For any maintenance, please contact a qualified service technician.
Follow all warnings and precautions on the machine or in this Manual.
According to its design, the projection light source is extremely bright. To avoid
harm to your eyes, do not look straight at the lens when the LED is ON.
Do not place the machine on unstable surface or stand.
Avoid using the system near water, in direct sunlight, or near a heating device.
Do not place any heavy objects (e.g., books or bags) on the unit.
Qumi Z1H Installation Notice
Allow at least a 500mm (20”) clearance around the exhaust vent.
Make sure that the intake vents do not recycle hot air from the exhaust vent.
When operating Qumi Z1H in an enclosed space, make sure that the surrounding air
temperature within the enclosure does not exceed the operating temperature while
Qumi Z1H is running, and the air intake and exhaust vents are unobstructed.
All enclosures should pass a certified thermal evaluation to make sure that Qumi
Z1H does not recycle exhaust air, as this may cause the device to shut down even if
the enclosure temperature is with the acceptable operating temperature range.
CAUTION:
Avoid usage of Qumi Z1H in dusty environments.

- 7 -
Power Supply Safety
Only use the supplied adapter.
Do not place anything on the cord. Place the cord where it will not be in the way of
foot traffic.
Remove the battery from the remote control when storing or not in use for a
prolonged period.
Cleaning Qumi
Before cleaning, disconnect the power supply cables. Refer to Powering On/Off
the Projector on page 18.
NOTE:
Qumi Z1H will be warm after usage. Allow Qumi Z1H to cool down before storing
away.
Control Warning
Before installing and using Qumi Z1H, read the regulatory notices in the Regulatory
Compliance on page 8.
Battery Warning
Replacement of a battery with an incorrect type that can defeat a safeguard
(for example, in the case of some lithium battery types).
Disposal of a battery into fire or a hot oven, or mechanically crushing or
cutting of a battery, that can result in an explosion.
Leaving a battery in an extremely high temperature surrounding environment
that can result in an explosion or the leakage of flammable liquid or gas.
A battery subjected to extremely low air pressure that may result in an
explosion or the leakage of flammable liquid or gas.

- 8 -
REGULATORY COMPLIANCE
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B digital
device pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his/her own expense.
Any Changes or modifications not expressly approved by the parties responsible for
compliance could void the user’s authority to operate the equipment.
Canada
This class B digital apparatus complies with Canadian ICES-003.
Safety Certifications
Projector: CENB, REACH, ROHS, WEEE, FCCID, TUV NORTH AMERICA, SRRC, CB, BQB
Power Adapter: DOE, WEEE, FCC, UL, EAC, TUV-GS, CB, PSB, TUV-S, EAC, KCC, CCC,
CECP, BIS, BSMI, ISC
Disposal and Recycling
This product may contain other electronic waste that can be hazardous if not disposed of
properly. Recycle or dispose in accordance with local, state, or federal Laws. For more
information, contact the Electronic Industries Alliance at www.eiae.org.
DISPOSAL:
Do not use household or municipal waste collection services for disposal of
electrical and electronic equipment. EU countries require the use of
separate recycling collection services.

- 9 -
INTRODUCTION
About this Manual
This manual is intended for end users and describes how to install and operate Qumi
Z1H. Wherever possible, relevant information—such as an illustration and its
description—has been kept on one page. This printer-friendly format is both for your
convenience and to help save paper, thereby protecting the environment. It is suggested
that you only print sections that are relevant to your needs.
Qumi Z1H Main Features
Native HD720p resolution with a maximum resolution of 1080p (1920 x 1080).
Texas Instruments DLP® chip technology for long-lasting precise color, image
quality and low power consumptions.
Long-life energy efficient LED light source with up to an estimated 30,000 hours of
operation.
Enjoy a large widescreen image up to 2.6m (102.4”) diagonally for one or a group.
Advanced Quad-Core CPU with an ultra-fast Android™ operating system.
Customized dual 5-watt speakers pump out crisp, clear, and dynamic sound for an
incredible theatre-quality audio experience.
Bluetooth®enabled for wireless free connection to a keyboard, mouse, headphone or
other device.
Standalone Bluetooth®speaker for convenient audio playback from a smartphone,
tablet or other BT enabled audio device.
Assortment of connectivity options including HDMI, USB, microSD and earphone
audio-out.
PC-free playback of photos, videos, audio, and office files with the integrated player.
Up to 2 hours of continuous on-the-go with the built-in battery.
Dual infrared sensors for handy remote control from either in front or behind.
Lightweight friendly profile for easy movement and transportation.
Tripod port for convenient projector setup and positioning.

- 10 -

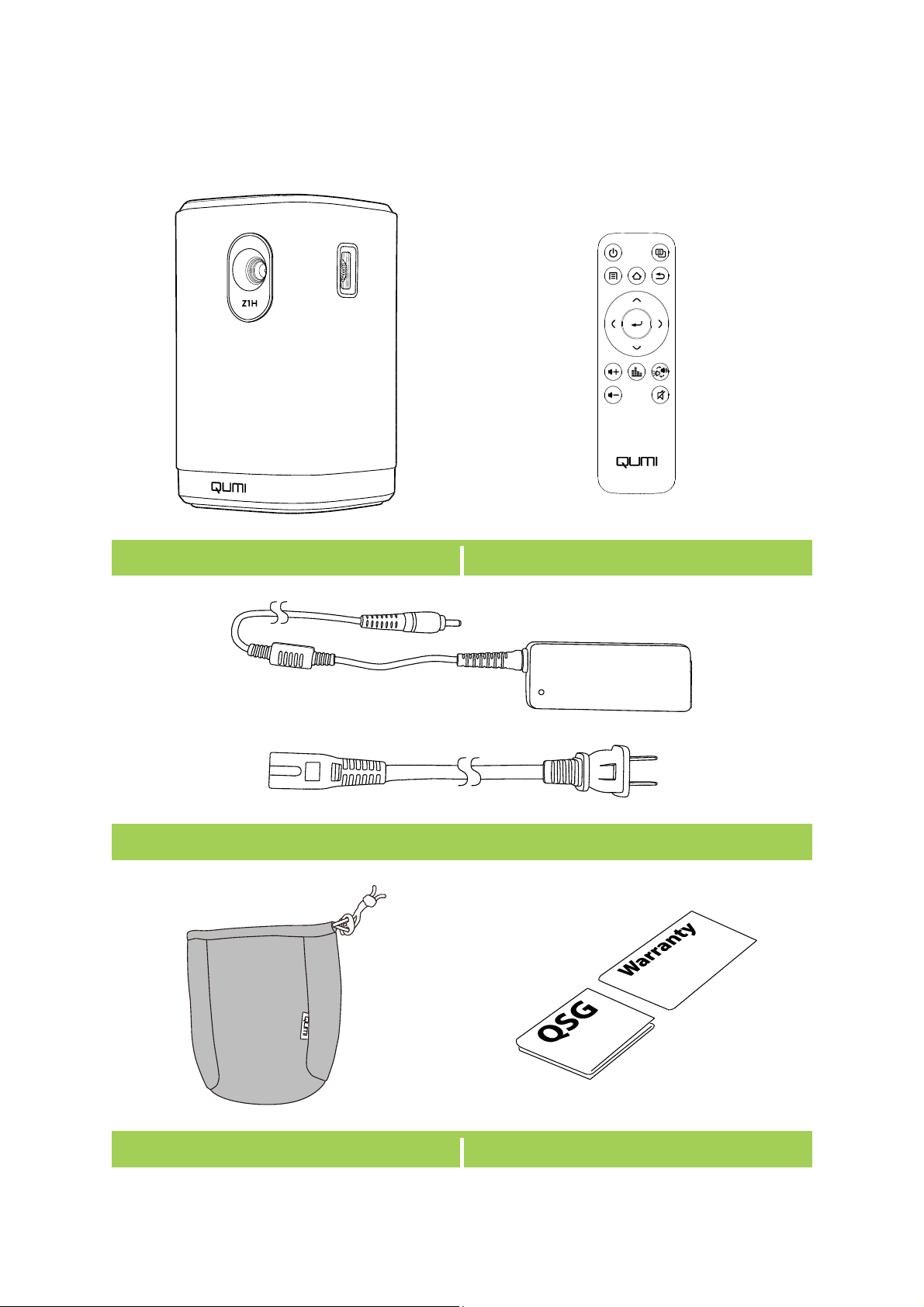

PACKAGE CONTENTS
Qumi Z1H
Remote Control
Adapter
Carry Bag
Documentation

- 11 -
YOUR PROJECTOR

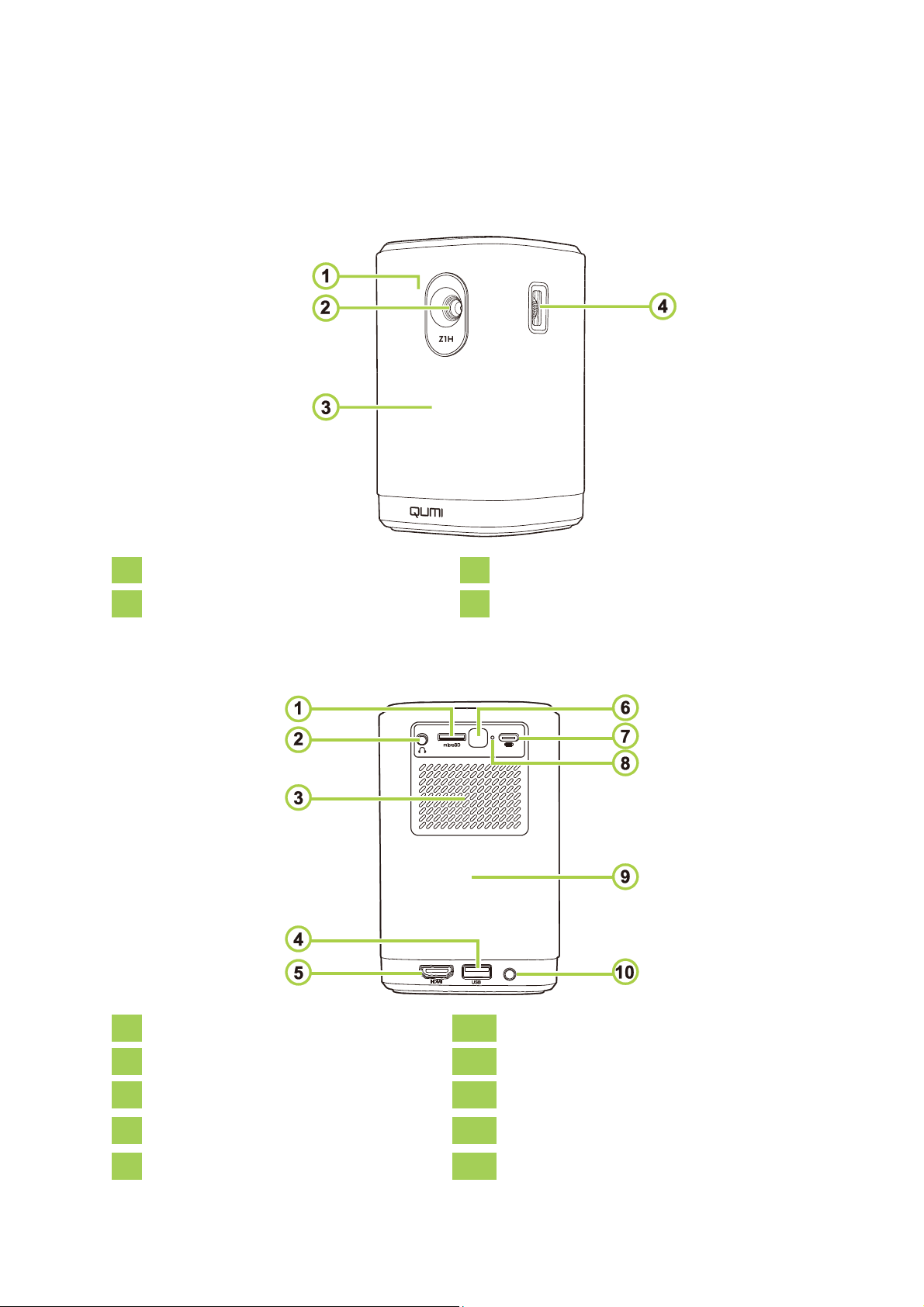

Front-Left View
1
Front IR Sensor
3
Front Speaker
2
Lens
4
Focus Dial
Rear View
1
microSD slot
6
Rear IR Sensor
2
Audio Out (3.5mm) Jack
7
Type-C DisplayPort
3
Air Vent
8
Reset Button
4
Type-A USB Port
9
Rear Speaker
5
HDMI Port
10
DC In Port

- 12 -
Top View
1
Menu Button
5
Power Button
9
Right Button
2
Up Button
6
LED Status
Indicator
10
Down Button
3
Left Button
7
Exit Button
11
Bluetooth®Speaker Mode
Button
4
Home Button
8
Enter Button
Projector
Status
LED Behavior and Definition
Adapter Disconnected
Adapter Connected
Powered
Off
Off
Red: Charging
Green: Fully Charged
Projector
Mode
Blinking Red: Low Battery
Red: Charging
Green: Projecting
Green: Projecting With Battery Fully
Charged
Bluetooth
Speaker
Mode
Solid Red: Low Battery
Blinking Blue:Waiting to Pair*
Blinking Blue:Waiting to Pair*
Breathing Blue:Pairing Failed*
Breathing Blue:Pairing Failed*
Solid Blue:Bluetooth Connected
Solid Blue:Bluetooth Connected
*If Bluetooth pairing has failed, exit Bluetooth speaker mode and then try again.

- 13 -
Bottom View
1
Tripod Connector

- 14 -
REMOTE CONTROL
Remote Control Keypad
1
Power ON/OFF
6
Volume ‒
11
Enter
2
Menu
7
Audio Mode
12
Right
3
Up
8
Home
13
Down
4
Left
9
Quick Access
14
Bluetooth®Speaker
Mode
5
Volume +
10
Exit
15
Mute

- 15 -
Activating the Remote Control Battery
When using the remote control for the first time, the plastic sticker covering the battery
must be removed. To remove the plastic sticker, pull the tab at the bottom side of the
remote control to remove the plastic sticker from the battery compartment.
IMPORTANT:
Do not ingest battery as the battery is a Chemical Burn Hazard
The remote control contains a coin/button cell battery. If the coin/button cell battery is
swallowed, it can cause severe internal burns in just 2 hours and can lead to death
Keep new and used batteries away from children.
If the battery compartment does not close securely, stop using the product and keep it
away from children
If you think batteries might have been swallowed or placed inside any part of the body,
Immediately seek medical attention
Replacing the Remote Control Battery
To replace the remote control battery:
1. Rotate the battery compartment cover
counter-clockwise so the line on the cover
points to the single dot on the remote
control.
2. Remove the battery compartment cover.

- 16 -
3. Remove the old battery and replace it with
the new battery.
4. Place the battery compartment cover back
on the battery compartment and rotate the
cover clockwise so the line on the cover
points to the double alignment dots.

- 17 -
POWERING/CHARGING THE
PROJECTOR
To supply power to the Qumi Z1H:
1. Connect the power cable to a power socket
2. Connect the power cable to the supplied adapter.
3. Connect the adapter cable to the DC In port on the projector.
4. Once the adapter and power cable are connected to the projector, the LED status
indicator on the top of the projector will illuminate indicating the charge status (refer
to Top View on page 12 for more information on LED behavior).
The charging status will also be indicated on the home screen.

- 18 -
Powering On/Off the Projector
To power on the projector:
1. Press the power ( ) button on the top of the projector or the power ( ) button on
the remote control.
IMPORTANT:
The remote control can only power on the projector when the projector is
connected to a power supply.
2. The fans will begin to operate and the Qumi logo will appear on the screen:

- 19 -
To power off the projector:
1. Press the power ( ) button on the top of the projector or the power ( ) button on
the remote control.
2. A message will appear on the projected screen to confirm power off. Select OK and
press the enter ( ) button.

- 20 -
MAKING CONNECTIONS
No.
Connection
Port / Type
Connection Device
Corresponding Section
1
Wireless
Screencasting
Smartphones, Tablets,
PCs
Screencasting with a Smartphone,
Tablet, or PC on page 28
2
Audio Out
Headphones
3
HDMI
Blu-Ray/DVD Players,
Set-top Boxes, PCs
Playing from a Video Source (HDMI)
on page 33
4
microSD
microSD Card
(Media Files)
Playing Media Files from a Storage
Device (USB Flash Drive, microSD
Card) on page 24
5
Type-C USB
(DisplayPort)
Smartphones, Tablets,
PCs with DisplayPort
functionality
Playing from a Video Source (Type-C
/ DisplayPort) on page 34
6
USB Type-A
USB Flash Drive
(Media Files)
Playing Media Files from a Storage
Device (USB Flash Drive, microSD
Card) on page 24
Keyboard, Mouse, USB
Hub
NOTE:
To make it easier to navigate the projector's user interface and use its apps, it is
recommended that you connect a USB mouse and/or keyboard.
