Vivo MOUNT-AD4X2 User manual

VESA Adapter
Scan the QR code with your mobile device or follow the link
for helpful videos and specications related to this product.
Instruction Manual
https://vivo-us.com/products/mount-ad4x2
[email protected]om www.vivo-us.com 1-800-371-5654
SKU: MOUNT-AD4X2

2 3

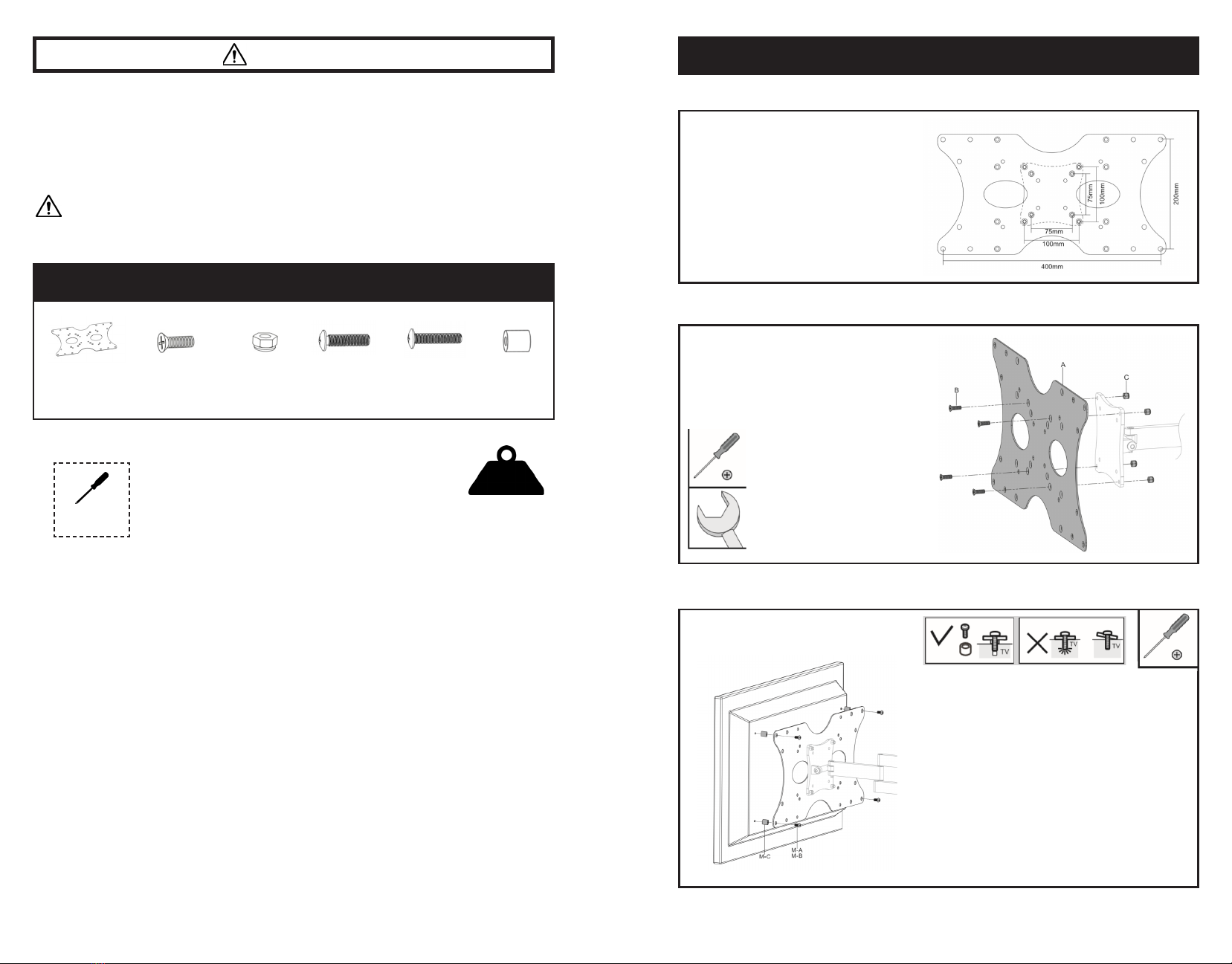

ASSEMBLY STEPS
STEP 1
This VESA adapter plate is designed to t to
the VESA 50x50mm, 75x75mm or 100x100mm
mounting holes of an existing TV or monitor
mount, allowing a TV or monitor with a VESA
hole pattern of 200x100mm, 200x200mm,
300x200mm or 400x200mm to be attached to
the mount.
STEP 2
STEP 3
PACKAGE CONTENTS
TOOLS NEEDED
66lbs
(29.94kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
WARNING!
Phillips
Screwdriver
A (x1)
VESA Plate
B(x4)
Flathead Bolt
C(x4)
Nut
M-C (x4)
Spacer
M-A (x4)
M6x30
M-B (x4)
M8x30
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualied technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
Mount TV/monitor to VESA plate using bolts
(M-A or M-B) with spacers (M-C).
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
Attach VESA plate (A) to TV/monitor mount using
at head bolts (B) and nuts (C).

Last Updated: 12/12/2018
If any parts are received damaged or defective, please contact us. We are happy to
replace parts to ensure you have a fully functioning product.
For more VIVO products, check out our website at:
www.vivo-us.com.
