Vizio VP505XVT1A Series User manual

Service Manual
V, Inc
320A Kalmus Drive Costa Mesa, CA 92626
TEL : [phone] FAX :[phone]
Top Confidential
Model #: VIZIO VP505XVT1A_
Panasonic

VIZIO VP505XVT1A_Panasonic
Service Manual
Table of Contents
CONTENTS PAGE
Sections
1. Features 1-1
2. Specifications 2-1
3. On Screen Display 3-1
4. Factory Preset Timings 4-1
5. Pin Assignment 5-1
6. Main Board I/O Connections 6-1
7. Theory of Circuit Operation 7-1
8. Waveforms 8-1
9. Trouble Shooting 9-1
10. Block Diagram 10-1
11. Spare parts list 11-1
12. Complete Parts List 12-1
Appendix
1. Main Board Circuit Diagram
2. Main Board PCB Layout
3. Assembly Explosion Drawing
Block Diagram

VINC Service Manual
VIZIO VP505XVT1A_Panasoni
VIZIO VP505XVT1A_Panasonic
Service Manual
COPYRIGHT © 2000 V, INC. ALL RIGHTS RESERVED.
IBM and IBM products are registered trademarks of International Business Machines Corporation.
Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.
VINC and VINC products are registered trademarks of V, Inc.
VESA, EDID, DPMS and DDC are registered trademarks of Video Electronics Standards
Association (VESA).
Energy Star is a registered trademark of the US Environmental Protection Agency (EPA).
No part of this document may be copied, reproduced or transmitted by any means for any purpose
without prior written permission from VINC.
FCC INFORMATION
This equipment has been tested and found to comply with the limits of a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy, and if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that the
interference will not occur in a particular installation. If this equipment does cause unacceptable
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures -- reorient or relocate the receiving antenna; increase the separation between
equipment and receiver; or connect the into an outlet on a circuit different from that to which the
receiver is connected.
FCC WARNING
To assure continued FCC compliance, the user must use a grounded power supply cord and the
provided shielded video interface cable with bonded ferrite cores. Also, any unauthorized changes
or modifications to Amtrak products will void the user’s authority to operate this device. Thus VINC
Will not be held responsible for the product and its safety.
CE CERTIFICATION
This device complies with the requirements of the EEC directive 89/336/EEC with regard to
“Electromagnetic compatibility.”
SAFETY CAUTION
Use a power cable that is properly grounded. Always use the AC cords as follows – USA (UL);
Canada (CSA); Germany (VDE); Switzerland (SEV); Britain (BASEC/BS); Japan (Electric
Appliance Control Act); or an AC cord that meets the local safety standards.

CONFIDENTIAL – DO NOT COPY Page 1-1
File No. SG-0283
Chapter 1 Features
1. Built in TV channel selector for TV viewing.
2. Simulatnueous display of PC and TV images.
3. Connectable to PC’s analog RGB port.
4. Built in S-video, HDTV, Composite video, HDMI and TV in.
5. Built in auto adjust function for automatic adjument of screen display.
6. Power saving to reduce consumption power too less than 1W.
7. On Screen Display: user can define display mode ( i.e. color, brightness,
contrast, sharpness), sound setting, TV channel program, aspect and reset
all setting.
8. Support USB interface in order to soft ware update.

CONFIDENTIAL – DO NOT COPY Page 2-1
File No. SG-0283
Chapter 2 Specification
2.1 General Description
Model No. VIZIO VP505XVT1A
Product Name VP505XVT1A
Panel Panasonic MD-50F11NJA
Display Pixels 1920 (H) x 1080 (V)
Active Display Area (mm) 1105.92 (H) x 622.08 (V)
Aspect Ratio 16:9
Color Depth 10 bit, 1073.7M
Luminance of Full White
(panel spec., cd/m2)
100(min) 140(typical)
(Full screen white)
Luminance of Full White
(TV set spec., cd/m2)
33(minimum) 46(typical) 63(maximum)
(Full screen white, Glass Filter transmittance 38±5%)
(Condition)
・HDMI input : Astro 859C
・Input Resolution: 1920x1080p
・Vertical frequency (fv): 60Hz
・Room temperature: 25℃
・OSD setting
BRIGHTNESS=50
CONTRAST=53
Tint=0
Sharpness=4
Color Temp: Custom R=G=B=255
Offset R=G=B=128
Contrast Ratio
(Typical, panel spec.)
30000:1
(In dark room 1/100 White window pattern at center)
TV system NTSC /ATSC/QAM

CONFIDENTIAL – DO NOT COPY Page 2-2
File No. SG-0283
PC Inputs 15pins D-sub
Video Inputs 1x RF (Combo, F Connector for internal NTSC
/ATSC/QAM Tuner)
4x HDMI with HDCP plus Stereo Analog Audio
1x Component YPbPr plus Stereo Audio
1x Composite Video plus Stereo Audio
1x S-Video plus Stereo Audio
1x Analog RGB
Audio Input 3 x Stereo RCA Jack (R/L)
1x PC mini jack
Audio Outputs 1x SPDIF Digital Audio (Optical)
1x Stereo Analog Audio RCA Jack (R/L)
Service Port 2x RJ11 Service Port
1x USB Service Port
Audio Speaker 10 W x 2
Power Input 100 to 240 VAC
Power Consumption 700 W Max
EDID version VGA – 1.3
HDMI – 1.3
Preset Modes (mm) Primary 1920 (H) x 1080 (V) @ 60Hz.

CONFIDENTIAL – DO NOT COPY Page 2-3
File No. SG-0283
2.2 PANEL SPEC
Item Specification
Panel Panasonic 50F11NJA
Display Pixel 1920 (H) x 1080 (V)
Active Display Area (mm) 1105.92 (H) x 622.08 (V)
Color Depth 10 bit, 1073.7M colors
Pixel Pitch (mm) 0.576 x 0. 576
Luminance of Full White
(panel spec., cd/m2)
100(min) 140(typical)
(Full screen white, Measure display center)
Dark room Contrast ratio
30000:1 (0.02lx or less)
Bright room Contrast ratio
160 : 1 (100lx)
Chromaticity of Full White
x : 0.274 y : 0.263(minimum)
x : 0.304 y : 0.293(typical)
x : 0.334 y : 0.323(maximum)
Remark: All characteristics are measured at least 30 minutes later after power-on in the normal ambient
temperature
2.3 POWER SUPPLY
a. Input voltage 100-240Vac, 50/60Hz
b. Power consumption 700 W (Max)
c. Input current 7.0A (Max) at AC 100V/60Hz
d. Standby/Power off 1 W (Max) at 120 VAC

CONFIDENTIAL – DO NOT COPY Page 2-4
File No. SG-0283
2.4 Mechanical and Packaging Specifications
2.4.1 MECHANICAL SPECIFICATION
Gap allowance between bezel & panel surface
Gap ≦2 mm
Tilt angle:
89 ≦A ≦91
Panel disposition tolerance
∣A∣≧ 0 mm
∣B∣≧ 0 mm
∣C∣≧ 0 mm
∣D∣≧ 0 mm

CONFIDENTIAL – DO NOT COPY Page 2-5
File No. SG-0283
2.4.2 OUTLINE DIMENSION
Physical dimension
(Unite: mm)
Display Module Display Module + Base
Height 773.1 823.4
Width 1233.8 1233.8
Depth 94.2 259.8
Weight
Net 43.5 ±0.5 kg
Gross 52.0 ±1.0 kg
Material, color
Front bezel ABS(94-HB), Black T52013
Rear cover Metal(SGCC), T=0.8mm, Black
Base ABS(94-HB), Black T52013
SPK Rear Cover ABS(94-HB), Panton-877C
Wall-mounting
Screw size: M8* PITCH 1.25mm
Screw Q'ty: 4 pcs
Mounting hole pitch: 600 (H), 200 (V) (mm)
2.4.3 PACKAGING SPECIFICATION
Packaged dimensions
Height 960 ±10 mm
Width 1400 ±10mm
Depth 380 ±10 mm

CONFIDENTIAL – DO NOT COPY Page 2-6
File No. SG-0283
Pallet Load
Sea 6 units / pallet
Container Load
40’ high container: 96 units (= 6 x 36 pallets)
2.4.4 ACCESSORIES
a. 1.8M HDMI Cable x 1
b. 1.8M Power Cord 110V UL/CSA Black x 1
c. VIZIO Universal Remote Control VUR8P x 1
d. User’s Manual x 1
e. Quick Start Guide x 1*
f. Registration card x 1
g. Service Brochure x 1*
h. AA batteries x 2
i. D size Polishing Cloth x 1
j. Safety Strap x 1
k. Product Warranty & Repair sheet x 1

CONFIDENTIAL – DO NOT COPY Page 2-7
File No. SG-0283
2.4.5 External Control Panel & Indicators
<Front> <Side>
2.4.6 LED INDICATOR DISPLAY ON THE FRONT
LED indicator Status Remark
Off power off
by disconnecting the power
cord
White Power on
Becoming dimmer afte
r
lighting up a few seconds
Orange Standby/Power Off
Becoming dimmer afte
r
lighting up a few seconds

CONFIDENTIAL – DO NOT COPY Page 2-8
File No. SG-0283
2.4.7 SPECIFICATION AND EXPLANATION OF USER CONTROL PANEL
ON THE SIDE
Buttons 1 2 3 4 5 6 7
Name MENU CH+ CH- VOL+ VOL- INPUT
Standby/power on
After AC on by plugging in a power cord and pressing Power button, LED
indicator turns to white to indicate power on. To turn off this device, press
this button again.
Menu operation
Press MENU button to activate the OSD. Press this button again to exit.
Channel selection
By operating the CH+ and CH- buttons, channel should be selected. At the
time, channel should increase with CH+ button and decrease with CH-
button. When the “MENU” is activated, it can be navigated up by CH+
button and down by CH- button.
Volume Adjustment
By operating the VOL+ and VOL- buttons, volume should be available to
change from minimum to maximum. At the time, volume should increase
with VOL+ button and decrease with VOL- button, and volume shift should
be smooth.
When the OSD is activated, it can be navigated left and right by operating
these two buttons.
Input Change/Confirmation
This button allows the user to select the input sources in the following
sequence: TV, AV (S-Video), AV (Composite), Component 1, RGB, HDMI 1,
HDMI 2, HDMI 3, HDMI 4.
When the OSD is activated, the option can be confirmed pressing this
button.

CONFIDENTIAL – DO NOT COPY Page 3-1
File No. SG-0283
Chapter 3 On Screen Display
3.1 MAIN UNIT BUTTON
(1). POWER
(2). MENU
(3). CH +
(4). CH -
(5). VOL +
(6). VOL -
(7). INPUT (TV Source on Screen Display)
3.2 Operation Menu
AV
A. PICTURE ADJUST：
a. PICTURE MODE (STANDARD/MOVIE/
GAME/SPORTS/CUSTOM)
b. BRIGHTNESS (0~100)
c. CONTRAST (0~100)
d. COLOR (0~100)
e. TINT (-32~+32)
f. SHARPNESS (0~7)
g. COLOR TEMPERATURE
(COOL/NORMAL/ WARM/CUSTOM)
h. ADVANCED VIDEO
i. RESET PICTURE MODE

CONFIDENTIAL – DO NOT COPY Page 3-2
File No. SG-0283

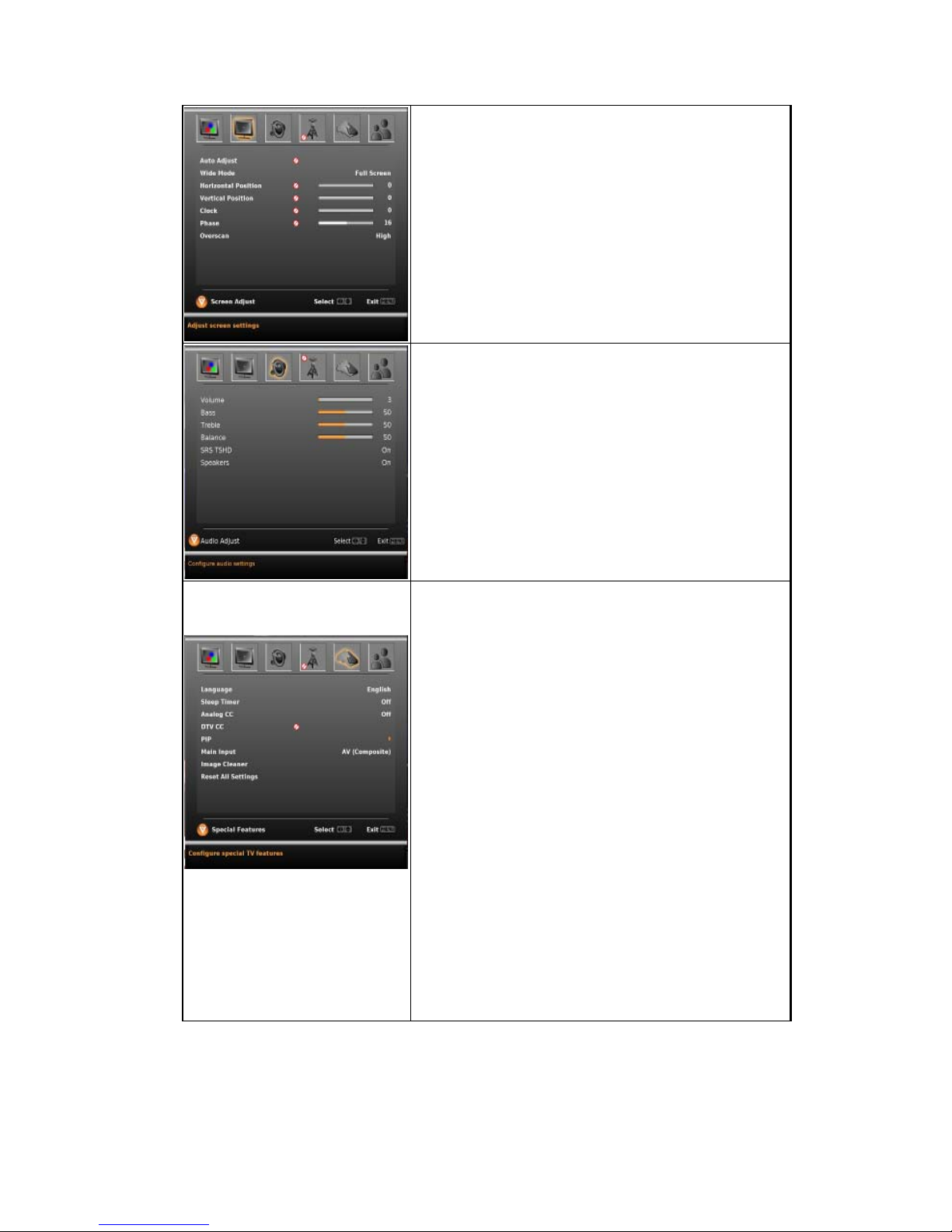

B. SCREEN ADJUST：
a. WIDE MODE (STANDARD/FULL
SCREEN/
CROP/PANORAMIC)
b. OVERSCAN (OFF/LOW/MIDDLE/HIGH)
C. AUDIO ADJUST：
a. VOLUME (0~100)
b. BASS (0~100)
c. TREBLE (0~100)
d. BALANCE (0~100)
e. SRS TSHD (OFF/ON)
f. SPEAKERS (OFF/ON)
D. SPECIAL FEATURES：
a. LANGUAGE (ENGLISH/FRANCAIS/
ESPANOL)
b. SLEEP TIMER
(OFF/30MIN/60MIN/90MIN/
120MIN)
c. ANALOG CC (OFF/CC1~4)
d. MAIN INPUT (TV/AV(S-VIDEO)/AV
(COMPOSITE)/COMPONENT/RGB/HD
MI1
/HDMI2/HDMI3/HDMI4
e. IMAGE CLEANER
f. RESET ALL SETTINGS

CONFIDENTIAL – DO NOT COPY Page 3-3
File No. SG-0283
E. PARENTAL CONTROL：
a. PARENTAL LOCK ENABLE (OFF/ON)
b. TV RATING
c. MOVIE RATING
d. BLOCK UNRATED TV (OFF/ON)
e. ACCESS CODE EDIT
F. ADVANCED VIDEO：
a. NR-Temporal (OFF/LOW/MEDIUM/
STRONG)
b. NR-MPEG
(OFF/LOW/MEDIUM/STRONG)
c. FILM MODE (AUTO/VIDEO/FILM)
d. CTI (OFF/LOW/STRONG)
e. FLESH TONE (OFF/ON)
f. ADAPTIVE LUMA (OFF/ON)
COMPONENT
A. PICTURE ADJUST：
a. PICTURE MODE (STANDARD/ MOVIE/
GAME/SPORTS/CUSTOM)
b. BRIGHTNESS (0~100)
c. CONTRAST (0~100)
d. COLOR (0~100)
e. TINT (-32~+32)
f. SHARPNESS (0~7)
g. COLOR TEMPERATURE
(COOL/NORMAL
WARM/CUSTOM)
h. ADVANCED VIDEO
i. RESET PICTURE MODE

CONFIDENTIAL – DO NOT COPY Page 3-4
File No. SG-0283
B. SCREEN ADJUST：
a. WIDE MODE (STANDARD/FULL
SCREEN/
CROP/PANORAMIC)
b. HORIZONTAL POSITION
c. VERTICAL POSITION
d. CLOLK
e. PHASE
f. OVERSCAN (OFF/LOW/MIDDLE/HIGH)
C. AUDIO ADJUST：
a. VOLUME (0~100)
b. BASS (0~100)
c. TREBLE (0~100)
d. BALANCE (0~100)
e. SRS TSHD (OFF/ON)
f. SPEAKERS (OFF/ON)
D. SPECIAL FEATURES：
a. LANGUAGE (ENGLISH/FRANCAIS/
ESPANOL)
b. SLEEP TIMER
(OFF/30MIN/60MIN/90MIN/
120MIN)
c. ANALOG CC (OFF/CC1~4)
d. MAIN INPUT (TV/AV(S-VIDEO)/AV
(COMPOSITE)/COMPONENT/RGB/HD
MI1
/HDMI2/HDMI3/HDMI4
e. IMAGE CLEANER
f. RESET ALL SETTINGS

CONFIDENTIAL – DO NOT COPY Page 3-5
File No. SG-0283
E. ADVANCED VIDEO：
a. NR-TEMPORAL (OFF/LOW/MEDIUM/
STRONG)
b. NR-MPEG
(OFF/LOW/MEDIUM/STRONG)
c. FILM MODE (AUTO/VIDEO/FILM)
d. CTI (OFF/LOW/STRONG)
e. FLESH TONE (OFF/ON)
f. ADAPTIVE LUMA (OFF/ON)
HDMI
A. PICTURE ADJUST：
a. PICTURE MODE (STANDARD/MOVIE/
GAME/SPORTS/CUSTOM)
b. BRIGHTNESS (0~100)
c. CONTRAST (0~100)
d. COLOR (0~100)
e. TINT (-32~+32)
f. SHARPNESS (0~7)
g. COLOR TEMPERATURE
(COOL/NORMAL
/WARM/CUSTOM)
h. ADVANCED VIDEO
i. RESET PICTURE MODE

CONFIDENTIAL – DO NOT COPY Page 3-6
File No. SG-0283
B. SCREEN ADJUST：
a. OVERSCAN (OFF/LOW/MIDDLE/HIGH)
C. AUDIO ADJUST：
a. VOLUME (0~100)
b. BASS (0~100)
c. TREBLE (0~100)
d. BALANCE (0~100)
e. SRS TSHD (OFF/ON)
f. SPEAKERS (OFF/ON)
D. SPECIAL ADJUST：
a. LANGUAGE (ENGLISH/FRANCAIS/
ESPANOL)
b. SLEEP TIMER
(OFF/30MIN/60MIN/90MIN/
120MIN)
c. MAIN INPUT(TV/AV(S-VIDEO)/AV
(COMPOSITE)/COMPONENT/RGB/HD
MI1
/HDMI2/HDMI3/HDMI4
d. IMAGE CLEANER
e. RESET ALL SETTINGS

CONFIDENTIAL – DO NOT COPY Page 3-7
File No. SG-0283
E. ADVANCED VIDEO：
a. CTI (OFF/LOW/STRONG)
b. FLESH TONE (OFF/ON)
c. ADAPTIVE LUMA (OFF/ON)
RGB MODE
A. PICTURE ADJUST：
a. BRIGHTNESS (0~100)
b. CONTRAST (0~100)
c. COLOR (0~100)
d. TINT (-32~+32)
e. SHARPNESS(0~7)
f. COLOR TEMPERATURE
(COOL/NORMAL
/WARM/CUSTOM)
g. ADVANCED VIDEO
h. RESET PICTURE MODE
B. SCREEN ADJUST：
a. AUTO ADJUST
b. WIDE MODE (STANDARD/FULL
SCREEN/
CROP/PANORAMIC)
c. HORIZONTAL POSITION
d. VERTICAL POSITION
e. CLOCK
f. PHASE

CONFIDENTIAL – DO NOT COPY Page 3-8
File No. SG-0283
C. AUDIO ADJUST：
a. VOLUME (0~100)
b. BASS (0~100)
c. TREBLE (0~100)
d. BALANCE (0~100)
e. SRS TSHD (OFF/ON)
f. SPEAKERS (OFF/ON)
D. SPECIAL ADJUST：
a. LANGUAGE (ENGLISH/FRANCAIS/
ESPANOL)
b. SLEEP TIMER
(OFF/30MIN/60MIN/90MIN/
120MIN)
c. MAIN INPUT (TV/AV(S-VIDEO)/AV
(COMPOSITE)/COMPONENT/RGB/HD
MI1
/HDMI2/HDMI3/HDMI4
d. IMAGE CLEANER
e. RESET ALL SETTINGS
E. ADVANCED VIDEO：
a. CTI (OFF/LOW/STRONG)
b. FLESH TONE (OFF/ON)
c. ADAPTIVE LUMA (OFF/ON)
TV MODE
