Vizio D24-D1 User manual

Models D24-D1 and D28h-D1
USER MANUAL
VIZIO

Table Of Contents
ii
Table Of Contents

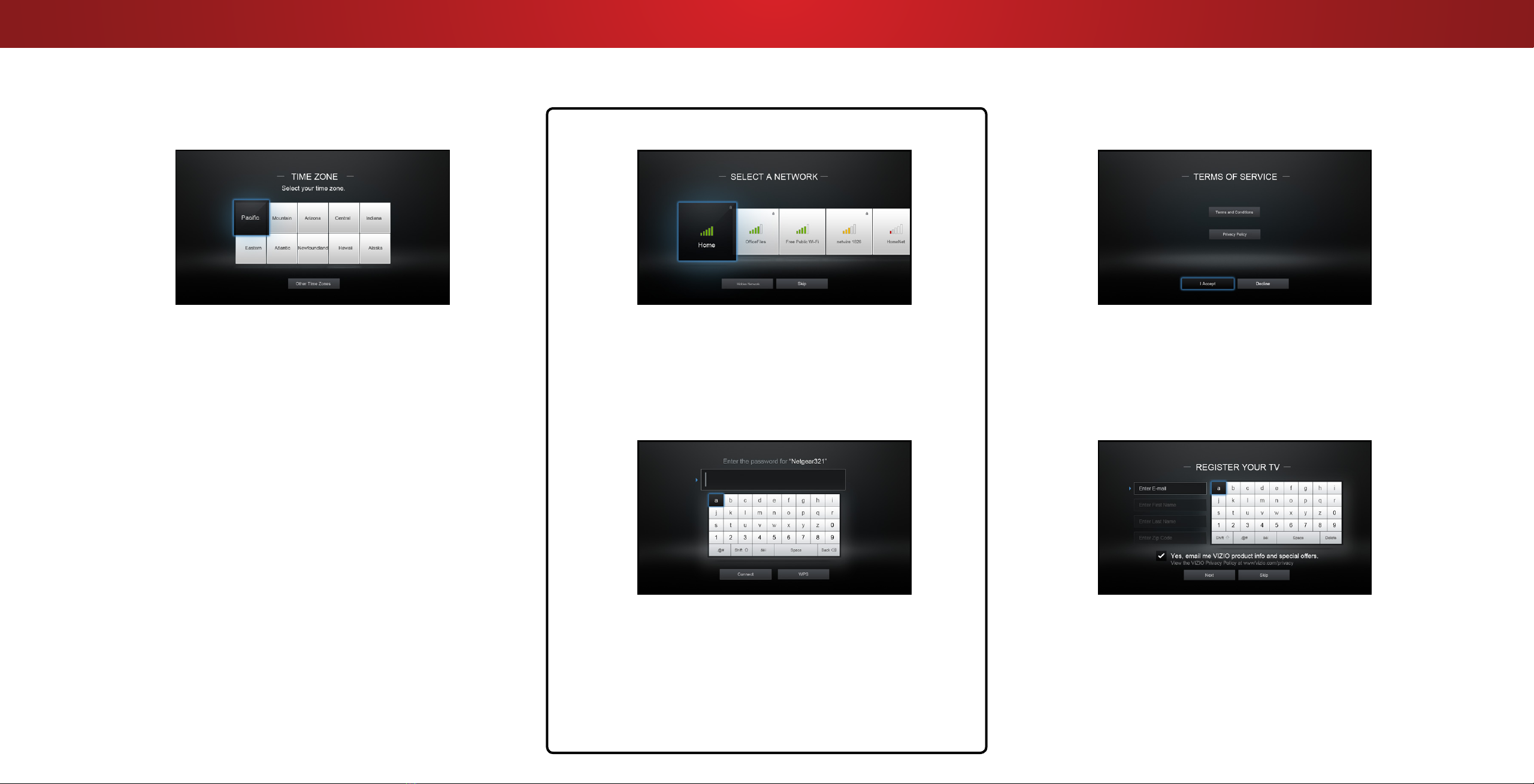

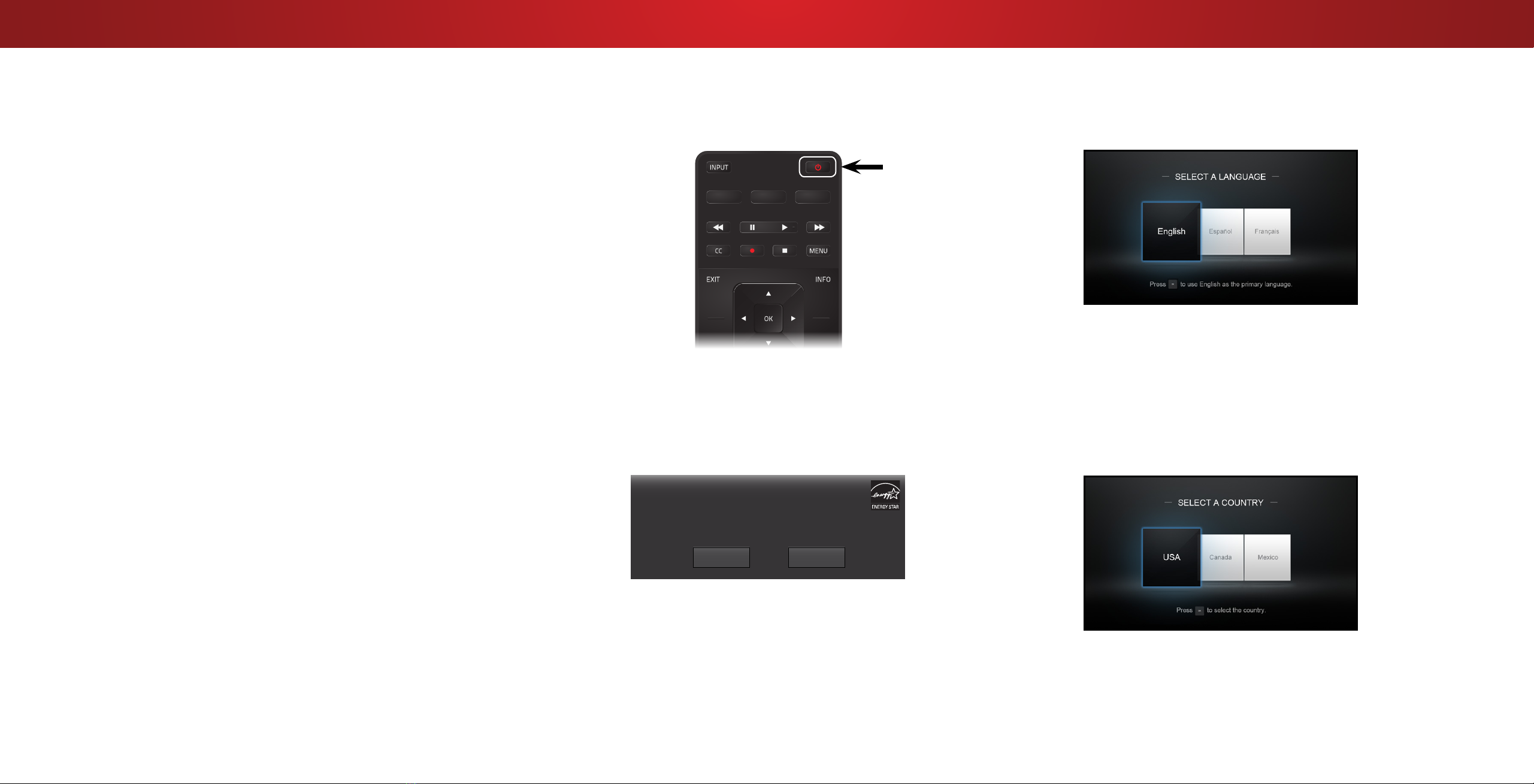

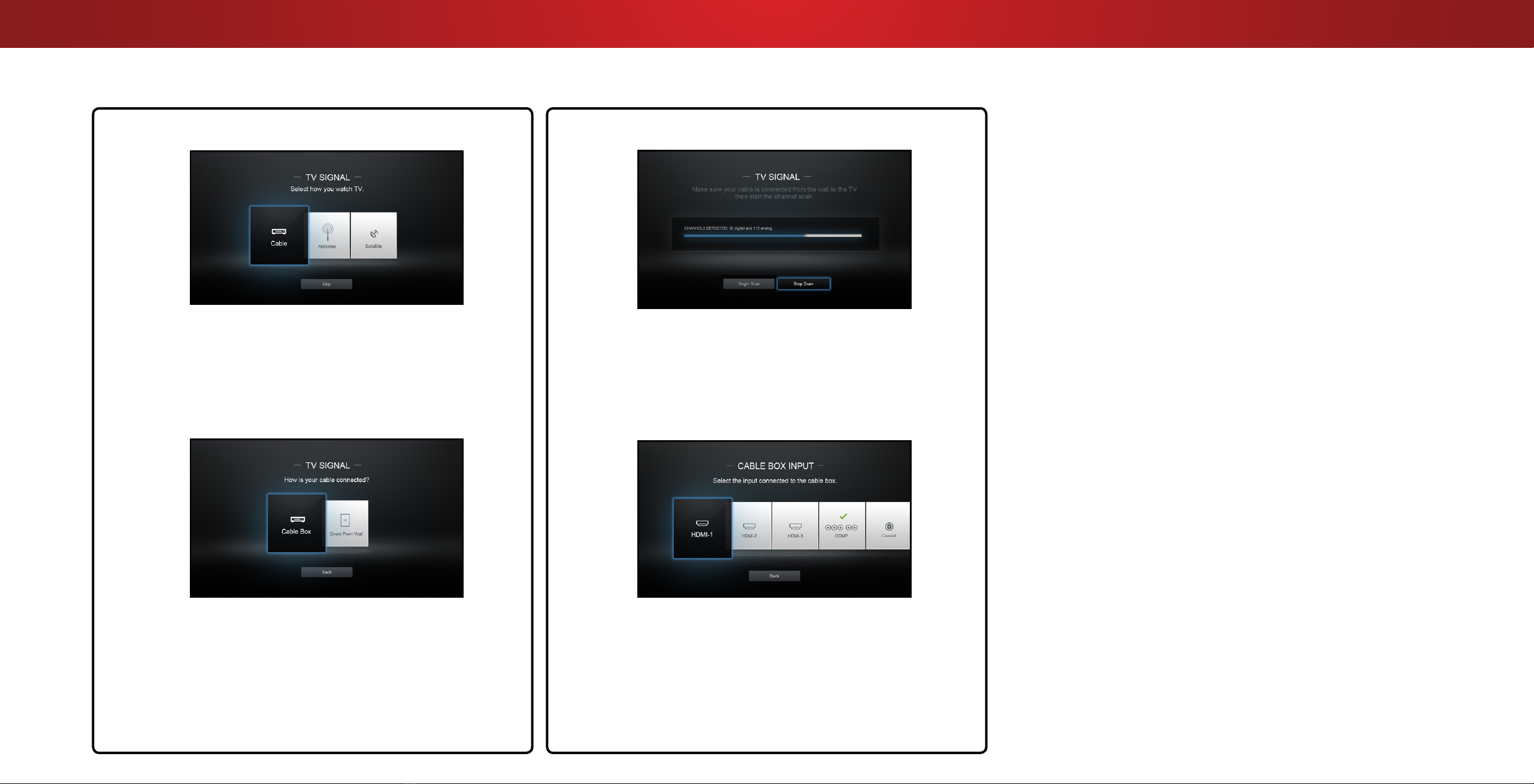

Completing The First-Time Setup ...............................7

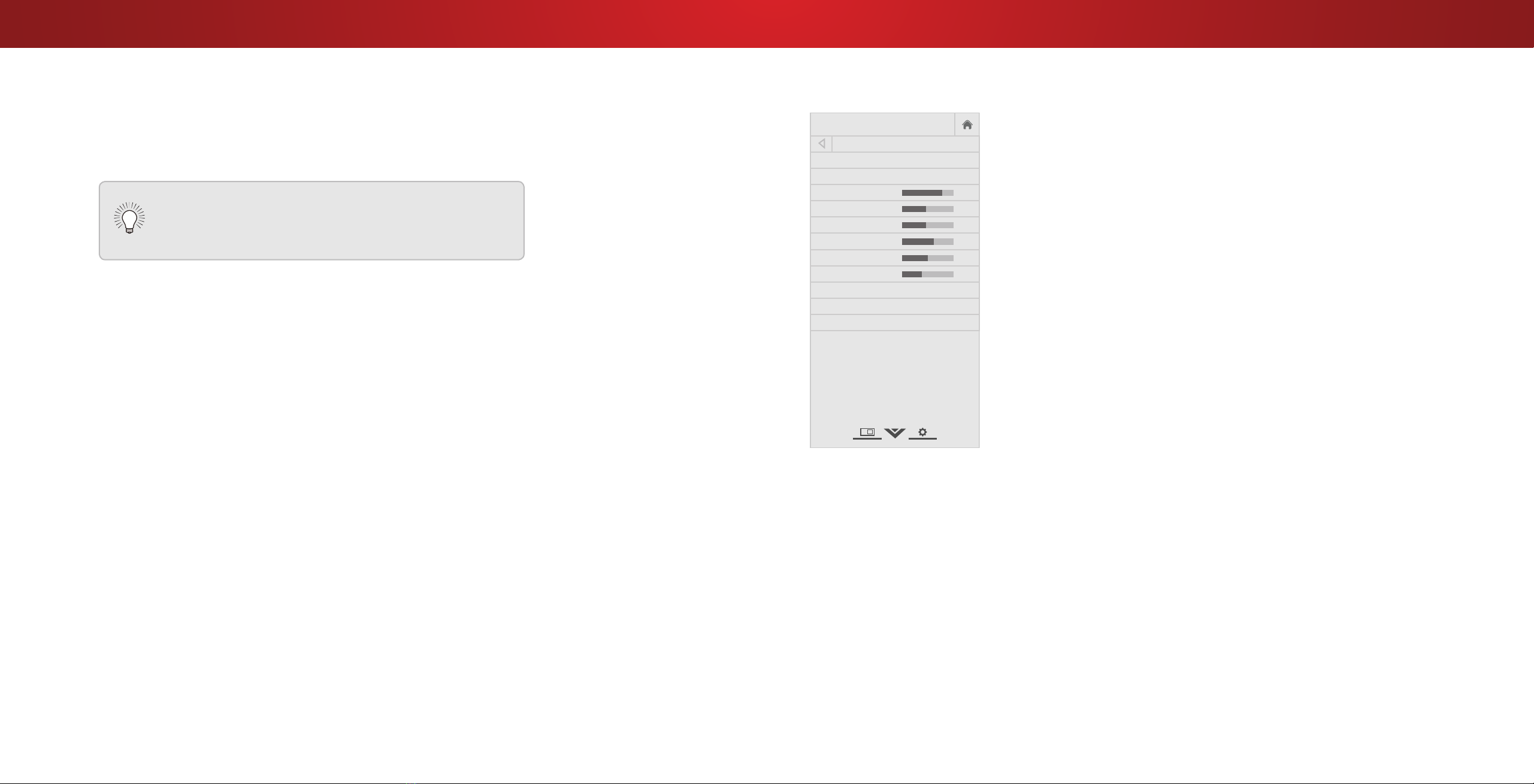

Using the On-Screen Menu .........................................10
Navigating the On-Screen Menu........................................................10
Changing the Input Source ................................................................10
Changing the Screen Aspect Ratio.....................................................11
Viewing Video with the Menu Open ..................................................12

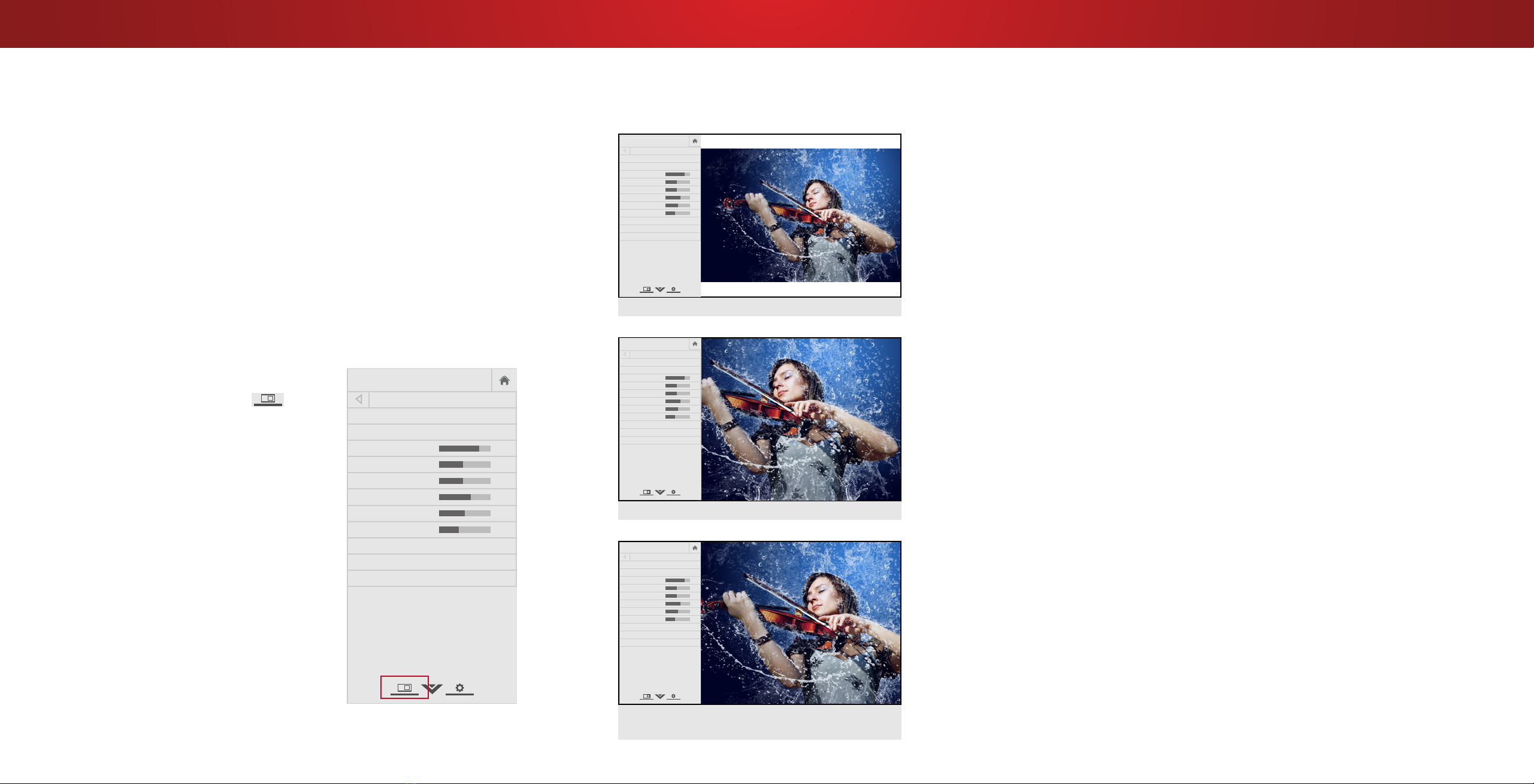

Adjusting the Picture Settings............................................................13
Adjusting More Picture Settings .....................................................14
Adjusting the Color Temperature...................................................14
Adjusting the Picture Mode Edit Settings ......................................15
Saving a Custom Picture Mode.......................................................15
Locking/Unlocking a Custom Picture Mode...................................15
Deleting a Custom Picture Mode....................................................16
Resetting a Picture Mode................................................................16
Adjusting the Color Tuner Settings ................................................17
Adjusting the Audio Settings..............................................................19
Changing the Equalizer Settings.....................................................19
Deleting the Custom Audio Mode ..................................................20
Setting Timers .....................................................................................21
Setting the Sleep Timer...................................................................21
Setting the Auto Power O Feature ...............................................21
Enabling the Screen Saver ..............................................................21
Blanking the Screen.........................................................................21
Using the Network Connection Menu...............................................22
Connecting to a Wireless Network .................................................22
Changing the Manual Setup Settings.............................................22
Finding MAC Addresses for Network Setup...................................22
Connecting to a Hidden Network...................................................23
Setting Up Channels ...........................................................................24
Selecting a Channel Source.............................................................24
Scanning for Channels ....................................................................24
Adding New Channels .....................................................................24
Skipping Channels ...........................................................................25
Listening to Alternate Audio ..............................................................26
Changing the Analog Audio Language ...........................................26
Setting Up Closed Captioning ............................................................27
Changing the Appearance of Digital Closed Captions ..................27
Renaming Devices on the Input Menu..............................................29
Changing the TV Settings ...................................................................30
Viewing System Information...........................................................30
Changing the On-Screen Menu Language .....................................30
Setting the Time and Local Settings...............................................31
Using the Parental Controls............................................................31
Accessing the Parental Controls Menu ..........................................31
Enabling or Disabling Program Ratings .........................................31
Locking and Unlocking Channels....................................................31
Blocking and Unblocking Content by Rating .................................32
Changing the Parental Control PIN ................................................32
Resetting the Content Locks...........................................................32
Changing the View Mode Settings..................................................33
Changing the Screen Aspect Ratio.....................................................33
Changing the DLNA Name of Your TV............................................34
Adjusting the CEC Settings..............................................................34
Turning the Power Indicator On or O..........................................34
Using the Reset & Admin Menu.........................................................35
Restoring the TV to Factory Default Settings.................................35
Enabling and Disabling Smart Interactivity....................................35
Using the Guided Setup Menu........................................................36
Using the Info Window.......................................................................36
Using the USB Media Player........................................37
Preparing Your USB Drive to Play USB Media ...............................37
Playing USB Media...........................................................................37
Removing the USB Drive from the TV ............................................37
Using VIZIO Internet Apps Plus®(V.I.A. Plus) .............41
Using the Fullscreen V.I.A. Apps Window..........................................42
Fullscreen V.I.A. Plus Apps Window Overview..................................43
Customizing the V.I.A. Plus Apps Window ........................................44
Adding an App to the My Apps Tab................................................44
Deleting an App from the My Apps Tab.........................................44
Moving an App in My Apps .............................................................44
Troubleshooting & Technical Support........................46
Specications ...............................................................50
Regulatory Information ...............................................52
Limited Warranty .........................................................53
Legal Information.........................................................57

Safety & Certication
iii
THANK YOU FOR CHOOSING VIZIO
And congratulations on your new VIZIO HDTV.
To get the most out of your new VIZIO product, read these
instructions before using your product and retain them for future
reference. Be sure to inspect the package contents to ensure there
are no missing or damaged parts.
PRODUCT REGISTRATION
To purchase or inquire about accessories and installation services
for your VIZIO product, visit our website at www.VIZIO.com or call
toll free at [phone].
We recommend that you register your VIZIO product at
www.VIZIO.com
Extended Warranties
For peace of mind, and to protect your investment beyond the
standard warranty, VIZIO oers on-site extended warranty service
plans. These plans provide additional coverage during the standard
warranty period. To purchase an extended warranty service plan,
visit www.VIZIO.com.
WHEN READING THIS MANUAL
When you see this symbol, please read the
accompanying important warning or notice. It is
intended to alert you to the presence of important
operating instructions.
IMPORTANT SAFETY INSTRUCTIONS
Your TV is designed and manufactured to operate within dened
design limits. Misuse may result in electric shock or re. To prevent
your TV from being damaged, the following instructions should be
observed for the installation, use, and maintenance of your TV.
Read the following safety instructions before operating your TV.
Keep these instructions in a safe place for future reference.
• To reduce the risk of electric shock or component damage,
switch o the power before connecting other components
to your TV.
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers)
that produce heat.
• Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided
plug does not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
• Only use attachments/accessories specied by the
manufacturer.
• Use only with the cart, stand, tripod, bracket,
or table specied by the manufacturer, or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when
unused for long periods of time.
• Refer all servicing to qualied service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as the power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
• Unplug the power cord before cleaning your TV.
• When moving your TV from an area of low temperature to
an area of high temperature, condensation may form in the
housing. Wait before turning on your TV to avoid causing
re, electric shock, or component damage.
• A distance of at least three feet should be maintained
between your TV and any heat source, such as a radiator,
heater, oven, amplier etc. Do not install your TV close to
smoke. Operating your TV close to smoke or moisture may
cause re or electric shock.
• Slots and openings in the back and bottom of the cabinet
are provided for ventilation. To ensure reliable operation of
your TV and to protect it from overheating, be sure these
openings are not blocked or covered. Do not place your
TV in a bookcase or cabinet unless proper ventilation is
provided.
• Never push any object into the slots and openings on your
TV cabinet. Do not place any objects on the top of your TV.
Doing so could short circuit parts causing a re or electric
shock. Never spill liquids on your TV.
• Your TV should be operated only from the type of power
source indicated on the label. If you are not sure of the type
of power supplied to your home, consult your dealer or
local power company.

When you see this symbol, please read the
accompanying helpful tip.

iv
• Do not apply pressure or throw objects at your TV. This may
compromise the integrity of the display. The manufacturer’s
warranty does not cover user abuse or improper
installations.
• The power cord must be replaced when using dierent
voltage than the voltage specied. For more information,
contact your dealer.
• When connected to a power outlet, power is always owing
into your TV. To totally disconnect power, unplug the power
cord.
• The lightning ash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of un-isolated, dangerous voltage within the
inside of your TV that may be of sucient magnitude to
constitute a risk of electric shock to persons.
• Do not overload power strips and extension cords.
Overloading can result in re or electric shock.
• The wall socket should be installed near your TV and easily
accessible.
• Only power of the marked voltage can be used for your TV.
Any other voltage than the specied voltage may cause re
or electric shock.
• Do not touch the power cord during lightning. To avoid
electric shock, avoid handling the power cord during
electrical storms.
• Unplug your TV during a lightning storm or when it will not
be used for long period of time. This will protect your TV
from damage due to power surges.
• Do not attempt to repair or service your TV yourself.
Opening or removing the back cover may expose you to
high voltages, electric shock, and other hazards. If repair
is required, contact your dealer and refer all servicing to
qualied service personnel.
• WARNING: Keep your TV away from moisture. Do not expose
your TV to rain or moisture. If water penetrates into your TV,
unplug the power cord and contact your dealer. Continuous
use in this case may result in re or electric shock.
• Do not use your TV if any abnormality occurs. If any smoke
or odor becomes apparent, unplug the power cord and
contact your dealer immediately. Do not try to repair your
TV yourself.
• Avoid using dropped or damaged appliances. If your TV
is dropped and the housing is damaged, the internal
components may function abnormally. Unplug the power
cord immediately and contact your dealer for repair.
Continued use of your TV may cause re or electric shock.
• Do not install your TV in an area with heavy dust or high
humidity. Operating your TV in environments with heavy
dust or high humidity may cause re or electric shock.
• Follow instructions for moving your TV. Ensure that the
power cord and any other cables are unplugged before
moving your TV.
• When unplugging your TV, hold the AC/DC power adapter,
not the cord. Pulling on the power cord may damage the
wires inside the cord and cause re or electric shock. When
your TV will not be used for an extended period of time,
unplug the power cord.
• To reduce risk of electric shock, do not touch the connector
with wet hands.
• Insert batteries in accordance with instructions. Incorrect
polarities may cause the batteries to leak which can
damage the remote control or injure the operator. Do not
expose batteries to excessive heat such as sunshine, re or
the like.
• If any of the following occurs, contact the dealer:
- The power cord fails or frays.
- Liquid sprays or any object drops into your TV.
- Your TV is exposed to rain or other moisture.
- Your TV is dropped or damaged in any way.
- The performance of your TV changes substantially.
• This apparatus shall not be exposed to dripping or
splashing and no objects lled with liquids, such as vases,
shall be placed on the apparatus.
• The mains plug or appliance coupler is used as the
disconnect device, the disconnect device shall remain
readily operable.
• CAUTION - These servicing instructions are for use by
qualied service personnel only. To reduce the risk of
electric shock, do not perform any servicing other than
that contained in the operating instructions unless you are
qualied to do so.
• The lightning ash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated DANGEROUS VOLTAGE within the
product’s enclosure that may be of sucient magnitude to
constitute a risk of electrical shock to persons.
• WARNING: Exposure to loud sounds can damage your
hearing causing hearing loss and tinnitus (ringing or
buzzing in the ears). with continued exposure to loud
noises, ears may become accustomed to the sound level,
which may result in permanent damage to hearing without
any noticeable discomfort.
• Install the TV where it cannot be pulled, pushed or knocked
over.
• Do not allow children to hang onto the product.
• Store the accessories (remote, batteries, etc.) in a location
safely out of the reach of children.
• The American Academy of Pediatrics discourages television
viewing for children younger than two years of age.
h

v

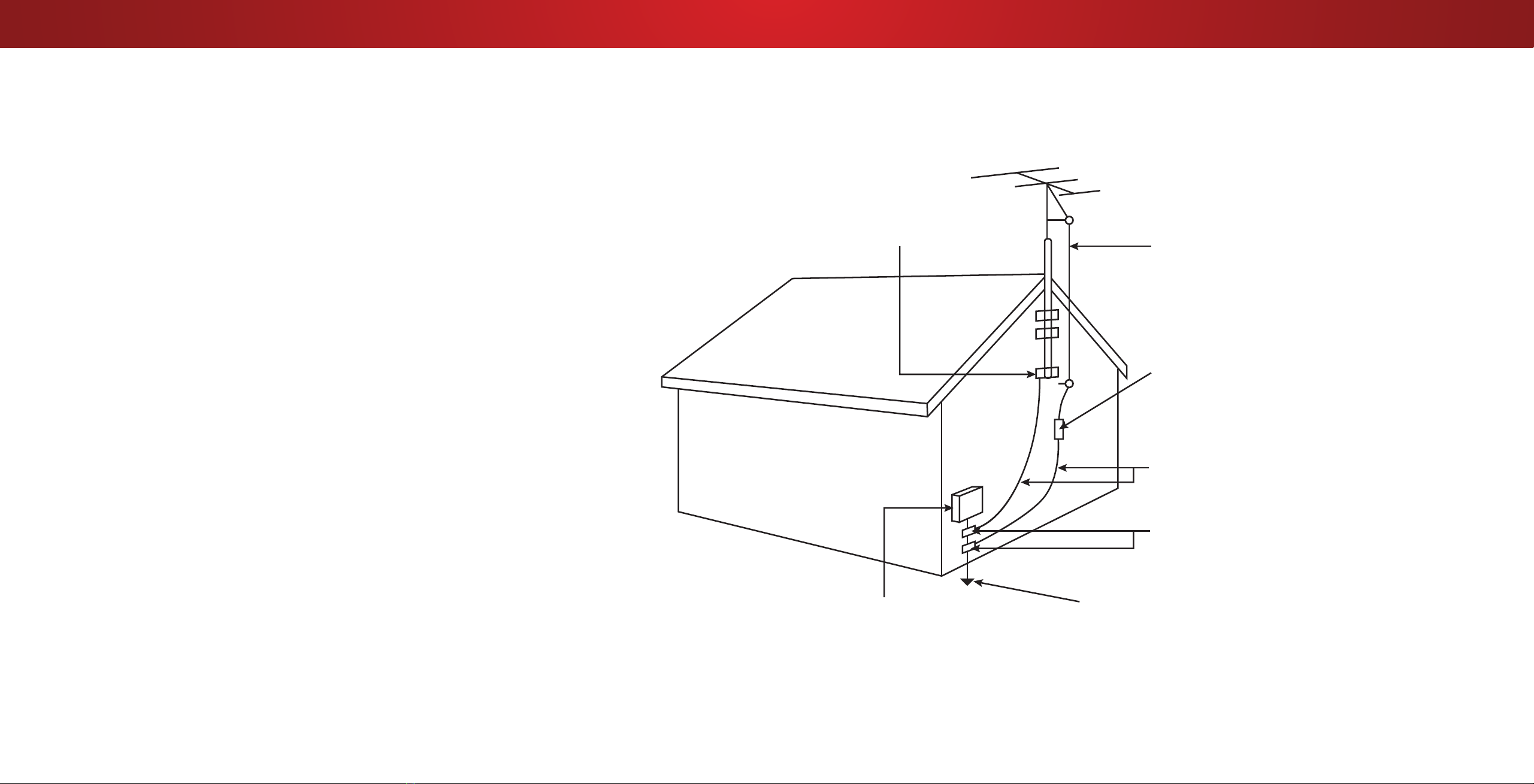

Ground Clamp Antenna Lead In Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductors
(NEC Section 810-21)
Ground Clamps
Power Service Grounding Electrode System
(NEC ART 250, part H)
Electric Service Equipment
TELEVISION ANTENNA CONNECTION
PROTECTION
If an outside antenna/satellite dish or cable system is to be
connected to the TV, make sure that the antenna or cable system
is electrically grounded to provide some protection against voltage
surges and static charges.
Article 810 of the National Electrical Code, ANSI/NFPSA 70, provides
information with regard to proper grounding of the mast and
supporting structure, grounding of the lead-in wire to an antenna
discharge unit, size of the grounding conductors, location of
antenna discharge unit, connection to grounding electrodes, and
requirements of the grounding electrode.
Lightning Protection
For added protection of the TV during a lightning storm or when it
is left unattended or unused for long periods of time, unplug the TV
from the wall outlet and disconnect the antenna or cable system.
Power Lines
Do not locate the antenna near overhead light or power circuits, or
where it could fall into such power lines or circuits. Remember, the
screen of the coaxial cable is intended to be connected to earth in
the building installation.

vi
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
HDMI, the HDMI logo and High-Denition Multimedia
Interface are trademarks or registered trademarks of
HDMI Licensing LLC.
For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS Licensing Limited.
DTS, the Symbol, & DTS and the Symbol together are
registered trademarks, and DTS Studio Sound is a
trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
This product qualies for ENERGY STAR in the “factory
default” settings ans this is the setting in which power
savings will be achieved. Changing the factory default
picture settings or enabling other features will increase
power consumption that could exceed the limits necessary
to qualify for ENERGY STAR rating. For more information
on the ENERGY STAR program, refer to energystar.gov.

1Completing The First-Time Setup
The first time you turn on the TV, the Setup App will guide
you through each of the steps necessary to get your TV
ready for use.
Before you begin the first-time setup:
• Your TV should be installed and the power cord
should be connected to an electrical outlet.
• Your devices should be connected.
• If you have a wireless network, have the network
password ready.
• If you are connecting to your network with an
Ethernet cable, connect it to the Ethernet port on
the TV.
Choose your mode.
Select Store Demo for in-store display.
Select Home Use for in-home use.
Seleccione "Home Use" para Modo de Casa o "Store Demo" para Demostración en la Tienda.
Choisissez "Home Use" pour le Mode Domicile ou "Store Demo" pour la Démo en Magasin.
Store Demo Home Use
Press the Power button on the remote. The TV
powers on and the Setup App starts.
1
2
Use the Arrow buttons on the remote to
highlight Home Use and press OK.
To complete the first-time setup:
Use the Arrow buttons on the remote to highlight
your language of preference and press OK.
3
4
Use the Arrow buttons on the remote to
highlight your country, and then press OK.
7

1
Select the name of your wireless network from the
list of available networks and press OK.
6
Enter the network password using the on-screen
keyboard, then highlight Connect and press OK.
Use the Arrow and OK buttons on the remote to
review the Terms Of Service and Privacy Policy.
When you are nished, highlight I Accept
and press OK.
7
8
Enter your E-mail Address, First Name, Last
Name, and Zip Code using the on-screen
keyboard.
Highlight Next and press OK.
5
Select your time zone and press OK.
8

1
If the TV Signal channel scan screen appears, the
TV will need to scan for channels, which takes
several minutes.
Use the arrow buttons on the remote to highlight
Begin Scan and press OK.
10
Otherwise, use the Arrow and OK buttons on
the remote to select the input your TV source
is connected to.
When you are nished, the message
“Setup is complete.” will appear.
The First-Time Setup is complete.
Use the Arrow buttons on the remote to highlight
your TV source and press OK.
9
If you have cable TV, select whether you have
a cable box or if you connect the TV directly
to a cable from the wall.
Note: Number of ports may differ by TV.
9

2
CHANGING THE INPUT SOURCE
External devices such as DVD players, Blu-ray Players, and video
game consoles can be connected to your TV. To use one of these
devices with your TV, you must rst change the input source using
the Input menu.
To change the input source:
1. Press the INPUT button on
the remote. The Input menu is
displayed.
2. Use the Up/Down Arrow
buttons or the INPUT button on
the remote to highlight the input
you wish to view and press OK.
The selected input is displayed.
You can change the input names that appear on the
Input menu to make your devices easy to recognize. See
Renaming Devices on the Input Menu on page 29 for
more information.
Note: Inputs may vary by TV.
HDMI-3 available only on
model D50-D1

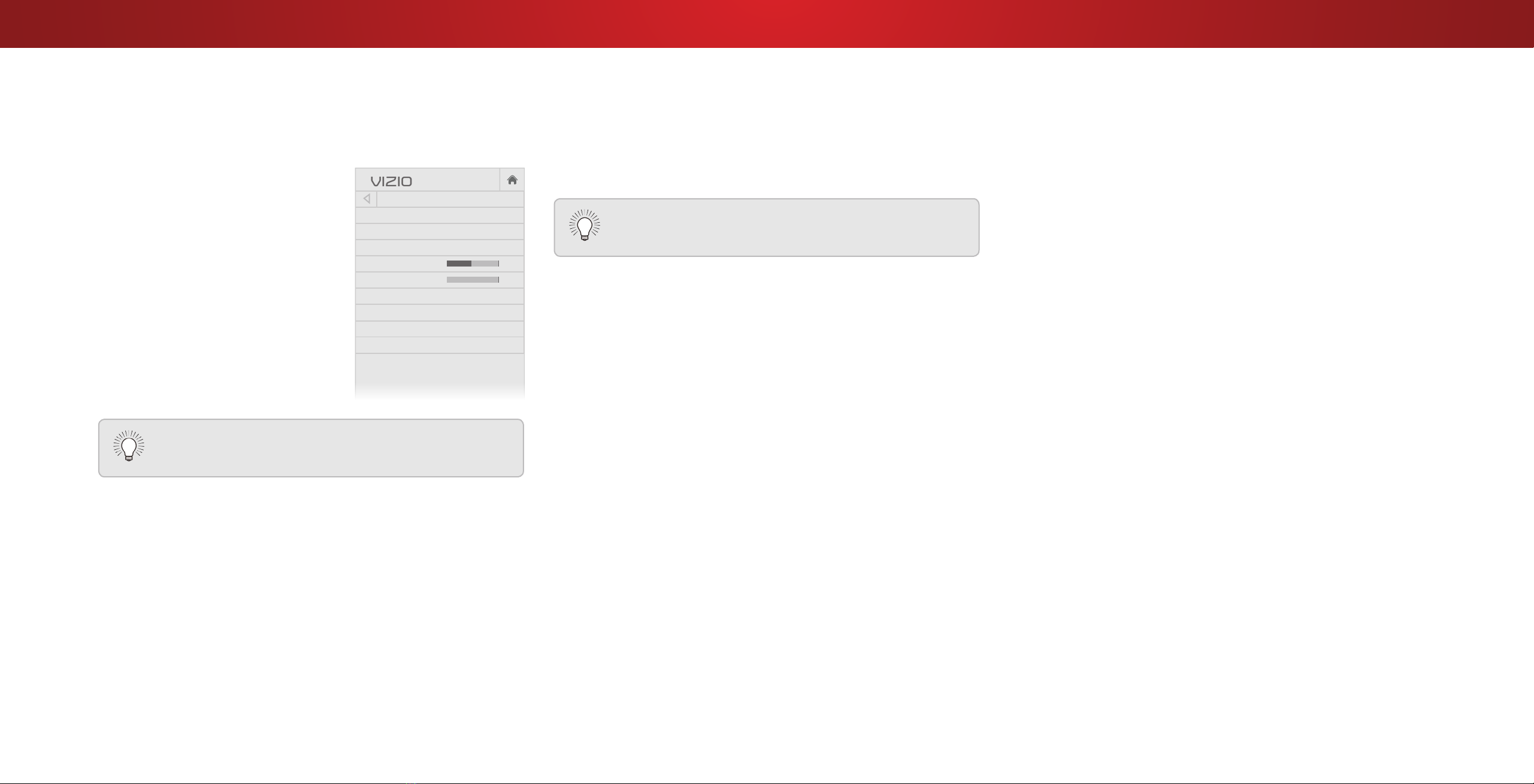

Using the On-Screen Menu
Your TV features an easy-to-use on-screen menu.
To open the on-screen menu, press the MENU button on the remote.
You can also open the on-screen menu by pressing the VIA button
and selecting HDTV Settings from the VIA Dock, then pressing OK.
From this menu, you can:
• Adjust the Picture settings
• Adjust the Audio settings
• Setting the Sleep Timers
• Adjust the Network settings
• Adjust the Channel settings
• Set up Closed Captioning
• Name Inputs
• Adjust TV settings
• Access the Guided Setup
• View the User Manual
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
TV SETTINGS
Audio
Timers
Network
Channels
Closed Captions
Devices
System
Guided Setup
User Manual
CC
NAVIGATING THE ON-SCREEN MENU
To open the on-screen menu, press
the MENU button on the remote.
Use the Arrow buttons to highlight
a menu option, and press the OK
button to select that option.
While navigating the on-screen menu, you can
press the BACK button at any time to return to the
previous menu screen. The EXIT button will close the
on-screen menu.

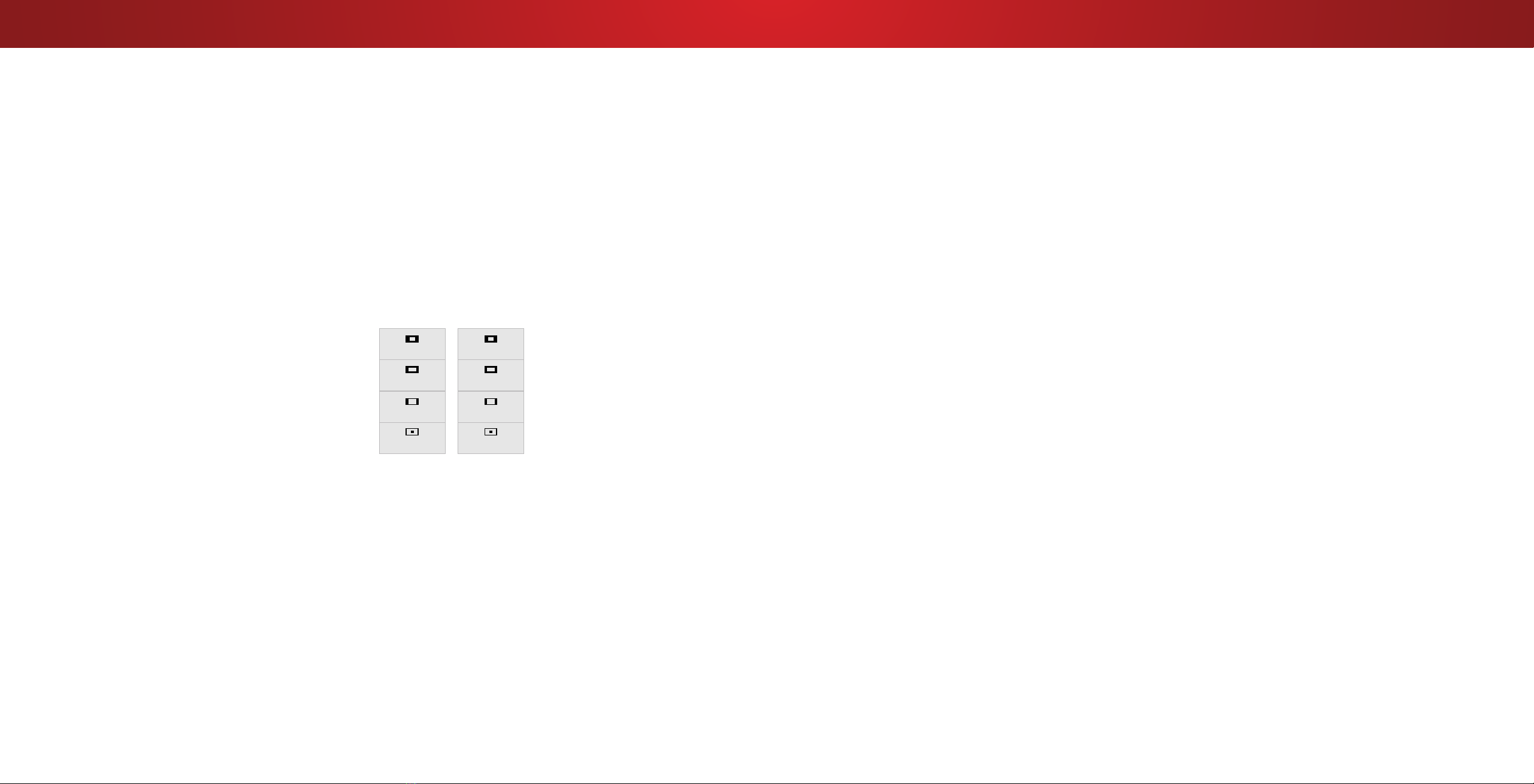

COMP
HDMI-1
HDMI-2
TV
HDMI-4
Input Name HDMI-3
10

2
CHANGING THE SCREEN ASPECT RATIO
The TV can display images in ve dierent modes: Normal, Stretch,
Panoramic, Wide, and Zoom. Each mode displays the picture
dierently.
Some programs have black bars on the top or sides of the picture
so that the picture keeps its original shape. Examples include
wide-screen movies and older television programs.
To change the screen aspect ratio:
1. Press the WIDE button on the
remote.
2. Use the Arrow buttons to
highlight the aspect ratio you
wish to view and press OK.
• Normal preserves the content’s
original aspect ratio and size.
• Standard Denition (480i and
480p—old TV programs) - Since
the 4:3 aspect ratio is not large
enough to ll the TV’s screen,
black bars are added to the left
and right of the display image.
• 720p and 720i HD - Fills a 720p or 1080p screen.
• 1080p and 1080i HD - Fills a 720p or 1080p screen.
• Stretch expands a widescreen image to ll the screen from
top to bottom and stretches it half as much from right to
left. Figures appear tall and thin.
• Standard Denition - Not available.
• 720p and 720i HD - If you are watching widescreen
1.85:1 content, the image will ll the screen. With 2.35:1
widescreen content, one-sixth of the image is cut o by
the left and right sides of the screen.
• 1080p and 1080i - Not available.
• Panoramic stretches a 4:3 aspect ratio picture to the left
and right edges of the screen. The center of the image is
Panoramic
Wide
Zoom
Normal
Stretch
Wide
Zoom
Normal
Note: Aspect ratio settings may
vary by Input source.
not stretched, but the sides of the image are extremely
stretched. If you are watching widescreen (1.85:1 or 2.35:1)
content with black bars on the top and bottom, the black
bars will still appear on the top and bottom of the display
image.
• Standard Denition (480i and 480p) - Fills the screen
from the left to right edges.
• 720p and 720i - Not available.
• 1080p and 1080i - Not available.
• Wide stretches a 4:3 aspect ratio picture to the edges of
the screen. Since the picture is being stretched, the display
image may appear distorted—gures appear short and fat.
If the program is already formatted for widescreen viewing
(1.85:1 or 2.35:1), then black bars will appear on the top
and bottom of the display image.
• Zoom expands images evenly in all directions (33% taller
and 33% wider) with black bars to t the screen. A 720p
image will ll a 1080p screen.
• Standard Denition - Not available.
• 720p and 720i HD - Fills a 1080p screen
• 1080p and 1080i - Not available.
11

2
VIEWING VIDEO WITH THE MENU OPEN
When the on-screen menu opens, it covers the left-hand portion of
the picture. The picture can be displayed in three dierent ways:
• Viewport - The entire picture is resized to t into the space
to the right of the menu
• Overlay - The picture stays in its normal postion and the
menu covers the left-hand portion of the picture. (The picture
is full-sized)
• Centered Overlay - The picture is full-sized and centered in
the area next to the menu, so that the right and left edges
are cut o.
To change the position of the picture while the on-screen menu is
displayed:
1. Use the Arrow buttons on the
remote to highlight
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
Resize
Video.
2. Press OK to cycle through the
three display methods.
3. Press the Up Arrow button on
the remote to the menu.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
Picture Mode Standard
Auto Brightness Control Medium
Backlight 85
Brightness 50
Contrast 50
Color 59
Tint 0
Sharpness 9
More Picture
Picture Mode EDIT
Color Calibration
-+
+
-
-+
-+
-+
-+
CENTERED OVERLAY
OVERLAY
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
VIEWPORT
-+
+
-
-+
-+
-+
-+
Picture Mode Standard
Auto Brightness Control Off
Backlight 85
Brightness 50
Contrast 50
Color 59
Tint 0
Sharpness 9
More Picture
Picture Mode Edit
Color Calibration
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
-+
+
-
-+
-+
-+
-+
Picture Mode Standard
Auto Brightness Control Off
Backlight 85
Brightness 50
Contrast 50
Color 59
Tint 0
Sharpness 9
More Picture
Picture Mode Edit
Color Calibration
-+
+
-
-+
-+
-+
-+
Picture Mode Standard
Auto Brightness Control Off
Backlight 85
Brightness 50
Contrast 50
Color 59
Tint 0
Sharpness 9
More Picture
Picture Mode Edit
Color Calibration
12

2
3. Use the Arrow buttons on the
remote to highlight Picture
Mode, then use the Left/Right
Arrow buttons to change the
picture mode:
• Standard mode sets the
picture settings to the
default settings.
• Calibrated mode sets the
picture settings to values
ideal for watching TV in a
brightly-lit room.
• Calibrated Dark mode sets
the picture settings to values
ideal for watching TV in a
dark room.
• Vivid mode sets the picture
settings to values that
produce a brighter, more
vivid picture.
• Game mode reduces
throughput delays and
optimizes the picture settings
for displaying game console
output.
• Computer mode optimizes the picture settings for
displaying computer output.
ADJUSTING THE PICTURE SETTINGS
Your TV display can be adjusted to suit your preferences and viewing
conditions.
To adjust the picture settings:
1. Press the MENU button on the remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the remote to highlight Picture and
press OK. The PICTURE menu is displayed.
If you’ve changes to the settings for a picture mode, an
asterisks appears after its name (see Saving a Custom
Picture Mode on page 15).
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
Picture Mode Standard
Auto Brightness Control Medium
Backlight 85
Brightness 50
Contrast 50
Color 59
Tint 0
Sharpness 9
More Picture
Picture Mode Edit
Color Calibration
-+
+
-
-+
-+
-+
-+
4. To manually change each of the picture settings, use the Up/
Down Arrow buttons on the remote to highlight that picture
setting, then use the Left/Right Arrow buttons to adjust the
setting:
• Auto Brightness Control - The auto brightness control detects
the light levels in the room and automatically adjusts the
backlight for the best picture. Select O, Low, Medium, or
High.
• Backlight - Adjusts the LED brightness to aect the overall
brilliance of the picture. Backlight cannot be adjusted when
starting from some picture modes.
• Brightness - Adjusts the black level of the picture. When this
setting is too low, the picture may be too dark to distinguish
details. When this setting is too high, the picture may appear
faded or washed out.
• Contrast - Adjusts the white level of the picture. When this
setting is too low, the picture may appear dark. When this
setting is too high, the picture may appear faded or washed
out. If the setting is too high or too low, detail may be dicult
to distinguish in dark or bright areas of the picture.
• Color - Adjusts the intensity of the picture colors.
• Tint - Adjusts the hue of the picture. This setting is useful in
adjusting the esh tones in the picture. If esh appears too
orange, reduce the level of color before adjusting tint.
• Sharpness - Adjusts the edge sharpness of picture elements.
It can be used to sharpen non-HD (high denition) content;
however, it will not produce detail that does not otherwise
exist.
5. When you have nished adjusting the picture settings, press
the EXIT button on the remote.
13

2
Adjusting More Picture Settings
To adjust more picture settings:
1. From the PICTURE menu, use the
Arrow buttons to highlight More
Picture, and then press OK.
2. Use the Arrow buttons to
highlight the setting you wish
to adjust, then press the Left/
Right Arrow buttons to change
the setting:
• Color Temperature -
See
Adjusting the Color
Temperature on page
14this page.
• Black Detail - Adjusts the
average brightness of the
picture to compensate for
large areas of brightness.
Select O, Low, Medium, or
High.
• Active LED Zones -
Dynamically improves the
contrast ratio of the picture
by adjusting the backlight.
The adjustment is controlled
by the content on the screen.
Select On or O.
• Clear Action - Reduces blur in scenes with fast action. Some
sensitive viewers may notice icker. Select On or O.
• Reduce Noise — Opens a sub-menu with two settings:
• Reduce Signal Noise* - Diminishes artifacts in the image
caused by the digitizing of image motion content. Select
O, Low, Medium, or High.
• Reduce Block Noise - Reduces pixelation and distortion
for mpeg les. Select O, Low, Medium, or High.
• Game Low Latency - Select On to reduce video delay (lag)
when gaming.
• Picture Size & Position - Highlight Picture Size & Position
and press OK. The PICTURE SIZE & POSITION menu is
displayed.
• Picture Size: Increase or decrease the vertical and
horizontal size of the displayed picture. Use the Left/
Right Arrow buttons to adjust the horizontal size of the
displayed picture. Use the Up/Down Arrow buttons to
adjust the vertical size of the displayed picture. Press the
OK button when you are nished.
• Picture Position: Adjust the vertical and horizontal
positions of the picture to ensure the image is centered
and completely lls the screen. Use the Left/Right
Arrow buttons to adjust the horizontal position of the
displayed picture. Use the Up/Down Arrow buttons to
adjust the vertical position of the displayed picture. Press
the OK button when you are nished.
• Film Mode - Optimizes the picture for watching lm. Select
Auto or O.
• Gamma - Set the shape of the Gamma curve. Use lower
Gamma values for bright room conditions, and higher
values when it’s dark.
3. When you have nished adjusting More Picture Settings, press the
EXIT button on the remote.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
MORE PICTURE
Color Temperature Cool
Black Detail Medium
Active LED Zones On
Clear Action On
Reduce Noise
Game Low Latency Off
Picture Size & Position
Film Mode Auto
Gamma 2.1
Adjusting the Color Temperature
Adjusting the color temperature changes the white balance of the
picture.
To adjust the color temperature:
1. From the MORE PICTURE menu,
use the Arrow buttons to
highlight Color Temperature,
and then press OK.
2. Use the Arrow buttons on the
remote to highlight a color
temperature preset and then
press OK.
• Normal is optimized for
television viewing.
• Cool produces a blue-hued
picture.
• Computer optimizes the
picture for use as a
PC monitor.
3. When you have nished
adusting the color temperature,
press the EXIT button on the
remote.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
COLOR TEMPERATURE
Cool
Normal
Computer
14

2
Adjusting the Picture Mode Edit Settings
Picture Mode Edit Settings allow you to make precise adjustments
to the picture and to create picture modes to save groups of picture
settings.
To adjust the Picture Mode Edit settings:
1. From the PICTURE menu, use the
Arrow buttons to highlight Picture
Mode Edit, and then press OK.
The PICTURE MODE EDIT menu is
displayed.
2. Use the Arrow buttons to
highlight the setting you wish to
adjust, then press OK to change
the setting:
• Save Picture Mode - Save a
custom picture mode.
• Lock Picture Mode - Prevent
changes to custom picture
modes.
• Unlock Picture Mode - Allow
changes to custom picture
modes. (Available after a custom
picture mode is locked)
• Delete Picture Mode - Delete
a custom picture mode. Inputs
assigned to that custom picture
mode will be set to Calibrated
picture mode. (Available after a
custom picture mode is saved)
• Reset Picture Mode†- Reset
the picture mode settings to
factory default values.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
PICTURE MODE EDIT - Vivid*
Save Picture Mode
Lock Picture Mode
Reset Picture Mode - Vivid*
* Not available on HDMI input 5.
†Only available on customized preset modes.
‡Only available on HDMI input.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
PICTURE MODE EDIT - MyMode
Save Picture Mode
Unlock Picture Mode
Delete Picture Mode - MyMode
Locking/Unlocking a Custom Picture Mode
Custom picture modes can be locked/unlocked with a unique PIN to
prevent accidental changes to their settings.
To lock all custom picture modes:
1. From the PICTURE MODE EDIT
menu, use the Arrow buttons
to highlight Lock Picture
Mode, and then press OK. The
LOCK PICTURE MODE menu is
displayed.
2. Use the Number Pad on your
remote to enter a unique 4-digit
PIN.
3. Highlight Save and press OK.
4. Press the EXIT button to exit the
menu screens.
To unlock all custom picture modes:
1. From the PICTURE MODE EDIT
menu, use the Arrow buttons
to highlight Unlock Picture
Mode, and then press OK. The
UNLOCK PICTURE MODE menu
is displayed.
2. Use the Number Pad on your remote to enter your 4-digit PIN.
3. Make any desired changes to the picture modes.
4. Relock the picture modes, if desired. You must create a new
4-digit PIN.
5. Press the EXIT button to exit the menu screens.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
LOCK PICTURE MODE
Create a picture control PIN to prevent
changes to all custom picture modes.
Save
Create a 4 digit passcode using the num-
ber keys on the remote.
Saving a Custom Picture Mode
Custom picture modes allow you to save a group of custom settings
for various viewing conditions and video sources.
• Changes made while on any preset picture mode will add an
asterisk on the top right corner of the preset mode.
• The custom picture mode is not automatically saved.
To save a custom picture mode:
1. From the PICTURE MODE EDIT
menu, use the Arrow buttons
to highlight Save Picture
Mode, and then press OK. The
SAVE PICTURE MODE menu is
displayed.
2. Use either the on-screen
keyboard or keyboard on your
remote control to enter a name
for your custom picture mode.
3. Highlight Save and press OK.
4. Press the EXIT button to exit the
menu screens.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
SAVE PICTURE MODE
Custom1_
Save
a b c d e f g h i
j k l m n o p q r
s t u v w x y z 0
123456789
.@# .com Space
äêí
15

2
Deleting a Custom Picture Mode
Custom picture modes that are no longer needed can be deleted.
To delete a custom picture mode:
1. From the PICTURE MODE EDIT menu,
use the Arrow buttons to highlight
Delete Picture Mode, and then
press OK. The DELETE PICTURE
MODE window is displayed.
2. Use the Left/Right Arrow buttons to highlight Delete and press
OK.
3. Press the EXIT button to exit the menu screens.
Resetting a Picture Mode
A preset picture mode that has been edited can be restored to the
factory default settings.
To reset a customized preset picture mode:
1. From the PICTURE MODE EDIT menu,
use the Arrow buttons to highlight
Reset Picture Mode, and then
press OK. The RESET PICTURE MODE
window is displayed.
2. Use the Left/Right Arrow buttons to highlight Reset and press OK.
3. Press the EXIT button to exit the menu screens.
Inputs assigned to a deleted custom picture mode
become assigned to the
Calibrated picture mode.
To delete the user created Custom 1 picture mode,
select the Delete button.
Delete Cancel
Select Reset to restore Standard
picture mode to factory defaults.
Reset Cancel
16

2
To turn color channels o and on:
1. From the COLOR CALIBRATION menu, use the Arrow buttons
to highlight Color Tuner, and then press OK. The Color Tuner
menu is displayed.
2. Use the Arrow buttons on the remote to highlight Red, Green,
or Blue.
3. Press the OK button to turn the color channel o or on. An X
appears over a color channel that has been turned o.
4. Use the Arrow buttons to highlight another color channel to
turn o or on. Only two color channels can be turned o at the
same time.
5. When you are nished with the color channels, press the EXIT
button.
Color Tuner
Red Green Blue Cyan Magenta Yellow
Hue 000025 -14
Saturation -1 5-4 0-2 0
Brightness -24 0-22 000
Offset 000
Gain 000
To adjust the 11 Point White Balance settings:
1. From the Color Tuner menu, use the Arrow buttons to
highlight Color Tuner, and then press the Left/Right Arrow
buttons until the 11 Point White Balance menu is displayed.
2. Use the Arrow buttons on the remote to highlight the Gain
and Color values you wish to adjust. Press the OK button and
use the Left/Right Arrow buttons to adjust the value. When
you are nished, press the OK button to save the setting.
3. When you are nished, press the EXIT button.
11 Point White Balance
Gain Red Green Blue
5% 0 0 0
Adjusting the Color Tuner Settings
The Color Tuner settings allow you to adjust the HSB color and 11
point white balance, turn color channels o for testing, and display
color bar, at, and ramp test patterns.
To adjust the HSB color settings:
1. From the COLOR CALIBRATION menu, use the Arrow buttons
to highlight Color Tuner, and then press OK. The Color Tuner
menu is displayed.
2. Use the Arrow buttons on the remote to highlight the Hue,
Saturation, Brightness, Oset, or Gain of the color you wish
to adjust. Press the OK button.
3. Use the Left/Right Arrow buttons to adjust the value. When
you are nished press the OK button to save the setting.
4. When you are nished adjusting the color tuner settings, press
the EXIT button.
Color Tuner
Red Green Blue Cyan Magenta Yellow
Hue 000025 -14
Saturation -1 5-4 0-2 0
Brightness -24 0-22 000
Offset 000
Gain 000
The Color Tuner, 11 Point White Balance, and test
patterns allow technicians to manually calibrate the TV.
Calibration requires specialized training, an input with
precisely set colors, and a specialized light meter.
17

2
To show or hide the Flat Test Pattern:
1. From the Color Tuner menu, use the Arrow buttons to
highlight Color Tuner, and then press the Left/Right Arrow
buttons until the Flat Test Pattern menu is displayed.
Flat Test Pattern
Off
2. Use the Arrow buttons on the remote to highlight O. Use the
Left/Right Arrow buttons to select the percentage brightness
for the at test pattern. Selecting a percentage immediately
shows the at pattern at that brightness.
—or—
To disable the Flat Test Pattern, use the Left/Right Arrow
buttons to highlight O.
3. When you are nished, press the EXIT button.
To show or hide the Ramp Test Pattern:
1. From the Color Tuner menu, use the Arrow buttons to
highlight Color Tuner, and then press the Left/Right Arrow
buttons until the Ramp Test Pattern menu is displayed.
2. Use the Arrow buttons on the remote to highlight O. Use the
Left/Right Arrow buttons to select the color for the ramp test
pattern. Selecting a color immediately shows that color ramp.
—or—
To hide the Ramp Test Pattern, use the Left/Right Arrow
buttons to highlight O.
3. When you are nished, press the EXIT button.
Ramp Test Pattern
Off
To show or hide the Color Bar Test Pattern:
1. From the Color Tuner menu, use the Arrow buttons to
highlight Color Tuner, and then press the Left/Right Arrow
buttons until the Color Bar Test Pattern menu is displayed.
Color Bar Test Pattern
Off
2. Use the Arrow buttons on the remote to highlight O. Use the
Left/Right Arrow buttons to highlight On to show the SMPTE
Pattern.
—or—
To hide the SMPTE Test Pattern, use the Left/Right Arrow
buttons to highlight O.
3. When you are nished, press the EXIT button.
18

2
ADJUSTING THE AUDIO SETTINGS
To adjust the audio settings:
1. Press the MENU button on the
remote. The on-screen menu
is displayed.
2. Use the Arrow buttons on the
remote to highlight Audio and
press OK. The AUDIO menu
is displayed.
3. Use the Arrow buttons to
highlight the setting you wish
to adjust, then press Left/
Right Arrow buttons to change
the setting:
• TV Speakers - Turns the
built-in speakers On or O.
• Surround Sound - Surround sound uses DTS TruSurround™
to deliver an immersive surround sound experience from
the TV’s internal speakers. TruSurround completes the
entertainment experience by providing deep, rich bass and
by delivering crisp details and clear, intelligible dialog. Select
On or O.
• Volume Leveling - Volume leveling uses DTS TruVolume™
to maintain consistent volume levels during transitions
between program content, AV formats, and input sources.
Select On or O. In a few cases, volume leveling may
articially suppress volume increases, making it dicult to
hear dialog or attening sudden noises. If this occurs, turn
volume leveling o.
• Balance - Adjusts the loudness of the audio output from the
left and right speakers.
Help
VIZIO
Network
Sleep
Timer
InputCC
ABC
Audio
Wide
Normal
Settings
PanoramicWideZoom
2D 3DExit
AUDIO
TV Speakers On
Surround Sound On
Volume Leveling On
Balance 0
Lip Sync 0
Digital Audio Out PCM
Analog Audio Out Fixed
Equalizer
Delete Audio Mode
-+
-+
When the TV speakers are set to On, DTS signals
cannot be passed through digital audio outputs.
• Lip Sync - Adjusts the synchronization between the display
image and the accompanying audio track.
• Digital Audio Out - Changes the type of processing for
digital audio out and HDMI ARC output when connected to a
home theater audio system. Select PCM or Bitstream.
• Analog Audio Out - Sets the volume control properties for
the RCA connector when connected to a home theater audio
system. Select Variable if you are controlling the volume with
the TV’s volume controls, or select Fixed if an external audio
device (sound bar or AV receiver) will control the volume.
• Equalizer - Adjusts the boost or attenuation of dierent
frequencies using either preset or custom settings. See
Changing the Equalizer Settings on page 19 .
• Delete Audio Mode - Deletes a custom audio mode created
using the Equalizer Settings. See
Deleting the Custom Audio
Mode on page 20.
4. When you have nished adjusting the audio settings, press the
EXIT button on the remote.
You must select Bitstream for audio with more than
two channels (3.0, 5.0, or 5.1, for example).
Changing the Equalizer Settings
The graphic equalizer has several pre-set modes and allows you to
create one custom mode.
To select a pre-set audio mode:
1. Press the MENU button on the remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the remote to highlight Audio and
press OK. The AUDIO menu is displayed.
3. Use the Arrow buttons to highlight Equalizer and press OK. The
Audio Mode and equalizer settings screen appears.
4. Use the Left and Right Arrow buttons to select an audio mode.
The equalizer bars change to reect the mode.
5. Press the EXIT button on the remote.
To create, modify, or replace the single custom equalizer setting:
1. Press the MENU button on the remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the remote to highlight Audio and
press OK. The AUDIO menu is displayed.
3. Use the Arrow buttons to highlight Equalizer and press OK. The
Audio Mode and equalizer settings screen appears.
4. Use the Left and Right Arrow buttons to select any audio mode
as a starting point.
5. Use the Arrow buttons to highlight a frequency and then press
OK.
6. Use the Up and Down Arrow buttons to adjust the boost (up)
and attenuation (down) for the frequency.
7. Use the Left and Right Arrow buttons to select another
frequency, if desired, and adjust it.
8. Press the EXIT button on the remote.
19

2
Deleting the Custom Audio Mode
To delete the custom audio mode that has been created:
1. Press the MENU button on the remote. The on-screen menu is
displayed.
2. Use the Arrow buttons on the remote to highlight Audio and
press OK. The AUDIO menu is displayed.
3. Use the Arrow buttons to highlight Delete Audio Mode and
press OK. The TV displays, “To delete the user created custom
audio mode, select the Delete button.”
4. Highlight Delete and press OK.
5. Press the EXIT button on the remote.
20
