VOCOlinc VAP1 User manual

Hello!
Service Enquiries: [email protected] Visit us at: www.vocolinc.com
PureFlow Smart Air Purifier

You deserve clean air!
This is why we created PureFlow, an ultra smart and
efficient air purifying powerhouse to protect you and
your family from allergens and pollutants that exist,
but are not visible around you. Installation is hassle-free.
Please be sure to explore all of its features in this
manual. If you have any questions just drop us an
email, anytime. We’d love to hear from you!
Know your air and enjoy clear air from now on!
Class II equipment symbol Indoor use symbol

Caution: When using electrical appliances, observe the following basic
precautions to reduce the risk of fire, electric shock, and injury:
READ AND SAVE THESE INSTRUCTIONS
• Please read all tips and warnings before using your PureFlow air purifier.
• Use only as directed by the Owner’s Manual.
• Please observe extreme caution when using the air purifier in close proximity
to children.
• The PureFlow air purifier is for indoor use only.
• The PureFlow air purifier is not intended for use in bathrooms, laundry
areas, or other damp indoor environments.
• Keep the PureFlow air purifier away from water at all times.
• Do not use the PureFlow air purifier near fireplaces or in areas where
flammable or combustible products or vapors may be present.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with the appliance.
• A childproof feature pauses air purifier operation and warns (on screen)
when filter cover is removed.
WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan
With Any Solid-State Speed Control Device

• The PureFlow air purifier is designed for use in a 120V outlet (North America,
Type A), or 220-240V (EU, Type C).
• Turn off your PureFlow air purifier before unplugging it from the power
outlet.
• Unplug the PureFlow air purifier from the power outlet when not in use
and before servicing or cleaning the unit.
• North America only: To reduce the risk of electric shock, the PureFlow air
purifier has a polarized plug, which means it will fit into a polarized outlet
only one way. If the plug does not fit into the outlet, reverse the plug. If it
still does not fit, contact qualified personnel to install the proper outlet.
Do not alter the plug in any way.
• To avoid electric shock, do not touch the air purifier or its power plug with
wet hands.
• Keep the electrical cord away from heated surfaces at all times.
• If the cord or plug appears damaged, return the unit immediately to an
authorized service facility for examination and repair.
• Any attempts to repair the PureFlow air purifier without written permis-
sion from PureFlow air will void the warranty and could cause serious
personal injury to the user and/or result in severe damage to the unit.
• Do not pull, carry, lift, or drag the PureFlow air purifier by pulling its power
cord. Remove the power plug from its outlet by grasping the plug and
pulling gently.
• When the PureFlow air purifier is plugged into a power outlet, keep all
fingers, body parts, hair, jewelry, and loose clothing away from the openings.

• Avoid putting the PureFlow air purifier in a place where the air intake or air
outlet could become clogged with dirt.
• Leave at least two feet of space between the air purifier’s intake, outlet,
and the wall.
• Do not block the air intake or air outlet.
• Do not use the PureFlow air purifier on or around hot surfaces.
• Do not use the PureFlow air purifier in a room where it may come into
contact with steam.
• Do not install the PureFlow air purifier in greasy or damp environments.
• Do not use detergent or soap to clean the PureFlow air purifier.
• Do not operate the PureFlow air purifier without filters.
• Do not wash and reuse the filters except for the washable Pre-Filter.
• When transporting the PureFlow air purifier, always hold the handles on the
sides of the unit.

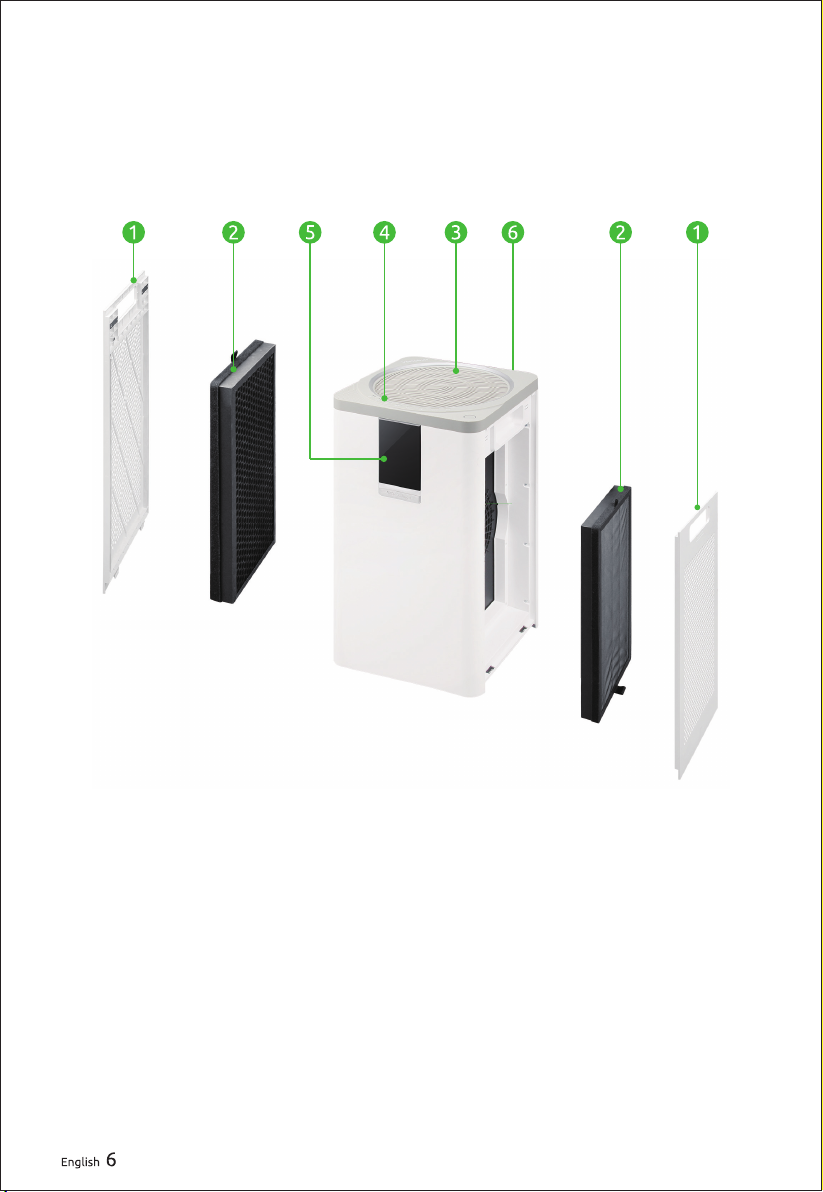

1. Filter covers
2. Composite filters (Pre-filter+HEPAfilter+Carbon filter)
3. Ripple Air outlet
4. Touch control panel
5. Information display
6. High-precision sensors (Air quality/humidity/temperature)

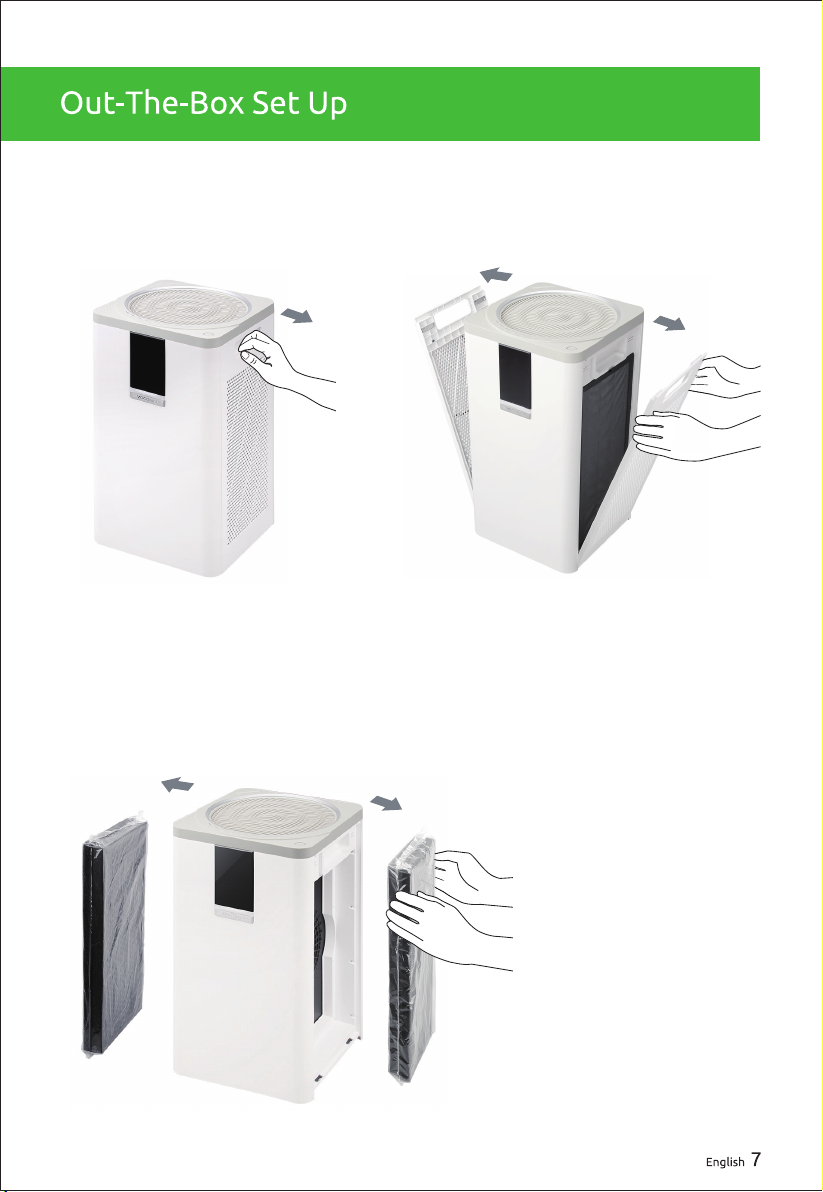

1. Place your hand on the
handle of the covers and
pull towards you.
3. Remove both filters located on both sides of
the PureFlow.
2. Lift the filter covers slightly to
completely remove the covers.

4. Remove the new filters from
their protective film/cover.
5. Place the new filters inside the recess
for the filters.
6. Replace the filter covers as per instruc-
tion #1, but in reverse.

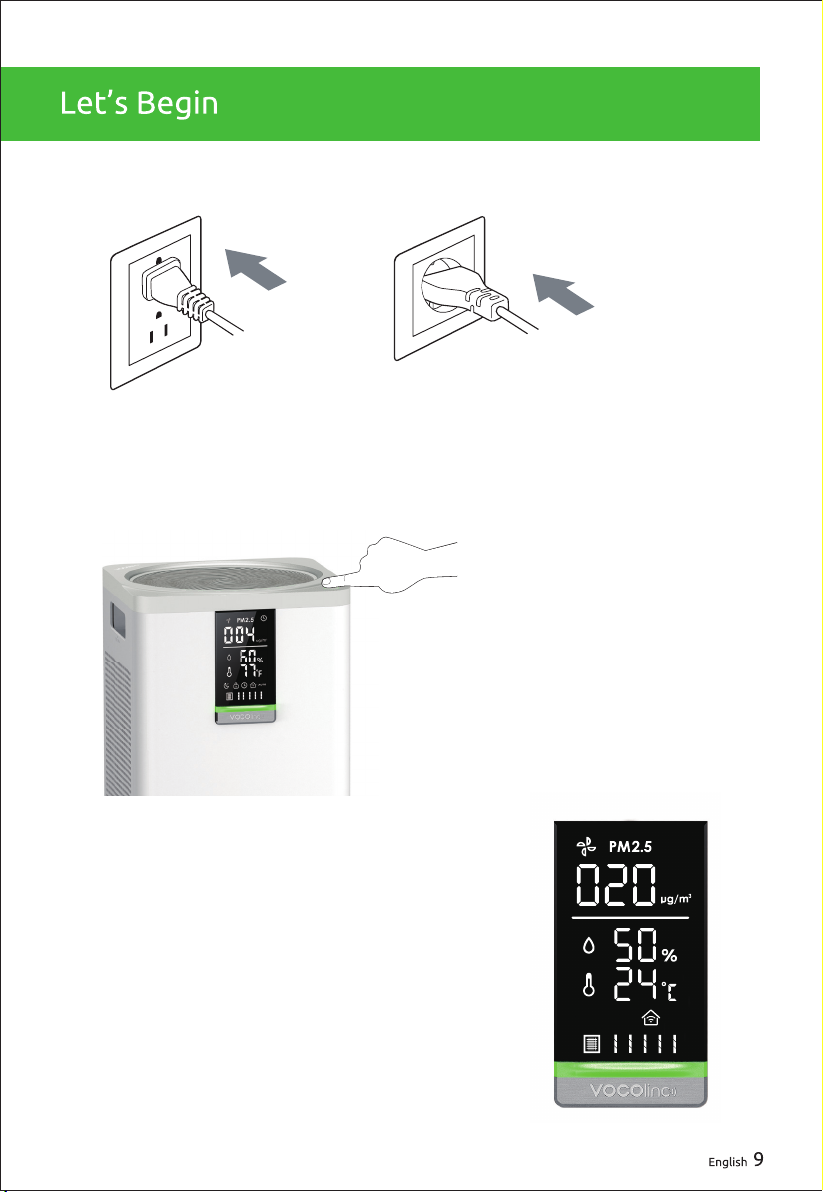

1. Plug in the PureFlow and you will hear three ascending tones.
2. Tap the power button, and you will hear
the same three ascending tones.
3. Once powered up, the
screen will light up. The
VAP1 will then take a few
moments to initialize.

Press and hold WiFi button for 10 seconds until you hear beep three
times and led light blinks to enter pairing mode for setting up a wireless
connenction to your network. When the PureFlow is connected to Wi-Fi,
the indicator stays green. If the PureFlow loses connection, the indicator
will flash.
When Auto Mode is selected, the
fan speed of the air purifier
changes automatically depending
on the readings of the air quality
sensors.
When the filter life drops below 10%, the indicator will flash to warn for
filter replacement. Once new filters are installed, press and hold for 10
seconds to reset filters. When the filter life is above 10%, you are not
able to reset filters.
Auto Mode Switch
Pairing (Reset) Mode Switch
Power Switch
When Sleep Mode is selected, the
fan speed will remain in silent speed.
Fan Mode Switch
Temperature Unit Switch
Sleep Mode Switch
Filter Reset Switch

Press and hold for 3 seconds to activate the Kid Lock function (green
light turns on) which disables all other touch controls. You can unlock
this function by pressing and holding the button again for 3 seconds.
When the PureFlow is in Standby mode, press to set the timer
function and activate it; When on, press again to turn off the timer
function. The timer can be set between 0-24 hours. By selecting 0,
the timer will be canceled.
Timer Switch
Kid Lock Switch

2. Humidity Value
3. Temperature Value
4. Auto Mode On
5. Wi-Fi Mode On
• Stays present when the PureFlow is connected to Wi-Fi.
• Flashes when the PureFlow loses connection or enters pairing mode.
• Disappears when the PureFlow exits Wi-Fi mode. In order to connect to
Wi-Fi network, use Pairing Mode Switch to set up connection.
6. Timer On
7. Kid Lock On
8. Sleep Mode On
9. Filter Life Level
10. Real Time Fan Speed
Rotation speed varies according to the fan speed

The timer can be set between
0-24 hours. By selecting 0, the
timer will be canceled.
The fan speed can be set
between 1-5 levels.
The icon dims automatically
after 10 seconds.
Timer Settings Fan Speed Adjustment
Sleep Mode On

1. Remove the module cover at
the rear of the PureFlow.
2. Take out the module cover
and clean with a dry cloth or
a soft brush.
5. Reconnect the data cable, then
return the unit to its housing, and
screw the module securely in place.
6. Place the module cover back.
4. Clean the module with a dry
cloth or a soft brush.
3. Unscrew the module from the
recess and unplug it from the
data cable.

The PureFlow surface should be cleaned
depending on the air quality of the room.
Use a clean, dry cloth to wipe the external
surfaces of the PureFlow, or use a damp
cloth to remove stubborn stains and dirty
buildup if necessary. Avoid commercial
cleaning products which may damage the
unit's surface.
Clean the air outlet with a soft brush.
Remove the filter covers. Use a clean,
dry cloth to wipe the external surfaces
of the PureFlow, or use a damp cloth to
remove stubborn stains and dirty
buildup if necessary. Avoid commercial
cleaning products which may damage
the unit's surface.
Caution: Be careful not to drop the
brush into the PureFlow.

We have summarized some issues which you might encounter. If you are
not able to resolve your issues according to this guide, please feel free to
contact us: [email protected]
We’re here to help!

This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particu-
lar installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications made to this device not expressly
approved by Foneric Technology Co.,Ltd may void the FCC authorization to
operate this device.
FCC&IC RF Radiation Exposure Statement Caution: This Transmitter must be
installed to provide a separation distance of at least 20 cm from all persons.
Note: The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user’s authority to operate the equipment.

SIMPLIFIED EU DECLARATION OF CONFORMITY
The simplified EU declaration of conformity referred to in Article 10(9) shall
be provided as follows:
Hereby, VOCOlinc declares that the radio equipment type [designation of
type of radio equipment] is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following
internet address: www.vocolinc.com
This device complies with Industry Canada’s license-exempt RSSs. Operation
is subject to the following two conditions:
(1) This device may not cause interference, and (2) This device must accept
any interference, including interference that may cause undesired operation
of the device.
