Vogt SSD Series User manual

2
Introduction
Introduction
VOGT in its quest to provide comprehensive solutions in fluid transport offers a range
of SSD Series Submersible pumps with metallic coating.
These pumps guarantee a reliable and long life operation in order to reduce
maintenance costs and equipment downtime.
When ordering spare parts, please consider the pump model and the code of the
required spare part. We reserve the right to make modifications and improvements in
design and construction.
Security
Information
Security Information
1. Do not operate pump when discharge is blocked.
2. Do not operate pump in low flow or zero flow conditions (minimum 25%).
3. Do not cut or heat impeller for removal, due to explosion risks.
4. Control the direction of rotation of the motor.
5. Maintain the maximum and minimum levels of submergence.
6. Perform line flushing to remove all solid residues that could block the discharge and the pump interior, before starting
up the pump.
7. Do not subject the pump to sudden temperature changes which could cause the pump casing to break.
8. Verify the operation of the cooling water supply before starting up the pump.
9. Use caution when handling worn parts, as they may have burrs that could cause injuries to people.
10. It is recommended not to try to repair or rebuild the pumps with welding since it can cause catastrophic failures due to
the fragile nature of the materials and their low resistance to sudden temperature changes.

3
Pump
Identification

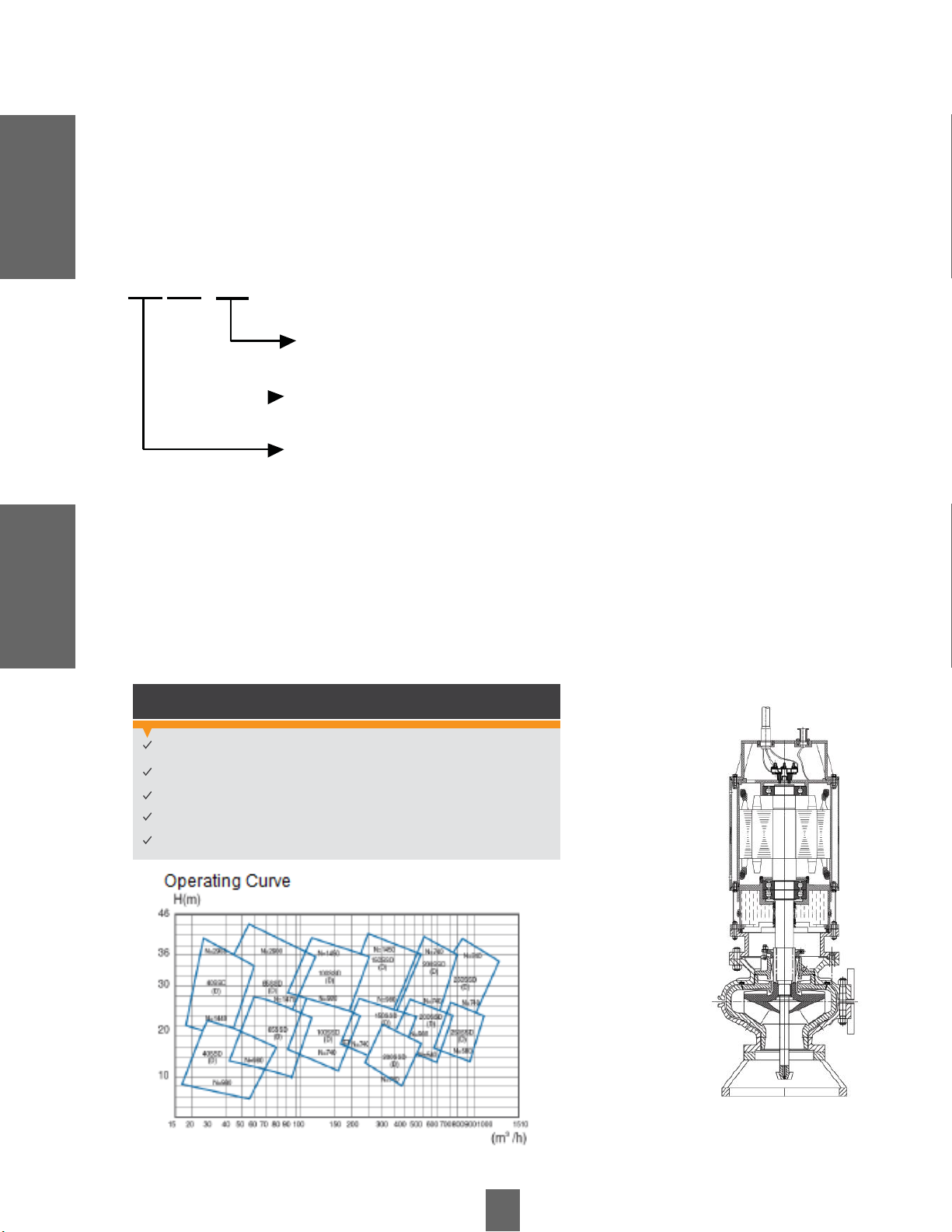

Pump Identification
Each VOGT Pump has a nameplate. The serial number and pump identification code are stamped on the
nameplate. The code and letters are arranged as follows:
Example:
SSD series equipment designation
150 SSD - 55-6
Nominal power [Kw] and number of poles
Heavy duty slurry pump (Slurry Submersible Duty)
Discharge diameter [mm]
Design
Features
Design Features
The SSD VOGT series slurry pump is a single suction, single stage, single suction vertical submersible centrifugal
pump that is integrated with motor as a submersible unit for slurry work. They have been designed for handling
corrosive or abrasive slurries at temperatures below 40°C. They are widely used in metallurgy, mining, coal,
petroleum and chemical, transportation, river and canal drainage, construction material and municipal projects.
SSD Series Features
Construction for high demands and ease of transport.
Maximum service life for wear elements. Easy to
change wear elements.
Wide range of operational handling.
Highly competitive.
Optional cooling jacket.

4
2.1 Inspection
Inspect pump upon receipt for shipping damage and that all components are in the received assembly.
2.2 Storage Procedures and Recommendations
To store the pump:
•VOGT recommends indoor storage. Exposed seals may age for a considerable time. Protect pumps from heat and
exposure to solar radiation (ozone) or environmental contamination.
•If stored outdoors, protect equipment from temperature extremes, humidity, exposure to dust, moisture and vibration.
For outdoor or excessively unfavorable environments, including dust and rain, cover the equipment with some type of
protective sheeting to allow air circulation.
•Rotate the pump shaft at least 10 revolutions once a week.
•Keep discharge flange covers on during storage. Removal of the protective covers may allow foreign material, water or
substances harmful to the pump to enter and damage and/or crack the components.
•All external machined surfaces are factory coated with a rust inhibitor prior to shipment. Maintain protective coating on
machined surfaces.
•Maintain written records of shaft rotation intervals when storage period exceeds six months from time of shipment.
Records should be available for inspection by VOGT personnel.
•Maintain the oil level at the maximum level in the oil chamber.
•Rotate the shaft 10 turns once a week. If pumps are stored for more than 18 months from time of shipment, records
must be kept of the above storage activities to maintain all warranty provisions as agreed with VOGT.
•These provisions apply only to components and/or equipment owned by VOGT.
Inspection and
Storage
Inspection and Storage

5
Inspection and
Storage
2.3 Medium-term storage (less than 2 months)
Perform the following:
1. Indoor storage is recommended.
2. The pump should be stored in an upright position. Although the pump can be shipped on its side.
3. The pump should be stored in a clean, dry place and should be protected from dirt and foreign matter. The storage
area should also be free from vibration.
4. If the pump is to be stored outdoors, it should be protected with a waterproof cover. However, the cover should not
seal the pump because air circulation is necessary to prevent condensation.
5. Rotate the shaft several 10 turns every week and inspect the general condition of the pump and equipment.
6. Before putting the equipment into operation, the watertight seal of the power cable should be checked.
7. Before putting into operation, the insulation should be measured if the equipment was exposed to wet storage
conditions.
2.4 Long Term Storage (greater than 2 months)
For safe storage and maintenance of new and standby pumps:
•Do not stack other pieces of equipment on top of the pumps.
•Repair any paint damage before storage caused by shipping damage.
•Flush pumps with clean water when removing a pump from service for storage. Remove any solids
accumulated on any of the seals.
•Dry any water present inside.
•Rotate the shaft 10 turns every week and inspect the general condition of the pump and equipment. Maintain
written records of shaft rotation intervals when the storage period exceeds six months from the time of
shipment. Records should be available for inspection by VOGT personnel.
•Do not store bearing carriers near areas that exhibit vibration or in dampness.
•Drain and completely refill the oil chamber every six months with new recommended lubricant.
Inspection and Storage

6
General
Installation
Recommendation
General Installation
Recommendations
•Verify that all discharge line bolts and brackets are tight.
•Remove the protective cover from the discharge flange.
•Verify that the shaft is not off-center with the pump in the vertical position. Use an indicator placed as close to the
impeller as possible. Runout (TIR) should not exceed 0.003" (0.075 mm).
•Check the level and quality of the oil in the mechanical seal chamber, making sure that the seal faces have sufficient
lubrication. The level should be above the bottom plug, as shown in the parts list in this manual. If the oil level is low,
refer to the OIL CHANGE Section.
•If your VOGT "SSD" type pump is supplied with a cooling jacket, connect the external cooling water lines to the cooling
jacket. refer to cooling water requirements.
3.1 Pump Location
It is very important that the lifting aids for the removal and subsequent maintenance of the pump are operational.
3.2 Pre-installation
It must ensure that the cooling water lines do not freeze.
-The "SSD" type pump should be placed at the bottom of the sump relatively flat on its suction head.
-Avoid freezing of water in the pump or discharge line.
3.3 Discharge Line
The discharge piping should be connected to the discharge flange of the pump in such a way that the deformations
transmitted to the flange are minimized or by means of a hose to the discharge elbow nipples by means of hydraulic clamps.
We recommend that the discharge piping from the pump to the surface be of the flexible (hose) type for pumps with a
discharge between 2" and 5". For pumps with a discharge of 6" or more it is recommended to drive to the surface with rigid
piping. It is also recommended that all above grade piping be permanently installed and adequately supported.
The pump is supplied with an adapter elbow (flange/spigot) or companion flange.
3.4 Controls
Check the status of the control panel of the installed pumps. Humidity and temperature sensors.
Probe type level controls are recommended for pump lengths greater than 1,500mm.
!WARNING

7
Start-up
Start-up
4.1 Recommendations before start-up
•Check electrical specifications, voltage, partition, amperage ratings, motor frequency, among others.
•Visually inspect all electrical connections to the motor and control signal wires.
•Verify direction of motor rotation.
•Verify that the pump rotates freely, without obstruction.
•The impeller is factory set with minimum clearance between impeller and suction housing.
•Check that all mounting brackets, external nuts, bolts and fittings are secure and that discharge piping is tight and
secure.
•Verify that the pump is fitted with the lower suction basket.
•Verify that the bilge or sump is free of items that could enter and/or obstruct the pump or suction basket.
•Set maximum and minimum bilge levels for pump operation.
•Connect cooling water line.
•Make sure that the power and signal cables are attached to the discharge piping, preventing them from hitting
against any element that could damage them while the equipment is in operation.
4.2 Recommendations in Start-up
•Check that the fluid temperature does not exceed the maximum allowed 40°C.
•Before operating the pump, the pump cooling water system must be put into operation.
•Start submersible pump.
•Monitor flow and pressure conditions and check against the curve data provided by VOGT.
•Monitor humidity and temperature signals.
-The engine cooling water system should never be stopped before the pump is stopped.
-It is recommended to flush the pump with clean fluid, and remove it from the pool so that it is not
clogged when the operation is stopped.
!WARNING

8
Maintenance
•Periodically measure the supply current voltage to verify that the pump is operating at the correct voltage.
•The electrical resistance of the motor should be checked at least once a month. If the resistance of the motor is less than
100M Ohm, the winding of the electric motor should be dried and the tightness of the wires, etc. should be checked.
•The oil capacity in the bottom cover should be checked every 500 hours. Therefore, place the pump horizontally. If necessary,
add oil as specified in the technical characteristics table of the pump through the opening provided for this purpose.
•If the presence of water is established in the oil (whitish emulsion), or if the oil contains solid particles (mud, etc.), it means
that the seals are defective. Their replacement is required.
•The amount of oil in the lower pump casing is specified in the pump's technical specifications.
•If the pump flow is decreasing, the clearance between the suction disk and the impeller should be checked. The recommended
clearance is given in the pump technical specifications.
Maintenance
5.1 Maintenance Recommendations

Equipment
Description
- 10 -

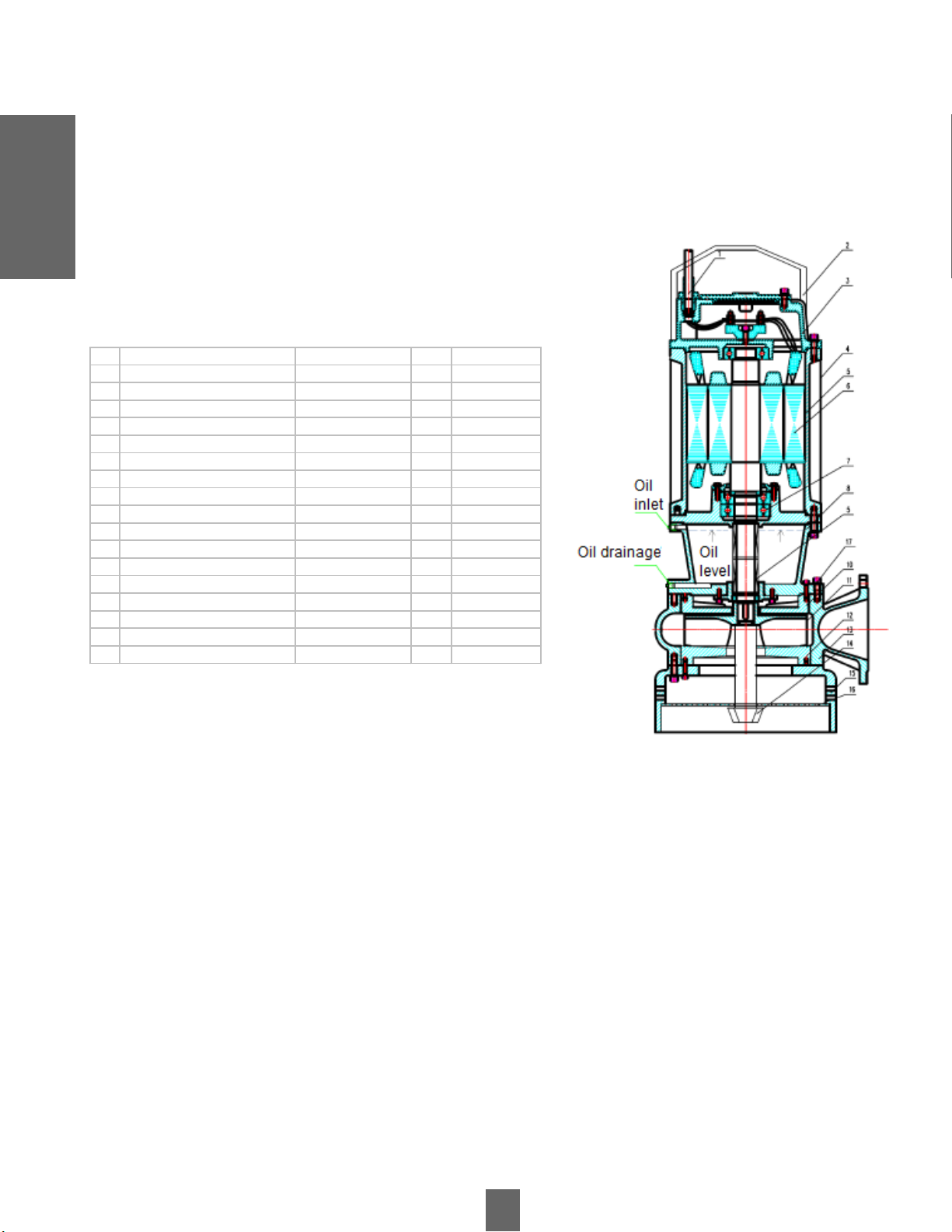

6.1 Pumping Equipment, Main Components
9
Equipment Description
It
Description
P/N
Qty.
Material
1
Power and Control Cable
IRVWQT-Y280-00 1
2
Lifting handle
GB/2010 1
3
Upper motor cover
RVWQ.T-Y280-01 1 HT200
4
Cooling jacket
WQ.T-Y280-02 1 Q235
5
Motor housing
WQ.T-Y280-03 1 HT200
6 Rotor WQ.T-Y280-04 1
7
Lower bearing
WQ.T-Y280-05 1
8
Oil chamber
WQ.T-Y280-06 1 HT200
9
Mechanical seal
WQ.T-Y280-07 1
10
Lining press side
WQ.T-150-01 1 A532
11
Impeller WQ.T-150-02 1 A532
12
Suction disc
WQ.T-150-03 1 A532
13
Pump casing
WQ.T-150-04 1 A532
14 Stirrer WQ.T-150-05 1 A532
15
Bottom support
WQ.T-150-06 1 HT200
16
Suction basket
WQ.T-150-07 1 Q235
17
Cap screw WQ.T-150-08 1 Q235-A

10
Lubrication
Lubrication
The bearings in the Type "SSD" pump are sealed bearings and do not require relubrication. Estimated bearing life is
approximately 15,000 hours under normal operating conditions and without moisture.
7.1 Sealing Chamber
•This chamber considers "Back to Back" mounting of 2 single-spring mechanical seals.
•Oil volume in the chamber: WQ.T-Y280-05: 25 lts.
•Recommended oil: ISO 32 (Gulf Harmony)

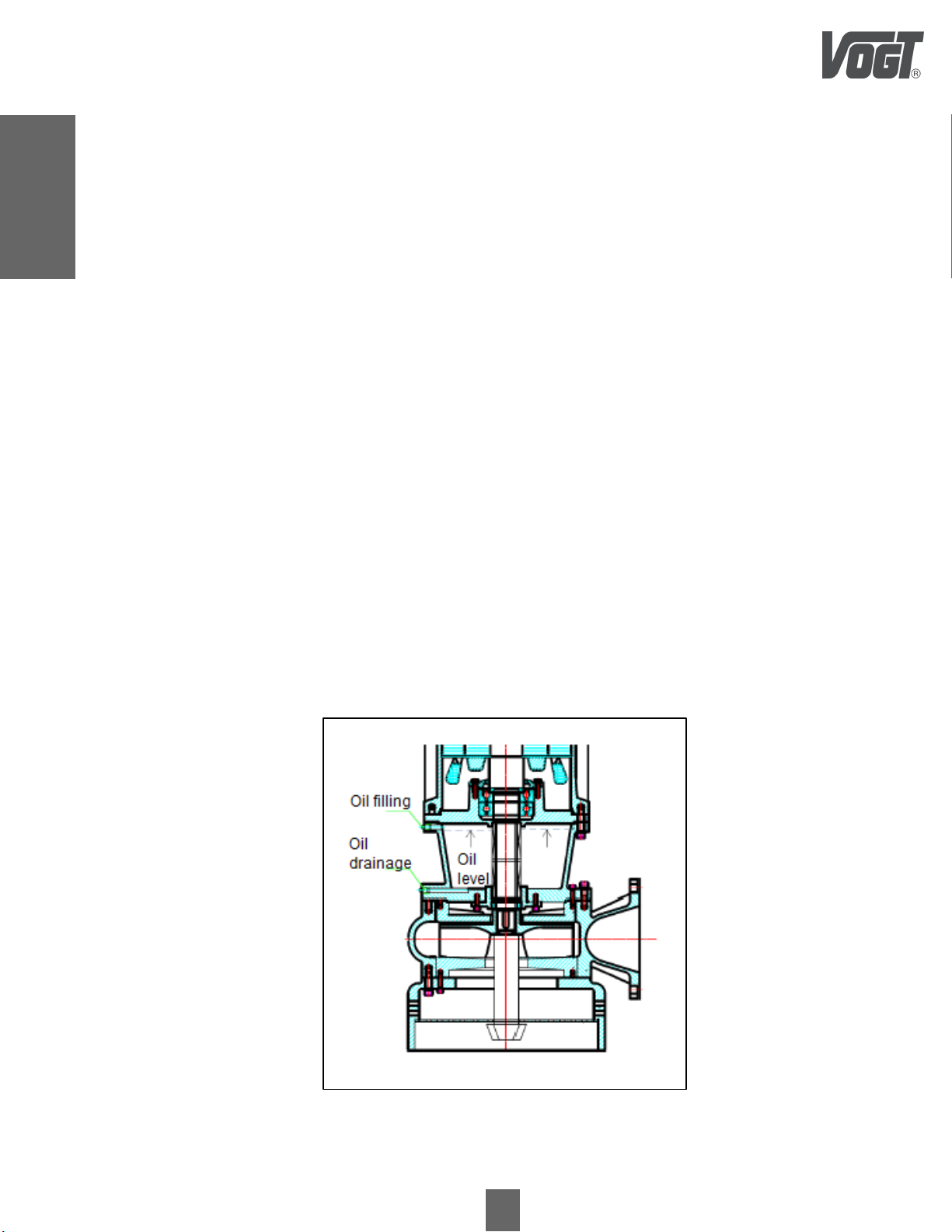

7.2 Oil Change
1. Remove the drain plug (bottom) shown in the diagram.
2. Remove the filler plug (top) to vent the oil chamber. If possible, tilt the pump slightly to drain the oil
completely.
3. Check the condition of the mechanical seal, oring, gaskets and if water is present in the oil.
4. Oil filling: Fill the pump with oil as follows:
4.1 Place the pump on a level surface.
4.2 Install drain plug.
4.3 Add oil through the filler hole and continue filling until the oil level reaches the filler hole.
4.4 Install fill plug.

11
Lubrication
Lubrication
!WARNING
•Always use recommended and clean oil. Keep moisture from condensing in the oil reservoir and keep it closed.
•The user's judgment and experience is the determining factor in establishing lubrication intervals. Accordingly, it is
advisable to observe the bearings frequently at the start of operations taking care of any unusual conditions with
respect to temperature and cleanliness.
•Equipment is shipped with oil. The level should be checked before putting it into service.
•The oil level can be checked by removing the top fill plug shown in the diagram. Make sure that the oil is at the level of
the top filler plug.
•Keep the oil change interval under control.
•The oil should be drained and replaced after approximately 1 year of operation. It is not recommended to take the
pump out of service just to replace the oil, unless it shows signs of moisture.

12
Useful Tips
Useful Tips
for trouble-free operation
8.1 Equipment does not start
Possible Causes Solutions
1.- The phase sequence may be
incorrect.
1. Disconnect the power cable.
2. Try one of the following.
options:
•Change phases
2.- An alarm has been
triggered on the control panel.
3.- The pump does not start
automatically, but it is possible to
start it manually.
•Check the control circuit and
functions.
4.- The installation does not receive
voltage.
Check if:
•The impeller rotates smoothly.
•The sensor indicators do not
indicate an alarm.
•The overload protection is not
deactivated.
Check if:
•The starting level regulator is
working.
•All connections are in perfect
condition.
•Relay and contactor coils are intact.
•The control switch (Man/Auto) makes
contact in both positions.
Check if:
•The main switch is turned on.
•Control voltage is present at the
starting equipment.
•Fuses are intact.
•Voltage is present on all phases of
the supply line.
•All fuses are rated and secured to the
fuse holders.
•Overload protection is not disabled.
•The motor cable is not damaged.
5.- The impeller is jammed. •Clean:
•The impeller.
•The sump to prevent the
impeller from clogging again.

1
Useful Tips
Useful Tips
for trouble-free operation
8.2 The pump does not stop when using a Level Sensor
Possible Causes Solutions
1.- Pump cannot empty sump to
stop level.
Check if:
•The discharge pipe is leaking.
•Impeller is clogged.
•Pump has adequate capacity.
2.- The level detection
equipment is not working
properly.
•Clean the level regulators.
•Check the operation of the level
regulators.
•Check the contactor and the
control circuit.
•Replace all defective elements.
•Increase the stop level.
3.- The stop level is too
low.
Disconnect and lock out power before servicing to prevent sudden automatic start-up. Failure to do
so may result in serious injury or death.
!WARNING

Useful Tips
Useful Tips
for trouble-free operation
8.3 Pump Starts and Stops in Quick Sequence
Possible Causes Solutions
1.- The pump is turned on due to
the return flow which fills the
sump back up to the start level.
2.- The automatic contactor hold
function is malfunctioning.
Check if:
•The distance between the start and
stop levels is sufficient.
•The length of the discharge pipe
between the pump and the
discharge basin is sufficiently short.
Check if:
•The contactor connections.
•The voltage in the control circuit
in relation to the rated voltages
in the coil.
•The operation of the start-stop
regulator.
•Whether the voltage drop on the
line during the start-up
overvoltage causes the
automatic holding function of the
contactor to malfunction.
14

Useful Tips
Useful Tips
for trouble-free operation
8.4 Pump Runs but Thermal Jumps
Possible Causes Solutions
1.- Thermal is set too low.
2.- It is difficult to turn the impeller by
hand.
•Set the motor protection according
to the nameplate data.
•Clean the impeller.
•Clean the sump.
•Check that the impeller is
correctly adjusted.
15
3.- The motor unit is not receiving
full voltage on all three phases.
•Check the fuses. Replace
any fuses that have tripped.
•If the fuses are intact, report
the problem to plant
electrical personnel.
4.- Rotational speed exceeds the
nominal.
•Verify control board configuration.
5.- Phase currents vary or are
too high.
•Contact your nearest VOGT staff.
6.- The insulation between the
phases and the ground connection
on the stator is defective.
•Use an insulation monitoring
instrument. Check that the
insulation between phases and
between any phase and ground is
> 4 megohms with a 1,000 V DC
megohmmeter. 2.
•If insulation is lower: Contact
VOGT technical personnel.
7.- The pumped liquid
is too dense.
Verify that the maximum density is
1,100 kg/m3.
•Change to a more suitable pump.
•Contact your nearest VOGT
personnel.

Useful Tips
Useful Tips
for trouble-free operation
8.4 Pump Runs but Thermal Jumps
Possible Causes Solutions
8.- Fluid temperature
exceeds 40°C.
•The pump should not be used for
such an application.
16
9.- Cooling water does
not cool the motor.
•Verify the cooling water
connection and that it flows
through the jacket.
10- The operation of the
overload protection is defective. •Replace the overload protection.
Do not interrupt the motor guard repeatedly if it has been disconnected. Doing so may damage the equipment.
NOTE

Useful Tips
Useful Tips
for trouble-free operation
8.5 Pump does not drive pulp or pumps out too little pulp
17
Possible Causes Solutions
1.- The impeller rotates
in the wrong direction.
2.- Rotational speed.
•If it is a three-phase pump,
switch phases.
•Check that the rotation speed is
not too low and verify that the
discharge height of the system is
not too high.
3.- One or more valves are
in the wrong position.
•Re-establish the valves that
are in the wrong position.
•Replace valves if necessary.
•Check that all valves are
positioned correctly and in
accordance with the liquid flow
rate.
•Check that all valves open
correctly.
4.- It is difficult to turn the impeller by
hand.
•Clean the impeller.
•Clean the sump.
5.- The pipes are clogged. •Clean the pipes so that the liquid
flows smoothly.
6.- Pipes and joints leak fluid. •Look for leaks and seal them.
7.- There are signs of wear on the
impeller, pump and casing.
•Replace worn parts.
8.- The liquid level is too low. •Check that the level sensor is
properly configured.
•Depending on the type of
installation, add some element to
prime the pump, such as a
bottom valve.

18
Warranty
Warranty
•DAMAGES THAT MAY OCCUR DUE TO NOT READING THIS MANUAL ARE NOT COVERED BY WARRANTY.
•During the warranty period, the user CANNOT DISASSEMBLE OR INTERVENE THE EQUIPMENT OR ANY PART OF IT, without
the express authorization of Industria Mecánica VOGT S.A.
•Our Technical Service is the only one authorized to intervene in equipment within the warranty period.
•If the pump does not work properly, DO NOT disassemble it, look for the fault in the installation. All Vogt equipment has been
satisfactorily tested at the factory.
•The details of the pumping equipment warranty, such as conditions of validity, equipment identification and terms of coverage,
are specified and detailed in a warranty certificate that is delivered with the equipment at the time it is shipped.

High-End Services
19
High-End Services
We have specialized engineers with great experience in hydraulic systems, developing an excellent service. We
have implementad a comprehensive service system, which allows us to provide effective and timely solutions
far each of our clients, independent of the industrial sector to which they belong.
Multi-Brand Technical Service
Installation Services
Successful
Cases
Assembly and laser alignment.
•
Preparation of maintenance plans.
Hydraulic analyses and installations.
•
Reverse engineering.
•
Retrieval and manufacturing of centrifuge
pump components.
•
Casting and manufacturing of parts in different
metalworking facilities.
ln-Site Repairs.
•
Assessment and diagnosis. Modifications
and improvements of rotary equipment.
•
Pump Assembly.
•
Field Assistance, operation control
and in-site installations per
man-hours.
Multi-Equipment
Post-Sale Service
Engineers specialized in hydraulics,
mechanical design, manufacturing,
assembly and technology integration.
•
Assessment of the installation that
fits your needs the most.
Maintenance Contracts.
•
Hydraulic Test Data Base.
•
Automatization Systems
Maintenance.
In-Site Services

Our Company
Our Company
It was founded in 1954 as a company dedicated to the manufacture of Pumps, with great
success in the agricultural sector. Thanks to an intense development of technologies,
engineering and innovation, we position ourselves as a leader in the manufacture and
commercialization of solutions and pumping equipment in a wide spectrum of markets, such as
mining, construction, agriculture, sanitation and the industrial sector in general.
We have a national presence thanks to our branches throughout the country located in strategic
areas. Each one of them is equipped with a multidisciplinary work team, trained to propose
efficient solutions to the real needs of our clients and to be attentive to solve in an agile way the
imponderables that the industrial processes present.
At present, we have an Industry 4.0 plan with solutions focused on two key pillars, which are
energy efficiency and displacement of fossil fuels, plus water efficiency and its related processes.
Regarding the achievement of water efficiency, we promote practices based on the intelligent use
of water, through innovative, safe and reliable solutions aimed at solving problems in contexts of
increasing water scarcity, environmental pollution and climate change.
20
