Volkswagen Polo 2015 User manual

12/29/2015 Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
1/1
Refers to a section within a chapter that contains important information and safety notes that should always be
observed.
Indicates that the section is continued on the next page.
Indicates the end of a section.
Indicates situations in which the vehicle must be stopped as quickly as possible.
®The symbol indicates a registered trademark. However, the absence of this symbol does not constitute a waiver of the
rights concerning any term.
→
Symbols like these refer you to warnings within the same section or on a given page. They draw your attention to
possible risks of accident or injury and explain how they can be avoided.
→
→
→ Cross reference to potential risks of damage to property in the same section or on the page specified.
Texts with this symbol contain additional information on the protection of the environment.
Texts with this symbol contain additional information.
Description of symbols
Texts with this symbol indicate dangerous situations which will lead to fatal or severe injuries if you do not observe the warning.
DANGER
Texts with this symbol indicate dangerous situations which could lead to fatal or severe injuries if you do not observe the warning.
WARNING
Texts with this symbol indicate dangerous situations which could lead to slight or severe injuries if you do not observe the warning.
CAUTION
Texts with this symbol indicate situations which could cause vehicle damage if you do not observe the warning.
NOTICE

12/29/2015 Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
1/1
By purchasing this Volkswagen, you have become the owner of a vehicle fitted with the most up-to-date technology and a multitude of
convenience functions for your use and enjoyment.
Before using your vehicle for the first time, please read and observe the information in this owner's manual. It will quickly help you to become
familiar with your vehicle and all of its functions as well as making you aware of dangers to yourself and others and of how these dangers can
be avoided.
If you have any further questions about your vehicle, or if you think that the vehicle wallet has not covered everything, please get in touch with
your Volkswagen dealership. They will always be happy to deal with your questions, suggestions or problems.
We hope you enjoy driving your new vehicle. Happy motoring.
Volkswagen AG
Thank you for choosing Volkswagen
Please observe important safety notes on the front passenger front airbag →Basic information on fitting and using child seats .
DANGER

12/29/2015 Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
1/1
This owner's manual is valid for all models and versions of the Polo.
An alphabetical index is included at the end of this manual.
A list of abbreviations at the end of the manual explains the abbreviations used.
Directions and positions such as left, right, front and rear are normally relative to the vehicle's direction of travel, unless otherwise indicated.
Illustrations help with orientation and should be regarded as a general guide.
This owner's manual was written for left-hand drive vehicles. In right-hand drive vehicles the controls may sometimes be different to those
displayed in illustrations or described in the text →Overview of the driver side .
Any technical changes that may be made to the vehicle after publication of this booklet are contained in a supplement that is included with
the vehicle wallet.
All equipment and models are described without indicating whether the equipment is optional or specific to the model type. This means that
your vehicle may not have some of the equipment described, or it may only be available in certain markets. The scope of equipment fitted in
your vehicle can be found in the sales documentation and you can contact your Volkswagen dealership for further information.
All data in this owner's manual correspond to the information available at the time of going to print. Because the vehicle is constantly being
developed and further improved, there may be differences between your vehicle and the data in this owner's manual. No discrepancy in data,
illustrations or descriptions shall form the basis for any legal claim.
Please ensure that the complete vehicle wallet is always in the vehicle if you lend or sell the vehicle to someone else.
Service schedule
Owner's manual
Supplements
Radio/navigation system
Provision for a mobile telephone
Other supplements
About this owner's manual
Standard booklets in the vehicle wallet:
Additional booklets in the vehicle wallet (optional):

12/29/2015 Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
1/32
Side view
Fig.1Overviewoftherightsideofthevehicle.Positions󻂟,󻂠,󻂡and󻂢arealsoatthesamepositionontheleftsideofthevehicle
Key to →Fig.1 :
Tank flap →Filling the tank
Roof aerial →Consumer information
Attachment points for the mounts →Roof carrier
Door release lever →Central locking system →Manual opening and closing
Exterior mirrors →Mirrors
Jacking points →Changing a wheel
Towing bracket →Towing a trailer
Front view
Overview of the vehicle
Exterior views

12/29/2015 Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
2/32
Fig.2Overviewofthefrontofthevehicle
Key to →Fig.2 :
Windscreen with:
- Windscreen wipers →Windscreen wipers and washer
- Interior mirror →Mirrors
- Rain/light sensor on the mirror base →Windscreen wipers and washer
- Automatic headlight control →Lights
Bonnet release lever →Preparation for working in the engine compartment
Headlights (on both left and right) →Lights →Changing a bulb
Headlight washer system (on both left and right) →Windscreen wipers and washer
Front ParkPilot sensors (on both left and right) →ParkPilot
Fog lights and static cornering light (on both left and right) →Lights →Changing a bulb
Mounting for the front towing eye behind a cover →Tow-starting and towing
Radar sensor for:
- Adaptive Cruise Control (ACC) →Adaptive Cruise Control (ACC)
- Area monitoring system (Front Assist) →Area monitoring system (Front Assist)
Rear view

12/29/2015 Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
3/32
Fig.3Overviewoftherearofthevehicle
Key to →Fig.3 :
Roof aerial →Consumer information
High-mounted brake light
Rear window with:
- Rear wiper →Windscreen wipers and washer →Caring for and cleaning the vehicle exterior
- Rear window heating →Heating, ventilating, cooling
- Window aerial →Consumer information
Volkswagen badge, used for opening the tailgate →Tailgate
Rear lights (on both left and right) →Lights →Changing a bulb
Reversing camera settings →Reversing camera (Rear View)
Number plate lighting (on both left and right) →Changing a bulb
Rear ParkPilot sensors (on both left and right) →ParkPilot
Towing bracket →Towing a trailer
Mounting for the rear towing eye behind a cover →Tow-starting and towing
Overview of the driver door
Vehicle interior

12/29/2015 Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
4/32
Overview of the driver door
Fig.4Overviewofthecontrolsinthedriverdoor(lefthanddrivevehicles).Thecontrolsaremirroredinrighthanddrivevehicles
Key to →Fig.4 :
Door release lever →Doors
Central locking button for locking and unlocking the vehicle →Central locking system
Switch for adjusting the exterior mirrors: →Mirrors
- Exterior mirror setting
- Exterior mirror heating
- Folding in the exterior mirrors
Central locking system indicator lamp →Central locking system
Release lever for the bonnet →Preparation for working in the engine compartment
Stowage compartment with drink holder →Stowage areas
Buttons for operating the electric windows: →Electric windows
- Electric windows
- Safety button for the rear electric windows
Overview of the driver side

12/29/2015 Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
5/32

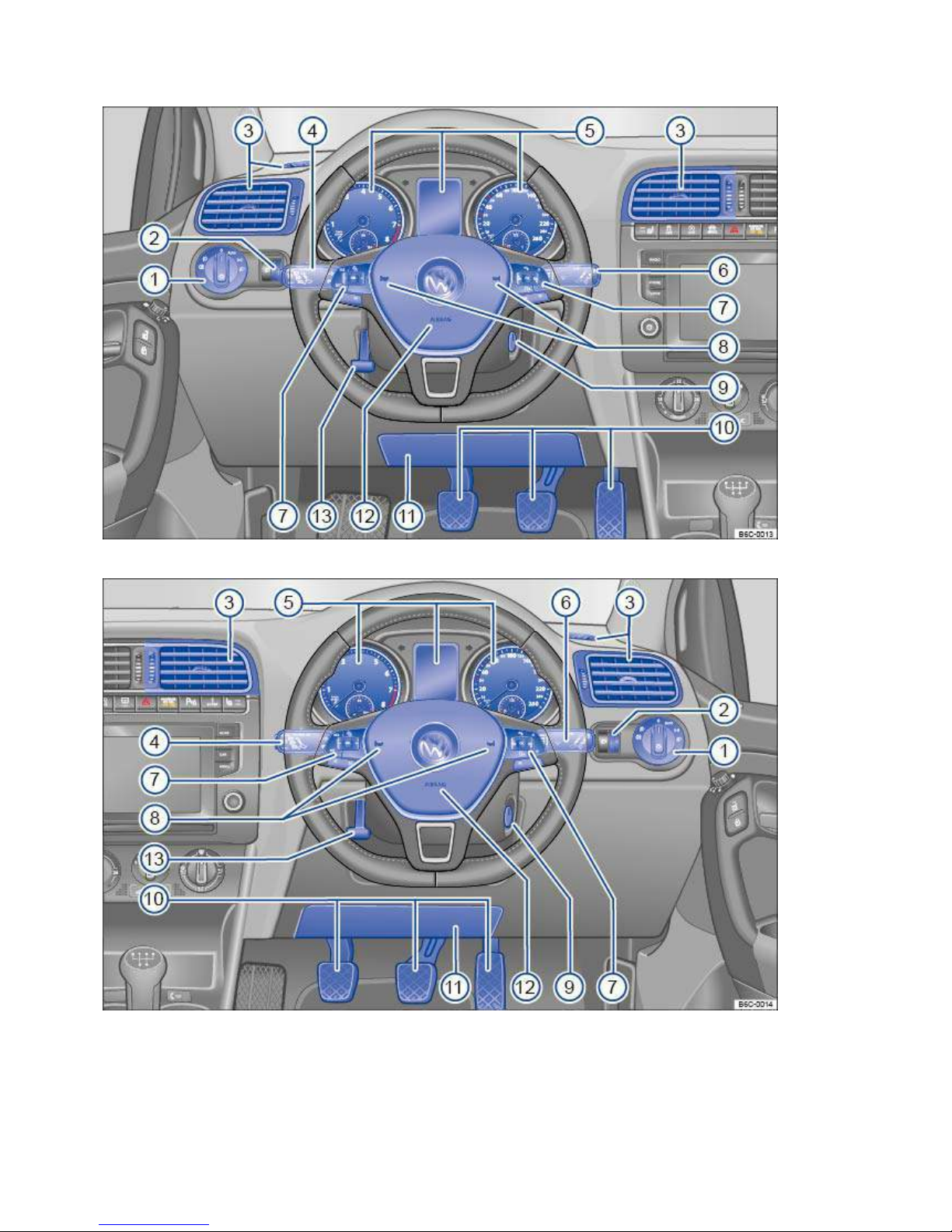

Fig.5Overviewofthedriverside(lefthanddrivevehicles)
Fig.6Overviewofthedriverside(righthanddrivevehicles)
Key to →Fig.5 and →Fig.6 :

12/29/2015 Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
6/32
Light switch →Lights
- Daytime running lights or daytime headlights
- Automatic headlight control
- Side light and dipped beam headlights ,
- Fog lights ,
Headlight range control →Lights
Vent – – →Heating, ventilating, cooling
Lever →Lights
- For main beam headlights
- For dipped beam headlights
- For headlight flasher x
- For turn signal
- For parking lights
- With buttons for operating the cruise control system (CCS) – – ,
– – →Cruise Control System (CCS) .
Instrument cluster:
- Instruments →Instruments
- Display →Instruments
- Warning and indicator lamps →Warning and indicator lamps
Lever for windscreen wipers and washers →Windscreen wipers and washer
- Windscreen wiper –
- Interval wipe for the windscreen
- Length of intervals or sensitivity of the rain/light sensor
- Windscreen wiper switched off
- Flick wipe x
- Windscreen wipers
- Wash and wipe system for the windscreen
- Rear wiper
- Wash and wipe system for the rear window
- Control lever with buttons for operating the Volkswagen information system and the infotainment system ,
→Volkswagen information system →Infotainment system
Controls on the multifunction steering wheel →Volkswagen information system
- Buttons for operating the cruise control system (CCS) , , , – – →Cruise Control
System (CCS)

12/29/2015 Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
7/32
- Buttons for operating the Adaptive Cruise Control (ACC) , , , – – →Adaptive Cruise
Control (ACC)
- Volume setting for the radio, navigation announcements or a telephone conversation –
- Buttons for operating the Volkswagen information system – – , ,
- Opening the main telephone menu or accepting a telephone call
- Activating voice commands
- Audio, navigation –
Horn (works only when the ignition is switched on)
Ignition lock →Starting and stopping the engine
Pedals →Changing gear
Fuse box cover →Fuses
Driver front airbag →Airbag system
Lever for adjusting the steering column →Adjusting the seat position
Upper section of the centre console
Fig.7Overviewoftheuppersectionofthecentreconsole
Key to →Fig.7 :
Vent – – →Heating, ventilating, cooling
Overview of the centre console

12/29/2015 Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
8/32
Row of switches1) with buttons for:
- Seat heating left and right / →Seat functions
- Traction control system (TCS) →Braking, stopping and parking
- Electronic stabilisation program (ESC) →Braking, stopping and parking
- Electronic stabilisation program sport mode (ESC Sport) →Braking, stopping and parking
- Start/stop system →Pull-away assist systems
- Rear window heating →Heating, ventilating, cooling
- Hazard warning lights →In an emergency
- Indicator lamp for the front passenger front airbag switch-off function →Airbag system
- ParkPilot →ParkPilot
- Sport Select suspension  → Sport Select suspension
Infotainment system (factory-fitted)
- Operating display →Infotainment system
- Radio ⇒Booklet Radio ,
- Navigation system ⇒Booklet Navigation system ,
Controls2) for:
- Heating and fresh air system →Heating, ventilating, cooling
- Air conditioning system (manual) →Heating, ventilating, cooling
- Climatronic →Heating, ventilating, cooling
1) Depending on the vehicle equipment level, there could be a card holder instead of 3 buttons
→Stowage areas .
2) The symbols may differ between models.
Lower section of the centre console

12/29/2015 Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
9/32
Fig.8Overviewofthelowersectionofthecentreconsole
Key to →Fig.8 :
Lever for:
- Manual gearbox →Changing gear
- Automatic gearbox →Changing gear
Stowage compartment in the front centre console →Stowage areas
AUX-IN socket⇒Booklet Radio , or ⇒Booklet Navigation system ,
Drink holder →Drink holder
12-volt socket →Socket
Handbrake lever →Braking, stopping and parking
Stowage compartment in the centre armrest →Stowage areas
USB socket ⇒Booklet radio , or ⇒Booklet navigation system ,
Overview of the front passenger side

12/29/2015 Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
10/32
Fig.9Overviewofthefrontpassengerside(lefthanddrivevehicles).Thecontrolsaremirroredinrighthanddrivevehicles
Key to →Fig.9 :
Vent – – →Heating, ventilating, cooling
Location of front passenger front airbag in the dash panel →Airbag system
Key-operated switch in the stowage compartment for switching off the front passenger front airbag →Airbag system
In the stowage compartment: button for Tyre Pressure Loss Indicator , →Tyre monitoring system
Opening lever for the stowage compartment →Stowage areas
Stowage compartment for high-visibility waistcoat →Stowage areas
Symbols in the roof
Symbol Meaning
Interior lights and reading lights →Lights
Electric panorama sliding/tilting glass roof →Electric panorama sliding/tilting glass roof
Warning and indicator lamps
The warning and indicator lamps indicate various warnings → , faults → or certain functions. Some warning and indicator lamps light up
when the ignition is switched on and should go out once the engine is running or the vehicle is in motion.
Depending on the vehicle's equipment level, additional text messages could appear in the display on the instrument cluster to provide further
information or to ask you to perform certain tasks →Instruments .
Instrument cluster

12/29/2015 Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
11/32
Depending on the vehicle equipment level, symbols may be displayed in the instrument cluster instead of warning lamps.
Signal tones are given when some warning or indicator lamps light up.
For details on indicator lamps which light up in the light switch see Chapter Lighting →Lights .
Symbol Meaning
→ See
Do not drive on!
When this message appears, the door(s), tailgate or bonnet are open or not closed
properly.
→Instruments
Central warning lamp. Observe the additional information on the instrument cluster display. –
Do not drive on!
Handbrake is applied.
→Braking, stopping and
parking
Do not drive on!
Brake fluid level too low or fault in the brake system.
Flashing: Do not drive on!
Coolant level too low, coolant temperature too high, or coolant system is faulty.
→Coolant
Flashing: Do not drive on!
Engine oil pressure too low.
→Engine oil
Electromechanical steering not functioning. →Steering
Brake or take avoiding action! Collision warning from the area monitoring system (Front
Assist).
→Area monitoring system
(Front Assist)
Driver or front passenger seat belt not fastened. →Seat belts
Depress the brake pedal.
Changing gear →Changing
gear
ACC →Adaptive Cruise
Control (ACC)
Fault in the alternator. →Vehicle battery
Dual clutch gearbox DSG® overheated.
→Changing gear
Central warning lamp. Observe the additional information on the instrument cluster display. –
Brake pads worn.
Infotainment system
→Infotainment system
Brakes →Braking, stopping
and parking
Lit up: ESC fault or switched off for system-related reasons.
OR: together with ABS indicator lamp : ABS faulty.
OR: the vehicle battery has been reconnected.
Flashing: ESC/TCS is taking corrective action.
TCS switched off manually.
OR: ESC switched off manually.
OR: ESC switched on manually.
ABS faulty or not functioning.
Vehicle lighting not working partially or completely. →Changing a bulb
Rear fog light switched on. →Lights
Lit up or flashing: catalytic converter fault.
Starting the engine →Starting

12/29/2015 Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
12/32
Starting the engine →Starting
and stopping the engine
Engine management, exhaust
gas purification →Engine
management system and
exhaust purification system
Lit up: glow period for a diesel engine.
Flashing: fault in engine management system (diesel engine).
Engine management system fault (Electronic Power Control).
Diesel particulate filter has become saturated with soot.
Lit up: steering reduced or the vehicle battery has been disconnected and then
reconnected.
→Steering
Flashing: steering column is twisted or is not unlocked/locked.
Tyre pressure too low or Tyre Pressure Loss Indicator faulty. →Tyre monitoring system
Windscreen washer fluid level too low.
→Windscreen wipers and
washer
Fuel tank almost empty.
→Filling the tank
Water in fuel in vehicles with a diesel engine.
Lit up: engine oil level too low.
→Engine oil
Flashing: engine oil system fault.
Fault in airbag and belt tensioner system.
→Airbag system Front passenger front airbag switched off (PASSENGER AIR BAG  ).
Front passenger front airbag switched on (PASSENGER AIR BAG  ).
Adaptive Cruise Control (ACC) currently not available.
→Adaptive Cruise Control
(ACC)
Fault in Sport Select suspension. → Sport Select suspension
Gearbox fault. →Changing gear
Hazard warning lights switched on. →In an emergency
Turn signal, left or right.
→Lights
Trailer turn signal.
Lit up: depress the brake pedal.
Starting the engine →Starting
and stopping the engine
Changing gear →Changing
gear
Brakes →Braking, stopping
and parking
Flashing: the lock button in the selector lever is not engaged.
The cruise control system (CCS) is switched on.
→Cruise Control System
(CCS)
Adaptive Cruise Control (ACC) is active.
→Adaptive Cruise Control
(ACC)
Main beam is switched on or the headlight flasher is being operated. →Lights
ACC is active. No vehicle has been detected ahead.
→Adaptive Cruise Control
(ACC)
When displayed in white: ACC active. Vehicle detected ahead.
When displayed in grey: ACC not active. System switched on, does not regulate.
Lit up: service alert / service due. →Instruments
→Changing gear

12/29/2015 Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
13/32
Flashing: fault in automatic gearbox. →Changing gear
The start/stop system is not available. Automatic engine switch-off is active.
→Pull-away assist systems
Start/stop system not available.
OR: the engine was started automatically.
The engine is starting.
A mobile telephone is connected via Bluetooth to the factory-fitted provision for mobile
telephone. ⇒Booklet
Provision for mobile
telephone ,
Mobile telephone battery charge level. Only for factory-fitted provision for mobile telephone.
m/k/s296MK
The outside temperature is below +4°C(+39°F). →Instruments
Note about information in the vehicle wallet. –
Introduction
Thischaptercontainsinformationonthefollowingsubjects:
→Instrument overview
→Displays
→Service interval display
Additional information and warnings:
Warning and indicator lamps →Warning and indicator lamps
Volkswagen information system →Volkswagen information system
Infotainment system →Infotainment system
Failure to observe illuminated warning lamps and text messages can lead to your vehicle breaking down in traffic, and can cause accident
and serious injury.
Never ignore any illuminated warning lamps or text messages.
Stop the vehicle as soon as possible and when safe to do so.
Stop the vehicle at a safe distance away from moving traffic and make sure that no part of the exhaust system can come into contact with
any inflammable material underneath the vehicle, e.g. dry grass or fuel.
Any broken-down vehicle poses an increased accident risk, both for you and for other road users. If the situation requires, switch on the
hazard warning lights and set up the warning triangle as a warning to other road users.
Before opening the bonnet, switch off the engine and allow it to cool down sufficiently.
The engine compartment of any motor vehicle is a dangerous area. Serious injuries can be sustained here →Preparation for working in
the engine compartment .
WARNING
Failure to observe illuminated indicator lamps and text messages can lead to your vehicle being damaged.
NOTICE
Instruments

12/29/2015 Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
14/32
Selected gear display (for vehicles with an automatic gearbox) →Changing gear
Information on service intervals ⇒Booklet Service schedule ,
Instrument overview
Fig.10Instrumentclusterinthedashpanel(variant1)
Fig.11Instrumentclusterinthedashpanel(variant2)
Firstreadandobservetheintroductoryinformationandsafetywarnings → Introduction
Descriptions of the instruments →Fig.10 or →Fig.11 :
Rev. counter (running engine speed in revolutions x 1,000 per minute). The start of the red zone on the dial indicates the maximum
engine speed that may be used in each gear when the engine is warm and after it has been run in properly. You should change up a gear
or move the selector lever to D (or lift your foot off the accelerator) before the needle reaches the red zone → .
Displays →Displays .
Accidents and injuries can occur if the driver is distracted.
Never press the buttons on the instrument cluster while the vehicle is in motion.
WARNING

12/29/2015 Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
15/32
Speedometer
Setting button for the clock →Time 1).
Reset button for the trip recorder display (trip).
- Press the button to reset to 0.
Coolant temperature display →Coolant .
Fuel gauge →Filling the tank .
Changing up a gear early will help to save fuel and minimise engine noise.
The fuel gauge is located in the lower field of the display
→Fig.10 ② or in the speedometer →Fig.11 ⑦ .
1) In some versions of the vehicle, it may be possible to adjust the clock settings using the Settings menu on the instrument cluster display
→Volkswagen information system .
Displays
Fig.12A:bonnetopen,B:tailgateopen,C:frontleftdooropen,D:rightreardooropen(onlyinfourdoorvehicles)
Firstreadandobservetheintroductoryinformationandsafetywarnings → Introduction
When the outside temperature is low, the display in the instrument cluster may take slightly longer to appear than it does when the outside
temperatures is higher.
Depending on the vehicle equipment level, a variety of information can be displayed in the instrument cluster →Fig.10 ② or →Fig.11 ② :
Open doors, bonnet and tailgate →Fig.12
Warning and information messages
When the engine is cold, avoid high engine speeds, driving at full throttle and overloading the engine.
The needle on the rev counter should only briefly point into the red area, as engine damage may otherwise be incurred.
NOTICE

12/29/2015 Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
16/32
Mileage displays
Time
Radio and navigation information ⇒Booklet Radio , or ⇒Booklet Navigation system ,
Telephone information ⇒Booklet Navigation system , or ⇒Booklet Radio/navigation system ,
Outside temperature
Compass display
Selector lever positions →Changing gear
Gear change indicator →Changing gear
Driving data display (multifunction display (MFD)) and menus for various settings →Volkswagen information system
Service interval display →Service interval display
Speed warning for winter tyres
Start/stop system status display →Pull-away assist systems
Status display for active cylinder management (ACT®) →Driving with respect for the environment
Engine code
Fuel gauge →Filling the tank
Open doors, bonnet and tailgate
The instrument cluster display indicates if any doors, or the bonnet or tailgate, are open once the vehicle has been unlocked, and while the
vehicle is in motion. In some cases, a signal tone is also given. Different instrument cluster designs will have different displays.
Key to →Fig.12 See
A Do not drive on!
The bonnet is open or not properly closed.
→Preparation for working in
the engine compartment
B Do not drive on!
Tailgate open or not properly closed.
→Tailgate
C, D Do not drive on!
The vehicle door is open or not properly closed.
→Doors
Warning and information messages
The system checks certain components and functions in the vehicle when the ignition is switched on or while the vehicle is in motion.
Functional faults are indicated by red and yellow warning symbols with information messages on the instrument cluster display →Warning and
indicator lamps . An acoustic warning is also given in certain cases. Different instrument cluster designs will have different displays.
In addition, a list of current malfunctions can be opened manually. To do so, choose Vehicle status or Vehicle in the selection menu
→Volkswagen information system .
Type of message Symbol
colour
Explanation
Priority1 warning
message. Red
The symbol flashes or lights up (sometimes together with a signal tone).
Do not drive on! Danger → !
Check the fault and correct the cause. Seek expert assistance if necessary.
The symbol flashes or lights up (sometimes together with a signal tone).

12/29/2015 Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
17/32
Priority2 warning
message.
Yellow Your vehicle could be damaged or break down if there is a fault or if service fluids are running low
→ .
Check the fault as soon as possible. Seek expert assistance if necessary.
Information message. – Information about various procedures within the vehicle.
Mileage displays
The odometer registers the total distance travelled by the car.
The trip recorder (trip) shows the distance travelled since the trip recorder was last reset. The final digit shows distances of 100m.
Press button in the instrument cluster →Instrument overview briefly to reset the trip recorder to 0.
Time
Press the button to mark either the hours or minutes display →Fig.10 ④ or →Fig.11 ④ .
Press the button to set the time →Fig.10 ⑤ or →Fig.11 ⑤ . Press and hold to scroll through quickly.
Press the button again to finish setting the clock.
You can also set the time in the infotainment system using the button and the and Time and date function buttons
→Menu and system settings (SETUP) .
Outside temperature display
If the outside temperature is lower than approx. +4°C (+39°F), an acoustic signal in the form of a gong will sound to inform the driver, and a
snowflake symbolwill appear in addition to the outside temperature display m/k/s296MK . This symbol flashes and then remains constantly
lit until the outside temperature rises above+6°C (+43°F) → .
When the vehicle is stationary or travelling at very low speeds, the temperature displayed may be slightly higher than the actual outside
temperature as a result of the heat radiated from the engine.
The measuring range lies between -45 ℃ (-49 °F) and +76 ℃ (+169 °F).
Compass display
When the ignition and navigation system are switched on, the instrument cluster display shows the current direction of travel.
Selector lever positions (automatic gearbox)
The gear selected is displayed on the side of the selector lever and can also be displayed in the instrument cluster. In D or S, or in Tiptronic
mode, the display may show which gear has been selected →Changing gear .
Gear-change indicator
While the vehicle is in motion, the instrument cluster may show which gear should be selected to reduce fuel consumption →Changing gear .
Second speed display (mph or km/h)
In addition to the tachometer display, the speed can also be displayed in another unit of measurement (mph or km/h) while you are driving.
