Contents
Page 3. EasyGlide™ Ramp Operation
Page 5. EasyGo™ Ramp Operation
Page 6. Entry and Front Wheelchair Restraints
Page 7. Electric Assist Winch
Page 8. Rear Wheelchair Restraints
Page 9. Wheelchair Passenger Seat Belt
Page 10. Wheelchair Passenger Seat Belt:
Vista RS/RX [Plus] & Vista RE
Page 12. Wheelchair Passenger Seat Belt:
Vista RE Plus
Page 14. Getting Ready to Travel & On Arrival
Page 15. Rear Folding Seats
Page 16. Optional Tip & Turn Seating
Page 17. Seat Belts
Page 18. Child Restraints
Page 19. Fitting Universal Child Restraints
Page 20. Fitting ISOFIX Child Restraints
Page 22. Puncture Repair System and Optional Spare
Wheel
Page 23. Technical Specifications
IMPORTANT NOTE
This guide describes product features and options
available throughout the range of models, some of which
may not presently be available in your region. Not all
features in this guide will be present on your vehicle and
some images could appear different to your vehicle.

Freephone 0800 587 9656
www.alliedmobility.com
VOLKSWAGEN page 3
USER GUIDE
fig.3
EasyGlideTM Ramp Operation - Deploy
The EasyGlideTM ramp is a double action ramp. When
not in use it can either be stored vertically at the rear
of the vehicle or fold flat into the floor to allow easier
access to the rear storage space.

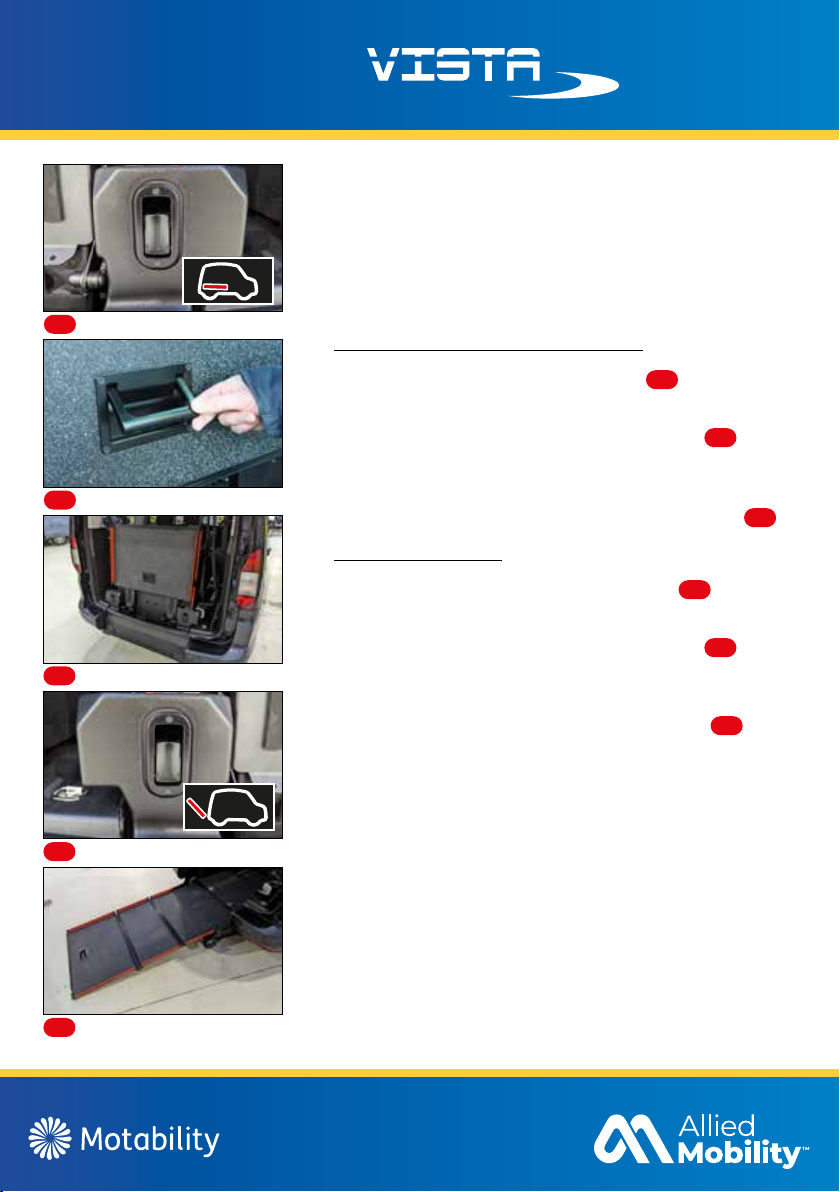

Transfer from flat to vertical position
A. From the flat position, pull the lever fig.1 on the right
side of the ramp to release the ramp.
B. Using the handle in the centre of the ramp fig.2 , lift
the ramp up and towards the rear of the vehicle.
C. Walk the ramp back until the bottom latches engage.
The ramp is now secured in the vertical position fig.3 .
Deploying the ramp
D. From the vertical position, pull the lever fig.4 on the
left side of the ramp to release the ramp.
E. Using the handle in the centre of the ramp fig.2 , pull
the ramp out towards you. The ramp will lower as you
draw it out.
F. Once fully lowered, the ramp is ready to use fig.5 .
IMPORTANT NOTE
Please ensure the ramp is fully extended and rests on a
stable and level surface when in use. Pay careful
attention when boarding and alighting via the ramp if
your vehicle is parked on a slope or a steeply cambered
road, particularly when facing uphill as this increases the
angle of the ramp. While the ramp surface is
slip-resistant, extra care should be taken when operating
in wet conditions.
When parking, leave enough room at the rear of the
vehicle for wheelchair entrance and exit (approx. 3
meters to the nearest obstacle).
fig.1
fig.4
fig.5
fig.2

Freephone 0800 587 9656
www.alliedmobility.com
VOLKSWAGEN page 4
USER GUIDE
fig.3
EasyGlideTM Ramp Operation - Stow
Stowing the ramp
A. Using the handle in the centre of the ramp fig.1 , lift up
the ramp and walk it back into its vertical position
fig.2 . To reduce the height of the ramp when travelling,
the top section folds down flat against the main part of
the ramp fig.3 .
B. Latches on either side of the ramp secure it in position.
Once latched, pull on the ramp to check that it is
secured.
Note: Ensure the top section of the ramp is folded down
before travelling. Otherwise rearward vision will be
reduced and damage to the rear window may occur.
Transfer from vertical to flat position
Note: The rear retractors must be removed from the
floor before the ramp can be stowed in the flat position.
DO NOT attempt to stow the ramp in the flat position
when there is a wheelchair present in the vehicle.
C. To stow in the flat position, pull the lever fig.4 on the
right side of the ramp to release the ramp. The ramp will
fall partially into the vehicle fig.5 .
D. With your hands placed below and clear of the gap in
the ramp surface, push the ramp into the floor fig.6 . If
the ramp does not stand back up it has been securely
latched in this position.
fig.1
fig.4
fig.5
fig.2
fig.6

Freephone 0800 587 9656
www.alliedmobility.com
VOLKSWAGEN page 5
USER GUIDE
fig.3
EasyGo™ Ramp Operation
The EasyGo™ ramp is a single action ramp. When not
in use it is stored vertically at the rear of the vehicle.
Deploying the ramp
A. To release the ramp pull the lever on the underside of
the main ramp body fig.1 .
B. Using the handle in the centre of the ramp fig.2 , pull
the ramp out towards you. The ramp will lower as you
draw it out. Once fully lowered, the ramp is ready to
use fig.3 .
Stowing the ramp
A. Using the handle in the centre of the ramp fig.2 , lift
up the ramp and walk it back into it’s upright position
fig.4 . To reduce the height of the ramp when
travelling, the top section folds down flat against the
main part of the ramp fig.5 .
B. Latches on either side of the ramp secure it in
position. Once latched, pull on the ramp to check that
it is secured.
IMPORTANT NOTE
Ensure the top section of the ramp is folded down before
travelling. Otherwise rearward vision will be reduced and
damage to the rear window may occur.
Please ensure the ramp is fully extended and rests on a
stable and level surface when in use. Pay careful attention
when boarding and alighting via the ramp if your vehicle is
parked on a slope or a steeply cambered road, particularly
when facing uphill, as this increases the angle of the ramp.
While the ramp surface is slip-resistant , extra care should
be taken when operating in wet conditions.
When parking, leave enough room at the rear of the
vehicle for wheelchair entrance and exit (approx. 3
metres to the nearest obstacle).
fig.1
fig.4
fig.5
fig.2

Freephone 0800 587 9656
www.alliedmobility.com
VOLKSWAGEN page 6
USER GUIDE
fig.1
fig.2
fig.3
fig.4
fig.5

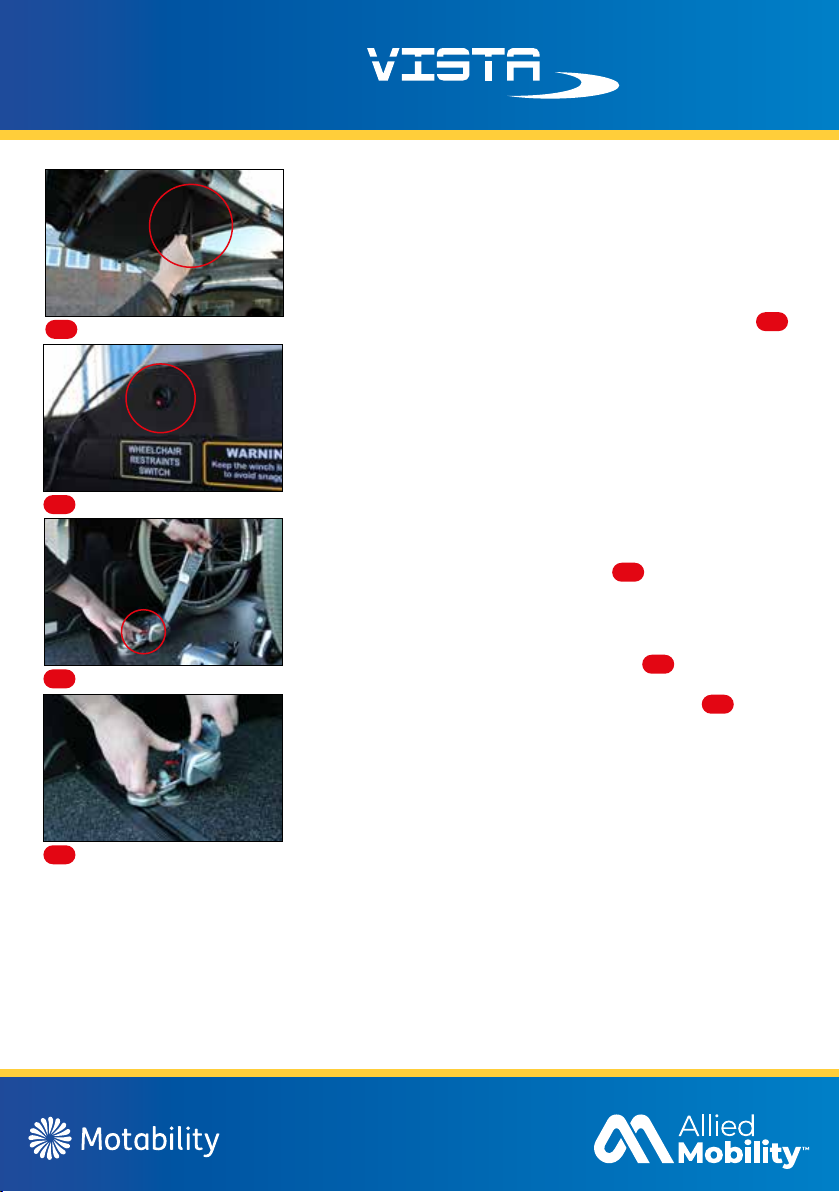

Entry and Front Wheelchair Restraints
A. Open the tailgate fully and deploy the ramp.
B. Remove the rear wheelchair restraints from the
floor anchors by lifting the toggle while sliding the
restraints off the anchors fig.1 . Set the restraints aside
for later .
C. Position the wheelchair user at the bottom of the
ramp. Now press the wheelchair restraint lock/release
switch situated at the rear of the vehicle fig.2 .
D. The front wheelchair restraints are located under the
rear bench seats (RS/RX) or under the front seats (RE).
With the wheelchair positioned at the bottom of the
ramp, pull the restraints down the full length of the
ramp fig.3 and attach them to either side of the front
of the wheelchair frame fig.4 1.
IMPORTANT NOTE
Don’t attach the restraint hooks to the wheels or any
plastic or removable parts of your wheelchair. Some
wheelchairs have a designated attachment point which
will be marked with a (illustrated in fig.4 ) In this case
these points must be used when securing the
wheelchair.
E. Push the wheelchair passenger inside the vehicle fig.5
using the winch for assistance if fitted (see page 7).
F. Once the wheelchair passenger is in place press the
wheelchair restraint lock/release switch again fig.2 . The
light on the switch will now turn off indicating that
the restraint system is locked, so that it can retract
but cannot be extended. Take up any additional slack
in the straps by rolling the wheelchair backward and
forward as necessary. The straps will secure the front
of the wheelchair throughout the journey.
1Depending on preference, your vehicle may be fitted
with J hooks (as shown in this guide) or webbing
straps with tongue and buckle connectors.

Freephone 0800 587 9656
www.alliedmobility.com
VOLKSWAGEN page 7
USER GUIDE

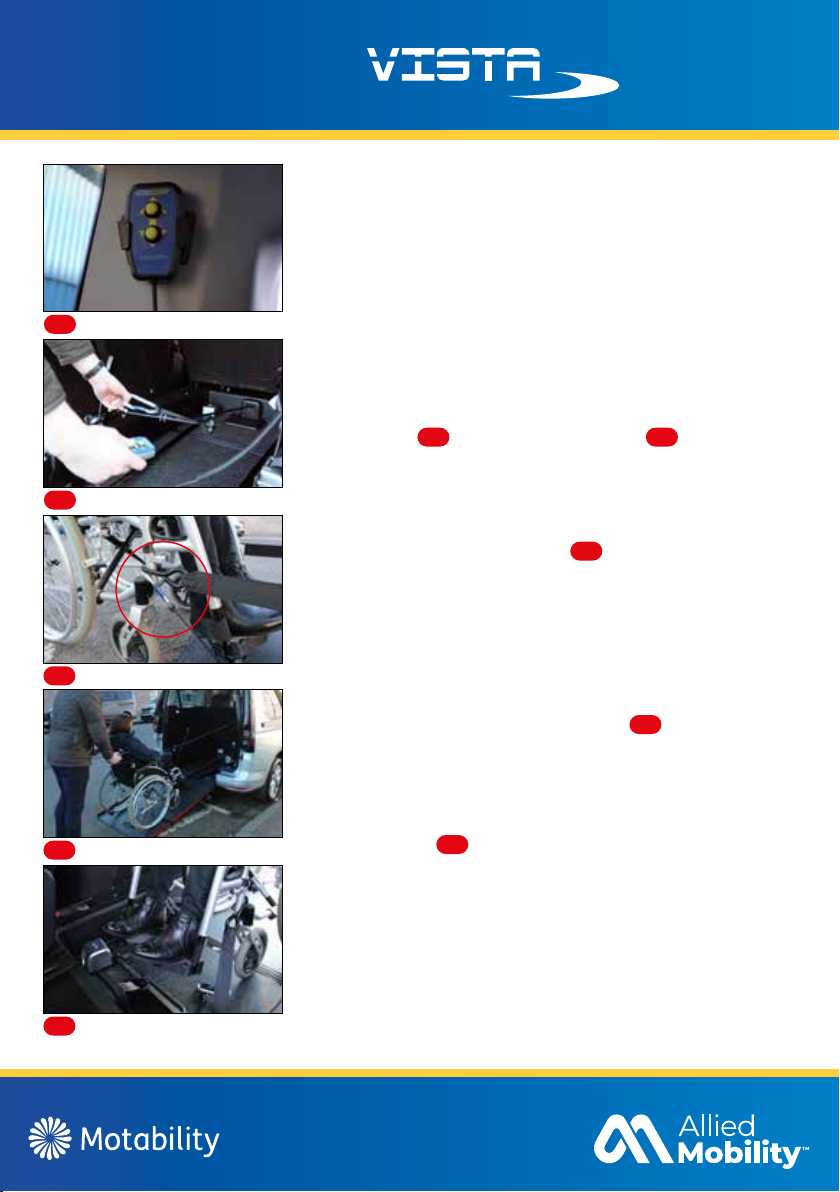

Electric Assist Winch
Note: The Electric winch system is designed to assist
in pulling a wheelchair passenger up the ramp. If your
vehicle has a winch included, it should be operated in
addition to the wheelchair restraint system as follows:
A. Position the wheelchair user at the bottom of the
ramp and attach the front restraints as instructed on
page 6, steps C & D.
B. The control for the winch is located at the rear of the
vehicle fig.1 . Holding the winch bar fig.2 guide the
strap down the ramp using the arrow button on the
remote control until the winch bar is at the bottom of
the ramp, ready to attach to the wheelchair frame .
C. Attach to secure points on the front frame of the
wheelchair using the clips fig.3 . Many people prefer
this to be attached beneath the foot rests, although
this may not always be possible with all designs of
wheelchair.
Note: The winch line should remain taut at all times to
avoid snagging.
D. Stay behind the wheelchair holding the handles as
the wheelchair ascends the ramp fig.4 . The arrow
buttons can be used to adjust the positioning of the
wheelchair inside the vehicle as required. Once inside,
lock the front restraints as detailed on page 6 step F
to prevent the wheelchair from rolling back. Detach
the winch bar and place the remote control back in
its holder fig.5 . You are now ready to attach the rear
restraints as detailed on page 8.
IMPORTANT NOTE
For safe use of the electric winch, please also refer to the
relevant ramp operation instructions on page 3 or 5. The
safe working load of the electric winch will be reduced
when your car is parked facing uphill on an incline or
if your car is parked in any other condition which has
increased the ramp angle.
fig.1
fig.3
fig.2
fig.4
fig.5

Freephone 0800 587 9656
www.alliedmobility.com
VOLKSWAGEN page 8
USER GUIDE
Rear Wheelchair Restraints
A. Retrieve the rear wheelchair restraints. The restraints
attach to the anchors at the rear of the vehicle fig.1 .
To attach the restraints, lift the toggle then slide them
onto the anchors on the floor fig.2 . Check the
restraints are secure by trying to slide them off
without lifting the toggle. The restraints are now fixed
to the vehicle floor, ready for use.
B. Now attach both rear restraint hooks to the rear
frame of the wheelchair. To extend the restraints
push down on the red lever and pull the strap to the
required length fig.3 . Ensure that the restraints are
fixed at approximately 45 degrees .
IMPORTANT NOTE
Don’t attach the restraint hooks to the wheels or any
plastic or removable parts of your wheelchair. Some
wheelchairs have a designated attachment point which
will be marked with a . In this case these points must
be used when securing the wheelchair.
C. To secure the restraints, locate the adjusters found on
the side of each restraint and turn until the straps
become taut fig.4 .
D. The rear of the wheelchair is secure when both
wheelchair restraints have been attached and
tightened fig.5 . You should now apply the wheelchair
brake.
1 Depending on preference, your vehicle may be fitted
with J hooks (as shown in this guide) or webbing
straps with tongue and buckle connector.
fig.1
fig.3
fig.2
fig.4
fig.5

Freephone 0800 587 9656
www.alliedmobility.com
VOLKSWAGEN page 9
USER GUIDE
Wheelchair Passenger Seat Belt
Note: Your vehicle is fitted with one of two possible
wheelchair passenger seat belts. Please ensure you
follow the correct fitting instructions for the

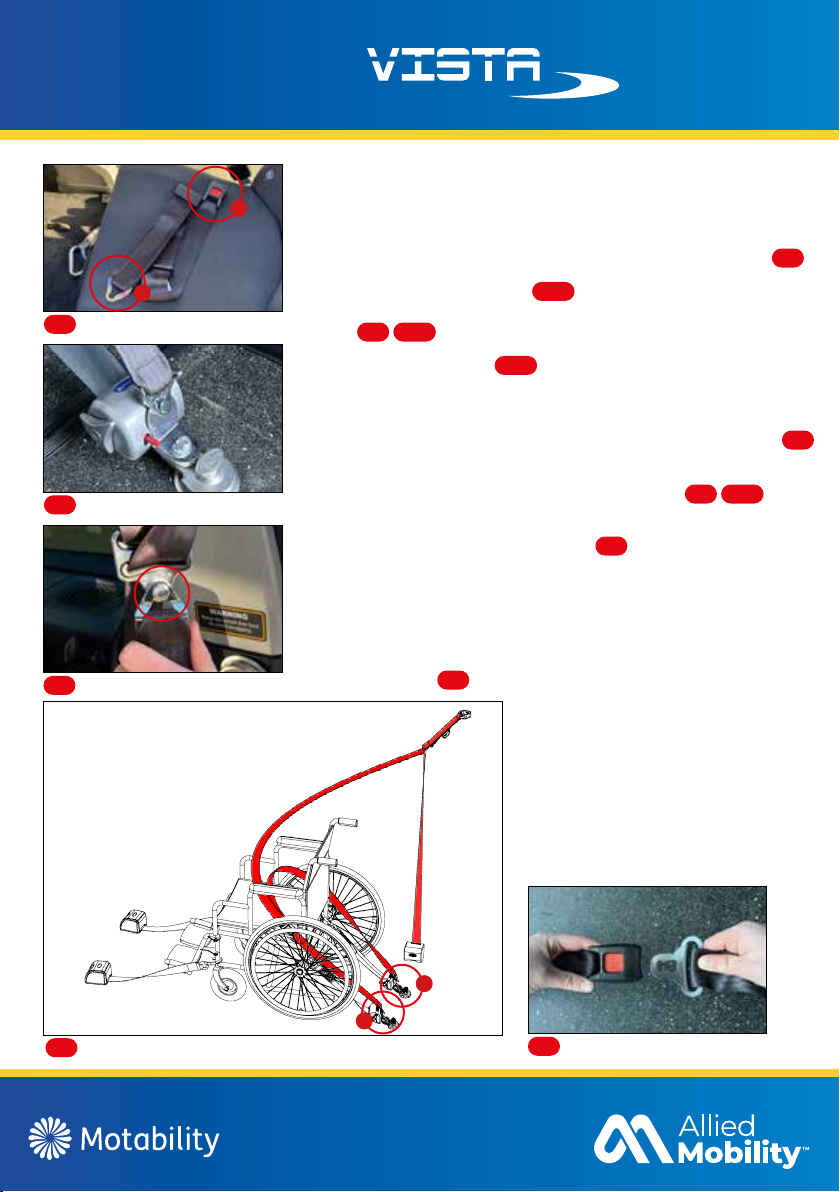

wheelchair passenger seat belt fitted to your vehicle.
You can identify which wheelchair passenger seat belt is
fitted to your vehicle by following the steps below:
A. Locate the seat belt hanging from the roof of the
vehicle
fig.1 . It will be positioned behind the
wheelchair passenger and may be fitted on the right
or the left.
B. If your wheelchair passenger seat belt is fitted with
multiple tongues like those in fig.2 please follow the
instructions for Wheelchair Passenger Seat Belt: Vista
RS/RX [Plus] & Vista RE on page 10 & 11.
C. If instead your wheelchair passenger seat belt is fitted
with a single tongue like the one in fig.3 please follow
the instructions for Wheelchair Passenger Seat Belt:
Vista RE Plus on page 12 & 13.
fig.1
fig.2
fig.3

Freephone 0800 587 9656
www.alliedmobility.com
VOLKSWAGEN page 10
USER GUIDE
Wheelchair Passenger Seat Belt:
Vista RS/RX [Plus] & Vista RE
A. Locate the tongue that is fixed at the very end of the
belt
fig.1a and secure this in the buckle nearest to the
seat belt reel box fig.2 . You will hear a click once the
tongue has been properly inserted.
B. Pull the seat belt across the passenger’s chest and
secure the other tongue fig.1b in the buckle farthest
from the seat belt reel box fig.3 . You will hear a click
once the tongue has been properly inserted.
Note: The seat belt should be flush against the
passenger’s body and not caught on the arms, wheels
or any other part of the wheelchair. For example, the
belt should be routed under the armrests or through
the chair back, if there is a gap to do so fig.4 .
fig.2
fig.1
fig.3
fig.4
a
b

Freephone 0800 587 9656
www.alliedmobility.com
VOLKSWAGEN page 11
USER GUIDE
Wheelchair Passenger Seat Belt:
Vista RS/RX [Plus] & Vista RE
C. The seat belt should rest on the passenger’s shoulder
without rubbing against their neck fig.5 . If necessary,
the shoulder belt height can be raised fig.6a or
lowered fig.6b by feeding the belt through the
adjuster.
D. The lap belt should sit low, around the passengers
hips fig.5 to provide the greatest comfort and
securement.
IMPORTANT NOTES
The shoulder belt must not drop below the height of the
passenger’s shoulder fig.7 .
The belt should not twist as it crosses the passenger’s
body. Remove twists by releasing the tongues from the
buckles and twisting the belt in the opposite direction.
PROCEED TO PAGE 14
fig.6
fig.5
fig.7
a
b

Freephone 0800 587 9656
www.alliedmobility.com
VOLKSWAGEN page 12
USER GUIDE
Wheelchair Passenger Seat Belt:
Vista RE Plus

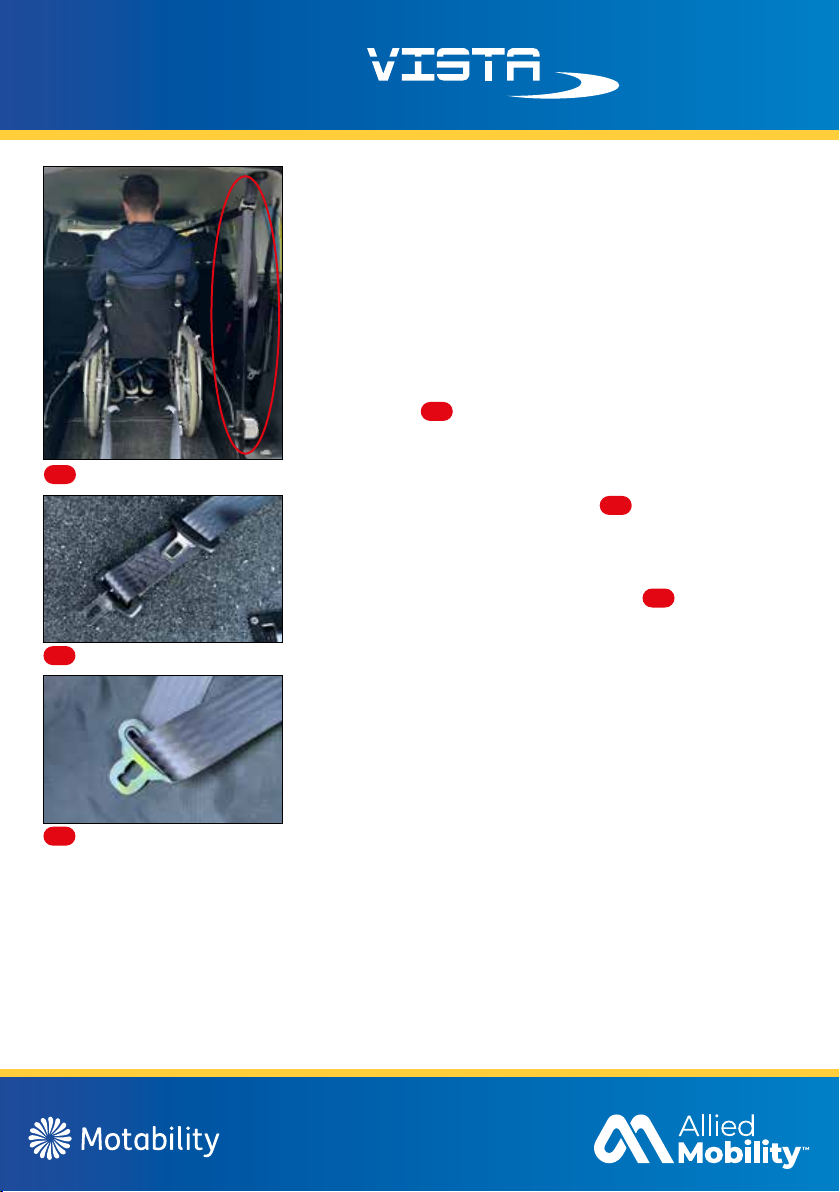

A. Retrieve the buckle belt from the vehicle glove box fig.1 .
B. Attach the connector fig.1a to the pin on the rear
wheelchair restraint farthest from the seat belt reel box
fig.2 fig.4a .
C. Place the buckle fig.1b on the passenger’s lap while you
prepare the rest of the belt.
D. Locate the seat belt hanging from the roof of the vehicle
and unhook the belt connector from the storage pin fig.3 .
E. Attach the connector to the pin on the rear wheelchair
restraint nearest to the seat belt reel box fig.2 fig.4b .
F. Pull the seat belt across the passenger’s chest and secure
the belt tongue in the buckle fig.5 . You will hear a click
once the tongue has been properly inserted.
Note: The seat belt should be flush against the passenger’s
body and not caught on the arms, wheels or any other part
of the wheelchair. For example, the belt should be routed
under the armrests or through the chair back, if there is a
gap to do so fig.4 .
fig.2
fig.1
fig.3
fig.4 fig.5
b
a
a
b

Freephone 0800 587 9656
www.alliedmobility.com
VOLKSWAGEN page 13
USER GUIDE
a
b
Wheelchair Passenger Seat Belt:
Vista RE Plus
G. The buckle should lie as close as practical to the
wheelchair passenger’s hip while still retaining access
to the buckle release button fig.6 . If necessary, the
buckle belt can be shortened fig.7a or lengthened
fig.7b by feeding the belt through the adjuster.
H. The seat belt should rest on the passenger’s shoulder
without rubbing against their neck fig.8 . If necessary,
the shoulder belt height can be raised fig.9a or
lowered fig.9b by feeding the belt through the
adjuster.
I. The lap belt should sit low, around the passengers
hips fig.8 to provide the greatest comfort and
securement.
IMPORTANT NOTES
The shoulder belt must not drop below the height of the
passenger’s shoulder fig.10 .
The belt should not twist as it crosses the passenger’s
body. Remove twists by detaching the belts from the
rear retractors and twisting the belt in the opposite
direction.
Always secure the connector to the wheelchair restraint
by sliding the connector under and up the pin on
the wheelchair restraint fig.11 . Do not use with the
connectors upside down.
PROCEED TO PAGE 14
fig.7
fig.6
fig.8
fig.9
fig.10 fig.11
b
a

Freephone 0800 587 9656
www.alliedmobility.com
VOLKSWAGEN page 14
USER GUIDE
Getting Ready to Travel
With the wheelchair restraints and wheelchair passenger
seat belt firmly secured, you’re almost ready to go.
A. Stow the ramp following the relevant instructions on
page 4 or 5.
B. Finally, pull down the tailgate using the pull strap fig.1
while keeping your head clear and ensure it engages in
the lock.
Now you’re ready to go.
On Arrival
A. When you arrive at your destination open the tailgate
and deploy your ramp following the relevant
instructions on page 3 or 5 .
B. Unfasten the wheelchair passenger seat belt and press
the wheelchair restraint switch fig.2 (the red light will
come on) .
C. Detach the rear restraint hooks1from the wheelchair
frame by holding down the red lever and removing the
hooks from the attachment points fig.3 . Then remove
the rear restraints from the vehicle floor by lifting the
toggle and sliding them from the anchors fig.4 .
Remove the wheelchair brake.
D. Guide the wheelchair passenger down the ramp with
the front restraints still attached. Once clear of the
vehicle, detach the front restraints and hold them as
you walk in, allowing them to retract.
E. Turn the restraint switch back off. It’s important that
you remember to do this or you may drain the battery
while the vehicle is not in use.
F. Finally, store the rear restraints by reattaching them to
the floor anchors.
Note: Retractors will have to be removed from the
floor to fold the EasyGlide ramp into its flat position.
1Depending on preference, your vehicle may be fitted
with J hooks (as shown in this guide), on webbing
straps with tongue and buckle connectors.
fig.2
fig.3
fig.4
fig.1

Freephone 0800 587 9656
www.alliedmobility.com
VOLKSWAGEN page 15
USER GUIDE
fig.1
fig.3
fig.2
fig.4
fig.5
Rear Folding Seats
The rear triple bench seats in the Volkswagen Vista can
be folded forward to create additional space if required.
Ensure the front seats are far enough forward to allow the
rear seats to fold into the stowed position. The front seats
can be moved back once the fold is completed.
The following photographs show the double seat being
folded but the folding mechanism is the same for the
single rear seat as well.

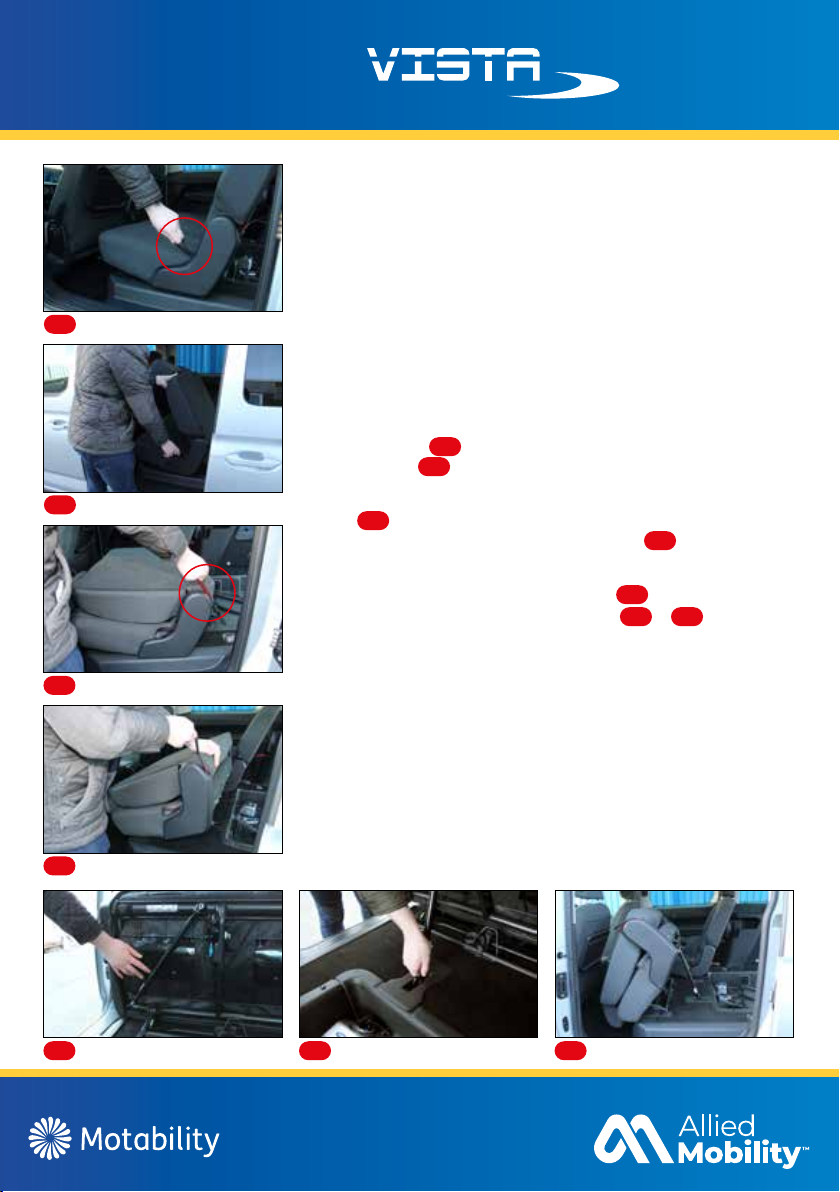

A. Pull the black seat release tag located at the bottom of
the seat fig.1 then tip the back of the seat forward as
shown
fig.2 .
B. Locate the red seat release tag on the rear of the seat
fig.3 . Pull the tag upwards, which will allow you to lift
up the seats and fold them forward fig.4 .
C. Secure the seat for travelling by unclipping the support
leg on the underside of the seat fig.5 and attach the red
hook to the bar on the seat base fig.6 & fig.7 .
D. Repeat steps A, B & C for any other rear seats which you
would like to fold forward.
IMPORTANT NOTE
Folding or unfolding the seats must only be done when
the vehicle is stationary.
Ensure the seats are fully secured in the forward position.
A seat that is not correctly stowed compromises the safety
of passengers in the event of sudden braking.
fig.6 fig.7

Freephone 0800 587 9656
www.alliedmobility.com
VOLKSWAGEN page 16
USER GUIDE
Optional Tip & Turn Seating
Optional tip and turn seats may be fitted in the back
of your vehicle allowing you to travel with additional
rear passengers fig.1 . The seats can swing around
to the front facing position when required and are
stored flat against the vehicle sides when wheelchair
access is required.
A. To move the seats into position for travel, pull out on
the red handle in the upper corner of the seat fig.2 .
This will unlock the seat and allow rotation fig.3 until
it clicks it into place .
B. Now pull down on the base of the seat to lower it into
place
fig.4 . The tip and turn seat is now ready to use
fig.5 .
C. The Tip & Turn seats have been provided with
integral seatbelts. Locate the tongue of the belt on
the outboard side of the seat fig.6 and pull it in
front of you with a smooth movement, checking that
it does not twist, and insert it into the buckle on the
inboard side of the seat fig.7 .
D. You will hear a click once the tongue has been
properly inserted. To check that the seat belt
is fastened correctly, pull on the strap and check that
the tongue has remained engaged in the buckle.
E. To unlock your seatbelt press the red button on the
buckle. Guide the seatbelt as it is reeled in.
fig.1
fig.3
fig.2
fig.4
fig.5 fig.6 fig.7

Freephone 0800 587 9656
www.alliedmobility.com
VOLKSWAGEN page 17
USER GUIDE
Seat Belts
Seating modifications/additions as part of the conversion
Your vehicle may have been supplied with either triple bench seats (RS/RX) or single seats
(RE) in row 2 depending on the vehicle model. Specialist Tip & Turn seats may also have
been added in the third row depending on the specifications of your vehicle (see page 16).
The seats in the second row of your vehicle have been tested to the same standards as
the base vehicle and meet the requirements for seat strength, safety-belts, and their
anchorages.
Adult Occupant Seat Belts
In order to be effective, a seat belt must:
• Have the lap part of the belt positioned as low as possible on the pelvis
• Have the shoulder part of the belt positioned in the hollow of the shoulder
• Be tightened as close to the body as possible
• Be used to restrain only one person, regardless of age
• Not show any signs of cuts or fraying
• Not be altered or modified in any way since any changes may render the belt ineffective
The driver must ensure that passengers use the seat belts correctly and that they are all
fastened before setting off. Wherever you are seated in the vehicle, always fasten your seat
belt, even for short journeys. Seat belts are designed to retain occupants in their seats, and
so prevent or reduce injuries in a crash.
Should one of your seat belts be cut, show signs of severe fraying or be involved in a severe
incident, it should be replaced immediately by a qualified workshop with the skills and
equipment needed to perform the task.
The seats in the second row of your vehicle are equipped with the original Volkswagen seat
belt apparatus. Should you require any instruction on the operation or maintenance of the
seat belts, please refer to the base vehicle handbook.
The straps of the integrated seat belts fitted to the Tip & Turn seats can be cleaned with soapy
water. Allow the belt to dry before retracting back into the seat.

Freephone 0800 587 9656
www.alliedmobility.com
VOLKSWAGEN page 18
USER GUIDE
Child Restraints
Always comply with local or national regulations. In some countries, the use of child
restraint systems is forbidden on certain seats.
In accordance with European regulations, all children under the age of 12 or less than
150cm tall must travel in approved child seats suited to their weight, on seats fitted with a
seat belt or ISOFIX anchors. Children weighing less than 9kg must travel facing rearwards,
but it is recommended that children should travel facing rearwards in the vehicle as long as
possible.
NOTE: Do not hold a child on your lap while the vehicle is moving.
Only child restraints certified to ECE-R129 or ECE-R44.03 (or later) have been tested and
approved for use in your vehicle.
The row 2 seats are the most convenient location to fasten a child restraint system. If the
child restraint is installed in row 3 it will have to be removed to allow the wheelchair user
access through the rear of the vehicle.
IMPORTANT NOTE
This user guide contains conversion specific child restraint fitting advice. Consult your base
vehicle handbook for additional information on the safe use of child restraints.
Child restraint systems advertised as recommended for your vehicle may no longer be
suitable due to the modifications to the vehicle. If in doubt about the suitability of a child
restraint system seek professional guidance.
Do not modify child restraints in any way. Do not stick anything on the child restraint systems
and do not cover them with any other materials.

Freephone 0800 587 9656
www.alliedmobility.com
VOLKSWAGEN page 19
USER GUIDE
Child weight and age guide
Groups 0 & 0+
Under 13kg Up to about
1 year old
Groups 1
From 9 to 18 kg From about 1
to 3 years old
Groups 2
From 15 to 25 kg From about
3 to 6 years old
Groups 3
From 22 to 36 kg From
about 6 to 12 years old
Type of
seat
Rearward-facing child
seat Rearward/Forward-facing child seat* Forward-facing booster cushion
Row 1 Consult your base vehicle handbook
Row 2 Suitable for universal category child restraints approved for use in this mass group
Row 3
*It’s recommended that a child should travel facing rearwards for as long as possible.
Fitting Universal Child Restraints
When fitting a child restraint secured by the adult occupant seat belts ensure that the seat
belt is correctly positioned around the child restraint in line with the instructions provided
by the child restraint manufacturer. The child restraint should be held firmly on the vehicles
seat by the belt, ideally in contact with the seat backrest. It should not touch the headrest.
If necessary, move the seat in front of a child restraint forwards so that the legs of the child
in a “forwards facing” child restraint or the “rearwards facing” child restraint itself do not
touch the seat in front.
Remember to fasten the seat belts or the harness of the child restraint, keeping the slack
relative to the child’s body to a minimum, even for short journeys.
IMPORTANT NOTE
Ensure that there is no seat belt or seat belt buckle under the child restraint causing it to
be unstable.

Freephone 0800 587 9656
www.alliedmobility.com
VOLKSWAGEN page 20
USER GUIDE

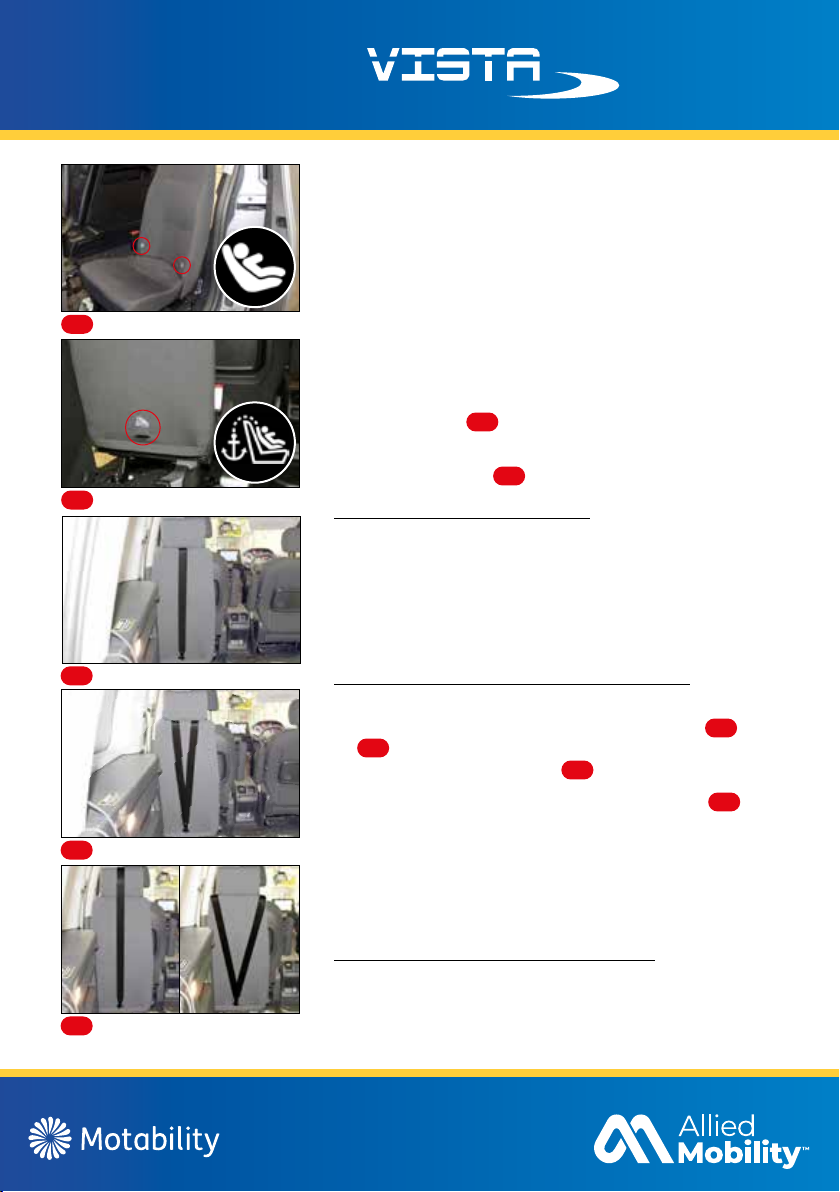

Fitting ISOFIX Child Restraints
The ISOFIX restraint system provides fast, reliable and
safe fitting of child restraints. Instructions for fitting i-Size
child restraints to the triple bench seats (RS/RX) can be
found in your Volkswagen handbook.
The single seats (RE) in the second row of your vehicle
are fitted with ISOFIX anchor points that accommodate
ISOFIX child restraints. Each seat has 3 anchor points:
- Two front rings located where the seat backrest and
cushion meet fig.1 .
- A rear ring located at the bottom of the rear surface of
the seat backrest fig.2 .
To fit an ISOFIX child restraint:
A. Place the child restraint on the seat and align the two
rigid arms on the restraint with the two front rings on
the seat.
B. Firmly push the base of the child restraint towards the
seat backrest until the latches in the attachment arms
indicate that they are engaged on the rings .
For child restraints with a top tether strap:
C. Pass the top tether strap between the seat backrest
and the head restraint as pictured in either fig.3 or
fig.4 . DO NOT pass the strap over the top of or to either
side of the head restraint fig.5 .
D. Attach the hook to the rear ring on the seat fig.2 .
Ensure the strap is not twisted and then tighten using
the top tether tensioner on your child restraint until it
indicates that the strap is suitably tight.
You may need to twist the hook as it passes under the
head restraint to prevent it from becoming stuck.
For child restraints with a support leg:
E. Extend the support leg so that it makes firm and
steady contact with the floor. An indicator on the
support leg should show when firm contact has been
achieved.
fig.1
fig.3
fig.2
fig.4
fig.5
a
a
X
