The Vollrath Company, L.L.C.
1236 North 18th Street
P.O. Box 611
Sheboygan, WI 53082-0611
2500117-A
Operating and Safety
Instructions
Countertop Convection
Oven

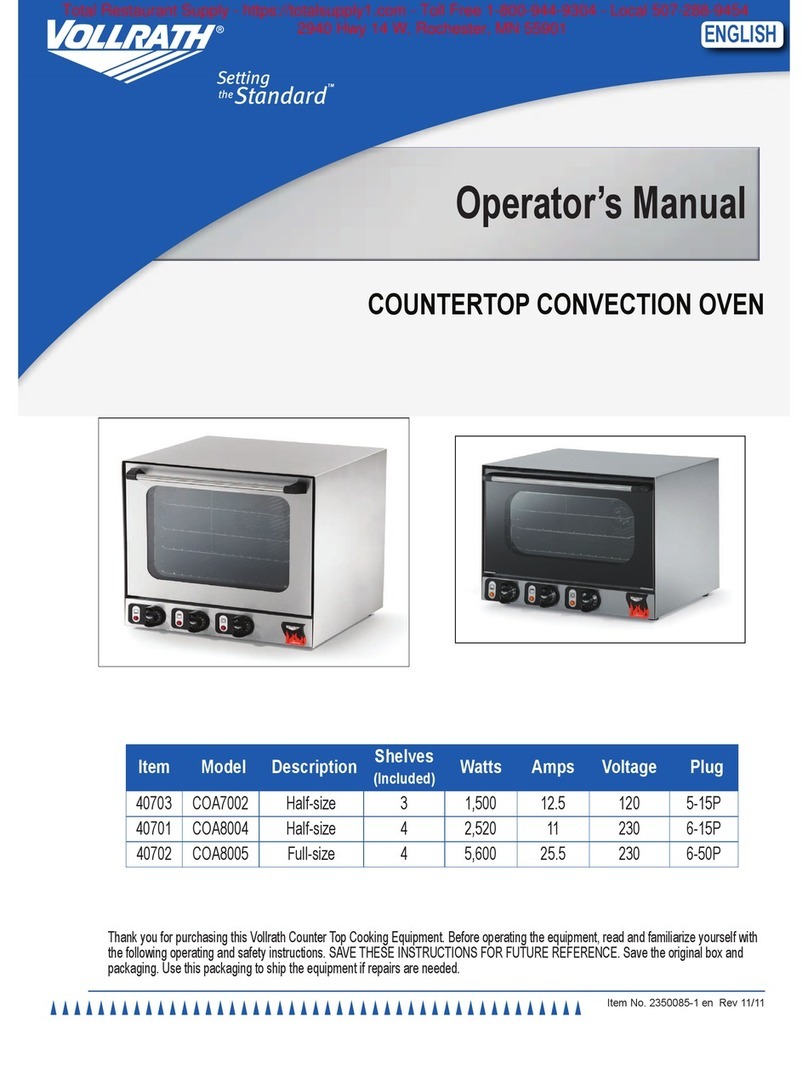

Model Number:
40703, Mini Prima Pro, 120volt – 1,400watts
40701, Prima Pro, 220volt – 2,400watts
40702, Proton, 220volt – 5,600watts

CONVECTION OVEN
2500117-A
Convection Oven
Thank you for purchasing this Vollrath Countertop Convection Oven. Before operating
this unit, read and familiarize yourself with the following operating and safety
instructions. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
WARNING
FIRE, INJURY OR DEATH HAZARD
HAVE THIS EQUIPMENT INSTALLED BY A QUALIFIED INSTALLER IN
ACCORDANCE WITH ALL FEDERAL, STATE AND LOCAL CODES. FAILURE
TO INSTALL THIS EQUIPMENT PROPERLY CAN RESULT IN INJURY OR
DEATH.
WARNING
FIRE HAZARD
THIS UNIT IS DESIGNED TO BE USED WITH LEGS. DO NOT USE WITHOUT
LEGS INSTALLED. USE OF THIS EQUIPMENT WITHOUT LEGS CAN
CAUSE THE UNIT TO OVERHEAT AND CAUSE A FIRE.
WARNING
FIRE AND BURN INJURIES OR DEATH CAN OCCUR IF
THIS EQUIPMENT IS NOT USED PROPERLY. TO REDUCE
RISK OF INJURY OR DEATH:
Unit should only be used in a flat, level position.
Let hot unit cool before cleaning or moving.
Do not spray controls or outside of unit with liquids or cleaning agents.
Do not operate unattended.
Function and Purpose:
This unit is intended to be used for cooking fresh or frozen foods in commercial
foodservice operations only. It is not intended for household use.
Before using this equipment it must be cleaned thoroughly. Clean all surfaces before
use. Failure to clean surfaces before using the unit could cause food contamination.
WARNING
FIRE, INJURY OR DEATH HAZARD
HAVE THIS EQUIPMENT INSTALLED BY A QUALIFIED INSTALLER IN
ACCORDANCE WITH ALL FEDERAL, STATE AND LOCAL CODES. FAILURE
TO INSTALL THIS EQUIPMENT PROPERLY CAN RESULT IN INJURY OR
DEATH.

CONVECTION OVEN
Installing the Convection Oven:
1. Remove all packing material and tape, as well as any protective plastic from the
unit.
2. Clean any glue residue left over from the plastic or tape.
3. Place the unit in the desired position, at least 6” from any adjacent wall.
4. Plug unit into a properly grounded electrical supply matching the nameplate
rating. Damage to the unit can occur if incorrect power is supplied to unit.
Model 40702 ONLY
This model is equipped with a water spray feature. To utilize the water spray feature
the unit should be connected to a suitable potable water supply with a pressure
between 3 and 30 p.s.i.
Note: Before using the appliance, clean the interior of the oven with hot water and
soap; rinse thoroughly. Set the bake control to 550°F and heat the oven for 30
minutes to eliminate any manufacturing oils.
WARNING
BURN HAZARD
BURN INJURIES CAN OCCUR IF THIS EQUIPMENT IS NOT USED
PROPERLY. NEVER TOUCH HOT SURFACES. ALWAYS USE HOT PADS
OR HOLDERS UNTIL THE UNIT HAS COOLED OFF.
Using the Countertop Convection Oven:
All Models
Baking Function – Used to bake or cook
1. Place the shelves in the desired positions inside the unit. Allow a space of at
least 2” between pans for proper air circulation.
2. Set the bake control to the desired temperature setting between 140°F and
570°F.
3. Set the timer control to the desired time between 0 and 120 minutes. The fan
and oven light will operate continuously however the heating elements will switch
off at the end of the timer cycle. The timer can be set to continuous use by
turning to the “ON” position.
4. The bake pilot light will indicate when the heating elements are energized and
will start to cycle on and off with the heating elements when the set temperature
is reached.
5. Place food into the unit and monitor.

CONVECTION OVEN
Models 40701 and 40703 ONLY
Grill Function – Used to grill or brown after the food is fully cooked
1. Place the shelf in the desired location for grilling. Assure the food product is not
too close to or touching the inside top or heater.
2. Switch the bake control knob to the grill function indicated by the icon on the
bake control knob.
3. Set the grill control knob to the desired temperature.
4. The grill pilot light will indicate when the elements are energized.
Note: The fan will not operate when in the grill function.
Model 40702 ONLY
Humidity Function – Used to provide a heavier crust on bread or rolls
1. Press the green push button to activate a spray of water into the cooking
chamber.
2. The humidity function works best if activated at the beginning of the baking cycle
when the oven has reached the set cooling temperature and the product has just
been placed into the oven.
3. Humidity should only be injected in 2-second pulses.
WARNING
ELECTRICAL SHOCK HAZARD
DO NOT SPRAY OUTSIDE OF THE UNIT OR CONTROLS WITH LIQUID OR
CLEANING PRODUCT. LIQUID COULD ENTER THE ELECTRICAL
COMPARTMENT AND CAUSE A SHORT CIRCUIT OR ELECTRIC SHOCK.
Cleaning:
1. Allow unit to cool completely before cleaning.
2. Do not immerse cord, plug or unit in water or any other liquid.
3. At the end of each baking cycle clean the unit with mild soap and water; rinse
thoroughly. Caustic based cleaners are not recommend and should not be used.
4. Shelves and sheet pans should be cleaned with hot soapy water or in your
dishwasher.
Repair:
Replacement of oven light:
1. Allow unit to cool completely before servicing.
2. Disconnect the appliance from the electrical power supply
3. Unscrew the oven light glass cover and replace the lamp with the correct
specification oven light. The oven light must be rated for the high temperature
within the oven and must match the nameplate voltage.
40703, Mini Prima Pro, 120volt – 15watts
40701, Prima Pro, 220volt – 25watts
40702, Proton, 220volt – 25watts

CONVECTION OVEN
There are no other user serviceable parts within this food processor. To avoid
serious injury or damage, never attempt to repair or replace a damaged power cord
yourself. Contact a qualified professional repair service.

CONVECTION OVEN
WARRANTY INFORMATION
Warranty Policy for The Vollrath Company L.L.C
The Vollrath Company L.L.C. warranties all products it manufactures and
distributes against defects in materials and workmanship for a period of one
year - except as listed below:
Refrigeration compressors – 5 year warranty
Intrigue & Classic Select cookware – Limited lifetime warranty
Replacement parts – 90 (ninety days) on the part only
Fry pans and coated cookware – 90 (ninety days)
All warranties cover normal use and service only and are void if the product
has been damaged by accident, neglect, improper use or other causes not
arising out of defects in material or workmanship. The Vollrath Company shall
not be liable for loss of use of the product or other incidental or consequential
costs, expenses or damage incurred by the purchaser.
Warranty work must have prior approval from The Vollrath Company L.L.C.
Vollrath Equipment Warranty
All Vollrath equipment is repaired or replaced at the discretion of The Vollrath
Company L.L.C., in accordance with the warranty policy listed above. Should
you have a problem with your equipment and it is under warranty, please
contact The Vollrath Warranty Service number and a technical representative
will assist you. Please have the model number, serial number and proof of
purchase information available when calling.
The Vollrath Company L.L.C. Warranty Service Number 1-800-628-0832

CONVECTION OVEN
IMPORTANT! WARRANTY REGISTRATION
Please register your new equipment via our online registration form at:
www.vollrathco.com/register.jsp
If you do not have access to the web, kindly register by completing this form and faxing
to the Vollrath office: Fax
920–459–6573
Business Name
Key Contact Name
Street Address
City
State
Zip Code
Country
Phone
Fax
Email
Model
Item Number
Serial Number - -
Operation Type
Limited Service Restaurant Full Service Restaurant Bars and Taverns Supermarket
Convenience Store Recreation Hotel/Lodging
A
irlines
Business/Industry Primary/Secondary School Colleges/University Hospitals
Long-TermCare Senior Living Military Corrections
Reason for Selection of our Product
A
ppearance Full Service Restaurant
A
vailability Sellers Recommendation
Ease of Operation Versatility of Use Price Brand
Would you like our full line catalog and to remain on our mailing list?
Yes No
