Vollrath Stoelting F212 User manual

Model F212
OPERATORS MANUAL
Manual No. 513675 Rev.0

This manual provides basic information about the machine. Instructions and suggestions are
given covering its operation and care.
The illustrations and specifications are not binding in detail. We reserve the right to make
changes to the machine without notice, and without incurring any obligation to modify or pro-
vide new parts for machines built prior to date of change.
DO NOTATTEMPT to operate the machine until instructions and safety precautions in this
manual are read completely and are thoroughly understood. If problems develop or questions
arise in connection with installation, operation, or servicing of the machine, contact Stoelting.
Stoelting Foodservice Equipment
502 Highway 67
Kiel, WI 53042-1600
U.S.A.
Main Tel: [phone]
Fax: [phone]
Customer Service: 888.429.5920
Fax: [phone]
Email: [email protected]
© 2014 PW Stoelting, LLC
stoeltingfoodservice.com

Safety Alert Symbol:
This symbol Indicates danger, warning or caution.
Attention is required in order to avoid serious per-
sonal injury. The message that follows the symbol
contains important information about safety.
Signal Word:
Signal words are distinctive words used throughout
this manual that alert the reader to the existence and
relative degree of a hazard.
CAUTION
The signal word “CAUTION” indicates a potentially
hazardous situation, which, if not avoided, may result
in minor or moderate injury and equipment/property
damage.
A Few Words About Safety
Safety Information
Read and understand the entire manual before
operating or maintaining Stoelting equipment.
This manual provides the operator with information
for the safe operation and maintenance of Stoelting
equipment. As with any machine, there are hazards
associated with their operation. For this reason safety
is emphasized throughout the manual. To highlight
specific safety information, the following safety defini-
tions are provided to assist the reader.
The purpose of safety symbols is to attract your at-
tention to possible dangers. The safety symbols, and
their explanations, deserve your careful attention
and understanding. The safety warnings do not by
themselves eliminate any danger. The instructions
or warnings they give are not substitutes for proper
accident prevention measures.
If you need to replace a part, use genuine Stoelting
parts with the correct part number or an equivalent
part. We strongly recommend that you do not use
replacement parts of inferior quality.
WARNING
The signal word “WARNING” indicates a potentially
hazardous situation, which, if not avoided, may result
in death or serious injury and equipment/property
damage.
CAUTION
The signal word “CAUTION” not preceded by the
safety alert symbol indicates a potentially hazardous
situation, which, if not avoided, may result in equip-
ment/property damage.
NOTE (or NOTICE)
The signal word “NOTICE” indicates information or
procedures that relate directly or indirectly to the
safety of personnel or equipment/property.

Section Description Page
1 Description and Specifications
1.1 Description..................................................................................................1
1.2 Specifications .............................................................................................2
2 Installation Instructions
2.1 Safety Precautions .....................................................................................3
2.2 Shipment and Transit..................................................................................3
2.3 Machine Installation....................................................................................3
3 Initial Set-Up and Operation
3.1 Operator’s Safety Precautions ...................................................................5
3.2 Operating Controls and Indicators .............................................................5
3.3 Assembly of Machine .................................................................................6
3.4 Sanitizing....................................................................................................7
3.5 Freeze Down and Operation ......................................................................8
3.6 Mix Information...........................................................................................8
3.7 Removing Mix From Machine.....................................................................8
3.8 Cleaning the Machine.................................................................................8
3.9 Disassembly of Machine Parts...................................................................8
3.10 Cleaning and Sanitizing The Machine Parts...............................................9
3.11 Sanitize Machine........................................................................................9
3.12 Routine Cleaning........................................................................................9
3.13 Preventive Maintenance.............................................................................10
3.14 Extended Storage.......................................................................................10
4 Troubleshooting
4.1 Light Indicators...........................................................................................11
4.2 Troubleshooting..........................................................................................11
5 Replacement Parts
5.1 Brushes, Decals, and Lubrication...............................................................13
5.2 Auger Shaft and Faceplate Parts ...............................................................14
5.3 Hopper Parts ..............................................................................................15
TABLE OF
CONTENTS

Operators Manual #513675 1 F212 Model Machines
SECTION 1
DESCRIPTION AND SPECIFICATIONS
1.1 DESCRIPTION
The Stoelting F212 floor model machine is gravity fed.
The machine is equipped with fully automatic controls to
provide a uniform product. The machine will operate with
almostanytypeofshakemix.This manual is designed to
help qualified service personnel and operators with the
installation, operation and maintenance of the Stoelting
F212 gravity machine.
Figure 1-1 Model F212

Operators Manual #513675 2 F212 Model Machines
1.2 SPECIFICATIONS
F212
Dimensions Machine with crate
width 18-1/4’’ (46,4 cm) 25’’ (63,5 cm)
height 64-1/2’’ (163,8 cm) 66’’ (167,6 cm)
depth 33’’ (83,8 cm) 51’’ (129,5 cm)
Weight 315 lbs (142,8 kg) 410 lbs (185,9 kg)
Electrical 1 Phase, 208-240 VAC, 60Hz
running amps 10A
connection type NEMA6-20P power cord provided
Compressor 12,000 Btu/hr
Drive Motor 3/4 hp
Air Flow Air cooled units require 3” (7,6 cm) air space on both sides
Plumbing Fittings Water cooled units require 3/8” N.P.T. water and drain fittings
Hopper Volume 7 gallon (26,50 liters)
Freezing Cylinder
Volume 2 gallon (7,57 liters)

Operators Manual #513675 3 F212 Model Machines
SECTION 2
INSTALLATION INSTRUCTIONS
2.1 SAFETY PRECAUTIONS
Do not attempt to operate the machine until the safety
precautionsand operating instructions in thismanualare
read completely and are thoroughly understood.
Take notice of all warning labels on the machine. The la-
bels have been put there to help maintain a safe working
environment.Thelabelshavebeendesignedtowithstand
washing and cleaning. All labels must remain legible for
thelifeofthemachine.Labelsshouldbecheckedperiodi-
callytobesuretheycanberecognizedaswarninglabels.
If danger, warning or caution labels are needed, indicate
thepartnumber,typeoflabel,locationoflabel,andquantity
required along with your address and mail to:
STOELTING, INC.
ATTENTION: Customer Service
502 Hwy. 67
Kiel, Wisconsin 53042
2.2 SHIPMENT AND TRANSIT
Themachinehasbeenassembled,operatedandinspected
at the factory. Upon arrival at the final destination, the
entire machine must be checked for any damage which
may have occurred during transit.
With the method of packaging used, the machine should
arriveinexcellentcondition.THECARRIERISRESPON-
SIBLE FOR ALL DAMAGE IN TRANSIT, WHETHER
VISIBLE OR CONCEALED. Do not pay the freight bill
until the machine has been checked for damage. Have
the carrier note any visible damage on the freight bill. If
concealeddamageand/orshortageis found later, advise
the carrier within 10 days and request inspection. The
customermustplaceclaimfordamagesand/orshortages
in shipment with the carrier. Stoelting, Inc. cannot make
any claims against the carrier.
2.3 MACHINE INSTALLATION
Installation of the machine involves moving the machine
close to its permanent location, removing all crating, set-
ting in place, assembling parts, and cleaning.
A. Uncrate the machine.
B. Accuratelevelingisnecessaryforcorrectdrainage
of machine barrel and to insure correct overrun.
Placeabubblelevelontopofthemachineateach
corner to check for level condition. If adjustment
is necessary, level the machine by turning the
caster leveling nut in or out then tightening the
locking nut.
C. Correctventilationisrequired.TheF212requires
3” clearance on both sides for proper air flow.
D. Place the CLEAN-ON-OFF switch in the OFF
position.
E. Connect the power cord to the proper power
supply.TheplugontheF212isdesignedfor208-
240VAC / 20 amp duty. Check the nameplate on
yourmachineforpropersupply.Theunitmustbe
connectedtoaproperlygroundedreceptacle.The
electrical cord furnished as part of the machine
has a three prong grounding type plug. The
use of an extension cord is not recommended,
if necessary use one with a size 12 gauge or
heavier with ground wire. Do not use an adapter
to get around grounding requirement.
Figure 2-2 Space and Ventilation Requirements
CAUTION
Failure to provide adequate ventilation will void
warranty.
WARNING
Do not alter or deform electrical plug in any way.
Alteringtheplug to fit into an outlet of different con-
figuration may cause fire, risk of electrical shock,
product damage and will void warranty.

Operators Manual #513675 4 F212 Model Machines

Operators Manual #513675 5 F212 Model Machines
SECTION 3
OPERATION
3.1 OPERATOR’S SAFETY PRECAUTIONS
SAFE OPERATION IS NO ACCIDENT; observe these
rules:
A. Know the machine. Read and understand the
Operating Instructions.
B. Notice all warning labels on the machine.
C. Wearproperclothing.Avoidloosefittinggarments,
and remove watches, rings or jewelry that could
cause a serious accident.
D. Maintain a clean work area. Avoid accidents by
cleaning up the area and keeping it clean.
E. Stay alert at all times. Know which switch, push
button or control you are about to use and what
effect it is going to have.
F. Disconnectelectricalcordformaintenance.Never
attempt to repair or perform maintenance on the
machineuntilthemainelectricalpowerhasbeen
disconnected.
G. Donotoperateunderunsafeoperatingconditions.
Neveroperatethemachineifunusualorexcessive
noise or vibration occurs.
3.2 OPERATING CONTROLS AND INDICATORS
Before operating the machine, it is required that the op-
erator know the function of each operating control. Refer
to Figure 3-1 for the location of the operating controls on
the machine.
A. Spigot Switch
Thespigotswitchwillautomaticallystarttheauger
drive and refrigeration systems when the spigot
is opened to dispense product. When the spigot
is closed, the drive motor and compressor will
remainonuntiltheproductinthefreezingcylinder
reaches the proper consistency..
WARNING
High voltage will shock, burn or cause death. The
OFF-ONswitchmustbeplacedintheOFF position
priortodisassembling for cleaning or servicing. Do
notoperatemachine with cabinet panels removed.

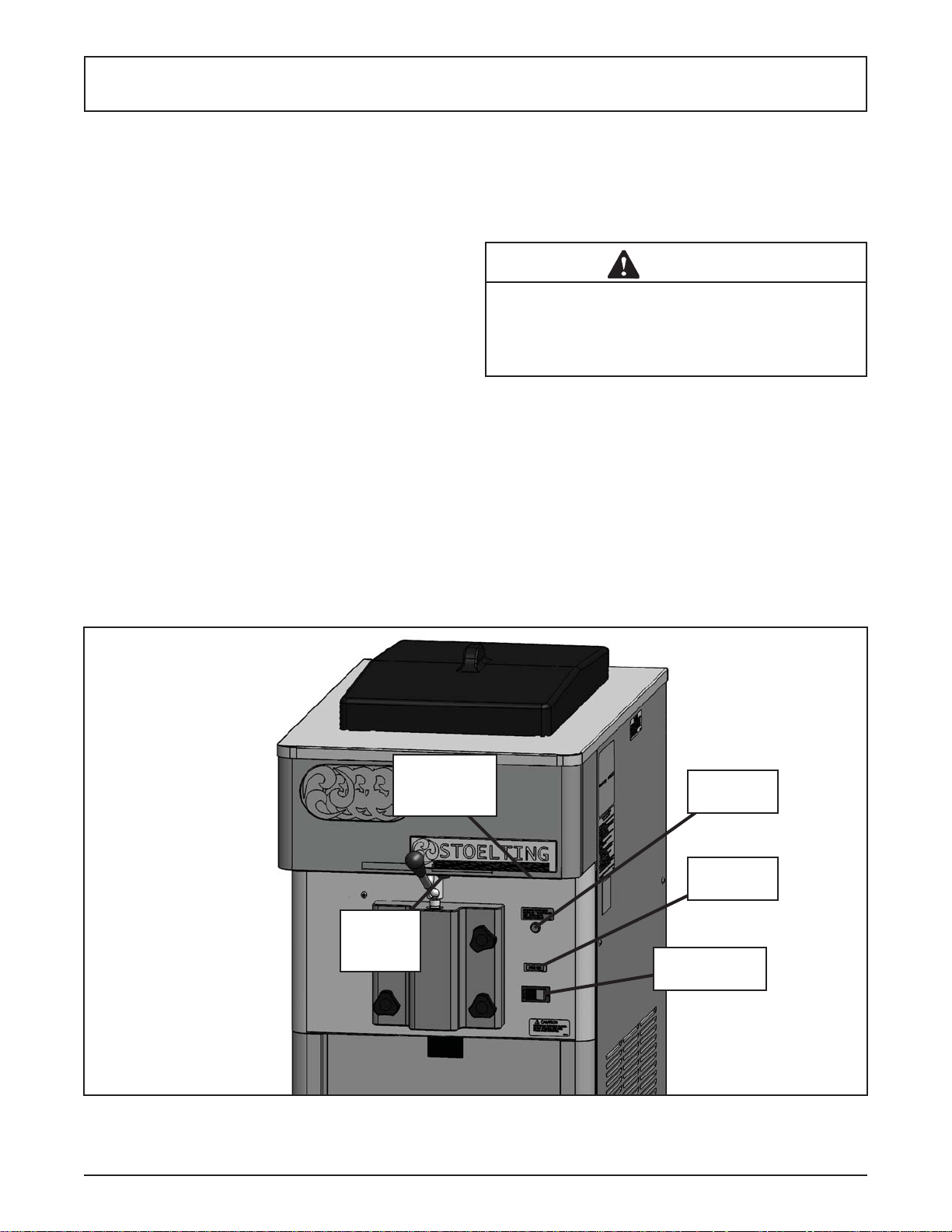

Figure 3-1 Controls
Dispense
Rate
Adjuster
Diagnostic
Light
Add Mix
Indicator
Clean/Off/On
Switch
Temperature
Adjustment
Screw

Operators Manual #513675 6 F212 Model Machines
B. CLEAN-OFF-ON Switch
The CLEAN-OFF-ON switch is used to supply
power to the control circuit. When the switch
is in the OFF (middle) position, power will not
be supplied to the control board or refrigeration
system. When the switch is in the ON position,
the machine will operate in the freezing mode.
The hopper agitator operates on timers along
with hopper refrigeration. When the switch is in
theCLEANposition,allrefrigerationwillstop,the
hopper agitator will stop and the auger will start
rotating.
C. ADD MIX Light
TheADD MIX light will flash to alert the operator
to a low mix condition. It does so by monitoring
the mix level in the hopper. When the ADD MIX
light is flashing, refill hopper immediately.
NOTE
Failure to refill the hopper immediately may result
in operational problems.
D. Diagnostic Light
TheDiagnosticLightwillremainonduringstandby
mode. It will flash if an error occurs. The light will
flash once if there is a compressor error. There
will be two quick flashes if there is a drive motor
error. And there will be three quick flashes if the
machine is left in clean mode for more than 20
minutes. Refer to the troubleshooting section for
details.
E. Temperature Adjustment Screw
The Temperature Adjustment Screw is located
under the header panel. It is used to increase or
decreaseproducttemperature.Whensettingthe
temperature, adjust the screw 1/8 of a turn and
retest before making another adjustment (use
the markings on the decal on the underside of
theheaderpanel).Turn it to therighttodecrease
temperatureortothelefttoincreasetemperature.
F. Front Door Safety Switch
The front door safety switch prevents the auger
fromturning whenthefrontdoor isremoved.The
switch is open when the door is not in place and
closed when the door is properly installed.
G. Dispense Rate Adjuster
The dispense rate adjustor limits the opening
of the spigot and is located under the header
panel,totheimmediaterightofthespigothandle.
Turningtheknob counterclockwisewilldecrease
the dispense rate.
3.3 ASSEMBLY OF MACHINE
All parts should be cleaned, sanitized and allowed to air
dry before assembling.
Toassemblethemachineparts,refertothefollowingsteps:
NOTE
Petrol Gel sanitary lubricant or equivalent must be
used when lubrication of parts is specified.
NOTE
The United States Department of Agriculture and
theFoodandDrugAdministrationrequire that lubri-
cants used on food processing equipment be certi-
fied for this use. Use lubricants only in accordance
with the manufacturer’s instructions.
A. Assembletheo-rings onto thespigotdry,without
lubrication. Then apply a thin film of sanitary
lubricationtotheexposedsurfacesoftheo-rings.
Also apply a thin film of sanitary lubricant to the
inside and outside of the front auger support
bushing.
B. Put the rear seal o-ring onto the back of the
auger and generously lubricate with Petrol-Gel.
Assemble the rear seal onto the auger with the
large end to the rear.
C. Put a small amount of spline lubricant on the hex
endoftheaugershaft.Asmallcontainerofspline
lubricant is shipped with the machine.
D. Install the plastic auger blades onto the auger.
E. Push the auger into the freezing cylinder and
rotate it slowly until the auger engages the drive
shaft.
F. Insert the spigot body into the front door.
G. Install the auger support bushing onto the auger.
H. Installthefrontdooronto the machine and install
the knobs. Tighten the knobs in a crisscross
pattern.
Figure 3-2 Spline Lubricant on Auger
Spline
Lubricant

Operators Manual #513675 7 F212 Model Machines
I. Look for the proper seal between the freezing
cylinder, front door o-ring, and front door.
J. Install the mix inlet regulator into the hopper.
K. Insert the bushing into the bottom of the hopper
agitator and put the agitator onto the shaft in
the hopper. Align the guide hole in the shaft and
agitator. Place the drive cap onto the agitator so
that the pin fits into the guide hole
L. Install the hopper cover, drain tray, drip tray, and
drip tray grid.
3.4 SANITIZING
Sanitizingmustbedoneafterthemachineiscleanedand
justbeforethehopperisfilledwithmix.Sanitizingthenight
beforeisnoteffective.However,youshouldalwaysclean
the machine and parts after each use.
The United States Department of Agriculture and
the Food and Drug Administration require that all
cleaning and sanitizing solutions used with food
processing equipment be certified for this use.
Whensanitizingthe machine, refertolocalsanitary regu-
lationsforapplicablecodes andrecommendedsanitizing
products and procedures. The frequency of sanitizing
must comply with local health regulations.
Mix sanitizer according to manufacturer’s instructions to
provide a 100 parts per million (ppm) strength solution
and check the solution with chlorine test strips. Allow
sanitizer to contact the surfaces to be sanitized for 5
minutes. Any sanitizer must be used only in accordance
with the manufacturer’s instructions.
In general, sanitizing may be conducted as follows:
A. Prepare Stera-Sheen Green Label Sanitizer
or equivalent according to manufacturer’s
instructionstoprovidea100ppmstrengthsolution.
Mix the sanitizer in quantities of no less than
2 gallons of 90° to 110°F (32° to 43°C) water.
Checkthestrengthofthesanitizingsolution.Use
a chlorine test strip and color chart to make sure
the solution has 100 ppm.Any sanitizer must be
usedonlyin accordance with the manufacturer’s
instructions.
B. Place the mix inlet regulator into hopper.
C. Insert the bushing into the bottom of the hopper
agitator and put the agitator onto the shaft in
the hopper. Align the guide hole in the shaft and
agitator. Place the drive cap onto the agitator so
that the pin fits into the guide hole.
D. Pour the sanitizing solution into the hopper and
wait until the freezing cylinder is filled. Check for
leaks.
E. While the freezing cylinder fills, clean the sides
of the hopper, the agitator, the mix inlet regulator
and the underside of the hopper cover using a
softbristlebrushdippedinthesanitizingsolution.
F. Place the switch in the CLEAN position.
G. Afterfiveminutes,placeabucketunderthespigot
andopenthespigottodrainthesanitizingsolution.
Leave a small amount of the sanitizing solution
in the freezing cylinder. Place the switch in the
OFF (middle) position.
H. Collect the remaining sanitizing solution in a cup
andtestthechlorinecontentswithanewteststrip.
A reading of 100 ppm or more is acceptable.
If the reading is less than 100 ppm, sanitize the
machine again.
Ifthereadingislessthan100ppmaftersanitizing
the second time, disassemble and wash the
machine again.
Drive
Cap
Guide
Hole
Figure 3-3 Hopper Agitator and Drive Cap
CAUTION
Do not allow sanitizer to remain in contact with
stainless steel parts for prolonged periods. Pro-
longedcontactof sanitizer withmachinemaycause
corrosion of stainless steel parts.
CAUTION
Do not place the mix inlet regulator into the hopper
before installing the auger.Attempting to install the
auger with the mix inlet regulator in place will dam-
age the regulator.

Operators Manual #513675 8 F212 Model Machines
3.5 FREEZE DOWN AND OPERATION
This section covers the recommended operating proce-
dures for the safe operation of the machine.
A. Sanitize just prior to use.
B. Place the switch in the OFF (middle) position.
C. Fill the hopper with pre-chilled liquid mix (40°F
or 4°C) . NOTE
Do not overfill the hopper. Mix level must be below
the air inlet tube on the mix inlet regulator.
D. Open spigot and drain a small amount of mix to
remove any remaining sanitizer.
E. Allow the freezing cylinder to fill at least halfway.
Place the switch in the ON position.
NOTE
Afterthedrive motor starts, there is a 3 or4 second
delay before the compressor starts.
F. After 8 to 12 minutes the product will be at
consistency and will be ready to serve. Freeze
down time may vary depending on mix type and
ambient temperatures.
G. To dispense, pullthespigothandle down toopen
the spigot.
H. Themachineisdesignedtodispensetheproduct
at a reasonable draw rate. If the machine is
overdrawn, the result is a liquid product. If this
should occur, allow the machine adequate time
to recover before dispensing additional product.
I. Do not operate the machine when the ADD MIX
light is on. Refill the hopper immediately.
3.6 MIX INFORMATION
Mix can vary considerably from one manufacturer to
another. Differences in the amount of butterfat content
and quantity and quality of other ingredients have a
direct bearing on the finished frozen product. A change
in machine performance that cannot be explained by a
technical problem may be related to the mix.
Proper product serving temperature varies from one
manufacturer’s mix to another. Shake mixes generally
providesatisfactoryproductfrom24°to28°F(-4°to-2°C).
When checking the temperature, stir the thermometer in
the frozen product to obtain an accurate reading.
Old mix or mix that has been stored at elevated tempera-
tures will produce poor-quality product with a bad taste
andunacceptableappearance.Toretardbacteriagrowth
indairybasedmixes,thebeststoragetemperaturerange
is between 33° to 38°F (0.5° to 3.3°C).
Someshakemixestendtofoammorethanothers.Iffoam
appears in the hopper, skim off with a sanitized utensil
and discard.
3.7 REMOVING MIX FROM MACHINE
To remove the mix from the machine, refer to the follow-
ing steps:
A. Pullthemixinletregulatorstraightup andremove
it from the hopper.
B. Place the switch in the CLEAN position to rotate
the auger.
C. Drain the mix by opening the spigot.Acontainer
should be placed under the spigot to collect the
mix.
D. Place the switch in the OFF (middle) position.
3.8 CLEANING THE MACHINE
NOTE
The frequency of cleaning the machine and ma-
chine parts must comply with local health regula-
tions.
After the mix has been removed from the machine, the
machine must be cleaned. To clean the machine, refer
to the following steps:
A. Closethe spigot andfillthe hopperwith2gallons
(8 liters) of tap water.
B. PlacetheswitchintheCLEANposition.Theauger
will start to rotate.
C. Allow the water to agitate for approximately 30
seconds.
D. Openthespigot to drain thewater. Remember to
place a container under the spigot to catch the
water. When the water has drained, place the
switch in the OFF (middle) position. Allow the
freezing cylinder to drain completely.
E. Rinse the machine with tap water again.
F. Washthehopperwithacleanbarrelbrushdipped
in cleaning solution.
3.9 DISASSEMBLY OF MACHINE PARTS
Inspectionforwornor broken parts shouldbemadeeach
time the machine is disassembled. All worn or broken
parts should be replaced to ensure safety to both the
operatorandthecustomerandtomaintaingoodmachine
performanceandaqualityproduct.Frequencyofcleaning
must comply with the local health regulations.
CAUTION
Hazardous Moving Parts.
Revolving auger shaft can grab and cause injury.
Placetheswitch in theOFF(middle)position before
disassembling for cleaning or servicing.

Operators Manual #513675 9 F212 Model Machines
B. Prepare sanitizing solution according to
manufacturer’sinstructionstoprovidea100ppm
strength solution. Mix the sanitizer in quantities
of no less than 2 gallons of 90° to 110°F (32° to
43°C) water. Check the strength of the sanitizing
solution. Use a chlorine test strip and color chart
to make sure the solution has 100 ppm.
D. Place all parts in the cleaning solution and clean
the parts with the provided brushes. Rinse all
partswith clean90°to 110°F(32°to 43°C)water.
Place the parts in the sanitizing solution.
E. Removethepartsfromthesanitizingsolutionand
allow them to air dry.
F. Wash the hopper and freezing cylinder with the
90° to 110°F (32° to 43°C) cleaning solution and
brushes provided.
G. Clean the rear seal surfaces from the inside of
the freezing cylinder with the 90° to 110°F (32°
to 43°C) cleaning solution.
3.11 SANITIZE MACHINE
A. UseStera-Sheenorequivalentsanitizingsolution
mixed according to manufacturer’s instructions
toprovide100 partspermillionstrength solution.
Mixsanitizerinquantitiesofnolessthan2gallons
(7.5 liters) of 90° to 110°F (32° to 43°C) water.
Any sanitizer must be used only in accordance
with the manufacturer’s instructions.
B. With the large brush provided, sanitize the rear
of the freezing cylinder by dipping the brush in
the sanitizing solution and brushing the rear of
the cylinder.
3.12 ROUTINE CLEANING
To remove spilled or dried mix from the machine exterior,
wash in the direction of the finish with warm soapy water
and wipe dry. Do not use highly abrasive materials as
they will mar the finish.
To disassemble the machine, refer to the following steps:
A. Remove the drive cap from the agitator and
remove the agitator. Remove the bushing from
the bottom of the agitator.
B. Remove the front door by turning the circular
knobs and then pulling the door off the studs.
C. Remove the o-ring from the groove in the front
door.
D. Remove the auger support bushing.
E. Remove the spigot body from the front door.
F. Remove the o-rings (2) from the spigot by first
wipingoffthelubricant using a clean towel.Then
squeezetheo-ringupwardwithadrycloth.When
a loop is formed, roll the o-ring out of the groove.
G. Remove the auger assembly from the freezing
cylinder and remove the auger blades.
H. Remove the rear seal and o-ring from the auger.
Wipe off any remaining lubricant on the auger
shaft and o-ring. Wipe the spline lubricant off the
back of the auger shaft.
I. Removethedraintray,driptrayanddriptraygrid.
3.10 CLEANING AND SANITIZING THE
MACHINE PARTS
Place all loose parts in a pan or container and take to
the wash sink for cleaning. Local and state health codes
dictatetheprocedurerequired.Somehealthcodesrequire
a four-sink process (pre-wash, wash, rinse, sanitize, and
air-dry), while other codes require a three-sink process
(without the pre-wash step). The following procedures
are a general guideline only. Consult your local and state
health codes for procedures required in your location.
A. Prepare Stera-Sheen or equivalent cleaner in
2 gallons of 90° to 110°F (32° to 43°C) water
following manufacturers instructions.
CAUTION
Do not allow sanitizer to remain in contact with
stainless steel parts for prolonged periods. Pro-
longedcontactof sanitizer withmachinemaycause
corrosion of stainless steel parts.
Figure 3-4 Removing O-Ring

Operators Manual #513675 10 F212 Model Machines
E. SEMI-ANNUALLY
1. Disconnect the machine from the power source.
2. Use a Burroughs Belt Tension Gauge to set the
tension for the drive belt. Set the belt tension to
45-55 lbs.
3. Lubricate the condenser fan motor with S.A.E.
20 weight oil. Three to six drops are required.
3.14 EXTENDED STORAGE
Refer to the following steps for storage of the machine
over any long period of shutdown time:
A. Place the CLEAN-OFF-ON switch in the OFF
(middle) position.
B. Disconnect (unplug) from the electrical supply
source.
C. Clean all parts that come in contact with mix
thoroughly with a warm water cleaning solution
Rinseincleanwateranddryparts.Donotsanitize.
NOTE
Do not let the cleaning solution stand in the hop-
per or in the freezing cylinder during the shutdown
period.
D. In a water cooled machine, disconnect the water
linesanddrainwater.Withaflatheadscrewdriver,
hold the water valve open and use compressed
air to clear the lines of any remaining water.
3.13 PREVENTIVE MAINTENANCE
A. DAILY
1. The exterior should be kept clean at all times to
preserve the luster of the stainless steel. A mild
alkalinecleanerisrecommended.Useasoftcloth
or sponge to apply the cleaner.
B. WEEKLY
1. Check o-rings and rear seal for excessive wear
and replace if necessary.
2. Remove the drip tray and drain tray. Clean the
areaaaroundthetrayandthefrontofthemachine
with a soap solution.
C. QUARTERLY
Air Cooled & Hopper Condenser
The condensers are copper tube and aluminum fin type.
Condensing is totally dependent upon airflow. Aplugged
condenserfilter,condenser,orrestrictionsinthelouvered
panel will restrict airflow. This could increase the hopper
temperature,lowerthe capacity ofthesystemor damage
the compressor.
The condensers must be kept clean of dirt and grease.
The machine must have 3” (7.6 cm) ventilation on both
sides. Make sure the machine is not pulling over 100° F
(37° C) air from other equipment in the area.
The condensers and condenser filters require periodic
cleaning. To clean, refer to the following procedures.
A. Disconnect power to the machine
B. Remove the Phillips head screws from the right
side panel, and remove the panel.
C. To remove a condenser filter, grasp the top and
pull off. Visually inspect the filters for dirt. If a
filter is dirty, shake or brush excess dirt off the
filter and wash it in warm, soapy water. Once it
is clean, rinse it thoroughly in warm, clear water
and shake dry, taking care not to damage the
filter in any way.
Water Cooled
Thewater-cooledcondenserisatubeandshelltype.The
condenserneedsacool,cleansupplyofwatertoproperly
cool the machine. Inlet and discharge lines must be 3/8”
I.D. minimum. Make sure the machine is receiving an
unrestricted supply of cold, clean water.

Operators Manual #513675 11 F212 Model Machines
SECTION 4
TROUBLESHOOTING
4.1 LIGHT INDICATORS
The machine has two lights that will alert the user if a problem occurs: an ADD MIX light and a Diagnostic Light.
TheADD MIX light will flash to alert the operator to a low mix condition. It does so by monitoring the mix level in the
hopper. When the ADD MIX light is flashing, refill hopper immediately.
The Diagnostic Light will flash if an error occurs. Refer to the chart below for details.
4.2 TROUBLESHOOTING
Indication On One Blink Two Blinks Three Blinks
Conditions Standby Mode Torque is not met after 22
minutes Drive current is not sensed Machine left in clean
mode for over 20
minutes
Self
Correction N/A N/A
The machine attempts to sense drive
current with a 3 second pre-stir. If
current is sensed, the machine will return
to normal operation. If current is not
sensed, the machine will wait 7 minutes
and try to sense current with another 3
second pre-stir. After the third attempt,
the compressor will run on timers.
N/A
Operation
Every 10
minutes the
machine will run
for 30 seconds.
Timers or until
the consistency
sensor is
satisfied.
Timers Off
Corrective
Action
Standby Mode
ends when the
spigot is opened
or when the
CLEAN-OFF-
ON switch is
moved to OFF
position then to
the ON position
Check the
condenser
(Section 3.13).
Make sure
the auger
is installed
correctly
(Section 3.11).
Contact Service
Technician
Contact Service Technician
Turn CLEAN-OFF-
ON switch to OFF
(middle) position then
turn the switch to ON.
PROBLEM POSSIBLE CAUSE REMEDY
Machine does not
run.
1 Power to machine is off. 1 Supply power to machine.
2 Blown fuse or tripped circuit. 2 Replace or reset.
3 Freeze-up (auger will not turn). 3 Turn Clean/Off/On switch Off for 15 minutes,
then restart.
4 Front door not in place. 4 Assemble front door in place.
Product is too firm. 1 Temperature setting is too cold. 1 Adjust the Temperature Adjustment Screw
(Section 3.2)

Operators Manual #513675 12 F212 Model Machines
4.2 TROUBLESHOOTING - CONTINUED
PROBLEM POSSIBLE CAUSE REMEDY
Product is too thin.
1 Temperature setting too warm. 1 Adjust the Temperature Adjustment Screw
(Section 3.2)
2 No vent space for free flow of cooling
air. 2 A minimum of 3” of air space at the sides.
3 Condenser is dirty. 3 Clean the condenser. (See Section 3.13)
4 Auger is assembled incorrectly. 4 Remove mix, clean, reassemble, sanitize and
freeze down.
5 Refrigeration problem. 5 Check system. (Call a service technician)
Product does not
dispense or it is
a very slow draw
rate.
1 No mix in hopper. 1 Add mix to the hopper
2 Auger is not turning 2 Check system. (Call a service technician)
3 Mix inlet regulator is obstructed or
clogged. 3 Clean the mix inlet regulator and make sure the mix is fully thawed.
4 Front door has frozen product or is
clogged. 4 Turn Clean/Off/On switch to Clean for 5 minutes, then restart.
Drive belt slipping
or squealing.
1 Not tensioned properly. 1 Adjust belt tension
2 Worn drive belt. 2 Replace drive belt.
3 Freeze-up (Auger will not turn). 3 Turn Clean/Off/On switch Off for 15 minutes,
then restart.
Rear auger seal
leaks.
1 Outside surface of rear auger seal is
lubricated. 1 Clean lubricant from outside of rear seal and rear of the freezing cylinder. Lubricate the rear
seal o-ring and reinstall the auger (See Section
3.11)
2 Rear seal missing or damaged. 2 Check or replace.
3 Seal o-ring missing or damaged. 3 Check. or replace.
4 Worn or scratched auger shaft. 4 Replace auger shaft.
Front door leaks.
1 Front door knobs are loose. 1 Tighten knobs in a crisscross pattern.
2 Spigot o-rings are not lubricated. 2 Lubricate the spigot o-rings
3 Chipped or worn spigot o-rings. 3 Replace o-rings.
4 Inner spigot hole in front door nicked
or scratched. 4 Replace front door.

Operators Manual #513675 13 F212 Model Machines
SECTION 5
REPLACEMENT PARTS
Part Description Quantity
C-1000-26C Decal - Made In USA 1
208135 Brush - 4” X 8” X 16” (Barrel) 1
208380 Brush - 1/4” X 3” X 14” 1
208401 Brush - 1” X 3” X 10” 1
208410 Brush - 1-1/2” X 4” X 12” 1
324065 Decal - Water Inlet 1
324105 Decal - Caution Electrical Shock 6
324106 Decal - Caution Electrical Wiring Materials 1
324107 Decal - Caution Hazardous Moving Parts 3
324141 Decal - Caution Rotating Blades 1
324200 Decal - High Pressure Cut-Out 1
324208 Decal - Attention Refrigerant Leak Check 2
324242 Decal - Temperature Adjustment 1
324393 Decal - Stoelting Swirl Logo 1
324509 Decal - Cleaning Instructions 1
324566 Decal - Wired According To 1
324584 Decal - Adequate Ventilation 3” 2
324803 Decal - Domed Stoelting Logo (Large) (Header Panel) 1
324804 Decal - Domed Stoelting Swirl (Header Panel) 1
324865 Decal - Standby Light 1
324927 Decal - Motor Compressor Thermally Protected 1
508048 Lubricant - Spline (2 oz Squeeze Tube) 1
508135 Petrol Gel - 4 oz Tube 1
5.1 BRUSHES, DECALS, AND LUBRICATION

Operators Manual #513675 14 F212 Model Machines
5.2 AUGER SHAFT AND FACEPLATE PARTS
Part Description Quantity
149002 Bushing - Front Auger Support 1
162155 Blade - Scraper 2
336589 Door - Front 1
482019 Knob - Front Door (Black) 4
624614-5 O-Ring - Spigot (5 Pack) 2
624678-5 O-Ring - Rear Seal - Black (5 Pack) 1
625314 O-Ring - Front Door - Black 1
666786 Seal - Rear Auger - Black 1
3177738 Spigot Body 1
4177749 Auger Shaft 1
336589
3177738
625314
149002
4177749
162155
666786
624678
624614
