Volt Pro Power Series User manual

www.volt-equipment.com
INDUSTRIAL GAS AIR COMPRESSOR
ITISEXTREMELY IMPORTANTTOREAD ANDUNDERSTANDTHE
ENTIRE CONTENTSOF THISOPERATOR’S MANUAL BEFORE
ATTEMPTING TO OPERATE THE PRODUCT. THIS EQUIPMENT IS
POTENTIALLY HAZARDOUSANDCOULD CAUSEPHYSICAL
INJURYOREVEN DEATHIFIMPROPERLYUSED.
VK2TA
INDUSTRIAL GASOLINE AIR COMPRESSOR
OPERATOR’S MANUAL
MODEL:VK2TA

www.volt-equipment.com Page 1
WARNING
DO NOT OPERATE EQUIPMENTUNTILREADING&UNDERSTANDINGOPERATOR’SMANUAL!
TABLE OF CONTENTS
Safety................................................................................................................................................................................................2
Operation..........................................................................................................................................................................................4
Maintenance and Troubleshooting....................................................................................................................................................8
Warranty ..................................................................................................................................................................................................13
The following signal words and meanings are intended to explain the level of risk associated with this product
Indicates a hazard which, if not avoided WILL result in death or serious injury.
Indicates a hazard which, if not avoided, could result in death or serious injury.
Indicates a hazard which, if not avoided, could result in minor or moderate injury.
!DANGER
NEVER WELD OR DRILL A TANK
Never attempt to repair a damaged tank.Any modification on a tank such as welding or drilling will
weaken the tank - which may result in rupture or explosion. Only replace worn or damaged tanks!
IMPORTANT WARNING SYMBOLS
Read Operator’s Manual Toxic Fumes Store in Dry Place
Eye Protection required Explosion Fire
Hot Surfaces Proper Lifting Moving parts

www.volt-equipment.com Page 2
SAFETY
IMPORTANT SAFETY INFORMATION
MANUFACTURER SHALL NOT BE RESPONSIBLE FOR ANY CONSEQUENCES RESULTING FROM IMPROPER USE
OF THIS EQUIPMENT. THE OPERATOR IS REQUIRED TO READ THE ENTIRE CONTENTS OF THIS MANUAL
BEFORE ATTEMPTING TO OPERATE THE UNIT. IF THE OPERATOR DOES NOT COMPLETELY UNDERSTAND THE
INSTRUCTIONS AND ALL OF THE HAZARDS OF OPERATING THIS UNIT AFTER READING THIS MANUAL,
OPERATOR MUST CALL THE FACTORY TO ANSWER THESE QUESTIONS TO OPERATOR’S COMPLETE
SATISFACTION BEFORE PROCEEDING.
• READ AND COMPLETELY UNDERSTAND
ENTIRE
CONTENTS OF THIS OPERATOR’S
MANUAL AND
BECOME FAMILIAR WITH
THE UNIT BEFORE
ATTEMPTINGTOSTART
USINGTHISEQUIPMENT!ITIS
YOUR
RESPONSIBILITYTO KNOW ITSAPPLICATIONS,
LIMITATIONS, AND HAZARDS! CALL THE
FACTORY
WITHANYQUESTIONS.
•
A MINIMUM OF THREE (3) FEET OF
CLEARANCE
ON ALL SIDES IS
REQUIRED.
•
THIS UNIT IS ONLY TO BE USED FOR ITS
INTENDED
PURPOSE, ANY OTHER
APPLICATIONS COULD VOID
WARRANTY.
•
USER ACCEPTS RESPONSIBILITY FOR
INJURIES
AND/OR DAMAGE RESULTING
FROM OTHER APPLICATIONS.
• INSPECT UNIT PRIOR TO USE FOR ANY UNSAFE
CONDITIONS.
• FOLLOW ALL CODES FOR THE SAFE OPERATION
OF
THIS EQUIPMENT, BOTH LOCALAND FEDERAL
•
ONLY PEOPLE THAT ARE WELL ACQUAINTED
WITH
THE RULES OF SAFE OPERATION SHOULD
USE THE
GENERATOR.
•
KEEP CHILDREN AWAY FROM THE UNIT.
•WEAR SAFETYGLASSES AND HEARING
PROTECTION.
•DO NOT STAND ON THE UNIT OR ATTEMPT TO USE IT
AS A HAND HOLD.
•
REPLACEORREPAIRANYDEFECTIVEPARTS
BEFORE
USING.
•
DONOT FILL FUELTANK IF ENGINEISHOT.
•
THEENGINEGOVERNORISPRESET.DONOT
TAMPER
WITH THE SETTING. EXCESSIVELYFAST
SPEEDS
WILL SEVERELY SHORTEN THE LIFE
OF THE ENGINE AND MAYBEHAZARDOUS
FOR OUTDOOR USE ONLY
NEVER USE THIS UNIT INSIDE OF ANY BUILDING, ENCLOSURE OR ARECREATION VEHICLE(RV). NO MODIFICATIONS
WILL ELIMINATE THE DANGER OF POSSIBLE CARBON MONOXIDE POISONING, FIRE OR EXPLOSION.
WARNINGS AND CAUTIONS
IN THIS MANUAL AND OR DECALS AND TAGS ON THE UNIT ARE NOT ALL INCLUSIVE. IT
WOULD BE IMPOSSIBLE TO ANTICIPATE EVERY CIRCUMSTANCE THAT MIGHT INVOLVE
A HAZARD HANDLING.
CALIFORNIA PROPOSITION 65 WARNING
Engine exhaust from this product contains chemicals
known to the state of California to cause cancer, birth
defects and other reproductive harm. Battery posts,
terminals and related accessories are known to the
state of California to cause cancer, birth defects and
other reproductive harm.
REVIEW THIS MANUAL THOROUGHLY
FOLLOW ALL INSTRUCTIONS PROVIDED WITHIN THIS MANUAL. THIS EQUIPMENT CAN CAUSE SERIOUS INJURY TO
PEOPLE AND ANIMALS AND SEVERE DAMAGE TO PROPERTY IF OPERATED NEGLIGENTLY OR INCORRECTLY. PAY
PARTICULAR ATTENTION TO ALL SAFETY INSTRUCTIONS, WARNINGS AND NOTICES.

www.volt-equipment.com Page 3
UNPACKING
Inspect your air compressor carefully for any damage that may have occurred during transit. Be sure to inspect and
tighten all bolts, screws and fittings before attempting to start the unit. Do not attempt to operate a damaged unit. It
may burst and cause serious injury or property damaged.
Your compressor comes equipped with a guard over the drive wheel and belt assembly.
Never attempt to operate this unit if the guard is damaged or removed. Personal injury
could result from contact with moving parts.
Never remove or attempt to adjust the safety valve. Keep it free from paint or any other
accumulations.
This unit may cause electrical arcs that could ignite flammable gas or vapor. Keep
flammable items away from the compressor and keep the compressor from flammable
conditions.
Compressor parts may be hot even if the unit is not running.
MAINTENANCESCHEDULE
DAILY
EVERY MONTH/ 30 HRS
EVERY 6 MONTHS
Check Oil Levels
X
Check Air Filter
X
Check For Oil Leaks
X
Replace Air Filter
X
Change Oil
X/30Hrs
Drain condensate
X
Ensure belt guards and covers are
securely in place. X
IMPORTANT SAFETY INFORMATION
MINIMUM DISTANCE FOR CLEARANCE IS 3 FEET FOR ALL COMBUSTIBLE MATERIAL
THE COMPRESSOR PUMP REQUIRES 32oz (SAE30) OIL

www.volt-equipment.com Page 4
•HOSE AND REGULATOR Use 3/8 inch hose and regulator that has a minimum rating that exceeds the maximum
working pressure of the compressor. The amount of air pressure released at the hose outlet is controlled by the
regulator.
•ACM SAFETY VALVE This valve will release excessive pressure if the maximum pressure is exceeded.
•DISCHARGE TUBE This tube carries compressed air from the pump to the check valve. Never touch the
discharge tube because it becomes very hot during operation.
•UNLOADER Valve used to release all pressure from the tanks and pump for starting.
•CHECK VALVE This is a one way valve that allows air to enter the tank but prevent air from going out of the
tank.
•HANDLE The handle is provided to move the compressor.
•BELT GUARD The belt guard covers the belt and pulley.
•DRAIN PETCOCK Each tank has a drain petcock on the bottom and is used to drain moisture from the tank.
Open the petcock and reduce air pressure below 10 psi and allow moisture to drain. This should only be done daily
to reduce the risk of corrosion.
START UP
UNDERSTANDING YOUR UNIT
Starting the unit manually
•Rotate or switch the fuel valve to the “on” position.
(figure 1 or 2)
•Move the choke to the “closed” or “start” position.
(figure 2 or 4depending on the type of engine.
Consult your engine manual)
•Open the unloader as shown in figure 8.
oNote, it is normal for airto escape
when the unloader is opened for
starting. Pressure must be released
from the system prior to starting the
engine.
•Assure the throttle is pushed to the left. (figure 5)
•Slide the switch to the “on” position. See figure 2
or rotate ignition switch to the right as shown in
figure 3.
•Pull starter grip slowly until resistance is felt.
•Pull cord briskly
•Return starter cord gently into the recoil housing.
•Move choke to the “open” or run position.
•Close the unloader valve as shown in figure 7

www.volt-equipment.com Page 5
Increase RPM
Decrease RPM
Fuel Valve on
Unloader in the closed
(operational) position.
Unloader in the open
(starting) position
Figure 8
Figure 5
Honda/Kohler
Figure 2
Kohler
Figure 3
Honda
Figure 1
Honda
Figure 7
Fuel Valve on
Choke in start position




Choke in start position
Fuel Valve on
Figure 4
Honda

www.volt-equipment.com Page 6

www.volt-equipment.com Page 7
Stored batteries give off explosive hydrogen gas while
recharging. An explosive mixture will remain around
the battery for a period of time after it has completed
recharging. Any spark can ignite the hydrogen and
cause an explosion. Such an explosion can shatter
the battery and cause blindness or other serious
injury.
Avoid smoking, open flames, sparks or any other
source of heat around a battery. Wear protective
goggles, rubber apron and rubber gloves when working
around a battery. Battery electrolyte fluids are an
extremely corrosive sulfuric acid solution than can
cause severe burns. If a spill occurs, immediately flush
with clear water.
Never short the battery terminals!
Electrical short, shock, burns or
explosion will occur!
Stopping the engine
•Rotate or slide the ignition switch
counterclockwise or left to the off position.
•Rotate or slide the fuel valve to the closed
position for storage, maintenance or
transportation.
Fuel Valve on



www.volt-equipment.com Page 8
CHECK AND FILL OIL
CHECK AND FILL FUEL
CHECK/REPLACE FILTER
CAUTION
DO NOT ATTEMPT TO START THE
ENGINE BEFORE CHECKING OIL
WARNING
DO
NOTOVERFILL!LEAVEROOM FOR
FUEL EXPANSION.NEVER FILL
FUEL INDOORS. NEVER FILL FUEL
WHENENGINEISHOTOR RUNNING.
DONOTSMOKEOR
FILL
CAUTION
DO NOT CLEAN AIR FILTER WITH
ANY TYPEOFDETERGENT.
1. Place generator on a level surface.
2. Clean area around oil fill opening.
3. Remove the dipstick.
4. Wipe the dipstick clean.
5. Reinsert dipstick and check oil
level.
6. DO NOT OVERFILL
6.
CLOSE OIL CAP.
7. Change oil as published
1. Remove cover panel.
2. Loosen screw and remove air
filter cover
3. Never wash air cleaner with any
kind of detergent or cleaning sol-
vent.
4. Air filter should be changed if
engine performance decreases or
color of exhaust changes.
5. Never run engine without air filter.
This will cause rapid engine wear.
1. Fill with gasoline fuel only
2. Clean area around fuel cap.
3. Remove fuel cap.
4. Add fuel to fuel tank.
5. DO NOT overfill. Do not fill above
the red plug inside the fuel tank
filter (this allows for fuel expansion)
6. Replace fuel cap.
7. Wipe up any spilled fuel.
CHANGING THE ENGINE OIL
*First oil change should be after 5 hours. After initial break-inperiod change oil every (30) hours.
•Remove the oil cap or dipstick
•Place a container underneath the drain bolt
•Unscrew the oil drainage bolt
•Allow oil todrain completely
•Reinstall the drainage bolt and tighten securely.
•Refill the oil per the check and fill instructions above.
•20 ounce oil capacity in the crankcase depending on the amount ofoil drained.
•Reinstall the dipstick.
NOTE:Used oil must be disposed of properly. Take used motor oil to an approved recycling center.
*First oil change should be after 5 hours. After initial break-in period change oil every (30) hours.
SPARK PLUG MAINTENANCE
The spark plug must be properly gapped and free of deposits in order to ensure proper engine operation.
•Remove the spark plug cap
•Clean area around the base
•Remove the spark plug
•Inspect the spark plug for damage and clean with a wire brush. If there is any damage, the plug should be replaced. If you
replace the plug, use the recommended spark plug or equivalent: NGK-BPR6ES.
•The gap between the electrodes is .027’-.030”SEE ENGINE MANUAL.
•Thread the spark plug in by hand to prevent cross threading.
•If using a NEW plug, once the plug seats by hand, tighten the plug 1/2 rotation with a wrench to compress the washer.
•If reusing the old plug, once the plug seats by hand tighten the plug 1/8-1/4 rotation with a wrench to compress the washer.

www.volt-equipment.com Page 9
• RELEASE ALL PRESSUREFROMTHESYSTEM
BEFORE ATTEMPTING TO PERFORM ANY
MAINTENANCE. SEE FIGURE 8 ABOVE.
•
BEFOREEACHUSE .CHECKTHEAIR FILTER,
THE
OIL LEVEL, AND THE GASOLINE
SUPPLY BEFORE
STARTINGTHEENGINE.
TESTTHEACMSAFETY
VALVE BEFORE
STARTINGTHEENGINE.
•
PULL THE RING ON THE SAFETY VALVE
AND LET IT
SNAP BACK TO ITS NORMAL
POSITION. THIS VALVE
IS DESIGNED TO
RELEASE AIR AUTOMATICALLY WHEN
THETANKPRESSUREEXCEEDSTHEPRESET
MAXIMUM. THE ACM VALVE MUST BE
REPLACED IF
AIRLEAKSAFTERTHERING
HASBEENRELEASEDOR IFTHE VALVEIS
STUCKAND CANNOT BEACTIVATED
BY THE
RING.
• NEVER TAMPER WITH THE ACM SAFETY
VALVE!
CLEAN DEBRIS FROM THE
ENGINE, FLYWHEEL,
TANK,AIRLINES,
AND PUMP COOLING FINS BEFORE
ATTEMPTINGTOSTARTTHEENGINE.
•
AFTEREACHUSE. BESURETODRAINTHE
TANKS
COMPLETELY AFTER EACH USE.
• COMPLETE TANK INSPECTION .
CAREFULLY
INSPECT THE TANK OFTEN FOR
CRACKS FORMING
AROUND THE WELDS.
REMOVE PRESSURE FROM THE TANK
IMMEDIATELY AND REPLACE THE TANK IF
A
CRACKISDETECTED.
•
NEVEREVERATTEMPTTOREPAIRORMODIFYA
TANK!
•
DRIVEBELT BELTSTENDTOSTRETCHASA
RESULT
OF NORMAL USE. THE BELT WILL
DEFLECT ABOUT 1/2 INCH WITH FIVE
POUNDSOFPRESSUREAPPLIED
MIDWAY
BETWEEN THE ENGINE
PULLEY AND THE
PUMP(SEE BELOW).
•ADJUSTING THE BELT TENSION
REMOVETHEBELTGUARD.
•
LOOSEN THE ENGINE BRACE.
• LOOSEN THE 4 FASTENERS HOLDING THE
ENGINE TOTHEBASEPLATE.
• SHIFT THE MOTOR TO PROPERLY ALIGN
BELT. LAY A STRAIGHT EDGE AGAINST
THE FACE OF THE FLYWHEEL,TOUCHING
THERIMINTWOPLACES(SEE
BELOW).
• ADJUSTTHE MOTOR ORTHE FLYWHEEL
UNTILTHE BELT RUNS PARALLEL TO THE
STRAIGHT EDGE.
• USEAGEARPULLERTOMOVETHEPULLEY
ONTHE SHAFTANDTIGHTENTHE
FASTENERS.
•
ADJUST THE BRACE AND REINSTALL.
• STORAGE. DRAIN TANKS. DISCONNECT HOSE
AND
HANG WITH OPEN END DOWN TO
ALLOW MOISTURE TODRAIN.
• STOREINACOOL,DRYPLACE.

www.volt-equipment.com Page 10
TROUBLESHOOTING
ENGINE
PROBLEM
CAUSE
SOLUTION
Engine will not start or Engine
starts but runs rough.
1.) Ignition switch or On/Off
switch is turned off
2.) Battery is dead (electric
Start only!)
3.) Fuel valve is turned off
4.) Out of fuel
5.) Water in fuel
6.) Stale Fuel
7.)
Carburetor is clogged or
float is stuck closed
8.)
Throttle lever is in slow
position
9.) Not enough speed or force
for recoil start
10.)Dirty air cleaner
11.)Low oil level
12.)Possible fouled spark plug
or faulty ignition system
13.)Engine has lost
compression
1.) Turn ignition switch or
on/off switch on
2.) Charge or replace battery
3.) Turn fuel valve on
4.) Fill fuel tank
5.) Drain fuel tank into an
approved container and
refill with fresh fuel
6.) (see #5 above)
7.) Have carburetor cleaned by
a service dealer
8.) Move throttle lever toward
engine (left) to increase
RPM’s
9.) Read and follow starting
instructions
10.)Replace or clean air filter
11.)Add oil to proper level
12.)Check spark plug for spark
13.)Contact customer service at
1-888-207-8658
Engine shuts down during
operation
1.) Out of fuel
2.) Low oil level
3.) Debris in carburetor
4.) Possible faulty ignition
system or spark plug
5.) Fault in engine
1.) Fill fuel tank
2.) Add oil to proper level
3.) Have carburetor cleaned by
service dealer
4.) Check spark plug for spark
5.) Contact customer service at
1-888-207-8658

www.volt-equipment.com Page 11
COMPRESSOR PUMP
Problem
Cause
Solution
Low Discharge Pressure
1.) Air leaks
2.) Leaking valves
3.) Restricted air intake
4.) Slipping belt
5.) Blown head or seals in
pump
6.) Regulator/unloader valve
needs adjusting
7.) Low compression
1.) Listen for escaping air. Apply
soap solution to fittings to see
if the bubbles appear
2.) Replace ACM or
regulator/unloader valve
3.) Clean the air filter element
4.) Remove belt guard and
tighten belt (see pg. 8)
5.) Replace V pump (no rebuild
kits)
6.) Adjust regulator/unloader
valve
7.) Replace pump (no rebuild kit)
Contact customer service at
1-888-207-8658
Pump is Overheating
1.) Poor ventilation
2.) Dirty cooling surfaces
3.) Blown cylinder head on
pump
4.) Low oil in pump
1.) Move compressor to a well-
ventilated area
2.) Clean all cooling surfaces
including air filers on engine
and pump
3.) Both pump heads should be
pulling air in to cool pump. If
one or both heads are
blowing air out, pump must
be replaced
4.) Check oil level thru site glass
at base of pump. Add oil as
needed. Use SAE 30 in
compressor pump
Excessive Belt Wear
1.) Pulley is out of alignment
2.) Belt too loose or too tight
3.) Pulley wobbles
1.) Re-align pulley
2.) Adjust belt tension (see pg. 8)
Check belt for wear. Replace
belt if needed
3.) Check for worn or bent
crankshaft, worn or loose
keyway. Check shaft bore in
pulley for wear
Unit Stalls
1.) Low Oil levels
2.) Engine shuts down when
tank pressure reaches
maximum capacity
1.) Check oil level in engine and
pump. (use SAE 30 oil in
pump and engine)
2.) Throttle control needs to be
adjusted to higher RPM.

VOLT EQUIPMENT
128 Milport Circle Suite 101
Greenville SC 29607
Customer Service: 1-888-207-VOLT
[email protected]
FEATURES
Kohler CH270
Gasoline Engine
Pressure Regulated Tank
Low Oil Shutdown
8 Gallon Twin Tank
SPECIFICATIONS
•CFM – 12 @ 100 PSI
•Engine HP – 7.0Hp
•CC’s – 208cc
•RPM – 3850 +/- 150
•Oil Capacity – 20oz ( 0.6 US qt )
•Oil Weight – 10w-30
•Start Type – Manual Start
•Fuel Capacity – 1 Gallon
•Fuel Type – 86+ Octane Gasoline
•Shutdown – Toggle Switch/ Low Oil Shutdown
•Size L-44″, W-19.5″, H-25″
•Net Weight 160 Lbs
FOR ENGINE SERVICE MANUAL VISIT
WWW.KOHLERPOWER.COM
MODEL:VK2TA
Twin Tank Air Compressor

VOLT EQUIPMENT
128 Milport Circle Suite 101
Greenville SC 29607
Customer Service: 1-888-207-VOLT
[email protected]
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

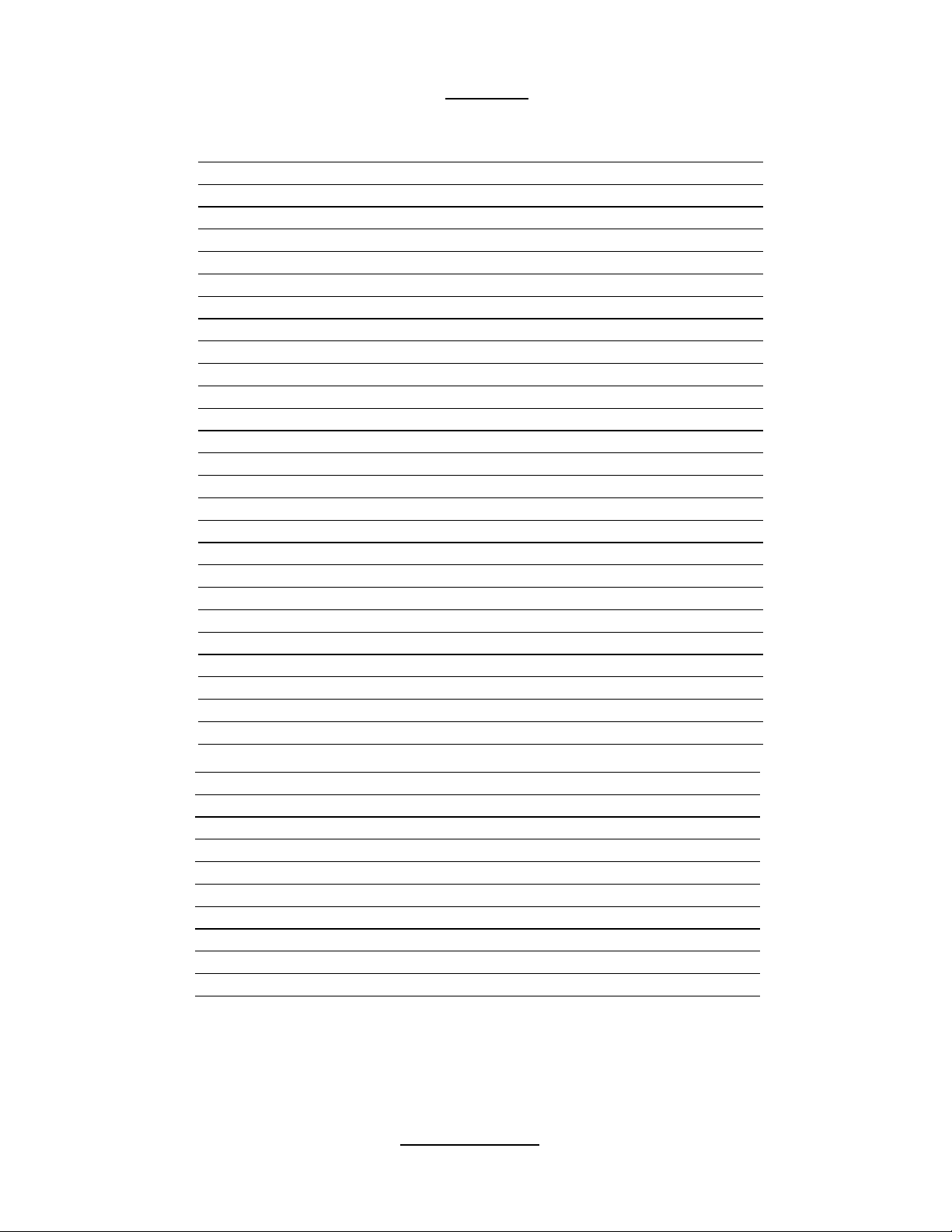

Notes
-
-
-
-
-
-
-
-
-
-

-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Notes
-
-
-
-
-
-
-
-
-
-
VOLT EQUIPMENT
128 Milport Circle Suite 101
Greenville SC 29607
Customer Service: 1-888-207-VOLT
[email protected]
