Notice to Owner: Your Volvo has been built to comply with all North American safety and anti-
pollution regulations and evidence of this can be verified from the certification labels attached to the
door opening sheet metal and on the left wheel housing in the engine compartment. For further
information regarding these regulations, please talk to your local dealer.
Contents
(Index see page 91)
DESCRIPTION Page
Introduction 2
Keys 3
Instruments and controls 4
Instruments 6
Warning lights 7
Ignition switch, parking brake 8
Lighting 9
Turn Signals 10
Wipers 11
Clock, cigarette lighter, ash tray, electrically operated window winder 12
Tail gate window wiper, electrically heated rear window, hazard warning flasher 13
Heating and ventilation 14
Air conditioning 16
Front seats 18
Seat belts 20
Doors and locks 22
Rear doors, trunk lid 23
Hood 24
Vent windows, rear view mirrors 25
file:///K|/ownersdocs/1977/1977_262_264_265/77262264265_00.htm (1 of 4)12/22/2006 10:08:25 PM

1977 Volvo 262 264 265
Interior light, sun roof, fuel tank cap 26
Rear seat, model 265 27
Tail gate, model 265 28
START AND DRIVING
Breaking in 31
Starting the engine 32
Gear shift positions 33
Automatic transmission 34
Emergency towing 36
Trailer hauling 38
Note 39
MAINTENANCE SERVICE
Maintenance services 41
Gas station checks 42
Engine compartment 43
Maintenance schedule 44
Engine oil 48
Cooling system 49
Emission control system 50
Transmission oils 56
Rear axle, power steering, brake fluid 57
Lubrication 58
Coolant 59
Note: alternator 60
Replacing bulbs 60
Fuses 64
Wheels and tires 65
Wheel changing 66
Washing, cleaning 68
Cleaning, anti-rust treatment 69
Paint touch-up 70
Long distance trips 72
Cold weather 73
file:///K|/ownersdocs/1977/1977_262_264_265/77262264265_00.htm (2 of 4)12/22/2006 10:08:25 PM

1977 Volvo 262 264 265
Service diagnosis 75
Specifications 80
Consumer Information 86
Index 91
pg. 2 General Information
Before moving from one country or state to another it is recommended to check with the Department of
Motor Vehicles as emissions and other vehicle regulations may be different.
pg. 3 Keys
file:///K|/ownersdocs/1977/1977_262_264_265/77262264265_00.htm (3 of 4)12/22/2006 10:08:25 PM

1977 Volvo 262 264 265
Write the key number codes in the spaces designated for this purpose on the second page of the cover. In
the event the original keys are lost, duplicates may be ordered from your Volvo dealer.
Top of Page
file:///K|/ownersdocs/1977/1977_262_264_265/77262264265_00.htm (4 of 4)12/22/2006 10:08:25 PM

1977 Volvo 262 264 265
1 9 7 7
VOLVO
262 264 265
pg. 4 Instruments and controls
pg. 5 Instruments and controls

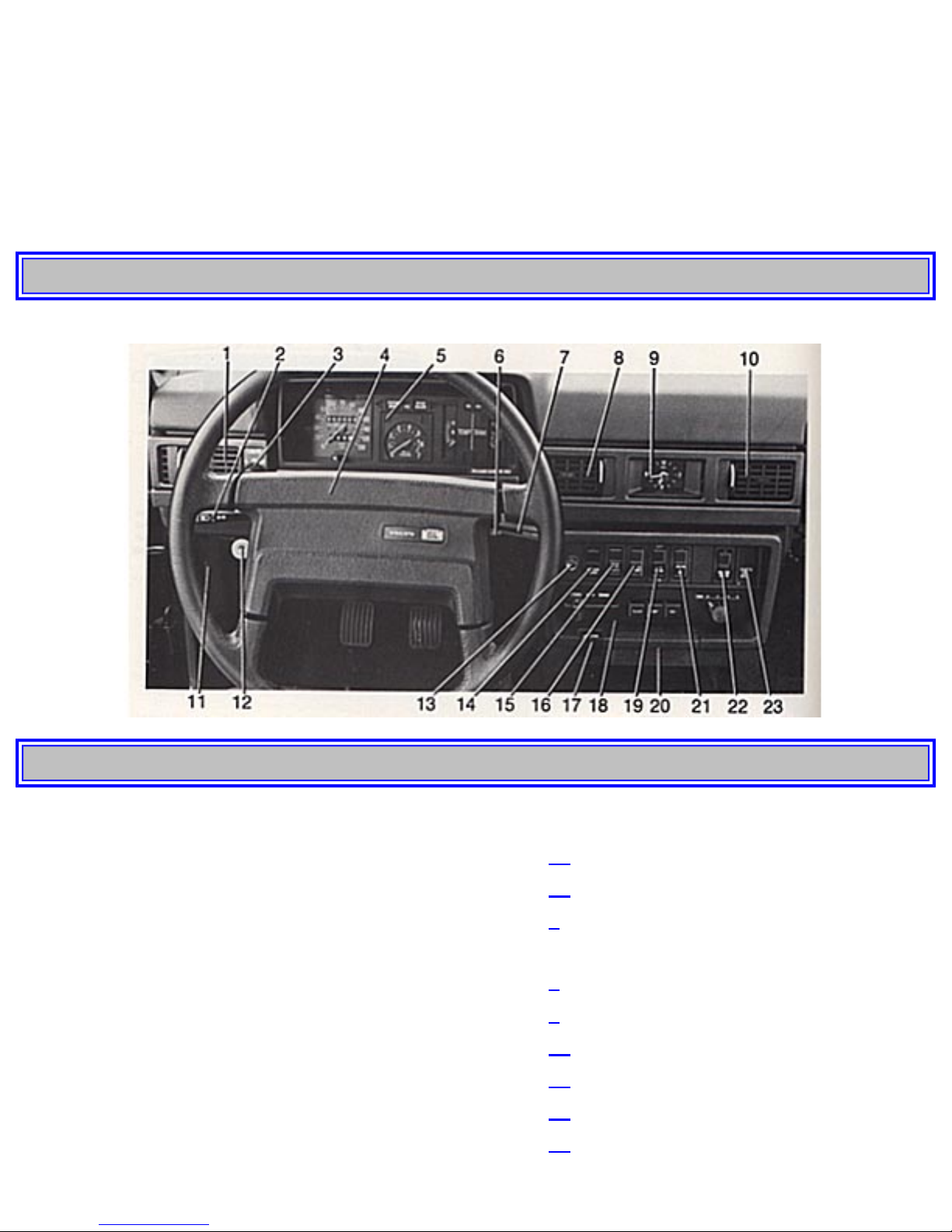

See page
1 Fresh air outlet15
2 Turn signals10
3 Headlights, parking lights9
4 Horn-
5 Instruments6
6 Ignition switch/steering, wheel lock8
7 Wiper washer11
8 Fresh air outlet15
9 Clock12
10 Fresh air outlet15
file:///K|/ownersdocs/1977/1977_262_264_265/77262264265_01a.htm (1 of 14)12/22/2006 10:08:26 PM

1977 Volvo 262 264 265
11 Fuse box64
12 Hood release handle24
13 Instrument lights9
14 Electrically operated window winder, left front door12
15 Tail gate window wiper (265)13
16 Electrically heated rear window13
17 Cigarette lighter12
18 Heating and ventilation14
19 Air conditioning16
20 Ash tray12
21 Hazard warning flasher13
22 Electrically operated window winder, right front
door12
23 Seat belt reminder light20
Pages 6-29 will give you a detailed description of the vehicle's instruments and controls.
Note that vehicles may be differently equipped, depending on special legal requirements, etc.
pg. 6 Instruments
A Odometer
Total mileage reading.
B Speedometer
C Left turn signal indicator (green)
D Parking brake reminder light (red)
E High beam indicator (blue)
F Brake failure warning light (red)
G Right turn signal indicator (green)
H Oil pressure warning light (red)
I Alternator warning light (red)
file:///K|/ownersdocs/1977/1977_262_264_265/77262264265_01a.htm (2 of 14)12/22/2006 10:08:26 PM

1977 Volvo 262 264 265
J Trip odometer
(last figure represents 1/10 mile/km)
K Trip odometer reset knob
Push in to reset
L Reminder light, EGR Service
M Tachometer (certain models)
Reads thousands of engine rpm.
Orange range for momentary use, during acceleration.
Red prohibited range.
N Bulb failure warning light (yellow)
O Temperature gauge
The gauge pointer should normally remain inside the black range during normal operation.
If the pointer enters the red range repeatedly, check coolant level and fan belt tension, see page 49 and
59.
P Overdrive indicator light (green)
Lights when overdrive is engaged.
R Fuel gauge
The fuel tank capacity is approx. 60 liters = 15.8 US gals/13.2 Imp. gals.
F Full
1/2
R Reserve
O Empty
The red range from R to O represents approx. 8 liters = 2.5 US gals. 1.2 Imp. gals.
file:///K|/ownersdocs/1977/1977_262_264_265/77262264265_01a.htm (3 of 14)12/22/2006 10:08:26 PM

1977 Volvo 262 264 265
pg. 7 Warning lights
The warning lights described on this page should never be on
when driving
When the ignition key is turned on, and before the engine starts, all of the warning lights should be on to
test the function of the bulbs. Should a light not go off after the engine has started, the system indicated
should be inspected. (However, the parking brake reminder light will not go off until the parking brake
is fully released.)
D Parking brake reminder light (red)
This light will be on when the parking brake (hand brake) is applied. The parking brake lever is situated
between the front seats.
F Brake failure warning light (red)
If the light comes on while driving and the brake pedal can be depressed further than normal, it is an
indication that one of the brake circuits is not functioning. Proceed cautiously to a Volvo dealer for an
inspection of the brake system.
H Oil pressure warning light (red)
If the light comes on during driving, the oil pressure is too low. Stop the engine immediately and check
the engine oil level. See page 48.
After hard driving, the light will come on occasionally when the engine is idling. This is normal,
provided it goes off when the engine speed is increased.
I Alternator warning light (red)
If the light comes on while the engine is running, check the tension of the alternator drive belt as soon as
possible. See page 49.
NOTE:
This warning light is illuminated if the alternator is not charging. However, control lights parking
brake, brake failure, EGR, and bulb failure will be illuminated at the same time due to the design
of the system.
file:///K|/ownersdocs/1977/1977_262_264_265/77262264265_01a.htm (4 of 14)12/22/2006 10:08:26 PM

1977 Volvo 262 264 265
L EGR service reminder light (red)
If the vehicle is equipped with exhaust gas recirculation, this light will come on at 15,000 mile intervals,
as required by U.S. Environmental Protection Agency. This is a reminder to have the EGR valve
serviced. The light will stay on until reset by servicing dealer.
N Bulb failure warning light (yellow)
The light will come on if any of the following bulbs are defective:
one of the lower beams
one of the tail lights
one of the license plate lights
one of the brake lights (when the brake pedal is depressed).
Bulb replacement, see pages 60-63.
pg. 8 Ignition switch, parking brake
Ignition switch/steering wheel lock

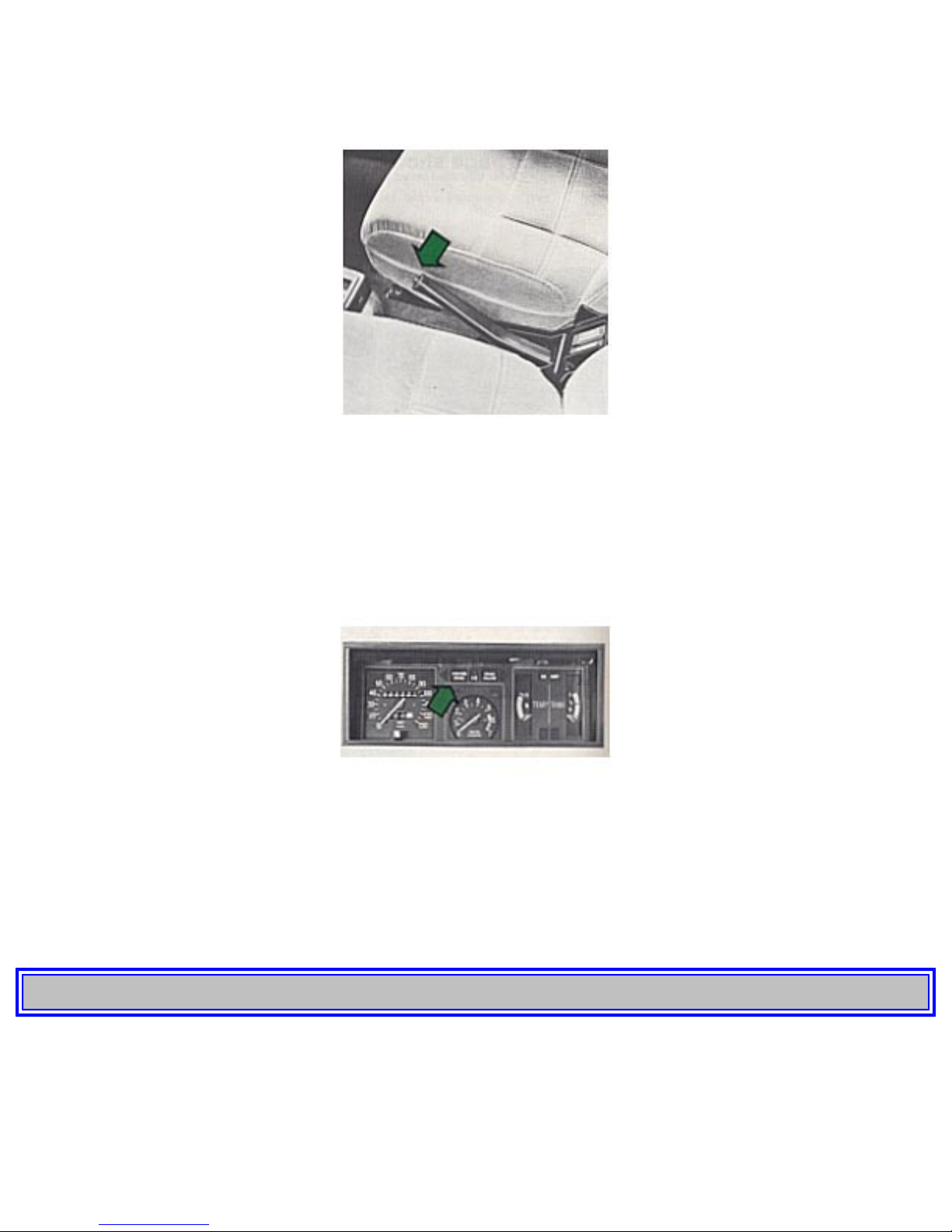

The steering wheel lock might be under tension when the car is parked. Turn the steering wheel slightly
to free the ignition key.
A buzzer will sound if the ignition key is in the ignition lock and the front door on the driver's side is
file:///K|/ownersdocs/1977/1977_262_264_265/77262264265_01a.htm (5 of 14)12/22/2006 10:08:26 PM

1977 Volvo 262 264 265
open.
The buzzer goes off when the front door is closed.
Parking brake (hand brake)
The lever is situated between the front seats. The brake is applied to the rear wheels.
Parking brake reminder light
The reminder light PARKING BRAKE on the instrument panel comes on whenever the parking brake
lever is not fully released and the ignition is on.
pg. 9 Lighting
file:///K|/ownersdocs/1977/1977_262_264_265/77262264265_01a.htm (6 of 14)12/22/2006 10:08:26 PM

1977 Volvo 262 264 265
Headlights and parking lights
All lights off
Parking lights on
Headlights and parking lights on
Switch from upper to lower beams, and vice versa, by moving the turn signal switch lever on the left
side of the steering column towards the steering wheel. The lights can be used without switching on the
ignition key.
Instrument light rheostat
Clockwise - brighter
Counterclockwise - dimmer.
file:///K|/ownersdocs/1977/1977_262_264_265/77262264265_01a.htm (7 of 14)12/22/2006 10:08:26 PM

1977 Volvo 262 264 265
pg. 10 Turn signals
Turn signals

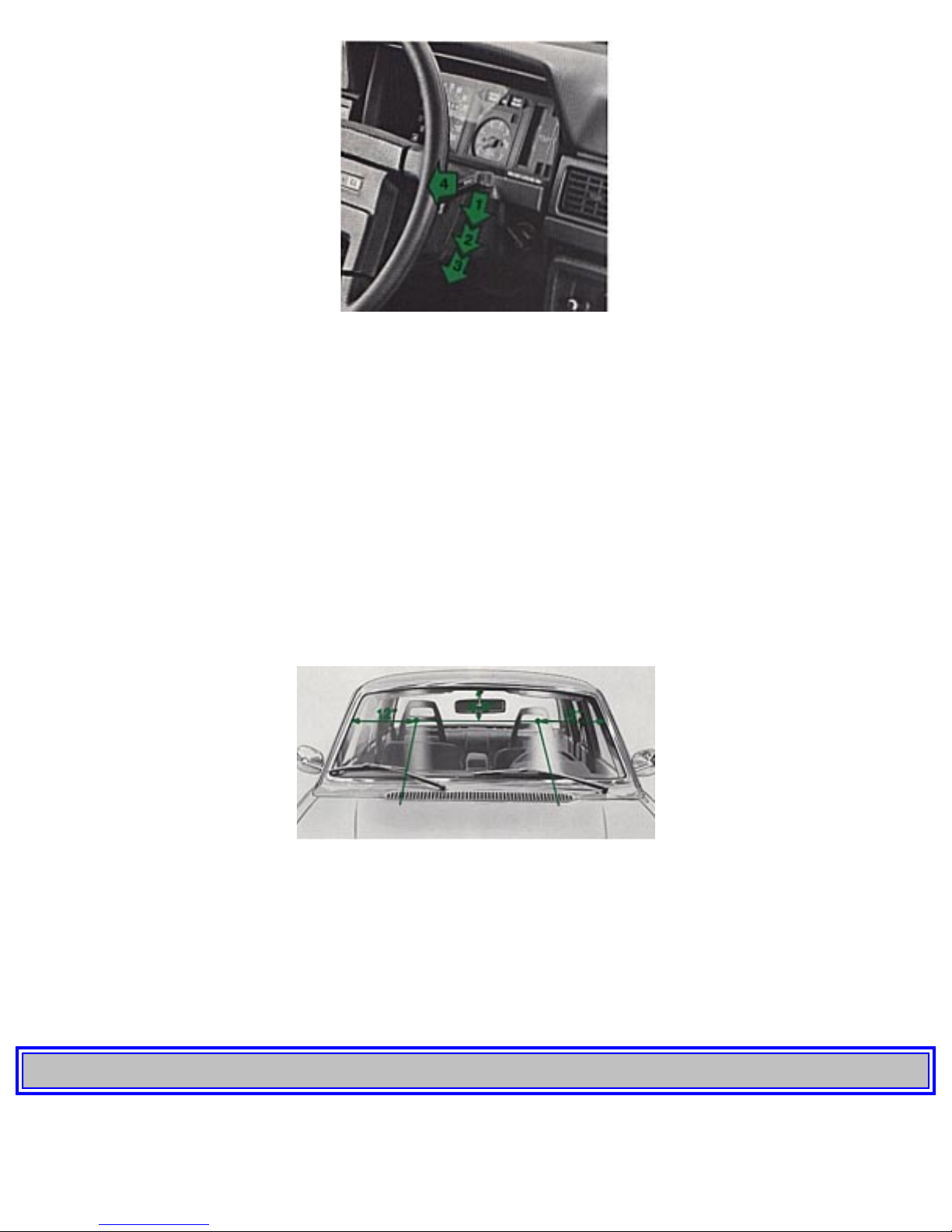

1 Signal lever engaged for normal turns.
2 Lane change position. In maneuvers such as lane changing, the driver can flash the turn signals by
moving the turn signal lever to the first stop and holding it there. The lever will return to the neutral
position when released.
3 High and low beam switching (headlights on).
Move the lever towards the steering wheel and release it.
3 Headlight flasher (headlights off).
Move the lever towards the steering wheel. The headlight high beam will be on until the lever is
released.
pg. 11 Wipers
file:///K|/ownersdocs/1977/1977_262_264_265/77262264265_01a.htm (8 of 14)12/22/2006 10:08:26 PM

1977 Volvo 262 264 265
Wiper/washer
1 "Single stroke" position.
Switch returns automatically when released.
2 Wipers, low speed
3 Wipers, high speed
4 Washer
Adjusting washer nozzles
The nozzles may be adjusted by inserting a needle into the metal insert and rotating nozzle.
The washer fluid reservoir is located in the engine compartment and holds approx. 6 liters = 1.6 US
gals/1.3 Imp. gals.
pg. 12 Clock, cigarette lighter, ash tray
file:///K|/ownersdocs/1977/1977_262_264_265/77262264265_01a.htm (9 of 14)12/22/2006 10:08:26 PM

1977 Volvo 262 264 265
Clock
To reset the hands, push in the reset knob and turn.
Cigarette lighter
To operate, depress the knob fully. When the knob automatically releases, the cigarette lighter is ready
for use.
Ash trays
To remove the ash trays depress the center spring and remove.
file:///K|/ownersdocs/1977/1977_262_264_265/77262264265_01a.htm (10 of 14)12/22/2006 10:08:26 PM

1977 Volvo 262 264 265

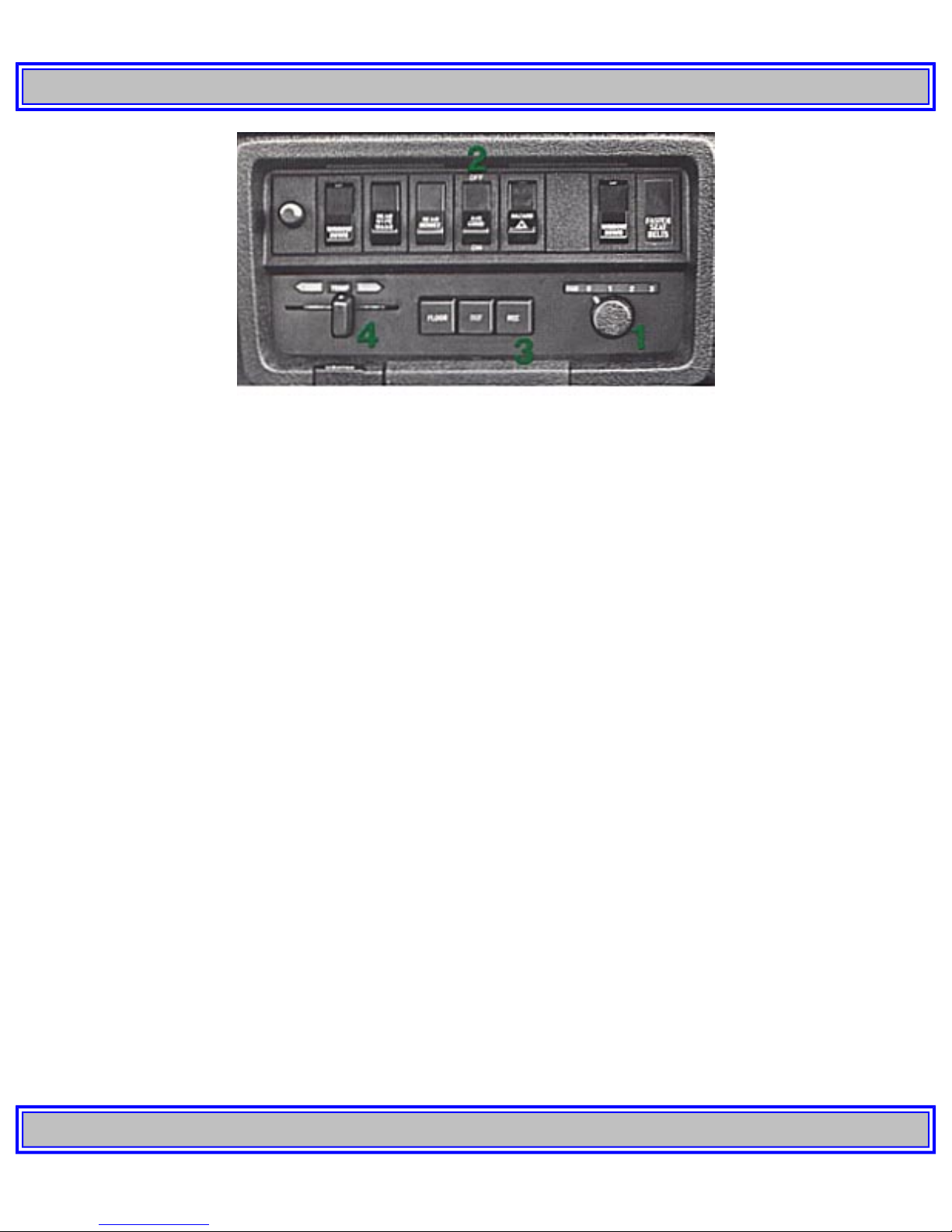

1 Electrically operated window winder (Grand Luxe)
0 Off
1 Window down
2 Window up
pg. 13 Tail gate window wiper, el. heated rear window, hazard warning flasher
2 Tail gate window wiper/washer (model 265)
0 Off
1 Wiper and washer combined operating.
Move the lever to the first stop and hold it there.
file:///K|/ownersdocs/1977/1977_262_264_265/77262264265_01a.htm (11 of 14)12/22/2006 10:08:26 PM

1977 Volvo 262 264 265
2 Tail gate wiper only.
The fluid reservoir is located in the concealed storage area under the floor on the right side of the rear
cargo area. Reservoir capacity is approx. 1.5 qts.
3 Electrically heated rear window
0 Off
1 On
Switch off the heated rear window when the glass is clear of mist or frost. Otherwise the battery will be
unduly strained.
Do not place items against the inner surface of the rear window that may damage the printed circuit. Do
not scrape the inner surface of the rear window glass with a hard object, otherwise damage to the printed
circuit will occur.
4 Hazard warning flasher
0 Off
1 On
Four way flashing indicates that the vehicle has become a traffic hazard either during daylight or at
night.
Note: Regulations regarding the use of the hazard warning flasher may vary from state to state.
pg. 14 Heating and ventilation
file:///K|/ownersdocs/1977/1977_262_264_265/77262264265_01a.htm (12 of 14)12/22/2006 10:08:26 PM

1977 Volvo 262 264 265
Heating system
1 TEMP
Left = cool
Right = warm
2 FLOOR
Out = no air to floor
In = full flow of air to floor
3 DEF (Defrost)
Out = low volume air flow to defroster
In = full flow
4 REC (recirculation)
To be used only for cars equipped with air conditioning.
Do not use for heating.
5 FAN (Blower motor)
0 = off
1 = low speed
2 = medium speed
3 = high speed

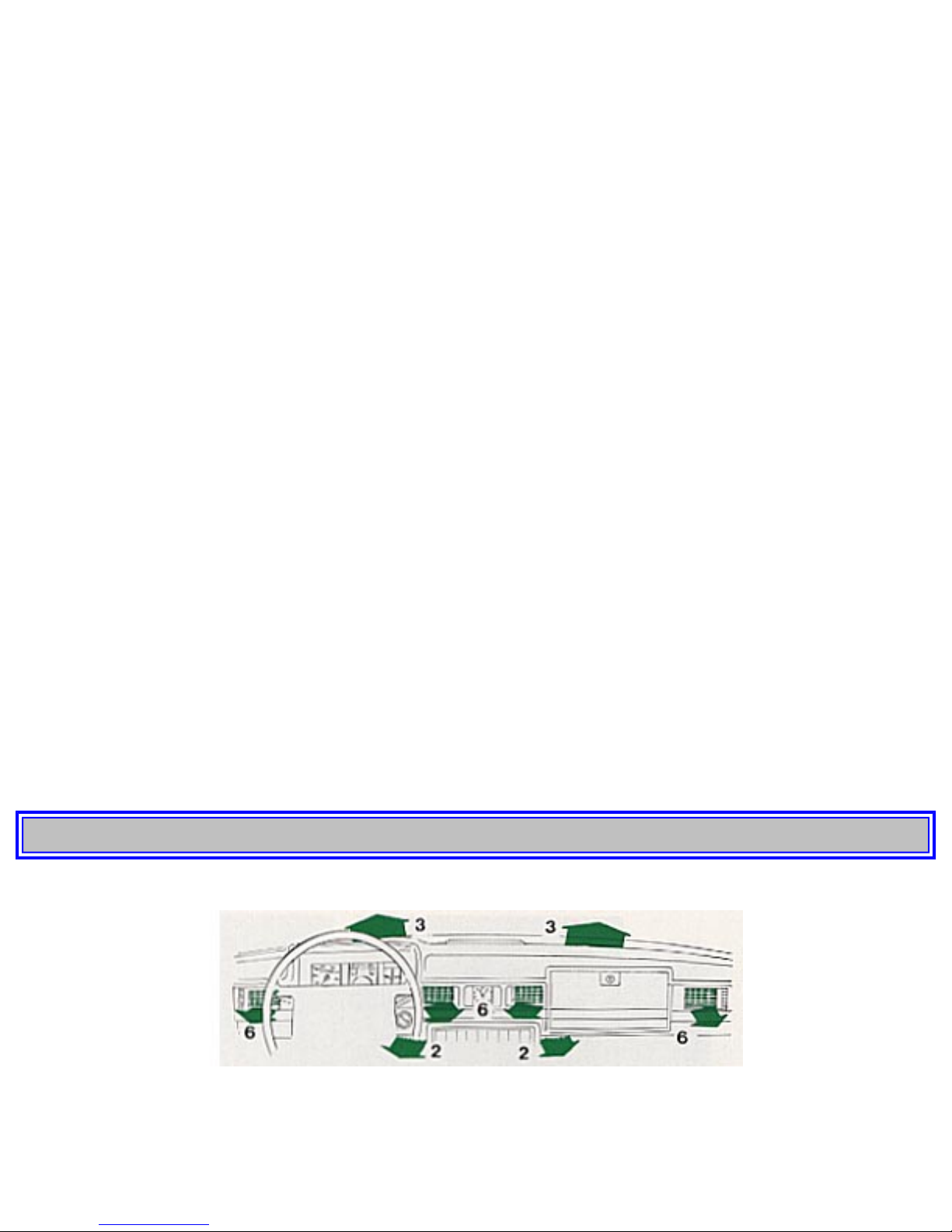

6 Ventilation outlets
The air flow through the ventilation outlets is not influenced by the position of the FLOOR (2) and DEF
(3) controls.
pg. 15 Heating and ventilation
How to . . .
. . . obtain max. heat
1 TEMP >>> WARM
file:///K|/ownersdocs/1977/1977_262_264_265/77262264265_01a.htm (13 of 14)12/22/2006 10:08:26 PM

1977 Volvo 262 264 265
2 FLOOR depressed
5 FAN >>> 2(or 3)
6 All outlets halfway open
. . . remove condensation
1 TEMP >>>WARM
3 DEF depressed
5 FAN >>> 2 (or 3)
Always keep front external inlet grille (in front of the windshield) clear of obstructions (snow, ice, etc.).

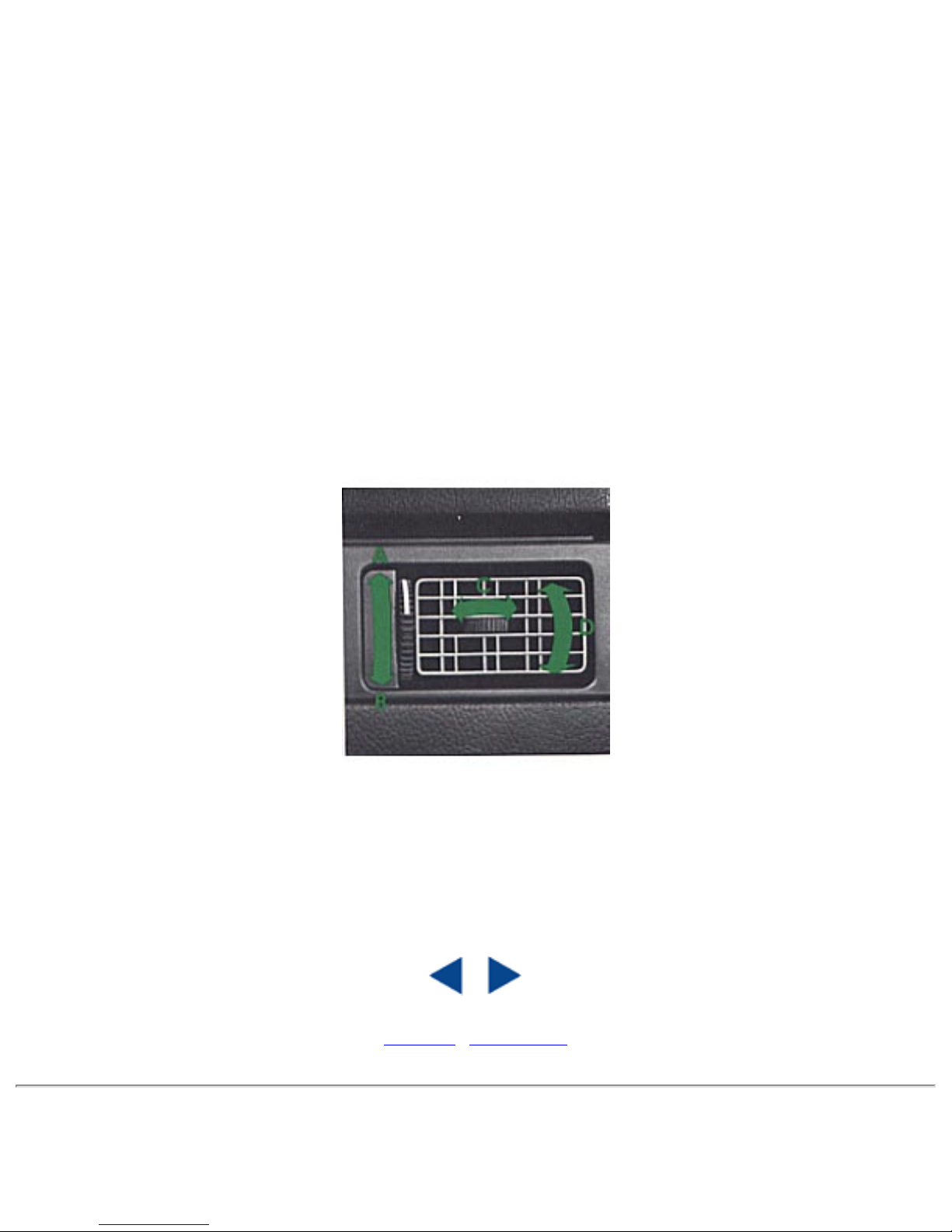

Fresh air outlets
A Closed
B Open
C Directing air flow horizontally
D Directing air flow vertically
Contents | Top of Page
file:///K|/ownersdocs/1977/1977_262_264_265/77262264265_01a.htm (14 of 14)12/22/2006 10:08:26 PM

1977 Volvo 262 264 265
pg. 16 Air conditioning
Air conditioning
How to use the air conditioner:
1 FAN
Position 3 for rapid cooling.
The A/C does not operate unless FAN is on.
2 AIR COND
Push in the button to start the compressor.
3 REC (Recirculation)
Push in for rapid cooling.
4 TEMP
Rotate to COOL for rapid cooling, then set to desired temperature.
To obtain rapid cooling, all windows must be closed and buttons FLOOR and DEF out.
All the air will then be discharged through the four dash outlets which should be fully open.
Note: For rapid removal of condensation from inside glass surfaces, the air conditioner can be switched
on even when not required for interior cooling. The air conditioner will dehumidify the air inside the
vehicle.
Have your Volvo dealer check the system for correct operation yearly.
pg. 17
file:///K|/ownersdocs/1977/1977_262_264_265/77262264265_01b.htm (1 of 15)12/22/2006 10:08:27 PM

1977 Volvo 262 264 265
This page left intentionally blank.

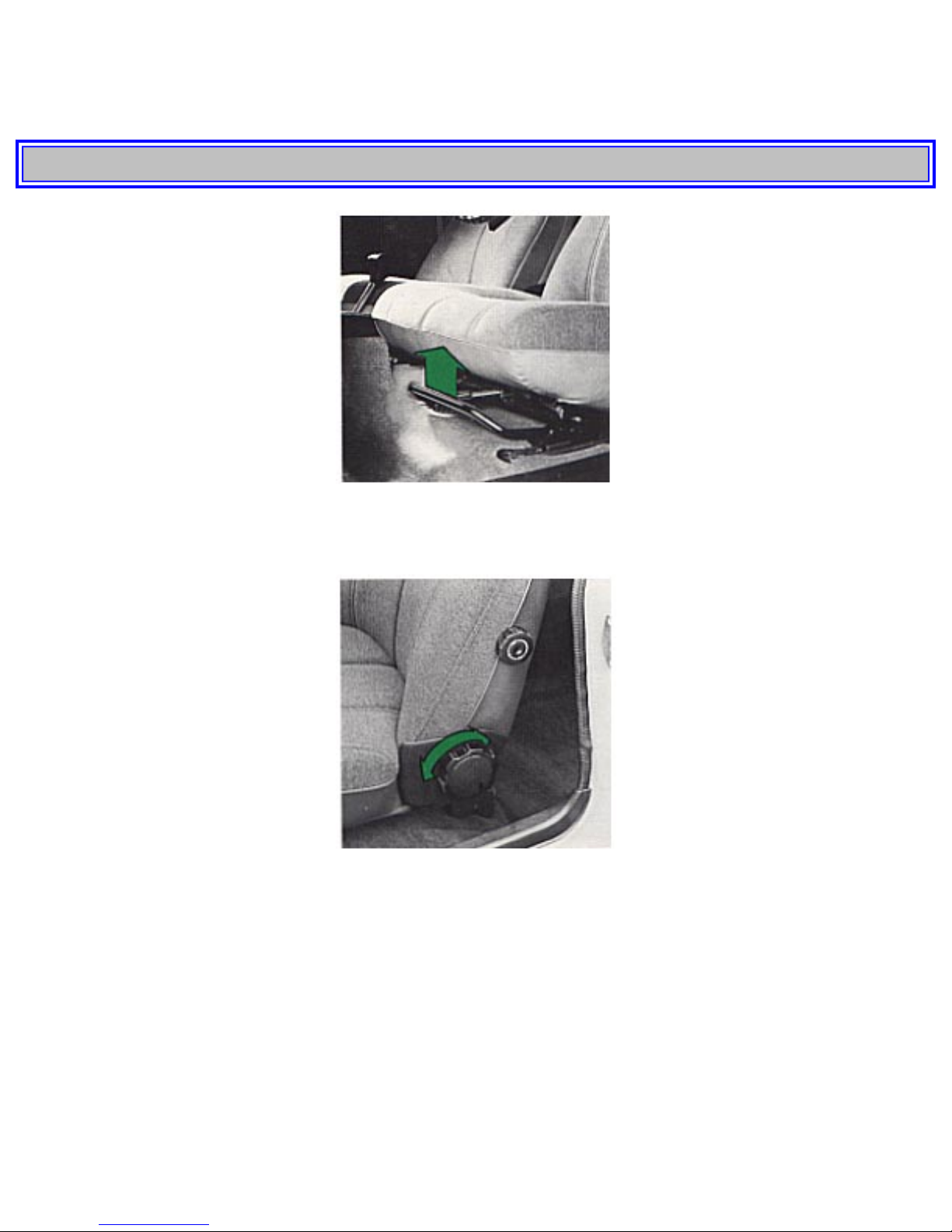

pg. 18 Front seats
Horizontal seat adjustment
Seat inclination adjustment
file:///K|/ownersdocs/1977/1977_262_264_265/77262264265_01b.htm (2 of 15)12/22/2006 10:08:27 PM
