Volvo S40 - ANNEXE 244 Quick start guide

2007
VOLVO
WIRINGDIAGRAM S40(04-)/V50/C70(06-)
TP 3999202

© Volvo Car Corporation
Vehicles with SRS (Airbag)/SIPS bag/
IC (Inflatable Curtain)
Warning!
Extra caution must be exercised when working on vehicles equipped with SRS/SIPS bag/IC
in order to avoid:
1. Personal injuries when performing repair work.
2. Damage or malfunction of the SRS/SIPS bag/IC system.
Work involving the SRS/SIPS bag/IC systems or other components in the vehicle that may
affect the SRS/SIPS bag/IC systems must always be performed by an authorized Volvo
workshop.
In case of doubt, consult the SRS and SIPS bag/IC service manual.
Is the vehicle equipped with SRS/SIPS bag/IC?
Vehicles with SRS are most easily recognized by the letters SRS in the center of the steering
wheel. If the vehicle also has a passenger side airbag, the letters SRS are stamped on the
dashboard above the glove compartment. SRS vehicles from 1993 and onward also have
explosive seat belt tensioners. SIPS bags are only installed on SRS vehicles from 1995 and
onward. SIPS bag decals are located on the windshield and seat compartment. Vehicles with
IC can be recognized by the letters IC on the C/D panel (4 door) or the B panel (5 door).
General recommendations
• Be especially careful when working on or around SRS, SIPS, and IC components.
• Make sure that no wires are pinched, frayed, or pierced.
• Never install accessories by the sensors.
• Where applicable, work on the steering wheel, steering shaft, or steering gear must be done
in accordance with the methods in the SRS section of VIDA.
• Certain components of the aforementioned systems must be grounded while working. Read
the appropriate sections in VIDA.
• Install no accessories in the areas between the A and B posts, the B and C posts, and the C
and D posts.
Test terminal
Data link connector in the passenger compartment.
Changes introduced up to April 2006
Any changes made to the vehicles after this date are not included in the
manual. If necessary refer to service bulletins.
Volvo models are sold in versions adapted for different markets. These
adaptations depend on factors such as legal requirements, taxation, and
market demands.
This manual may therefore include illustrations and text that do not apply to
the vehicles in your country.
Order number TP 3999202
Replaces previous publication 3999201 at Electronic Wiring Diagram (EWD)
TP 39101001
Also available at Electronic Wiring Diagram (EWD) TP 39102001
We retain the right to make modifications.

TP 3999202 S40 (04-)/V50/C70 (06-) 2007 3
Vehicles with SRS (Airbag)/SIPS bag/
IC (Inflatable Curtain)..................................................... 2
Abbreviations................................................................. 7
How to use the wiring diagrams 1:2............................... 8
Electrical distribution 1:2.............................................. 10
Fuses
Engine compartment distribution box F1-F10...............12
Engine compartment distribution box F11-F18.............13
Engine compartment distribution box F20-F31.............14
Engine compartment distribution box F32-F34.............15
Engine compartment distribution box F35-FH1............16
Central Electronic Module (CEM) F43-F49...................17
Central Electronic Module (CEM) F51-F63...................18
Central Electronic Module (CEM) F64-F74...................19
Central Electronic Module (CEM) F77-F86...................20
Battery PF1-PF2...........................................................21
Relays
Ignition switch and relays............................................. 22
Distribution box in engine compartment R2-R14......... 23
Central Electronic Module (CEM) R15-R18................. 24
Central Electronic Module (CEM) R1-R11B ................ 25
Other relays................................................................. 26
Ground connections
Overview...................................................................... 27
31/3 - 31/10 ................................................................. 28
31/11 - 31/52 ............................................................... 29
31/66 - 31/67 ............................................................... 30
31/80 - 31/107 ............................................................. 31
31/110 - 31/116 ........................................................... 32
31/117 - Ground connections in chassis...................... 33
Control modules
Overview of locations................................................... 34
Overview of designations............................................. 35
Central Electronic Module (CEM) 1:2 ........................ 36
Data communication, Low speed CAN 1:2 ................ 38
Data communication, High speed CAN ..................... 40
Data communication, MOST S40/V50 ...................... 41
Data communication, MOST C70................................ 42
Data communication, LIN 1:2 .................................... 43
Start Control Module (SCU) ....................................... 45
Accessory Electronic Module (AEM) ......................... 46
Group 23 Fuel system
Engine management system Diesel, 5-cyl. 2.4l 1:3..... 47
Engine management system, 4-cyl. 1.6l 1:2................ 50
Engine management system, 4-cyl. 1.8l & 2.0l 1:2...... 52
Engine management system, 5-cyl. 1:2....................... 54
Engine management system, 5-cyl. Turbo 1:2 ............ 56
Engine management system Diesel, 4-cyl. 1.6l 1:2..... 58
Engine management system Diesel, 4-cyl. 2.0l 1:2..... 60
Emission control, 4-cyl. 1.6l......................................... 62
Emission control, 4-cyl. 1.8l & 2.0l............................... 63
Emission control, 5-cyl................................................. 64
Emission control, 5-cyl. Turbo...................................... 65
Group 26 Cooling system
Cooling fan................................................................... 66
Cooling fan Diesel........................................................ 67
Group 27 Engine control
Cruise control, 4-cyl......................................................68
Cruise control, 5-cyl......................................................69
Group 32 Alternator and voltage regulator
Power supply, 4-cyl...................................................... 70
Power supply, 5-cyl...................................................... 71
Group 33 Starting system
Starting system, 4-cyl................................................... 72
Starting system, 5-cyl................................................... 73
Starting system, 5-cyl. Diesel....................................... 74
Group 35 Lighting
Follow-me-home lighting.............................................. 75
High and low beam...................................................... 76
High and low beam (Bi-Xenon).................................... 77
Manual beam length adjustment.................................. 78
Automatic beam length adjustment (Bi-Xenon) ........... 79
Position/Parking lights, Tail lights S40/V50 ................. 80
Position/Parking lights, Tail lights (Bi-Xenon)
S40/V50 ...................................................................... 81
Position/Parking lights, Tail lights C70......................... 82
Position/Parking lights, Tail lights (Bi-Xenon) C70....... 83
Fog lights S40/V50 ...................................................... 84
Fog lights C70.............................................................. 85
Fog lights LHD, Japan S40/V50................................... 86
Fog lights LHD, Japan C70.......................................... 87
Brake lights S40/V50 ................................................... 88
Brake lights C70 .......................................................... 89
Reversing lights S40/V50............................................. 90
Reversing lights C70.................................................... 91
Interior lighting S40/V50 1:2 ........................................ 92
Interior lighting C70 1:2................................................ 94
Instrument and control illumination.............................. 96
Auxiliary lights.............................................................. 97
Table of Contents 1:3

TP 3999202 S40 (04-)/V50/C70 (06-) 2007 4
Group 36 Additional electrical equipment
Direction indicators and hazard warning flashers
S40/V50 ...................................................................... 98
Direction indicators and hazard warning flashers
(Bi-Xenon) S40/V50 .................................................... 99
Direction indicators and hazard warning flashers
C70 ...................................................................... 100
Direction indicators and hazard warning flashers
(Bi-Xenon) C70 ......................................................... 101
Windshield wiper/washer........................................... 102
Headlight washer....................................................... 103
Rear window wiper/washer V50 ................................ 104
Rain sensor................................................................ 105
Horn ...................................................................... 106
Immobilizer/Steering column lock module (SCL) ...... 107
Keyless vehicle S40/V50 1:2..................................... 108
Keyless vehicle C70 1:2 ............................................ 110
Rear parking assistance............................................ 112
Front parking assistance............................................ 113
Anti-theft alarm S40/V50............................................ 114
Anti-theft alarm C70................................................... 115
Accessory Electronic Module (AEM) ......................... 116
Group 37 Wiring and fuses
12V outlet S40/V50.................................................... 117
12V outlet C70........................................................... 118
Diagnostics system.................................................... 119
Tow hitch cable harness, 4-pin.................................. 120
Tow hitch cable harness, 7-pin.................................. 121
Tow hitch cable harness, 13-pin ............................... 122
Group 38 Instruments
Driver information module.......................................... 123
Seat belt reminder S40/V50....................................... 124
Seat belt reminder C70.............................................. 125
Group 39 Other
Audio S40/V50 1:2..................................................... 126
Audio C70 1:2............................................................ 128
Audio High Performance/Premium Sound
S40/V50 1:2............................................................... 130
Audio High Performance/Premium Sound C70 1:2... 132
Cellular phone 1:2...................................................... 134
Satellite radio............................................................. 136
Multimedia & Traffic information .............................. 137
Turn by Turn navigation, Audio.................................. 138
Turn by Turn navigation, Audio High Performance/
Premium Sound......................................................... 139
Handsfree Universal, Audio....................................... 140
Handsfree Universal, Audio High Performance/
Premium Sound......................................................... 141
Handsfree Max with Adapter...................................... 142
Handsfree Max .......................................................... 143
Subwoofer.................................................................. 144
Group 43 Transmission
Automatic transmission AW55-51.............................. 145
Transmission M66...................................................... 146
Differential Electronic Module (DEM)......................... 147
Group 59 Brake system
Brake control system & STC...................................... 148
Brake control system & DSTC................................... 149
Group 64 Steering
Electronic power steering........................................... 150
Group 83 Doors and openings
Central locking, front doors S40/V50......................... 151
Central locking, rear doors S40/V50.......................... 152
Central locking system C70....................................... 153
Central locking, tailgate S40/V50............................... 154
Central locking, tailgate C70...................................... 155
Central locking, storage compartment C70................ 156
Child safety lock S40/V50.......................................... 157
Central locking, fuel filler flap..................................... 158
Signal receiver, remote-control, central locking......... 159
Power windows, front doors S40/V50........................ 160
Power windows, front doors C70............................... 161
Power windows, rear doors S40/V50......................... 162
Power sunroof S40/V50............................................. 163
Power roof C70.......................................................... 164
Group 84 Exterior decorative elements, etc.
Power door mirrors S40/V50...................................... 165
Power door mirrors C70............................................. 166
Heated door mirrors................................................... 167
Heated rear window................................................... 168
Blind Spot Information System................................... 169
Table of Contents 2:3

TP 3999202 S40 (04-)/V50/C70 (06-) 2007 5
Group 85 Interior equipment
Power driver’s seat with memory function LHD
S40/V50 .................................................................... 170
Power driver’s seat with memory function RHD
S40/V50 ................................................................... 171
Power driver’s seat with memory function LHD
C70 ...................................................................... 172
Power driver’s seat with memory function RHD
C70 ...................................................................... 173
Power passenger seat with memory function LHD
C70 ...................................................................... 174
Power passenger seat with memory function RHD
C70 ...................................................................... 175
Power driver’s seat LHD............................................ 176
Power driver’s seat RHD ........................................... 177
Power passenger seat LHD....................................... 178
Power passenger seat RHD...................................... 179
Heated seats.............................................................. 180
Group 87 Climate control system
Climate control system PTC element ...................... 181
Climate control system, 4-cyl. Gasoline 1:2............... 182
Climate control system, 5-cyl. 1:2.............................. 184
Climate control system, Diesel 1.6l & 2.0l 1:2 ........... 186
Parking heater, auxiliary heater................................. 188
Relay, electric engine heater..................................... 189
Electric engine heater Flexifuel.................................. 190
Group 88 Internal equipment
Auto-dimming rearview mirror.................................... 191
Supplemental Restraint System Module (SRS)
S40/V50 1:2............................................................... 192
Supplemental Restraint System Module (SRS)
C70 1:2...................................................................... 193
Connectors .............................................. 195
Branching points .....................................229
Cable harness routing in vehicle
Engine harness Gasoline, 4-cyl. 1.6l ........................240
Engine harness Gasoline, 4-cyl. 1.8l ........................240
Engine harness Gasoline, 5-cyl..................................241
Engine harness Gasoline, 5-cyl., Turbo......................241
Engine harness Diesel 1.6l.........................................242
Engine harness Diesel 2.0l.........................................242
Engine harness Diesel 2.4l.........................................243
Engine compartment harness, 4-cyl. ..........................244
Engine compartment harness, 5-cyl. .........................244
Dashboard harness LHD ............................................245
Dashboard harness RHD............................................245
Floor harness S40 LHD ..............................................246
Floor harness S40 RHD..............................................247
Floor harness V50 LHD ..............................................248
Floor harness V50 RHD..............................................249
Floor harness C70 LHD..............................................250
Floor harness C70 RHD..............................................251
Roof harness S40.......................................................252
Roof harness V50.......................................................252
Tunnel harness S40/V50 ............................................253
Tunnel harness C70 ...................................................253
Driver’s door harness S40/V50...................................254
Passenger door harness S40/V50..............................254
Driver’s door harness C70..........................................255
Driver’s door harness supplement C70.......................255
Passenger door harness C70.....................................256
Passenger door harness supplement C70..................256
Rear right door harness S40/V50 ...............................257
Rear left door harness S40/V50..................................257
Harness, rear side panel, left C70 ..............................258
Harness, rear side panel, right C70............................258
Tailgate harness C70..................................................260
Tailgate harness S40..................................................259
Tailgate harness V50..................................................259
Component illustrations..........................261
Index 1:2....................................................316
List of components 1:6............................318
Table of Contents 3:3

TP 3999202 S40 (04-)/V50/C70 (06-) 2007 6

TP 3999202 S40 (04-)/V50/C70 (06-) 2007 7
Groups
Group 23 = Fuel system
Group 26 = Cooling system
Group 27 = Engine controls
Group 32 = Alternator and voltage regulator
Group 33 = Starting system
Group 35 = Lighting
Group 36 = Additional electrical equipment
Group 37 = Wiring and fuses
Group 38 = Instruments
Group 39 = Other
Group 43 = Transmission
Group 59 = Brake system
Group 64 = Steering
Group 83 = Doors and openings
Group 84 = Exterior decorative elements, etc.
Group 85 = Interior equipment
Group 87 = Climate control system
Group 88 = Internal equipment
Ignition switch symbols
X = Accessories (audio position)
S = Powered upon insertion of key
15 = Contact remains connected during
start
15l = Contact is broken while starting
30 = Constant power from the battery
50 = Start
Countries/Markets
A = Austria
AUS = Australia
B = Belgium
CDN = Canada
CH = Switzerland
D = Germany
DK = Denmark
E=Spain
EU/OS = Markets outside USA and Canada
FIN = Finland
GB = Great Britain
ISR = Israel
J = Japan
KOR = Korea
N=Norway
NL = Netherlands
S = Sweden
USA = United States of America
WEU = Western Europe
Other
AUTO = Automatic transmission
AWD = All wheel drive
CAN = CAN communication
D = Diesel
DPY = Display
ECC = Electronic climate control system
ETA = Engine throttle body
EXT. X = Extended X-feed
GDL = Gas discharge lamp
HISPEED = High speed data bus
IR = Infrared sensor
LIN = LIN communication
LHD = Left-hand drive
LOSPEED = Low speed data bus
MAN = Manual transmission
MEMORY = Memory driver’s seat
MMS = Mass Movement Sensor
GASOLINE = Gasoline
RHD = Right-hand drive
SCR = Screened
SRS = Airbag
T = Turbocharged engine
W/O = Without
2WD = Two-wheel drive
4CYL, I4 = 4-cylinder engine
5CYL, I5 = 5-cylinder engine
Colors
BK, SB = Black
BN = Brown
BU, BL = Blue
GN = Green
GY, GR = Gray
LGN = Light Green
OG, OR = Orange
PK, P = Pink
RD, R = Red
VT, VO = Violet
WH, W = White
YE, Y = Yellow
Explanations
Abbreviations

TP 3999202 S40 (04-)/V50/C70 (06-) 2007 8
The descriptions below apply in general
to all wiring diagram manuals, although
not all sections are necessarily con-
tained in this manual.
How to use the wiring diagrams 1:2
A. Component designation
Every component has a component designation that
consists of two parts.
The first part is a type number that describes the
type of component in question, for example 3/xx.
The second part of the designation is a serial num-
ber, e.g. x/2.
Together, this constitutes a component designation,
e.g. 3/2.
At the end of the manual is a list of components,
where, with the help of the component designation,
you can read off the name of the component, for
example, 3/2 = light switch.
List of type numbers
The list shows which type of component that respec-
tive type numbers refer to, for example, 3/x = switch,
6/x = electric motor, etc.
1 Battery
2Relay
3 Switch
4 Control module
5 Driver information module
6 Electric motor
7Sensor
8 Actuator
9 Heating element
10 Light
11 Fuse
15 Electrical distribution rail/box
16 Audio
17 Service/diagnostics
18 Contact reel
19 Meter
20 Ignition component/shunt
27 Optics
31 Ground connection
63 Branching point
64 Connector
B. Branching points
The wiring diagrams contain numbered junction
points, e.g. 63/352.
This manual contains a section with a list of branch-
ing points. This list shows all the components that
are connected to each branching point.
The location of the branching points is shown in the
"Cable harness routing in vehicle" section.
C. Connectors
Connectors provide a bridge between two cable har-
nesses and are described in the "Connectors" sec-
tion.
D. Electrical distribution
Operation of the fuses and relays is shown in the
"Electrical distribution" section.
E. Data communication
Today’s cars contain CAN and MOST networks that
transfer information. Connections to these networks
are not shown in their entirety in the respective wir-
ing diagram. Complete information on CAN and
MOST communication is found in the section "Con-
trol modules".
F. Abbreviations
A number of different abbreviations are used in the
manual. These are explained in the section "Abbre-
viations".
G. Component location
There is a section at the end of the manual in which
the appearance and location of components is
described in numerical order.

TP 3999202 S40 (04-)/V50/C70 (06-) 2007 9
How to use the wiring diagrams 2:2
Explanation of symbols
= System voltage
= Ground connection via wiring
= Ground connection in
component/chassis
= Screened wire
= Junction point
= Twisted cable
= Electrical connection
= Variant
= CAN communication
= CAN high data signal
(CAN H)
= CAN low data signal (CAN L)
= LIN communication
= LIN communication
= DIN cable, coaxial cable, etc.
= Data communication
= CAN communication
= MOST communication
= MOST communication
= Connection with distribution
box
= Further connection to...
= Connector between cable
harnesses
= Connector connected in
component
LIN
CAN
1
1
G
EACFB D
10/17-18
BK
GN-BK
CAN
CAN
63/211
31/11 31/12
F:14
F:16
D:14
D:15
A:6
A:8
TCM
4/28 30+
F18
2
11
2
F4
MAN
63/53
MAN
GN-YE
GN-YE
64/90
10
31/52
E:14
4/56
CEM
3/10
1
2
GN-BK
GN-BK
BK
V50
10/55
10/48
BK
V50
BK
F79
2
1
LIN
15/31
C:45
E:21
E:22
GN-BK
S40 S40
BK
BK
2/80
R2
TAIL
FOG
BACK
10/18
10/18
A:4
C:4
C:2
A:2
TAIL
FOG BACK
GNDGND2
TURN
STOP
10/55
10/17
A:2
A:4
TAIL
FOG
BACK
GND
GND2
TURN
STOP
10/48
TURN
STOP
A:2A:3 C:3 C:1
A:4
TAIL
FOG
BACK
10/17
C:2
C:4
TURN
STOP
A:2 A:3C:1C:3
A:4
C:4 C:2
A:1 C:1C:3C:4
C:2C:1
A:3
C:3
V50
V50
S40S40
LIN
3/156
64/90
A:7 WH-RD RD
33
64/111
2
A:2
LIN
3/155
GSM
WH-RD
AUTO
RD-YE
RD-BU
GN-BK
UP
UP
UP UP

TP 3999202 S40 (04-)/V50/C70 (06-) 2007 10
Electrical distribution 1:2

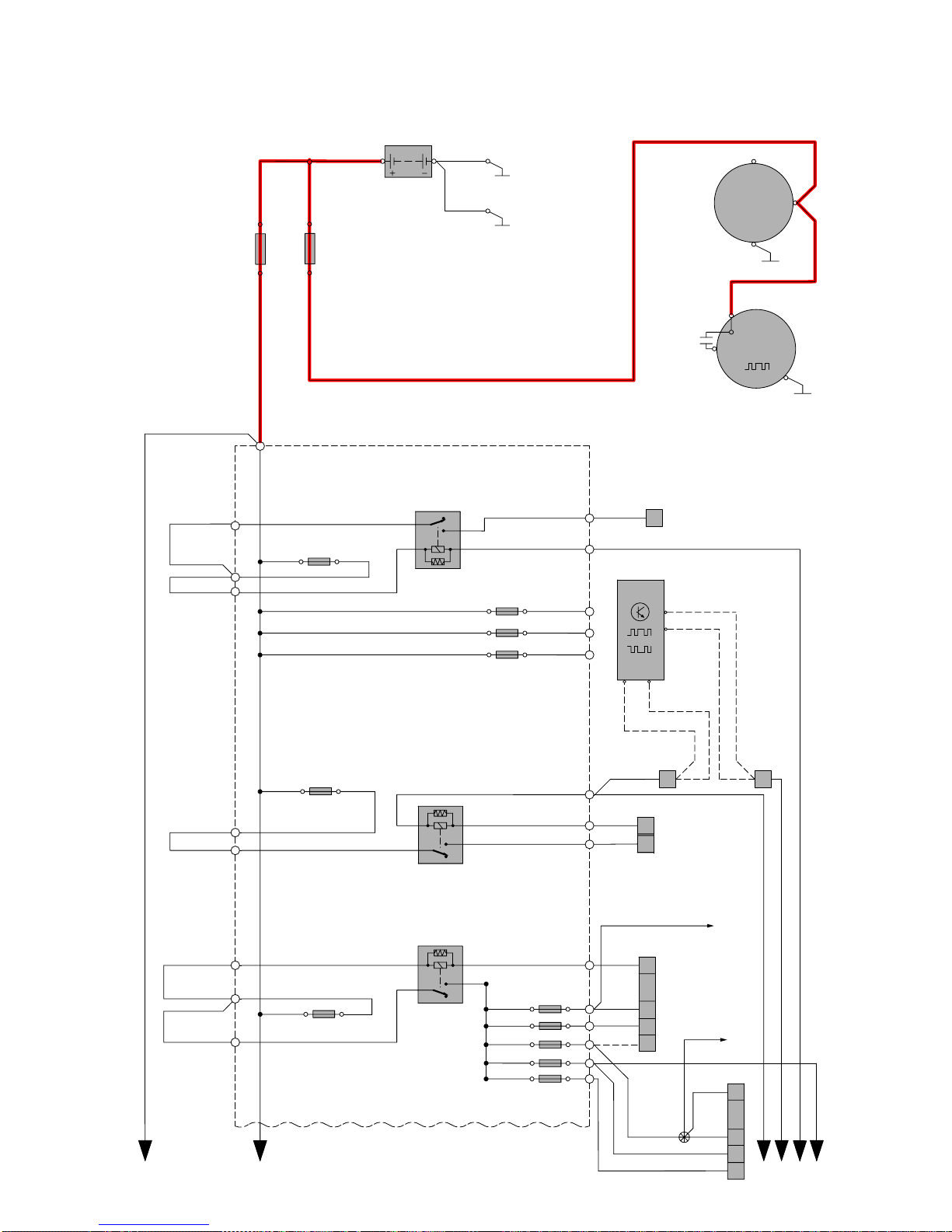

Overview
F
E
C
1
F36
F34
F35
F33
F32
3
2
5
5
3
12
35
12
F10
F17
F14
BK-WH
GN-BU
2/32
R14
R13
2/35
R10
2/82
F12
F13
F9
RD-OG
RD-OG
RD-GN
RD-OG
RD-OG
A
15/31
6/25
50
31
M
ACM
30
B:1
6/26
B+
31
G
B:1
A:1
RD
RD
12V
BK
31/3
1/1
BK
31/4
PF2 PF1
RD
RD-OG
40
14
39
64/90=15/31A
8/84:1
7/51:6
64/90=15/31A
11
4
BK-RD
GY
64/90=15/31A
41
12
21
BK-BU
GN-BU
GN-BU
GN-YE GN-YE
GN-BU
GN-YE
B
I4
I5
Diesel
Diesel
BK-RD GN-BU
2
11
2
35
63/13
GN-YE
GN-YE
GN-YE
5 cyl
I4 Diesel
D
64/90=
15/31A
31
64/90
9
GN-BU
GN-BU
GN-BU
GN-BU
GN-BU
64/113
6
GN-BU
6
B:11 B:29
B:17
B:33
ECM
4/46.1-3
CAN
LIN
5CYL

TP 3999202 S40 (04-)/V50/C70 (06-) 2007 11
Electrical distribution 2:2

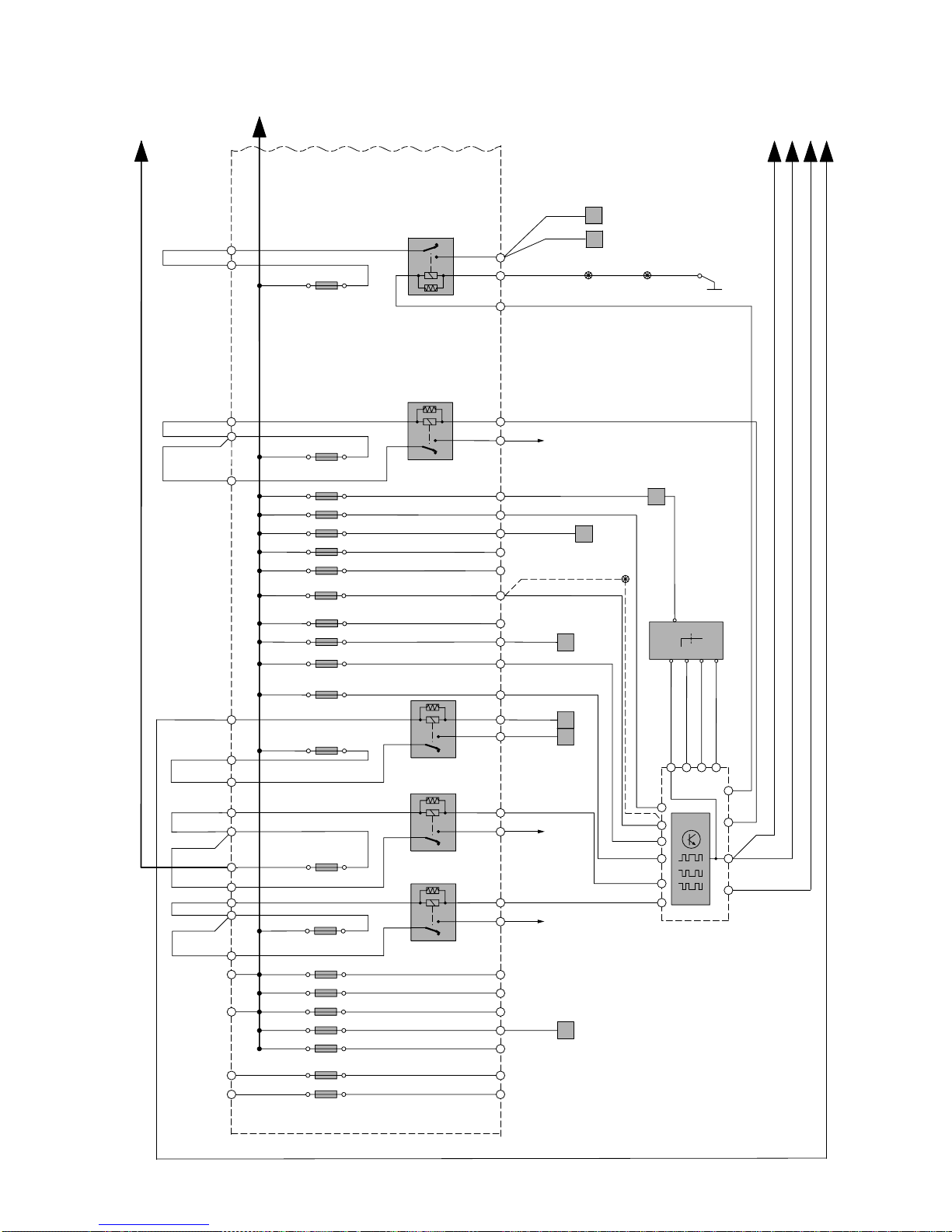

Overview
RD-WH
RD-BK
RD-GN
RD-OG
RD-BU
RD-OG
RD-BU
2
1
3
5
3
1
5
2
3
1
5
2
2
5
3
1
CAN
CEM
4/56
LIN
BK-YE
G:11
C
G:18
E:29
E:9
E:30
3/1
30
15X
5
50 S
B:7
A:42 A:15 A:30 A:17
B:5 B:2
B:1
B:3
GY-BK RD-GN YE GN-WH
64/111
5
G:9
E:22
E:23
E:20
E:21
RD-YE
RD-BU
RD-WH
RD-OG
RD
RD
BK-BU
2/182
R9
2/34
R4
2/22
R11
R2
2/17
F20
F26
F3
F30
F31
F2
F16
F6
F23
F4
F18
F27
F29
F11
F8
F7
F1
F5
F21
F28
F22
A
RD-OG
E
BK-WH
F
GN-BU
15/31
WH-BK
R5
F24
BK-RD
13
64/90=15/31A
RD
WH-BK
BK BK BK
GN-WH
OG-BU
23
64/90=15/31A
64/90=15/31A
RD
RD-WH
RD-WH
S40/V50
C70
RD
13
17
64/90=15/31A
BK-YE
18
GN-YE
BK-RD
B
64/861
1
RD
D
GN-BU
16/10
63/121
63/231
63/120
16/11
GN-WH
10/5:1
10/6:1
GN-YE
6/104:1
35
12
2/142
64/113
7
31/114
I4
I5

TP 3999202 S40 (04-)/V50/C70 (06-) 2007 12
F30
F11
F8
F17
F15
F7
F13
F16
F9
F18
F14
F12 F10
F6
F5
F4
F3
F2
F1
F24 F21 F20 F22
F31
F25
F32
F33
F34
F35
F36
F29
F19
F28 F27 F26 F23
Fuses

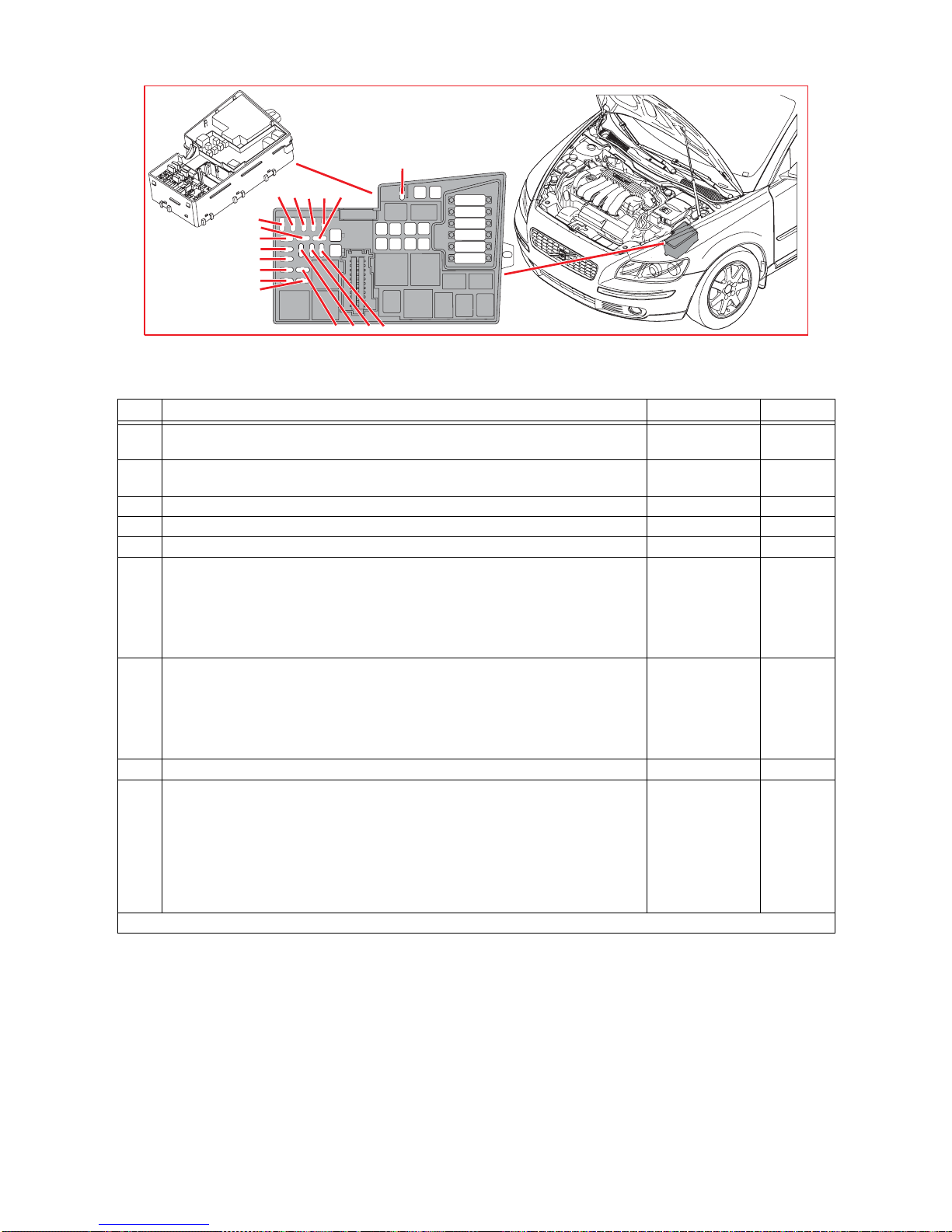

Engine compartment distribution box F1-F10
15/31 Engine compartment distribution box
No. Fuse function via A
F1 4/71 Cooling fan control module - 50
F2 6/71 Electrical Power Steering Module (EPS) - 80
F3 2/193 Relay, comfort functions
F45 Fuse in the Central Electronic Module (CEM)
F48-F49 Fuses in the Central Electronic Module (CEM)
F60-F61 Fuses in the Central Electronic Module (CEM)
F62-F63 Fuses in the Central Electronic Module (CEM)
F68-F69 Fuses in the Central Electronic Module (CEM)
F84-F85 Fuses in the Central Electronic Module (CEM)
-
2/193
2/193
2/193
-
2/193
-
60
F4 2/63 Relay, high beam
4/56 Central Electronic Module (CEM)
F55 Fuses in the Central Electronic Module (CEM)
F58-F59 Fuses in the Central Electronic Module (CEM)
F74 Fuses in the Central Electronic Module (CEM)
F77 Fuses in the Central Electronic Module (CEM)
-
-
-
2/63
-
-
60
F5 9/41 PTC-element - 80
F6 4/109 Glow plug control module, 4-cyl. Diesel
4/109 Glow plug control module, 5-cyl. Diesel - -60 70
F7 4/16 Brake Control Module (BCM), pump - 30
F8 4/16 Brake Control Module (BCM), valves - 20
F9 2/32 Main relay, engine management system
F32-F36 Fuses in the engine compartment distribution box - 2/32 30
F10 4/31 Fan control module - 40
continues

TP 3999202 S40 (04-)/V50/C70 (06-) 2007 13
F30
F11
F8
F17
F15
F7
F13
F16
F9
F18
F14
F12 F10
F6
F5
F4
F3
F2
F1
F24 F21 F20 F22
F31
F25
F32
F33
F34
F35
F36
F29
F19
F28 F27 F26 F23
Fuses
Engine compartment distribution box F11-F18
15/31 Engine compartment distribution box
No. Fuse function via A
F11 2/182 Relay, headlight washer motor
6/104 Pump, high pressure headlight washer - 2/182 20
F12 2/82 Relay, heated rear window
9/2 Heated rear window - 2/82, 16/141 30
F13 6/25 Starter motor 2/35 30
F14 4/110 Trailer Module (TRM) - 40
F15 4/59 Convertible Roof Module (CRM) 30
F16 2/159 Infotainment relay, S40/V50
16/105 Audio module (AUD), S40/V50
F22 Engine compartment distribution box, S40/V50
F43 Fuse in the Central Electronic Module (CEM), S40/V50
F64 Fuse in the Central Electronic Module (CEM), S40/V50
F65-F67 Fuses in the Central Electronic Module (CEM), S40/V50
-
-
-
-
-
2/159
30
F16 2/159 Infotainment relay, C70
16/105 Audio module (AUD), C70
F22 Engine compartment distribution box, C70
F43 Fuse in the Central Electronic Module (CEM), C70
F64 Fuse in the Central Electronic Module (CEM), C70
F65-F67 Fuses in the Central Electronic Module (CEM), C70
-
-
-
-
-
2/159
40
F17 6/1 Wiper Motor Module (WMM) - 30
F18 2/80 Relay, reversing light
2/89 Relay, interior lighting
4/56 Central Electronic Module (CEM)
F46-F47 Fuses in the Central Electronic Module (CEM)
F56-F57 Fuses in the Central Electronic Module (CEM)
F79 Fuse in the Central Electronic Module (CEM)
F81-F83 Fuses in the Central Electronic Module (CEM)
F86 Fuse in the Central Electronic Module (CEM)
-
-
-
2/89
-
2/80
-
2/89
40
continues

TP 3999202 S40 (04-)/V50/C70 (06-) 2007 14
F30
F11
F8
F17
F15
F7
F13
F16
F9
F18
F14
F12 F10
F6
F5
F4
F3
F2
F1
F24 F21 F20 F22
F31
F25
F32
F33
F34
F35
F36
F29
F19
F28 F27 F26 F23

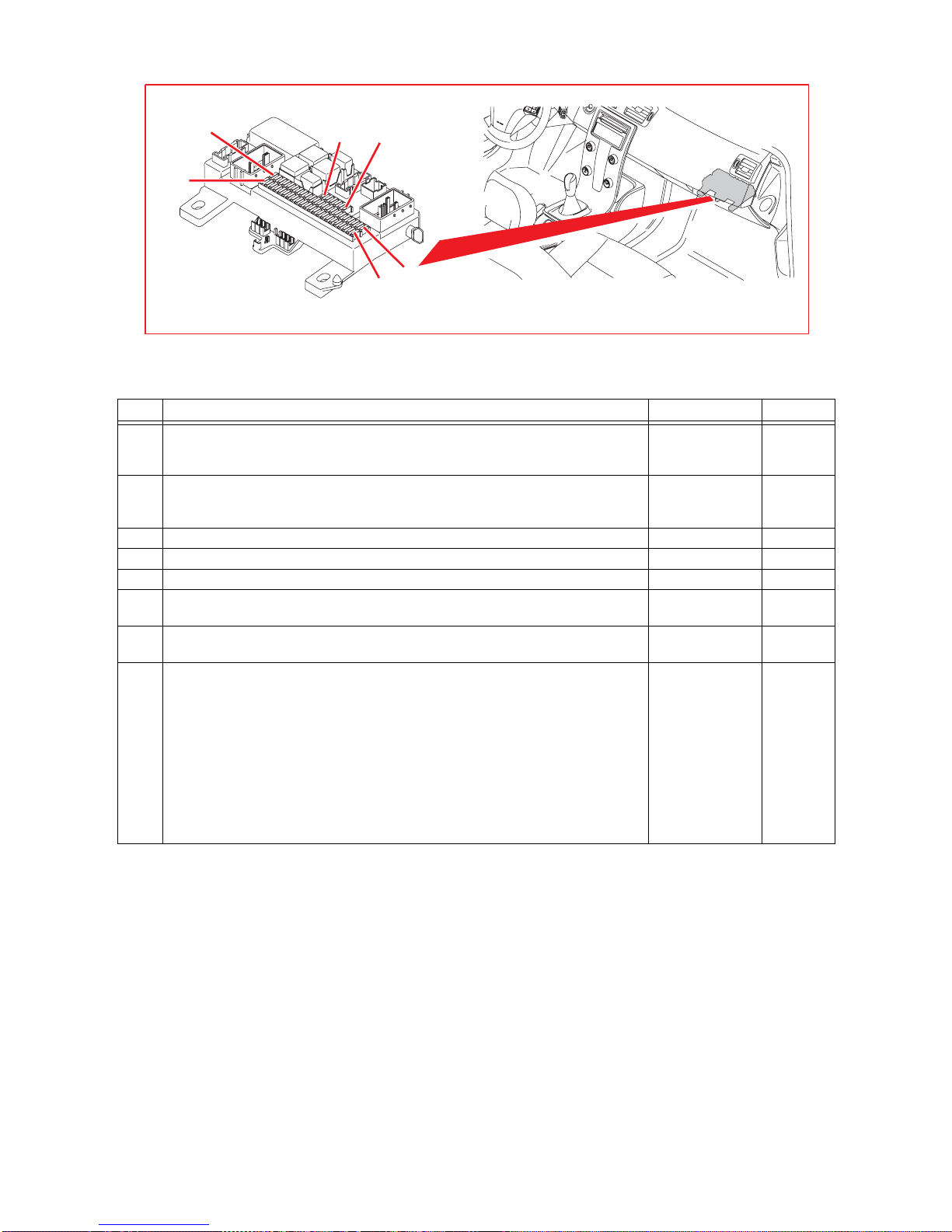

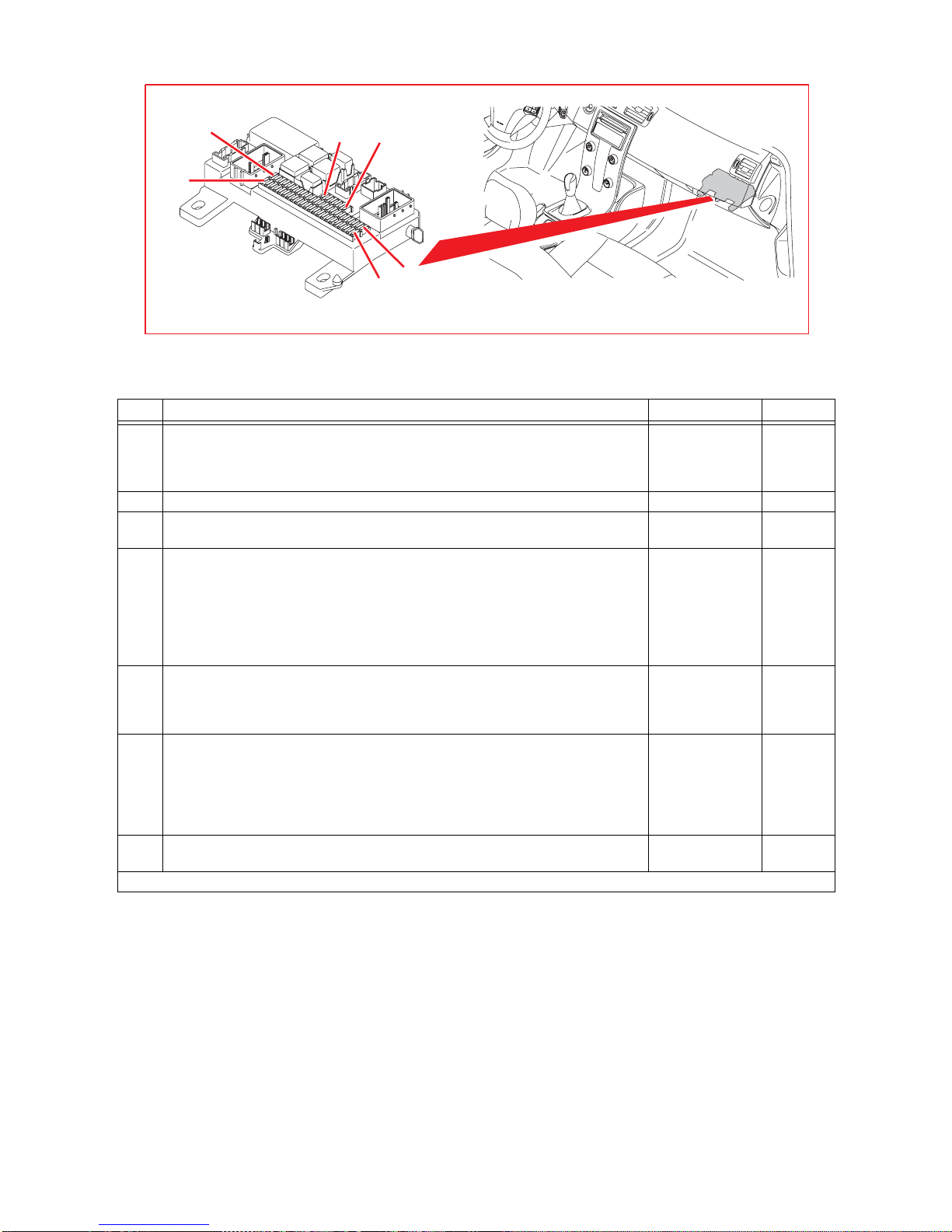

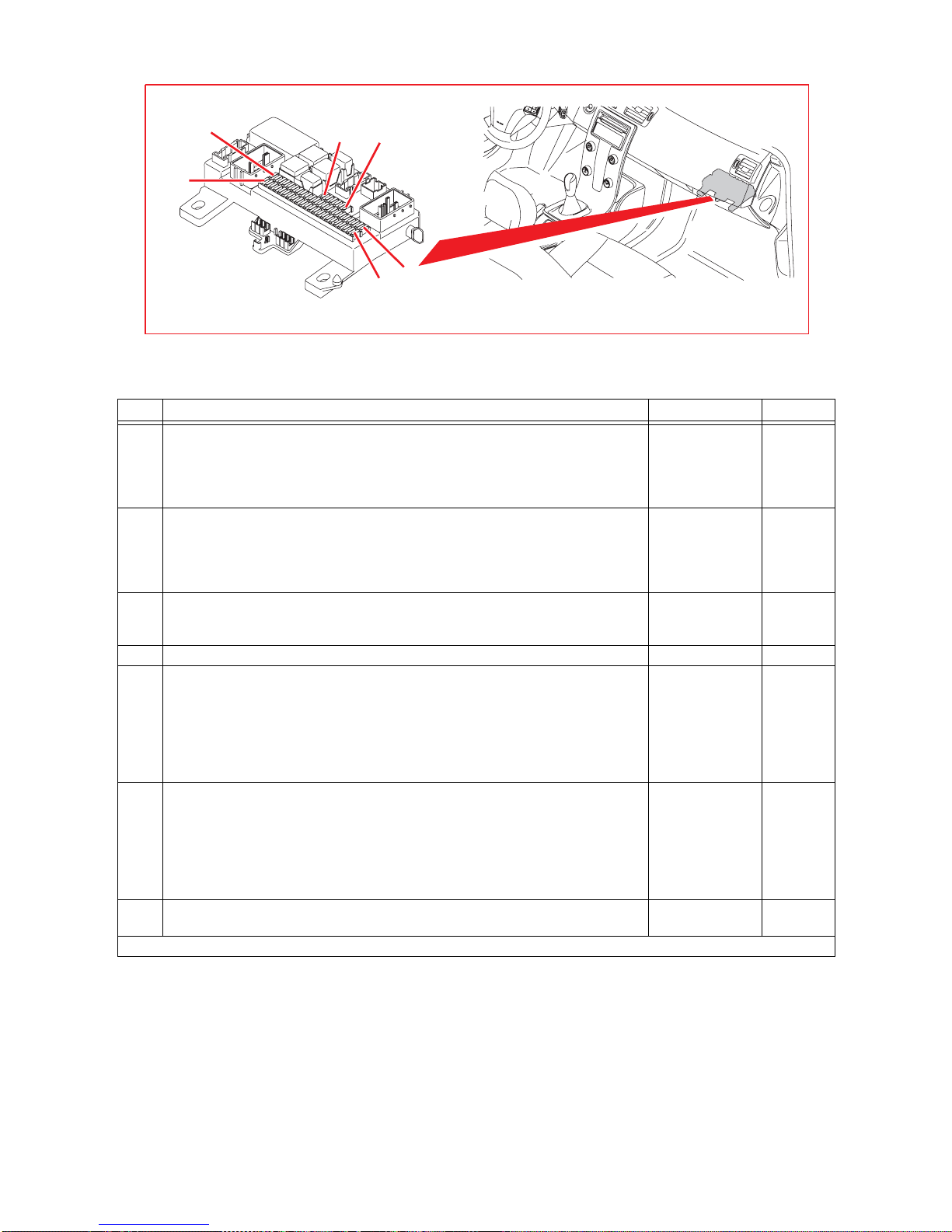

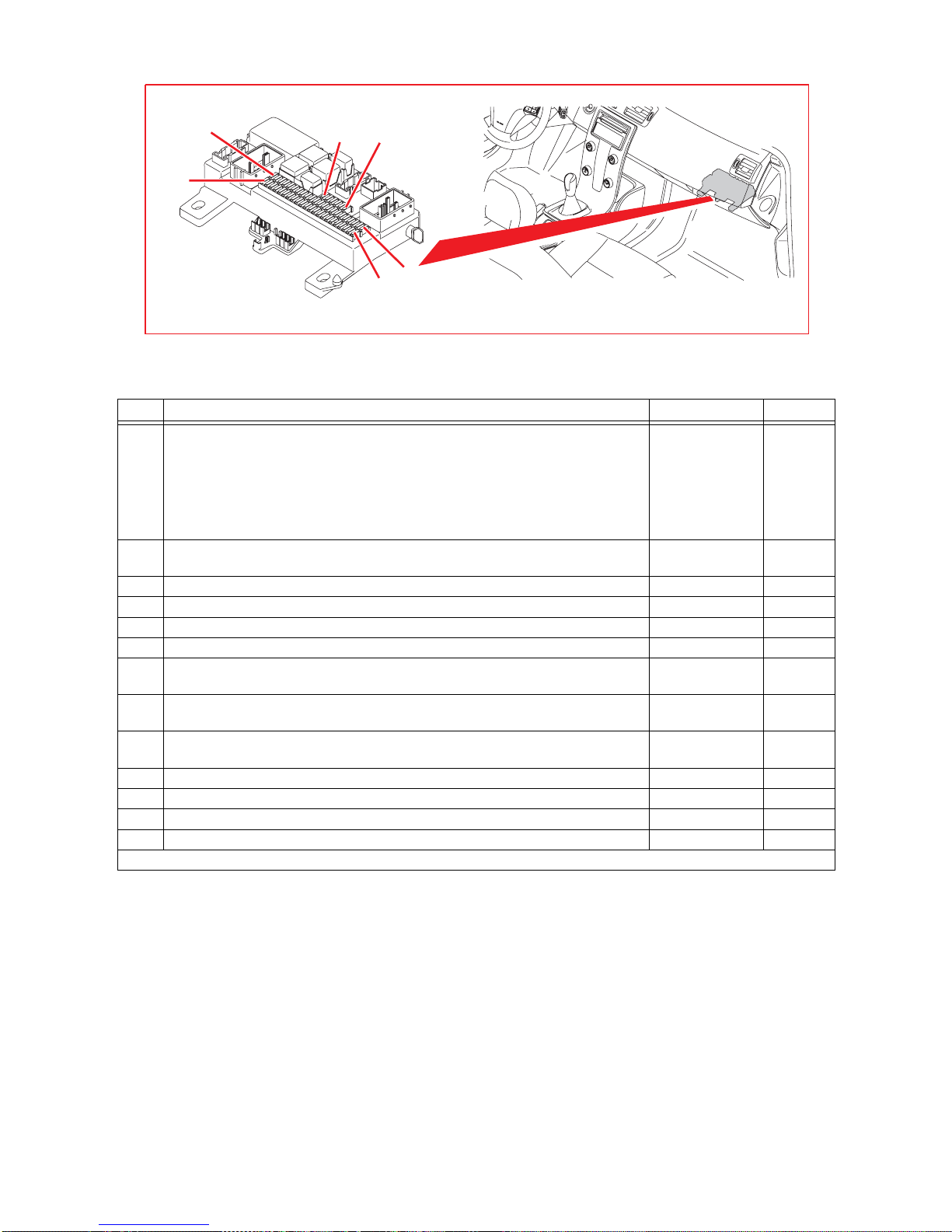

Fuses
Engine compartment distribution box F20-F31
15/31 Engine compartment distribution box
No. Fuse function via A
F20 2/17 Relay, horn
16/10 Horn 1
16/11 Horn 2
-
2/17
2/17
15
F21 4/7 Combustion Preheater Module (CPM) - 20
F22 16/79 Subwoofer Module (SUB) - 25
F23 4/28 Transmission Control Module (TCM)
4/46 Engine Control Module (ECM), 5-cyl. - -10
F24 9/32 PTC resistor, crankcase ventilation
9/38 Electrically heated fuel filter 2/142 2/142 20
F26 3/1 Start Control Module (SCU)
4/56 Central Electronic Module (CEM)
F44 Fuse in the Central Electronic Module (CEM)
F51-F54 Fuses in the Central Electronic Module (CEM)
F73 Fuse in the Central Electronic Module (CEM)
-
3/1
3/1
3/1
3/1
15
F27 8/3 Electromagnetic clutch, climate control system 2/22 10
F29 2/34 Relay, front fog lights
10/5 Fog light, front left
10/6 Fog light, front right
-
2/34
2/34
15
F30 4/46 Engine control module (ECM), 4-cyl. 2.0l/1.6l Diesel - 3
F31 6/26 Alternator, 4-cyl. - 10
continues

TP 3999202 S40 (04-)/V50/C70 (06-) 2007 15
F30
F11
F8
F17
F15
F7
F13
F16
F9
F18
F14
F12 F10
F6
F5
F4
F3
F2
F1
F24 F21 F20 F22
F31
F25
F32
F33
F34
F35
F36
F29
F19
F28 F27 F26 F23

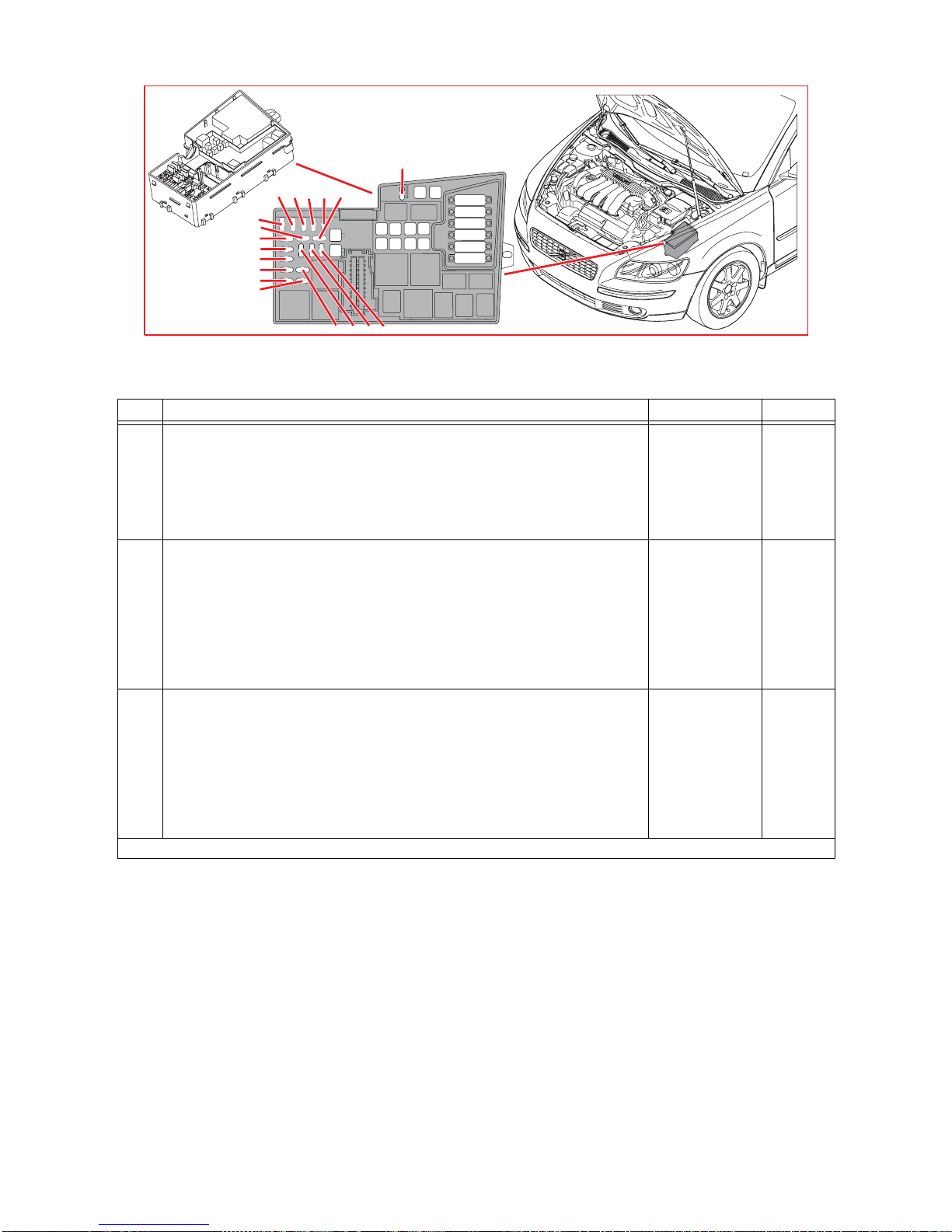

Fuses
Engine compartment distribution box F32-F34
15/31 Engine compartment distribution box
No. Fuse function via A
F32 6/143 Regulator motor, Turbo
7/15 Front heated oxygen sensor, 4-cyl.
7/17 Mass airflow sensor (MAF)
7/82 Rear heated oxygen sensor, 4-cyl.
8/6-8/10 Injection valves, 5-cyl.
8/121 Coolant valve, 4-cyl. 2.0l Diesel
8/122 Rear heated oxygen sensor, 4-cyl. 1.6l Diesel
-
-
-
-
-
-
-
10
F33 4/46 Engine control module (ECM), 5-cyl. Diesel
6/114 Vacuum pump, 5-cyl.
7/15 Front heated oxygen sensor, 5-cyl.
7/82 Rear heated oxygen sensor, 5-cyl. T
7/186 Rear heated oxygen sensor, not 5-cyl.
7/187 Center heated oxygen sensor, not 5-cyl.
8/84 Switch, vacuum pump
9/32 PTC resistor, crankcase ventilation
9/38 Heated fuel filter, Diesel
-
8/84
-
-
-
-
-
-
-
20
F34 8/6-8/9 Injection valves, 1.6l.
8/77 Fuel volume control valve, 4-cyl. 2.0l Diesel
8/111 High-pressure solenoid valve, 4-cyl. 1.6l Diesel
8/113 Fuel pressure bypass valve, Man
8/119 Pressure monitor, climate control system, 5-cyl.
8/120 EGR valve
8/133 Control valve fuel pressure
20/3 -20/7 Spark plug and ignition coil
20/17 Transformer, ignition coils, 1.6l
-
-
-
-
-
-
-
-
-
10
continues

TP 3999202 S40 (04-)/V50/C70 (06-) 2007 16
F30
F11
F8
F17
F15
F7
F13
F16
F9
F18
F14
F12 F10
F6
F5
F4
F3
F2
F1
F24 F21 F20 F22
F31
F25
F32
F33
F34
F35
F36
F29
F19
F28 F27 F26 F23
Fuses
Engine compartment distribution box F35-FH1
15/31 Engine compartment distribution box
No. Fuse function via A
F35 2/22 Relay, climate control system
4/46 Engine control module (ECM), 5-cyl. Diesel
6/67 Pump, fuel leakage control
6/99 Engine EGR
7/17 Mass airflow sensor (MAF)
7/192 Water detection sensor
8/6-8/9 Injection valves
8/18 EVAP valve
8/19 Solenoid, variable valve timing, intake
8/28 Turbocharger control valve
8/45 Solenoid, variable valve timing, intake
8/65 Power steering pressure monitor
8/81 Solenoid, variable valve timing outlet
8/82 Solenoid, variable turbo geometry, 4-cyl. Diesel
8/114 Valve mixing air/fuel
8/132 Control valve inlet
9/32 PTC-resistor air preheating
-
-
2/22
-
-
-
-
-
-
-
-
-
-
-
-
-
-
15
F36 4/46 Engine Control Module (ECM)
7/15 Heated oxygen sensor, front
7/51 Accelerator pedal sensor
-
-
-
10
FH1 10/65 Auxiliary light, front right
10/69 Auxiliary light, front left 2/64 2/64 20

TP 3999202 S40 (04-)/V50/C70 (06-) 2007 17
Fuses
Central Electronic Module (CEM) F43-F49
F37F42
F86
F64
F65
F43
4/56 Central Electronic Module (CEM)
No. Fuse function via A
F43 16/1 Integrated Audio Module (IAM)
16/46 RTI Display
16/60 Phone Module (PHM)
16/108 Multimedia Module (MMM)
-
-
-
-
15
F44 4/9 Supplemental Restraint System Module (SRS) - 10
F45 9/1 Front 12V outlet
9/25 Rear 12V outlet - -15
F46 3/111 Light Switch Module (LSM)
5/1 Driver Information Module (DIM)
10/1 Lamp housing, front left
10/2 Lamp housing, front right
10/29 Glove compartment lighting
10/97 Courtesy lighting, left
10/102 Courtesy lighting, right
-
-
-
-
-
-
-
5
F47 10/22 Ceiling light
10/150 Rear reading light
10/114 Vanity mirror lighting, left
10/115 Vanity mirror lighting, right
-
-
-
-
5
F48 2/16 Relay, rear window wiper
2/92 Relay, windshield washer motor
2/93 Relay, rear window washer motor
6/2 Washer pump
6/2 Washer pump
6/32 Rear window wiper motor
-
-
-
2/92
2/93
2/16
15
F49 4/9 Supplemental Restraint System Module (SRS)
7/93 Occupant Weight Sensor (OWS), USA/CDN - -10
continues

TP 3999202 S40 (04-)/V50/C70 (06-) 2007 18
F37F42
F86
F64
F65
F43
Fuses
Central Electronic Module (CEM) F51-F63
4/56 Central Electronic Module (CEM)
No. Fuse function via A
F51 2/142 Fuel filter preheater relay
4/82 Differential Electronic Module (DEM)
4/86 Parking Assistance Module (PAM)
4/112 Gas Discharge Lamp Module (GDL), master, left
4/113 Gas Discharge Lamp Module (GDL), slave, right
10/1 Front left lamp housing, beam length adjustment
10/2 Front right lamp housing, beam length adjustment
-
-
-
-
-
4/112
4/113
10
F52 4/16 Brake Control Module (BCM)
4/28 Transmission Control Module (TCM) - -5
F53 6/71 Electrical Power Steering Module (EPS) - 10
F54 4/46 Engine Control Module (ECM), 5-cyl. T - 10
F55 4/93 Keyless Vehicle Module (KVM) - 20
F56 16/35 Siren Control Module (SCM) - 10
F57 3/9 Contact brake light
17/13 Data link connector - -15
F58 4/113 Gas Discharge Lamp Module (GDL), slave, right
10/2 Lamp housing, front right - -7.5
F59 4/112 Gas Discharge Lamp Module (GDL), master, left
10/1 Lamp housing, front left - -7.5
F60 9/12 Seat Heating Module (SHM), driver’s side - 15
F61 9/13 Seat Heating Module (SHM), passenger side - 15
F62 4/33 Sunroof control module - 20
F63 3/129 Rear Right Door Module (RDM) - 20
continues

TP 3999202 S40 (04-)/V50/C70 (06-) 2007 19
F37F42
F86
F64
F65
F43
Fuses
Central Electronic Module (CEM) F64-F74
4/56 Central Electronic Module (CEM)
No. Fuse function via A
F64 10/245 Lock indicator, left door, C70
10/246 Lock indicator, right door, C70
16/49 Traffic Message Channel Module (TMC)
16/139 Global Positioning System Module (GPS)
16/145 Remote Digital Audio Receiver (RDAR)
-
-
-
-
-
5
F65 2/157 Relay, subwoofer control module
7/182 Remote control IR sensor, RTI
16/46 RTI Display
16/105 Audio Module (AUD)
16/150 AM/FM antenna and amplifier, rear right fender
-
-
-
-
-
5
F66 3/112 Climate Control Module (CCM)
16/1 Integrated Audio Module (IAM)
16/1.2 Infotainment Control Module (ICM)
-
-
-
10
F68 3/254 Steering Wheel Module (SWM) - 5
F69 6/48 Damper Motor Module (DMM), recirculation
6/95 Damper Motor Module (DMM), left-hand side
6/96 Damper Motor Module (DMM), right-hand side
6/102 Damper Motor Module (DMM), defroster
6/103 Damper Motor Module (DMM), floor/ventilation
7/149 Rain Sensor Module (RSM)
7/159 Air quality sensor
-
-
-
-
-
-
-
5
F73 3/117 Switch unit, ceiling light
3/217 Belt buckle contact, rear left
3/218 Belt buckle contact, center rear
3/219 Belt buckle contact, rear right
4/33 Sunroof control module
8/48 Auto-dimming rearview mirror
10/22 Ceiling light
-
-
-
-
-
-
-
5
F74 4/83 Fuel pump control module, Gasoline
6/33 Fuel pump 2/23 2/23, 26/5 15
continues

TP 3999202 S40 (04-)/V50/C70 (06-) 2007 20
F37F42
F86
F64
F65
F43
Fuses
Central Electronic Module (CEM) F77-F86
4/56 Central Electronic Module (CEM)
No. Fuse function via A
F77 4/78 Accessory Electronic Module (AEM)
17/19 12V outlet, cargo compartment
17/39 13-pin outlet, tow hitch cable harness
-
-
-
15
F79 8/48 Auto-dimming rearview mirror
10/48 Reversing light, right
10/55 Reversing light, left
2/80
-
-
5
F81 3/128 Rear Left Door Module (LDM) - 20
F82 3/127 Passenger Door Module (PDM) - 25
F83 3/126 Driver Door Module (DDM) - 25
F84 3/27 Switch unit, power passenger seat
4/54 Power Seat Module (PSM) - -25
F85 3/26 Switch unit, power driver’s seat
4/52 Power Seat Module (PSM) -25
F86 3/26 Switch unit, power driver’s seat
3/27 Switch unit, power passenger seat
3/268 Load assistance switch
4/52 Power Seat Module (PSM)
4/54 Power Seat Module (PSM)
10/24 Cargo compartment lighting
10/25 Ceiling light, cargo compartment
10/26 Reading light, rear left
10/27 Reading light, rear right
10/114 Vanity mirror lighting, left
26/5 DC/AC converter, fuel tank
-
-
-
-
-
-
-
-
-
-
2/23
5
