Volvo S60 2013 Quick start guide

WIRING DIAGRAM 2013
VOLVO S60 (11-)
TP 39255202 Structure week 12w20

© Volvo Car Corporation
Vehicles with SRS (Airbag)/SIPS bag/IC
(Inflatable curtain)
Warning!
Extra caution must be exercised when working on vehicles equipped with SRS/SIPS bag/IC
in order to avoid:
1. Personal injuries when performing repair work.
2. Damage or malfunction of the SRS/SIPS bag/IC system.
Work involving the SRS/SIPS bag/IC systems or other components in the vehicle that may
affect the SRS/SIPS bag/IC systems must always be performed by an authorized Volvo
workshop.
In case of doubt, consult the SRS and SIPS bag/IC service manual.
Is the vehicle equipped with SRS/SIPS bag/IC?
Vehicles with SRS are most easily recognized by the letters SRS in the center of the steering
wheel. If the vehicle also has a passenger side airbag, the letters SRS are stamped on the
dashboard above the glove compartment. SRS vehicles from 1993 and onward also have
explosive seat belt tensioners. SIPS bags are only installed on SRS vehicles from 1995 and
onward. SIPS bag decals are located on the windshield and seat compartment. Vehicles with
IC can be recognized by the letters IC on the C/D panel (4 door) or the B panel (5 door).
General recommendations
• Be especially careful when working on or around SRS, SIPS, and IC components.
• Make sure that no wires are pinched, frayed, or pierced.
• Never fit accessories by the sensors.
• Where applicable, work on the steering wheel, steering shaft, or steering gear must be done
in accordance with the methods in the SRS section of VIDA.
• Certain components of the aforementioned systems must be grounded while working. Read
the appropriate sections in VIDA.
• Do not install any accessories in the areas between the A and B-posts, the B and C-posts,
and the C and D-posts.
Test terminal
Fuse in cargo compartment auxiliary fuse box
Changes introduced up to and including structure week 12w20
Any changes made to the vehicle after this date are not included in the manual. If necessary,
refer to service bulletins.
Volvo models are sold in versions adapted for different markets. These adaptations depend
on factors such as legal requirements, taxation, and market demands.
This manual may therefore include illustrations and text that do not apply to the vehicles in
your country.
Ordering:
Electronic Wiring Diagrams (EWD) can be ordered from the Technical Information Shop (TIS)
We retain the right to make modifications.

TP39255202 S60 (11-) 3
Vehicles with SRS (Airbag)/SIPS bag/IC
(Inflatable curtain).......................................................... 2
Explanations & Abbreviations ........................................ 6

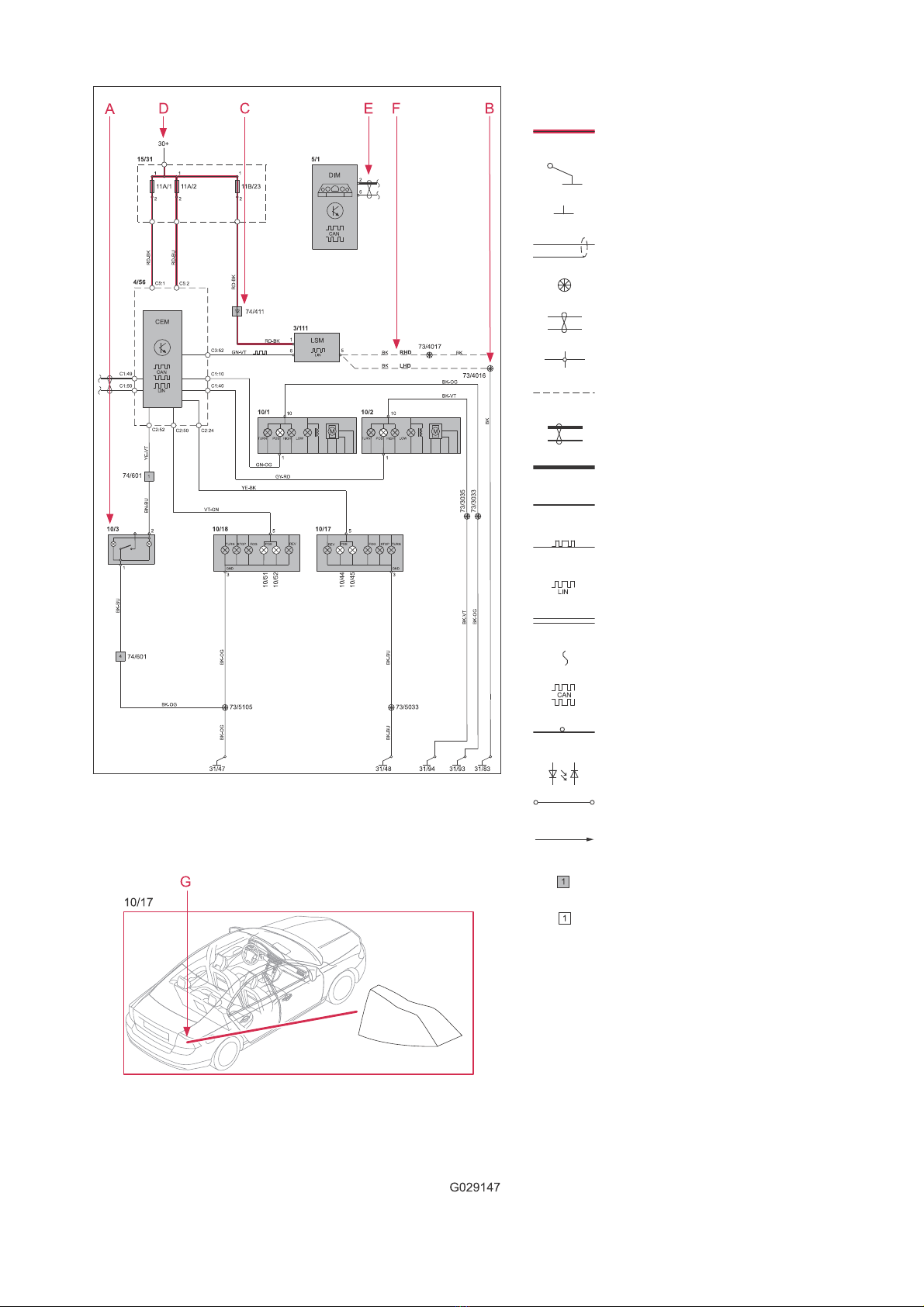

How to use the wiring diagrams 1:2............................... 7
Electrical distribution ...................................................... 9

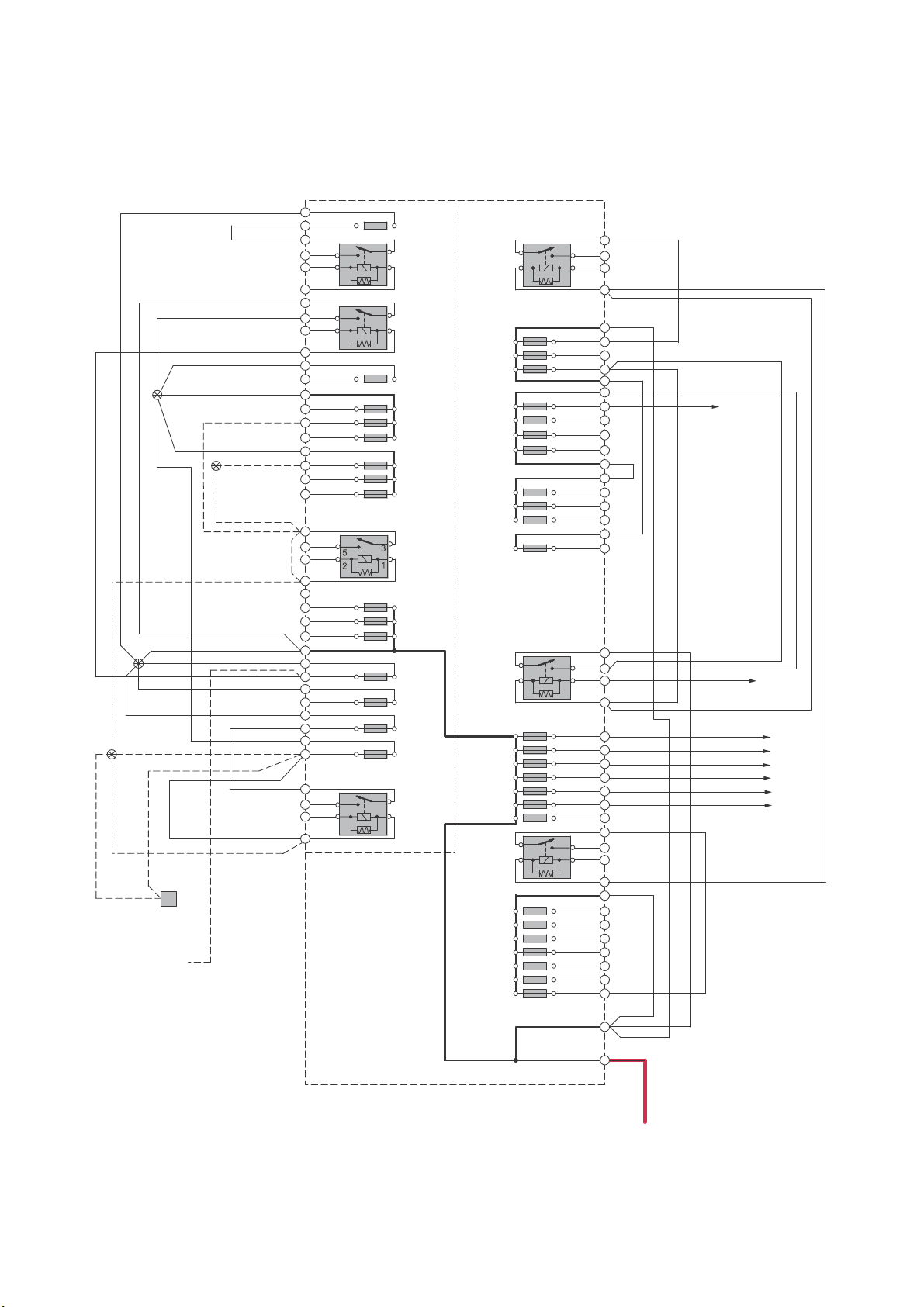

Overview without Start/stop function ............................ 9

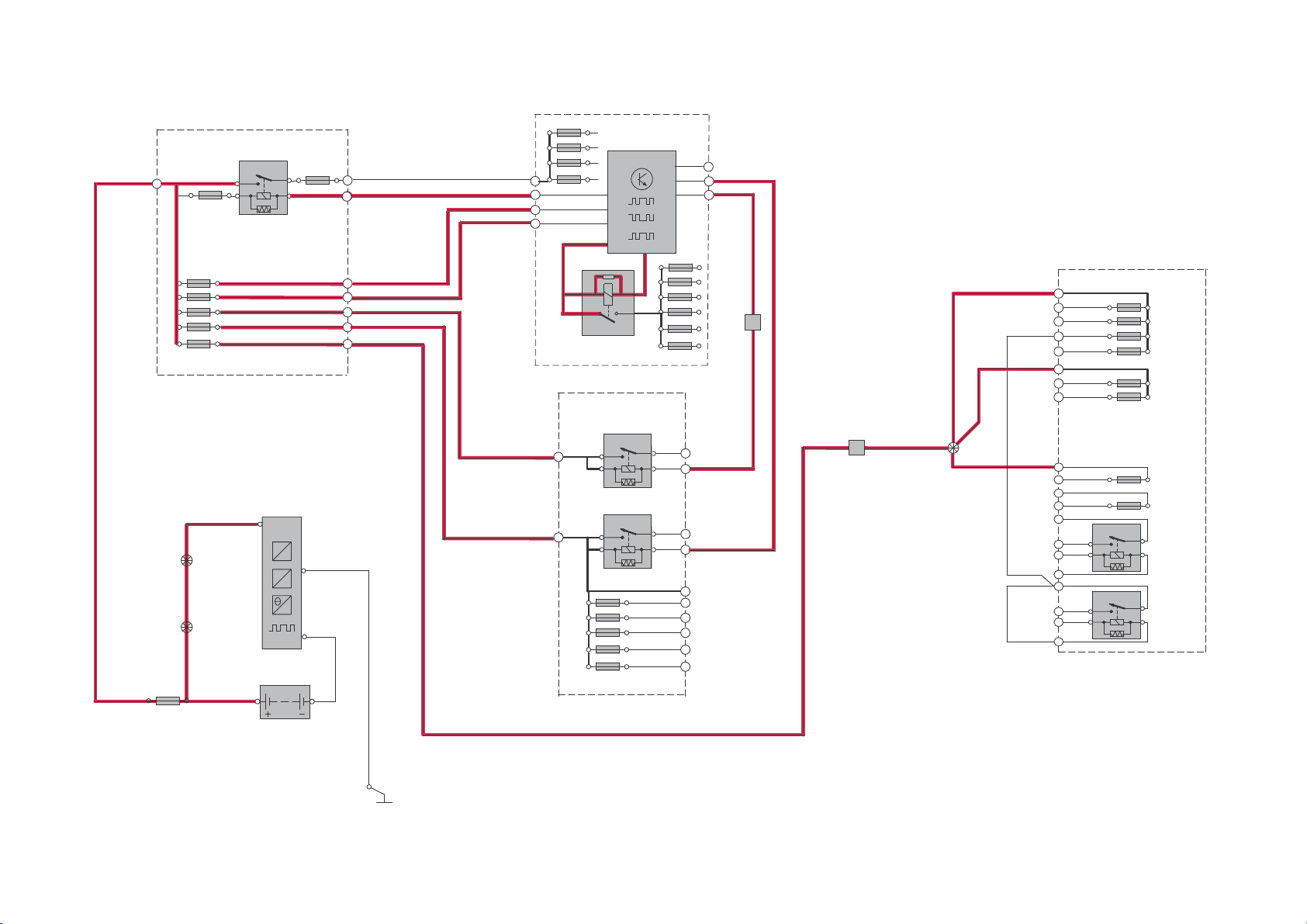

Overview with Start/stop function ................................ 10

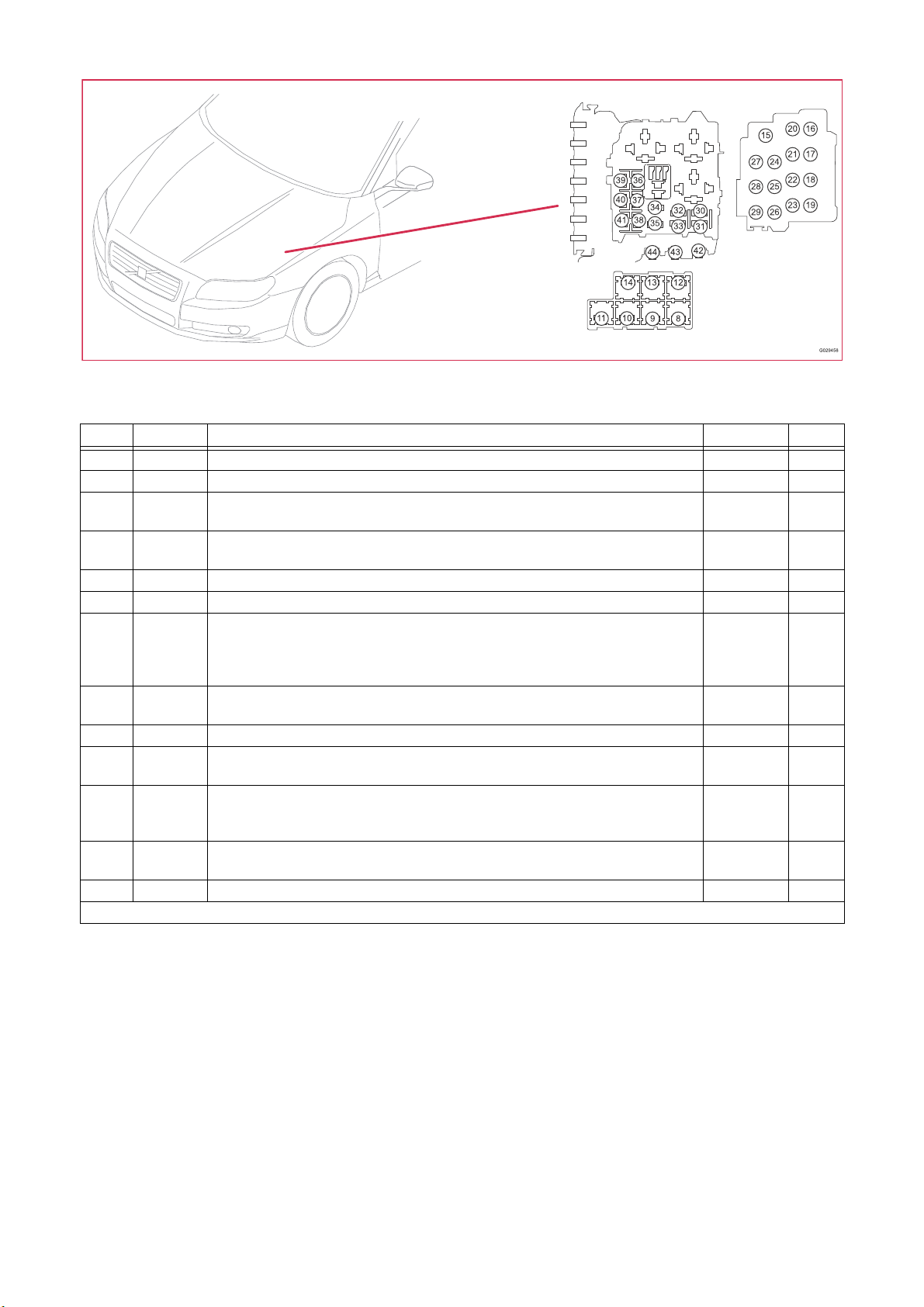

Overview, Distribution box in engine compartment ..... 11
Overview, Distribution box in passenger compartment 12

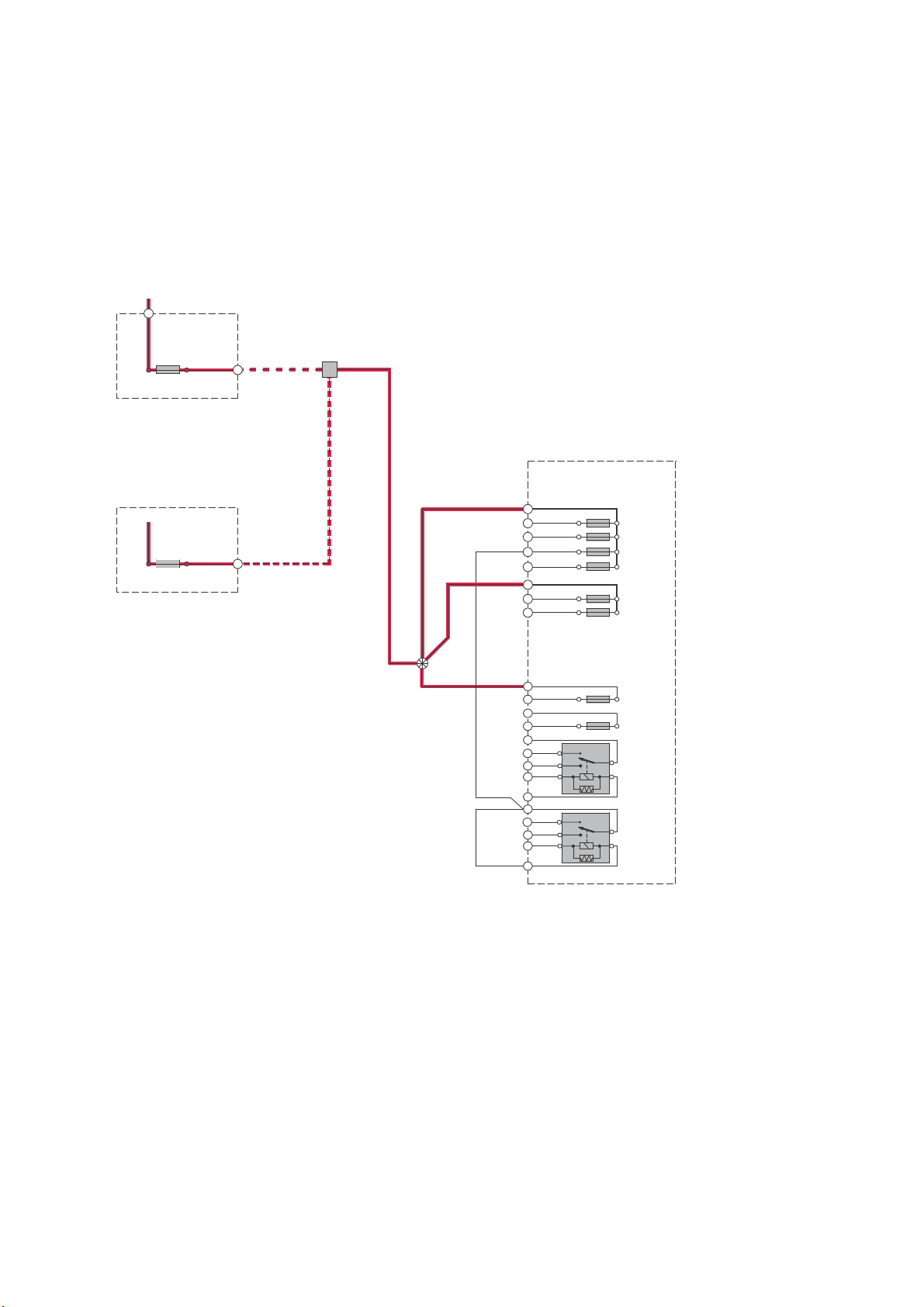

Overview, Distribution box in cargo compartment ....... 13
Fuses

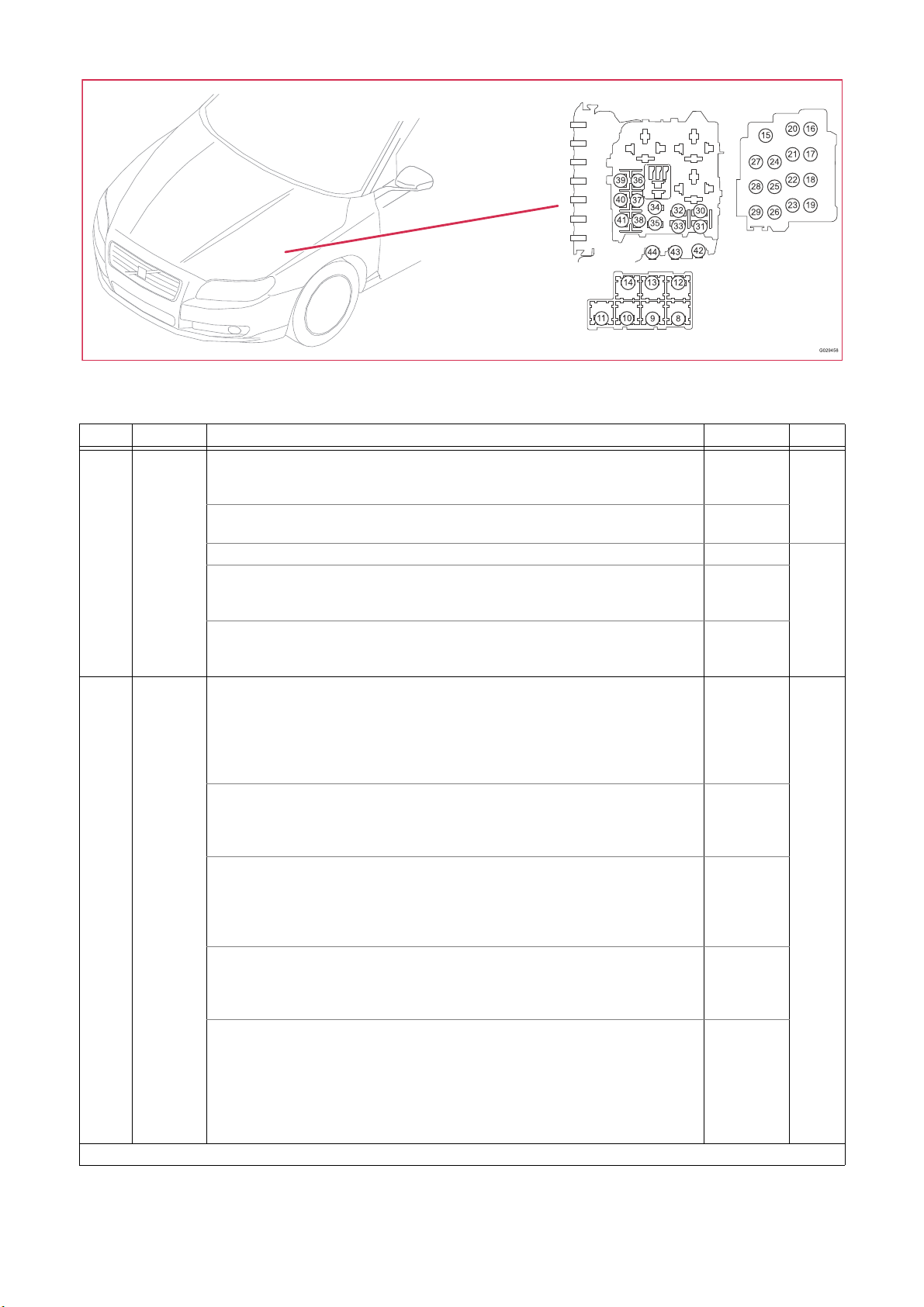

Distribution box in engine compartment F1 - F7........... 14

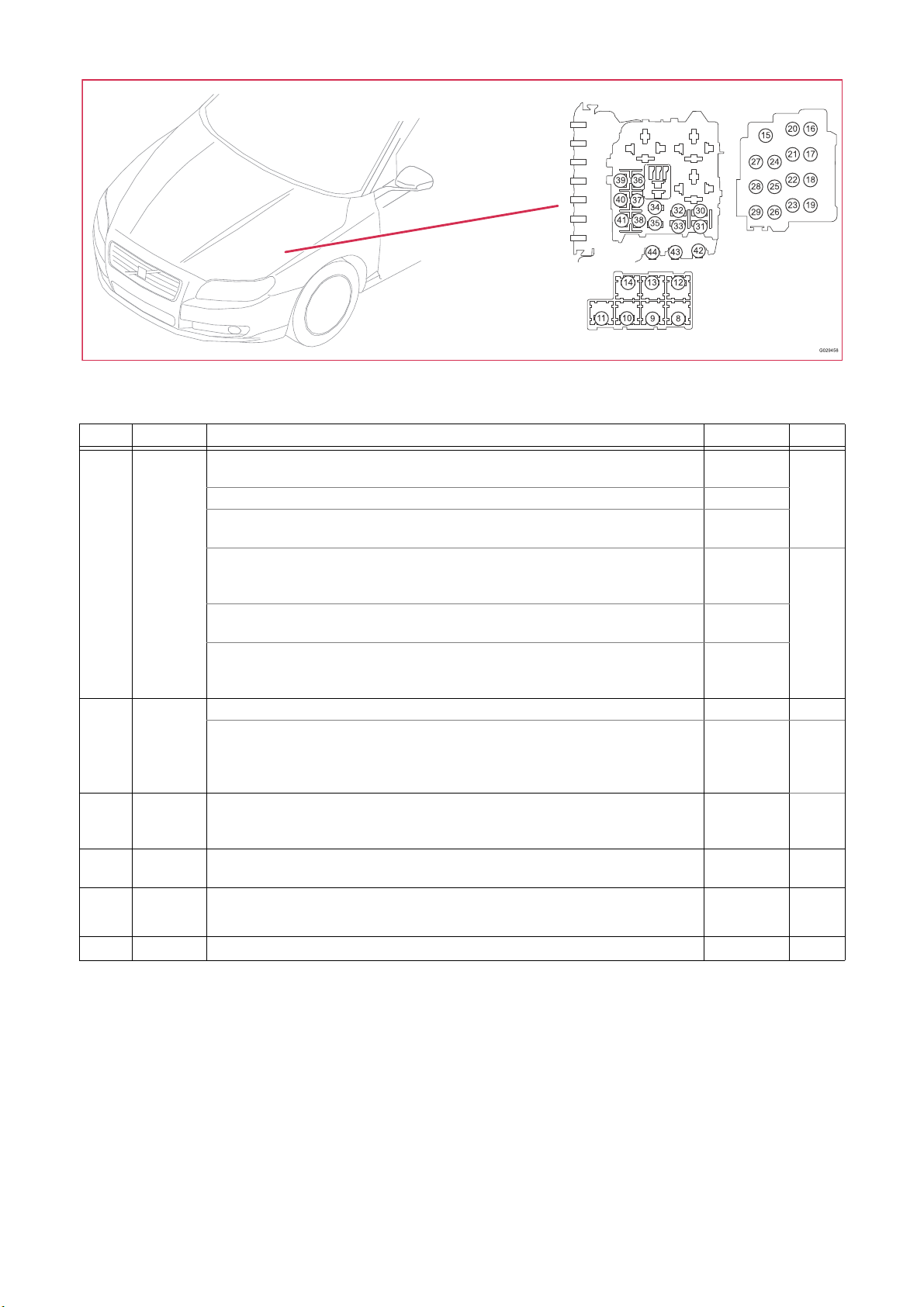

Distribution box in engine compartment F8 - F23......... 15
Distribution box in engine compartment F27 - F36....... 16
Distribution box in engine compartment F37 - F38....... 17
Distribution box in engine compartment F39 - F44....... 18

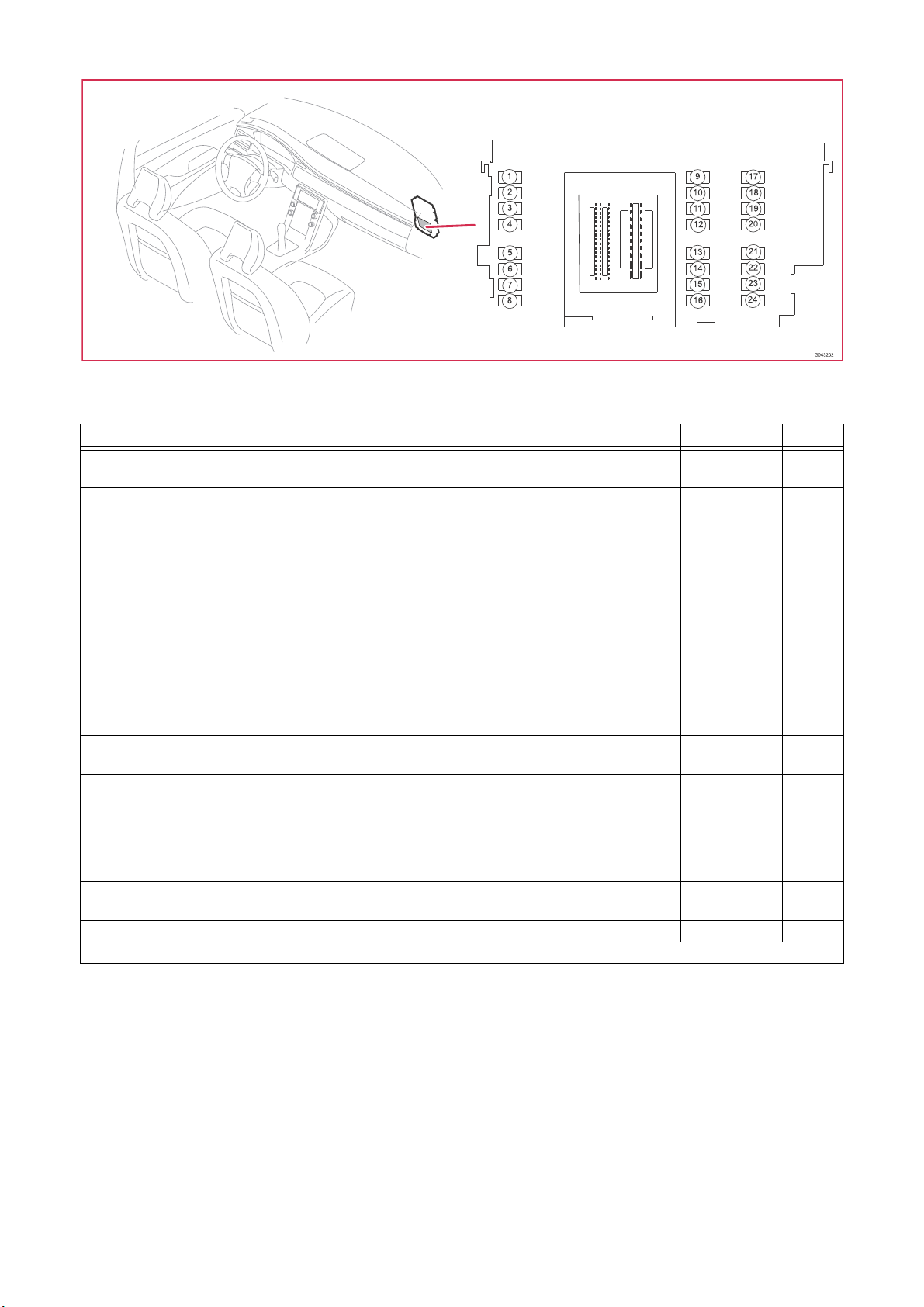

Central Electronic Module (CEM) F1 - F8..................... 19

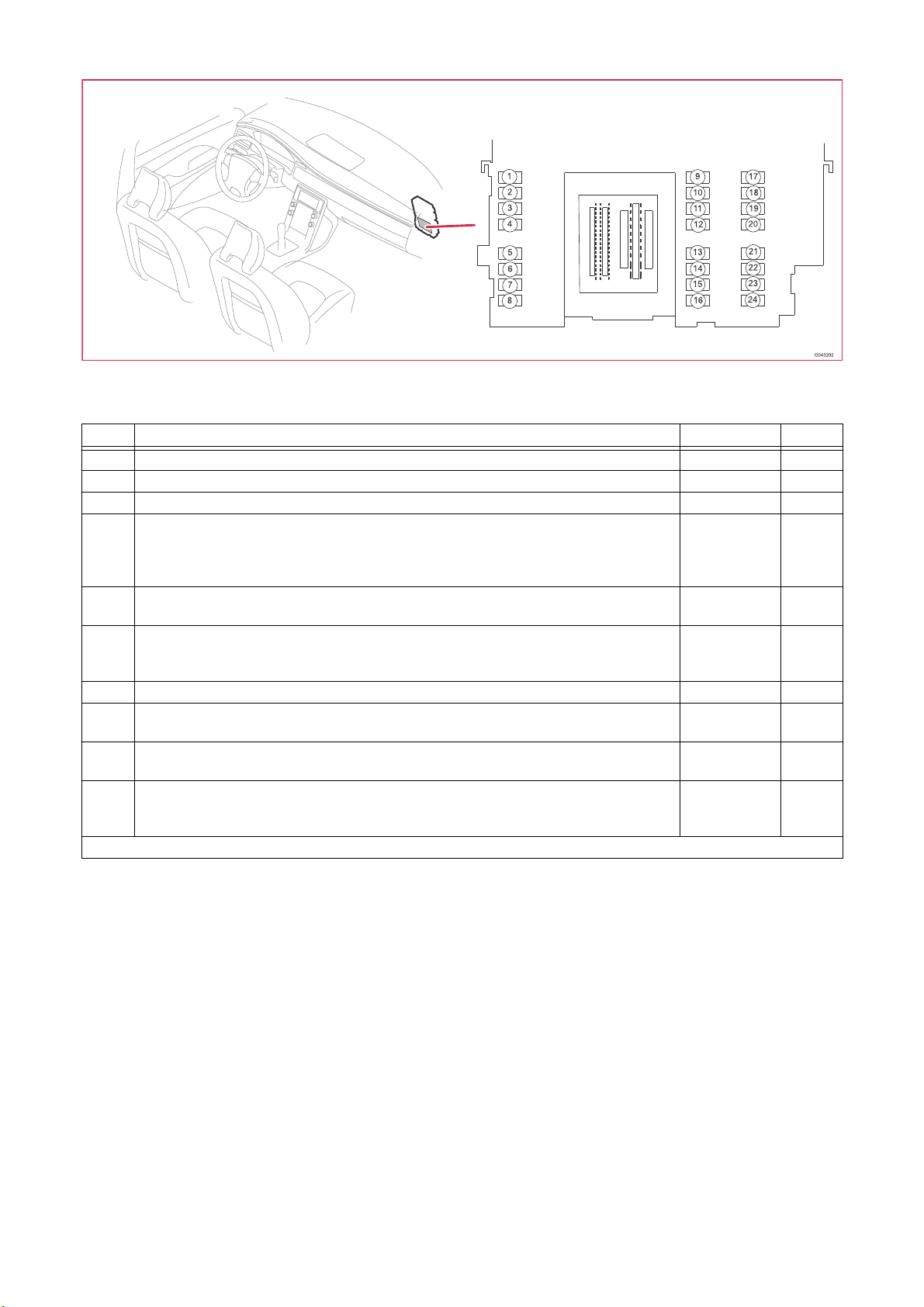

Central Electronic Module (CEM) F9 - F19................... 20
Central Electronic Module (CEM) F20 - F24................. 21
Distribution box in passenger compartment F1 - F17... 22
Distribution box in passenger compartment F18 - F30. 23
Distribution box in engine compartment, cold zone...... 24
Distribution box in cargo compartment FA1 - FA11...... 25
Battery PF1 - PF2......................................................... 26
Relays
Relays in the engine compartment .............................. 27
Relays in the engine compartment and passenger com-
partment....................................................................... 28
Relays in cargo compartment...................................... 29
Ground connections
Overview...................................................................... 30
31/1 - 31/7 ................................................................... 31
31/10 - 31/15 continues ............................................... 32
31/15 - 31/68 ............................................................... 33
31/83 - 31/89 ............................................................... 34
31/90 - 31/XX4............................................................. 35
31/XX10 - 31/TRM....................................................... 36
Control modules
Overview locations....................................................... 37
Overview designations................................................. 38
Central Electronic Module (CEM) 1:3 .......................... 39
Data communication, High speed CAN ....................... 42
Data communication intermediate speed CAN, LHD... 43
Data communication intermediate speed CAN, RHD .. 44
Data communication Local CAN.................................. 45
Data communication, LIN 1:2....................................... 46
Data communication MOST......................................... 48
Steering Wheel Module (SWM) ................................... 49
Group 26 Cooling system
Cooling fan, 4-Cyl. Turbo............................................. 50
Cooling fan, 4-Cyl. Diesel ............................................ 51
Cooling fan, 5-Cyl. Diesel ............................................ 52
Cooling fan, 5-Cyl. Turbo & 6-Cyl. ............................... 53
Group 27 Engine controls
Cruise control 4-Cyl. Turbo 1.6l ....................................54
Cruise control 4-Cyl. Turbo 2.0l ....................................55
Cruise control 4-Cyl. Diesel ..........................................56
Cruise control 5-Cyl. Diesel ..........................................57
Cruise control 5-Cyl. Turbo & 6-Cyl. .............................58
Start-/Stop function 4-Cyl. 1.6l Turbo............................59
Start-/Stop function 4-Cyl. 1.6l Diesel DV6C ................60
Start-/Stop function 5-Cyl. Diesel VED5 .......................61
Group 28 Ignition and control system
Engine management system 4-Cyl. 1.6l Turbo 1:2...... 62
Engine management system 4-Cyl. 2.0l Turbo 1:2...... 64
Engine management system, 5-Cyl. Turbo 1:2............ 66
Engine management system, 6-Cyl. Turbo 1:2............ 68
Engine management system, 4-Cyl. Diesel 1:3 ........... 70
Engine management system, 5-Cyl. Diesel 1:3 ........... 73
Emission control 4-Cyl. 1.6l Turbo............................... 76
Emission control 4-Cyl. 2.0l Turbo............................... 77
Emission control 5-Cyl. Turbo...................................... 78
Emission control 6-Cyl. ............................................... 79
Table of Contents 1:3

TP39255202 S60 (11-) 4
Group 32 Alternator and voltage regulator
Power supply 4-Cyl. without Start/Stop ....................... 80
Power supply 5-Cyl. & 6-Cyl. without Start/Stop.......... 81
Power supply 4-Cyl. & 5-Cyl. with Start/Stop............... 82
Group 33 Starting system
Starting system 4-Cyl................................................... 83
Starting system, 5-Cyl. & 6-Cyl.................................... 84
Group 35 Lighting
High and low beam ...................................................... 85
High and low beam (Dual Xenon)................................ 86
Beam length adjustment, manual ................................ 87
Running/Parking light, Tail lights S60.......................... 88
Running/Parking light, Tail lights V60.......................... 89
Fog lights S60.............................................................. 90
Fog lights V60.............................................................. 91
Brake lights S60........................................................... 92
Brake lights V60........................................................... 93
Reversing lights S60.................................................... 94
Reversing lights V60.................................................... 95
Follow-me-home lighting LHD ..................................... 96
Follow-me-home lighting RHD..................................... 97
Interior lighting, LHD 1:2.............................................. 98
Interior lighting, RHD 1:2 ........................................... 100
Active headlight ......................................................... 102
Lighting in door sill trims ............................................ 103
Auxiliary lights............................................................ 104
Group 36 Additional electrical equipment
Rain sensor................................................................ 105
Direction indicator and hazard warning flashers
LHD S60 .................................................................... 106
Direction indicator and hazard warning flashers
LHD V60 .................................................................... 107
Direction indicator and hazard warning flashers
RHD S60.................................................................... 108
Direction indicator and hazard warning flashers
RHD V60.................................................................... 109
Wiper/washer windshield........................................... 110
Washer headlights..................................................... 111
Wiper/Washer rear windowV60 ................................. 112
Horn ...................................................................... 113
Keyless vehicle 1:2 .................................................... 114
Anti-theft alarm .......................................................... 116
Parking assistance..................................................... 117
Collision warning with power brake booster .............. 118
Tire pressure monitoring system (TPMS) .................. 119
Alcohol lock................................................................ 120
Group 37 Wiring and fuses
Diagnostics system .................................................... 121
Outlet 12V.................................................................. 122
Outlet 12V, V60 ......................................................... 123
12 V outlet, V60 ......................................................... 124
Cable harness towbar/tow hitch 13-pin S60 .............. 125
Cable harness towbar/tow hitch 13-pin V60 .............. 126
Group 38 Instruments
Seat belt reminder ..................................................... 127
Driver information module.......................................... 128
Group 39 Other
Audio Premium 1:3 .................................................... 129
Audio 1:2.................................................................... 132
Cellular phone 1:2...................................................... 134
DAB Radio ................................................................. 136
Multimedia monitor with DVD, Dual Screen (RSE) .... 137
TV receiver / TV control module S60......................... 138
TV receiver / TV control module V60......................... 139
Bluetooth Handsfree .................................................. 140
Navigation system and Traffic information, portable.. 141
Satellite radio ............................................................. 142
Parking camera rear .................................................. 143
Parking camera rear .................................................. 144
Parking camera wide angle front ............................... 145
Group 43 Transmission
Transmission M66...................................................... 146
Automatic transmission AWF21................................. 147
Automatic transmission MPS6................................... 148
Differential Electronic Module (DEM)......................... 149
Group 55 Parking brake
Electric parking brake ................................................ 150
Group 59 Brake system
Brake control system & DSTC ................................... 151
Group 64 Steering
Speed dependent power steering .............................. 152
Table of Contents 2:3

TP39255202 S60 (11-) 5
Group 76 Shock absorbers
Four-C ...................................................................... 153
Group 83 Doors and openings
Central locking front doors LHD................................. 154
Central locking front doors RHD................................ 155
Central locking rear doors.......................................... 156
Central locking tailgate S60 ....................................... 157
Central locking tailgate V60 ....................................... 158
Central locking fuel filler flap...................................... 159
Signal receiver central locking ................................... 160
Power windows front doors LHD ............................... 161
Power windows front doors RHD............................... 162
Power windows rear doors ........................................ 163
Power sunroof............................................................ 164
Group 84 Exterior decorative elements, etc.
Power door mirrors LHD............................................ 165
Power door mirrors RHD ........................................... 166
Heated door mirrors LHD........................................... 167
Heated door mirrors RHD .......................................... 168
Blind spot information system LHD............................ 169
Blind spot information system RHD ........................... 170
Heated rear window................................................... 171
Group 85 Interior equipment
Power driver’s seat with memory function, LHD ........ 172
Power driver’s seat with memory function, RHD ....... 173
Power passenger seat, LHD...................................... 174
Power passenger seat, RHD ..................................... 175
Heated front seats with fans ...................................... 176
Heated front seats without fans ................................. 177
Heated rear seat........................................................ 178
Group 87 Climate control system
Climate control system PTC-elements ...................... 179
Climate control system, 4-Cyl. 1:2............................. 180
Climate control system 4-Cyl. Diesel 1:2 ................... 182
Climate control system 5-Cyl. & 6-Cyl. 1:2 ................ 184
Parking heater, auxiliary heater ................................. 186
Parking heater, remote start ...................................... 187
Group 88 Internal equipment
Supplemental restraint system 1:2 ............................ 188
Rear-view mirror with automatic dimming.................. 190
Remote control opener garage door.......................... 191
Power folding headrest .............................................. 192
Group 89 Body other
Radiator masking blind .............................................. 193
Connectors............................................... 194
Branching points .....................................229
Cable harness routing in vehicle
Harness engine 4-Cyl. Turbo ......................................249
Harness engine, 6-Cyl. Turbo .....................................249
Harness engine, 2.0L Diesel.......................................250
Harness engine, 2.4L Diesel.......................................250
Engine compartment harness LHD.............................251
Engine compartment harness RHD ............................252
Harness dashboard, LHD ...........................................253
Harness Dashboard, RHD ..........................................254
Harness Floor, LHD S60.............................................255
Harness Floor, RHD S60 ............................................256
Floor Harness, LHD V60.............................................257
Harness Floor, RHD V60 ............................................258
Harness infotainment, LHD S60 .................................259
Harness infotainment, RHD S60.................................260
Harness infotainment, LHD V60 .................................261
Harness infotainment, RHD V60.................................262
Roof harness, S60 ......................................................263
Roof harness V60 .......................................................263
Center console harness..............................................264
Tunnel harness ...........................................................264
Harness front door, left ...............................................265
Harness front door, right .............................................265
Harness rear door, left ................................................266
Harness rear door, right..............................................266
Trunk lid/tailgate harness, S60 ...................................267
Trunk lid/tailgate harness, V60 ...................................267
Harnesses rear axle....................................................268
Component illustrations ..........................269
Index 1:2 ....................................................326
List of components 1:6 ............................328
Table of Contents 3:3

TP39255202 S60 (11-) 6
Explanations & Abbreviations
Groups
Group 26 = Cooling system
Group 27 = Engine controls
Group 28 = Ignition and control system
Group 32 = Alternator and voltage regulator
Group 33 = Starting system
Group 35 = Lighting
Group 36 = Additional electrical equipment
Group 37 = Wiring and fuses
Group 38 = Instruments
Group 39 = Other
Group 43 = Transmission
Group 55 = Parking brake
Group 59 = Brake system
Group 64 = Steering
Group 76 = Shock absorbers
Group 83 = Doors and openings
Group 84 = Exterior decorative elements, etc.
Group 85 = Interior equipment
Group 87 = Climate control system
Group 88 = Internal equipment
Group 89 = Body other
Designations ignition switch
X = Accessories (audio position)
S = Powered upon insertion of key
15 = The switch remains connected during
start
15l = Contact is broken while starting
30 = Constant power from the battery
50 = Start
Countries/Markets
A = Austria
AUS = Australia
B = Belgium
CDN = Canada
CH = Switzerland
D = Germany
DK = Denmark
E=Spain
EU/OS = Markets outside USA and Canada
FIN = Finland
GB = Great Britain
ISR = Israel
J = Japan
KOR = Korea
N=Norway
NL = Netherlands
S = Sweden
USA = United States of America
WEU = Western Europe
Other
ACC = Adaptive Cruise Control
Ag = Silver plated
Au = Gold plated
AUTO = Automatic transmission
BLIS = Blind Spot Information System
CAN = CAN communication
DPY = Display
ECC = Electronic climate control system
ETA = Throttle unit
EXC = Exclusive
GDL = Gas discharge lamp
HS = High speed data bus
KEYLESS = Keyless vehicle
IR = Infrared sensor
LIN = LIN communication
LH = Left-hand side
LHD = Left-hand drive
MAN = Manual transmission
MEMORY = Memory driver’s seat
MIRCAM = Parking camera in rear-view mirror
MS = Midspeed data bus
MMS = Mass Movement Sensor
PANROOF = Panoramic roof
PETROL = Gasoline
RH = Right-hand side
RHD = Right-hand drive
RTI = Road Traffic Information
SCR = Screened
SRS = Airbag
T = Turbo engine
W/O = Without
2WD = Two-wheel drive
4CYL, I4 = 4-cylinder engine
5CYL, I5 = 5-cylinder engine
6CYL, I6 = 6-cylinder engine
Colors
BK, SB = Black
BN = Brown
BU, BL = Blue
GN = Green
GY, GR = Gray
LGN = Light Green
NL = Natural
OG, OR = Orange
PK, P = Pink
RD, R = Red
VT, VO = Violet
WH, W = White
YE, Y = Yellow

TP39255202 S60 (11-) 7
The descriptions below apply in general
to all wiring diagram manuals, although
not all sections are necessarily con-
tained in this manual.
The systems are shown in non-active
status.i.e. with "key removed" and when
the doors, hatches and hood are closed.
How to use the wiring diagrams 1:2
A. Component designation
Every component has a component designation that
consists of two parts.
The first part is a type number that describes the
type of component in question, for example 3/xx.
The second part of the designation is a serial num-
ber, for example x/2.
Combined these give a component designation, for
example 3/2.
At the end of the manual is a list of components,
where, with the help of the component designation,
you can read off the name of the component, for
example, 3/2 = light switch.
List of type numbers
The list shows which type of component that respec-
tive type numbers refer to, for example, 3/x = switch,
6/x = electric motor, etc.
1 Battery
2Relay
3 Switch
4 Control module
5 Driver Information Module
6 Electric motor
7Sensor
8 Actuator
9 Heating element
10 Light
11 Fuse
15 Electrical distribution rail/box
16 Audio
17 Service/diagnostics
18 Contact reel
19 Meter
20 Ignition component/shunt
27 Optics
31 Ground connection
73 Branching point
74 Connector
B. Branching points
The wiring diagrams contain numbered branching
points, for example 73/5035.
This manual contains a section with a list of branch-
ing points. This list shows all the components which
are connected to each branching point.
The location of the branching points is shown in the
"Cable harness routing in vehicle" section.
C. Connectors
Connectors provide a bridge between two cable har-
nesses and are described in the "Connectors" sec-
tion.
D. Electrical distribution
Operation of the fuses and relays is shown in the
"Electrical distribution" section.
E. Data communication
Today’s cars contain CAN, LIN and MOST networks
that transfer information. Connections to these net-
works are not shown in their entirety in the respec-
tive wiring diagram. Complete information on CAN,
LIN and MOST communication is found in the sec-
tion "Control modules".
F. Abbreviations
A number of different abbreviations are used in the
manual. These are explained in the section "Abbre-
viations".
G. Component location
There is a section at the end of the manual in which
the appearance and location of components is
described in numerical order.

TP39255202 S60 (11-) 8
How to use the wiring diagrams 2:2
Explanation of symbols
= System voltage
= Ground connection via wiring
= Ground connection in
component/chassis
= Screened wire
= Branching point
= Twisted cable
= Electrical connection
= Variant
= CAN communication
= CAN high data signal (CAN H)
= CAN low data signal (CAN L)
= LIN communication
= LIN communication
= DIN cable, coaxial cable, etc.
= Data communication
= CAN communication
= MOST communication
= MOST communication
= Connection with distribution box
= Further connection to...
= Connector between cable
harnesses
= Connector connected in
component

TP39255202 S60 (11-) 9
15/36
R1
2/88
21
3
5
R4
2/193
2
1
3
5
11D/A6
21
11D/A5
21
11D/A3
21
11D/A2
21
11D/A1
21
11D/A4
21
11D/A11
21
11D/A12
21
21
3
5
2/82
15/32
RA2
21
3
5
A
RA1
RD-GN
RD-GN
RD-GN
RD-VT
RD-VT
73/5075
2/16
74/504B
2
R7
2/31
2
1
35
11A/3
12
11A/2
12
11A/1
12
11A/4
12
11A/5
12
11B/17
RD
12
12
15/31
11B/27
C1:63
C1:13
C5:1
C5:2
C2:5
C2:17
C1:9
N00004
12
12
12
12
12
GY-BK
RD-BU
RD-BK
GN-VT
RD-GN
RD-BN
RD-GY
RD-GN
74/504
14
VT-GN
VT-GN
BU
CAN
CEM
4/56
LIN
12
12
12
12
12
12
12
12
12
F17
F20
12
F1
F6
12V
BK
31/3
1/1
RD 21
PF1
RD-VT
RD-VT
RD-VT
7/240
BMS
LIN
I
U
73/3137
73/3136
GND
1
Electrical distribution
Overview without Start/stop function

TP39255202 S60 (11-) 10
15/36
R1
2/88
21
3
5
R4
2/193
2
1
3
5
11D/A6
21
11D/A5
21
11D/A3
21
11D/A2
21
11D/A1
21
11D/A4
21
11D/A11
21
11D/A12
21
21
3
5
2/82
15/32
RA2
21
3
5
A
RA1
RD-GN
RD-GN
RD-GN
RD-VT
RD-VT
73/5075
2/16
74/504B
R7
2/31
11A/3
12
11A/2
12
11A/1
12
11A/4
1211A/5
12
11B/17
RD
12
12
15/31
11B/27
CAN
CEM
4/56
C1:63
C1:13
C5:1
C5:2
LIN
C2:5
C2:17
C1:9
12
12
12
12
12
GY-BK
RD-BU
RD-BK
GN-VT
RD-GN
RD-BN
RD-GY
RD-GN
74/504 14
VT-GN
VT-GN
BU
21
21
21
21
21
21
11A/8
21
2
1
35
15/37
R2
2/246
2
1
2
121
3
5
21
3
5
11A/7
2
1
2
1
11B/12
2
1
21
2
1
R1
2/166
11A/6
MF1
F10
11A/2
MF2
M11
11A/1
11A/4
11A/5
11A/3
11A/9
12V BK
31/131
1/2
RD
74/301
27
74/504
19
74/316
4
RD
RD
RD
RD
12V
31/3
1/1
RD 21
PF1
21
PF4
2
BK
PF1
RD-VT
RD-VT
RD-VT
7/240
BMS
LIN
I
U
73/3137
73/3136
1
MAN
73/3162
AUTO
RD RD
RD
RD
C2
C8
C7
1
2
11B/34
N00009
Electrical distribution
Overview with Start/stop function

TP39255202 S60 (11-) 11
Electrical distribution 1:3
Overview, Distribution box in engine compartment
15/31
11B/36
21
11B/37
21
11B/38
21
11B/41 11B/18 12
11B/16 12
11B/17
73/3068
73/3085 12
11B/19 12
11B/20 12
11B/21 12
11B/22 12
11B/23 12
11B/28 12
11B/29 12
YE-GN
RD
RD
RD
RD
GY-BK
RD
RD
GN-VT
RD-BK
RD-BU
RD-GN
RD-GY
RD-BN 15/36
15/36
15/32
4/56C5:2
4/56C5:1
RD
RD
RD
4/46B:16
6 CYL
RD
RD
RD
RD
RD
RD
RD
RD
GY-VT
GY-VT
GY-VT
GY-VT
RD
RD-BK
RD
11B/27 12
11A/1
11A/2
11A/3
11A/4
11A/5
11A/6
12
11A/7
12
12
12
12
12
12
21
11B/40
21
11B/39
21
11A/43
21
11A/42
21
11A/44
21
11B/33
21
11B/32
21
11B/31
21
11B/30
21
11B/35
21
11B/34
21
21
3
52/22
R13
R10
2
1
35
2/31
R7
21
3
52/32
21
3
52/35
R12
11B/13
11B/11
11B/9
11B/12
11B/10
12
11B/14 12
12
12
12
12
11B/8 12
9/42
4/56C1:13
4/56C1:63
RD
RD-VT
RD
2/14 R11
YE-GN
B00001
2
1
35
2/17
R8
2
1
35
2/182
R9
RD-VT
RD RD RD
73/3160
A
74/316
2
STOSTA
STOSTA RD-BU
RD-BU
RD-BU
RD-BU
30+
GY-BU
4 CYL D. STOSTA
RD
73/3152
GY-BU
BU-OG
5CYL D.
BU-OG
5CYL D.
C3:2
RD-BU
4 CYL D & I5T STOSTA
4 CYL D & I5T STOSTA
5 CYL D STOSTA

TP39255202 S60 (11-) 12
Electrical distribution 2:3
Overview, Distribution box in passenger compartment
2
1
35
4
R2
R1
2/88
2
1
35
4
R3
2
1
3
5
R4
2/193
21
3
5
11C/3 12
11C/2 12
11C/1 12
11C/4 12
11C/7 12
11C/6 12
11C/5 12
11C/8 12
11C/10 12
11C/9 12
11C/11 12
11C/14 12
11C/13 12
11C/12 12
11C/15 12
11C/18 12
11C/17 12
11C/19 12
11C/25 12
11C/24 12
11C/23 12
11C/22 12
11C/21 12
11C/16 12
11C/20 12
11C/27
12
11C/26
12
12
11C/28
12
11C/29
12
11C/30
RD
RD
RD
RD
RD
73/5117
15/36
RD-BN
RD-GY
I012227
15/31
11A/5
12
11A/4
12
30+
15/37
11A/3
12
11A/4
12RD-GY
RD-BN
STOSTA STOSTA

TP39255202 S60 (11-) 13
11D/A6
21
11D/A5
21
11D/A3
21
11D/A2
21
11D/A1
21
11D/A4
21
11D/A11
21
11D/A12
21
21
3
4
2/82
15/32
RA2
21
3
5
A
RA1
RD-GN
RD-GN
RD-GN
RD-GN
RD-VT
RD-VT
73/5075
2/16
74/504B
RD-GN 2
N00006
4
11A/5
12 RD-GN 2
15/37
STOSTA
15/31
11A/3
12
3
15/31
2
30+
Electrical distribution 3:3
Overview, Distribution box in cargo compartment

TP39255202 S60 (11-) 14
Fuses
Distribution box in engine compartment F1 - F7
15/31 Distribution box in engine compartment
No. No. Fuse function via A
F1 11A/1 4/56 Central Electronic Module (CEM)
F7 Fuse in the Central Electronic Module (CEM)
F9-F10 Fuses in the Central Electronic Module (CEM)
F21 Fuse in the Central Electronic Module (CEM)
F23 Fuse in the Central Electronic Module (CEM)
-
-
relay in CEM
-
-
50
F2 11A/2 4/56 Central Electronic Module (CEM)
F1 Fuse in the Central Electronic Module (CEM)
F3-F6 Fuses in the Central Electronic Module (CEM)
F8 Fuse in the Central Electronic Module (CEM)
F11-F12 Fuse in the Central Electronic Module (CEM)
F13-F16 Fuses in the Central Electronic Module (CEM)
F22 Fuse in the Central Electronic Module (CEM)
F24 Fuses in the Central Electronic Module (CEM)
-
relay in CEM
relay in CEM
relay in CEM
relay in CEM
-
-
-
50
F3 11A/3 11D/A1-11D/A6 Fuses in distribution box cargo compartment
11D/A11-11D/A12 Fuses in distribution box cargo compartment
-
-
60
F4 11A/4 2/193 Relay, comfort functions
11C/1-11C/15 Fuses in distribution box passenger compartment
11C/21-11C/22 Fuses in distribution box passenger compartment
-
-
2/193
60
F5 11A/5 2/88 Relay, 15-feed
11C/23-11C/25 Fuses in distribution box passenger compartment
11C/26-11C/30 Fuses in distribution box passenger compartment
-
2/88
-
60
F7 11A/7 9/42 PTC element without start/stop - 100
continues

TP39255202 S60 (11-) 15
Fuses
Distribution box in engine compartment F8 - F23
15/31 Distribution box in engine compartment
No. No. Fuse function via A
F8 11B/8 6/104 Washer motor headlights 2/182 20
F9 11B/9 6/1 Wiper motor module (WMM) - 30
F10 11B/10 4/7 Combustion Preheater Module (CPM)
4/106 Control module, remote parking heater start
-
-
25
F11 11B/11 4/31 Fan control module
6/28 Motor, passenger compartment fan
-
-
40
F13 11B/13 4/16 Brake Control Module (BCM), pump - 40
F14 11B/14 4/16 Brake Control Module (BCM), valves - 20
F16 11B/16 6/38 Left-hand headlight level adjustment motor
6/39 Right-hand headlight level adjustment motor
10/1 Left-hand front lamp housing
10/2 Right-hand front lamp housing
-
-
-
-
10
F17 11B/17 4/56 Central Electronic Module (CEM)
F17-F20 Fuses in the Central Electronic Module (CEM)
-20
F18 11B/18 4/16 Brake Control Module (BCM) - 5
F19 11B/19 4/99 Electronic power steering control module
6/164 Electrical power steering module (EHPS)
-
-
5
F20 11B/20 4/9 Supplemental Restraint System (SRS)
4/28 Transmission Control Module (TCM)
4/46 Engine Control Module (ECM)
-
-
-
10
F21 11B/21 9/43 Heated windshield washer nozzle, left
9/44 Heated windshield washer nozzle, right
-
-
10
F23 11B/23 3/111 Light Switch Module (LSM) - 5
continues

TP39255202 S60 (11-) 16
Fuses
Distribution box in engine compartment F27 - F36
15/31 Distribution box in engine compartment
No. No. Fuse function via A
F27 11B/27 2/17 Relay, horn
2/31 Relay, 15-feed
2/182 Relay, headlight washer motor
-
-
-
5
F28 11B/28 2/64 Relay auxiliary lights
10/65 Auxiliary light, front right
10/69 Auxiliary light, front left
-
2/64
2/64
20
F29 11B/29 16/10 Horn 1
16/11 Horn 2
2/17
2/17
15
F30 11B/30 2/32 Main relay, engine management system
4/46 Engine Control Module (ECM)
-
2/32
10
F31 11B/31 4/28 Transmission Control Module (TCM) - 15
F32 11B/32 6/73 Coolant pump, Start/Stop
8/3 Electromagnetic clutch, climate control system
2/22
2/22
15
F33 11B/33 2/14 Relay, glow plug system
2/22 Relay, climate control system
-
-
5
F34 11B/34 6/25 Starter motor 2/35 30
F35 11B/35 4/109 Glow plug control module, 5-Cyl. Diesel
20/3-6 Spark plug with ignition coil, 4-Cyl
-
-
10
20/3-7 Spark plug with ignition coil, 5-Cyl. Turbo
20/3-8 Spark plug with ignition coil, 6-Cyl. Turbo
20/16 Capacitor, 6-Cyl. Turbo
-
-
-
20
F36 11B/36 4/46 Engine Control Module (ECM), 4-Cyl. & 5-Cyl. Diesel - 15
4/46 Engine control module (ECM), 4-Cyl., 5-Cyl. & 6-Cyl. Turbo - 10
continues

TP39255202 S60 (11-) 17
Fuses
Distribution box in engine compartment F37 - F38
15/31 Distribution box in engine compartment
No. No. Fuse function via A
F37 11B/37 7/17 Mass air flow sensor MAF, 4-Cyl. 1.6l Turbo
8/121 Bypass valve charge air cooler, 4-Cyl. 1.6l Turbo
8/167 Bypass Solenoid, 4-Cyl. 1.6l Turbo
-
-
-
10
7/17 Mass air flow sensor MAF, 4-Cyl. 1.6l Diesel
8/111 Control valve fuel flow, 4-Cyl. 1.6l Diesel
-
-
8/6-10 Injection valves, 5-Cyl. Turbo - 15
7/17 Mass air flow sensor MAF, 5-Cyl. Diesel
8/98 Control valve fuel pressure, 5-Cyl. Diesel
8/111 Control valve fuel flow, 5-Cyl. Diesel
-
-
-
4/46 Engine Control Module (ECM), 6-Cyl. Turbo
7/17 Mass air flow sensor MAF, 6-Cyl. Turbo
8/6-11 Injection valves, 6-Cyl. Turbo
-
-
-
F38 11B/38 7/17 Mass air flow sensor MAF, 4-Cyl. Turbo
8/18 EVAP valve, 4-Cyl. Turbo
8/19 Solenoid, variable valve timing, intake, 4-Cyl. Turbo
8/28 Turbocharger control valve, 4-Cyl. Turbo
8/81 Solenoid, variable valve timing, exhaust, 4-Cyl. Turbo
8/159 Bypass valve, 4-Cyl. Turbo
-
-
-
-
-
-
10
2/14 Relay, glow plug system, 4-Cyl. Diesel, Start/Stop
6/73 Coolant pump, 4-Cyl. Diesel, Start/Stop
8/111 Control valve fuel flow, 4-Cyl. Diesel
8/113 Bypass valve, EGR cooling, 4-Cyl. Diesel
-
2/14
-
-
7/17 Mass air flow sensor MAF, 5-Cyl. Turbo
7/35 Oil level sensor, 5-Cyl. Turbo
8/28 Turbocharger control valve, 5-Cyl. Turbo
8/81 Solenoid, variable valve timing, exhaust, 5-Cyl. Turbo
8/117 Solenoid, variable valve timing, intake, 5-Cyl. Turbo
-
-
-
-
-
7/35 Oil level sensor, 5-Cyl. Diesel
8/3 Electromagnetic clutch, climate control system, 5-Cyl. Diesel
8/113 Bypass valve, EGR cooling, 5-Cyl. Diesel
8/164 Electric piston cooling valve, 5-Cyl. Diesel
-
-
-
-
4/46 Engine Control Module (ECM), 6-Cyl. Turbo
8/3 Electromagnetic clutch climate control system, 6-Cyl. Turbo
8/28 Turbocharger control valve, 6-Cyl. Turbo
8/68 Relief valve, 6-Cyl. Turbo
8/117 Solenoid, variable valve timing, intake, 6-Cyl. Turbo
8/125 Solenoid front cam profile, 6-Cyl W/O Turbo
8/126 Solenoid rear cam profile, 6-Cyl W/O Turbo
-
-
-
-
-
-
-
continues

TP39255202 S60 (11-) 18
Fuses
Distribution box in engine compartment F39 - F44
15/31 Distribution box in engine compartment
No. No. Fuse function via A
F39 11B/39 7/15 Front heated oxygen sensor, 4-Cyl. Turbo
7/82 Rear heated oxygen sensor bank 1, 4-Cyl. Turbo
-
-
10
7/15 Front heated oxygen sensor, 4-Cyl. Diesel -
4/136 Radiator masking blind
7/15 Front heated oxygen sensor, 5-Cyl. Diesel
-
-
7/15 Front heated oxygen sensor, bank 1, 5-Cyl. Turbo
7/215 Rear heated oxygen sensor, 5-Cyl. Turbo
8/18 EVAP valve, 5-Cyl. Turbo
-
-
-
15
7/103 Front heated oxygen sensor, bank 2, 6-Cyl.
7/104 Front oxygen sensor, bank 2, 6-Cyl.
-
-
7/15 Front heated oxygen sensor bank 1, 6-Cyl. Turbo
7/82 Rear heated oxygen sensor bank 1, 6-Cyl. Turbo
8/18 EVAP valve, 6-Cyl. Turbo
-
-
-
F40 11B/40 6/73 Coolant pump, 4-Cyl. Turbo, Start/Stop 2/14 10
6/73 Coolant pump, 5-Cyl. Turbo, Start/Stop
6/179 Electric oil pump, 5-Cyl. & 6-Cyl.
9/32 PTC resistor crankcase ventilation, 5-Cyl. Turbo
9/38 Electrically heated fuel filter, 4-Cyl. Diesel
2/14
-
-
-
20
F41 11B/41 6/67 Pump, fuel leakage control 6-Cyl.
9/32 PTC resistor crankcase ventilation, 5-Cyl. Diesel
6/179 Electric transmission oil pump, Diesel
-
-
-
5
F42 11A/42 4/109 Glow plug control module
20/22-26 Glow plug, 5-Cyl. Diesel
-
4/109
70
F43 11A/43 4/71 Control module cooling fan 4-Cyl. Turbo - 60
4/71 Cooling fan control module, 5-Cyl. Diesel & 6-Cyl. - 80
F44 11A/44 6/164 Electrical power steering module (EPS) - 100

TP39255202 S60 (11-) 19
Fuses
Central Electronic Module (CEM) F1 - F8
4/56 Central Electronic Module (CEM)
No. Fuse function via A
F1 2/16 Relay, rear window wiper
6/32 Rear window wiper motor
-
2/16
15
F3 3/26 Switch unit, power driver’s seat
3/27 Switch unit, power passenger seat
3/176 Power window switches, driver’s door
4/52 Power Seat Module (PSM)
10/25 Ceiling light, cargo compartment
10/29 Glove compartment lighting
10/125 Left-hand front courtesy lighting
10/126 Right-hand front courtesy lighting
10/127 Lighting, cargo compartment, left-hand side, S60
17/45 Alcohol lock outlet
26/6 Converter/control module, sill moldings, driver’s side
26/7 Converter/control module, sill moldings, passenger side
26/8 Alcohol lock charging cradle
-
-
-
-
-
-
-
-
-
-
-
-
-
7,5
F4 5/1 Driver Information Module (DIM) - 5
F5 4/80 Forward Sensing Module (FSM)
7/203 Forward-aimed radar (FLR)
-
-
10
F6 4/76 Remote control opener garage door
7/149 Rain Sensor Module (RSM)
10/22 Ceiling light
10/114 Left-hand vanity mirror lighting
10/115 Right-hand vanity mirror lighting
10/150A Rear reading light
-
-
-
-
-
-
7,5
F7 3/4 Steering wheel switch left (SWSL)
3/131 Steering wheel switch right (SWSR)
3/130
3/130
7,5
F8 6/37 Lock motor, fuel filler cover relay in CEM 10
continues

TP39255202 S60 (11-) 20
Fuses
Central Electronic Module (CEM) F9 - F19
4/56 Central Electronic Module (CEM)
No. Fuse function via A
F9 6/127 Washer motor - 15
F10 6/127 Washer motor - 15
F11 6/8 Central locking motor, trunk lid - 10
F12 6/141 Motor folding head restraint left
6/142 Motor folding head restraint right
8/59 Rear left head restraint solenoid
8/60 Rear right head restraint solenoid
-
-
-
-
10
F13 4/83 Fuel pump control module
6/33 Fuel pump
relay in CEM
4/83
20
F14 4/6 Climate Control Module (CCM)
4/119 Remote Keyless Entry (TRX)
4/119.2 Signal receiver (LRX)
-
-
-
5
F15 4/102 Steering column lock module (SCL) relay in CEM 15
F16 16/35 Siren Control Module (SCM)
17/13 Data link connector
-
-
5
F18 4/9 Supplemental Restraint System (SRS)
7/93 Occupant Weight Sensor (OWS)
-
-
10
F19 4/80 Forward Sensing Module (FSM)
4/125 Closing velocity module (CVM)
7/203 Forward-aimed radar (FLR)
-
-
-
5
continues
