OWNER'S MANUAL

VÄLKOMMEN!
We trust that you will enjoy many years of safe driving in your Volvo, an
automobile designed with your safety and comfort in mind. To help get
the most from your Volvo, we urge you to familiarize yourself with the
instructions and maintenance information in this owner’s manual. The
owner’s manual can also be found in a mobile app (Volvo manual) and
on Volvo Car’s support site at support.volvocars.com.
We also urge you and your passengers to wear seat belts at all times in
this (or any other) vehicle. And, of course, please do not operate a vehi-
cle if you may be affected by alcohol, medication or any impairment that
could hinder your ability to drive.
Your Volvo is designed to meet all applicable federal safety and emis-
sion standards. If you have any questions regarding your vehicle, please
contact your Volvo retailer or see the article "Contacting Volvo" for infor-
mation on getting in touch with Volvo in the United States and Canada.

2
INTRODUCTION
Contacting Volvo 14
Volvo On Call Roadside Assistance 14
Additional information about your vehicle 14

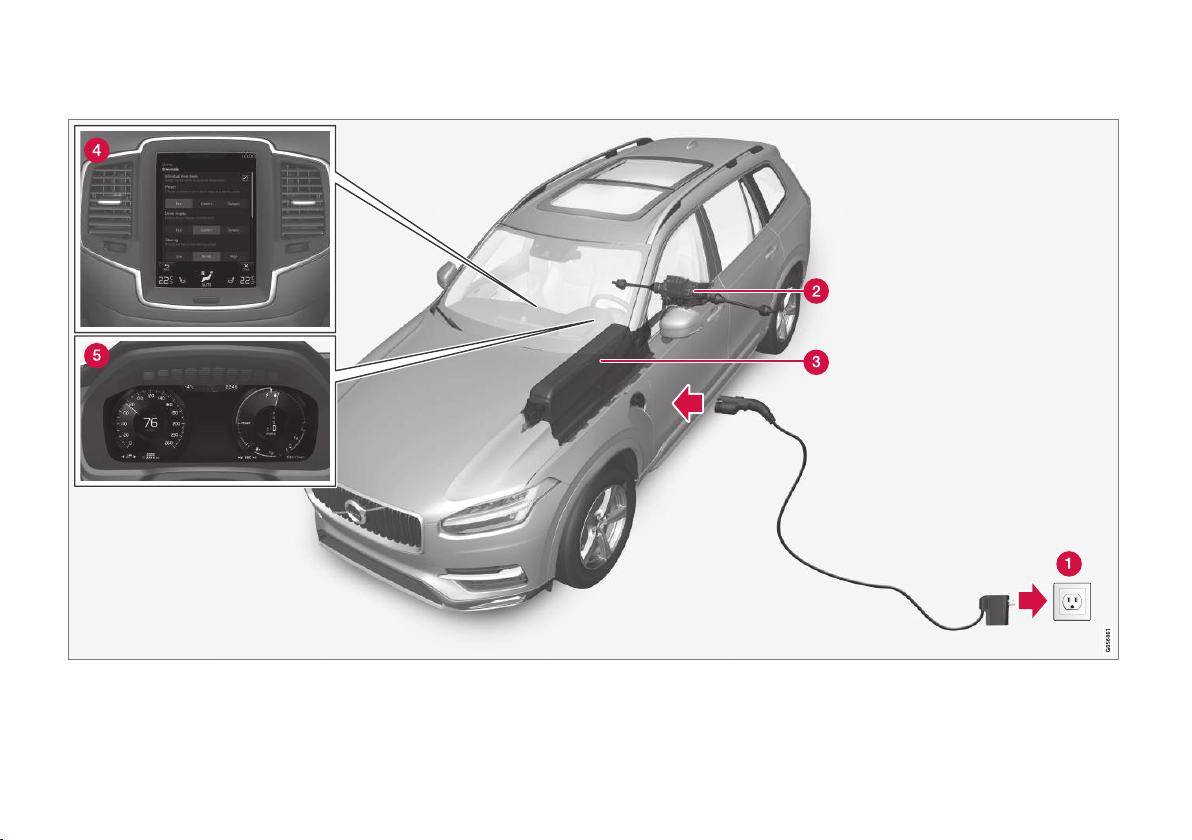

General information about Twin
Engine Plug-in Hybrid vehicles 16
Volvo and the environment 20
Owner's manual and the environment 21
IntelliSafe—driver support 21
Sensus 22
Owner's manual in mobile devices 25
Options, accessories and the On-
board Diagnostic (OBDII) socket 26
Finding owner's information 28
Driver distraction 29
Volvo Structural Parts Statement 30
Crash event data 31
Volvo ID 32
Center display overview 33
Changing center display settings 35
Using the center display keyboard 36
Function view buttons 41
Navigating in the center display's views 43
Symbols in the center display status bar 48
Changing settings in different types
of apps 48
Using the center display 49
Using the owner's manual 53
On-board digital owner's manual 55
Navigating in the digital owner's manual 56
Glass 58
Technician certification 58
SAFETY
General safety information 60
Occupant safety 60
Reporting safety defects 61
Recall information 62
Safety during pregnancy 62
Whiplash protection system 63
Seat belts 64
Seat belt pretensioners 65
Buckling and unbuckling seat belts 66
Door and seat belt reminders 68
Airbag system 69
Driver/passenger side airbags 70
Occupant weight sensor 73
Side impact airbags 76
Inflatable curtains 77
Safety mode 78
Starting or moving a vehicle in safety
mode 78
Child safety 79
Child restraints 81
Infant seats 83
Convertible seats 85
Booster cushions 88
ISOFIX/LATCH lower anchors 89
Lower child seat attachment points 90
TABLE OF CONTENTS

3
Top tether anchors 91
Integrated booster cushion*92
Raising the integrated booster cushion*93
Stowing the integrated booster cushion*95
INSTRUMENTS AND CONTROLS
Instruments and controls 98
Trip computer 99
Displaying trip computer information 100
Displaying trip statistics 102
HomeLink®Wireless Control System*102
Programming the HomeLink®Wire-
less Control System*
103
Adjusting the power door mirrors 106
Laminated panoramic roof*108
Operating the laminated panoramic roof*109
Power windows 111
Operating the power windows 111
Rearview mirror 112
Using sun curtains*113
Settings view 113
Categories in Settings view 114
Changing system settings in Set-
tings view 116
Changing settings in apps 117
Resetting the settings view 117
Resetting user data when the vehicle
changes owners 118
Ambient temperature sensor 118
Clock 119
Head-up display (HUD)*120
Voice control 123
Using voice commands 123
Voice control for cell phones 124
Voice control for radio and media 125
Climate system voice commands 126
Navigation system voice commands 127
Voice control settings 128
Instrument panel 128
Instrument panel settings 130
Indicator symbols in the instrument panel 131
Hybrid-related information in the
instrument panel 133
Instrument panel licenses 135
Warning symbols in the instrument panel 140
Compass 141
Calibrating the compass 142
Lighting panel and controls 143
Parking lights 145
Daytime Running Lights (DRL) 145
Low beam headlights 146
High and low beam headlights 147
Active Bending Lights*148
Rear fog lights (certain models only) 149
Brake lights 150
Hazard warning flashers 150

4
Using turn signals 150
Passenger compartment lighting 151
Home safe lighting 154
Approach lighting 154
Messages in the instrument panel
and center display 154
Handling messages in the instru-
ment panel and center display 156
Handling messages stored from the
instrument panel and center display 157
Instrument panel App menu 159
Using the instrument panel App menu 160
Using the windshield wipers 160
Activating/deactivating the rain sensor 161
Windshield and headlight washers 162
Tailgate window wiper and washer 163
Steering wheel 164
Adjusting the steering wheel 165
Seats 165
Manually operated front seats 166
Power front seats*167
Adjusting power front seats*167
Adjusting the passenger's seat from
the driver's seat*168
Using the power seat memory function*168
Multifunctional front seats*169
Adjusting function settings in the
multifunctional front seats*170
Rear seats 173
Adjusting the second row head restraints 173
Moving the second row seats for-
ward/rearward 175
Adjusting the second row backrest tilt 175
Folding the second row backrests 176
Getting into and out of the third row
of seats 178
Folding the third row backrests 178
Driver profiles 179
Selecting a driver profile 180
Editing a driver profile 180
Linking a remote key to a driver profile 181
Importing/exporting a driver profile
from/to a USB flash drive 182
CLIMATE
Climate control system 186
Perceived temperature 186
Climate system sensors 187
Parking climate (preconditioning) 187
Activating/deactivating the parking
climate timer 189
Activating/deactivating the climate
comfort retaining function*189
Preconditioning timer 190
Setting the parking climate (precon-
ditioning) timer 190
Starting and stopping preconditioning 192
Preconditioning symbols and messages 193
Air quality 194
Clean Zone Interior Package (CZIP)*195
Interior Air Quality System (IAQS)*195
Passenger compartment air filter 196
Automatic climate control 196
Climate system controls 197
Climate system controls in the center
display 197
Rear climate system controls on the
tunnel console 199
Setting the blower speed 199
Setting the temperature 201
Turning recirculation on and off 203

5
Defrosting windows and mirrors 204
Turning steering wheel heating*on
and off 206
Air conditioning 207
Turning seat heating*on and off 208
Turning front seat ventilation*on and off 209
Air distribution 210
Opening/closing/directing air vents 211
Adjusting air distribution 211
Air distribution table 213
LOADING AND STORAGE
Cargo space 216
Loading 216
Passenger compartment storage spaces 218
Using the glove compartment 219
Tunnel console 220
Grocery bag holder 221
Cargo net 221
Steel cargo grid*223
Load anchoring eyelets 224
Cargo compartment cover*225
Sun visors 227
Electrical sockets 228
LOCKS AND ALARM
Locks and remote keys 232
Immobilizer 232
Changing the remote key's battery 233
Remote key 235
Remote key's range 237
Red Key*238
Detachable key blade 239
Foot movement tailgate operation*240
Locking/unlocking from outside the
vehicle 241
Locking/unlocking from inside the
vehicle 243
Antenna locations for the start and
lock system 244
Locking and unlocking confirmation 245
Locking/unlocking the tailgate 246
Power tailgate*248
Private (valet) locking 250
Locking/unlocking with the detacha-
ble key blade 251
Automatically arming/disarming the
alarm 252
Alarm 253
Deactivating the alarm without a
functioning remote key 254
Child safety locks 254

6
Start and lock system type designations 256
DRIVER SUPPORT
Driver support systems 258
Adjustable steering force*258
Electronic Stability Control (ESC) 259
Electronic Stability Control (ESC)
sport mode 260
Electronic Stability Control (ESC)
symbols and messages 261
Roll stability control (RSC) 263
Speed limiter (SL)*263
Starting and activating the Speed
Limiter (SL)*264
Changing a Speed Limiter (SL)*
maximum speed 265
Automatic Speed Limiter (ASL)*265
Activating/deactivating the
Automatic Speed Limiter (ASL)*267
Changing tolerance for the
Automatic Speed Limiter 267
Deactivating/reactivating the Speed
Limiter*268
Turning the Speed Limiter*off 269
Cruise Control (CC) 270
Starting and activating Cruise Control 270
Changing Cruise Control speed 271
Deactivating/resuming Cruise
Control (CC) 272
Turning Cruise Control off 273
Switching between Cruise Control
and Adaptive Cruise Control*274
Distance Alert*275
Using Distance Alert*276
Distance Alert*limitations 277
Adaptive Cruise Control (ACC)*277
Starting and activating Adaptive
Cruise Control (ACC)*280
Deactivating/resuming Adaptive
Cruise Control (ACC) 281
Changing Adaptive Cruise Control
(ACC) speed 283
Setting an Adaptive Cruise Control
time interval 284
Passing Assistance with Adaptive
Cruise Control or Pilot Assist 285
Changing target vehicles and auto-
matic braking with Adaptive Cruise
Control (ACC)
285
Adaptive Cruise Control (ACC) -
troubleshooting 287
Adaptive Cruise Control (ACC) - limi-
tations 288
Adaptive Cruise Control (ACC) sym-
bols and messages 289
Pilot Assist*291
Starting and activating Pilot Assist 294
Changing Pilot Assist speed 296

7
Setting a Pilot Assist time interval 297
Deactivating/resuming Pilot Assist 298
Changing target vehicles and auto-
matic braking with Pilot Assist 300
Pilot Assist limitations 301
Pilot Assist symbols and messages 303
Driver support system radar sensor 304
Radar sensor limitations 305
Radar sensor - type approval 308
Driver support system camera 308
Camera limitations 309
City Safety™312
City Safety warning level settings 314
Detecting obstructions with City Safety 315
City Safety in crossing traffic 317
City Safety when evasive action is
not possible 318
City Safety™troubleshooting 318
City Safety limitations 320
City Safety symbols and messages 323
Rear Collision Warning (RCW) 324
Blind Spot Information (BLIS)*325
Blind Spot Information (BLIS)*On/Off 326
Blind Spot Information (BLIS)*limitations 327
Cross Traffic Alert (CTA)*327
Activating/deactivating Cross Traffic
Alert (CTA)*328
Cross Traffic Alert (CTA)*limitations 329
Blind Spot Information (BLIS)*with
Cross Traffic Alert (CTA)*symbols
and messages
331
Road Sign Information (RSI)*332
Road Sign Information (RSI)*operation 332
Road Sign Information (RSI)*limitations 334
Driver Alert Control (DAC) 334
Using Driver Alert Control (DAC) 335
Driver Alert Control limitations 336
Driving lane assistance 336
Activating/deactivating Lane
Keeping Aid (LKA) 338
Driving lane assistance symbols and
messages 339
Run-off Mitigation 341
Run-off Mitigation*symbols and
messages 343
Park Assist*344
Activating/deactivating Park Assist 345
Park Assist limitations 346
Park assist symbols and messages 347
Park Assist Camera (PAC)*348
Park Assist Camera (PAC)*trajectory
lines and fields 350
Starting the Park Assist Camera (PAC)*352
Park Assist Camera*(PAC) limitations 353
Park Assist Pilot (PAP)*354
Using Park Assist Pilot (PAP)*355
Park Assist Pilot (PAP)*limitations 358
Park Assist Pilot (PAP)*symbols and
messages 360

8
STARTING AND DRIVING
Starting and driving 362
Brakes 362
Brake functions 364
Auto-hold brake function 365
Brake assist system 365
Braking effect after a collision 366
Emergency brake lights 366
Hill Descent Control (HDC) 366
Low Speed Control (LSC) 367
Hill Start Assist 368
Parking brake 369
Using the parking brake 369
Parking brake malfunctions 371
Before a long distance trip 372
Driving economically 372
Driving through standing water 374
Overheating the engine and transmission 375
Winter driving 376
Towing eyelet 376
Towing recommendations 377
Fuel 378
Octane rating 379
Opening/closing the fuel filler door 380
Emission controls 381
Jump starting 382
Driving with a trailer 384
Detachable trailer hitch*387
Trailer Stability Assist (TSA) 388
Ignition modes 389
Battery drain 390
Starting the engine 390
Turning the engine off 393
Driving systems 393
Hybrid battery charging cable 394
Hybrid charging cable circuit breaker 396
Hybrid-related symbols and messages 397
Preparations for charging the hybrid
battery 399
Stopping hybrid battery charging 400
Initiating hybrid battery charging 401
Charging the hybrid battery 403
Hybrid battery charge status 404
Charger status indicators 406
Hybrid battery charging current 407
Long-term storage of a vehicle with
a hybrid battery 408
Using the electric motor in city driving 408
Maintaining/increasing the hybrid
battery's charge while driving 410
Drive modes 411
Automatic transmission 414
Shiftlock 415
Gear shift indicator 415
Gear selector positions 416
Steering wheel paddles*418
All Wheel Drive (AWD) 419
Leveling control*and suspension 419

9
INFOTAINMENT
The infotainment system 422
Apps (applications) 422
Sound settings 423
Radio 424
Radio settings 424
RBDS radio 424
Changing and searching for radio
stations 425
HD Radio™reception 426
Switching HD Radio on and off 427
HD Radio sub-channels 428
HD Radio limitations 429
SiriusXM®Satellite radio*429
Using SiriusXM®Satellite radio*430
SiriusXM®Satellite radio*settings 432
SiriusXM Travel Link*433
SiriusXM Travel Link - Weather 434
SiriusXM Travel Link - Alerts 435
SiriusXM Travel Link - Fuel 436
SiriusXM Travel Link - Sports 437
Phone 438
Pairing a cell phone 439
Connecting/disconnecting a cell phone 440
Handling phone calls 441
Managing the phone book 443
Handling text messages 444
Phone settings 445
Text message settings 445
Connecting a Bluetooth®device 445
Connecting a device via the
AUX/USB socket 446
Media player 446
Apple CarPlay 447
Apple CarPlay settings 449
Android auto*449
Android Auto*settings 451
CD (media) player*451
Playing media 452
Media searches 454
Playing media through the
AUX/USB sockets 454
Streaming media through a Blue-
tooth connection 455
Media sound settings 455
Gracenote 456
Video 456
Media player technical data 457
Internet connected vehicle 458
Connecting to the Internet 459
Bluetooth settings 460
Downloading, updating and uninstal-
ling apps 461
Internet connection troubleshooting 462
Tethering (Wi-Fi sharing) 462
Deleting Wi-Fi networks 463
Wi-Fi technology and security 463
Vehicle modem settings 464
Infotainment system license information 464
Terms, conditions and confidentiality 469

10
WHEELS AND TIRES
Tires 472
Tire sidewall designations 474
Wheel (rim) designations 475
Tire terminology 476
Tire direction of rotation 477
Tread wear indicator 477
Loading specifications 478
Uniform Tire Quality Grading 479
Snow tires and chains 479
Checking tire inflation pressure 480
Changing tires 481
Tools 482
Jack 482
Wheel bolts 483
Removing a wheel 483
Installing a wheel 485
Tire Pressure Monitoring System (TPMS) 485
Checking tire inflation pressure 487
Reinflating tires equipped with the
Tire Pressure Monitoring System (TPMS) 488
Calibrating the Tire Pressure
Monitoring System (TPMS) 489
Tire sealing system 490
Using the tire sealing system 492
Inflating a tire with the tire sealing
system compressor 495
MAINTENANCE AND SERVICING
Volvo's service program 498
System updates 500
Remote updates 501
Vehicle status 501
Booking service and repairs 502
Wi-Fi connection to a workshop 504
Climate system service 505
Start battery 506
Hybrid battery 508
Battery symbols 509
Fuses 509
Replacing fuses 510
Fuses in the engine compartment 511
Fuses in the passenger compartment 516
Fuses in the cargo compartment 520
Replacing bulbs 524
Removing the rectangular headlight
cover 526
Replacing low beam headlight bulbs 527
Replacing High Beam headlight bulbs 528
Replacing front turn signal bulbs 528
Replacing front parking light bulbs 529
Bulb specifications 530
Hoisting the vehicle 531
Opening and closing the hood 533

11
Engine compartment overview 534
Engine oil 535
Checking and refilling engine oil 536
Windshield wipers in the service position 537
Replacing wiper blades 538
Refilling coolant 540
Refilling the windshield washer fluid
reservoir 541
Cleaning the exterior 541
Cleaning the interior 544
Cleaning the center display 546
Corrosion protection 547
Paint damage 547
Touching up paint damage 548
Polishing and waxing 549
SPECIFICATIONS
Label information 552
Dimensions 555
Weights 557
Air conditioning refrigerant 559
Hybrid battery specifications 559
Brake fluid specification and volume 560
Coolant specifications 560
Engine specifications 561
Engine oil specifications and volume 562
Fuel tank volume 562
Tire inflation pressure table 563
Transmission fluid specification and
volume 564
INDEX
Index 565

INTRODUCTION

INTRODUCTION
14
Contacting Volvo
Use the following contact information if you
would like to get in touch with Volvo in the Uni-
ted States or Canada.
In the USA:
Volvo Car USA, LLC
Customer Care Center
1 Volvo Drive,
P.O. Box 914
Rockleigh, New Jersey 07647
1-800-458-1552
www.volvocars.com/us
In Canada:
Volvo Cars of Canada
National Customer Service
9130 Leslie Street, Suite 101
Richmond Hill, Ontario L4B 0B9
1-800-663-8255
www.volvocars.com/ca
Volvo On Call Roadside Assistance
Your new Volvo comes with a four year ON
CALL roadside assistance.
Additional information, features, and benefits of
this program are described in a separate informa-
tion package in your glove compartment.
If you require assistance, dial:
In the U.S. 1-800-638-6586 (1-800-63-
VOLVO)
In Canada 1-800-263-0475
NOTE
Some vehicles may be equipped with
Volvo On Call with Sensus Connect, which
will allow access to the call center and addi-
tional features directly from the vehicle. This
is in addition to the Volvo On Call Roadside
Assistance program mentioned above.
Volvo On Call with Sensus Connect will be
a customer pay subscription offer after an ini-
tial complimentary trial period.
Additional information about your
vehicle
Volvo Cars' website and support site provide
additional information about your vehicle.
Support on the Internet
Go to support.volvocars.com or use the QR code
below to visit the site, which is available in most
markets.
QR code to the support site
The information on the support site is searchable
and is grouped into different categories. It
includes support for e.g., Internet-based services
and functions, Volvo On Call, the navigation sys-
tem and apps. Video and step-by-step instruc-
tions explain various procedures such as how to
connect the vehicle to the Internet via a cell
phone.
Downloadable information
Maps
Sensus Navigation system maps can be down-
loaded from the support site.

INTRODUCTION
15
Mobile apps
Beginning with model year 2014, the owner's
manual is available in the form of an app for cer-
tain Volvo models. The Volvo On Call app can
also be found here.
Owner's manuals for earlier model Volvos
Owner's manuals for earlier model Volvos are
available in PDF format. Quick Guides and sup-
plements can also be found on the support site.
Select a model and a model year and download
the desired information.
Contact
Contact information for customer support and the
nearest Volvo retailer are available on the site.
Related information
•Using the owner's manual (p. 53)
•On-board digital owner's manual (p. 55)
•Volvo ID (p. 32)

INTRODUCTION
16
General information about Twin
Engine Plug-in Hybrid vehicles
Twin Engine Plug-in Hybrid vehicles are driven
like any other vehicle but have certain functional-
ity that differs from a vehicle powered exclusively
by a gasoline engine. The electric motor powers
the vehicle primarily at low speeds; the gasoline
engine is used at higher speeds or during more
active driving.

INTRODUCTION
}}
17
Overview

||
INTRODUCTION
18
Electrical current for charging the hybrid bat-
tery
Electric motor for powering the rear wheels
Hybrid battery
Drive modes (change in the center display or
by using the drive mode control in the tunnel
console)
Instrument panel showing unique hybrid-rela-
ted information
WARNING
Please be aware that there is no sound from
the engine when the vehicle is being powered
by the electric motor and it may be difficult to
detect by children, pedestrians, cyclists and
animals. This is especially true at low speeds.
High-voltage electrical current
WARNING
A number of electrical components in Twin
Engine Plug-in Hybrid vehicles use high-volt-
age current and can be extremely dangerous
if handled incorrectly. These components and
any orange wiring in the vehicle may only be
handled by trained and qualified Volvo service
technicians.
Hybrid-unique functions
Drive modes
Different drive modes can be selected while driv-
ing, e.g., electric power only or a combination of
electric and gasoline power. The vehicle calcu-
lates the optimal combination of drivability, driving
experience, environmental impact and fuel econ-
omy for the selected drive mode. See also the
article "Drive modes" for additional information.
Instrument panel
In certain driving situations, hybrid-unique infor-
mation may be displayed in the instrument panel,
such as: a hybrid battery gauge (current charge
level), the current drive mode, a symbol that illu-
minates when the gasoline engine is being used,
a Hybrid Guide and the level of energy regenera-
tion.
Preconditioning
In order to function optimally, the hybrid battery
(and its related electrical systems) and the gaso-
line engine (and its drive systems) should be at
the correct operating temperature. The hybrid
battery's capacity is reduced considerably if it is
too cold or hot. Preconditioning prepares the
vehicle's drive systems and passenger compart-
ment before the vehicle is driven to help reduce
wear and energy consumption.
Charging the hybrid battery
CAUTION
Never connect the charging cable if there is a
risk of thunderstorms/lightning.
Twin Engine Plug-in Hybrid vehicles use a lith-
ium-ion battery that can be charged in several
ways:
•A charging cable can be connected from the
vehicle to a 110-volt AC socket. Charging
time depends on the strength of the current.
•When the brakes are applied lightly, the elec-
tric motor is used for engine braking, during
which the vehicle's kinetic energy is conver-
ted into electric current that is used to help
recharge the hybrid battery.
•The hybrid battery is also recharged to a cer-
tain extent when the gasoline engine is in
operation.
Related information
•Drive modes (p. 411)
•Hybrid-related information in the instrument
panel (p. 133)
•Charging the hybrid battery (p. 403)
