VonHaus 2515200 User manual

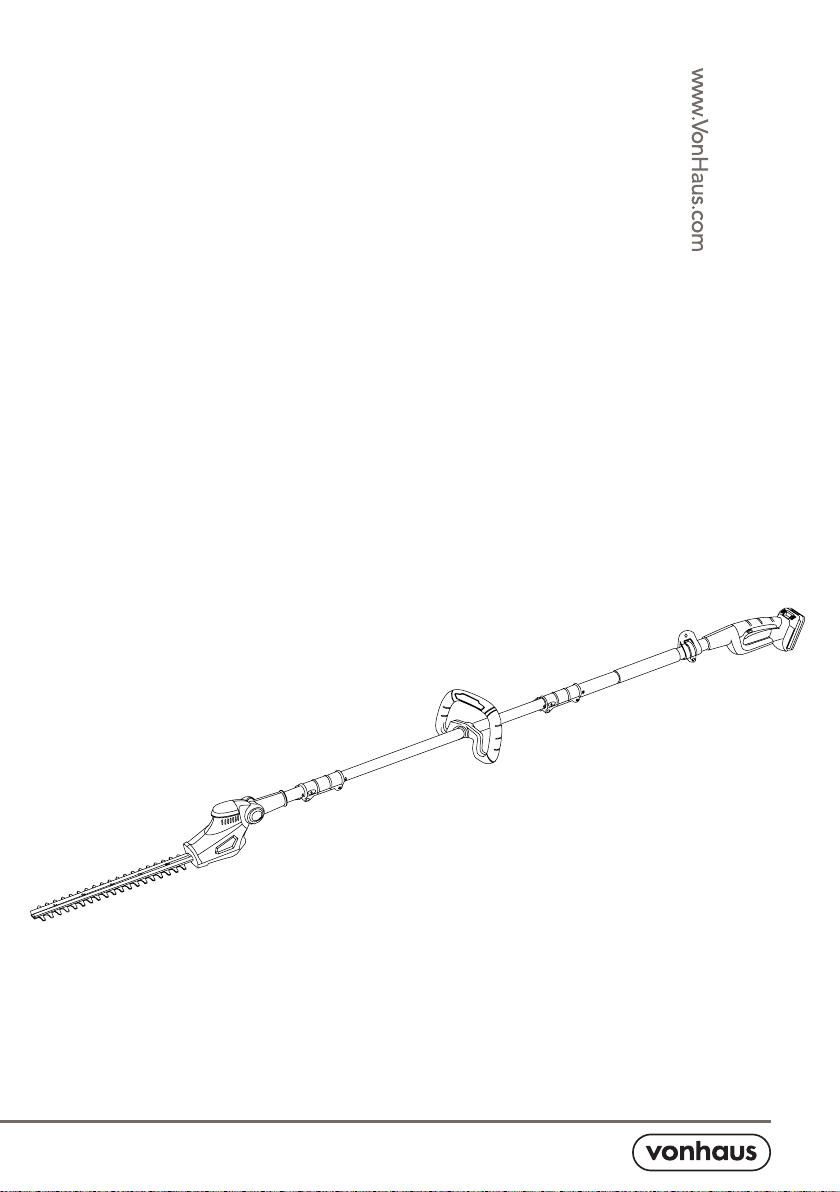

CORDLESS POLE
HEDGE TRIMMER
2515200
Manufactured and sold under
licence

CONTENTS
Safety Instructions 1
Safety Instructions 2
Safety Instructions 3
Safety Symbols 4
Technical Specication 5
Short Trimmer Assembly, Handle Assembly 6

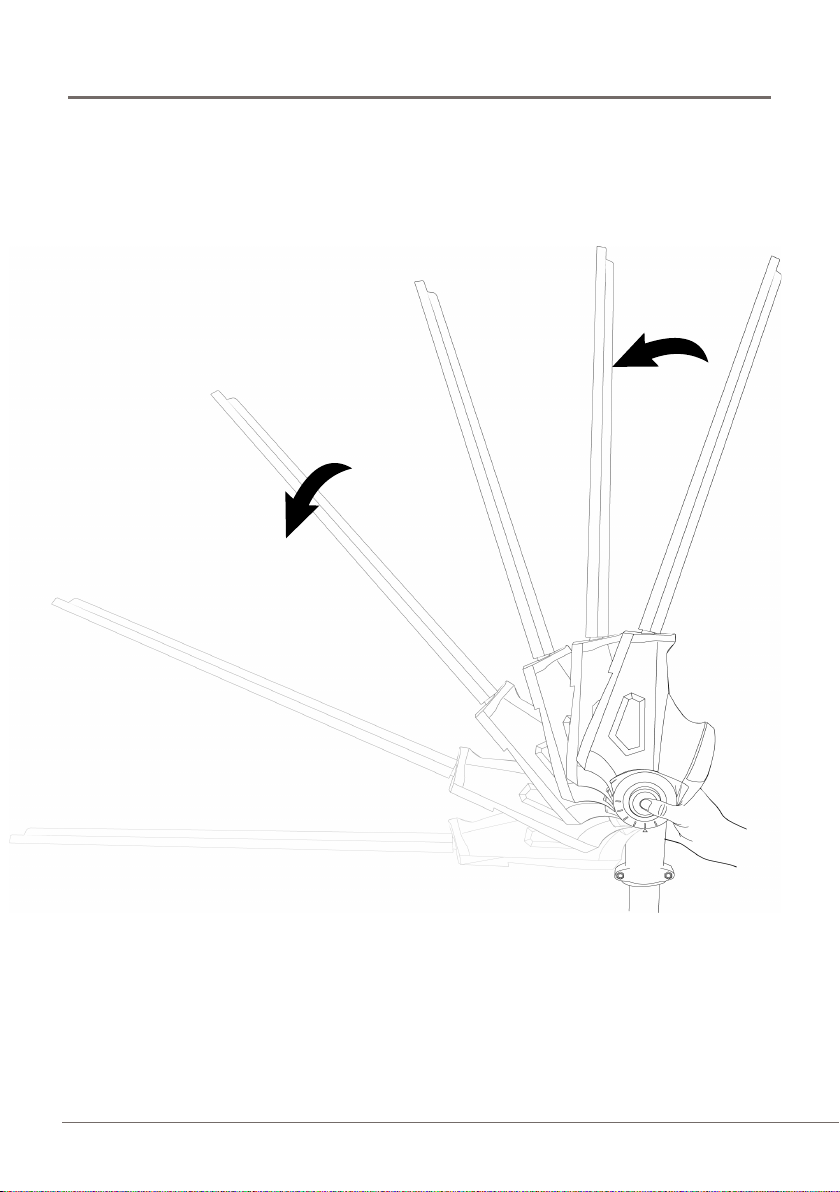

Angle Adjustment 7
Charging the Lithium-ion Battery Pack 8
Thermal Protection Indication, Installing & Removing the Battery 9
Working Position, Cleaning & Maintenance, Blade Maintenance 10
Storage, Troubleshooting 11
Also Available 12
Disposal Information, Warranty 13

WARNING
PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE
GENERAL POWER TOOL SAFETY
INFORMATION.
Read, and make sure you fully
understand, all safety information before
using this tool.
Failure to follow the warnings and
instructions may result in electric shock,
re and/or serious injury.
Please retain this manual for future
reference.
INTENDED USE.
This Cordless Pole Hedge Trimmer is for
domestic use only. It is not intended for
commercial use.
This tool is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision and
instruction concerning the use of the tool
by a person responsible for their safety.
Keep out of reach of children. Children
should be supervised to ensure they do
not play with the tool.
BEFORE FIRST USE.
Do not operate power tools in explosive
atmospheres such as in the presence of
ammable liquids, gases or dust. Power
tools create sparks which may ignite the
dust or fumes.
Take precautions to ensure children and
bystanders are kept away while operating
a power tool. Distractions can cause you
to lose control.
Dress appropriately. Do not wear loose
clothing or jewellery. Hair should be tied
back and clothing and gloves kept away
from moving parts to ensure they do not
become caught in the tool.
Use personal protective equipment.
Always wear eye protection. Protective
equipment such as a dust mask, non-
skid safety shoes, hard hat, or hearing
protection used for appropriate
conditions will reduce the risk of personal
injury.
ELECTRICAL SAFETY.
Power tool plugs must match the outlet.
Never modify the plug in any way. Do
not use any adaptor plugs with earthed
(grounded) power tools. Unmodied
plugs and matching outlets will reduce
risk of electric shock.
Avoid body contact with earthed or
grounded surfaces such as pipes,
radiators, ranges and refrigerators. There
is an increased risk of electric shock if
your body is earthed or grounded.
Do not expose power tools to rain or wet
conditions. Water entering a power tool
will increase the risk of electric shock.
RISK OF PERSONAL INJURY.
If the Cordless Hedge Trimmer is not
functioning properly, has been dropped,
damaged, left outdoors, or immersed in
liquid, do not use, contact DOMU Brands
customer services.
Stay alert, watch what you are doing
and use common sense when operating
a power tool. Do not use a power tool
when tired or under the inuence of
drugs, alcohol or medication. A moment
of inattention while operating power
tools may result in serious injury to
yourself or others.
Be aware of unintentional starting. Ensure
the switch is in the o position before
connecting to the power source and/
or battery pack, picking up or carrying
the tool. Carrying power tools with your
nger on the switch or energising power
tools that have the switch on may result in
serious injury.
Remove any adjusting key or wrench
before turning the power tool on. A
wrench or a key left attached to a rotating
part of the power tool may result in
personal injury.
Do not overreach. Keep proper footing
and balance at all times. This will enable
1

WARNING
PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE
better control of the power tool in
unexpected situations.
If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection devices can
reduce dust-related hazards.
Store idle power tools out of reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the Hedge
Trimmer. Power tools are dangerous in
the hands of untrained users.
POWER TOOL USE AND CARE.
Do not force the Cordless Hedge
Trimmer. Use the correct power tool for
your application. The correct power tool
will do the job better and more safely at
the rate for which it was designed.
Do not operate continuously for periods
longer than those specied in the
instructions.
Do not use the power tool if the switch
does not turn it on and o. Any power
tool that cannot be controlled with the
switch is dangerous and must be repaired
by a qualied electrical professional.
Disconnect the battery pack from
the power tool before making any
adjustments, changing accessories, or
storing. Such preventive safety measures
reduce the risk of starting the power tool
accidentally.
Maintain your power tool. Check for
misalignment or binding of moving
parts, breakage of parts and any other
condition that may aect the power tool’s
operation. If damaged, have the power
tool repaired by a qualied repair person
before use. Many accidents are caused by
poorly maintained power tools.
Keep cutting tools sharp and clean.
Properly maintained cutting tools with
sharp cutting edges are less likely to bind
and are easier to control.
Use the power tool, accessories and
tool bits etc. in accordance with these
instructions, taking into account the
working conditions and the work to be
performed. Use of the power tool for
operations dierent from those intended
could result in a hazardous situation.
Only use accessories supplied and/or
recommended by DOMU Brands.
BATTERY/CHARGER USE AND CARE.
Recharge only with the charger specied
by the manufacturer. A charger that is
suitable for one type of battery pack
may create a risk of re when used with
another battery pack.
Use power tools only with specically
designated battery packs. Use of any
other battery packs may create a risk of
injury and re.
An extension cord should not be used
unless absolutely necessary. Use of an
improper extension cord could result in
the risk of re or electric shock.
The charger is not intended to be used
for any purpose other than charging
rechargeable batteries. Any other use
may result in risk of re or electric shock.
First read the safety instructions and
then follow the charging notes and
procedures.
The charger is only designed to operate
on standard household electrical power.
Do not attempt to use it on any other
voltage.
Never attempt to connect 2 chargers
together.
Do not place any object on top of the
charger or place the charger on a soft
surface that may result in excessive
internal heat.
Do not attempt to disassemble the
charger. Take it to an electrician or power
tool repairer when service or repair is
required. Incorrect reassembly may result
in a risk of electric shock or re.

WARNING
PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE
Do not expose the battery to direct
sunlight for long periods of time.
Protect the battery and charger against
water and moisture.
Protect the battery from heat and re.
Place the charger in a position away from
any heat source.
Remove the battery when the appliance is
not in use or stored for periods of time.
When the battery pack is not in use, keep
it away from other metal objects such as
paper clips, coins, keys, nails, screws or
other small metal objects that can make a
connection from one terminal to another.
Shorting the battery terminals together
may result in burns or a re.
To facilitate cooling of the battery pack
after use, avoid placing the charger or
battery pack in a warm environment, such
as a metal shed, or an uninsulated trailer.
The battery pack is not fully charged out
of the box.
To reduce the risk of electric shock,
unplug the charger from the outlet before
attempting any cleaning. Removing the
battery pack will not reduce this risk.
To reduce risk of damage to the electric
plug and cord, pull by the plug rather
than the cord when disconnecting the
charger.
Never attempt to open the battery pack
for any reason or if the plastic housing
of the battery pack breaks or cracks,
immediately discontinue use and do not
recharge.
Under abusive conditions, liquid may be
ejected from the battery; avoid contact.
If contact accidentally occurs, ush with
water. If liquid comes into contact with
eyes, additionally seek medical help.
Liquid ejected from the battery may
cause irritation or burns.
Have your power tool serviced by a
qualied repair person using identical
replacement parts only. This will ensure
that the safety of the power tool is
maintained.
Do not dispose of the battery in a re.
Do not incinerate the battery pack even
if it is seriously damaged or is completely
worn out.
Do not dispose of the battery in
household waste. Deliver the batteries
to a collection centre for old batteries
where they will be recycled in an
environmentally friendly way.
STORAGE AND MAINTENANCE.
Locate the power tool out of reach of
children, in a dry, locked unit.
Do not store or use the tool and battery
pack in locations where the temperature
may exceed 40°C (such as inside sheds or
metal buildings in summer).
Ensure the handles remain clean and free
from oil and moisture so as to maintain
proper grip during operation.
Ensure the motor has fully stopped and
the battery removed before cleaning,
clearing a blockage, checking, or carrying
out any maintenance on the machine.
Regularly check external nuts and xings
to ensure vibration caused by normal use
has not begun to loosen them.
Make sure the cord of the charger is
located so that it will not be stepped on,
tripped over, or otherwise subjected to
damage or stress.
3

USE
PRECAUTION
For your safety
EYE
PROTECTION
Must be worn
INSTRUCTION
MANUAL
Read and
understand
SAFE DISTANCE
Mind bystanders
The following safety symbols will appear on this product. Please ensure you
understand their meanings before operating this tool in order to prevent personal
injury and avoid damage to the tool.
PROTECTIVE
GLOVES
Must be worn
when handling
tool
UNSUITABLE
WEATHER
Do not use in
wet conditions
REMOVE BATTERY
From the appliance
before cleaning
EAR
PROTECTION
Must be worn
RISK OF
INJURY
Keep hands at
a safe distance
SAFETY SYMBOLS
WARNING FOR 15-200US
CUSTOMERS ONLY
WARNING! Some dust and debris
created by the use of this tool could
contain chemicals known to the State
of California to cause cancer and birth
defects or other reproductive harm.
Some examples of these chemicals
include:
• Chemicals in fertilizers
• Compounds in insecticides,
herbicides and pesticides
• Arsenic and chromium from
chemically-treated lumber
WARNING
PLEASE READ THESE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE
Your risk from exposure to these
chemicals varies depending on how often
you do this type of work. To reduce your
exposure, work in a well-ventilated area
and with approved safety equipment
such as dust masks that are specically
designed to lter out microscopic
particles.
DANGER! Failure to adhere to the safety
instructions, operation guidelines and
general safety procedures can result in
serious injury or severe damage.

5
TECHNICAL SPECIFICATION
CUTTINGCUTTING
LENGTHLENGTH
CUTTINGCUTTING
WIDTHWIDTH
CHARGECHARGE
TIMETIME
mm mm Hours
1
15
410
10
11
12
13
1. Hedge Trimmer Blade
2. Motor
3. Blades Angle Adjustment Button
4. Extension Pole
5. Adjustable Handle
6. Strap Connector
7. Safety Switch
8. 20V Max Battery & Remove Clip
9. ON/OFF Trigger/Rear Handle
10. Battery Charger Adaptor
11. Charge Indicator Light
12. Charger Adaptor Plug
13. Blade Cover
6
7
9
8
1
2
3
4
5
20
V
BATTERY
MAX

HANDLE ASSEMBLY
Click!
Tighten
11
22
To assemble the Hedge Trimmer, take the Extension
Pole (4) i.e. the section without the large Adjustable
Handle, and insert into the Motor (2). Push until the
pin has clicked into place, then tighten the knob on
the opposite side to secure.
To assemble the Adjustable Handle along with the
short assembly, rst insert the Extension Pole (4) into
the bottom of the Adjustable Handle (5) until the pin
has clicked into place and tighten the knob to secure.
Take the assembled Adjustable Handle/Extension
Pole (4/5) and insert into the bottom of the Motor
(2), again ensuring the pin has clicked into place and
that the knob is tightened securely.
Click!
Click!
Tighten
Tighten
11
11
22
22
SHORT TRIMMER ASSEMBLY
NOTE: The Hedge Trimmer can be used with or
without the Adjustable Handle section (5) in order to
adjust the length of the tool. If you are using without
the Adjustable Handle, hold the Extension Pole (4)
with one hand on the Rear Handle (9) and the other
on the sponge grip.
To attach the Adjustable Handle (5), remove
the two bolts and the plate, place over
desired section of the pole, and tighten into
place.

ANGLE ADJUSTMENT
The Hedge Trimmer is adjustable (up to 6 positions).
To adjust the Trimmer, press both sides of the Blades
Angle Adjustment Button (3), adjust the Hedge Trim-
mer Blade (1) to the desired position and release until
it clicks into place.
7

CHARGING THE LITHIUM-ION
BATTERY PACK
Plug the Charger Adaptor Plug (12) into a mains
power outlet. The green Charge Indicator Light
(11) on the Charger Adaptor Plug will illuminate to
indicate that power is being supplied.
With the 20V Max Battery (8) sitting at on a bench/
table, align the Battery with the Battery Charger
Adaptor (10) and slide the Battery into the recess of
the battery terminals to create a rm connection.
NOTE: The Battery only ts one way. If it will not t,
this means that it is upside down.
The Battery will take up to 1 hour to charge. Charging
will begin automatically.
LEVEL OF CHARGE
Pressing the Charge Indicator Button (A) will indicate
the degree of charge by means of the Charge Light
(B) and Charge Indicator Lights (C).
If the Charge Light turns red and the Charge Indicator
Lights fail to come on, the battery requires charging.
If the Charge Light does not light up, and the Charge
Indicator Lights turn green, the battery is charged.
The Charge Indicator Lights indicate the level of
charge as follows:
1 light ashing = The Battery is low/requires charging.
2 solid green lights = The Battery is partially charged.
3 solid green lights = The Battery is fully charged.
You can also press the Charge Indicator Button whilst
the device is charging:
If the Charge Indicator Lights turn green and icker,
the battery is charging.
If the Charge Indicator Lights turn green and do not
icker, the battery is fully charged.
NOTE: The Battery will not reach its full charge the
rst time it is charged.
IF THE LIGHT ON THE CHARGER ADAPTOR FAILS
TO COME ON:
Check that the Charger Adaptor Plug is securely
plugged into the mains power outlet and switched on.
Check that the Battery Charger Adaptor is securely
connected into the socket of the Battery.
IF THE BATTERY DOES NOT CHARGE PROPERLY:
Check the power outlet by plugging in a lamp or
other appliance.
If charging problems persist, have the complete tool
checked by an electrician or qualied power tool
repairer.
IMPORTANT CHARGING NOTES:
DISCHARGING
To protect the Battery against deep discharging when
the Battery is at, a protective circuit will switch o
the Hedge Trimmer. The Hedge Trimmer Blade (1)
will stop moving. Do not continue to press the ON/
OFF Trigger (9) after an automatic shut-o as this will
damage the Battery.
The Battery must be recharged before further use.
NOTE: Up to 30 minutes cooling time may be
required (depending on ambient temperature and the
operation being performed) before the Battery will
start the charging cycle.
CAUTION: This unit’s Battery pack has low voltage
protection. This means that, when fully discharged,
the unit will suddenly stop and will require charging.
You will not experience the normal tapering o or
slowing down of power as seen with other battery
types.
OVERHEATING
The Battery Charger Adaptor and Battery may
become warm to the touch while charging. This is
normal and is not a fault with the product. Use the
Battery Charger Adaptor at normal room temperature
whenever possible.
CAUTION: To prevent overheating, do not cover the
charging unit and do not charge the Battery in direct
sunlight or near heat sources.
CAUTION: Always remove the Charger Adaptor Plug
from the mains power outlet when not in use.
A
Charge
Indicator
Button
C
Charge Indicator
Lights
B
Charge
Light

INSTALLING & REMOVING
THE BATTERY
THERMAL PROTECTION INDICATION
WARNING! Always switch o the tool before inserting or removing the battery.
Align the notches in the base of the Hedge
Trimmer Rear Handle (9) with those on
the Battery (8) and slide the Battery and
Hedge Trimmer together until the Battery
locks into place.
CAUTION: Do not use excessive force
when inserting the Battery if resistance
occurs. If the Battery does not slide in
easily, it is not being inserted correctly
and could cause damage to the Battery,
terminals or the Hedge Trimmer.
CAUTION: Take care not to operate the
ON/OFF Trigger (9) whilst inserting the
Battery.
REMOVING THE BATTERY
Press the Battery Release Button to release
the Battery from the Hedge Trimmer
and slide up and away from the body to
remove. Press to remove.
Slide the Battery up
and away from the
connections.
Align the connections on the
Battery with the ones on the
Hedge Trimmer and slide until the
Battery clicks into place.
In the event that the thermal protection circuit has
been activated, the Battery will cease to operate.
This can happen when the tool has been used for
extended periods.
If the Battery is placed on the Charger, the LED
Lights will give you the appearance that the Battery
is fully charged.
The Battery may take the full 1 hour to charge, as
it may need to cool down or the protection circuits
may need to be reset. This will allow the Charger
to begin charging the Battery and resume normal
operation.
9

WORKING POSITION
CLEANING & MAINTENANCE
BLADE MAINTENANCE
Maintain proper footing and balance at all times and
be careful not to overreach.
Always wear safety goggles, non-slip footwear and
rubber gloves when using the Hedge Trimmer.
Hold the tool rmly in both hands and turn on by
squeezing the ON/OFF Trigger (9).
Before storing, always remove the Battery (8) from
the tool and clean and lubricate the Hedge Trimmer
Blade (1).
When transporting or storing the Hedge Trimmer,
always t the protective guard.
Store the tool in a secure, dry place, out of reach of
children and animals.
Do not place other objects on top of the tool when
storing.
Storing the tool outside in a damp environment such
as a garden shed may cause certain components such
as the Blades to corrode.
Always clean the Hedge Trimmer Blade (1) after
operation and coat with lubricating oil or spray.
This will prevent the Blades from becoming seized or
corroded during storage.
During longer cutting periods of 15 minutes or more,
it is recommended that you lubricate the Blades in
order to improve cutting performance. A lack of
lubrication can severely eect the products run time
and may cause the Blades to overheat.
Remove all debris, especially from the ventilation slots
on the motor housing.
CAUTION: Do not use abrasive materials to clean
the tool.
WARNING! Do not immerse any part of the tool in
water or any other liquid.
Clean the exterior of the tool thoroughly using a soft
brush and cloth.
WARNING! Do not use water or solvents.
Before use, visually check the condition of the cutting
edges of the Blades and check the tightness of the
bolts.
When not in use, ensure the Hedge Trimmer Blade
has been lubricated and covered with the Blade
Cover (13). Failure to do so may cause the Blade to
corrode and will severely reduce cutting performance
and Battery run times.
WARNING! Always wear gloves when handling or cleaning the
Hedge Trimmer Blade.
Always hold the Hedge Trimmer with one hand on the
Front Handle and one hand on the Rear Handle (9). If
you are using without the Adjustable Handle section
(5), hold the Extension Pole (4) with one hand on the
Rear Handle (9) and the other on the sponge grip.

TROUBLESHOOTING
PROBLEM SOLUTION
Check that the Battery is connected correctly.
Check that the Battery is fully charged before use.
Ensure that the Charger is charging correctly.
The Hedge Trimmer Blade may be blocked. Power
o and remove the blockage.
The Blades may have seized. Contact DOMU Brands
Customer Services.
The Battery may be low, remove the Battery and
recharge.
The Hedge Trimmer Blade may be damaged. Contact
DOMU Brands Customer Services.
The Hedge Trimmer Blade has not been lubricated.
Power o the tool and remove the Battery, then
lubricate the Blade as necessary.
There is a blockage. Power o the tool and carefully
remove the blockage.
TOOL DOES NOT POWER ON.
BLADES DO NOT MOVE.
POOR CUTTING PERFORMANCE.
BLADES BECOME HOT.
BLADES JUDDERING OR
VIBRATING ABNORMALLY.
STORAGE
Store this tool carefully in a secure, dry place, out of the reach of children.
11

DISPOSAL INFORMATION
COPYRIGHT
WARRANTY
All material in this instruction manual are copyrighted by
DOMU Brands Ltd.
Any unauthorised use may violate worldwide copyright,
trademark, and other laws.
PRODUCT DISPOSAL INFORMATION
For electrical products sold within the European Community,
at the end of the electrical product’s useful life, it should not
be disposed of with household waste. Please recycle where
facilities exist.
Contact your local authority for details of collection schemes
in your area.
In all circumstances:
• Do not dispose of in domestic waste.
• Do not incinerate.
• Do not abandon in the environment.
• Do not dispose of WEEE as unsorted municipal waste.
HEALTH AND SAFETY FOR BATTERIES
Do not put in re or mutilate – cells may burst and release
toxic material.
Do not short-circuit cells as this may cause re or burns.
The battery must be removed from the appliance before
being scrapped.
The battery is to be disposed of safely.
BATTERY DISPOSAL INFORMATION
Do not mutilate batteries as corrosive electrolytes and
ammable materials will be released.
Do not incinerate – Danger of explosion and release of toxic
fumes.
Do not dispose of batteries or cells in a charged condition.
Expired lithium-ion batteries must be recycled/disposed of
in accordance with the appropriate regulation or legislation.
They should be returned to your local warranty agent/stockist.
Li-ion
To register your product and nd out if you qualify
for a free extended warranty, go to:
www.VonHaus.com/warranty
Please retain a proof of purchase receipt or
statement as proof of the purchase date.
The warranty only applies if the product is used
solely in the manner indicated in the Warnings page
of this manual, and all other instructions have been
followed accurately. Any abuse of the product or
the manner in which it is used will invalidate the
warranty.
Returned goods will not be accepted unless re-
packaged in its original packaging and accompanied
by a relevant and completed returns form. This does
not aect your statutory rights.
No rights are given under this warranty to a person
acquiring the product second-hand or for commercial
or communal use.
13

VonHaus is a registered trademarks of DOMU Brands Ltd
Made in China for DOMU Brands Ltd M24 2RW
DECLARATION OF CONFORMITY
We:
DOMU Brands Ltd
5th Floor The Tower
Deva City Oce Park
Manchester
M3 7BF
Declare under our sole responsibility that the product:
SKU: 2515200
Description: VonHaus Cordless Pole Hedge Trimmer
To which this declaration relates is in conformity with the following directives:
2014/30/EU, 2006/95/EC, 2006/42/EC, 2000/14/EC, 2011/65/EU.
Thank you for purchasing the Cordless Pole Hedge Trimmer.
