Votex VT420 User manual

VT420
Leaf vacuum trailer
Art.nr. EWU000683
10/2013

EU Declaration of conformity
within the meaning of EC machinery
directive 2006/42/EC, Annex II A
Hereby we,
VOTEX B.V.
Goolkatenweg 65
7521 BE Enschede. The Netherlands,
declare that the machine mentioned below is in conformity with the applicable safety
and health provisions of the EC Directive as based on its design and construction
and in the version put into circulation by us.
This declaration shall lose its validity after any modification/change made to the
machine without prior consultation with us.
Product: Leaf vacuum trailer
Type: VT420
Serial number: see identification plate
EC Directive applicable:
EC Machinery directive 2006/42/EC
Internal measures ensure that the standard machines at all times meet the
requirements of the current EC directives.
Enschede, 28 March 2013.
Ing. G. van Nieuwenhuizen
Managing Director

Contents
1
Introduction
Page
1.1
Preface
1-1
1.2
General
1-2
2
Safety instructions
2-1
3
Explanation of stickers
3-1
4
4.1
Product description
Description
4-1
4.2
Component groups
4-1
4.2.1
Collecting container
4-1
4.2.2
Wide vacuum funnel with scarifier
4-1
4.2.3
Suction hose
4-2
4.2.4
Trolley
4-2
5
5.1
Technical specifications
Technical data
5-1
5.2
Identification plate
5-1
5.3
Sound-level increase
5-2
6
6.1
Operation
Coupling the leaf vacuum trailer
6-1
6.2
Adjusting the leaf vacuum trailer
6-1
6.3
Working with the leaf vacuum trailer
6-2
6.3.1
Working with the vacuum funnel or suction hose
6-2
6.3.2
Operating tipping container or vacuum funnel
6-2
6.3.3
Working with the brush shaft
6-3
6.3.4
Working with the scarifier shaft
6-4
6.3.5
Working with the flail shaft
6-5
6.4
Changing from brush shaft to scarifier shaft
6-6
6.5
Changing from brush shaft to flail shaft
6-7
6.6
Uncoupling the leaf vacuum trailer
6-8
6.7
Transporting the leaf vacuum trailer
6-8
7
7.1
Maintenance
General
7-1
7.2
Lubrication and maintenance schedule
7-2
7.3
Adjusting the vacuum funnel
7-3
7.4 Replacingthebrushes 7-5
7.5 Replacing the scarifying blades 7-6
7.6 Replacing the flails 7-7
7.7.1 Tensioning the V-belts 7-8
7.7.2 Replacing the V-belts 7-8
7.8.1 Tensioning the chains 7-9
7.8.2 Replacing the chains 7-9
7.9.1 Installing a Taperlock® bush 7-10
7.9.2 Removing a Taperlock® bush 7-10
7.10 Adjusting the mechanically-braked brake system 7-11
7.11 Adjusting the hydraulically-braked brake system 7-12
7.12 Changing the oil 7-13
7.13 Convert to turnable or fixed hitch 7-14
17/09/2013/JVM
1

Contents
8
Storage and disposal
8.1
Storage
8-1
8.2
Disposal
8-1
Appendix A
Tightening moments
A-1
Appendix B
Tightening moments forTaperlock® bush
B-1
Appendix C
Minimum dimensions of flail mountings
C-1
Appendix D The right position of the gearbox D-1
Appendix F Parts lists F-1
Appendix E Hydraulic diagram E-1
04/11/2013/JVM
1

Tel: [phone]
Fax:[phone]
Email: [email protected]
Website:www.votex.com
1
CHAPTER
1.1 Preface
You now own a Votex VT420 leaf vacuum trailer. We wish you great success with this acquisition and
thank you for your confidence in our organization. This manual is intended for the end user and service
engineers.
This manual contains complete information about safety, working and maintenance of the machine. We
urge you to study this manual carefully, and then to keep it in a safe place for future reference. This will not
only ensure a properly operating leaf vacuum trailer, but will also prevent accidents, thus meeting the
requirements with regard to product liability and warranty.
Manufacturer:
VOTEX B.V.
Goolkatenweg 65
7521 BE Enschede
The Netherlands
10/06/2013/JVM
1-1
This manual describes the operation as well as the maintenance required.
The leaf vacuum trailer is described herein including all options available for this machine.
The parts lists with the respective part numbers are found at the end of the manual.
Introduction

1.2 General
This manual is intended for users and service personnel.
Operations intended to be carried out on the machine by service personnel only are identified as such.
For information about settings, adjustments or repairs not covered by this manual you can contact the
technical department of your supplier.
!
This manual applies to the leaf vacuum trailer in its standard version or as used in combination with
the options available from VOTEX B.V. Therefore, VOTEX B.V. cannot be held responsible for any
damage resulting from any changes or modifications made to the machine.
VOTEX B.V. cannot be held responsible for any damage arising from the use of
non-original parts and accessories, from repairs and settings/adjustments incompetently
or wrongly carried out or from not following the safety instructions.
Scope of use
The leaf vacuum trailer has been designed for sweeping, scarifying and flailing public parks and gardens,
golf courses and other green areas. Due to the vacuum unit and container, you can effectively suck up
and transport at the same time mowing and cutting waste as well as small litter.
!Important! Any other use is not in accordance with the intended purpose! !
Warranty exclusions
For purchased components which form part of the machine, VOTEX B.V. will refer to the warranty
provisions of the supplier concerned.
Shipping costs and wage cost for replacing parts are not included in the warranty, unless expressly
agreed on with VOTEX B.V. before repairs are undertaken.
VOTEX B.V. guarantees the replacement of defective parts for a period of 12 months after delivery. To
the exclusion of parts that have become defective due to the machine being used for a purpose other
than its intended use, and of rotating and wearing parts (impeller, wearing plates, V-belts etc.). The final
conclusion as to whether parts are in fact defective shall be reserved to VOTEX B.V.
Read the user manual before starting to
work with the leaf vacuum trailer.
10/06/2013/JVM
1-2

!
!
!
!
!
!
!
!
!
!
!
!
!
!
2
CHAPTER

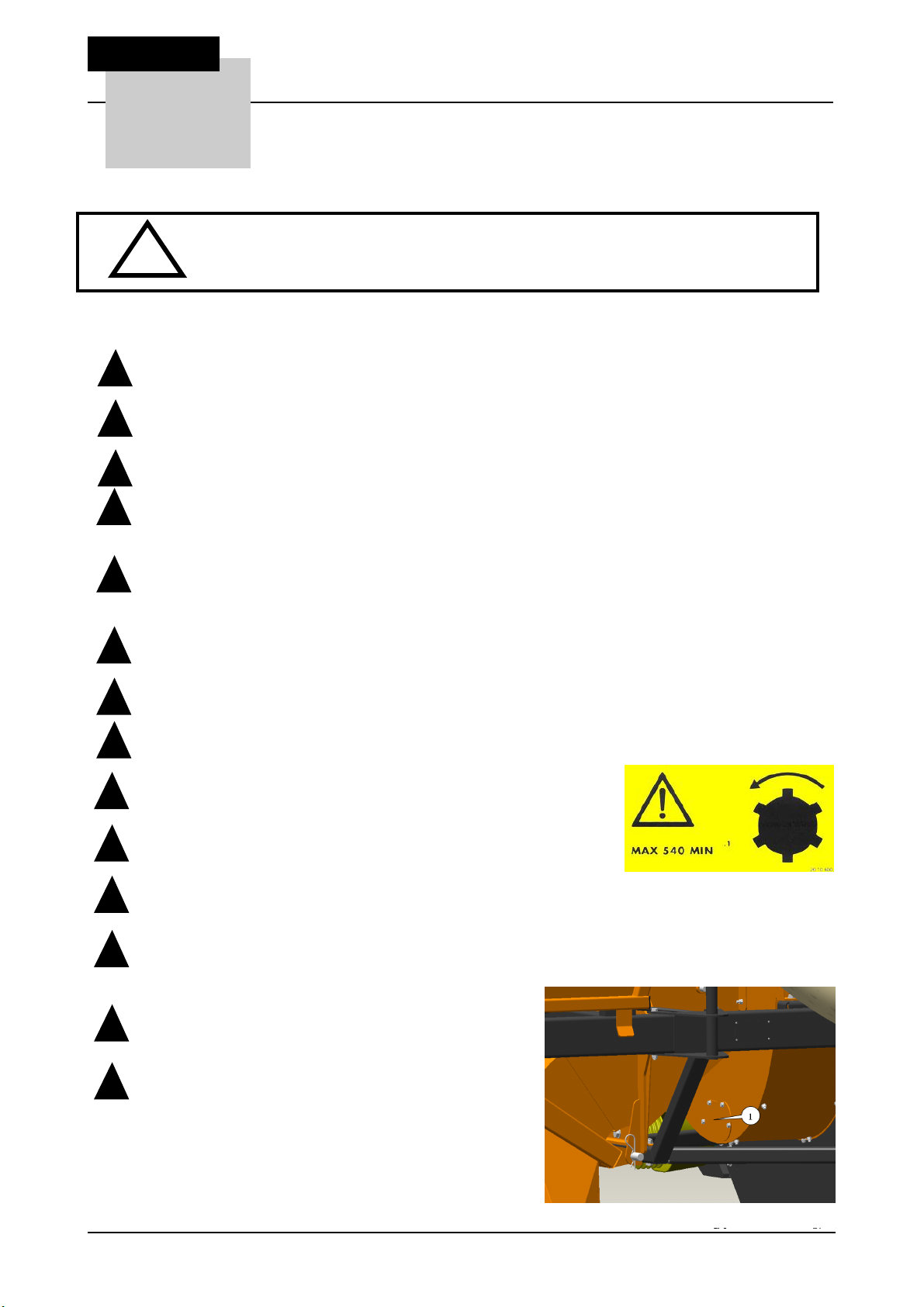

Safety instructions
!Read the following safety instructions before
putting the leaf vacuum trailer into operation
Read this manual trough with care before using the leaf vacuum trailer.
Stricly follow all directions and always pay attention to t
Ensure that everyone using the leaf vacuum trailer knows and actually applies the instructions.
The leaf vacuum trailer is allowed to be used only by appropriately qualified persons.
Read the manual of the tractor
Read the manual of the PTO drive shaft (comes with the PTO drive shaft on delivery).
Only use universal joint shafts with CE marking. Never work with damaged protecting tubes
or while they are removed.
Wear ear protectors at noise levels exceeding 80 dB(A).
Be mindful of very hot parts after the hydraulic system has been (over)loaded.
Switch off the PTO shaft when not working with the leaf vacuum
trailer.
Do not work at dusk or in the dark, unless you have arranged for proper lighting.
Check te ensure that the speed as set and the direction of rotation
of the PTO shaft correspond tot the recommended rpm.
If there are no pertinent legal regulations, ask suppliers of oil, filters, batteries/accumulators,
fuel, antifreeze, cleaners etc. for information about the effects of these substances on human
beings and Nature as well as about the safety rules to be followed for their use, storage and
disposal or destruction.
Make sure that there is no one behind the leaf vacuum trailer before backing it. If you do not
have a complete view of the area behind the leaf vacuum trailer, you may back it only if
someone else positioned at sufficient distance from the rear of the leaf vacuum trailer is
directing you.
Ensure that the rear-view mirrors have been
properly adjusted before you start driving
10/06/2013/JVM
2-1
Attention! Cover plate (1) must always be
mounted on the impeller casing whenever the
leaf vacuum trailer is in operation.

!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Take into account the height, width and length of the leaf vacuum trailer when moving it.
When using public roads, you are yourself responsible for complying with the local regulations
(marking. required documents, exemptions, lighting etc.)
Install replacement lighting if the tractor lighting is concealed by an implement.
Adjust your driving style to the circumstances. The driving characteristics of the tractor are
influenced by the leaf vacuum trailer and the condition of the road.
Work and drive with utmost caution if there are people in close vicinity. Attention! Make sure there
are no persons behind the leaf vacuum trailer when tipping.
Before remedying malfunctions, carrying out maintenance or settings/adjustments of the leaf
vacuum trailer: always place the red safety support under the container and wedges behind the
wheels. Turn off the implement, wait for the implement to come to a standstill, switch off the PTO
shaft, turn off the engine and remove the key from the ignition lock.
Bear in mind that the hydraulic system operates with oil under high pressure. An oil jet under
high pressure may be invisible, penetrate the skin and cause serious injuries. Therefore, never
try to locate or stop a leak by hand. In the event of injury caused by oil leakage, consult a
physician immediately because of the risk of infection.
Watch out for oil squirting out when a coupling is or has
been loosened. Oil can squirt out when a cylinder is
moved by a force from outside.
Only use hoisting elements which meet the current standards (NEN-EN 1492 hoisting belts).
Stickers and markings contained in this manual and provided on the leaf vacuum trailer give
important directions for nonhazardous use. Follow these directions for your own safety! Never
remove them.
!Replace stickers that have been damaged immediately.
As a user, wear close-fitting clothing/safety goggles and ear protectors! Avoid wearing loose
clothing/garments!
After switching of the leaf vacuum trailer. The fan working shaft will still continue rotating. Stay
away from the rotating parts until the leaf vacuum trailer has come to a complete standstill.
Caution! When switching on the PTO shaft, both the fan and the working shaft will start instantly.
Couple accessories as prescribed and fix them only to the intended device. And ensure
they are properly secured.
Safety instructions
Never loosen hose couplings before you are sure there is no pressure on them. A weight may
cause pressure in a line.
10/06/2013/JVM
2-2

!
!
!
!
!
!
!
!
!
!
Safety instructions
Ensure proper maintenance according to the instructions for use contained in this book.
Repair any damage immediately, and definitely before working with the leaf vacuum trailer again.
Important! Any other use is not in accordance with the intended purpose. See chap. 1
Check the whole leaf vacuum trailer each time before using it. Use the leaf vacuum trailer only if
all functions are working properly and no parts have been damaged.
For work to be carried out under the container, the red safety support must always be placed.
See chapter 7.1 for the location.
The PTO drive shaft may be coupled and uncoupled only when the tractor engine has
stopped and the ignition key has been removed.
The tractor must be equipped with a PTO shaft 1.3/8" ASE DIN 9611/A for 540 rpm.
Use a locking clip for securing the tow-bar pin after coupling the leaf vacuum trailer.
The coupling points of the PTO driveshaft on the tractor side and on the side of the leaf
vacuum trailer must be in line. If it cannot be avoided that the maximum admissible working
angle as described in the manual of the universal joint shaft will be exceeded, it will be
necessary to choose an alternative universal joint shaft with large-angle elements.
When tipping the container, make sure that the container does not come into contact with
overhead electric cables or overhanging obstacles.
!When tipping the container, make sure that the leaf vacuum trailer is positioned on a
horizontal ground.
!Attention! Tipping the container is allowed only when the PTO shaft has been switched off.
–Follow the maintance instructions.
–Use original parts only.
10/06/2013/JVM
2-3

3

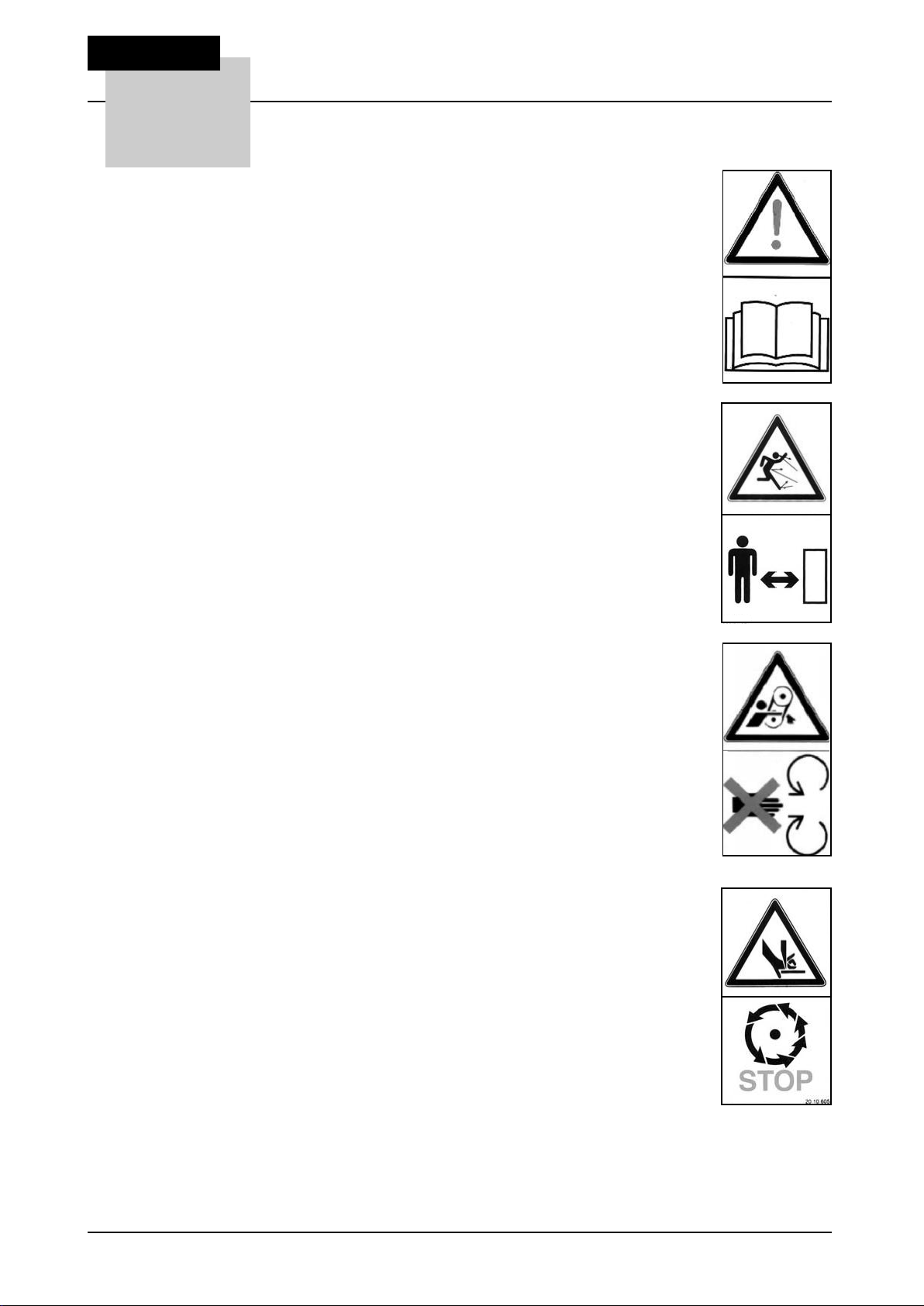

Explanation of Stickers
CHAPTER
Sticker CH-01-47:
Before using the machine, consult the user manual. Pay attention to the safety
and other instructions while using the leaf vacuum trailer.
Sticker CH-01-63:
Risk associated with rotating parts and parts flying around. Keep a
certain distance from the leaf vacuum trailer while in operation.
Sticker CH-01-62:
Do not open any guards or other protections while the machine/PTO shaft is
still running. Bear in mind that after the machine has been switched off, it will
still be running out for some time, so wait for everything to come to a complete
standstill.
Sticker CH-01-49:
Do not touch any rotating patts before the machine has stopped. Bear in mind
that after the machine switched off, it will still be running out for some time, so
wait for everything to come to a complete standstill.
10/06/2013/JVM
3-1

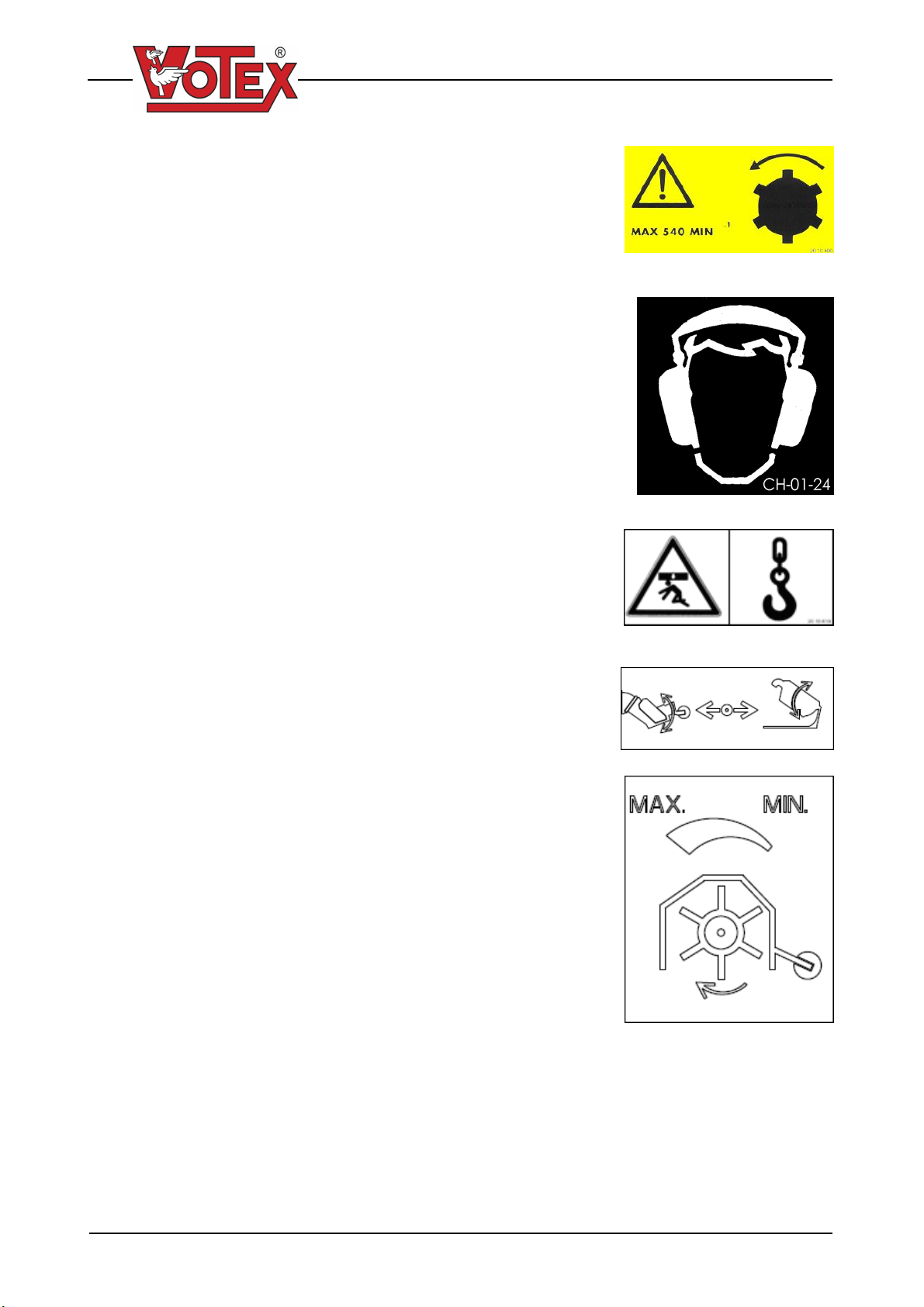

Sticker 20.10.600:
The rotational speed of the PTO shaft must not exceed 540
revolutions per minute.
Sticker CH-01-24:
Attention! Always use ear protectors to prevent hearing
impairment.
Sticker CH-01-57:
Lift this part/component only at the lifting lug.
Sticker EWU000570:
Lifting of vacuum funnel or container.
Sticker EWU000571*:
Speed regulation of hydraulically-driven brush shaft.
10/06/2013/JVM
3-2
Explanation of Stickers
* Depends on the version

Explanation of Stickers
Sticker EWU000569:
Choice of working with wide vacuum funnel or suction hose.
Sticker CH-01-57:
When operating the lifting device, stay outside the lifting range of the
three-point linkage!
10/06/2013/JVM
3-3

4
4.2.1 Container
4.2.2 Zuigbak met werkas
4.2 Onderdelengroepen zuigwagen
Product description
4.1 Description
The Votex B.V. leaf vacuum trailer is a modularly constructed machine which can be used with a wide
vacuum funnel with brush shaft, scarifier shaft or flail shaft. It is also possible to work with a suction system.
The leaf vacuum trailer is to be coupled at the rear of a tractor.
Cuttings are sucked up by the vacuum funnel with brush shaft, scarifier shaft or flail shaft and blown into the
vacuum trailer. Also, mowing and cutting waste, leaves and small litter can be sucked up by the suction
system and blown into the container. The container of the vacuum trailer can be emptied by operating the
tractor hydraulic system. The suction system and the vacuum funnel with brush shaft, scarifier shaft or flail
shaft are driven by the 540-rpm PTO shaft of the tractor. The suction system consists of a fan casing
containing an impeller. A vacuum funnel and a suction hose are connected to the suction system. Using the
changeover valve, it is possible to choose working either with the wide vacuum funnel with working shaft or
with the suction hose.
The leaf vacuum trailer can be divided into various component groups:
The container has a capacity of 4,2 m³ . The Cuttings can
be collected in this container.
The wide vacuum funnel with working shaft is located
under the container. Leaves and cuttings thrown up by
the working shaft are sucked up by the fan and blown
into the container.
10/06/2013/JVM
4-1
CHAPTER

Product description
4.2.3 Suction hose
A changeover valve is mounted on the front side of
the leaf vacuum trailer. A suction hose can be
mounted to this changeover valve. The suction hose
can be mounted on the right or on the left side.
4.2.4Trolley
A trolley is supplied with the optional scarifier shaft
or flail shaft. With this trolley, the shafts can be
easily placed under the vacuum-funnel mouth.
10/06/2013/JVM
4-2

Votex B.V. VT420 Leaf vacuum trailer
Weight excluding wide vacuum funnel
1520 kg
Maximum weight including load
48 55 kg
Maximum driving speed
40 km/ h
PTO shaft rpm (maximum)
540 rev/min
PTO shaft power required
>45 pk / 33kW
Drive
PTO-universal joint shaft
Gearbox transmission ratio PTO shaft – scarifier/brush
3:1
Gearbox transmission ratio PTO shaft – flail shaft
1:3
Gearbox filling volume
1.1 L
Gearbox oil specification
SAE 80W90 API GL-4
Vacuum trailer tyre pressure 15x17 AW
3.6 bar
Vacuum trailer tyre pressure 15x17 rib-774A
3.6 bar
Vacuum trailer tyre pressure 19x17 rib-774A
3.0 bar
Vacuum funnel tyre pressure
1.5 bar
Tyre pressure of scalp wheels
3.5 bar
Rated speed of impeller
2000 rev/min
Dimensions LxWxH, with vacuum funnel
4750 x 1870 x 2300 mm
Container capacity
4.2 m³
Tipping height
2130mm
Braking
none/hydraulic/mechanical
Suction hose length
5000mm
Suction hose diameter
200mm
Hydraulic couplings required
1 double-acting valve

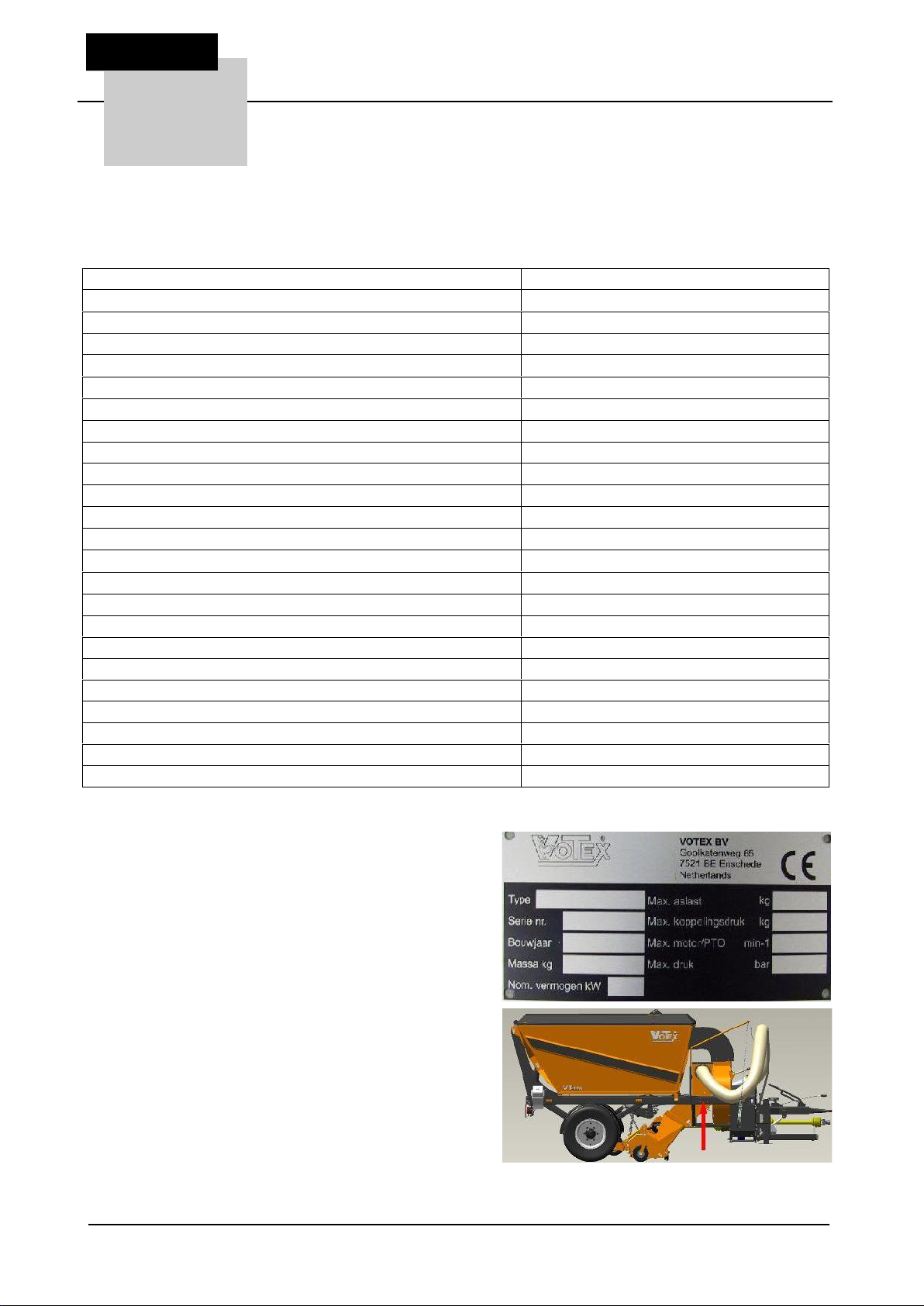

5
Technical specifications
5.1 Technical data
5.2 Identification plate
Votex B.V. products are provided with
an identification plate like the adjoining
plate.The identification plate contains
information about the product to which
the plate is affixed.
CHAPTER
08/10 /2013/JVM
5-1

Technical specifications
5.3 Sound-level increase
When working with the leaf vacuum trailer, the sound level in the tractor cabin will increase. If
necessary, take appropriate measures against too high a sound level.
10/06/2013/JVM
5-2
