InstallationandOperatingManual

LCD‐Thermometer/ClockS  No.1253

The3‐foldthermometerwithcrystalclockispurpose‐buildforthemountingincaravans,boatsand
interventionvehicles.

Pleasereadthemountinginstructionsandoperatingmanualincludingthesafety
regulationscompletelypriortostartingconnectionandstart‐up.

TheVOTRONICLCD‐Thermometer/ClockSisequippedwithalargeLCdisplay,whichensuresverygood
legibility,evenfromadistance.Theintegratedbackgroundilluminationguaranteesahigh‐contrast
representation,evenwithunfavourablelightingconditions.
Thethermometermeasuresnotonlytheroomtemperature,butalsotheoutsidetemperatureismeasuredby
thesuppliedexternaltemperaturesensor.Thethirdmeasuringinputcanbeusedforcontrolofrefrigerator
boxesorheatboxes.Thethirdtemperaturesensorisseparatelyavailableasaccessory.Themeasuringranges
cover‐30°Cto+70°Cwitharesolutionof0.1°C.
Theprecisecrystalclockshowsminutesandhours(24hoursformat),aflashingcolonforoperationalcheckand
theweekdayinthelowerrow.Theclockisequippedwithapowerreserve.Thus,itcontinuesworkingalsoata
short‐timevoltageloss.TheDCFmodule(orderNo.2062),whichisavailableasaccessory,allowsradio‐
controlledoperation.

Theunitdistinguishedbylowcurrentconsumption,anditissuitablefor12Vaswellas24Vboardmains
supply.
Forfire‐fightingvehiclesandinterventionvehiclesthesecondmeasuringinputcanbeusedforautomatic
activationoftheclockandofitsillumination.
AppearanceanddimensionsofthedisplayareperfectlyadaptedtotheVOTRONICmodularsystem.The
VOTRONICmodularsystemincludestankdisplayunits(freshandsewagewateraswellasfeces),theLCDseries
(solarcomputer,batterycomputer,ammeterandvoltmeter),aswellasswitchandfusepanels.

InstallationandConnection:

ChooseawellvisibleandeasilyaccessiblelocationinthelivingareaforinstallationoftheLCDthermometer/
clock.Directsunradiationshouldbeavoided,sincethebuilt‐intemperaturesensormightheatupstrongly,and
ameasurementoftheroomtemperaturebythemoduleisnotpossibleanylonger.
Therearcutoutopeningshouldbecoveredwithelectricallynonconductingmaterialtoensureefficient
protectionoftheelectronicsystemandfullutilizationofthestoragespace,whichmightbelocatedbehind.

Installationplacefortheexternalmeasuringsensor:
Iftheexternalsensorshallbeusedasoutsidetemperaturesensor,directsunradiationorheatradiationonthe
engineblock/enginecompartment/radiatorpreferablyshouldbeavoided.
Ifthemeasuringinput3isusedforcontroloftherefrigeratorboxorheatbox,theexternaltemperaturesensor
(requiredaccessory,orderNo.2001)shouldbeplacedataverageheightofthecontainer.

Terminals:
Connection+Batt.,‐Batt.
Thisconnectionisusedforthecurrentsupplytotheunit.The+Batt.cableistobeprotectedbymeansofa
fuse3A.Thecablecross‐sectionsshouldbe0.75mm²,atleast.

Sensorconnection
Thetemperaturesensorsareconnectedtotheconnections„–Sens.“and„+Sens1“,or„–Sens.“and„+Sens2“.
Thesensorsdonothaveadefinedpolarity.Forbetteridentification,werecommendtoconnecttheblackwire
to„–Sens.“andtheredwireto„+Sens.“.


‐2‐


Theresistor,whichhadbeenconnectedinthefactory,andwhichislocatedbetweentheterminals
„–Sens.“and„+Sens2“mustberemovedinanycase,sincetheconnection„+Sens2“isusedfor
automaticactivationoftheillumination.

Connectioncontrolinputillumination:
Thesecondmeasuringinputcanbeusedforautomaticactivationoftheclockandofitsillumination.
Connectthesuppliedresistor1kΩbetweentheterminals„‐Sens.“and„+Sens.2“,andconnectacontrol
voltagetotheterminal„+Sens.2“.
Inthiscase,connectionanduseofasecondtemperaturesensorisnotpossible.
Theuseofthesecondinputascontrolinputfortheilluminationmustbesetinthemenu.Theilluminationof
thedisplayisstillactivefor3minutesafterdisconnectionofthesignal.Evenwithoutcontrolsignal,thedisplay
canbeoperatedasusual.

‐3‐
Operation:


Key1:Nextpageofdisplay.
Adjustmentofillumination(3s)
Key2:PreviouspageofDisplay.
Adjustmentofillumination(3s)

Key3:Displayon/off.
Settings(3s)








Activation,Deactivation
Theunitisoptimizedforextremelycurrentsavingoperationandoffers
threeoperationmodes.
Stand‐by:Duringstand‐bymodethedisplayisempty.
Displaywithandwithoutillumination:Assoonastheunitisoperated,
thedisplayilluminationwillbeswitched‐onandwillremainactivatedfor
3minutes.Ifthereisnooperationduringthistime,theilluminationwill
beswitched‐offautomatically.Thedisplaycontinuesshowingthesame
data.Thedisplayilluminationisreactivatedbypressinganykey.The
properfunctionofthekeywillbeeffectedbypressingthekeyasecond
time.






Adjustmentofthebrightness:
Adjustmentofthedisplaybrightnessiseffectedinswitched‐onconditionandbypressingandholdingthekeys
1and2formorethan3secondsuntilthedesiredbrightnessisachieved.

Displaysclockandthermometer:
Thedisplaysofclockandthermometercanbescrolledforwardsandbackwardsbymeansofthekeys1and2
asshownbelow.




Time:
Thecurrenttimeisdisplayed.Thecolonbetweenhoursandminutesis
flashingeverysecond.

Date:
Thedisplayofthedatecanberecognizedbytheseparatingpointbetween
dayandmonth.

Weekday:
Duringdisplayoftimeordate,amarkingarrowisshownattheloweredge
ofthedisplay.Thisarrowshowstheweekday.Fromthelefttotheright:
MondaytoSunday.

Temperatures:
Theinsideandoutside(sens.1)temperaturesaredisplayed,and,if
connected,thetemperatureoftherefrigerator(sens.2).
Themarkingsattheleftscreenedgeshowthecorrespondingsensor.
Ifsensor2hadnotbeenconnected,twominussigns(‐.‐°C)aredisplayed.
Ifthisinputhadbeendeactivatedinthemenu,itsdisplaywillbejumped.


‐4‐

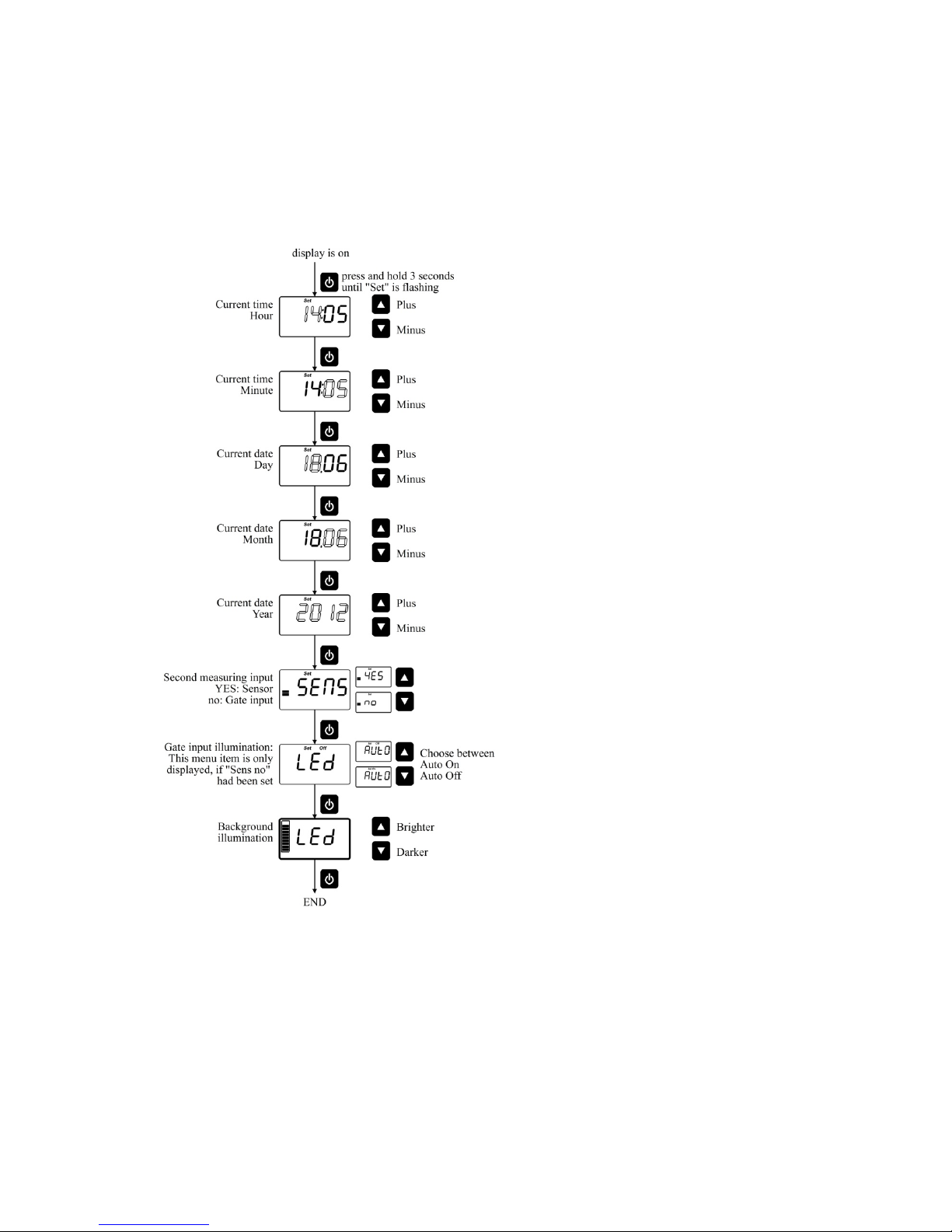

Settings:

Themenuforsettingsoftheclockorofotherfunctionscanbecalled,ifthedisplayswitched‐onandkey3is
pressedandholdformorethan3secondsuntil“Set”isflashing.

Inthemenu,key2isusedtosavethecorrespondingsettingandtojumptothenextmenuitem.


Settingoftheclock:
Setthecurrenthourusingkey1and2.
Acknowledgeusingkey3.Thedisplay
changestotheminutessetting.
Setthecurrentminutesusingkey1and
2.
Acknowledgeusingkey3.Thedisplay
changestothedate.

Setthecurrentdayusingkey1and2.
Acknowledgeusingkey3.Thedisplay
changestothemonth.
Setthecurrentmonthusingkey1and2.
Acknowledgeusingkey3.Thedisplay
changestotheyear.
Settheyearusingkey1and2.
Acknowledgeusingkey3.

Settingofthesecondmeasuringinput:
Iftheautomaticactivationoftheillumination
shallbeused,setthesecondmeasuringinputto
„SENSno“.
Thus,thetemperaturemeasurementofthe2nd
inputisdeactivated.

Themenuitemforthesettingoftheautomatic
illuminationisonlydisplayed,ifthe2ndmeasuring
inputhadbeensetto„SENSno“.
„LED“and„AUTO“areflashingalternately.Either
„on“or„off“areshownattheupperedgeofthe
display.
on:theilluminationwillbeswitched‐onby
thecontrolinput.
off:theilluminationwillnotbeswitched‐on
automatically.

Adjustmentofthebackgroundillumination:
Thebackgroundilluminationcanbeadaptedfrom
brighttocompletelydarkinstepsof10%
accordingtotherequirements.


‐5‐

OptionDCFModule
Onrequest,theclockcanbeextendedbytheseparatelyavailable
DCFmodule(orderNo.2062)forautomaticradiocontrolbythe
timesignaltransmitterDCF77(Long‐waveTransmitter
MainflingennearFrankfurt/M).
Receptionisimproved,iftheDCFmoduleisinstalledintheupper
areaofthevehicle.Thus,aneffectiveradiusofapprox.1,000km
ispossible.
Usethedeliveredplug‐and‐gocableof2mlengthtoconnectthe
moduletotheclock.Thepolarityofthe3‐poleconnectorisat
discretion.

Amarkinginthedisplayneartheantennasymbolindicatesthe
conditionoftheDCFreception.
-Flashingmarking:Themodulereceivesthetime,the
synchronisationisinprogress.
-Lightingsymbol:ThesynchronisationoftheinternalclockwiththeDCFtimewassuccessful.
Afterarestart,itmighttakesomeminutesuntilthesynchronisationstarts.Thesynchronisationitselfmight
alsotakesomeminutes.
Afterasuccessfulsynchronisation,thenextsynchronisationwillbeeffectedatthebeginningofthefollowing
hour.
Incaseofbadreception,theinternalcrystal‐controlledclockwillcontinueworkinginanycaseensuringthat
thecorrecttimewillalwaysbedisplayed.

‐6‐
GeneralInformation:

Cleaning:
Werecommendtouseadampmicrofibreclothwithpurewateror,ifrequired,withwaterwithafewsoap.
Takecare,thatnoliquidflowsalongthedisplayscreenoralongtheedgesofthefrontpanel.

Neverusesolvents,aggressivehouseholdcleaners,andscratchingorabrasiveagentsorobjectsto
cleanthefrontpanelandparticularlythedisplayitself.


Trouble‐shooting:
Nodisplayatall:
a) Reversebattery:Check!
b) Fusedefective
c) Batteryistotallydischarged,below7Volts:Rechargeimmediately!
d) Connectioncableisinterrupted,damaged,oritisnotinserted:Check!

„Hieroglyphs“onthedisplay:
a) Theinternalcheckprogramsoftheunithavefoundan(memory)error:
Withdrawthecableconnectorfor10seconds.Afterthat,aninitialstart‐upistobeexecutedasdescribed
above.

Display:Err:
a) Short‐circuitatoneofthetemperaturesensors.
b) Resistorbetweentheterminals„+Sens.2“and„‐Sens.“hadnotbeenremoved,andtheinputshallbeused
fortemperaturemeasurement,oritshallnotbeusedatall.Removetheresistor.

Display:‐.‐:
a) Temperaturesensorhadnotbeenconnectedorcablesareinterrupted.

NoDCFreception:
a) DCFmodulenotexisting.
b) ThesynchronisationwiththeDCFsignalcantakeupto5minutes.Ifthisfails,thenextattemptfor
synchronisationwillbeeffectedinminute59oftheinternalclock.
c) ConnectioncableoftheDCFmoduleisinterrupted,damaged,oritisnotinserted:Check!
d) DCFmodulehadnotbeenalignedhorizontally.Thebuilt‐inDCFantenna(longsideofthemodule)must
alwaysbealignedhorizontally.
e) Someunits(suchaspowerpacksormonitors)mightaffectthereceptionconsiderably,whentheyare
switched‐on.Therefore,thehighestpossibledistanceshouldbekept.



‐7‐


SafetyRegulationsandAppropriateApplication

TheLCDThermometer/ClockShadbeendesignedaccordingtothevalidsafetyregulations.
Appropriateapplicationisrestrictedto:
1. Operationwith12V/24Vdirectvoltage(boardmainssupplynominalvoltage)infixedinstalled
systems.
2. Technicallyfaultlesscondition.
3. Installationinawell‐ventilatedroom,protectedfromrain,humidity,dust,aggressivebatterygas,as
wellasinanenvironmentbeingfreefromcondensationwater.
4. Witharearinsulatingcoverofthedisplayunit.

Neverusetheunitatlocationswheretheriskofgasordustexplosionexists!
Open‐airoperationoftheunitisnotallowed.
Cablesarealwaystobelaidinsuchawaythatdamageisexcluded.Observetofastenthemtightly.
Neverlay12V(24V)cablesand230Vmainssupplycablesintothesamecableconduit(emptyconduit).
Checklivecablesorleadsperiodicallyforinsulationfaults,pointsofbreakorloosenedconnections.
Occurringdefectsmustberemediedimmediately.
Theunitistobedisconnectedfromanyconnectionpriortoexecutionofelectricallyweldingorworkon
theelectricsystem.
Ifthenon‐commercialend‐userisnotabletorecognizethecharacteristicvaluesbeingvalidforaunitor
theregulationstobeobserved,aspecialistisalwaystobeconsulted.
Theuser/buyerisobligedtoobserveanyconstructionandsafetyregulations.
Theunitisnotequippedwithparts,whichcanbereplacedbytheuser.
Non‐observancemayresultininjuryormaterialdamage.
Neverusesolventsoraggressivehouseholdcleanersforcleaningofthedisplay!
Thewarrantyperiodis24monthsfromthepurchasedate(againstpresentationofthesalesslipor
invoice).
Thewarrantywillbevoidincaseofanyinappropriateutilisationoftheunit,ifitisusedbeyondthe
technicalspecification,incaseofimproperoperationorexternalintervention.Wedonotassumeany
liabilityforanydamageresultinghereof.Theliabilityexclusionisextendedtoanyservicebeingexecuted
bythird,whichhasnotbeenorderedbyusinwriting.ServiceistobeeffectedexclusivelybyVOTRONICD‐
36341Lauterbach/Germany.



‐8‐
TechnicalData:
NominalVoltage:12V,24V
OperatingVoltageRange:8...32V
CurrentConsumption:1...40mA,dependingonillumination

MeasuringRange:‐30...+70°C
MeasuringScale:0,1°C

DisplayUnit(LCDDisplay):
Technology:LCDisplaywithspecificsegments
RepresentationSurface:49x28mm
Illumination:whiteLED
Dimensions(mm):80x85x25
AssemblyDimensionsOpening
ElectronicSystem(mm):approx.65x71
Weight:approx.70g

AmbientConditions,HumidityofAir:max.95%RH,nocondensation


DeliveryScope:
• 1ea.LCDThermometer
• 1ea.Ext.TemperatureSensor
• 4ea.FasteningScrews
• 1ea.DrillingJig
• 1ea.MountingInstructionsandOperating
Manual


RecommendableAccessories:
• CasingS   OrderNo.2014
• TemperatureSensor825OrderNo.2001
• DCFModule  OrderNo.2062
















Disposalofthe
productinthe
normal
household
wasteisnot
allowed.

TheproductconformstoRoHS.
Thus,itcomplieswiththe
directivesforReductionof
HazardousSubstancesinElectrical
andElectronicEquipment.


DeclarationofConformity:
Accordingtothestipulationsoftheregulations2006/95/EG,2004/108/EG,95/54/EGthisproduct
correspondstothefollowingstandardsorstandardizeddocuments:EN55014;EN55022B;DIN14685;
DIN40839‐1;EN61000‐4‐2;EN61000‐4‐3;EN61000‐4‐4.


Subjecttomisprints,errorsandtechnicalmodificationwithoutnotice.
Allrightsreserved,particularlytherightofreproduction.CopyrightVOTRONIC06/13.

MadeinGermanybyVOTRONICElectronic‐SystemeGmbH&Co.KG,Johann‐Friedrich‐Diehm‐Str.10,36341LAUTERBACH/GERMANY
Phone:+49(0)6641/91173‐0Fax:+49(0)6641/91173‐20E‐mail:[email protected]internet:www.votronic.de
