VOX electronics KK3220F User manual

KK3220F- KK3220SF
OPERATING INSTRUCTIONS REFRIGERATOR-FREEZER
UPUTSTVO ZA UPOTREBU FRIŽIDER SA ZAMRZIVAČEM
UPUTE ZA UPORABU HLADNJAK SA ZAMRZIVAČEM
NAVODILA ZA UPORABO HLADILNIK S ZAMRZOVALNIKOM
MANUAL DE USUARIO FRIGORÍFICO CON CONGELADOR
MANUAL DO USUÁRIO FRIGORÍFICO COM CONGELADOR
SRB
PRT
HRV
SVN
ESP
GBR

GBR
KK3220F/KK3220SF

Content
1. Safety Information
Page 1-9
2. Overview Page 10
3. Reverse Door
Page 11-13

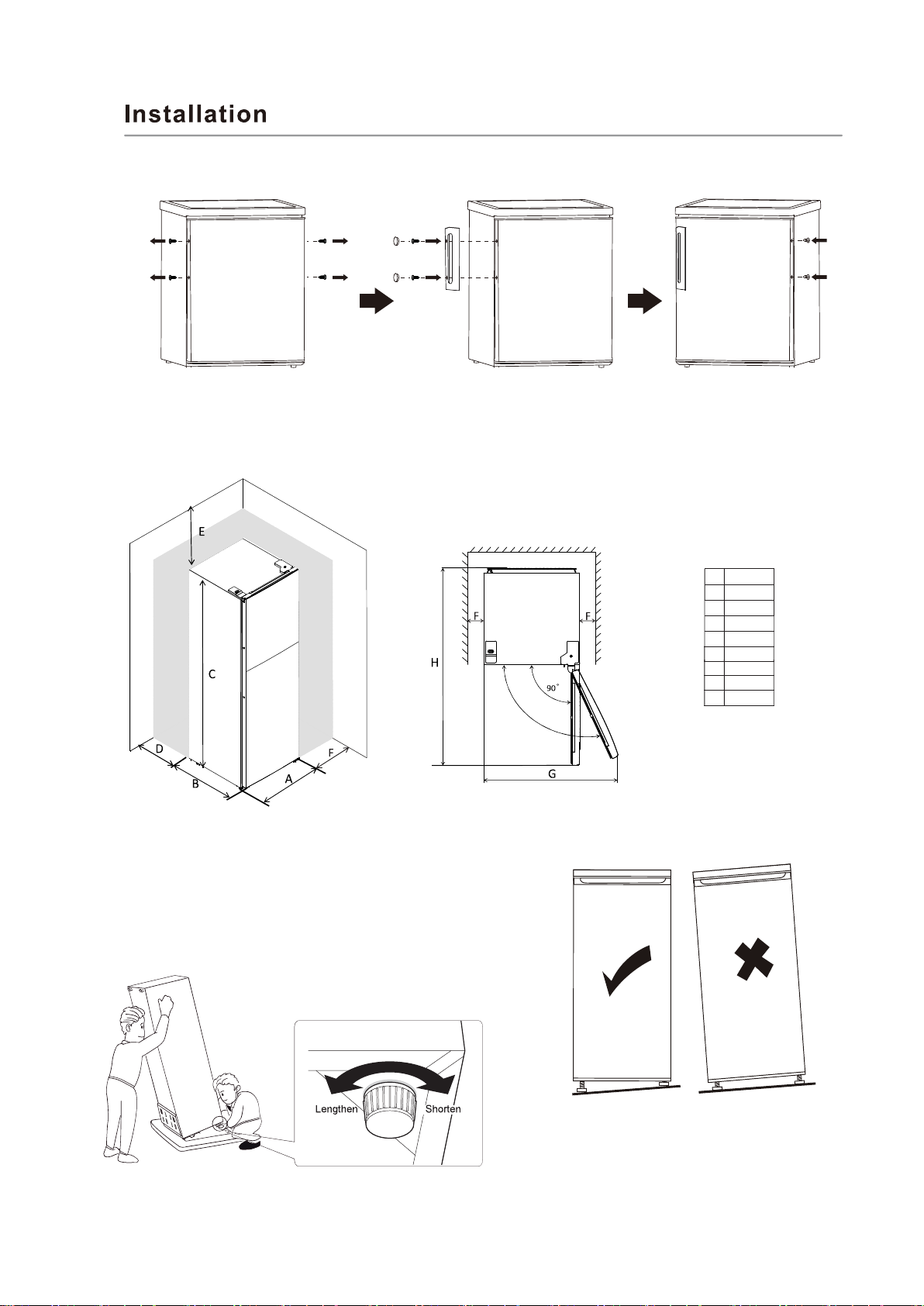

4. Installation Page 14-15

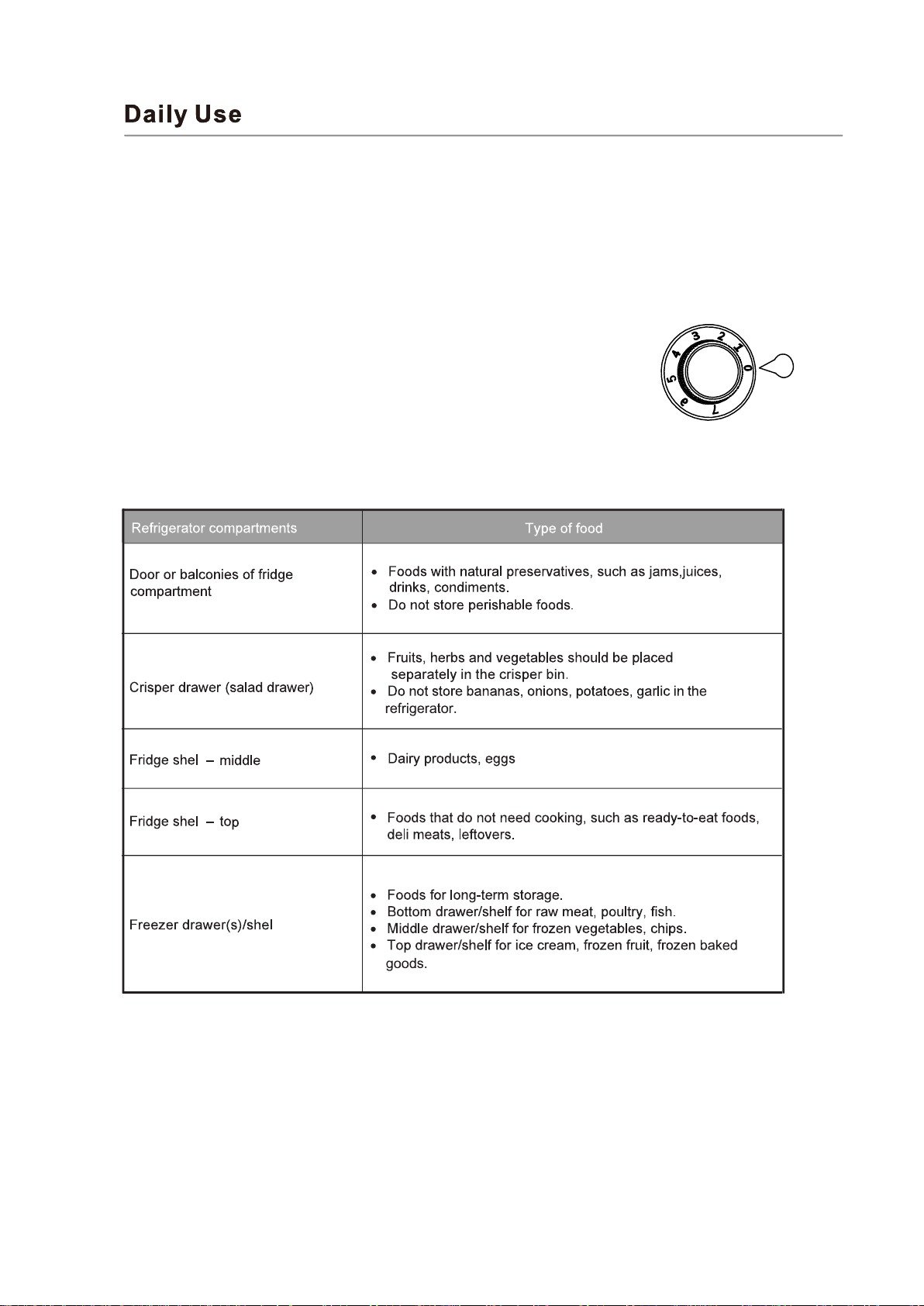

5. Daily Use Page 16-21

Safety information
In the interest of your safety and to ensure the correct use,
before installing and first using the appliance, read this
user manual carefully, including its hints and warnings. To
avoid unnecessary mistakes and accidents, it is important
to ensure that all people using the appliance are
thoroughly familiar with its operation and safety features.
Save these instructions and make sure that they remain
with the appliance if it is moved or sold, so that everyone
using it through its life is properly informed on appliance
use and safety.
For the safety of life and property keep the precautions of
these user’s instructions as the manufacturer is not
responsible for damages caused by omission.
Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved.
•Children aged from 3 to 8 years are allowed to load and
unload this appliance.
•Children should be supervised to ensure that they do not
play with the appliance.
•Cleaning and user maintenance shall not be made by
children unless they are aged from 8 years and above
and supervised.
•Keep all packaging well away from children. There is
risk of suffocation.
1

Safety information
•If you are discarding the appliance pull the plug out of
the socket, cut the connection cable (as close to the
appliance as you can) and remove the door to
prevent playing children to suffer electric shock or to
close themselves into it.
•If this appliance featuring magnetic door seals is to
replace an older appliance having a spring lock
(latch) on the door or lid, be sure to make that spring
lack unusable before you discard the old appliance.
This will prevent it from becoming a death trap for a
child.
General safety
1) If there is a light in the compartment.
WARNING! Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear
of obstruction.
WARNING! Do not use mechanical devices or
other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
WARNING! Do not damage the refrigerant
circuit.
WARNING! Do not use other electrical
appliances (such as ice cream makers) inside of
refrigerating appliances, unless they are approved for
this purpose by the manufacture.
WARNING! Do not touch the light bulb if it has
been on for a long period of time because it could be
very hot.1)
2

Safety information
•Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
•The refrigerant isobutane (R-600a) is contained within
the refrigerant circuit of the appliance, a natural gas
with a high level of environmental compatibility, which
is nevertheless flammable.
•During transportation and installation of the appliance,
be certain that none of the components of the
refrigerant circuit become damaged.
•Avoid open flames and sources of ignition.
• Thoroughly ventilate the room in which the
appliance is situated.
•It is dangerous to alter the specifications or modify this
product in any way. Any damage to the cord may
cause a short circuit, fire and/or electric shock.
•This appliance is intended to be used in household
and similar applications such as
- staff kitchen areas in shops, offices and other working
environments;
- farm houses and by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
WARNING! When positioning the appliance, ensure
the supply cord is not trapped or damaged.
WARNING! Do not locate multiple portable socket-
outlets or portable power suppliers at the rear of the
appliance.
3

Safety information
•Power cord must not be lengthened.
•Make sure that the power plug is not squashed or
damaged by the back of the appliance. A squashed or
damaged power plug may overheat and cause a fire.
•Make sure that you can approach the mains plug of
the appliance.
•Do not pull the mains cable.
•If the power plug socket is loose, do not insert the
power plug. There is a risk of electric shock or fire.
•You must not operate the appliance without the lamp.
•This appliance is heavy. Care should be taken
when moving it.
•Do not remove or touch items from the freezer
compartment if your hands are damp/wet, as this
could cause skin abrasions or frost/freezer burns.
•Avoid prolonged exposure of the appliance to direct
sunlight.
Daily use
•Do not put hot items on the plastic parts in the
appliance.
•Do not place food products directly against the
rear wall.
1) If there is a light in the compartment.
WARNING! Any electrical components (plug, power
cord, compressor and etc.) must be replaced by a
certified service agent or qualified service personnel.
WARNING! The light bulb supplied with this
appliance is a “special use lamp bulb” usable only with
the appliance supplied. This “special use lamp” is not
usable for domestic lighting.1)
4

•Frozen food must not be re-frozen once it has been
thawed out. 1)
•Store pre-packed frozen food in accordance with the
frozen food manufactures instructions.1)
•Appliances manufactures storage recommendations
should be strictly adhered to. Refer to relevant
instructions.
•Do not place carbonated of fizzy drinks in the freezer
compartment as it creates pressure on the container,
which may cause it to explode, resulting in damage to
the appliance.1)
•Ice lollies can cause frost burns if consumed straight
from the appliance.1)
•To avoid contamination of food, please respect the
following instructions
•Opening the door for long periods can cause a
significant increase of the temperature in the
compartments of the appliance.
•Clean regularly surfaces that can come in contact with
food and accessible drainage systems.
•Clean water tanks if they have not been used for 48h;
flush the water system connected to a water supply if
water has not been drawn for 5 days.
•Store raw meat and fish in suitable containers in the
refrigerator, so that it is not in contact with or drip onto
other food.
•Two-star frozen-food compartments (if they are
presented in the appliance) are suitable for storing pre-
frozen food, storing or making ice-cream and making
ice cubes.
1) If there is a freezer compartment.
Safety information
5

Safety information
•One-, two-and three-star compartments (if they are
presented in the appliance) are not suitable for the
freezing of fresh food.
•If the appliance is left empty for long periods, switch
off, defrost, clean, dry and leave the door open to
prevent mount developing within the appliance.
Care and cleaning
•Before maintenance, switch off the appliance and
disconnect the mains plug from the mains socket.
•Do not clean the appliance with metal objects.
•Do not use sharp objects to remove frost from the
appliance. Use a plastic scraper.1)
•Regularly examine the drain in the refrigerator for
defrosted water. If necessary, clean the drain. If the
drain is blocked, water will collect in the bottom of the
appliance.2)
Installation
Important! For electrical connection carefully
follow the instructions given in specific paragraphs.
•Unpack the appliance and check if there are damages
on it. Do not connect the appliance if it is damaged.
Report possible damages immediately to the place
you bought it. In such event retain the packing.
1) If there is a freezer compartment.
2) If there is a fresh-food storage
compartment.
6

Safety information
•It is advisable to wait at least four hours before
connecting the appliance to allow the oil to flow back
in the compressor.
•Adequate air circulation should be around the
appliance, lacking this leads to overheating. To achieve
sufficient ventilation, follow the instructions relevant to
installation.
•Wherever possible the spacers of the product should
be against a wall to avoid touching or catching warm
parts (compressor, condenser) to prevent possible
burn.
•The appliance must not be located close to radiators or
cookers.
•Make sure that the mains plug is accessible after the
installation of the appliance.
Service
•Any electrical work required to do the servicing of the
appliance should be carried out by a qualified
electrician or competent person.
• This product must be serviced by an authorized Service
Center, and only genuine spare parts must be used.
Energy saving
•Do not put hot food in the appliance;
•Do not pack food close together as this prevents air
circulating;
•Make sure food does not touch the back of the
compartment(s);
7

Safety information
•If electricity goes off, do not open the door(s);
•Do not open the door(s) frequently;
•Do not keep the door(s) open for too long time;
•Do not set the thermostat on exceeding cold
temperatures;
•All accessories, such as drawers, shelves balconies,
should be kept there for lower energy consumption.
Environment Protection
This appliance does not contain gasses which could
damage the ozone layer, either its refrigerant circuit or
insulation materials. The appliance shall not be
discarded together with the urban refuse and rubbish.
The insulation foam contains flammable gases: the
appliance shall be disposed according to the appliance
regulations to obtain from your local authorities. Avoid
damaging the cooling unit, especially the heat
exchanger.
The materials used on this appliance marked by the
symbol are recyclable.
The symbol on the product or on its packaging
indicates that this product may not be treated
as household waste. Instead it should be taken to
the appropriate collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health,
8

Safety information
which could otherwise be caused by inappropriate
waste handling of this product. For more detailed
information about recycling of this product, please
contact your local council, your household waste
disposal service or the shop where you purchased the
product.
Packaging materials
The materials with the symbol are recyclable.
Dispose the packaging in a suitable collection
container to recycle it.
Disposal of the appliance
1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.
WARNING! During using, service and
disposal the appliance please pay attention to
symbol similar as left side, which is located on rear
of appliance (rear panel or compressor) and with
yellow or orange color.
It is risk of fire warning symbol. There are
flammable materials in refrigerant pipes and
compressor. Please be far away from fire
source during using, service and disposal.
9

This illustration is only for hinting, the detail please check your appliance.
Balconies
Thermostat and light
Glass Shelves
Crisper Cover
Crisper
Freezer Drawers
Leveling Feet
10

Tool required:Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.
•Ensure the unit is unplugged and empty.
• To take the door off, it is necessary to tilt the unit backwards. You should rest the unit
on something solid so that it will not slip during the door reversing process.
• All parts removed must be saved to do the reinstallation of the door.
•Do not lay the unit flat as this may damage the coolant system.
•It is preferable 2 people to handle the unit during assembly.
1. Remove four screws in top cover and then lift it.
2. Unscrew top hinge and then remove upper door and place it
on a soft pad to avoid scratch.
3. Remove the pin with a screwdriver and flip the hinge
bracket. Then refit the pin to hinge bracket.
11

4. Unscrew middle hinge. Then lift lower door and place it on a soft pad
to avoid scratch.
5.  Move the hinge hole covers from left side to right side.
6. Unscrew bottom hinge. Then remove the adjustable feet from both
side.
7. Unscrew and remove the bottom hinge pin, turn the bracket over
and replace it.
12

8. Refit the bracket fitting the bottom hinge pin. Replace both
adjustable feet. Transfer the lower door to the property position.
9. Detach the Fridge and the Freezer door gaskets and then attach
them after rotating.
10. Make the middle hinge reverse the direction180°C, then
transfer it to the left property position. Make the middle hinge
pin in the upper hole of the lower door, then tight the bolts.
11 . Place the upper door back on. Ensure the door is aligned
horizontally and vertically so that the seal are closed on all
sides before finally tightening the top hinge. Then inert the
hinge and screw it to the top of the unit.
12. Put the top cover and then screw back.
13

A 550
B 580
C 1760
D min=50
Emin=50
G 100
Fmin=50
H 1130
I 1355°°
Install door external handle (if external handle is present )
Space Requirement
·Keep enough space of door open.
·Keep at least 50mm gap at two sides and back
Levelling the unit
To do this adjust the two levelling feet at front of the unit.
If the unit is not level, the doors and magnetic seal alignments
will not be covered properly.
14

Installation
Positioning
Install this appliance at a location where the ambient temperature corresponds to the climate class
indicated on the rating plate of the appliance:
for refrigerating appliances with climate class:
- extended temperate: thisrefrigerating appliance isintended tobe used at ambient temperatures ranging
from 10 °C to 32 °C; (SN)
- temperate:thisrefrigeratingapplianceisintendedtobeusedatambienttemperaturesrangingfrom16°Cto
32 °C;(N)
- subtropical:thisrefrigeratingapplianceisintendedtobeusedatambienttemperaturesrangingfrom16°Cto
38 °C;(ST)
- tropical: this refrigerating appliance isintended to beused at ambient temperatures ranging from 16°C to 43
°C;(T)
Location
The appliance should be installed well away from sources of heat such as radiators, boilers, direct
sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best
performance, if the appliance is positioned below an overhanging wall unit, the minimum distance
between the top of the cabinet and the wall unit must be at least 50 mm. Ideally, however, the
appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one
or more adjustable feet at the base of the cabinet.
This refrigerating appliance is not intended to be used as a built-in appliance;
Warning!Itmustbepossibletodisconnecttheappliancefromthemainspowersupply;theplugmust
therefore be easily accessible after installation.
Electrical connection
Before plugging in,ensure that the voltage and frequency shown on the rating plate correspond toyour
domestic power supply.The appliance must be earthed. The power supply cable plug is provided with a
contact for this purpose. Ifthe domestic power supply socket isnot earthed, connect the appliance to a
separate earth in compliance with current regulations, consulting a qualified electrician.
The manufacturer declines all responsibility if the above safety precautions are not observed.
This appliance complies with the E.E.C. Directives.
15

First use
Cleaning the interior
Before using the appliance for the first time, wash the interior and all internal accessories
with Iukewarm water and some neutral soap so as to remove the typical smell of a brand-
new product, then dry thoroughly.
Important! Do not use detergents or abrasive powders, as these will damage the finish.
Temperature Setting
• Plug on your appliance. The internal temperature is controlled by a
thermostat. There are 8 settings. 1 is warmest setting and 7 is
coldest setting and 0 is off.
• The appliance may not operate at the correct temperature if it is in a
particularly hot or if you open the door often.
Daily use
Position different food in different compartments according to be below table
16

Temperature Setting Recommendation
·
·
·
Under Recommended setting, the best storage time of fridge is no more than 3 days.
Under Recommended setting, the best storage time of freezer is no more than 1 month.
The best storage time may reduce under other settings.
17
