VOX electronics KG-2550 User manual

KG-2550
OPERATING INSTRUCTIONS DOUBLE DOOR REFRIGERATOR
UPUTSTVO ZA UPOTREBU FRIŽIDER SA ZAMRZIVAČEM
УПАTСТВА ЗА РАКУВАЊЕ ФРИЖИДЕР СО ДВЕ ВРАТИ
NAVODILA ZA UPORABO HLADILNIK Z ZAMRZOVALNIKOM
UPUTSTVO ZA UPORABU FRIŽIDER SA ZAMRZIVAČEM
UPUTSTVO ZA UPOTREBU HLADNJAK SA ZAMRZIVAČEM
ЕГХЕIРIΔI0 ХРНΣТН ΨΥΓΕΙΟ ΔΙΠΛΗΣ ΠΟΡΤΑΣ
GBR
SRB
MKD
SVN
HRV
BIH
MNE
GRC

EN - 1 -
Index
BEFORE USING THE APPLIANCE ........................................................ 2
General warnings ........................................................................................... 2
Old and out-of-order fridges or freezers ........................................................... 4
Safety warnings ............................................................................................. 4
Installing and operating your fridge freezer ...................................................... 5
Before Using your fridge freezer...................................................................... 6
THE VARIOUS FUNCTION AND POSSIBILITIES.................................. 6
Thermostat setting ......................................................................................... 6
Warnings about temperature adjustments ...................................................... 6
Accessories .................................................................................................. 7
Ice tray ........................................................................................................................... 7
Plastic scraper ............................................................................................................. 7
ARRANGING FOOD IN THE APPLIANCE .............................................. 7
Fridge compartment ....................................................................................... 7
Freezer compartment..................................................................................... 8
CLEANING AND MAINTENANCE ........................................................... 9
Defrosting .....................................................................................................10
Replacing the light bulb ................................................................................. 11
TRANSPORTATION AND CHANGING OF INSTALLATION POSITION ..11
Transportation and changing of Installation position ....................................... 11
Repositioning the door .................................................................................. 11
BEFORE CALLING YOUR AFTER SALES SERVICE .......................... 12
Tips for saving energy ................................................................................... 13
THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ....... 14

EN - 2 -
PART - 1. BEFORE USING THE APPLIANCE
General warnings
WARNING: Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended
by the manufacturer.
WARNING: Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: To avoid a hazard due to the instability of the appliance,
it must be fixed in accordance with the instructions.
• If your appliance uses R600a as a refrigerant (this information
will be provided on the label of the cooler) you should take
care during transportation and installation to prevent the cooler
elements from being damaged. R600a is an environmentally
friendly and natural gas, but it is explosive. In the event of a
leak due to damage of the cooler elements, move your fridge
away from open flames or heat sources and ventilate the room
where the appliance is located for a few minutes.
• While carrying and positioning the fridge, do not damage the
cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
• This appliance is intended to be used in household and
domestic applications such as:
- staff kitchen areas in shops, offices and other working
environments.
- farm houses and by clients in hotels, motels and other

EN - 3 -
residential type environments.
- bed and breakfast type environments;
- catering and similar non-retail applications.
• If the socket does not match the refrigerator plug, it must be
replaced by the manufacturer, a service agent or similarly
qualified persons in order to avoid a hazard.
• A specially grounded plug has been connected to the power
cable of your refrigerator. This plug should be used with a
specially grounded socket of 16 amperes. If there is no such
socket in your house, please have one installed by an
authorised electrician.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without
supervision.
• If the supply cord is damaged, it must be replaced by the
manufacturer, an authorised service agent or similar qualified
persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding
2000 m.

EN - 4 -
Old and out-of-order fridges or freezers
• If your old fridge has a lock, break or remove the lock before discarding
it, because children may get trapped inside it and may cause an
accident.
• Old fridges and freezers may contain isolation material and refrigerant
with CFC or HFC. Therefore, take care not to harm environment when
you are discarding your old fridges.
Please ask your municipal authority about the disposal of the WEEE reuse,
recycle and recovery purposes.
Notes:
•Please read the instruction manual carefully before installing and using your
appliance. We are not responsible for the damage occurred due to misuse.
•Follow all instructions on your appliance and instruction manual, and keep this
manual in a safe place to resolve the problems that may occur in the future.
•This appliance is produced to be used in homes and it can only be used in
domestic environments and for the specified purposes. It is not suitable for
commercial or common use. Such use will cause the guarantee of the appliance
to be cancelled and our company will not be responsible for losses incurred.
•This appliance is produced to be used in houses and it is only suitable for cooling /
storing food. It is not suitable for commercial or common use and/or for storing
substances except for food. Our company is not responsible for losses to be
incurred in the contrary case.
Safety warnings
• Do not connect your Fridge Freezer to the mains
electricity supply using an extension lead.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• This appliance is designed for use by adults, do not allow
children to play with the appliance or let them hang off the door.
• Never touch the power cord/plug with wet hands as this could
cause a short circuit or electric shock.
• Do not use any metal or sharp objects to accelerate the defrosting
process.
• Do not place glass bottles or beverage cans in the ice-making
compartment as they can burst as the contents freeze.
• Do not place explosive or flammable material in your fridge. Place
drinks with high alcohol content vertically in the fridge
compartment and make sure that their tops are tightly closed.

EN - 5 -
Installing and operating your fridge freezer
Before using your fridge freezer, you should pay attention to the following points:
• The operating voltage for your fridge freezer is 220-240 V at 50Hz.
• We do not accept responsibility for any damages that occur due to ungrounded
usage.
• Place your fridge freezer where it will not be exposed to direct sunlight.
• Your appliance should be at least 50 cm away from stoves, gas ovens and heater
cores, and at least 5 cm away from electrical ovens.
• Your fridge freezer should never be used outdoors or exposed to rain.
• When your fridge freezer is placed next to a deep freezer, there should be at least 2
cm between them to prevent humidity forming on the outer surface.
• Do not place anything on your fridge freezer, and install your fridge freezer in a
suitable place so that at least 15 cm of free space is available above it.
• Do not place heavy items on the appliance.
• Use the adjustable front legs to make sure your appliance is level
and stable. You can adjust the legs by turning them in either
direction. This should be done before placing food in the fridge
freezer.
• Before using your fridge freezer, wipe all parts with a solution of
warm water and a teaspoon of sodium bicarbonate, then rinse
with clean water and dry.
Place all parts in the fridge after cleaning.
• Install the plastic distance guide (the part with black vanes at the
rear) by turning it 90° (as shown in the figure) to prevent the
condenser from touching the wall.
• The refrigerator should be placed against a wall with a free space
not exceeding 75 mm.
• When removing ice from the ice-making compartment, do not touch it. Ice
may cause frost burns and/or cuts.
• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice
cubes immediately after you have taken them out of the ice-making
compartment.
• Do not re-freeze frozen goods after they have melted. This may cause health
issues such as food poisoning.
• Do not cover the body or top of fridge with lace. This affects the performance of
your fridge.
• Secure any accessories in the fridge during transportation to prevent damage
to the accessories.

EN - 6 -
PART - 2. THE VARIOUS FUNCTION AND POSSIBILITIES
Thermostat setting
The fridge freezer thermostat automatically regulates the inside temperature of the
compartments. By rotating the knob from position 1 to 5, colder temperatures can be
obtained.
Important note: Do not try to rotate knob beyond 1 position it will stop your appliance.
1 – 2 : For short-term storage of food in the freezer compartment, you can set the knob
between the minimum and medium position.
3 – 4 : For long-term storage of food in the freezer compartment, you can set the knob
to the medium position.
5 : For freezing fresh food. The appliance will work for longer. So, after the desired
condition is reached, return the knob to the previous setting.
Warnings about temperature adjustments
• It is not recommended that you operate your fridge freezer in environments colder
than 10°C in terms of its efficiency.
• Temperature adjustments should be made according to the frequency of door
openings and the quantity of food kept inside the fridge freezer.
• When you first switch on the appliance, you should ideally try to run it without any
food in for 24 hours and not open the door. If you need to use it straight away, try
not to put a large quantity of food inside.
• A 5 minute delay function is included to prevent damage to the compressor of your
fridge freezer, when you unplug it and then plug it in again to operate it, or when an
energy breakdown occurs. Your fridge freezer will start to operate normally after 5
minutes.
Before Using your fridge freezer
• When using your fridge for the first time, or after transportation,
keep it in an upright position for at least 3 hours before plugging
into the mains. This allows efficient operation and prevents
damage to the compressor.
• Your fridge may have a smell when it is operated for the first time. This is normal
and the smell will fade away when your fridge starts to cool.

EN - 7 -
Ice tray
• Fill the ice tray with water and place in the freezer compartment.
• After the water has completely turned into ice, you can twist the tray as shown
below to remove the ice cubes.
Accessories
• Your fridge freezer is designed to operate in the ambient temperature intervals
stated in the standards, according to the climate class stated in the information
label. It is not recommended that your fridge freezer is operated in the
environments which are out of the stated temperature intervals. This will reduce
the cooling efficiency of the fridge.
• This appliance is designed for use at an ambient temperature within the 16°C -
32°C range.
Climate
Class Ambient Temperature (°C)
TBetween 16 and 43 (°C)
ST Between 16 and 38 (°C)
NBetween 16 and 32 (°C)
SN Between 10 and 32 (°C)

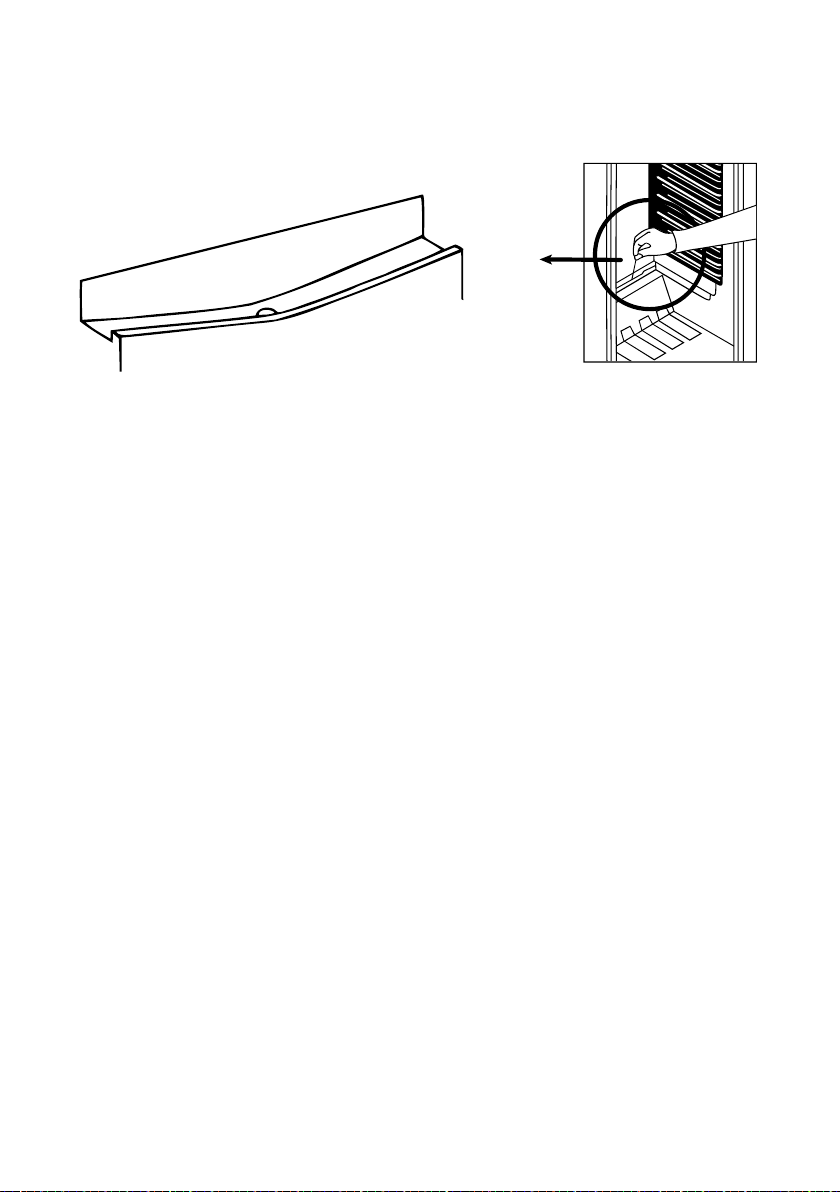

Plastic scraper
After a period of time frost will build up in certain areas in the freezer
compartment. The frost accumulated in the freezer should be removed
periodically. Use the plastic scraper provided if necessary. Do not use
sharp metal objects for this operation. They could puncture the
refrigerator circuit and cause irreparable damage to the unit.
All written and visual descriptions in the accessories may vary according
to the appliance model.
PART - 3. ARRANGING FOOD IN THE APPLIANCE
Fridge compartment
• To reduce humidity and the consequent increase in frost, never place liquids in
unsealed containers in the fridge compartment. Frost tends to concentrate in the
coldest parts of the evaporating liquid and in time will more frequent defrosting
will be required.
• Never place warm food in the fridge compartment. Warm food should be allowed
to cool at room temperature and should be arranged to ensure adequate air
circulation in the fridge compartment.

EN - 8 -
• Nothing should touch the back wall of the appliance as it will cause frost and
packaging to stick to it. Do not open the fridge door too frequently.
• Arrange meat and cleaned fish (wrapped in packages or sheets of plastic) which
you intend to use in 1-2 days, in the bottom section of the fridge compartment.
• Store fruit and vegetable items loose in the crisper containers.
Freezer compartment
• The use of freezer is, storing of deep-frozen or frozen foods for long periods of time
and making ice cubes.
• To freeze fresh food, ensure that as much of the surface as possible of food to be
frozen is in contact with the cooling surface.
• Do not put fresh food with frozen on side by side as it can thaw the frozen food.
• While freezing fresh foods(i.e meat,fish and mincemeat), divide them in parts you
will use in one time.
• Once the unit has been defrosted replace the foods into freezer and remember to
consume them in as short period of time.
• Never place warm food in the freezer compartment. As it will disturb the frozen
foods.
• For storing the frozen foods;the instructions shown on frozen food packages
should always be followed carefully and if no information is provided food should
not be stored for more than 3 months from the purchased date.
• When buying frozen foods ensure that these have been frozen at suitable
temperatures and that the packing is intact.
• Frozen foods should be transported in appropriate containers to maintain the
quality of the food and should be returned to the freezing surfaces of the unit in the
shortest possible time.
• If a package of frozen food shows the sign of humidity and abnormal swelling it is
probable that it has been previously stored at an unsuitable temperature and that
the contents have deteriorated.
• The storage life of frozen foods depends on the room temperature, thermostat
setting, how often the door is opened, the type of food and the length of time
required to transport the product from the shop to your home. Always follow the
instructions printed on the package and never exceed the maximum storage life
indicated.
Not that; if you want to open again immediately after closing the freezer door, it will not be
opened easily. It’s quite normal! After reaching equilibrium condition, the door will be
opened easily.

EN - 9 -
PART 4. CLEANING AND MAINTENANCE
• Disconnect the unit from the power supply before
cleaning.
• Do not clean the appliance by pouring water.
• Make sure that no water enters the lamp housing and
other electrical components.
• The appliance should be cleaned periodically using a solution
of bicarbonate of soda and lukewarm water.
• Clean the accessories separately with soap and
water Do not clean them in the dishwasher.
• Do not use abrasive products, detergents or soaps. After
washing, rinse with clean water and dry carefully. When you
have finished cleaning, reconnect the plugto the mains supply
with dry hands.
• Clean the condenser with a broom at least twice a year.
This will help you to save on energy costs and in-
crease productivity.
THE POWER SUPPLY MUST BE DISCONNECTED.
