VOX electronics NF-3835IX User manual

NF-3835IX
OPERATING INSTRUCTIONS COMBI REFRIGERATOR
UPUTSTVO ZA UPOTREBU KOMBINOVANI FRIŽIDER - ZAMRZIVAČ
УПАTСТВА ЗА РАКУВАЊЕ COMBI ФРИЖИДЕР - ЗАМРЗНУВАЧ
GBR
SRB
MKD

GBR
SRB
MKD
COMBI REFRIGERATOR
Freezer - Fridge
User manual
COMBI FRIŽIDER
Zamrzivač – frižider
Korisnički priručnik
COMBI ФРИЖИДЕР
Ладилник - Длабоко замрзнување
Прирачник за употреба
NF3835ix

EN
2
Index
BEFORE USING THE APPLIANCE................................. 4
General warnings...................................................................... 4
Old and out-of-order fridges...................................................... 6
Safety warnings ........................................................................ 7
Installing and operating your fridge........................................... 8
Before Using your Fridge.......................................................... 9
Information about New Generation Cooling Technology .......... 9
THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS .......................................................... 10
THE VARIOUS FUNCTION AND POSSIBILITIES ......... 14
Display and control panel ........................................................ 14
Cooler Set Button .................................................................... 14
Sr Alarm................................................................................... 14
Operating your fridge............................................................... 15
Super cool mode ................................................................ 15
Economy mode.................................................................... 15
Cooler temperature settings .................................................... 15
Warnings about temperature adjustments............................... 15
Accessories ............................................................................. 16
Freezer box.......................................................................... 16
Chiller Shelf ......................................................................... 17
Humidity Controler ............................................................... 17
Adjustable Door Shelf .......................................................... 18
Adjustable Glass Shelf......................................................... 18
CLEANING AND MAINTENANCE.................................. 21
Defrosting ................................................................................ 22
ARRANGING FOOD IN THE APPLIANCE..................... 23
Refrigerator compartment........................................................ 23
Freezer compartment .............................................................. 24
TRANSPORTATION AND CHANGING OF INSTALLATION
POSITION........................................................................29
Repositioning the door............................................................. 29

EN
3
BEFORE CALLING YOUR AFTER SALES SERVICE... 30
TIPS FOR SAVING ENERGY.......................................... 33

EN
4BEFORE USING THE APPLIANCE
General warnings
WARNING: Keep vantilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING: Do not use electrical appliances inside the
food storage compartments of the appliance, unless
they are of the type recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: In order to avoid any hazards resulting
from the instability of the appliance, it must be xed in
accordance with the following instructions:
• If your appliance uses R600a as a refrigerant (this
information will be provided on the label of the cooler)
you should take care during transportation and
installation to prevent the cooler elements from being
damaged. R600a is an environmentally friendly and
natural gas, but it is explosive. In the event of a leak
due to damage of the cooler elements, move your
fridge away from open ames or heat sources and
ventilate the room where the appliance is located for
a few minutes.
• While carrying and positioning the fridge, do not
damage the cooler gas circuit.
• Do not store explosive substances such as aerosol
cans with a ammable propellant in this appliance.
• This appliance is intended to be used in household
and domestic applications such as:
- staff kitchen areas in shops, ofces and other

EN
5
BEFORE USING THE APPLIANCE
working environments.
- farm houses and by clients in hotels, motels and
other residential type environments.
- bed and breakfast type environments;
- catering and similar non-retail applications.
• If the socket does not match the refrigerator plug,
it must be replaced by the manufacturer, a service
agent or similarly qualied persons in order to avoid
a hazard.
• A specially grounded plug has been connected to the
power cable of your refrigerator. This plug should be
used with a specially grounded socket of 16 amperes.
If there is no such socket in your house, please have
one installed by an authorised electrician.
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
• If the supply cord is damaged, it must be replaced
by the manufacturer, an authorised service agent or
similar qualied persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes
exceeding 2000 m.

EN
6BEFORE USING THE APPLIANCE
Old and out-of-order fridges
• If your old fridge has a lock, break or remove the lock
before discarding it, because children may get trapped
inside it and may cause an accident.
• Old fridges and freezers may contain isolation material
and refrigerant with CFC or HFC. Therefore, take care not
to harm environment when you are discarding your old
fridges.
Please ask your municipal authority about the disposal of the
WEEE reuse, recycle and recovery purposes.
Notes:
• Please read the instruction manual carefully before
installing and using your appliance. We are not
responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction
manual, and keep this manual in a safe place to resolve
the problems that may occur in the future.
• This appliance is produced to be used in homes and it
can only be used in domestic environments and for the
specied purposes. It is not suitable for commercial or
common use. Such use will cause the guarantee of the
appliance to be cancelled and our company will not be
responsible for losses incurred.
• This appliance is produced to be used in houses and it is
only suitable for cooling / storing food. It is not suitable for
commercial or common use and/or for storing substances
except for food. Our company is not responsible for losses
to be incurred in the contrary case.

EN
7
BEFORE USING THE APPLIANCE
Safety warnings
• Do not connect your Fridge Freezer to the mains electricity
supply using an extension lead.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• This appliance is designed for use by adults, do not allow
children to play with the appliance or let them hang off the
door.
• Never touch the power cord/plug with wet hands as this
could cause a short circuit or electric shock.
• Do not place glass bottles or beverage cans in the ice-
making compartment as they can burst as the contents
freeze.
• Do not place explosive or ammable material in your
fridge. Place drinks with high alcohol content vertically in
the fridge compartment and make sure that their tops are
tightly closed.
• When removing ice from the ice-making compartment, do
not touch it. Ice may cause frost burns and/or cuts.
• Do not touch frozen goods with wet hands. Do not eat ice-
cream or ice cubes immediately after you have taken them
out of the ice-making compartment.
• Do not re-freeze frozen goods after they have melted. This
may cause health issues such as food poisoning.
• Do not cover the body or top of fridge with lace. This affects
the performance of your fridge.
• Secure any accessories in the fridge during transportation
to prevent damage to the accessories.

EN
8BEFORE USING THE APPLIANCE
Installing and operating your fridge
Before using your fridge, you should pay attention to the
following points:
• The operating voltage for your fridge is 220-240 V at 50Hz.
• We do not accept responsibility for any damages that
occur due to ungrounded usage.
• Place your fridge where it will not be exposed to direct
sunlight.
• Your appliance should be at least 50 cm away from stoves,
gas ovens and heater cores, and at least 5 cm away from
electrical ovens.
• Your fridge should never be used outdoors or exposed to
rain.
• When your fridge is placed next to a deep freezer, there
should be at least 2 cm between them to prevent humidity
forming on the outer surface.
• Do not place anything on your fridge, and install your fridge
in a suitable place so that at least 15 cm of free space is
available above it.
• Use the adjustable front legs to make sure your appliance
is level and stable. You can adjust the legs by turning them
in either direction. This should be done before placing food
in the fridge.
• Before using your fridge, wipe all parts with a
solution of warm water and a teaspoon of sodium
bicarbonate, then rinse with clean water and dry.
Place all parts in the fridge after cleaning.
• Install the plastic distance guide (the part with black vanes
at the rear) by turning it 90° (as shown in the gure) to
prevent the condenser from touching the wall.
• The refrigerator should be placed against a wall with a free
space not exceeding 75 mm.

EN
9
BEFORE USING THE APPLIANCE
Information about New Generation Cooling
Technology
Fridges with new generation cooling technology have a
different working system than static fridges. In normal
fridges, humid air that enters into fridge and the water vapor
that comes out from the foods, accumulates frost formation
in freezer compartment. In order to melt this frost, in other
words defrost, the fridge has to be stopped. During the
stopping period, to keep the foods cold, user has to extract
the food to outside of fridge and user has to clear the ice
during this period.
In the fridges with new generation cooling technology,
situation in the freezer compartment is completely different.
With the aid of fan, cold and dry air is blown out through
many points into the freezer compartment. As a result of the
homogenously blown cold air, even in the spaces between
shelves, foods are frozen equally and correctly. On the other
hand there will be no frost formation.
In the refrigerator compartment, there will be nearly same
conguration with freezer compartment. Air, that is emitted
with the fan, located at the top of refrigerator compartment, is
cooled while passing through the gap behind the air duct. At
the same time, air is blown out through the holes on the air
duct so that cooling process is successfully completed in the
refrigerator compartment. Holes on the air duct are designed
such that the air distribution becomes homogenous in this
compartment.
As there is no air passage between freezer and refrigerator
compartment, there will be no odor mixing.
As a result of these, your fridge with new generation cooling
technology, gives you, ease of use beside the huge volume
and esthetic appearance.
Before Using your Fridge
• When using your fridge for the rst time, or after
transportation, keep it in an upright position for at least 3
hours before plugging into the mains. This allows efcient
operation and prevents damage to the compressor.
• Your fridge may have a smell when it is operated for the
rst time. This is normal and the smell will fade away
when your fridge starts to cool.

EN
10
This presentation is only for information about the parts of the
appliance. Parts may vary according to the appliance model.
THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
B

EN
11
THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
A) Fridge compartment
B) Freezer compartment
1) Wine rack *
2) Fridge shelves
3) Chiller *
4) Crisper cover
5) Crisper
6) Freezer top baskets
7) Freezer bottom basket
8) Leveling feet
9) Ice tray
10) Freezer glass shelves
11) Bottle shelf
12 Water dispenser
13) Door shelf
14) Egg holder
* In some models
This presentation is only for information about the parts of the
appliance. Parts may vary according to the appliance model.

EN
12
45
6
7
8
9
1
2
3
Parts of the water dispenser
(A ) Outside the door (water dispenser’s tank group)
(B) Inside the door (Water dispenser’s tank group)
1) Top cover of the water dispenser
2) Valve lever
3) Water dispenser casing
4) Top cover of the water tank
5) Tank cover
6) Side locking covers
7) Water tank
8) Gasket ring
9) Tap detail
THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS

EN
13
12
3
2
THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS

EN
14 THE VARIOUS FUNCTION AND POSSIBILITIES
Display and control panel
Sr Alarm Indicator
Cooler Set Button
Cooler Set Button
The temperature of the cooler compartment can be changed using this
button. Super Cool and Economy mode can also be activated using this
button.
Sr Alarm
Sr Alarm will change to red and an alarm will sound if any problems occur.

EN
15
THE VARIOUS FUNCTION AND POSSIBILITIES
Operating your fridge
Super cool mode
How would it be used?
• Push the Cooler Set Button until the Super Cool Symbol illuminates.
The buzzer will sound twice and the mode will be set.
During this mode:
• Super cool mode can be cancelled in the same way that it was
selected.
Note: Super Cool mode will be automatically cancelled after 6 hours,
depending on the environmental temperature or when the refrigerator
sensor reaches a sufciently low temperature.
Economy mode
How would it be used?
• Press the Cooler Set Button until the Economy Symbol illumintes.
• If no button is pressed for 1 second the mode will be set. The buzzer
will sound twice.
• To cancel, press the Cooler Set Button.
Cooler temperature settings
• The initial temperature value for the Cooler Setting Indicator is +4 °C.
• Press the Cooler Set Button once
• When you rst press the button, the previous value appears on the
setting indicator of the cooler.
• Whenever you press this button, lower temperatures will be set (+8°C,
+6°C, Economy, +4°C, +2°C, supercool).
• If you press the cooler set button until the supercool symbol appears
on the Cooler Setting Indicator and do not press any buttons within 1
second, Super Cool will ash.
• If you continue to press, it will restart from +8°C.
Warnings about temperature adjustments
• Your temperature adjustments will not be deleted when an energy
breakdown occurs.
• It is not recommended that you operate your fridge in environments
colder than 10°C in terms of its efciency.
• Temperature adjustments should be made according to the frequency

EN
16 THE VARIOUS FUNCTION AND POSSIBILITIES
of door openings and the quantity of food kept inside the fridge.
• Do not move to another adjustment before completing the current
adjustment.
• Your fridge should be operated up to 24 hours according to the
ambient temperature without interruption after being plugged in to be
completely cooled. Do not open the doors of your fridge frequently
and do not place much food inside it in this period.
• A 5 minute delay function is applied to prevent damage to the
compressor of your fridge when unplugging or plugging in, or when
an energy breakdown occurs. Your fridge will start to operate normally
after 5 minutes.
• Your fridge is designed to operate in the ambient temperature intervals
stated in the standards, according to the climate class displayed on
the information label. We do not recommend operating your fridge
out of the stated temperature
limits in terms of cooling
effectiveness.
• This appliance is designed
for use at an ambient
temperature within the 10°C -
43°C range.
Climate
Class Ambient Temperature oC
TBetween 16 and 43 (°C)
ST Between 16 and 38 (°C)
NBetween 16 and 32 (°C)
SN Between 10 and 32 (°C)
Accessories
Freezer box
The freezer box allows foods are maintained more regularly.
Removing The freezer box;
• Pull the box out as far as possible
• Pull the front of box up and out.
! Make the inverse of the same operation
for the resetting the sliding compartment.
Note: Always Keep the handle of box while
removing the box.
Freezer boxes

EN
17
Chiller Shelf
Keeping food in the Chiller compartment instead of the
freezer or refrigerator compartment allows food retain
freshness and avour longer, while preserving its fresh
appearance. When chiller tray becomes dirty, remove it
and wash it with water.
(Water freezes at 0°C, but foods containing salt or
sugar freeze at temperature lower than that)
Normally people use the chiller compartment for raw
sh, lightly pickled, rice, etc...
Do not put foods you want to freeze or ice trays in order to make ice.
Removing the Chiller shelf
• Pull the chiller shelf out toward you by sliding on rails.
• Pull the chiller shelf up from rail to remove.
Humidity Controler
When the humidity controler in the closed position, it allows fresh fruit and
vegetables to be stored longer.
In case of the crisper is totally full, the fresh dial
is located in front of crisper, should be opened.
By means of this the air in the crisper and
humidity rate will be controlled and endurance
life will be increased.
If you see any condensation on glass shelf,
humidity control should be taken into the open
positions.
THE VARIOUS FUNCTION AND POSSIBILITIES
(In some models)
(In some models)

EN
18
Adjustable Door Shelf
Six different height adjustments can be made to provide
storage areas that you need by adjustable door shelf.
To change the position of adjustable door shelf ;
Hold the bottom of the shelf and pull the buttons on the side of
the door shelf direction of arrow (Fig.1).
Position door shelf the height you need by moving up and
down. After you get the position that you want the door shelf,
release the buttons on the side of the door shelf (Fig.2) Before
releasing the door shelf, move up down and make sure the
door shelf is xed.
Note: Before moving door shelf is loaded, you must hold the
shelf by supporting the bottom. Otherwise, door shelf could fall
off the rails due to the weight. So damage may occur on the
door shelf or rails.
Adjustable Glass Shelf
Adjustable glass shelf mechanism provides higher storage
spaces with a simple movement. To cover the glass shelf,
push it.
You can load your food as you want in the resulting extra
space. To bring the shelf in its original position, pull it toward
you.
Figure -1
Figure -2
THE VARIOUS FUNCTION AND POSSIBILITIES
Figure -1
Figure -2
(In some models)
(In some models)

EN
19
THE VARIOUS FUNCTION AND POSSIBILITIES

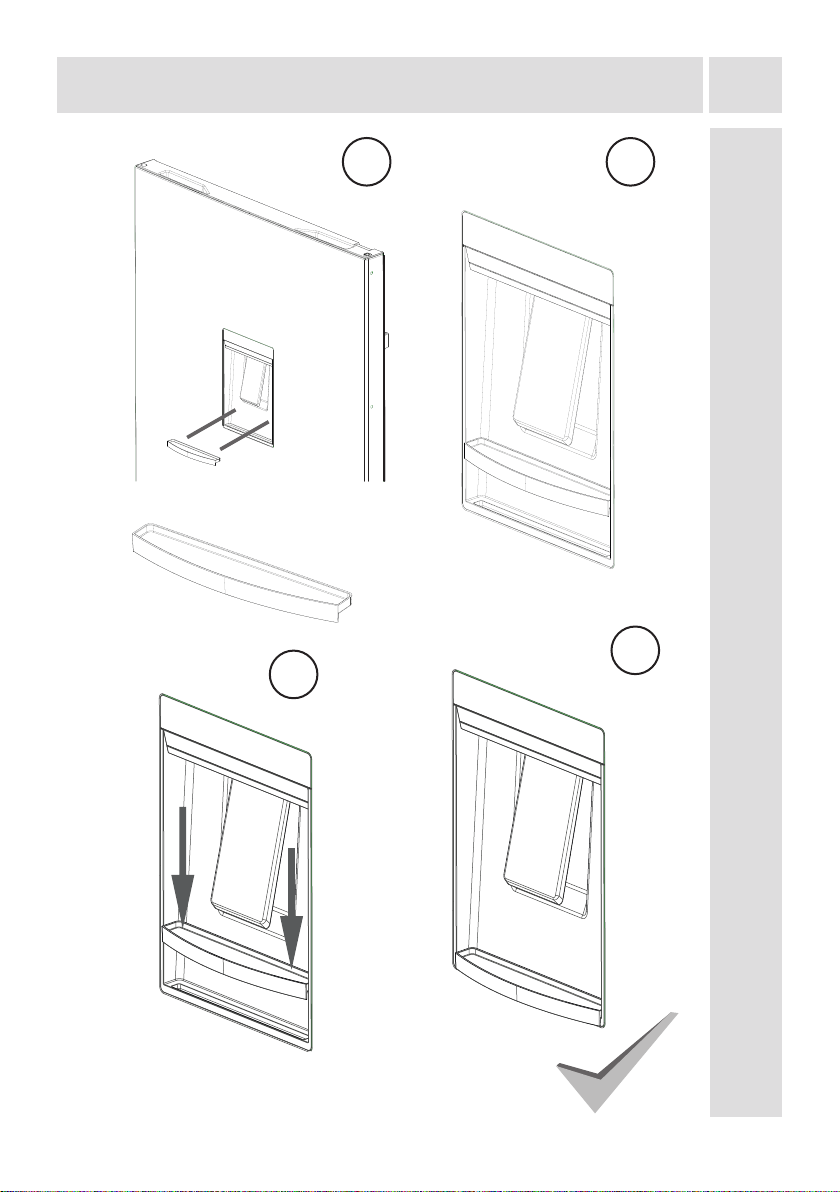

Water dispenser (If available)
Mounting of the water tank group
Place the water tank in the details of the door plastic pitched in the
direction of the arrow.
After inclined to mount the water tank, push it down to place to the details
of door plastics properly.
Add your drinks with the help of water tank top cover.
Uphold the side locking covers to detach the water tank cover.
To serve your drink press valve lever slightly.
