Voxx RVM744 User manual

Installation / Owner’s Guide
RVM744
REV: 0

Page 2
Warning
This product is intended to assist in safe driving and to allow the driver
to have a broader rear view while the vehicle is in reverse. You, as the
driver, are solely responsible for the safe operation of your vehicle and
the safety of your passengers according to local traffic regulations. Do
not use any features of this system to the extent it distracts you from
safe driving. Your first priority while driving should always be the safe
operation of your vehicle. Voxx Electronics Corporation cannot accept any
responsibility whatsoever for accidents resulting from failure to observe
these precautions or safety instructions.
1. This product utilizes high voltage. Any unauthorized modifications
or damage to the product may result in electrical shock. Handle all
components with care. Inspect regularly for damage to components
and cabling.
2. You are responsible for ensuring that the installation of this product
does not void or affect the vehicle manufacturer’s warranty. VOXX
Electronics Corporation or its subsidiaries are not liable in full or in part
for improper installation resulting in loss or damage to your property, or
for voiding all or part of the vehicle manufacturer’s warranty.
3. Do not apply excessive force to any of the components contained
within this kit. Excessive force used before, during or after installation
that results in a damaged or non-functional part will void all warranties.
4. Please follow the procedures in this installation manual. Improper
installation or modification of this product will void all warranties.
NOTE: When cleaning the mirror do NOT spray the mirror directly with cleaner.
Use a soft cloth with screen cleaner applied lightly, and wipe. DO NOT SOAK the
screen. Too much moisture could damage the electronics Inside and this is not
covered by warranty.
WARNING: Using the 2nd, 3rd, or 4th input to watch video of any kind while
driving Is always dangerous and may be illegal. The mirror monitor is not designed
to be used this way

Page 3
This mirror design integrates multiple camera views onto your vehicle’s
rear view mirror. The mirror is designed to mount on any vehicle with a
universal “Wedge” style mount. Additional adapters may be required.
There are two (2) additional vehicle specific mounts (Hyundai / Kia and
Honda) included in this kit. All other vehicle specific adapters are sold
separately.
System Layout
Product Description
Video 1 (Front) Input
Video 4 (Rear) Input
Video 2 (Left) Input
Video 3 (Right) Input
Dash Control Switch
Video 4 (Rear) Trigger - Green
Video 2 (Left) Trigger - Pink
Video 3 (Right) Trigger - Purple
Acc. 12-Volt (+) Input - RED
Ground (-) Input - Black

Page 4
Installation
OEM Mirror Removal
Different vehicles have different mounting bracket styles. The
removal procedure is dependent on the vehicle maker or mirror
manufacturer. There are many methods to remove the original rear
view mirror, however, please don’t force the mirror off the bracket.
Voxx will not be responsible for damage caused to your vehicle by
incorrect installation of the mirror. Please refer to the OEM mirror or
vehicle manufacturer for the correct removal procedure.
Note: Always use caution, DO NOT force the mount. VOXX will not
be responsible for broken windshields. If you are not sure how to
remove or re-install the mirror seek trained, qualified help.
Windshield
1 2
1. Remove the original mirror and prepare RVM744 for installation
• Inspect all parts of the RMV744 to ensure no defects are
present before installation
• Using a supplied Torx wrench, loosen mounting set screw.
2. Install rear view mirror along this direction.
Note: Wire cover must be installed on the mirror mount before
installing onto the windshield wedge mount.
Mirror Installation (Universal Wedge Mount)

Page 5
Installation (CONT)
Windshield
3 4
Windshield

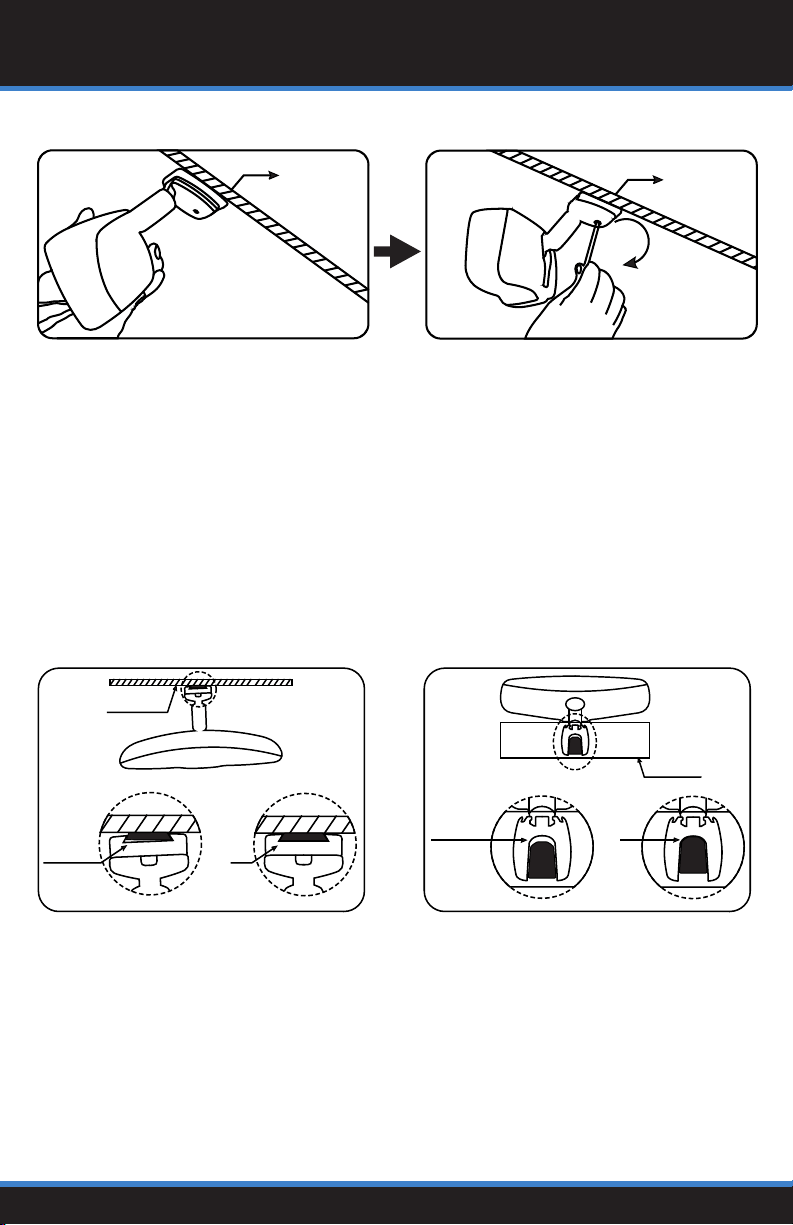

1. Make sure to install the mirror completely onto the universal
wedge mount.
2. Use the supplied Torx wrench to secure the mirror to the
universal wedge mount.
Note: Always use caution, DO NOT force the mount. VOXX will not
be responsible for broken windshields. If you are not sure how to
remove or re-install the mirror seek trained, qualified help.
CAUTION!
Dangerous Ok
Windshield
Windshield
DangerousOk

Page 6
Installation (CONT)
Wire Harness Installation
Video 1 (Front) Input
Video 4 (Rear) Input
Video 2 (Left) Input
Video 3 (Right) Input
Dash Control Switch
Video 4 (Rear) Trigger - Green
Video 2 (Left) Trigger - Pink
Video 3 (Right) Trigger - Purple
Acc. 12-Volt (+) Input - RED
Ground (-) Input - Black
Video Inputs:
Connect the camera video output to the corresponding camera video
input on the mirror wiring harness.
Dash Control Switch:
The dash control switch is used to change the camera view that is
displayed on the mirror. This can also be done using the “CH” touch button
on the mirror display.
Mount the dash control switch in a location that is easily accessible to the
driver. Be sure route this wire away form any moving parts suchs as the
steering wheel and the vehicle’s gear shifter.

Page 7
Note: This system has a built-in delay timer that can be set to prevent
the video input from flashing ON/OFF with the vehicle’s turn signal pulse.
This feature will ensure that the video input will remain on the screen
until the turn signal is deactivated. The default setting is ten (10) seconds.
Reference “Menu Settings on page 8 for more information.
Trigger Inputs:
• Pink - Video 2 (Left) Trigger Input: Connect this wire to the vehicle’s left
turn signal wire. This wire will test as a Positive (+) pulse while the left
turn signal is engaged.
• Purple - Video 3 (Right) Trigger Input: Connect this wire to the vehicle’s
right turn signal wire. This wire will test as a Positive (+) pulse while the
right turn signal is engaged.
• Green - Video 4 (Reverse) Trigger Input: Connect this wire to the
vehicle’s reverse signal wire. This wire will test Positive (+) while the
vehicle is in reverse gear.
System Layout
Power / Ground Inputs:
The Red and Black wires are the main power supply for the mirror system.
This system may operate using a maximum of two amps (2A) of current.
Be sure to connect this to a vehicle circuit that can handle the additional
power requirement.
Red - Accessory 12-Volt (+): Connect this the vehicle’s main accessory
circuit. This wire will test 12-Volt (+) when the key is in the accessory and
ignition positions.
Black - Ground: Connect this wire to the vehicle’s chassis ground. If
possible this wire should be connected to a factory grounding location. If
one is not available this wire should be attached to the vehicle’s chassis
using a screw to make a secure connection.

Page 8
Menu Settings

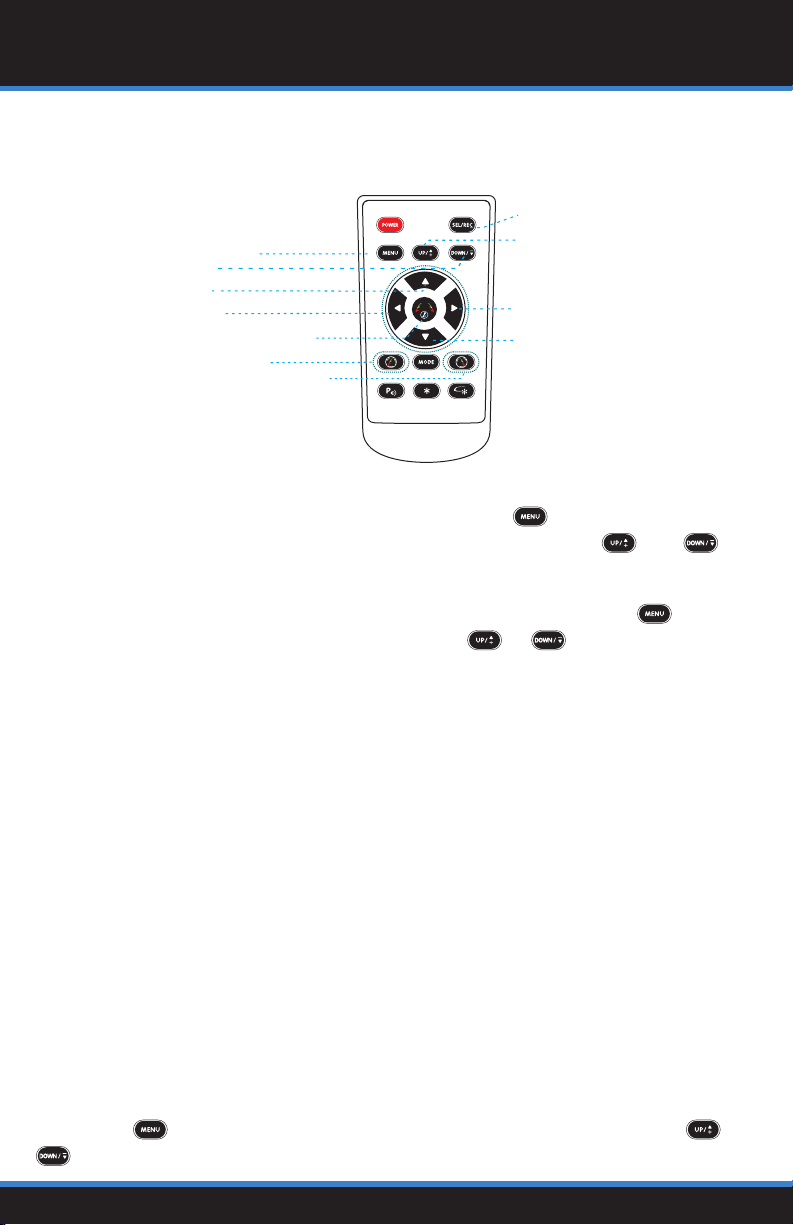

Remote Control
The settings menu can only be accessed by using the remote control as
described below.
Enter picture menu
Menu Down
Guide line up
Guide line left
Enter guide line adjustment
Guide line clockwise
Guide line counter clockwise
Menu Up
Guide line right
Guide line down
Display View Control
Menu Setting Operation
In the “full display screen” mode, short press the button to enter
the menu and advance through the available settings. The and
buttons are used to change the setting value.
Example: If the brightness setting must be adjusted, Press the button
until Brightness is displayed. Then Press the or buttons to set the
proper brightness level.
“Wire CTR Delay” Setting
This setting will control the functionality of the wired remote control.
• If “WIRE CTR DELAY” is set to “OFF”, the wired remote control will have
the same function as the “CH” button on the mirror control.
• If “WIRE CTR DELAY’’ is set to any other value (eg. 5, 10), The wired
dash control will cycle though the camera views and switch back to
full screen mode after the selected timer expiries.
Note: The timer begins after the last press of the wired remote control.
Video Delay Setting
This setting will control the delay timer of the input triggers. This feature
will ensure that the video input will remain on the screen until the turn
signal is deactivated. The default setting is ten (10) seconds.
To adjust the Video Delay Setting:
Press the button until Video Delay is displayed. Then Press the or
buttons to set the proper delay timer needed.

Page 9
About Parking Guide Lines
Generally, to help drivers estimate the distance from obstacles, there are
three lines for reference; red, yellow and green. These lines are displayed
on the monitor when reversing. The green line is 3m away from the back
of car and the yellow line is 2m. The distant red line is 1m away from the
backside of car while the closed red line is 0.4m. Both reference lines on
the left and right should leave 0.2m from the car.
3m
1m
2m
0.4m
3m
2m
1m
Parking Line Adjustment
MXT.71D
About Fixed Parking Guide Lines
Regular guide lines are fixed and cannot be moved, but the installation
sites of cameras and car sizes are different. The fixed guide line is not
accurate enough for drivers. The guide lines on this system can be
adjusted to fit the specific vehicle.
Fixed Guide Line Example

Page 10
UP Clockwise
Down
Right
left
Move the
guide line
Rotate the
guide line
Counter
clockwise
Press the button to choose the L or R
adjustable guideline.
Remote control
Using the remote control, the positions and angles of the guidelines can
be adjusted to suit each individual vehicle.
When in Reverse Gear:
• Press the button to enter “Parking line adjustment” mode. The
system is defaulted to adjust left guide line first. Press the button
again to switch to and adjust the right guide line.
• The , , , and buttons are used to adjust the corresponding
location of the parking lines.
• The and buttons are to adjust the angles of guide lines.
Note: Keep the remote control 0.5m-1.0m from rear view mirror when using
the remote to adjust the parking lines.
Parking Line Adjustment
Parking Line Adjustment

Page 11
Operation
1. Reverse Control: Shortcut key for reverse camera video.
2. Video Channel: Switch between available camera views.
3. Color Mode: Switch between preset picture modes.
4. Power: Switch Display screen on/of.
1
2
3
4
R
CH
Mirror Controls
Preferred Camera View
The Preferred Camera View can be used to quickly access the camera
view that is most helpful to the user (Example: Right/Rear View). If the
user powers off the mirror by pressing the power button (4), the mirror will
automatically display the preferred camera view when powered back ON.
To change the preferred camera view:
• Press the “CH” button on the mirror to cycle through the available
camera views.
• Stop when the preferred view is displayed.

Page 12

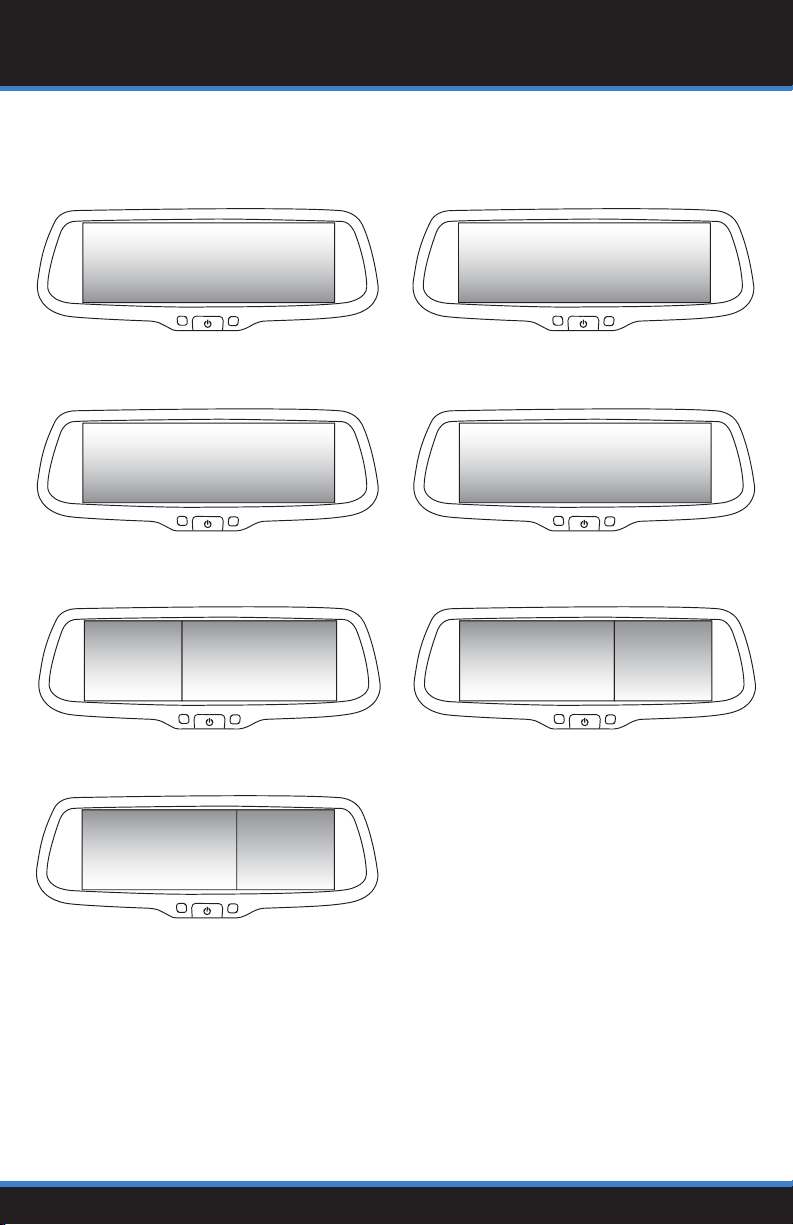

Automatic Display Control
This system is designed to automatically display that correct camera input
when it receives any one of three trigger inputs.
• Backup Camera: To display the backup camera engage the vehicle’s
reverse gear.
• Left or Right Blind Spot Viewing: To view the left or right blind spot
camera, engage the vehicle’s left or right turn signal.
• Front Camera Viewing: The front camera input is automatically
displayed for ten (10) seconds when the vehicle’s reverse gear is
disengaged.
Manual Display Control
This system can display each video input manually. This can be helpful to
monitor the vehicle’s blind spot when driving on the highway.
• Using Mirror Control: Press the “CH” button on the mirror to cycle
though the available camera views.
• Dash Control Switch: Press the dash control switch to cycle though
the available camera views.
• Front Camera activation: Press and hold the dash control switch
for three (3) seconds to activate the front camera Input. Pressing the
dash control switch one (1) time will exit the front camera view.
Operation

Page 13
VIDEO 1
VIDEO 2VIDEO 3
edom 4 OEDIVedom 1 OEDIV
edom 3 OEDIVedom 2 OEDIV
VIDEO 4
edom 3 OEDIV+4 OEDIVedom 4 OEDIV+2 OEDIV
VIDEO 4+VIDEO 1 mode
VIDEO 2VIDEO 4 3 OEDIV4 OEDIV
1 OEDIV4 OEDIV
Display Modes
Available Display modes:

Page 14
Notes

Page 15
Warranty
1 YEAR LIMITED WARRANTY
Applies to Audiovox Series Control Modules and Sensors
Voxx Electronics Corporation (the Company) warrants to the original retail pur-
chaser of this product that should this product or any part thereof, (other than
transmitters) under normal use and conditions, be proven defective in material or
workmanship within 12 months from the date of original purchase, such defect(s)
will be repaired or replaced with new or reconditioned product, (at the Company’s
option) without charge for parts or repair labor. A transmitter is warranted for 12
months from the date of original purchase.
To obtain repair or replacement within the terms of this Warranty, the product is to
be delivered with proof of warranty coverage (e.g. dated bill of sale), specification
of defect(s), transportation prepaid, to an approved warranty station. This Warran-
ty is not assignable or transferable.
This Warranty does not cover damage to the vehicle’s electrical system or costs
incurred for removal or re-installation of the product. This Warranty does not cover
batteries, broken LCD or OLED display screens, nor apply to any product or part
thereof which, in the opinion of the Company, has suffered or been damaged
through alteration, improper installation, mishandling, misuse, abuse, neglect,
accident, or by removal or defacement of the factory serial number/bar code
label(s).
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED
WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY,
SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY AC-
TION FOR BREACH OF ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED
WARRANTY OF MERCHANT- ABILITY MUST BE BROUGHT WITHIN A PERIOD OF
48 MONTHS FROM THE DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE
COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR
BREACH OF THIS OR ANY OTHER WARRANTY. No person or representative is au-
thorized to assume for the Company any liability other than expressed herein in
connection with the sale of this product.
The company does not warrant that this product cannot be compromised or
circumvented. THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRAN-
TY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO
EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY
PURCHASER FOR THE PRODUCT WITHOUT COST OF INSTALLATION.
Some states do not allow limitations on how long an implied warranty lasts or the
exclusion or limitation of incidental or consequential dam- age so the above limita-
tions or exclusions may not apply to you. This Warranty gives you specific legal
rights and you may also have other rights which vary from state to state.

© 2019 Voxx Electronics Corp., 2351 J. Lawson Blvd. Orlando, FL 23824
