Voyager WVRX2AP User manual

WVRX2AP
DIGITAL WIRELESS RECEIVER
USER MANUAL
Patent # US 9,054,743
Patent # CA 2,834,873

INSTALLATION
1. Mount the receiver using 4 screws or the Hook & Hook Velcro.Receiver can be
mounted to the rear of a Voyager monitor.

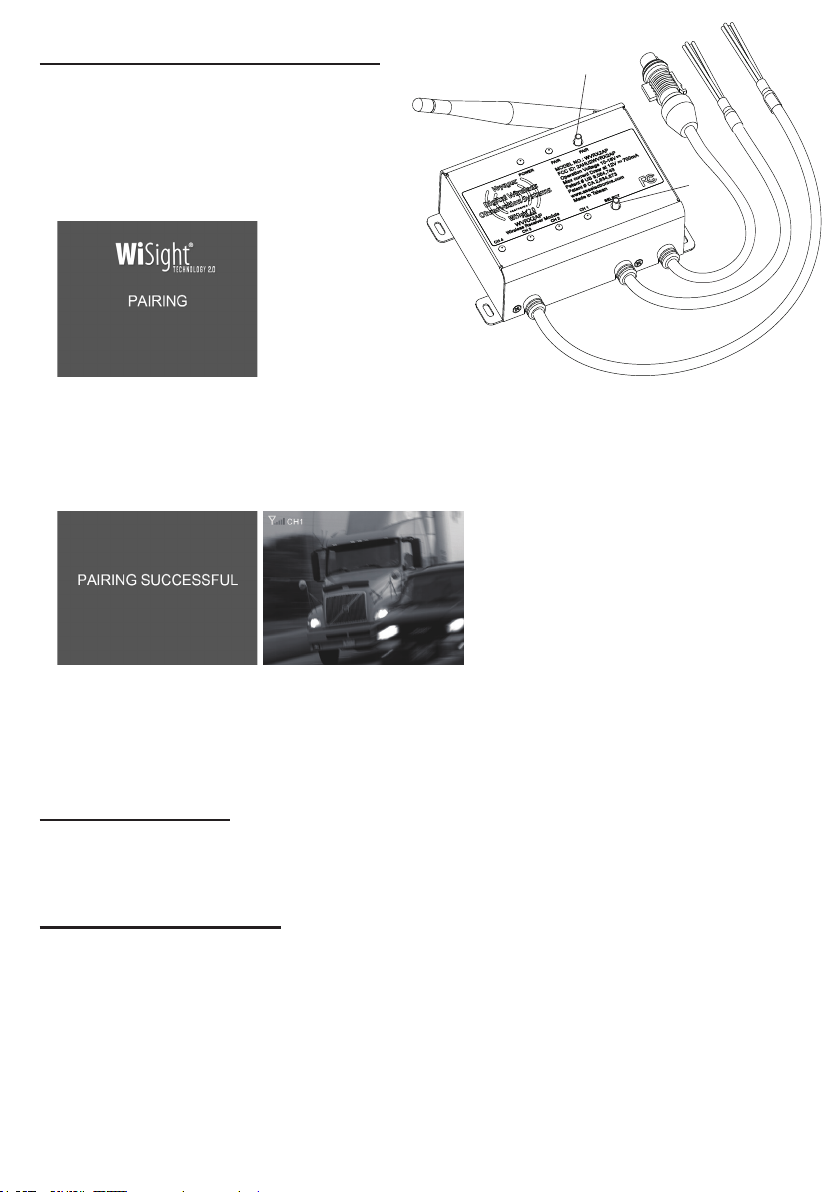

2. Connect the receiver to the monitor as shown in the gure below.
3. Apply power to the monitor & receiver and select the correct video input on the
monitor. "Press & Hold the Pairing Button" will be displayed.
4. Press the Pair Button on the receiver for 5 seconds and you should see "Pairing"
and then apply power to the WVTX2AP.
If successful you will see "PAIRING SUCCESSFUL" and then the camera image.
If you do not see the camera image, repeat above steps.
Note: This system doesn't support Mirror/Normal image switching.
The monitor or camera used will need to determine which view is needed for
the application.

CONTROLS AND OPERATION
1. PAIR Button
Press and hold pair button for 5
seconds on receiver module to activate
pairing process, The monitor screen
will display pairing count screen with
blinking status LED.
Make sure transmitter module is unpowered at rst. Within 50 seconds of activating
the pairing process on the receiver module, apply power to the transmitter module,
and upon successful pairing, the receiver module and monitor screen will display
“PAIRING SUCCESSFUL” message for 1~2 seconds with the status LED steady
ON and display Camera image.
2. Select Button
The receiver module support pairing with 4 di󰀨erent transmitter module
Press select button to switch the receiver module selection between
CH1>CH2>CH3>CH4
GPIO FUNCTION
The GPIO cables are general purpose input/output +12V signals than can transmit
signals wirelessly to/from the transmitter side.
WIRING DEFINATION
1. GPIO Cable
• Yellow – GPIO Input 1 • Purple – GPIO Input 2
• Gray – GPIO Output 1 • White – GPIO Output 2
2. Trigger Cable
• Blue – Trigger 1 Input • Brown – Trigger 2 Input
• Green – Trigger 3 Input • Orange – Trigger 4 Input
2
34
1
49

Packaging Contents
1. WVRXA2P
2. Screw M4x8 mm(Black) x4pcs
3. Velcro x4pcs
Specications
1. Power Input: +12V DC
2. Power Consumption: 700 mA (Typ.) @ 12VDC
3. Power and PAIR LED indicator
4. ASA CEC Connector
5. 3dBi Antenna
6. Wireless Operation Frequency: 2.4GHz
Reliability Requirements:
1. Operational temperature: -20*C to 65* C
2. Storage temperature: -30*C to 80*C
3. Operating voltage: 10 to 16VDC
Trouble Shooting
Monitor displays "'No Signal"
- Check 12VDC at WVTX2AP
- Check cable connections at monitor, transmitter & receiver
- Make sure antenna is tight & vertically aligned
- Try pairing the system again
Additional languages available at www.asaelectronics.com
600-21000014-011
FCC NOTES
IMPORTANT NOTE:
To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or
transmitter. No change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding
the RF exposure requirements and void user's authority to operate the device. Any changes or modications not expressly approved by the
grantee of this device could void the user's authority to operate the equipment.
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment o󰀨 and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit di󰀨erent from that to which the receiver is connected.
-Consult the dealer or an experienced radio/ TV technician for help.
NOTICE 1:
The changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
NOTICE 2:
Our WiSight 2.0 wireless technology operates at nearly the same performance level as a wired system. However, slight delays and signal
reductions are possible due to application or environmental factors.
It is recommended to maintain at least three feet in between any RF transmitting/receiving devices including the WiSight 2.0 components.This
can include, but not limited to, in-vehicle Wi-Fi systems,personal Wi-Fi hotspots, Bluetooth devices or additional wireless monitors & cameras.
If you have a Voyager WiSight 2.0 Digital Wireless Observation Systems along with any other device that transmits or receives and you are
experiencing di󰀩culty in operating the system, the device(s) may be too close to either the WiSight 2.0 Monitor or Camera.
Change the placement to at least three feet between devices and re-test for proper operation.
Features and specications subject to change without notice For further technical support call:
1-877-305-0445
