Voyager 1450g2DHR User manual

Note: Refer to your User’s Guide for information about cleaning your
device.
Getting Started
Turn off computer’s power before connecting the scanner, then
power up the computer once the scanner is fully connected.

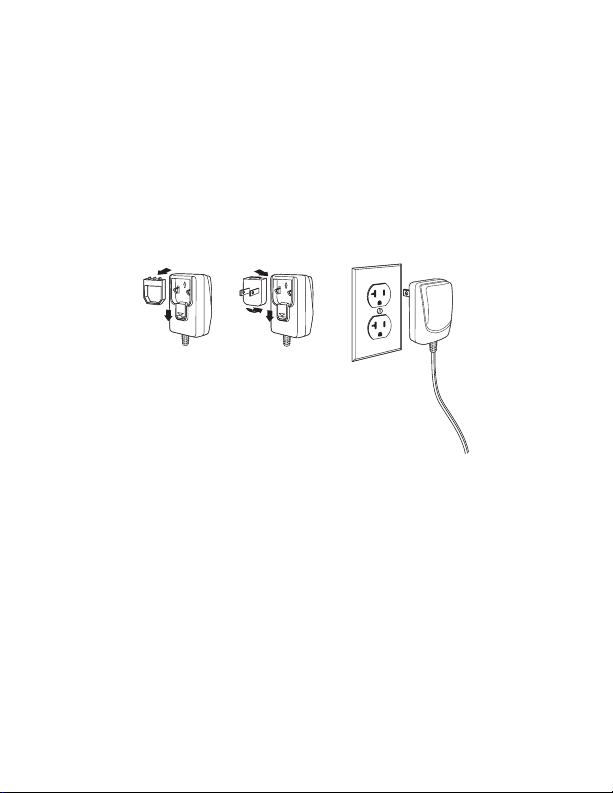

Power Supply Assembly (if included)

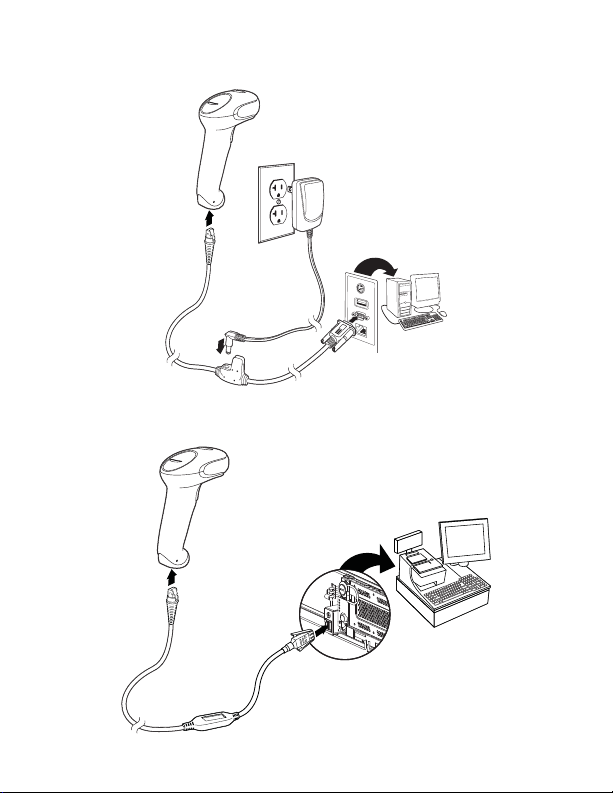

Connecting the Scanner
USB:
Keyboard Wedge:

RS232 Serial Port:
RS485:

Reading Techniques

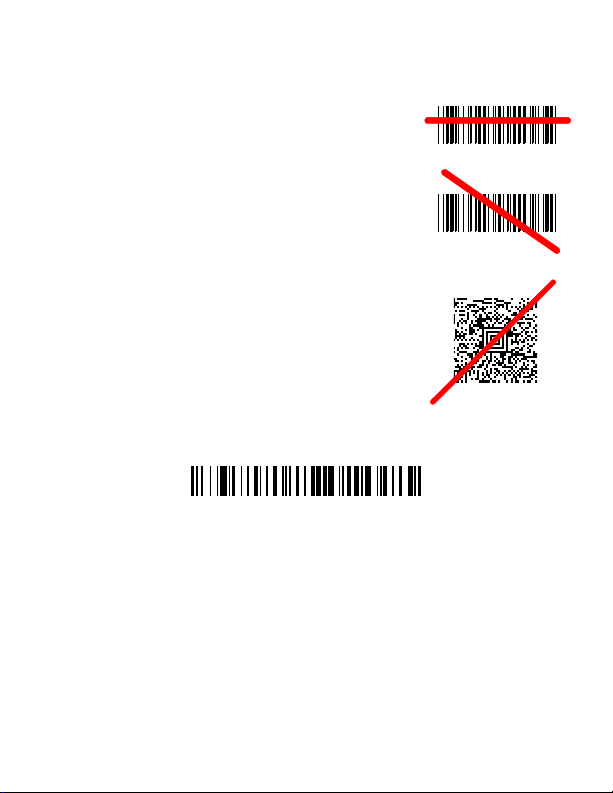

The view finder projects an aiming beam that
should be centered over the bar code, but it
can be positioned in any direction for a good
read.
Hold the scanner over the bar code, press the
button, and center the aiming beam on the bar
code.
The aiming beam is smaller when the scanner
is closer to the code and larger when it is far-
ther from the code. Hold the scanner close to
smaller bar codes, and farther away from large
bar codes to get a proper read.
If the bar code is highly reflective (e.g., lami-
nated), you may need to tilt the scanner at an
angle so the bar code can be scanned.
Standard Product Defaults
The following bar code resets all standard product default settings.
USB Serial
Scan the following code to program the scanner to emulate a regular
RS232-based COM Port. If you are using a Microsoft® Windows®
PC, you will need to download a driver from the Honeywell website
(www.honeywellaidc.com). The driver will use the next available
Standard Product Defaults

COM Port number. Apple® Macintosh computers recognize the
scanner as a USB CDC class device and automatically use a class
driver.
USB PC
Scan the following code to program the scanner for a USB PC Key-
board with an Enter suffix.
RS485 Interface
The RS485 interface defaults to port 5B. If you have an IBM POS
terminal using port 9B, scan the appropriate code below to program
the terminal, then power cycle the cash register.
Note: For additional RS485 interface selections, see the User’s
Guide for your product at our website,
www.honeywellaidc.com.
USB Serial
USB PC
IBM Port 9B HHBCR-1
Interface
IBM Port 9B HHBCR-2
Interface

Keyboard Country
If your interface is USB Keyboard or Keyboard Wedge, your key-
board layout default is a US keyboard. To change this layout, refer
to the chart below for your keyboard country. Scan the Program
Keyboard Country bar code below, then scan the numeric bar
code(s) for the appropriate Country Code from page 2, then scan
the Save bar code.
By default, national character replacements are used for the follow-
ing characters: #$@[\]^‘{|}~ Refer to the ISO 646 Character
Replacements chart in your User’s Guide to view the character
replacements for each country.
Note: For a complete list of country codes, see the User’s Guide for
your product at our website, www.honeywellaidc.com.
Country Code Scan Country Code Scan
Belgium 1 Italy 5
Finland 2 Norway 9
France 3 Spain 10
Germany/Austria 4 Switzerland 6
Great Britain 7 USA (Default) 0
Program Keyboard Country
Save

Turbo Mode
This selection is a keyboard modifier, so it may only be used when
your interface is USB Keyboard or Keyboard Wedge. The scanner
sends characters to a terminal faster using Turbo Mode. If the termi-
nal drops characters, do not use Turbo Mode.
Turbo Mode On
Turbo Mode Off
Trigger
The following bar codes will allow you to use the scanner in Manual
Trigger - Normal Mode (need to press the button to read) or Presen-
tation mode (the scanner is activated when it “sees” a bar code).
Manual Trigger - Normal
(Default)
Presentation Mode

Suffix
If you want a carriage return after the bar code, scan the Add CR
Suffix bar code. To add a tab after the bar code, scan the Add Tab
Suffix bar code. Otherwise, scan the Remove Suffix bar code to
remove the suffixes.
Add Code ID Prefix to all Symbologies
Scan the following bar code if you wish to add a Code ID prefix to all
symbologies at once.
Note: For a complete list of Code IDs, see the User’s Guide for your
product at our website, www.honeywellaidc.com.
Add CR Suffix
Remove Suffix
Add Tab Suffix
Add Code ID Prefix To All Symbologies
(Temporary)

Function Code Transmit
When this selection is enabled and function codes are contained
within the scanned data, the scanner transmits the function code to
the terminal. Charts of these function codes are provided in your
User’s Guide. When the scanner is in keyboard wedge mode, the
scan code is converted to a key code before it is transmitted.
Poor Quality PDF Codes
This setting improves the scanner’s ability to read damaged or badly
printed PDF codes by combining information from multiple images.
When Poor Quality PDF On is scanned, poor quality PDF code
reading is improved, but the scanner’s snappiness is decreased,
making it less aggressive when reading good quality bar codes.
This setting does not affect 1D bar code reading.
Enable
(Default)
Disable
Poor Quality PDF Reading On
Poor Quality PDF Reading Off

Data Format Editor Instructions
The following are abbreviated instructions for entering a data format.
For complete instructions refer to your User’s Guide, available at our
website, www.honeywellaidc.com.
1. Scan the Enter Data Format symbol.
2. Primary/Alternate Format: scan 0for Primary Format
3. Terminal Type: scan 099 for any terminal type
4. Code I.D.: scan 99 for any bar code type
5. Length: scan 9999 for any length bar code.
6. Editor commands: use the Programming Chart that follows.
7. Scan Save to save your entries.
Enter Data Format
Clear All Data Formats
Save

Programming Chart
0
2
1
4
3
5
6
7

A
B
C
D
E
F
9
8
Save

EZConfig-Scanning
To access additional features for the scanner use EZConfig-Scanning, an
online configuration software tool, available from our website at www.honey-
wellaidc.com.
Technical Assistance
Contact information for technical support, product service, and repair can be
found at www.honeywellaidc.com.
Limited Warranty
For warranty information, go to www.honeywellaidc.com and select
Resources > Warranty.
Patents
For patent information, refer to www.hsmpats.com.
User Documentation
For localized versions of this document, and to download the User’s Guide,
go to www.honeywellaidc.com.
