VSSL SX SYNC User manual

SXSYNC
SYNC
SET YOUR MUSIC FREE™

VSSL SX SYNC 1
TABLE OF CONTENTS
Product Overview
Getting Started
Watching TV
Playing Music
VSSL App
Device Status
Troubleshooting
Specifications
Warranty Information
Safety Information
2
3
3
3
3
4
5
6
7
7

2

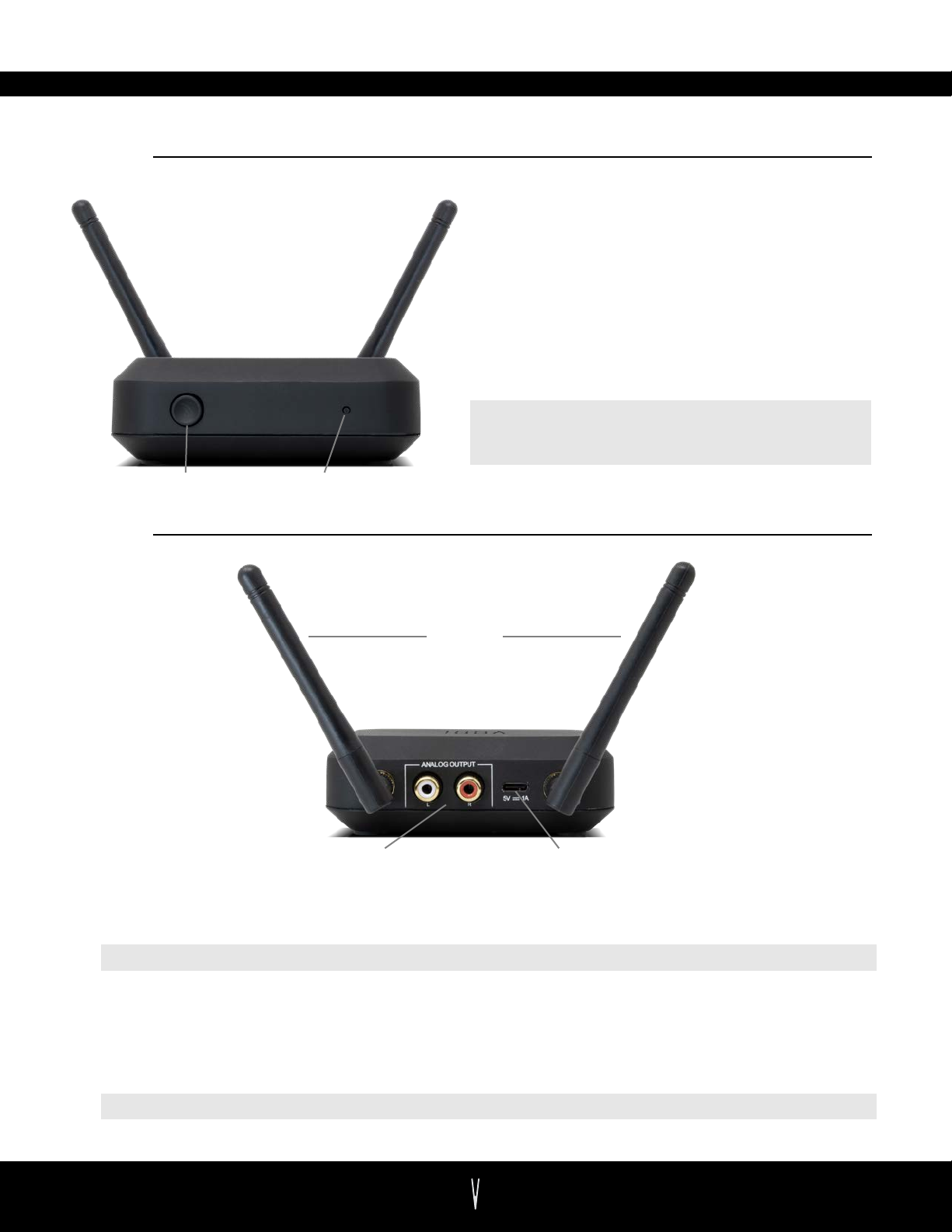

PRODUCT OVERVIEW
BACK
FRONT
Antennas
Analog RCA Output
Power Connection 5V / 1A USB Type-C power jack
Connect analog RCA cables to amplifier’s analog input connectors
Single band, omni-directional radio antennas (required in order to function)
Pair Button
Status Indicator Indicates the status of the Sync.
See the Device Status section for
more information.
When promted in the app, hold for
5-10 seconds until the status
indicator light flashes blue quickly.
Subwoofer Stand 5V / 1A USB Type-A to AC Power Adapter
Power Cord 5 ft. USB Type-A to USB Type-C
ACCESSORIES
VSSL SX SYNC
STATUS
INDICATOR
PAIR
BUTTON
POWER CONNECTION
ANTENNAS
ANALOG RCA
OUTPUT

3
GETTING STARTED
1. PLAN YOUR AUDIO SYSTEM
2. INSTALLATION REQUIREMENTS
3. DOWNLOAD THE VSSL APP
Once you’re ready to set up your SX product, download the app from the
app store on your mobile device. Open the app, press the “Add Product”
button, and we’ll guide you through pairing the SX Sync to your SX
Soundbar.
Your SX Sync acts as the source for rear surround speakers within an SX Dolby Digital surround
sound system. This product is specifically designed to connect ONLY to the SX Soundbar in cases
where in-ceiling speakers (connected to an amplifier with RCA input connections) are preferred
over SX Speakers to create a 5.1 surround sound experience.
The SX Sync will need to be close enough to the SX Soundbar in order to stay connected success-
fully via radio frequency technology. It is suggested that the SX Sync and SX Soundbar remain
within 100 feet of each other if the signal is needing to transmit through walls. That distance is
extended by 3x if the products are within line of sight.
If the connected amplifier cannot be within 100 feet of the soundbar, it is suggested to run RCA
cable from the amplifier to a location that is within 100 feet of the soundbar and has a power plug
for powering the SX Sync.
WATCHING TV
The VSSL SX Series allows you to listen to your TV’s audio AND your favorite streaming music within
a single, sleek design. The VSSL app will guide you on setting up your SX Sync and surround
speakers for TV and the Dolby Digital surround sound experience. When your SX Soundbar is
playing, so are the in-ceiling speakers connected to the SX Sync.
PLAYING MUSIC
Listening to music with VSSL is easy. Just play music in your favorite music streaming app, choose
your preferred streaming method, and select the SX Zone you want to play to. The surround
speakers connected to the SX Sync will then play whatever the rest of your paired SX products are
playing.
SETUP IN THE VSSL APP
With your SX Sync plugged into power, you will need to indicate in the VSSL app that you are ready
to pair. Simply press the “Add Product” button on the Settings Homepage, follow the instructions for
holding the pair button, then choose which SX Soundbar you’d like to pair it to.
The SX Sync requires an SX Soundbar in order to participate in streaming audio and playing Dolby
Digital surround content. You can find all configuration settings for the SX Sync and connected
speakers within the settings of its paired group.
VSSL SX SYNC

4
Slow Blinking Blue
Fast Blinking Blue
The device is powered on.
The device is in Pairing Mode.
Solid Blue The device has successfully paired.
Light O The device is not powered on.
DEVICE STATUS
DEVICE STATUS INDICATOR
STATUS INDICATOR
VSSL SX SYNC

AUDIO INTERMITTENTLY STOPS AND RESTARTS
Ensure that the RCA cable is fully connected at the SX Sync’s analog output connectors and
the amplifier’s analog input connectors.
Try reducing the possibility of wireless interference by moving other IoT devices away from
both the SX Sync and SX Soundbar.
Move the SX Sync and SX Soundbar closer to each other. A longer RCA cable might be
necessary. Temporarily relocate the SX Sync to a power outlet near the SX Soundbar to prove
the LED light remains blue.
If using a VSSL amplifier, ensure that Source Priority is set to Local First and that Analog
Input Sensitivity has been enabled.
The SX Sync LED switches between solid blue and slow blinking, and audio is spotty.
1.
2.
3.
4.
BLUE LIGHT IS DEAD
Ensure the power cord is fully inserted into the back of the SX Sync.
Only use the power adapter and USB cable provided in the packaging.
Perform a factory reset by holding in the reset button for at least 10 seconds.
Even after plugging into power, the blue LED light will not turn on.
1.
2.
3.
5
TROUBLESHOOTING
SX SYNC WILL NOT PAIR SUCCESSFULLY
Move the SX Sync and SX Soundbar closer to each other. A longer RCA cable might be
necessary to run back to the amplifier. Temporarily relocate the SX Sync to a power outlet near
the SX Soundbar to prove the products will pair.
In the VSSL app, enter the pairing instructions again and follow instructions. Ensure that the SX
Soundbar light bar blinks green during the pairing process.
Hard close the VSSL app on your mobile device and attempt the pairing process once again.
Hold the pair button for 5-10 seconds until the blue LED begins to flash quickly and finish the
pair process within the app.
1.
2.
3.
SX Sync won’t stop blinking (slowly nor quickly) even though I’ve followed the app steps.
Ensure the LED on the front of the device is solid blue and not slowly blinking.
Open the VSSL app to make sure the zone you're playing to is not muted and the volume is
turned up high enough to hear.
Within the SX group’s surround settings, ensure that the TV Level and Music Level settings
are set high enough to hear.
Ensure that the RCA cable at the SX Sync’s analog outputs and the amplifier’s analog inputs
are fully connected.
1.
2.
3.
4.
NO MUSIC OUTPUT TO SPEAKERS
The SX Sync LED is solid blue, but no music can be heard from the speakers.
VSSL SX SYNC

6
SPECIFICATIONS
Required Product
Equalization
Analog Inputs
Antennas
Power Supply
Content
Wireless Connectivity
Dimensions
Weight
Operating Temperature
Package Contents
SX Soundbar, Amplifier, In-Ceiling Speakers, VSSL Mobile App
Basic EQ Settings
Dual RCA cable connects to SX Sync line-level Output
Single band, omni-directional radio antennas
(required in order to function)
5v / 1A USB Type-C power jack
Plays left and right rear Dolby Digital surround 5.1 and
2.0 PCM audio content
Connects to SX soundbar via RF
L: 3.75” (95.25mm) x W: 3.875” (98.43mm) x D: 3.75” (95.25mm)
0.35 lbs
32° to 104° F (0-40° C)
SX Sync, Power Adapter, Power Cord, Antennas
VSSL SX SYNC

WARNING
IMPORTANT SAFETY INFORMATION
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
Do not bypass the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury
from tip-over.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as; power-supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as
vases, shall be placed on the apparatus.
An appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
Please always keep at least 20cm away from this device.
•
•
•
•
7
WARRANTY INFORMATION
All VSSL branded products have a limited one (1) year warranty. The VSSL Product Warranty covers defects
in materials and workmanship in every VSSL product for one (1) year from the date of shipment from VSSL
or the date of the original retail purchase from an authorized VSSL Dealer. The VSSL Product Warranty will
cover the cost of parts and repair labor on all products deemed to be defective by Soundvision
Technologies. The VSSL Product Warranty does not guarantee that VSSL products will at all times operate
without interruption or will be error-free, or that all errors may be corrected. The warranty extends only to
the original purchaser of the product and not to any subsequent owner.
Soundvision Technologies’ obligation under this warranty is limited to repairing or replacing any component
found defective in material or workmanship under normal conditions of use with an equal and/or current
product. Products to be repaired or returned under this warranty must be returned to VSSL through an
authorized VSSL dealer with all transportation and insurance charges prepaid. The warranty period is not
extended if we repair or replace your product.
There are some exclusions to the VSSL Product Warranty, including but not limited to:
• Products which have been abused, modified, or disassembled;
• Problems that result from external causes such as accident, abuse or misuse;
• Use that is not in accordance with VSSL product instructions;
• Products with missing or altered serial numbers;
• Products which have had their housings opened or are otherwise tampered with; or
• Problems caused by using third party accessories, parts, or components.
VSSL SX SYNC

8
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Cet appareil est conforme à la section 15 des réglementations de la FCC. Le fonctionnement de
l’appareil est sujetaux deux conditions suivantes :
(1) cet appareil ne doit pas provoquer d’interférences néfastes, et
(2) cet appareil doit tolérer les interférences reçues, y compris celles qui risquent de provoquer un
fonctionnement indésirable.
Note: This product has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This product generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this product does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Please take attention that changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to
the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radioexempts
de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
BE BG CZ DK DE
EE IE EL ES FR
IT CY LV LU HU
MT NL AT PL PT
RO SI SK FI SE
UK
LI
TR NO CH IS
EU REGLATORY CONFORMANCE
According to Article 10 (10) of Directive 2014/53/EU, the packaging
shows that this radio equipment will be subject to some restrictions
when placed on the market in Belgium (BE), Bulgaria (BG), the
Czech Republic (CZ), Denmark (DK), Germany (DE), Estonia (EE),
Ireland (IE), Greece (EL), Spain (ES), France (FR), Italy (IT), Cyprus
(CY), Latvia (LV), Luxembourg (LU), Hungary (HU), Malta (MT),
Netherlands (NL), Austria (AT), Poland (PL), Portugal (PT), Romania
(RO), Slovenia (SI), Slovakia (SK), Finland (FI), Sweden (SE), the
United Kingdom (UK), Turkey(TR), Norway (NO), Switzerland (CH),
Iceland (IS), and Liechtenstein (LI). The WLAN function for this
device is restricted to indoor use only when operating in the 5150 to
5350 MHz frequency range.
VSSL SX SYNC
