Vuescape 61000115 Operation manual

9 Digital Photo Frame
Item Number: 61000115
Installation & User’s Guide
All brand names and trademarks are the property of their respective owners

2
FCC Norm
FCC
This equipment has been tested and complies with limits for Class B digital devices pursuant to Part 15 of
Federal Communications Commission (FCC) rules.
FCC Compliance Statement
These limits are designed to provide reasonable protection against frequency interference in residential
installations. This equipment generates, and radiates radio frequency energy, and if not installed properly or
used in accordance with the instructions, may cause harmful interference to radio communication. However,
there is no guarantee that interference will not occur in television reception, which can be determined by
turning the equipment on and off. Interference may be corrected by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and the receiver
Plug the equipment into an outlet on a circuit different from that to which the receiver is
connected.
CAUTION!
The Federal Communications Commission warns the user that changes or modifications to the unit not
expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.

3
Contents
Precautions...................................................................................................................................... 4
Overview .......................................................................................................................................... 5
Quick Start Guide ............................................................................................................................ 5
Easel Stand to the Digital Photo Frame……………………..…………………………………………..6
Package Contents ........................................................................................................................... 7
9” Digital Photo Frame.................................................................................................................... 7
Installation and Setup of Accessories........................................................................................... 8
Menu Control Buttons..................................................................................................................... 9
Remote Control Operation ........................................................................................................... 10
Changing the Battery in the Remote Control…………………………………………………………10
On Screen Display (OSD) Main Menu………………………………………………………………11-12
Specifications................................................................................................................................ 13
Troubleshooting ............................................................................................................................ 14
Maintenance .................................................................................................................................. 15
Service Procedure......................................................................................................................... 16
Warranty......................................................................................................................................... 17

4
Precautions
1. Read all of these instructions and save this manual for later use.
2. Follow all warnings and instructions on the product.
3. Do not insert sharp objects or spill liquid into the digital photo frame through the cabinet slots; this
may cause accidental fire, electric shock or failure.
4. Unplug the unit when not in use for an extended period of time.
5. Unplug the unit from power outlet before cleaning.
6. Do not attempt to service this product yourself, as opening or removing the cover may expose
you to potential electric shock. Only a qualified technician should service this product.
7. Do not apply pressure to the screen, the LCD screen is very delicate.
8. Keep the digital photo frame away from extreme heat, cold or humid places.
9. Do not place directly under sunlight, dusty surroundings or near equipment which may
generate strong magnetic fields.
10.Do not place any object on the power cord.

5
Overview
•The 9” Digital Photo Frame enables you to view digital photos, videos and play music files from
different types of memory cards simply and quickly. There’s no need to use a computer. You can
enjoy your photos anytime and anywhere. It’s very convenient and quick.
•The Digital Photo Frame does not require a direct connection to a computer. The built-in card reader
can read a wide assortment of the most popular memory cards.
•The Digital Photo frame supports CF, SD, MMC, MS and MS Pro memory cards via the built-in card
reader, and camera via the USB port. (NOTE: Not all digital cameras will support the USB input
function, please refer to the owners manual of your digital camera)
•Automatic slideshow with multiple transition effects and adjustable display time
•Plays slideshow.
•Plays MP3 music.
•Plays MPEG1, MPEG2 and MPEG4 files stored on supported memory cards or external USB
devices.
Quick Start Guide
1. Insert your CF, SD, MMC, MS and MS Pro memory card found in your digital camera into the card
slot on the side of the Digital Photo Frame. The Digital Photo Frame will initialize and display your
media in a slide show format.
2. Plug the DC power adapter cable into the DC + 12V input and plug the AC end of the adapter into a
normal AC outlet.

6
Easel Stand to the Digital Photo Frame
1. Clear a flat clean area to set your photo frame down upon in order to attach the easel stand to the back
of the frame. Make sure there are no sharp objects in the area that can make contact with the LCD
screen of the photo frame that may cause damage to the screen.
Stand is attached at the back of the unit. Simply pull the stand up to desired angle.
2. The length can be adjusted by pushing the lock and then pull the stand.

7
3. You may set the Digital Photo Frame in a vertical or horizontal position as shown below.
Horizontal Position Vertical Position

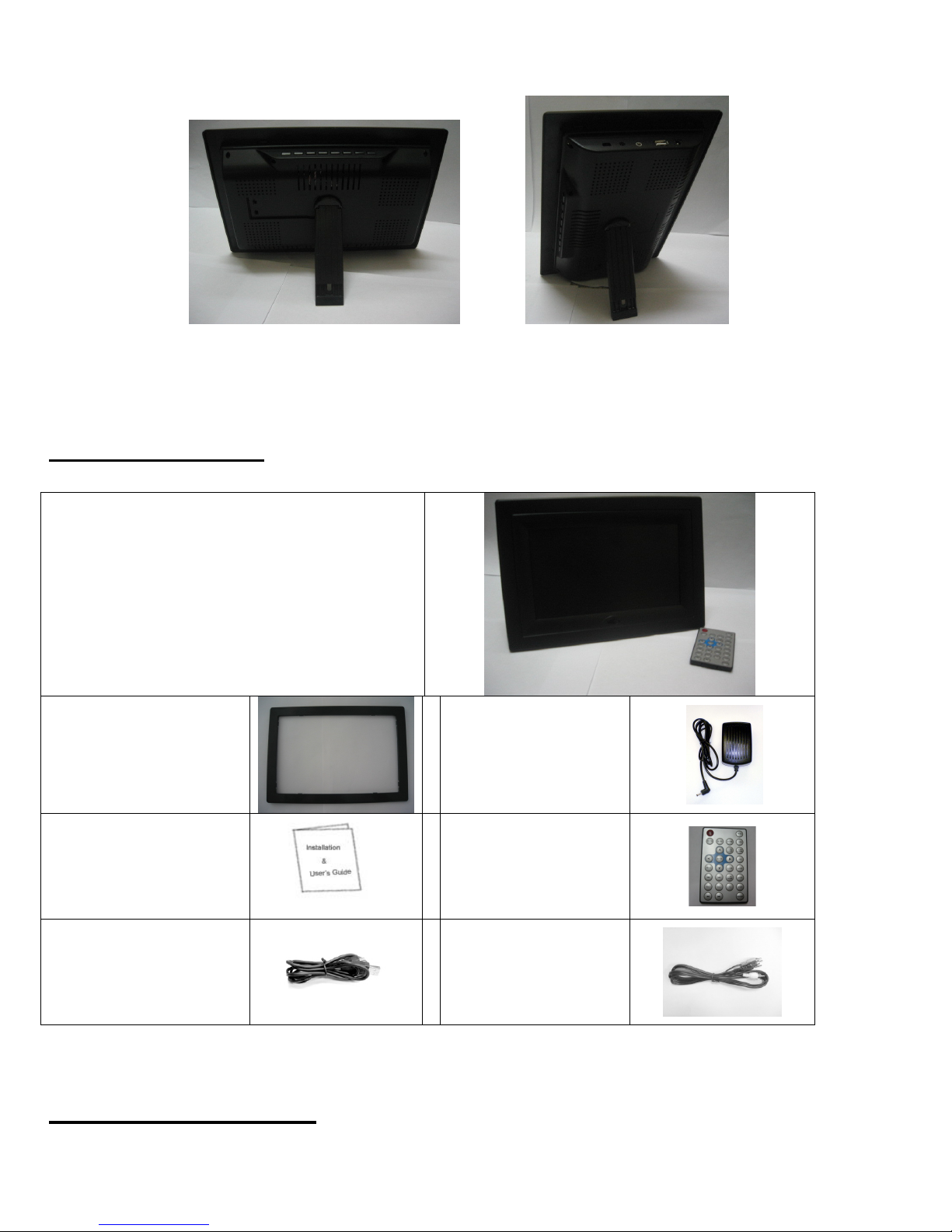

Package Contents
9” Digital Photo Frame
Plastic Frame (1 black
and 1 wood tone
frame)
Power Adapter
User’s Manual Remote
USB Cable AV Cable
9” Digital Photo Frame

8

LCD Screen
Remote Control Receiver
Plastic Frame

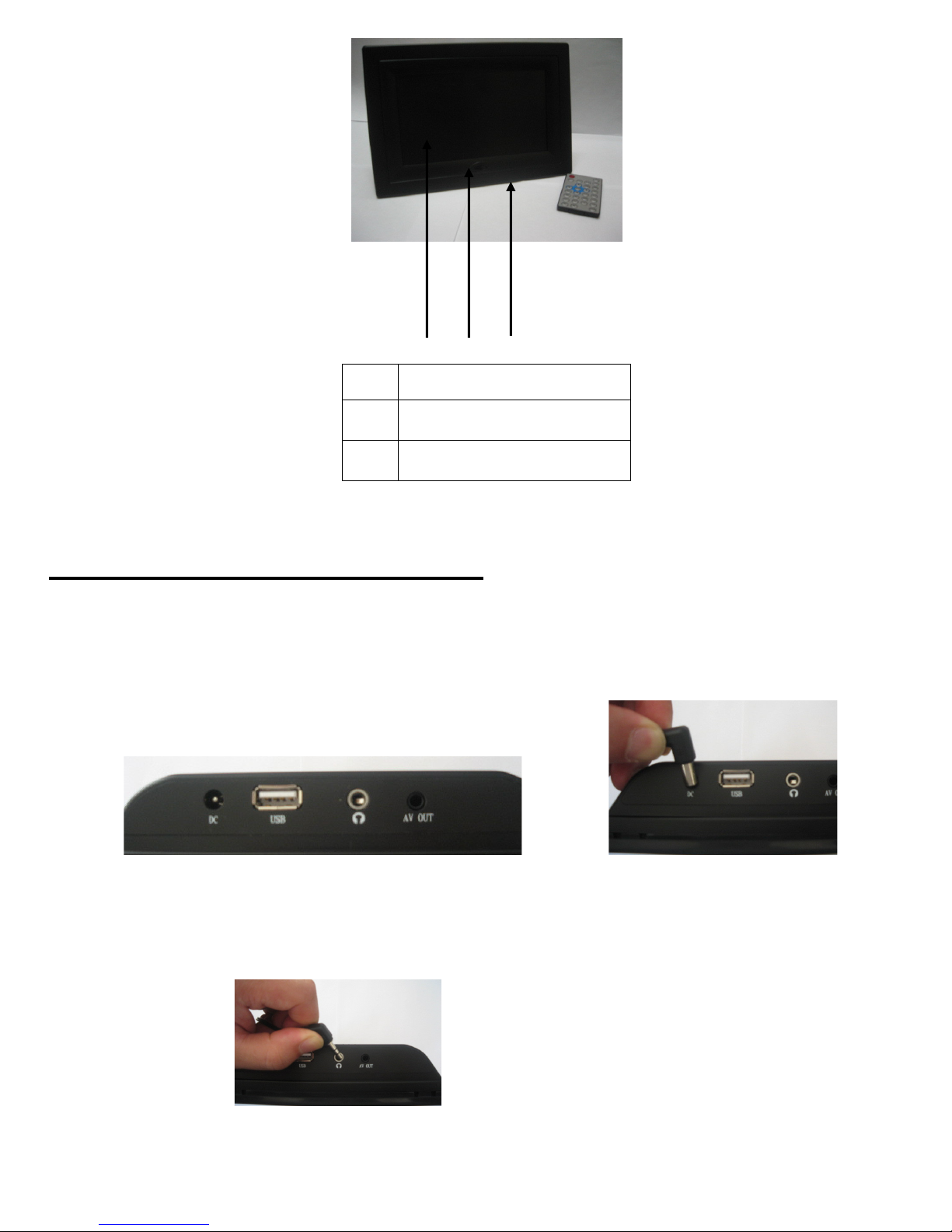

Instillation and Setup of Accessories
1. Carefully position your Digital Photo Frame so that you can see all of the connection ports on the side of the frame.
2. Plug the DC Power Adapter Cable into the DC +12V input, and plug the AC end of the adapter into a normal AC outlet.
3. The photo frame has built-in speakers but you may listen to the audio program by plugging in the Earphone Cable to
the Earphone outlet.

9
4. To view your pictures on TV you can plug the AV Cable into the AV port and connect to the proper input on your TV or
DVD player.
5. In order to view pictures, video and listen to music: insert the CF, SD, MMC, MS and MS Pro Memory Cards into the
correct slot on the side panel of the photo frame. You may also connect a camera directly through a USB cable.
(NOTE:

all digital cameras will support the USB input function, please refer to the owners manual of your digital camera)
Menu Control Buttons
 
No.
Symbol Function
MENU
Goes to the main OSD Menu
Pause and play the media

10
SETUP
Goes to settings mode


Moves the cursor Left


Moves the cursor Right
Moves the cursor Down
Moves the cursor Up
 Turn the unit on or off
Remote Control Operation

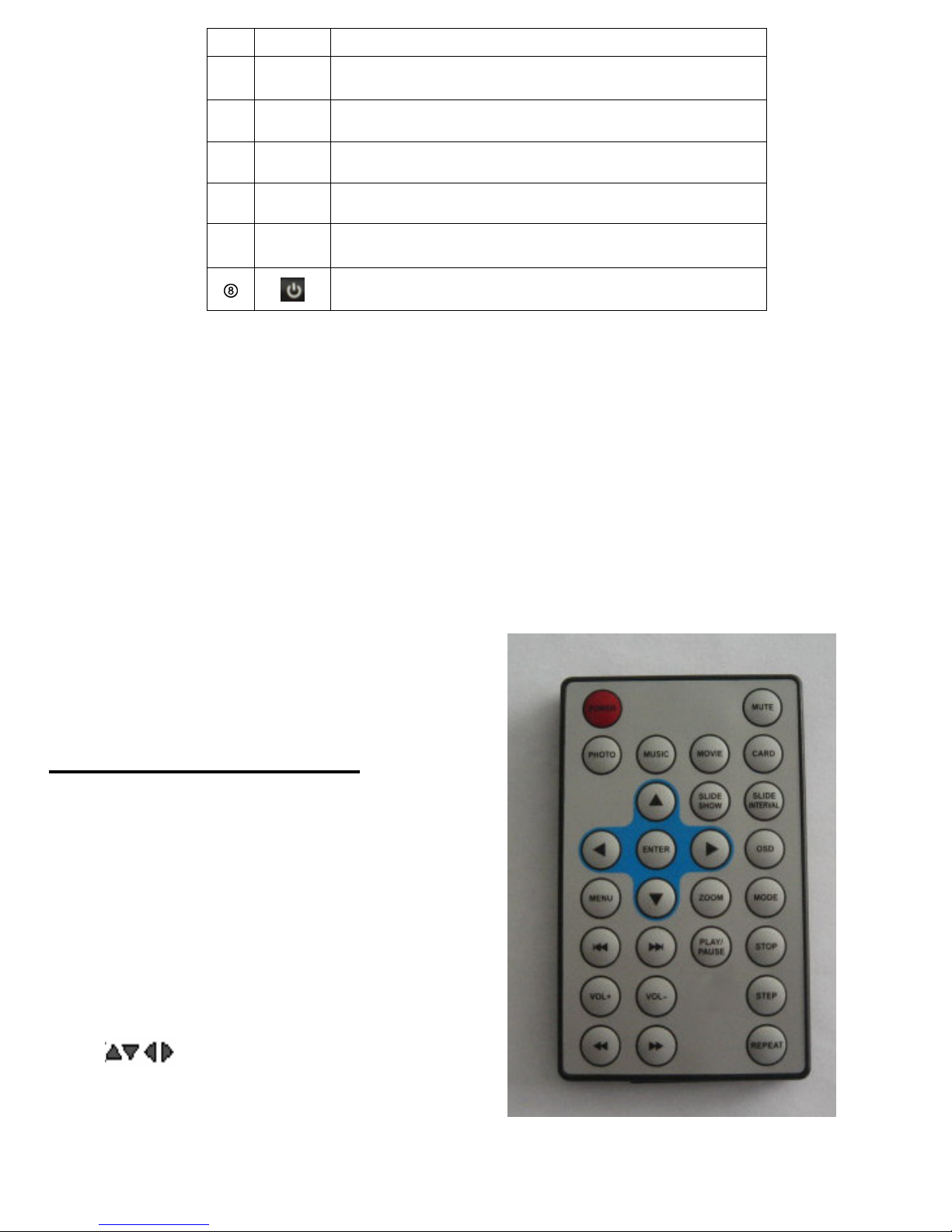

1. POWER: Turn the unit on or off
2. MUTE: Mutes the volume
3. PHOTO: Goes to the Photo Setup and
displays the photo files
4. MUSIC: Goes to the Music Setup and
displays the music files
5. MOVIE: Goes to the MOVIE Setup and
displays the video files
6. Card: Memory Card selection
7. :Move the cursor up/down/left/right
when making a selection and rotate
the picture.
8. SLIDESHOW: Activate the slide show
