2GR45AF KLEENSCREEN
FRYER BATTERY
SERVICE MANUAL
GRA SERIES GAS FRYERS WITH
KLEENSCREEN PLUS®
FILTRATION SYSTEMS
MODEL ML MODEL ML
1GR45A 136647 3GR85AF 136655
1GR65A 136648 4GR45AF 136656
1GR85A 136649 4GR65AF 136657
2GR45AF 136650 4GR85AF 136681
2GR65AF 136651 2XGR45AF 136658
2GR85AF 136652 2XGR65AF 136659
3GR45AF 136653 2XGR85AF 136660
3GR65AF 136654
For additional information on Vulcan-Hart Company or to locate an authorized parts
and service provider in your area, visit our website at www.vulcanhart.com.
A product of VULCAN-HART LOUISVILLE, KY 40201-0696
F25377 (March 2010)

GRA SERIES GAS FRYERS
TABLE OF CONTENTS
GENERAL ................................................................................ 3
Introduction ............................................................................ 3
Single Floor Model Fryers ................................................................ 3
Kleenscreen Filtration System ............................................................. 4
Specifications .......................................................................... 4
Electrical .......................................................................... 4
GasPressures ..................................................................... 4
Tools................................................................................. 4
REMOVALANDREPLACEMENTOFPARTS .................................................... 5
Splash Guard (Kleenscreen Fryers Only) ..................................................... 5
CookingControls ....................................................................... 5
Discard Valve Switch (Kleenscreen Fryers Only) ............................................... 5
GasBurners ........................................................................... 6
GasOrifice ............................................................................ 7
GasCombinationValve .................................................................. 7
GasPilot .............................................................................. 8
TemperatureProbe ..................................................................... 9
HighLimitThermostat ................................................................... 9
Power Supply Box Components ........................................................... 10
Fill Solenoid Valve (Kleenscreen Fryers Only) ................................................ 11
Pump and Motor (Kleenscreen Fryers Only) ................................................. 11
FryTankAssembly..................................................................... 12
SERVICEPROCEDURESANDADJUSTMENTS................................................. 14
Temperature Probe Test ................................................................ 14
CookingControlCalibration .............................................................. 15
ElectronicIgnitionSystem ............................................................... 15
FlameSenseCurrentCheck ............................................................. 16
ElectronicIgnitionControlTest............................................................ 16
GasManifoldPressureAdjustment ........................................................ 18
ELECTRICALOPERATION .................................................................. 19
Component Function ................................................................... 19
Power Supply Box Components ........................................................... 21
Sequence of Operation ................................................................. 22
Kleenscreen Filtering System ......................................................... 23
SchematicDiagrams ................................................................... 24
Fryers Without Kleenscreen Filtration System ............................................ 24
Fryers with Kleenscreen Filtration System ............................................... 25
WiringDiagrams ....................................................................... 26
Frymate(DumpStation) ............................................................. 30
TROUBLESHOOTING ...................................................................... 31
All Models ............................................................................ 31
Ignition Module ........................................................................ 32
Frymate (Dump Station) with Optional Heater ................................................ 35
Kleenscreen Filtering System ............................................................. 36
© VULCAN 2010
F25377 (March 2010) Page 2 of 36

GRA SERIES GAS FRYERS - GENERAL
GENERAL
INTRODUCTION
This Service Manual covers specific service
information related to the models listed on the front
cover. GRA series gas fryers come equipped with
behind-the-door solid state controls. The features
and operation of the cooking controls are the same
for both single floor model fryers and kleenscreen
battery fryers.
SINGLE FLOOR MODEL FRYERS
Fryers with the Filter-Ready option installed, use the
Mobile Filter. For service information related to the
Mobile filter refer to F24599 MOBILE FILTERS.
A GRO Frymate (dump station) can be configured in
a battery with fryers 15 1/2 inches or 21 inches in
width.
Model NO. OF HEAT TUBES
EACH FRY TANK
BTU/HOUR
EACH FRY TANK
FRYER WIDTH
(INCHES)
SHORTENING
CAPACITY (LBS)
EACH FRY TANK
1GR45A 4 120,000 15.5 45-50
1GR65A 5 150,000 21.0 65-70
1GR85A 5 150,000 21.0 85-90
2GR45AF 4 120,000 31.0 45-50
3GR45AF 4 120,000 46.5 45-50
4GR45AF 4 120,000 62.0 45-50
2GR65AF 5 150,000 42.0 65-70
3GR65AF 5 150,000 63.0 65-70
4GR65AF 5 150,000 84.0 65-70
2GR85AF 5 150,000 42.0 85-90
3GR85AF 5 150,000 63.0 85-90
4GR85AF 5 150,000 84.0 85-90
2XGR45AF 4 120,000 31.0 45-50
2XGR65AF 5 150,000 42.0 65-70
2XGR85AF 5 150,000 42.0 85-90
F25377 (March 2010)
Page 3 of 36

GRA SERIES GAS FRYERS - GENERAL
KLEENSCREEN FILTRATION
SYSTEM
The Kleenscreen filtration system is integrated into
the GRA Series fryer battery. The filter is housed in a
pull-out drawer assembly at the base of the fryer.
The filtering components in the drawer include a
stainless steel filter tank, crumb-catch basket and a
dual element mesh filter screen. With the filter
drawer closed, a self-seating oil return line provides
the path to return the filtered shortening to the fry
tank.
This system is designed to provide a thorough and
easy method to filter the shortening.
Some of the benefits include:
• Self-contained system eliminating the use of
external filter equipment.
• Paperless filtering system.
• Easy to clean and low maintenance.
Kleenscreen fryer batteries are available in a
minimum of two and a maximum of four fryer
sections. The fryer size of each section is identical.
A GRO Frymate (dump station) can also be included
as one or more of the sections.
SPECIFICATIONS
Electrical
• 120VAC supply. A 24VAC transformer provides
power for the fryer controls and the filtering
controls on Kleenscreen battery fryers.
Gas Pressures
Manifold (per fryer section):
• Natural - 4" W.C.
• Propane - 10" W.C.
Building supply pressure (Min):
• Natural - 5" W.C. (7" W.C. battery units)
• Propane - 11" W.C. (12" W.C. battery units)
NOTE: Propane or Natural gases -14" W.C. (Max)
TOOLS
Standard
• Standard set of hand tools.
• VOM with A/C current tester (any quality VOM
with a sensitivity of at least 20,000 ohms per
volt can be used).
• Temperature tester (thermocouple type).
• U-Tube Manometer.
Special
• Field service grounding kit (available locally)

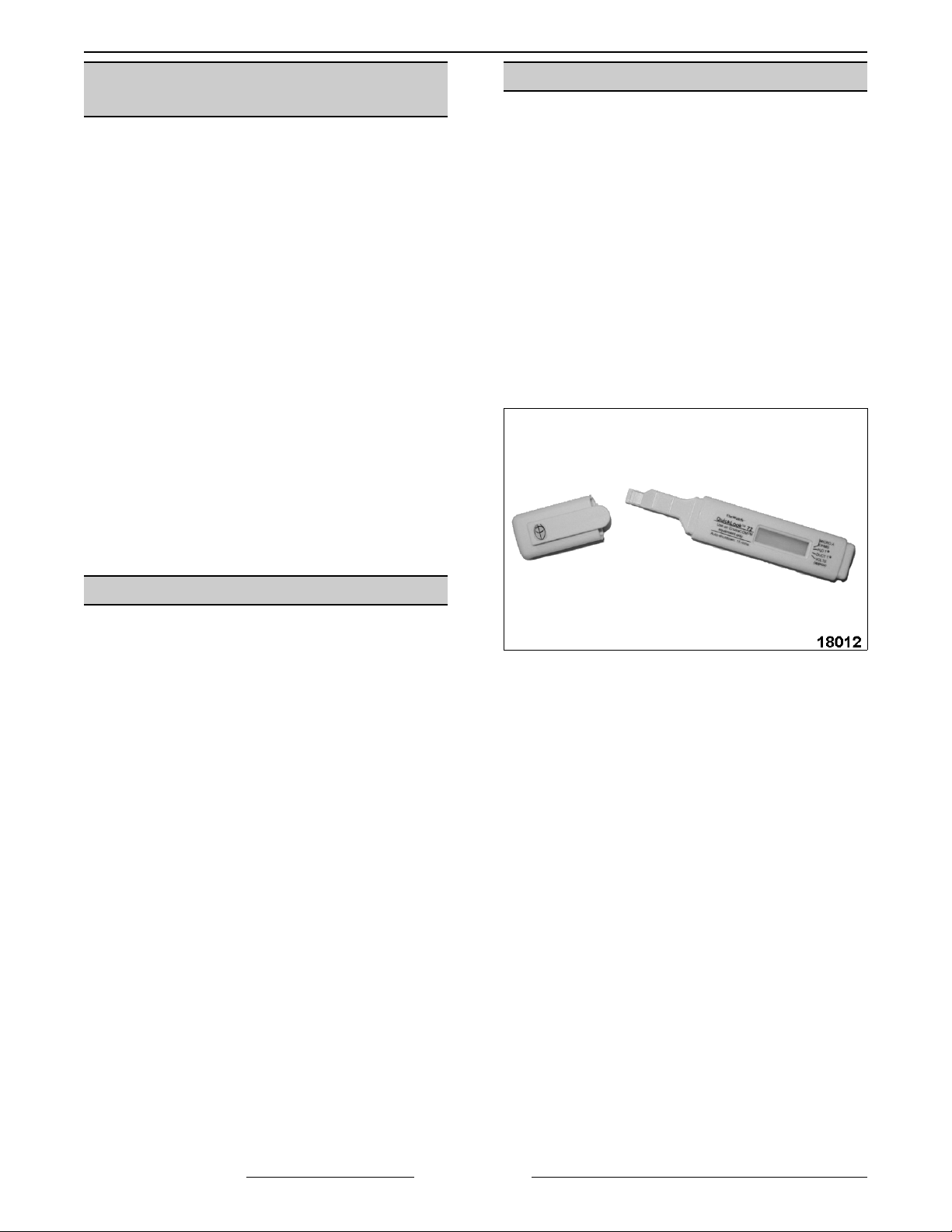

• OnWatch QuickLook™ 72, checks flame sense
and input voltage to the Honeywell S8600
series ignition control module with an
EnviraCOM™ port.
You can order the QuickLook™ 72 on line at
www.onwatchinc.com. The OnWatch Combo
Item #721014 includes both the QuickLook™ 72
and a 3 ft. data port extension cable.
• Burndy pin extraction tool RX2025 GE1;
Newark Electronics Catalog Number 16F6666.
Used for removing pin terminals on Burndy
connectors.
F25377 (March 2010) Page 4 of 36

GRA SERIES GAS FRYERS - REMOVAL AND REPLACEMENT OF PARTS
REMOVAL AND REPLACEMENT OF PARTS
SPLASH GUARD
(KLEENSCREEN FRYERS ONLY)

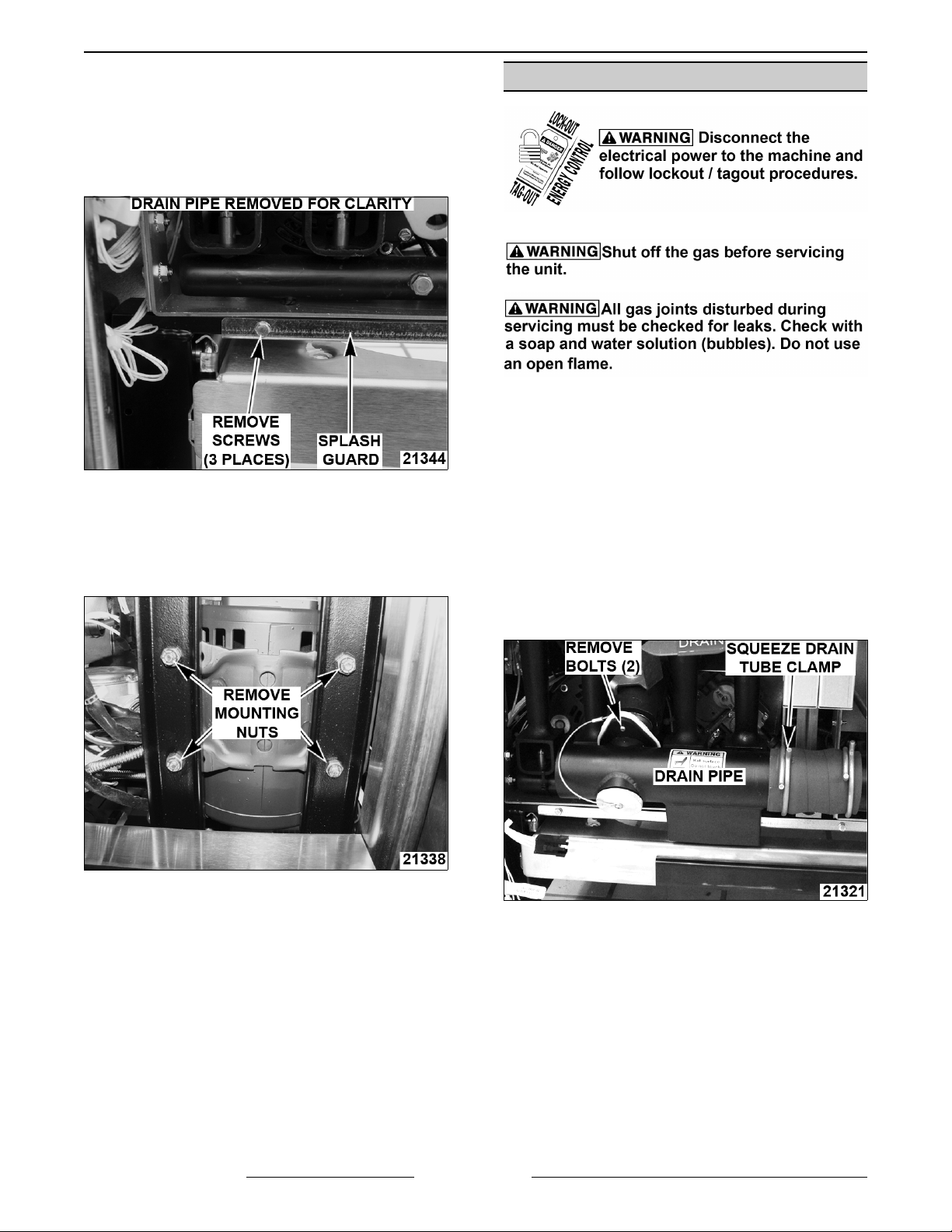

1. Open fryer section doors.
2. Remove screws securing splash guard.
3. Remove splash guard.
4. Reverse procedure to install.
COOKING CONTROLS
1. Open fryer section door(s).
2. Remove connections to cooking controls.
3. Remove screws securing controls.
4. Remove cooking controls.
5. Disconnect lead wires from the component
being replaced then remove from control box.
6. Reverse procedure to install and check for
proper operation.

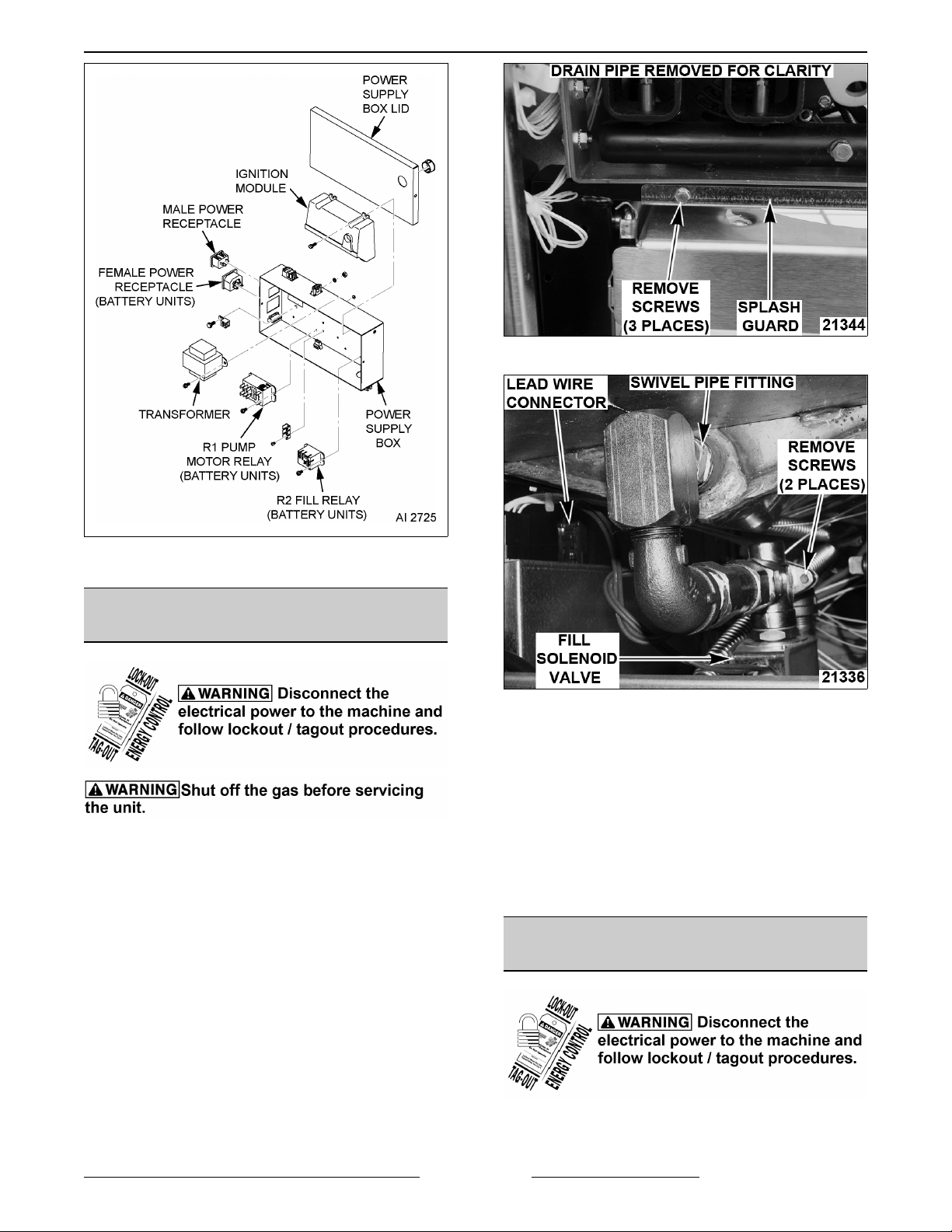

DISCARD VALVE SWITCH
(KLEENSCREEN FRYERS ONLY)
1. Open the fryer section doors above filter pan.
F25377 (March 2010)Page 5 of 36

GRA SERIES GAS FRYERS - REMOVAL AND REPLACEMENT OF PARTS
2. Pull filter drawer out, remove filter tank
assembly and push the tank support arms back
into place under the fryer.
3. Remove splash guard from base frame.
4. From underneath the fryer:
A. Disconnect the discard valve switch lead
wire connector from power supply box.
B. Remove switch mounting screws.
5. Reverse procedure to install and check for
proper operation.

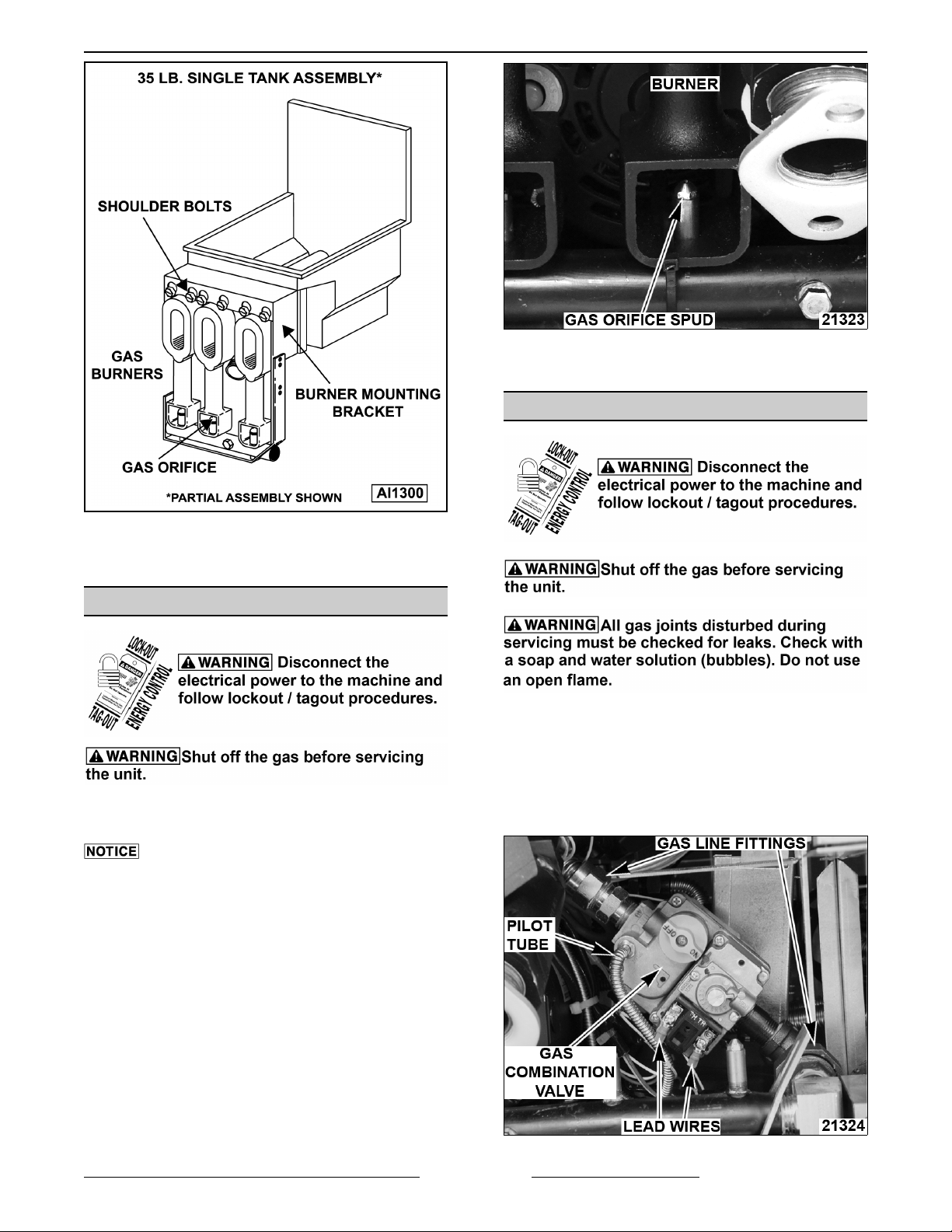

GAS BURNERS
1. Open the door to the fryer section being
serviced.
2. Remove cooking controls to access burner(s) if
necessary.
3. Remove drain pipe to access burner(s) if
necessary.
4. Remove gas burner shipping ties (if installed).
5. Lift gas burner up and tilt the top of burner
toward fryer tank until it clears the gas orifice at
the bottom.
NOTE: The burners mount to the burner mounting
bracket by shoulder bolts that rest in the keyway slot.
F25377 (March 2010) Page 6 of 36

GRA SERIES GAS FRYERS - REMOVAL AND REPLACEMENT OF PARTS
6. Remove burner.
7. Reverse procedure to install and check for
proper operation.
GAS ORIFICE
1. Remove gas orifice spud from orifice extension.
The spud screws into orifice extension.
When installing, do not over tighten the spud or
damage to the threads may occur.
2. Reverse procedure to install and check for
proper operation.
GAS COMBINATION VALVE
NOTE: If a gas combination valve is malfunctioning,
do not attempt to disassemble the valve for repair.
Install a replacement gas combination valve.
1. Remove GAS BURNERS.
2. Disconnect lead wires from gas combination
valve.
F25377 (March 2010)Page 7 of 36

GRA SERIES GAS FRYERS - REMOVAL AND REPLACEMENT OF PARTS
GAS PILOT FOR ELECTRONIC IGNITION SHOWN
3. Disconnect pilot tube from gas combination
valve.
4. Disconnect gas line fittings then remove gas
combination valve.
A. Remove gas line fittings from gas
combination valve and install (in same
orientation) on the replacement valve.
5. Reverse procedure to install and check for
proper operation.
A. Clean the pipe threads and apply pipe joint
compound to threads. Any pipe joint
compound used must be resistant to the
action of propane gases.
GAS PILOT
1. Remove GAS BURNERS as necessary.
2. Remove pilot burner assembly and bracket from
pilot bracket stand-off on the fry tank.
3. Remove wire tie and disconnect ignitor cable
from ignitor/flame sense electrode on the gas
pilot.
4. Disconnect pilot tube from gas pilot.
5. Remove screws (2) securing gas pilot to
mounting bracket.
A. To remove gas orifice from pilot for
inspection or cleaning, disconnect the gas
orifice fitting from pilot body.
B. If orifice is clogged with debris, clean with
air or liquid only.
6. Reverse procedure to install and check for
proper operation.
A. Secure ignitor to pilot tube with wire tie.
F25377 (March 2010) Page 8 of 36

GRA SERIES GAS FRYERS - REMOVAL AND REPLACEMENT OF PARTS
TEMPERATURE PROBE
Do not sharply bend and kink, or clamp
down on the capillary tube or damage may occur.
1. Drain shortening from fryer tank.

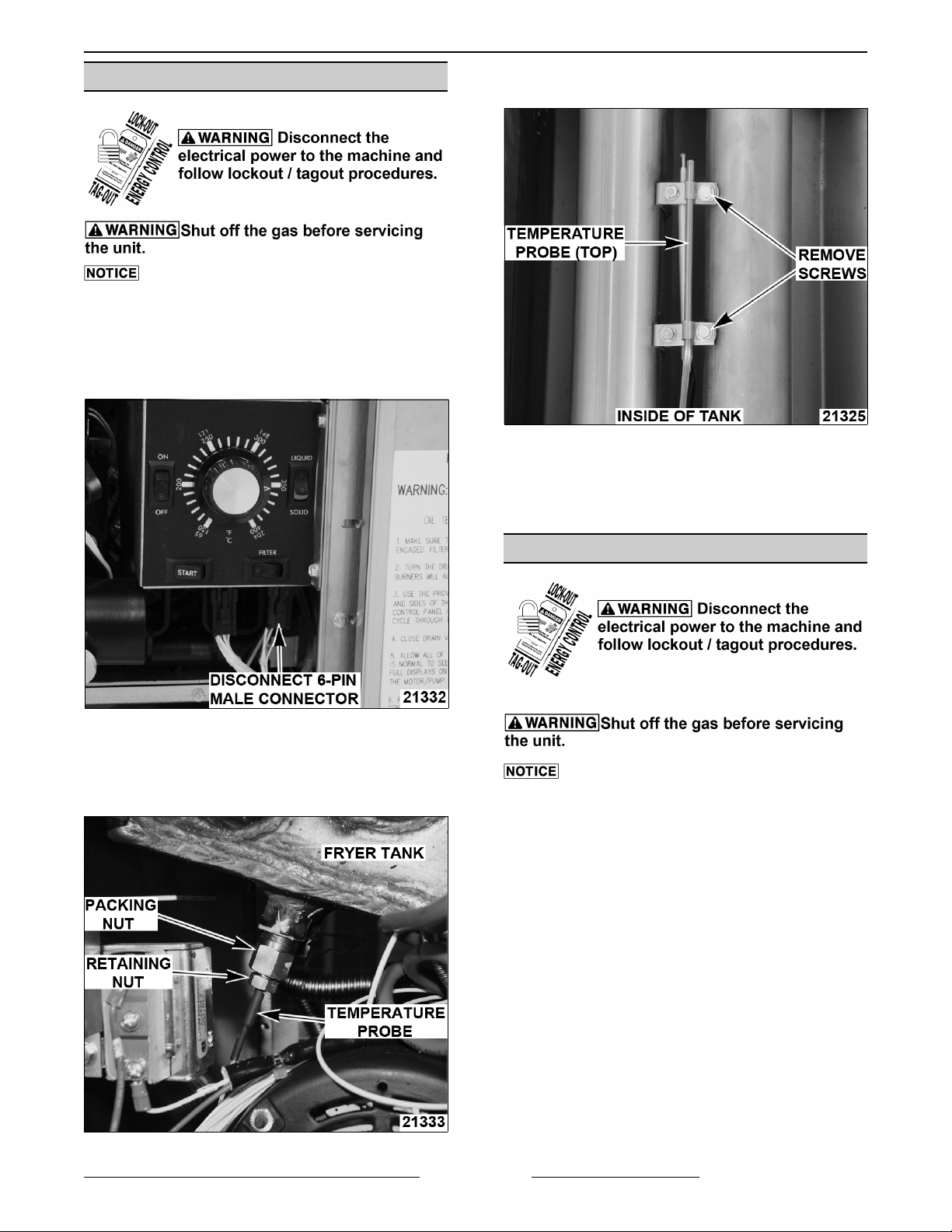

2. Disconnect smaller, 6-pin male connector.
(Temperature probe and drain valve interlock
(DVI) connector)
3. Remove the temperature probe lead wires from
pins 1 and 3 of the 6-pin male connector.
4. Remove GAS BURNERS as necessary.
5. Remove the probe retaining and packing nuts.
6. Remove screws securing probe mounting clips
and probe to the fryer heat tube (inside tank)
then remove probe.
7. Reverse procedure to install and check for
proper operation.
8. Check COOKING CONTROL CALIBRATION
under SERVICE PROCEDURES AND
ADJUSTMENTS.
HIGH LIMIT THERMOSTAT
Do not sharply bend and kink, or clamp
down on the capillary tube or damage may occur.
1. Drain shortening from fryer tank.
2. Remove GAS BURNERS as necessary.
3. Disconnect lead wires from high limit
thermostat.
F25377 (March 2010)Page 9 of 36

GRA SERIES GAS FRYERS - REMOVAL AND REPLACEMENT OF PARTS
4. Remove screws securing the high limit to
mounting bracket.
5. Remove the capillary tube retaining and packing
nuts.
6. Remove screws securing mounting clips and
capillary tube to the fryer heat tube (inside tank)
then remove capillary tube.
7. Reverse procedure to install.
POWER SUPPLY BOX
COMPONENTS
NOTE: The power supply box must be removed to
access the following components: Ignition control
module, transformer, R1 pump motor relay, R2 fill
relay.
1. Disconnect all wiring harness connectors and
power cords from power supply box.
2. From rear, remove screw securing power
supply box to mounting bracket.
NOTE: Power supply box is slotted at the front and
secured by a hanging bracket (loose fit).
3. Remove cover from power supply box.
4. Disconnect lead wires from the component
being replaced then remove from power supply
box.
F25377 (March 2010) Page 10 of 36

GRA SERIES GAS FRYERS - REMOVAL AND REPLACEMENT OF PARTS
5. Reverse procedure to install and check for
proper operation.
FILL SOLENOID VALVE
(KLEENSCREEN FRYERS ONLY)
1. Open the fryer section doors above filter pan.
2. Pull filter drawer out, remove filter tank
assembly and push the tank support arms back
into place under the fryer.
3. Remove splash guard.
4. Disconnect swivel pipe fitting at rear of fry tank.
5. Disconnect fill solenoid valve lead wire
connector (4 pin) from power supply box.
6. Remove screws (2) securing the solenoid valve
body flange to pipe tee then remove the
assembly from fryer.
A. Remove pipe fittings from solenoid valve
and install on replacement valve.
7. Reverse procedure to install and check for
proper operation.
PUMP AND MOTOR
(KLEENSCREEN FRYERS ONLY)
1. Drain filter tank of shortening.
REAR VIEW SHOWN
F25377 (March 2010)Page 11 of 36

GRA SERIES GAS FRYERS - REMOVAL AND REPLACEMENT OF PARTS
2. Open the fryer section doors above the filter
tank drawer.
3. Pull filter drawer out, remove filter tank
assembly and push the tank support arms back
into place under the fryer.
4. Remove splash guard from base frame.
5. Disconnect pump motor lead wire connector.
6. From underneath the fryer:
A. Disconnect flexible line fittings from pump.
7. Remove pump motor assembly from fryer.
A. Remove pipe fittings from the pump and
install on replacement pump.
8. Reverse procedure to install and check for
proper operation.
FRY TANK ASSEMBLY
1. Drain shortening from fryer tank.
2. Disconnect the gas supply line to allow access
to fryer from all sides.
3. Remove fryer baskets, crumb screen and
basket hanger.
NOTE: If the fryer is a battery section, remove
grease strip and split the silicone seal between the
fryer section tanks with a utility knife.

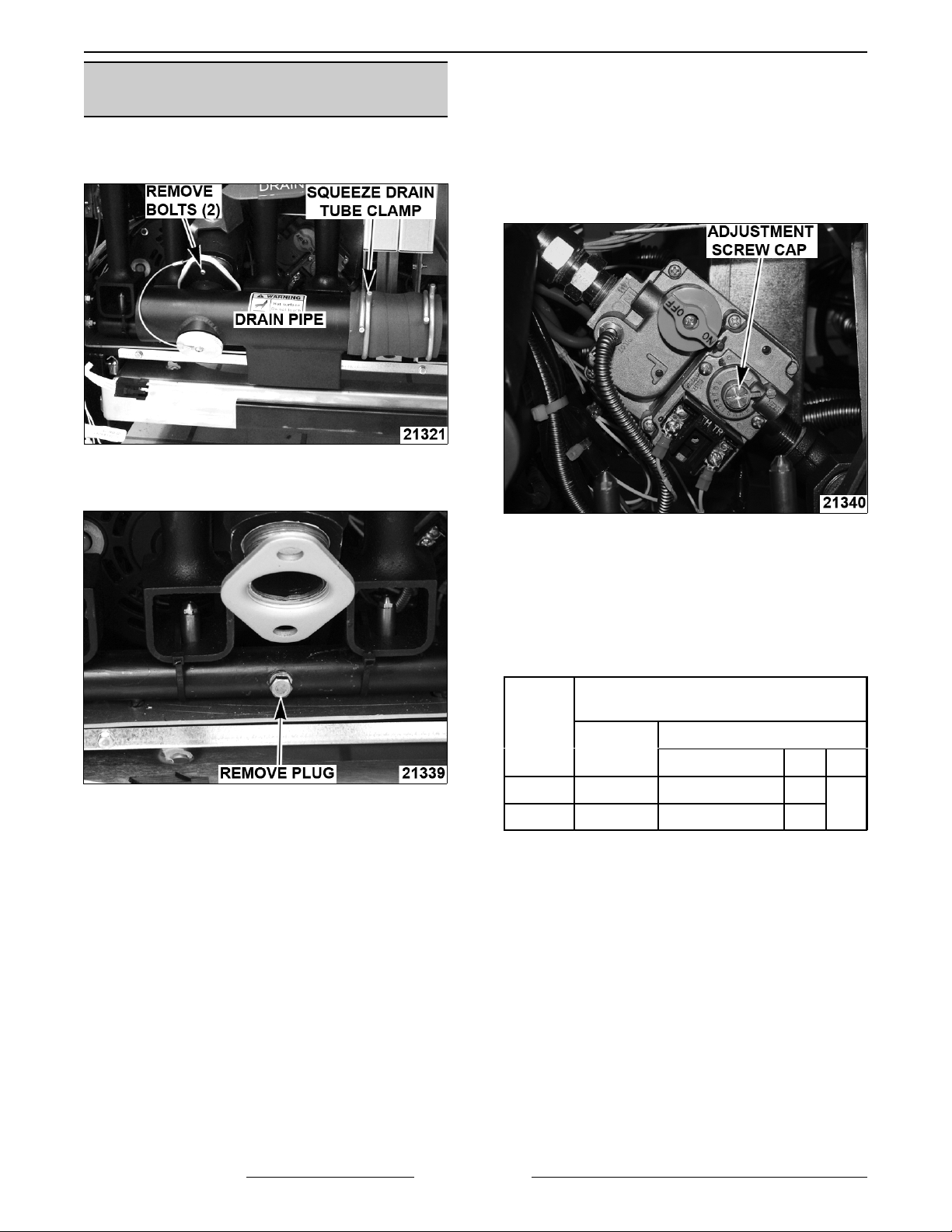

4. On battery fryer sections only, remove bolts
securing the drain pipe flange to the manual
drain valve.
5. Disconnect temperature probe and drain valve
interlock switch (DVI) connector (6 pin).
F25377 (March 2010) Page 12 of 36

GRA SERIES GAS FRYERS - REMOVAL AND REPLACEMENT OF PARTS
6. Remove POWER SUPPLY BOX.
7. On battery fryer sections only, remove splash
guard from base frame.
8. Remove gas manifold and frame assembly from
the fryer<s base frame:
A. Remove gas burners as necessary.
B. For the fryer sections above the filter
drawer assembly on battery fryers or single
floor model fryers, remove mounting nuts
securing gas manifold and frame assembly
to the fryer’s base frame.
C. For all other fryer sections in a battery only,
remove mounting nuts securing gas
manifold and frame assembly to the V
shaped frame support bracket.
9. Disconnect swivel fitting from fry tank at the rear
(shortening line inlet to fry tank).
10. Disconnect flexible gas line fitting at manual
shutoff valve (gas supply inlet to valve).
11. Remove screws securing the top of fry tank to
the flue wrap.
NOTE: Remove wire ties securing lead wires and
wiring harnesses as necessary before removing fry
tank; and when removing components from fry tank
for reuse.
12. Grasp the fry tank at the top (by flue) and front
lip, then lift fry tank assembly from the fryer
body. Place the assembly on floor or table for
removal of components.
13. Remove GAS PILOT.
14. Remove TEMPERATURE PROBE.
15. Remove HIGH LIMIT THERMOSTAT.
16. On battery fryer sections only, when removing
fry tank from sections with the mechanical
discard valve:
A. Loosen u-bolt securing discard pipe with
male quick disconnect fitting to the
mounting bracket.
B. Remove pipe from elbow on mechanical
discard valve.
17. Remove bolts securing gas manifold and frame
assembly to the fry tank.
18. Pull the gas manifold assembly from fry tank.
19. Disconnect drain valve interlock switch (DVI)
connector (2 pin) and remove manual drain
valve.
20. Remove screws securing flue box to fry tank
then remove flue box.
21. Reverse procedure to install all the parts
removed from original fry tank onto replacement
fry tank, then install the assembly.
F25377 (March 2010)Page 13 of 36

GRA SERIES GAS FRYERS - SERVICE PROCEDURES AND ADJUSTMENTS
SERVICE PROCEDURES AND ADJUSTMENTS
TEMPERATURE PROBE TEST
The temperature probe is an RTD (resistance
temperature detector) of the thermistor type. As
temperature increases the resistance value
decreases.
Probe Fault
If a temperature probe fault occurs, red diagnostic
LED on back of control assembly (inside control box
cover) will flash. The heat demand outputs are
de-activated.
This will continue until the fault clears, power is
cycled or problem resolved.
A temperature probe fault can be caused by a lead
break or a lead short.
To Check:
1. Turn power switch off.

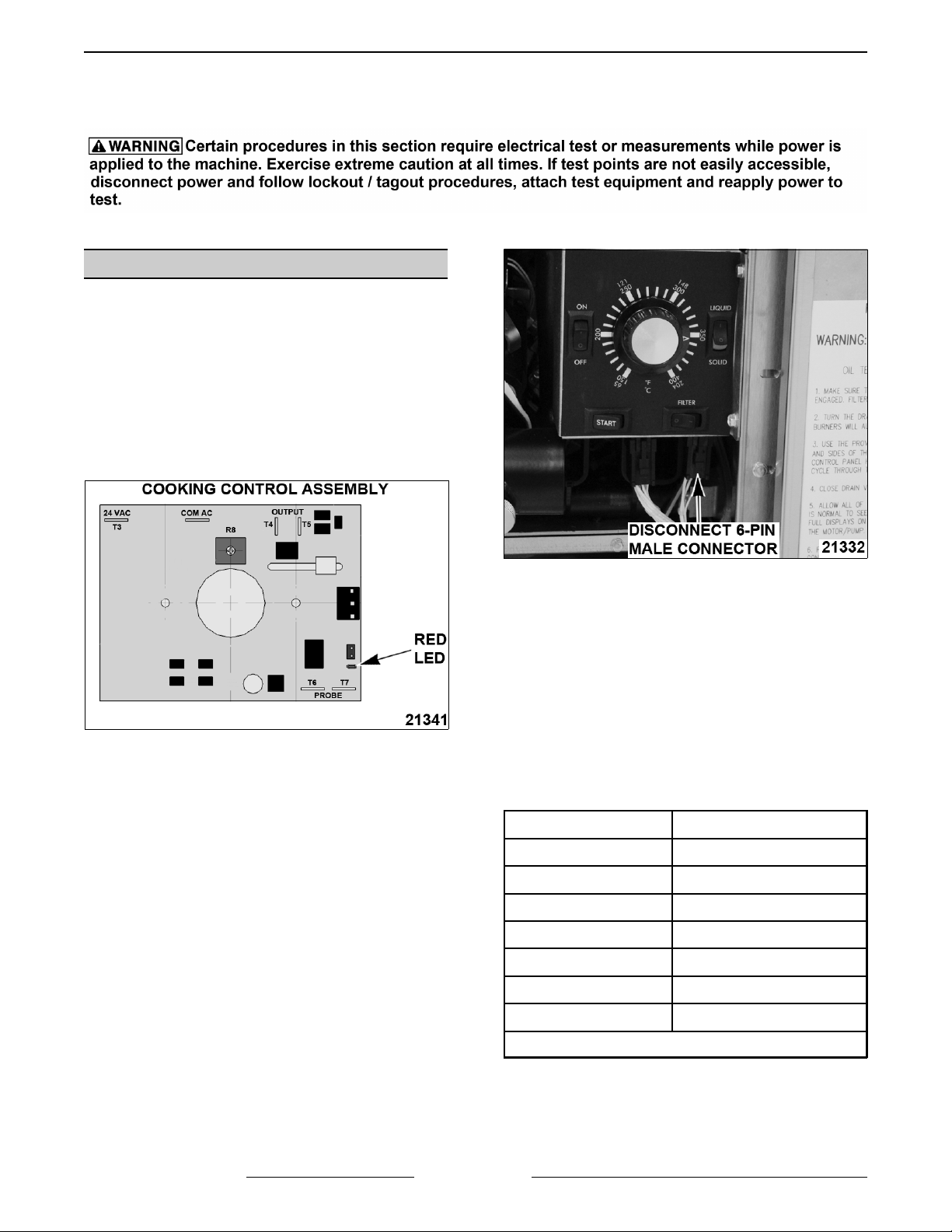

2. Disconnect the temperature probe & the drain
valve interlock (DVI) connector.
3. Test the probe using a VOM to measure
resistance. Connect the meter leads to pins 1 &
3 on the male connector.
A. If the measured resistance values are
within the allowable range, the probe is
functioning properly. Reverse procedure to
install.
B. If the measured resistance values are
outside the allowable range, install a
replacement probe and check for proper
operation.
Temperature (ºF) Resistance (Ω)
32 315,915 - 386,119
77 90,000 - 110,000
212 5,016 - 6,130
275 1,804 - 2,204
300 1,254 - 1,534
350 604 - 836
460 1191 - 233
NOTE: 1. Shorted probe equivalent temperature.
F25377 (March 2010) Page 14 of 36

GRA SERIES GAS FRYERS - SERVICE PROCEDURES AND ADJUSTMENTS
COOKING CONTROL
CALIBRATION
NOTE: Verify condition of temperature probe as
outlined under TEMPERATURE PROBE TEST
before proceeding.
1. Check the level of shortening in fry tank. The
level must be between the MIN & MAX fill lines
before proceeding.
2. Allow shortening to cool below 300EF.
3. Place a thermocouple in the geometric center of
the fry tank one inch below the shortening
surface.
4. Set the cooking control to 350EF and turn the
fryer on.
5. Monitor the burners as they cycle on and off.
NOTE: Agitate the shortening, to eliminate any cold
zones.
A. Allow burners to cycle three times to
stabilize shortening temperature.
B. Record meter reading from thermocouple
when the burners cycle off and on for at
least two complete heating cycles.
6. Calculate the average temperature by adding
the temperature reading when the burners go
out to the temperature reading when the
burners come on & divide this answer by 2.
[ Temp. (Burners off) + Temp. (Burners on) ] ÷ 2 = Average
Temp.
Example: 360° + 340° ÷ 2 = 350°F.
The average temperature should be
350EF (± 5EF).
A. If the average temperature reading is
within tolerance, cooking control is properly
calibrated.
B. If the average temperature reading is out of

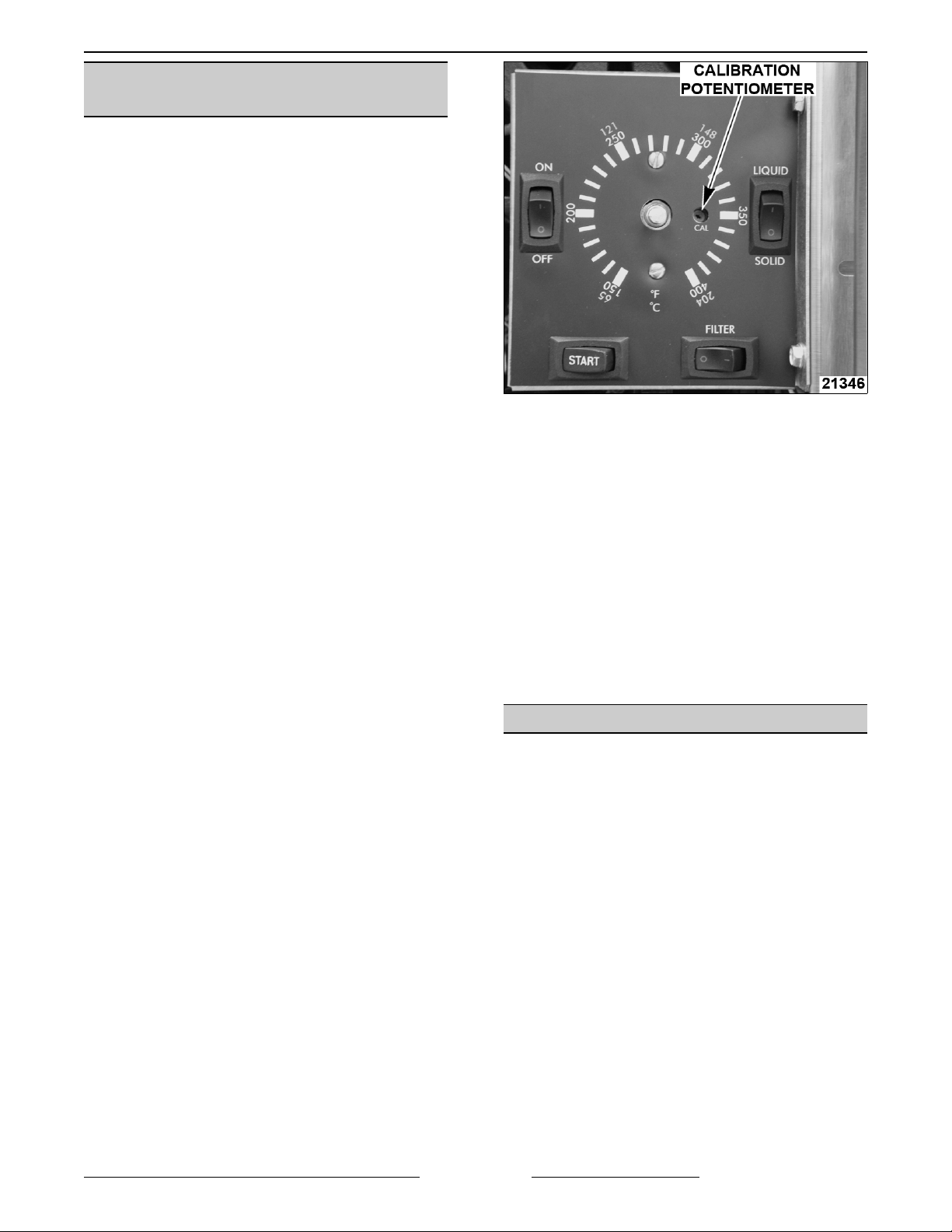

tolerance, loosen set screw to remove
temperature knob and adjust calibration
potentiometer.
1) Adjust calibration potentiometer
clockwise to increase temperature,
and counterclockwise to decrease
temperature.
a. If over 25Eof adjustment is
necessary, replace cooking
control.
7. Repeat the average temperature calculation for
up to three attempts. Allow the cooking control
to cycle at least two times between adjustments
before performing the calculation.
8. If calibration is unsuccessful, the cooking
control may be malfunctioning and cannot be
adjusted properly. Install a replacement cooking
control and check calibration.
ELECTRONIC IGNITION SYSTEM
Operation
When the main power switch is turned on the ignition
control module is energized with 24 volts between
terminals 5 and 6.
An output of 24 volts is sent from terminals 2 and 3
to the pilot coil on the combination valve, allowing
gas flow to the pilot; and spark voltage is sent from
SPARK terminal to begin sparking at the
ignitor/flame sense electrode. The sparking will
continue until an adequate pilot flame is sensed or
for a maximum of 90 seconds.
If pilot is not established within the 90 second ignition
trial time, the ignition module locks out power to the
gas valve. Controls will be disabled.
The system remains locked out until the power
switch is cycled to reset the system and re-start the
ignition trial cycle.
Once the pilot flame is confirmed, a 24 volt output
from terminal 1 will provide the ignition status input
signal to the cooking control. When the cooking
F25377 (March 2010)Page 15 of 36

GRA SERIES GAS FRYERS - SERVICE PROCEDURES AND ADJUSTMENTS
control calls for heat, the heat output is activated and
the main valve coil on the combination valve is then
energized, allowing gas flow to the burners.
Terminal Description
1
MV (main voltage) - 24VAC output
will be present, providing the
ignitor/flame sense electrode is
sensing an adequate pilot fame.
2 MV/PV (common).
3
PV (pilot voltage) - 24VAC output
will be present after the ignition
module is powered. The voltage will
remain present, providing an
adequate pilot flame is sensed. If the
pilot flame is not sensed within the
ignition trial time, the ignition module
locks out which removes the output
voltage.
4 Burner ground.
5 24VAC ground.
6 24VAC hot (input).
FLAME SENSE CURRENT
CHECK
1. Turn the power switch OFF.
2. Access the ignition control module in the power
supply box and locate the EnviraCom™ port.
3. Connect the QuickLook™ 72 meter to the
EnviraCom™ port. Turn power switch ON.
4. Meter reading should be above 1.0 micro amp
(minimum) and steady.
A. If reading is greater than or equal to the
value given, then flame sense current is
within tolerance.
NOTE: Yellow Flame LED next to port should show
continuous 1/2 second on-1/2 second off heartbeat.
B. If reading is less than the value given,
perform ELECTRONIC IGNITION
CONTROL TEST.
ELECTRONIC IGNITION
CONTROL TEST
If the ignition control module is not generating a
spark to ignite gas pilot, perform the following
checks.
1. Access the ignition control module in the power
supply box and locate the EnviraCom™ port.
2. Connect the QuickLook™ 72 meter to the
EnviraCom™ port.
F25377 (March 2010) Page 16 of 36

GRA SERIES GAS FRYERS - SERVICE PROCEDURES AND ADJUSTMENTS
ELECTRONIC IGNITION GAS PILOT SHOWN
3. Turn the power switch on and verify the ignition
control module is receiving power from the
transformer.
A. If 24VAC is present, then module is
receiving power. Turn the power switch off
and continue with procedure.
B. If 24VAC is not present then find the
source of the problem.
4. Disconnect power to the machine.
5. Verify all electrical connections on the ignition
control module are secure.
6. Verify the ground wire connections on the
ignition control module and the gas pilot
mounting bracket are clean and secure. The
gas pilot should have good metal to metal
contact to the pilot mounting bracket on the
fryer.
7. Remove the gas pilot and check the following:
A. Inspect the ceramic insulator on the
ignitor/flame sense electrode for cracks or
evidence of exposure to extreme heat,
which can permit leakage to ground. If
either of these conditions exist, then install
a replacement gas pilot.
B. Inspect the ignitor electrode and ground
clip for contaminates, or corrosion. Clean
those surfaces as necessary.
C. The gap between the ignitor/flame sense
electrode and the ground clip should be 1/8
inch. If the gap is outside of this dimension,
bend the ground clip as necessary, to
make the adjustment.
D. Check the ignitor cable connection for
tightness and damaged insulation. If the
ignitor cable appears to be damaged, then
install a replacement ignitor cable.
8. With gas pilot installed and the ignitor cable
connected, reconnect power and turn the gas
supply on.
9. Turn power switch on and observe spark from
ignitor.
A. If spark from ignitor is present and ignites
the gas for the pilot, and burners light, then
the system is working properly.
B. If gas pilot lights but does not maintain an
adequate flame during the trial for ignition
(90 sec.), check pilot orifice for clogging.
NOTE: If orifice is clogged with debris, clean with air
or water only.
C. If spark from ignitor is present but does not
ignite pilot gas before the ignition control
module locks out, there may not be enough
gas in the line for ignition.
Turn the power switch off to re-set the
module. Wait 5 minutes between ignition
tries for unburned gas to vent. Turn the
power switch on and sparking should
resume to ignite pilot. The module may
need re-set several times before ignition
takes place.
D. If ignitor is still not sparking, turn the power
switch off, disconnect power and turn the
gas supply off.
10. Install a replacement ignition control module
and check for proper operation.
F25377 (March 2010)Page 17 of 36

GRA SERIES GAS FRYERS - SERVICE PROCEDURES AND ADJUSTMENTS
GAS MANIFOLD PRESSURE
ADJUSTMENT
1. Open the door(s) and remove drain pipe.
2. To measure the manifold pressure, remove plug
and attach manometer to pressure tap in
manifold.
NOTE: Gas manifold pressure can also be
measured by removing the 1/8 inch NPT plug
(pressure tap) on the outlet side of the gas
combination valve and attaching a manometer.
3. Turn the gas supply, gas combination valve and
the main power switch to on.
A. Verify burners light.
4. Observe the manometer pressure reading and
compare to the pressure chart near the end of
this procedure.
A. If other appliances are connected to the
same gas line, turn them all on and check
manometer pressure reading again. If a
pressure drop of 1/2 inch water column or
more is observed, then the gas supply
needs to be checked by the gas line
installer or the local gas company for
adequate sizing.
B. If adjustment is necessary, continue with
procedure.
5. Remove burners as necessary.
6. Remove the adjustment screw cap to access
the pressure adjustment screw on gas
combination valve.
A. To increase pressure, turn the screw
clockwise. To decrease pressure, turn the
screw counterclockwise.
NOTE: Accurate gas pressure adjustments can only
be made with the gas on and the burner lit.
7. Set the pressure as outlined below:
GAS
TYPE
PRESSURE READINGS
(INCHES W.C.)
MANIFOLD LINE
RECOMMENDED MIN MAX
Natural 4 7 5 14
Propane 10 11 11
NOTE: If the incoming line pressure is less than the
minimum stated, then the manifold pressure can not
be set correctly.
8. Once the correct pressure has been set, turn
the power switch off, replace the adjustment
screw cap and manifold plug.
9. Install drain pipe and burners.
10. Check for proper operation.
F25377 (March 2010) Page 18 of 36

GRA SERIES GAS FRYERS - ELECTRICAL OPERATION
ELECTRICAL OPERATION
COMPONENT FUNCTION
FRYER CONTROLS
Cooking Control .............. Monitorsand evaluates input signals to the control: Activates heat output
signal to maintain shortening temperature; and activates filter output signal
to power the fill solenoid valve.
Transformer ................. Supplies 24VAC to the cooking control ignition control module. Transformer
is energized when power switch is turned on.
PowerSwitch ................ Supplies power to control circuit for fryer operation and filtering.
MeltSelectSwitch ............ Controls burner operation based on type of shortening being used (liquid/
solid).
GasCombinationValve ........ Allows gas flow to the pilot when pilot valve coil is energized; and gas flow to
the burners when main valve coil is energized. Also, regulates the gas
manifold pressure.
HighLimitThermostat ......... Prevents the shortening from reaching temperatures over 450EF (auto reset
@ 415°F, normal operation resumes when temperature falls below this
point).
TemperatureProbe ........... Senses temperature of shortening. Converts the temperature into a
resistance which is monitored by the cooking control. The probe is an RTD
(resistance temperature detector) of the Thermistor type. As temperature
increases the resistance value decreases.
Ignition Control Module ........ Controls and monitors gas pilot ignition. Energizes pilot valve coil on the
combination control valve and generates spark for pilot ignition. Monitors the
presence of a flame and supplies an ignition status input signal to the
cooking control.
Ignitor/FlameSense ........... Ignites the gas pilot and senses the presence of a flame. The flame
presence generates a micro-amp flame sense current that is rectified to the
ignition control module.
Drain Valve Interlock
Switch(DVI) ................. A magnetic reed switch mounted on the manual drain valve that supplies a
drain valve position signal (open/closed) to the cooking control. When drain
valve is open, the drain interlock input to the control is removed (magnetic
reed switch contacts open). This prevents gas burners from coming on with
the fry tank empty.
F25377 (March 2010)
Page 19 of 36

GRA SERIES GAS FRYERS - ELECTRICAL OPERATION
KLEENSCREEN FILTER CONTROLS
Fill Solenoid Valve ............ When energized by filter switch, the solenoid valve opens to allow the flow of
shortening thru filtering system.
PumpMotor ................. Operates pump to circulate shortening through filtering system.
StartSwitch.................. Supplies power to temperature control module.
FilterSwitch ................. Supplies power to pump motor thru R1 and fill solenoid valve thru R2.
Discard Valve Switch .......... A magnetic reed switch mounted on the mechanical discard valve that
closes when discard valve handle is extended to discard the shortening.
Prevents R2 filter relay N.C. contacts from suppling power to the fill solenoid
valve when filter key is pressed.
R1PumpMotorRelay ......... When 24VAC relay coil is energized by filter switch, supplies 120VAC to
pump motor; and fill solenoid valve thru R2 fill relay N.C. contacts.
R2 Fill Relay ................. When 24VAC relay coil is energized by filter switch, supplies 24VAC to the
fill solenoid valve to open the valve and allow shortening to flow thru filter
system.
F25377 (March 2010) Page 20 of 36
